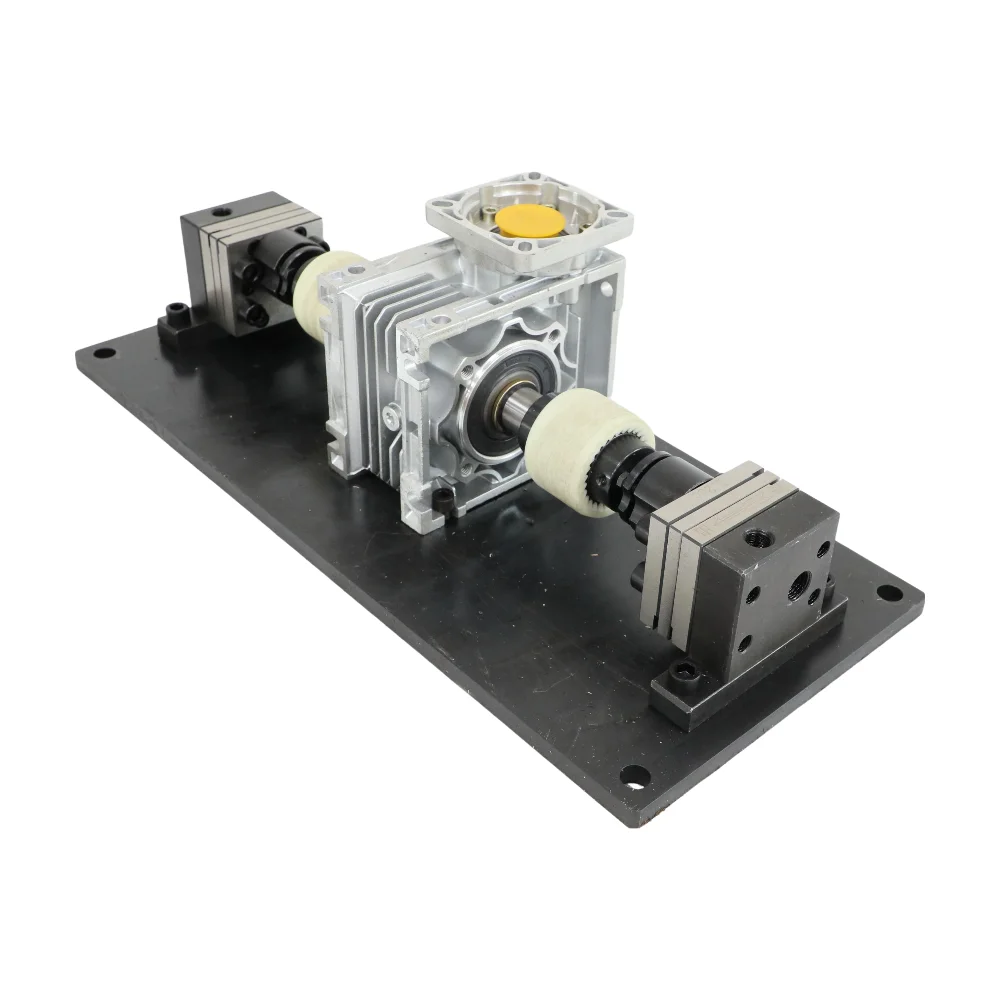

PU resin precision small quantitative fill pump corrosion and high temperature resistance polyurethane gear metering pump
PU resin precision small quantitative fill pump corrosion and high temperature resistance polyurethane gear metering pump
PU resin precision small quantitative fill pump corrosion and high temperature resistance polyurethane gear metering pump
PU resin precision small quantitative fill pump corrosion and high temperature resistance polyurethane gear metering pump
PU resin precision small quantitative fill pump corrosion and high temperature resistance polyurethane gear metering pump
PU resin precision small quantitative fill pump corrosion and high temperature resistance polyurethane gear metering pump
PU resin precision small quantitative fill pump corrosion and high temperature resistance polyurethane gear metering pump

PU resin precision small quantitative fill pump corrosion and high temperature resistance polyurethane gear metering pump

Share on (1601196749983):


Price:$170.00 - $200.00

Quantity:


Product Overview

Description







High Pressure Hydraulic Oil Gear Metering Pump Factory

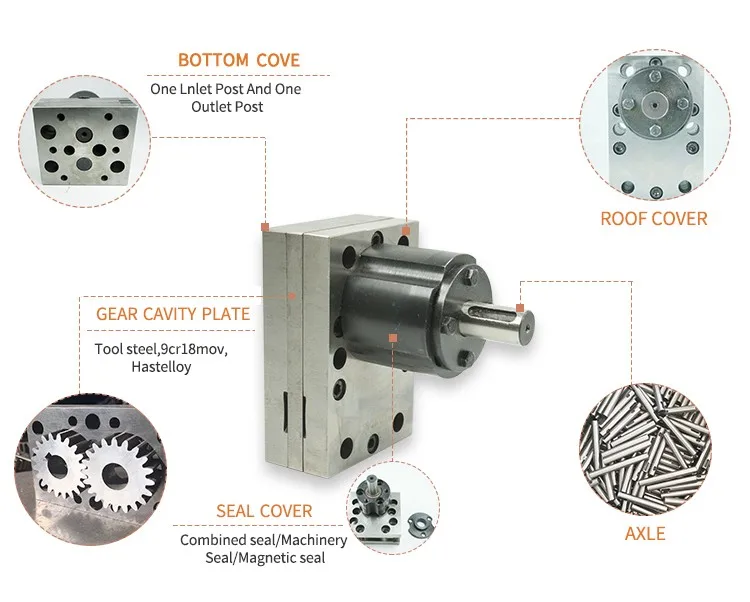

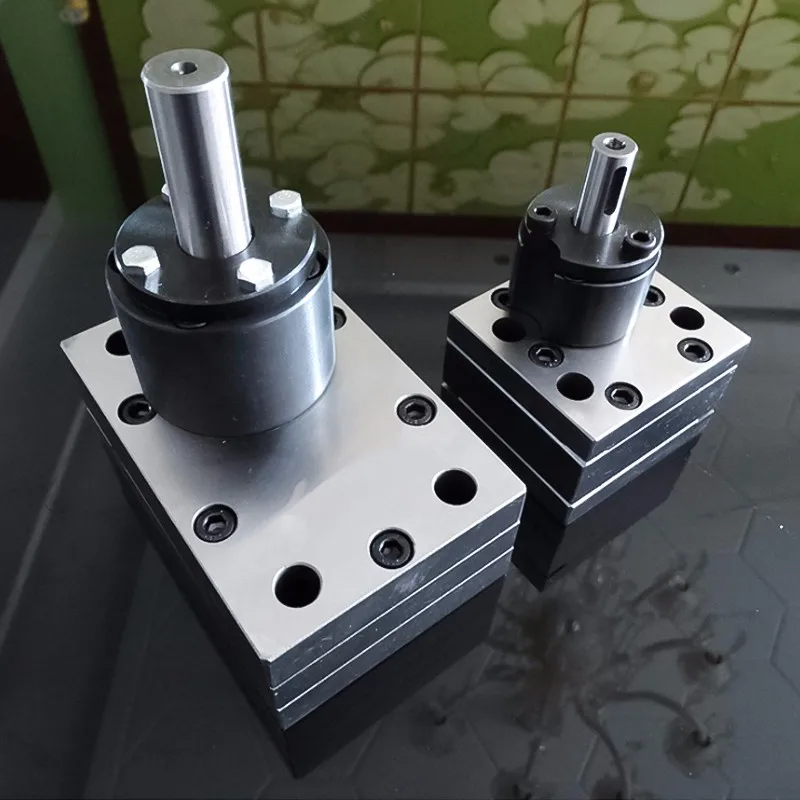

  The design utilizes high standard external spur gears enclosed within a close tolerance housing assembly. This provides you the precise volume of fluid dispensed per shaft revolution. The housing is constructed from a precision ground and lapped three-plate assembly. This assembly is aligned with dowels to allow close control of operating clearances. This construction method in combination with several proprietary internal features is what ensures precise, pulseless and reliable flow under varying process conditions.





1. High-tech enterprise, with a number of national invention patents
2. Integrates research and development, production, processing and sales, and has independent import and export rights
3.13 years of experience in instrument production and sales
4. Wide range of products, covering flow, liquid level, gear pump, temperature, pressure instrument , etc.
5. A number of metering equipment experts and senior engineers with high technical level
6. Products have been sold to more than 100 countries and involved in more than 100 industries.
7. English sales team, Russian sales team, domestic sales team.
8. Provide complete set of system solutions.


Product Description






Parameters


Model
Displament
Total
Height
Base
Height
Min
Pressure
Max
Pressure
Accuracy
Temperature
GWMP-0.15
0.15
83
28.1
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-0.3
0.3
85
30.2
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-0.6
0.6
85
32
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-1.2
1.2
90
34
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-2.4
2.4
100
42
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-3.6
3.6
105
50
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-6
6
130
41
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-9
9
135
46
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-12
12
140
51
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-15
15
145
56
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-20
20
150
64
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-30
30
165
80
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-40
40
90
215
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-50
50
97
215
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-60
60
104.5
230
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-75
75
112
230
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-80
80
Customized
Customized
<0.2Mpa
<30Mpa
+/-3%
200℃
GWMP-125
125
Customized
Customized
<0.2Mpa
<30Mpa
+/-3%
200℃


Note:Direction of rotation: clockwise from the axis of rotation






Model
0.15cc
0.3cc
0.6cc
1.2cc
2.4cc
3.2cc
3.6cc
A
83
85
85
90
100
103
105
B
28.1
30.2
32
34
42
47.6
50


Model
6cc
9cc
12cc
15cc
20cc
25cc
30cc
A
130
135
140
145
150
158
165
B
41
46
51
56
64
72
80


Min inlet pressure
   <0.2Mpa
Working speed
   5~200r/min
Medium
   Fluid
Process temperature
   <200℃
Max Outlet pressure
   <30Mpa
Flow capacity
   0.15~3.6cc/r  or 6-30cc/r
Sealing
   Combined seal












Product packaging
