GT DMTG DT40 Cnc Turning Lathe Lathe Machine For Metal Cnc Turning Lathe Automatic
- Category: >>>
- Supplier: General Technology Group Dalian Machine Tool Import & Export Co. Ltd.
Share on (1601196811567):
Product Overview
Description
VR
PRODUCT DETAILS

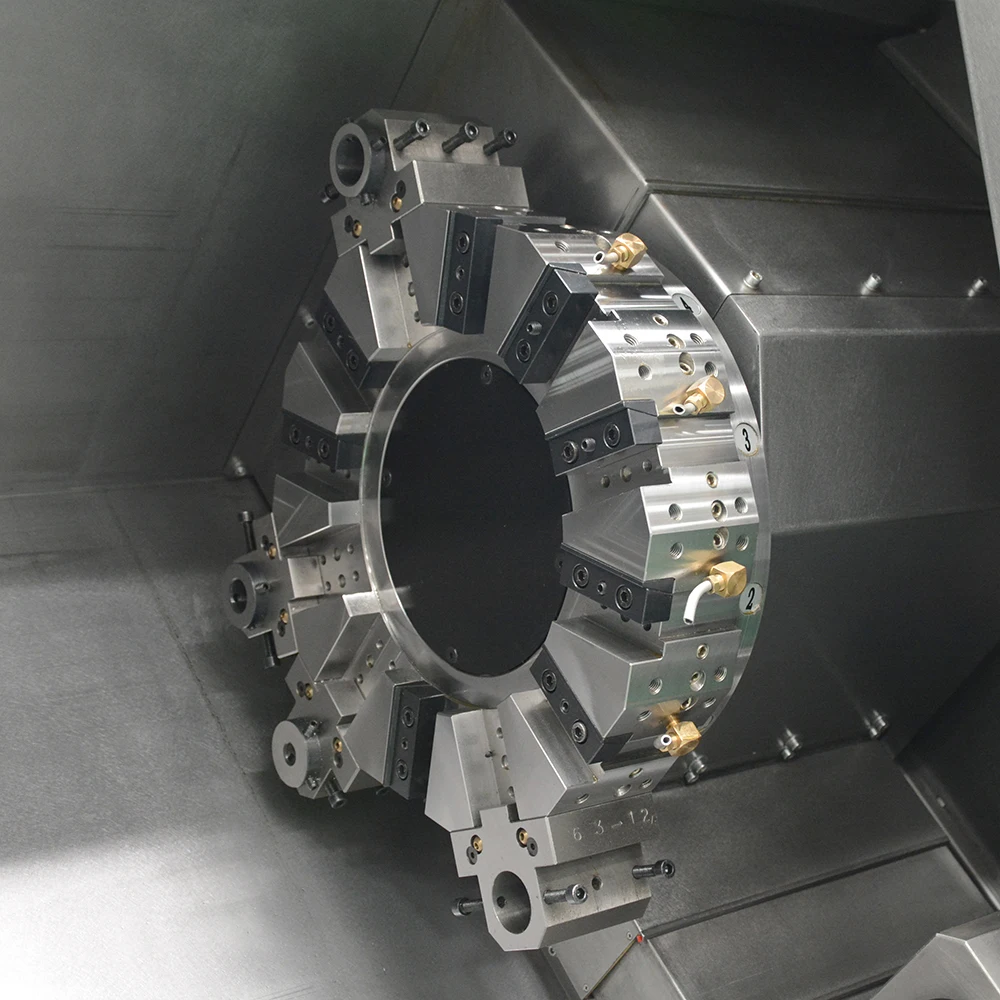

1.Hydraulic 12-position turret for DT series

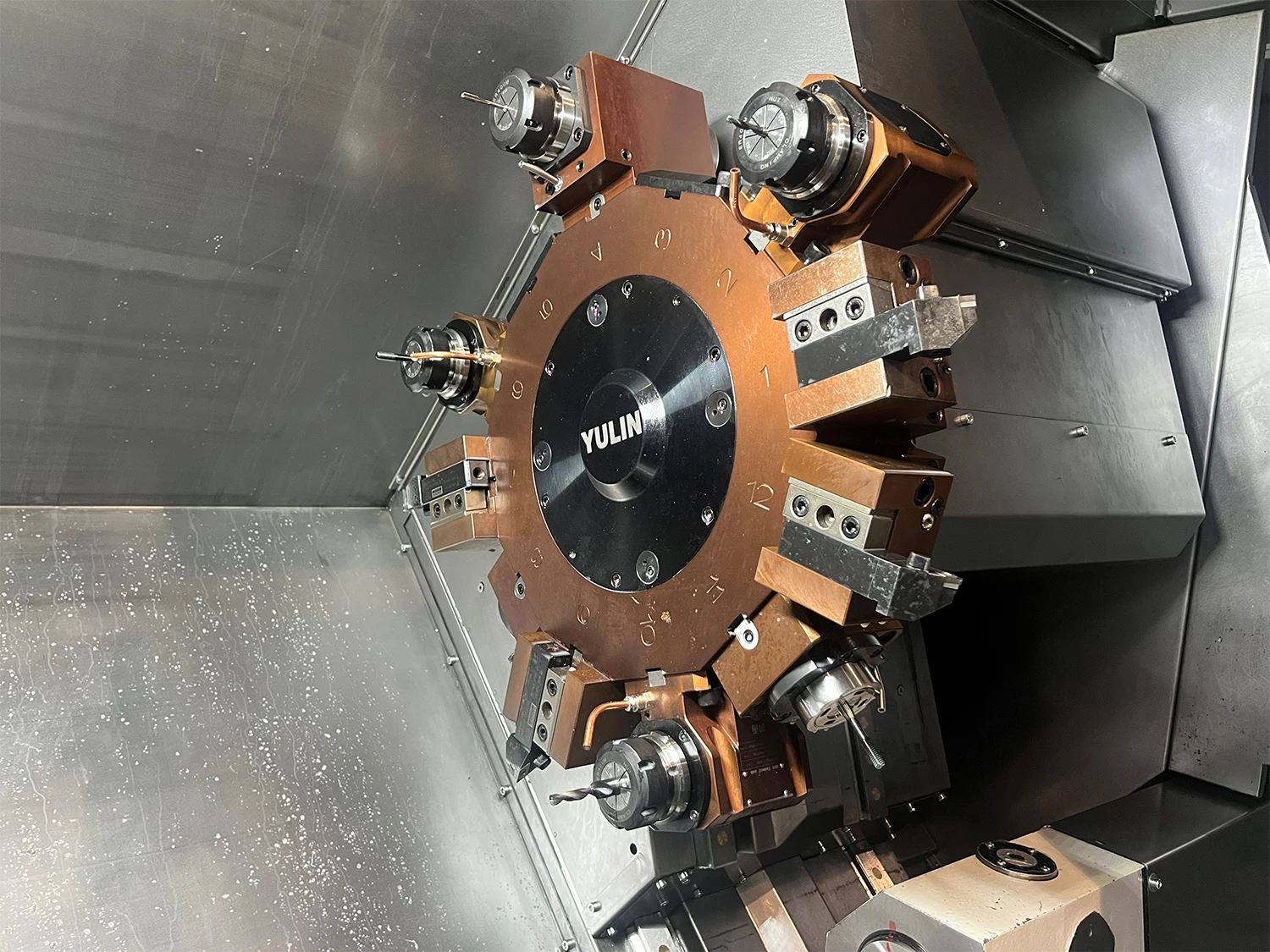

2.Domestic or Italy 12-position live tooling turret for DT-H series
3.NSK spindle bearings and X/Z axis bearings
4.X/Z THK ball screws & X/Z THK inear guideways
5.Non through-hole hydraulic chuck

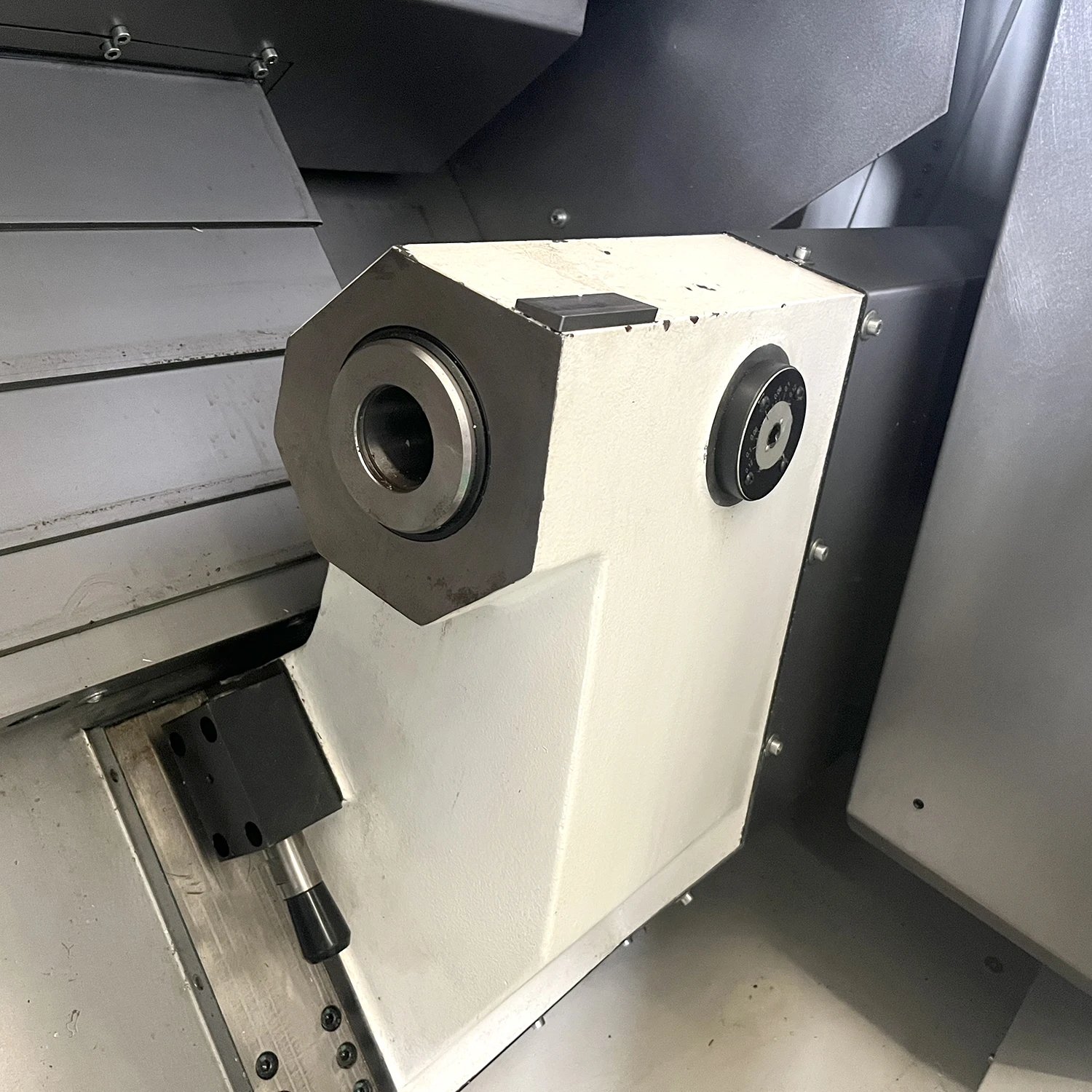

6.Hydraulic tailstock
7.Heat exchanger
8.Chain-type chip conveyor
8.Chain-type chip conveyor
9.Automatic lubrication system
10.Standard toolkit
Model | mm | DT40 | DT40H | |||||
Max. swing diameter over bed | mm | Φ580 | ||||||
Max. turning diameter (Shaft/Disc) | mm | Φ360/Φ400 | Φ350/Φ350 | |||||
Max. turning length | 585/1085 | 555/1055 | ||||||
Guideway type | Linear guideway | |||||||
Type of spindle nose | A2-6 | Opt:A2-8 | A2-6 | Opt:A2-8 | ||||
Chuck size | inch | 8 | 10 | 8 | 10 | |||
Spindle speed range | rpm | 4000 | 3500 | 4000 | 3500 | |||
Spindle bore | mm | Φ70 | Φ87 | Φ70 | Φ63 | |||
Max.bar capacity (Equipped with through-hole hydraulic chuck) | mm | Φ51 | Φ73 | Φ51 | Φ73 | |||
Spindle motor power | kW | 11/15 | ||||||
Max travel of X axis | mm | 215 | 215 | |||||
Max. travel of Z (Y)axis | mm | 600/1100 | 555/1055(ITALY) 445/945(CHINA) | |||||
Rapid traverse ofX/Z(Y) axis | m/min | 30/30 | ||||||
Turret type and tool numbers | Hydraulic 12-position turret | Live tooling 12-position turret | ||||||
Tool shank size | mm | 25X25 | 25X25 | |||||
Indexing time(adjacent/farthest） | s | 0.35/1.6 | 0.49/0.96(ITALY) | |||||
Diameter of tailstock quill | mm | Φ85 | ||||||
Tailstock quill stroke | mm | 140 | ||||||
X/Z(C、Y) axis positioning accuracy | mm | 0.005/0.007、0.008 | 0.005/0.007、0.008(C:31”） | |||||
X/Z(C、Y) axis repeatability accuracy | mm | 0.003/0.004、0.005 | 0.003/0.004、0.005(C:13“） | |||||
CNC Controller | FANUC 0i-TF (5) Plus, FANUC Oi-TF (1) PIUS, SIEMENS SINUMERIK 828D | |||||||
Machine dimensions(LXWXH) Without chip conveyor | mm | 2922X1900X2010(600） 3422X1900X2010(1000） | ||||||
Machine weight | kg | 5300/6300 | ||||||
