EU Stock Power Wall 48V 300Ah 200Ah 5Kwh 10Kwh Lifepo4 akku pack wall mounted home Solar Battery 51.2V 100ah for solar systems
EU Stock Power Wall 48V 300Ah 200Ah 5Kwh 10Kwh Lifepo4 akku pack wall mounted home Solar Battery 51.2V 100ah for solar systems
EU Stock Power Wall 48V 300Ah 200Ah 5Kwh 10Kwh Lifepo4 akku pack wall mounted home Solar Battery 51.2V 100ah for solar systems
EU Stock Power Wall 48V 300Ah 200Ah 5Kwh 10Kwh Lifepo4 akku pack wall mounted home Solar Battery 51.2V 100ah for solar systems
EU Stock Power Wall 48V 300Ah 200Ah 5Kwh 10Kwh Lifepo4 akku pack wall mounted home Solar Battery 51.2V 100ah for solar systems
EU Stock Power Wall 48V 300Ah 200Ah 5Kwh 10Kwh Lifepo4 akku pack wall mounted home Solar Battery 51.2V 100ah for solar systems
EU Stock Power Wall 48V 300Ah 200Ah 5Kwh 10Kwh Lifepo4 akku pack wall mounted home Solar Battery 51.2V 100ah for solar systems

EU Stock Power Wall 48V 300Ah 200Ah 5Kwh 10Kwh Lifepo4 akku pack wall mounted home Solar Battery 51.2V 100ah for solar systems

Share on (1601196830098):


Price:$325.00 - $508.00

Quantity:


Product Overview

Description





Products Description


Lithium LiFePO4 Battery 48V5KWH/48V10KWH/48V15KWH are most popular and widely used in solar storage system(Off Grid Solar System&Hybrid Solar System ). They can be connected in Parallel to store more energy.




Model
HZEB-LCT-5
HZEB-LCT-10
HZEB-LCT-15
HZEB-LCT-16
Nominal Voltage
51.2V
51.2V
51.2V
51.2V
Cell model/configuration
3.2V100Ah/16S1P
3.2V206Ah/16S1P
3.2V280Ah/16S1P
3.2V314Ah/16S1P
Capacity(Ah)
100Ah
206Ah
280Ah
314Ah
Rated Energy(kwh)
5.12kwh
10.55kwh
14.34kwh
16.076kwh
Max.Charge/Discharge Current(A)
50A/50A
100A/100A
100A/100A
100A/100A
Voltage Range(Vdc)
44.8-57.6V
Scalability
Up to 6 parallel
Communication
RS232-PC,RS485(B)-BAT RS485(A)
Cycle Life
≥6000Cycles
Design Life
≥15Years(25℃)
MECHANICAL SPECIFICATIONS
Weight(Net/gross)(KG)
58.2/65kg
96.05/102kg
122/135kg
Dimension(W/D/H)(mm)
645*440*193
620*461*284
765*461*284
Installation Mode
Wall mounted
IP Grade
IP54
SECURITY AND CERTIFICATION
Safety(Pack)
UN38.3,MSDS,IEC62619(CB),CE-EMC
Safety(Cell)
UN38.3,MSDS,IEC62619,CE,UL1973,UL2054
Protection
BMS,Breaker
ENVIRONMENTAL SPECIFICATIONS
Operating temperature(℃)
Charge 0℃_50℃;discharge -10℃_50℃
Altitude(m)
≤2000
Humidity
≤95%(Non-condensing)

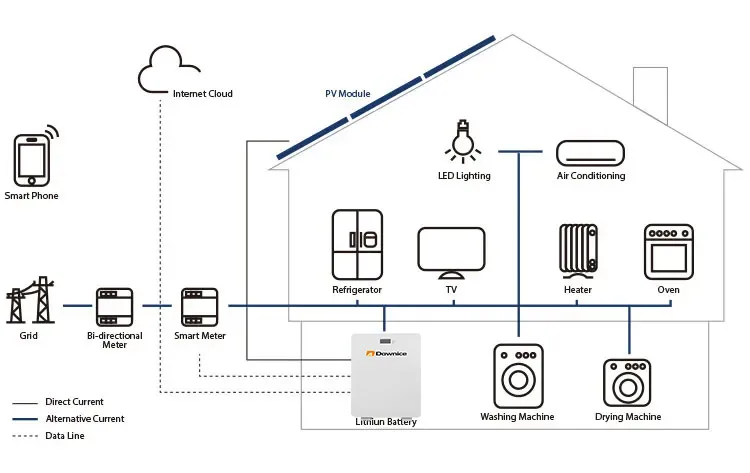

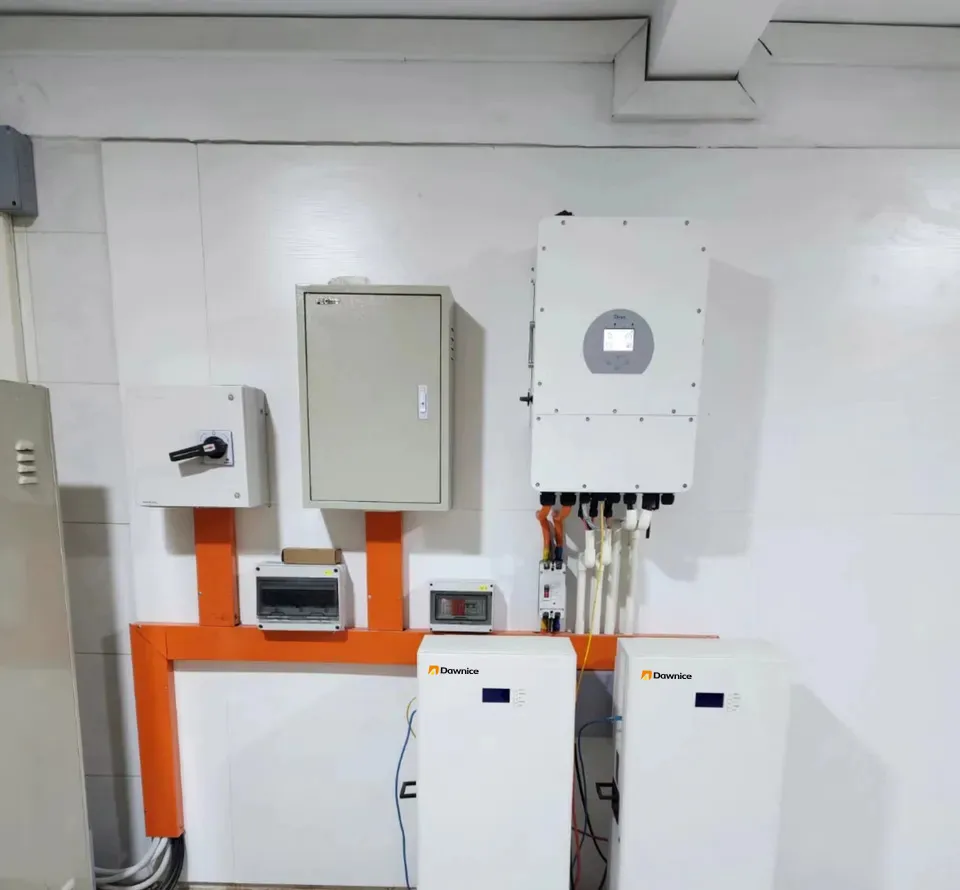

Application project

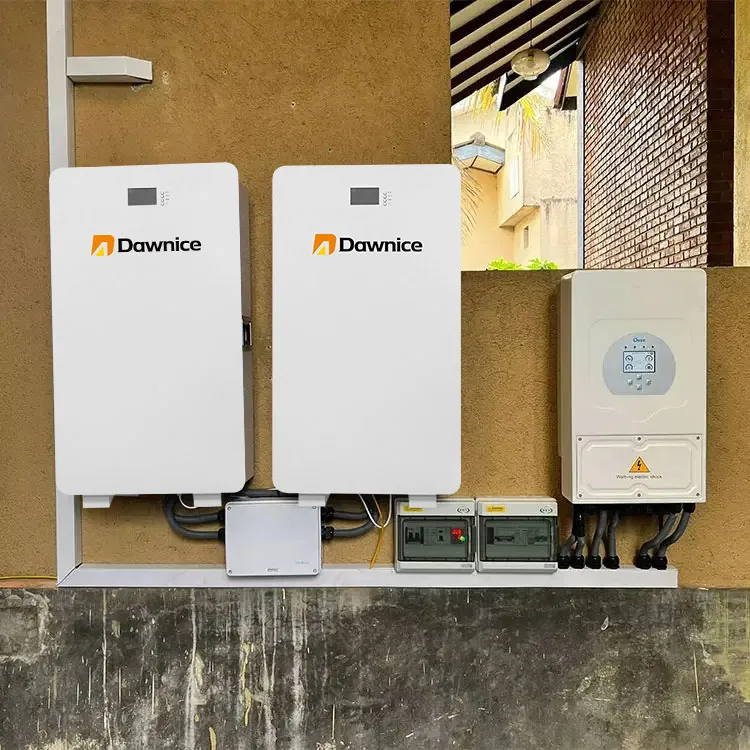

Power wall - Solar Energy Storage Batteries for Home
Power wall LiFePO4 48V 100ah 200ah 300ah Home Solar System Lithium Ion Battery 5kwh 10kwh 15KW 20kw for Solar Energy Storage

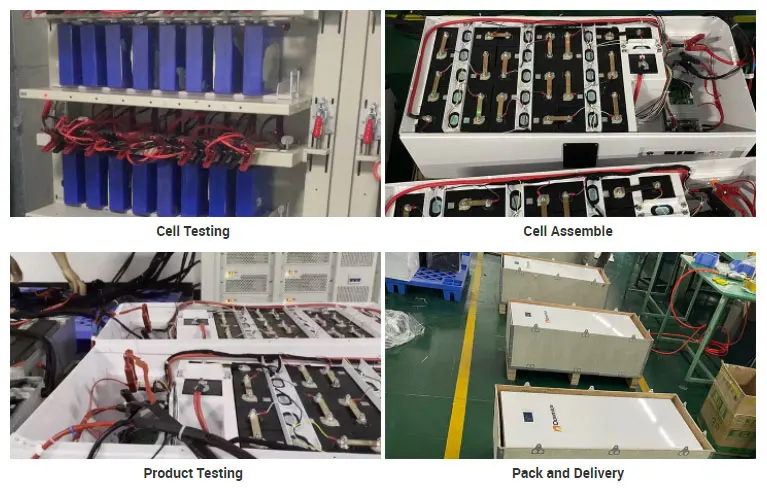

Production test

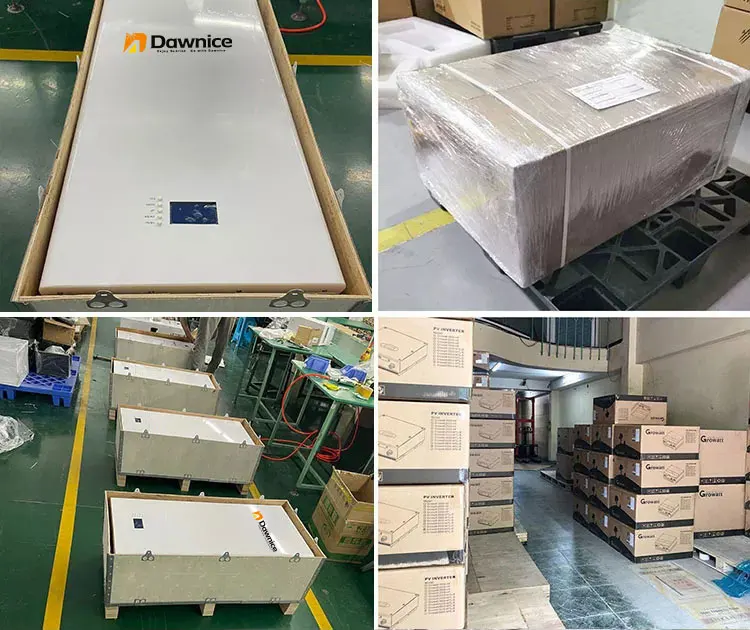

Packing & Delivery


Packing:
1. All shipping goods are 100% tested and packed very well.
2. Customized package available. Boxing packaging,carton case and wooden support or as your requirement.




FAQ


Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q3. How do you ship the goods since they are high capacity battery?
A: We have long-term cooperated forwarders who are professional at battery shipment.
Q4. How to proceed an order for lithium ion battery?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Q5. Do you offer guarantee for the products?
A: Yes, our products have a 12 months warranty period. If there is any quality problem in the process of using the product, please
feel free to contact us.
