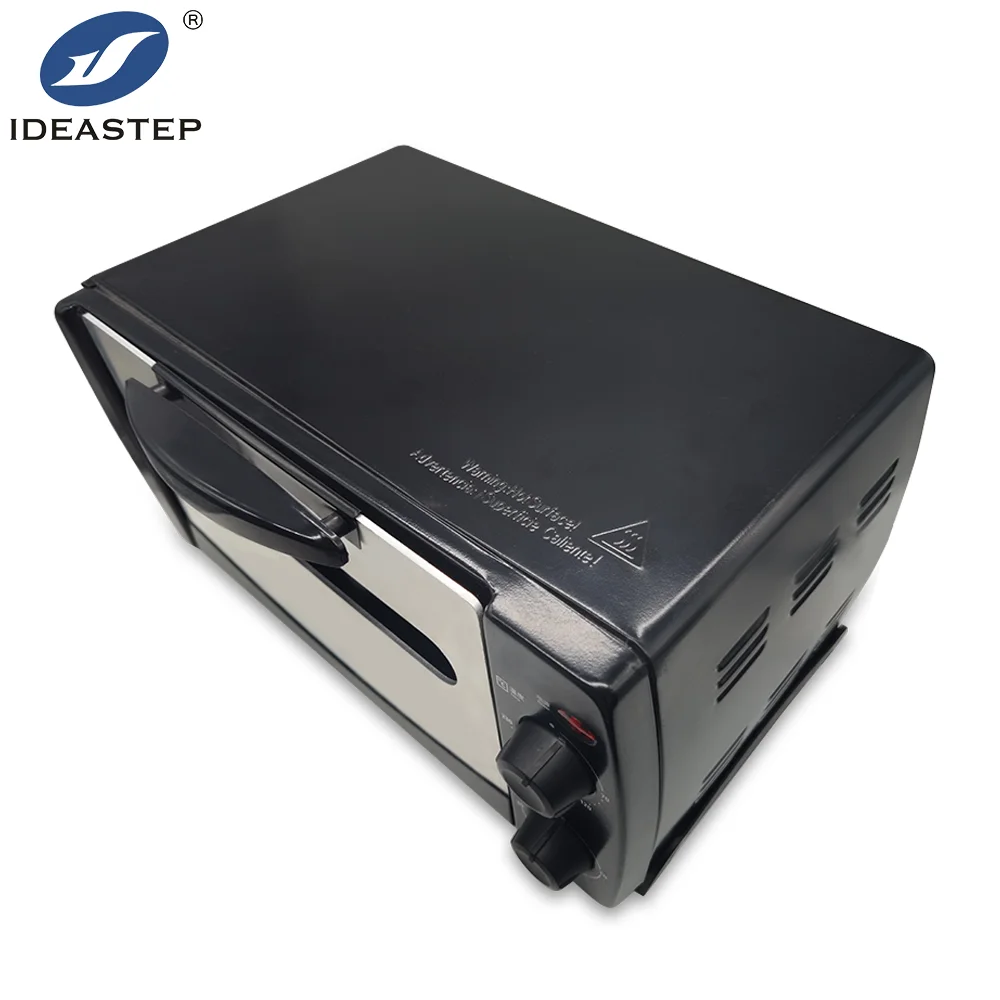

IDEASTEP EVA oven thermoplastic foot Scanning system Feet pressure mats Vacuuming Orthopedic Arch Insole components Orthotics

Customizable panels design and color

CE/FDA/PSE certification/registration

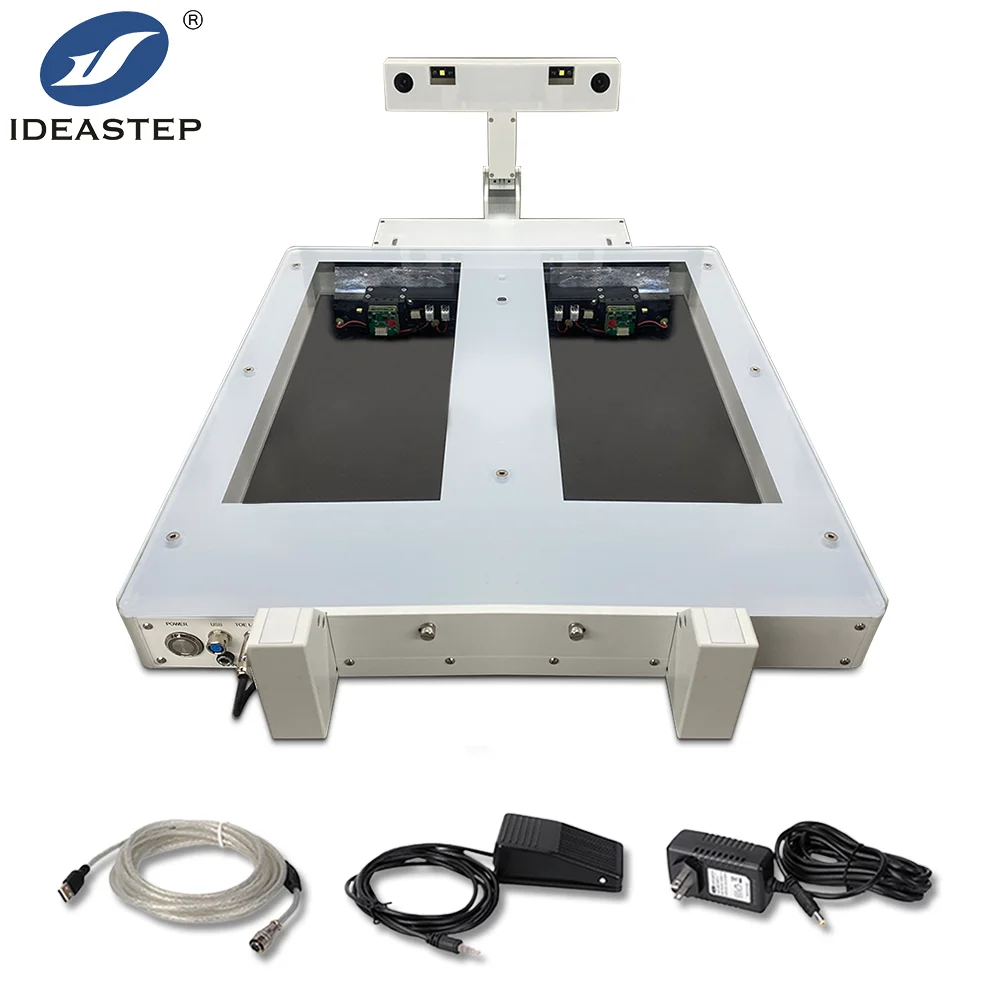

Clean 3D mesh, +/- 1.0mm accuracy

 Laser 3D Scan 2.0s one-way

Color texture 2.0s/4.9s for normal/high resolution

Heel camera has higher resolution than USOL

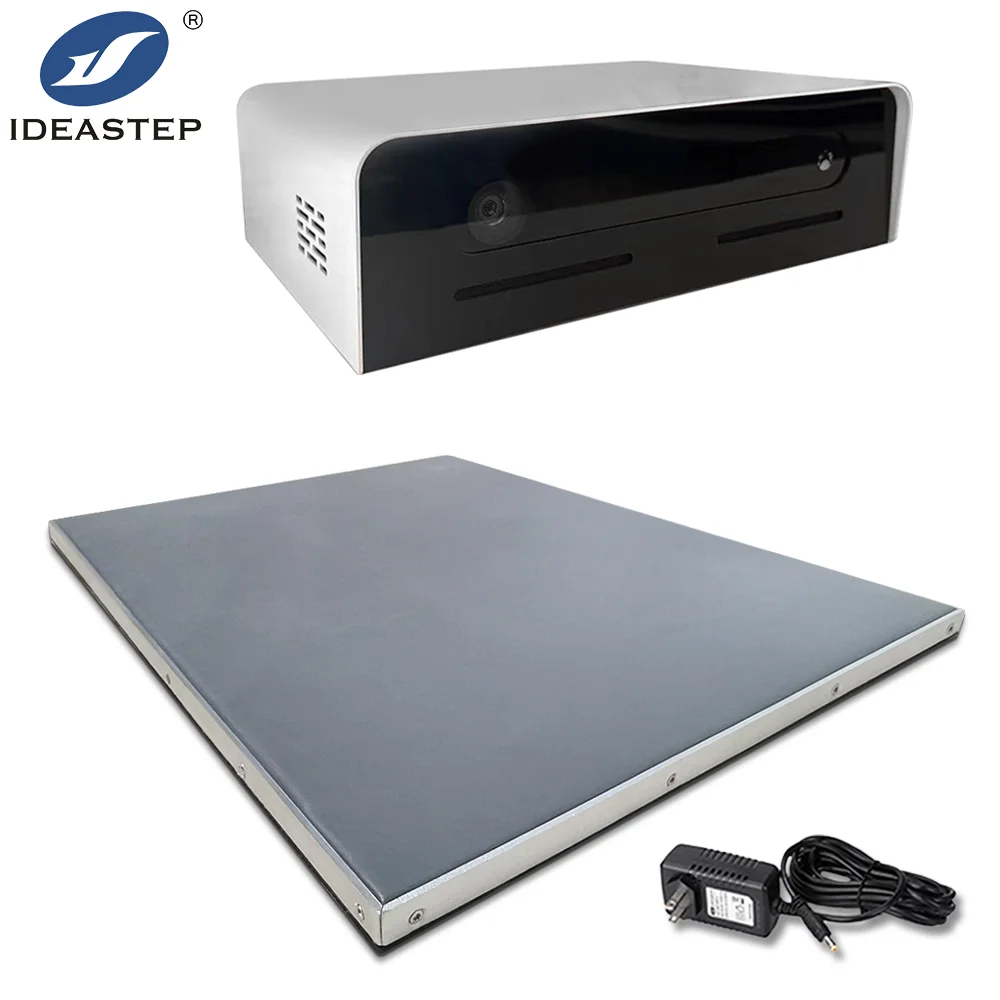

Weight

2.5Kg

Effective area

480 X 320mm

Number of sensors

96 X 64=6144

Sampling rate

up to 300 FPS

Measuring range

100N/CM2

 USB 2.0 connection to PC

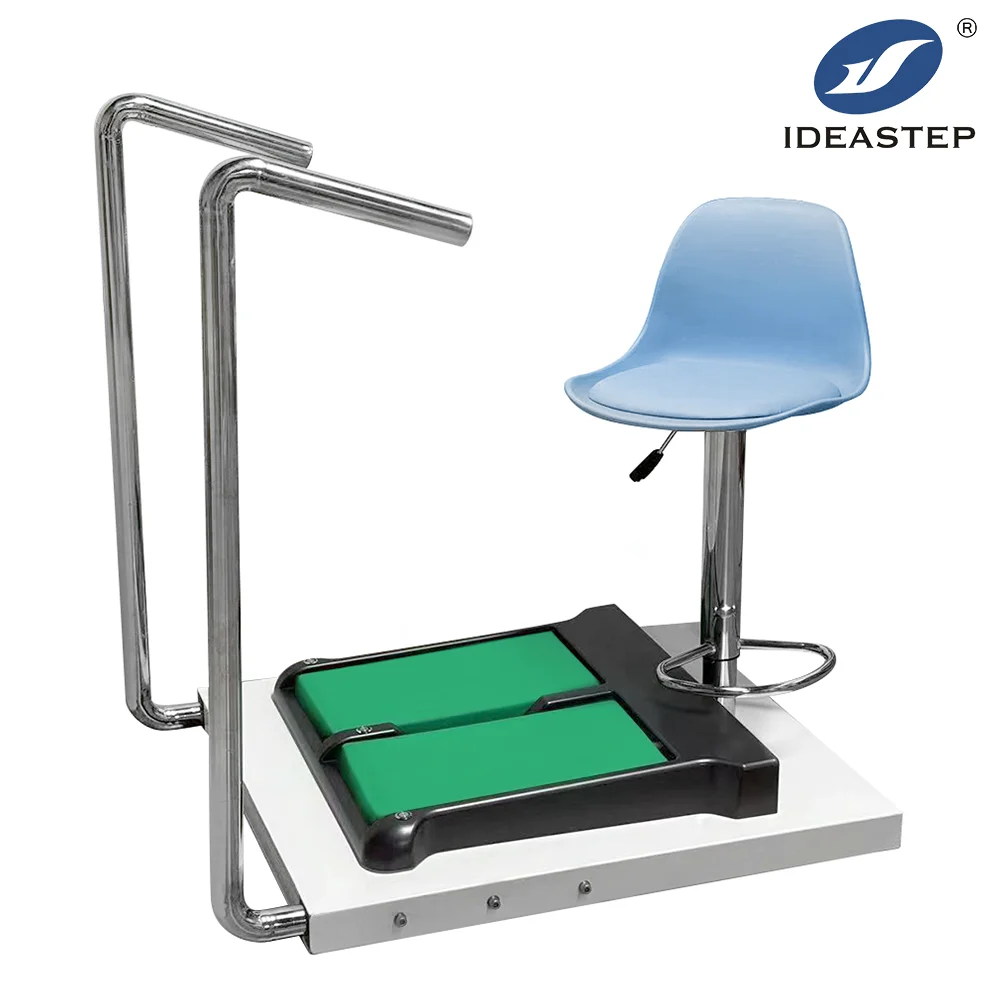

Light coding technology for obtaining 3D images

Conver 3D images to skeletons system data

●Infrared transmitters emit infrared rays, obtain 3D images through structural optical technology, and use artificial intelligence to generate 3D images to generate human skeleton systems to determine the joint coordinates of the three-dimensional space of the joint.

●Virtual exercise rehabilitation training monitoring and implementation.

 Application

Applicable scene

Size Range

Function Description

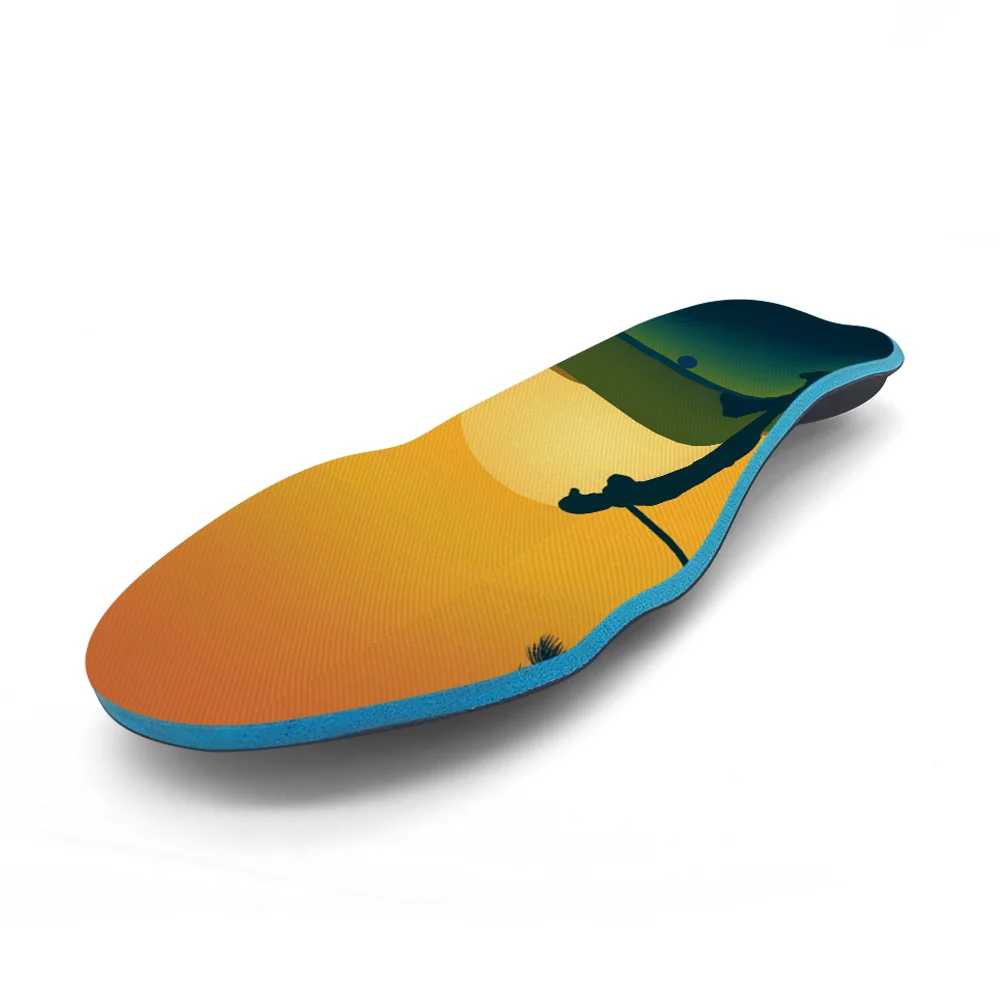

Medical Posture Orthotic Thermoplastic Customized Foot Pad (Standard version)

All groups

25-46#

The standard brand thermoplastic insole is suitable for almost all sports shoes. The insole is combined with high-resilience comfortable and breathable materials to maximize comfort. It is suitable for all daily walking and basic sports. It is suitable for foot problems after walking and exercising. It is especially suitable for people who are sensitive to severe pressure pain.

Medical Posture Orthotic Thermoplastic Customized Foot Pad (Standard version)

All groups

39-46#

The standard sports thermoplastic insole is suitable for almost all sports shoes. The insole is combined with high-resilience,
comfortable, and breathable materials to maximize comfort. It is suitable for all daily walking and basic sports. It is suitable
for foot problems after walking and exercising. It is especially suitable for people who are sensitive to severe pressure pain.

Medical Posture Orthotic Thermoplastic Customized Foot Pad (Standard version)

All groups

35-40#

The standard sports thermoplastic insole is suitable for almost all sports shoes. The insole is combined with high-resilience,
comfortable, and breathable materials to maximize comfort. It is suitable for all daily walking and basic sports. It is suitable
for foot problems after walking and exercising. It is especially suitable for people who are sensitive to severe pressure pain.

Medical Posture Orthotic Thermoplastic Customized Foot Pad (Leather Shoe version)

All groups

35-46#

The first layer of sheepskin is soft and comfortable, sweat-absorbent and breathable. It is suitable for most leather shoes. It
provides maximum comfort while ensuring that it is light and thin. The exquisite design and leather surface can be perfectly
suitable for daily shoes, which can protect the arch of the foot in daily shoes. Provides maximum protection with the heel,
serving as cushioning and support

Medical Posture Orthotic Thermoplastic Customized Foot Pad (Basic version)

All groups

35-46#

Comfortable/Basic Sports Thermoplastic Insole, suitable for almost all sports shoes. The insole is combined with high-resilience
comfortable and breathable materials to maximize comfort. It is suitable for all daily walking and basic sports. It is good for
the foot after walking and exercise. It is especially suitable for people with obvious pain sensitivity to strong pressure.

Medical Posture Orthotic Thermoplastic Customized Foot Pad (Comprehensive version)

All groups

35-46#

The reinforced design of the arch and heel cup can provide better stability and support. Add cushioning material to the forefoot
and heel. Suitable for all sports and leisure leather shoes strengthen the stability of the mid-to-rear foot during exercise and
provide sufficient dynamic support to the forefoot.

Medical Posture Orthotic Thermoplastic Customized Foot Pad (Running version)

Running and Brisk walking

35-46#

The torsion-resistant design of the arch of the foot and the reinforced elastic material of the forefoot is suitable for
long-distance and long-term durability sports such as running, cross-country, and crossing. Based on the biomechanical design, it
provides rear foot cushioning and mid-rear foot support for long-term sports. It provides dynamic support to the foot and the
stability required for propulsion, which can effectively prevent sports injuries.

Medical Posture Orthotic Thermoplastic Customized Foot Pad (Basketball version/enhanced type)

Basketball Player

25-46#

The overall reinforced support design of the midfoot and heel provides enhanced stable support for the navicular and subtalar
joints. Suitable for basketball, volleyball, tennis, and other sports, high-strength materials, and professional structural design
are used to increase jumping ability, improve foot support, greatly reduce the possibility of injury, and achieve excellent
performance at the same time. It is also suitable for the correction of children’s flat feet/navicular protrusion/calcaneal
valgus.

Medical Posture Orthotic Thermoplastic Customized Foot Pad （table tennis / badminton version）

Badminton and Table tennis

35-46#

The reinforced arch support design and the slow rebound fit material in the forefoot are suitable for indoor high-intensity
flexibility sports such as badminton and table tennis. The slow rebound fit material in the forefoot can provide better wrapping
for the foot. It has better protection for lateral and rotational movements, greatly reducing the possibility of injury while
achieving excellent performance.

Medical Posture Orthotic Thermoplastic Customized Foot Pad（Soccer version）

Soccer, Rugby

35-46#

The forefoot has enhanced cushioning function and the heel has enhanced stability function. It is suitable for football and rugby
shoes. It protects the forefoot plate in the stud area, provides foot protection during acceleration and change of direction, and
has a shock-absorbing function during emergency stops and falls.

Medical Posture Orthotic Thermoplastic Customized Foot Pad（Outdoor version/enhanced type）

Outdoor mountain climbing and Hiking

35-46#

The high-strength arch support protection and heel cup stability structure design are suitable for improving the fit of ski boots
and improving sports performance, as well as long-term outdoor mountaineering and long-distance hiking. The rear foot part is
equipped with a high-strength stable support structure. Foot and rearfoot reinforcements protect forefoot joint flexion during
walking and are suitable for enhanced correction of flat feet/navicular protrusion/calcaneal valgus in children.

Medical Posture Orthotic Thermoplastic Customized Foot Pad（Bicycle version）

Riding

35-46#

The reinforced support design of the forefoot and mid-rear foot is suitable for high-intensity and heavy-load sports, and those
who need strong support and correction of their feet. Suitable for cycling events and designed to satisfy the most demanding
cyclists, it is extremely effective in protecting the forefoot and stabilizing the midfoot and rearfoot.

Medical Posture Orthotic Thermoplastic Customized Foot Pad（Golf Version）

Golf

35-46#

The full-length reinforced torsion-resistant design is suitable for golf sports. It strengthens the support of the foot during the
swing and reduces excessive torsion of the foot.

PICKUP ITEMS

PROJECT

QUANTITY

PRICE USD

3D Foot Impression Customization System

1 set

4180

Required

3D foot scanning detection system

1 set

3200 /2800

Optional

Far infrared posture assessment system

1 set

2500

Optional

Plantar pressure dynamic detection system

1 set

3880

Optional

Men's medical orthopedic shoes(39-45#)

10 pairs

55*10=550

Optional

Women's medical orthopedic shoes(35-40#)

10 pairs

50*10=500

Optional

Children's medical orthopedic shoes (26-39#)

10 pairs

45*10=450

Optional

Thermoplastic orthopedic custom insoles

52 pairs

16*52=832

Orthopedic spacers

28 pairs

1*28=28
