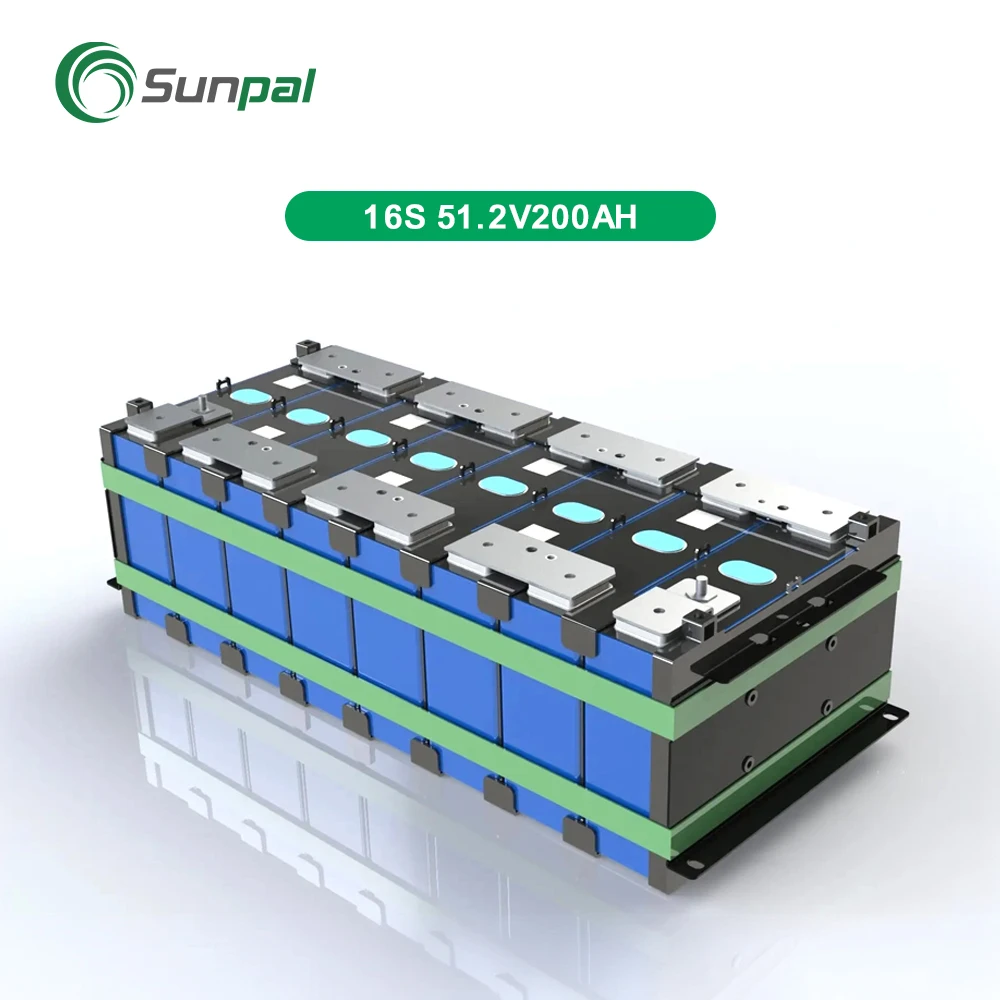

Sunpal Household Solar Lithium Battery 200Ah 51.2V Lifepo4 Rechargeable Battery Price
- Category: >>>
- Supplier: Sunpal Power Co. Ltd.
Share on (1601196898708):
Product Overview
Description
Product Description
Robust and Waterproof Design
- The model comes with an IP65 rating, making it waterproof and ideal for use in outdoor environments.

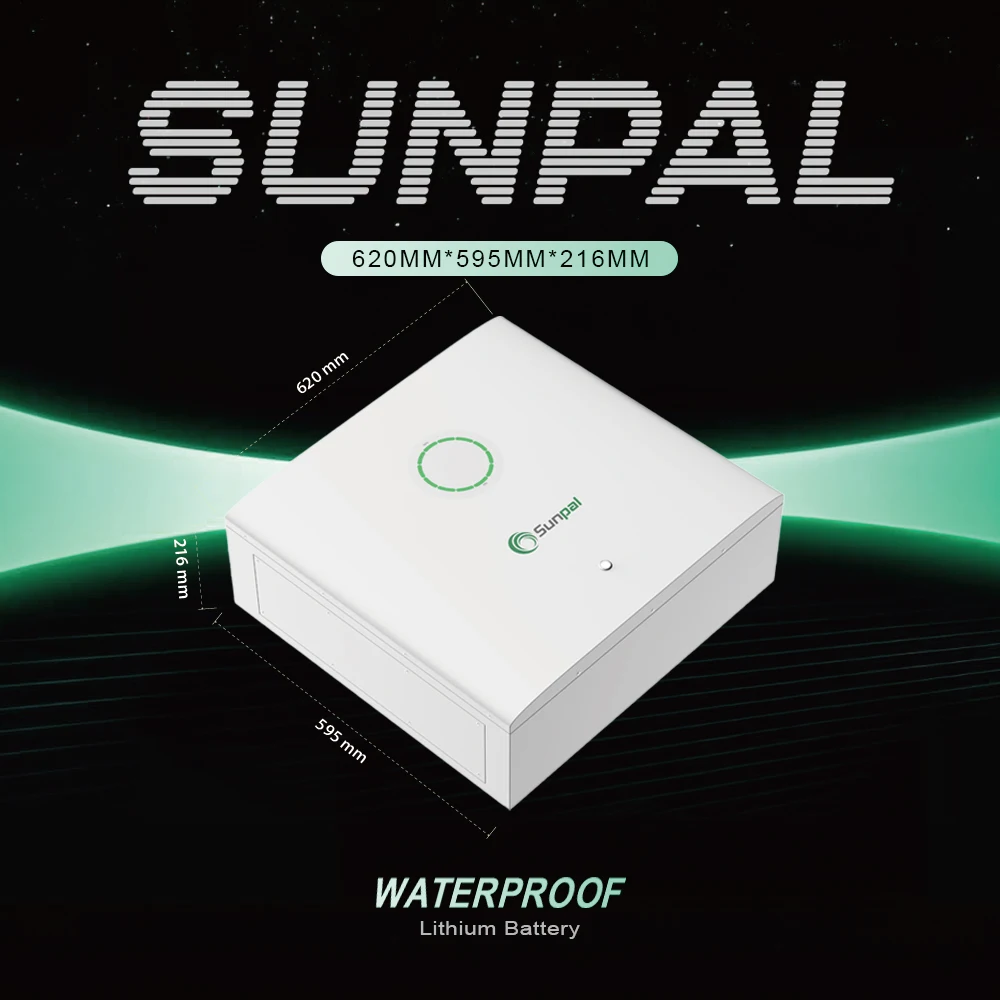

- With a size of 620*595*216.5mm, this product is designed to fit perfectly at home while saving space.
- Weighing 91KG, the battery is engineered with durable materials making it perfect for high-intensity applications.
- The model comes with an IP65 rating, making it waterproof and ideal for use in outdoor environments.
- With a size of 620*595*216.5mm, this product is designed to fit perfectly at home while saving space.
- Weighing 91KG, the battery is engineered with durable materials making it perfect for high-intensity applications.
Specification
Model | PP-Y4-10K |
Nomial Capacity | 10.24kWh |
Rated Voltage | 51.2V |
Discharge Voltage Range | 43.2V-57.6V |
Max. Charging Current | 100A |
Max. Discharging Current | 120A |
Battery Type | LiFePO4 |
Max. Output Power | 6144W |
DOD | 90% |

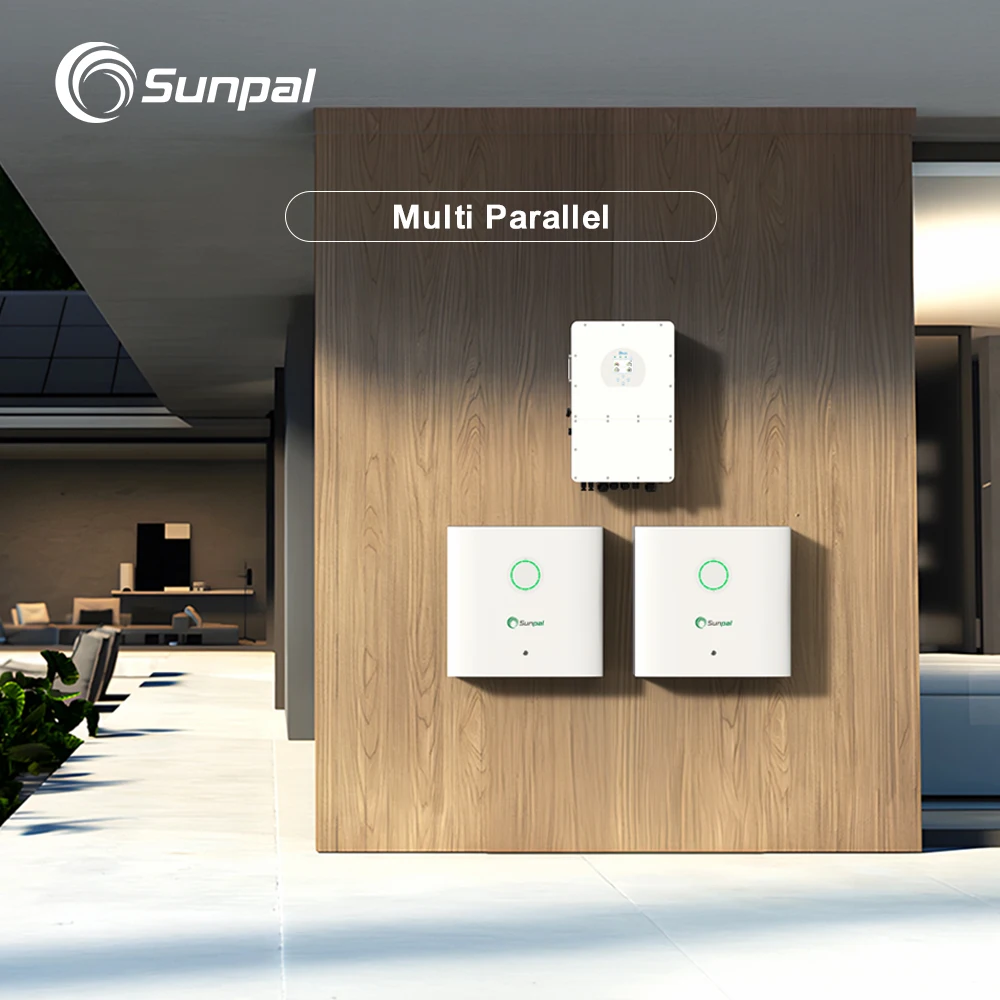

Modules Connection | 1-8 in parallel |
Communication | CAN or RS485 |
Cycle Life | ≥6000 25°C 0.5C |
Storage Temperature(°C) | -20°C~+35°C |
Working Temp Range | Charge: 0°C~+55°C, Discharge: -10°C~+55°C |
Net Weight (KG) | 91KG |
Product Dimension (mm) | 620mm*595mm*216.5mm |

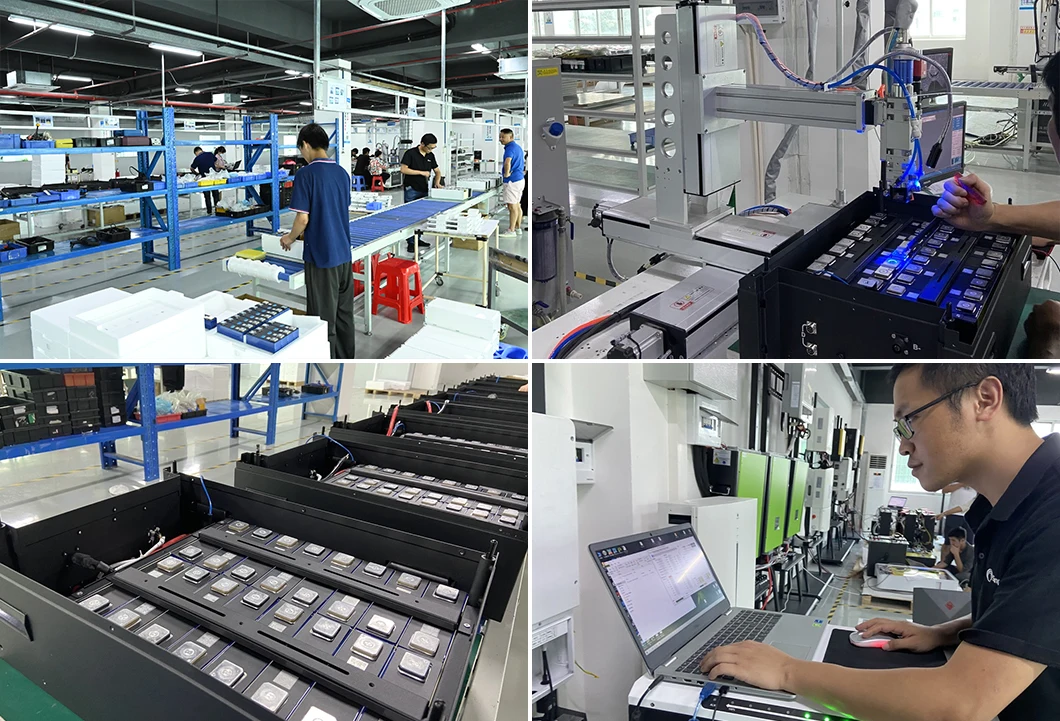

Factory
The overall lithium battery manufacturing process can be divided into the front-part process (electrode manufacturing) and the middle-part process (cell synthesis), and the Back-part process (formation and packaging).The production of lithium batteries is inseparable from lithium battery production equipment. In addition to the materials used in the battery itself, the manufacturing process and production equipment are important factors that determine battery performance. Throughout the process, the production of lithium-ion batteries must not only strictly control the quality control points of each process, and optimize the production process, but also strictly control the temperature, humidity, and cleanliness of the production environment. The production of lithium-ion batteries is a very complex and delicate process, and the details determine success or failure.

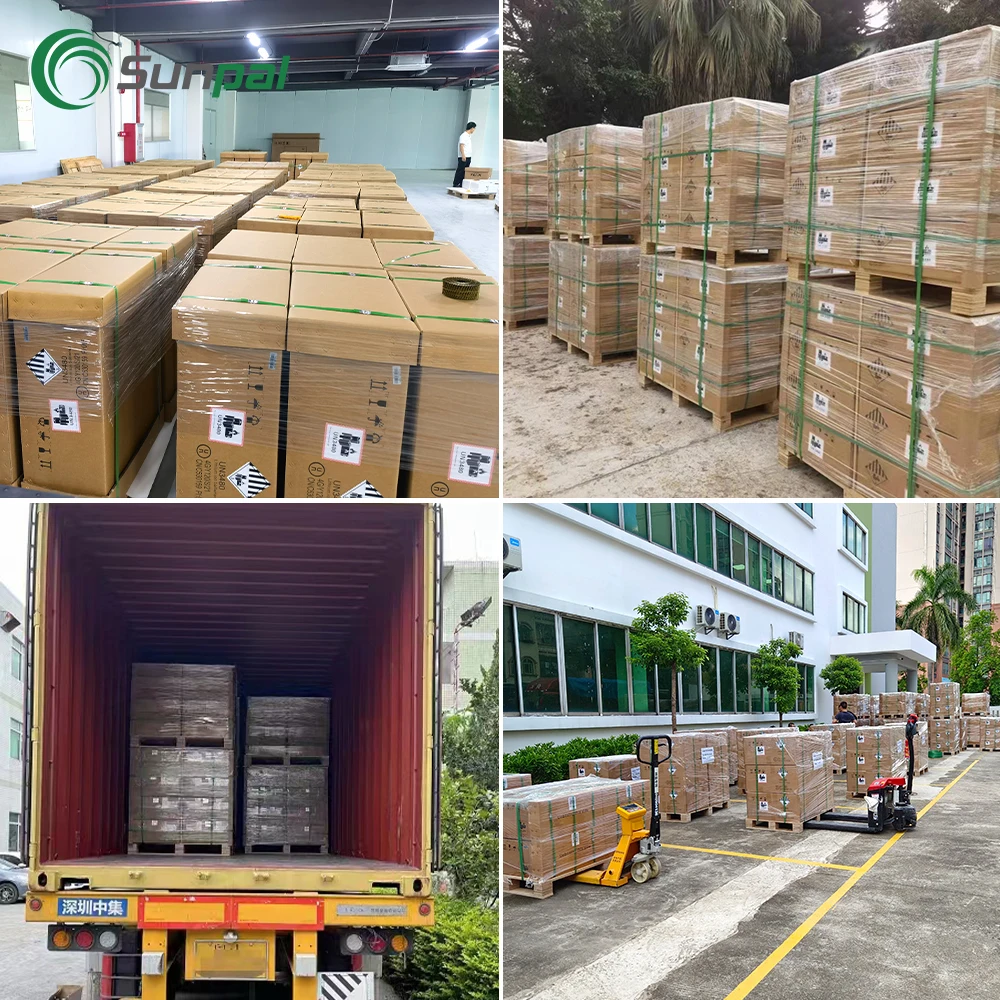

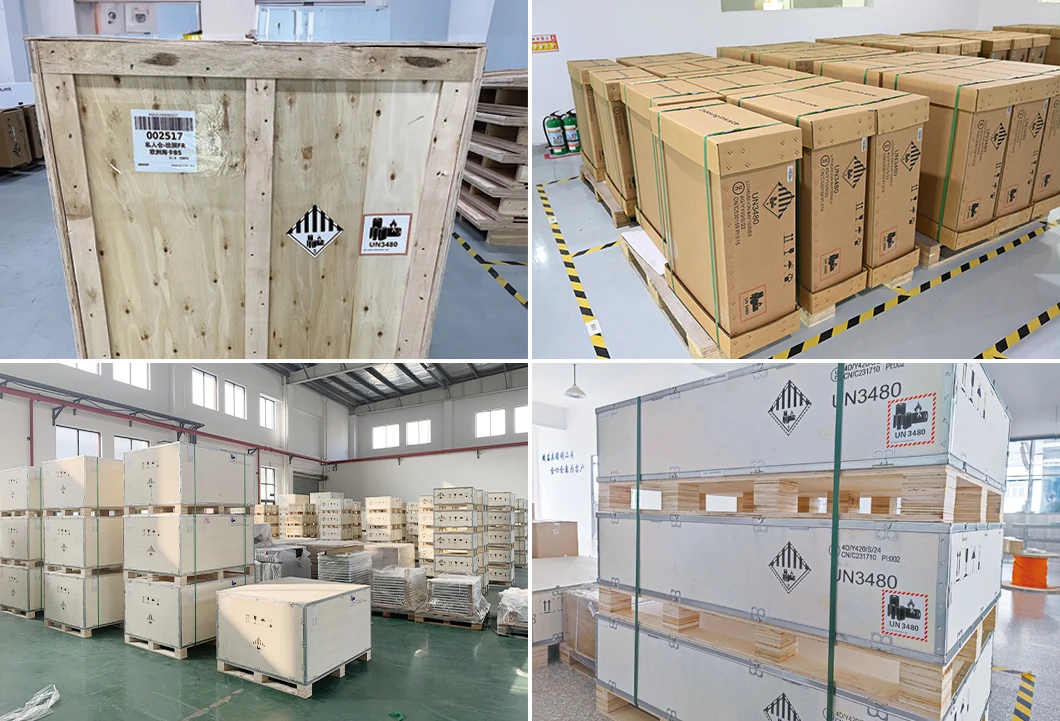

Packing & Delivery
At present, our waterproof lithium batteries have been exported to more than 100 countries and regions,
and we provide quality assurance and after-sales service for all products. According to the product status feedback from customers, remote upgrade control or free replacement of BMS motherboard accessories.
Project Case
Country: New York, United States
Solar PV: Sunpal
Inverter: Deye
Battery: Sunpal
Size: 8 kW
Savings over lifetime system: $42 650
The roof was big enough to place enough solar panels to cover their whole energy consumption.
The solar panels are mounted with glazed tile roof bracket system.
Solar PV: Sunpal
Inverter: Deye
Battery: Sunpal
Size: 8 kW
Savings over lifetime system: $42 650
The roof was big enough to place enough solar panels to cover their whole energy consumption.
The solar panels are mounted with glazed tile roof bracket system.
Team Presentation
FAQ
Q: Are lithium batteries waterproof?
A: They have an Ingress Protection rating of IP65. What that means is they are fully sealed against dust and partially sealed against water. They are protected against low pressure jets of water but not submersion, sustained water exposure or high pressure water.
Q: What is a BMS and its purpose?
A: Lithium-ion batteries are made up of multiple small cells connected together to provide the voltage and current needed for the application. The Battery Management System or BMS is responsible for keeping these cells working in unison so that they are charged and discharged correctly. Lithium-ion cells are more sensitive to overcharge and undercharge conditions than many other battery chemistries. The BMS monitors the charge and discharge of the battery to ensure the battery operates safely.
Q: What are the storage requirements when not using Li-ion batteries?
A: It is best to store Li-ion batteries at room temperature. There is no need to place them in the refrigerator. Avoid long periods of extreme cold or hot temperatures (e.g., dashboard of car in direct sunlight). Long periods of exposure to these temperatures can result in battery damage.
