Intelligent capacitor water pump controller 2.2KW single phase household water pumps
- Category: >>>
- Supplier: Yueqing Haiyin Electric Co. Ltd.Yueqing Ltd.
Share on (1601196903284):
Product Overview
Description
PRODUCT DESCRIPTION
20Y-CBB
Intelligent Start Capacitor Pump Controller
The latest single-phase water pump controller of the 20Y series
is specially designed for
2.2KW deep well submersible pumps.
It has non-contact current induction control, extremely fast dry running protection, equipped with
75uf, 450VAC starting capacitor,
new appearance patent,
IP56,
and is not afraid of wind and rain.

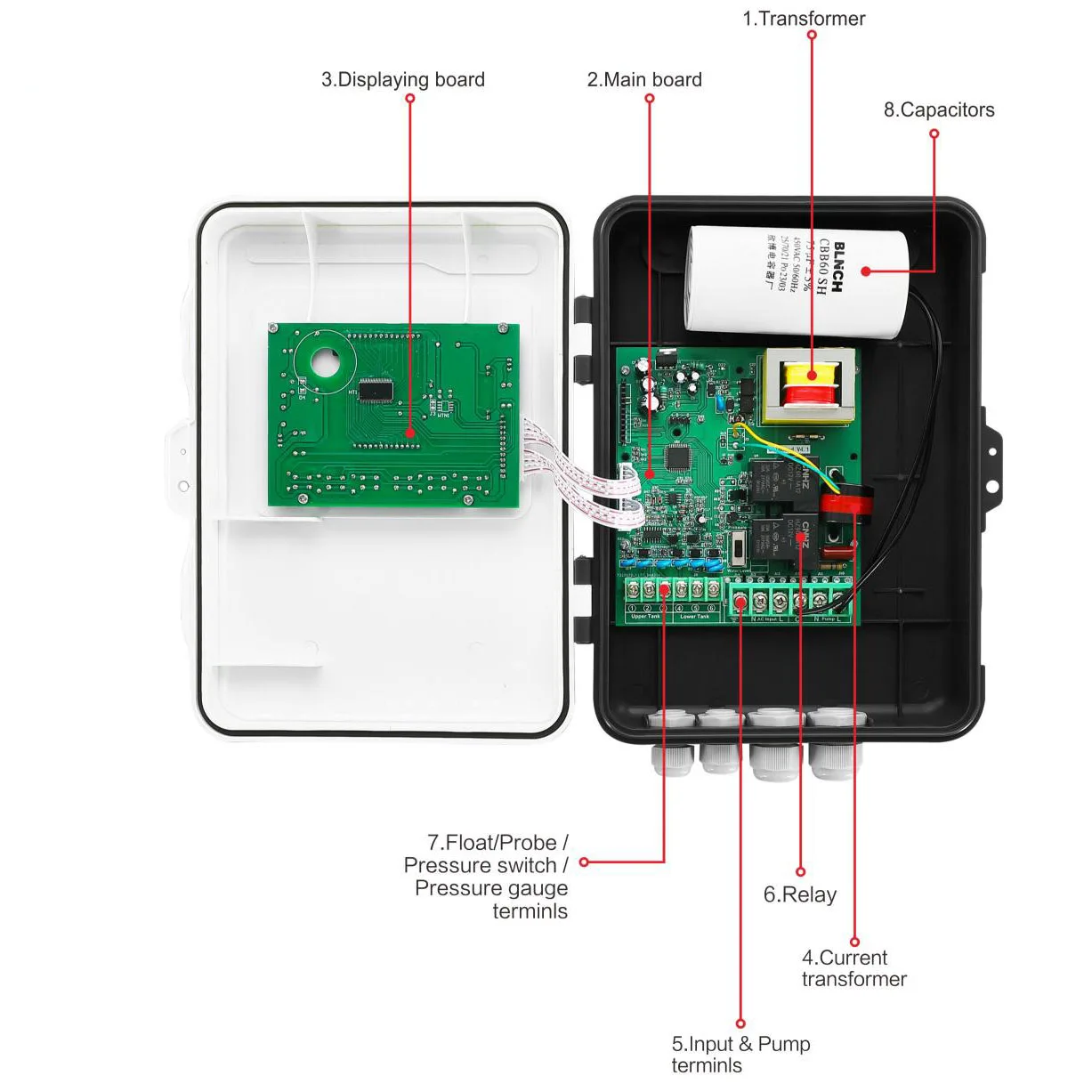

Internal Components

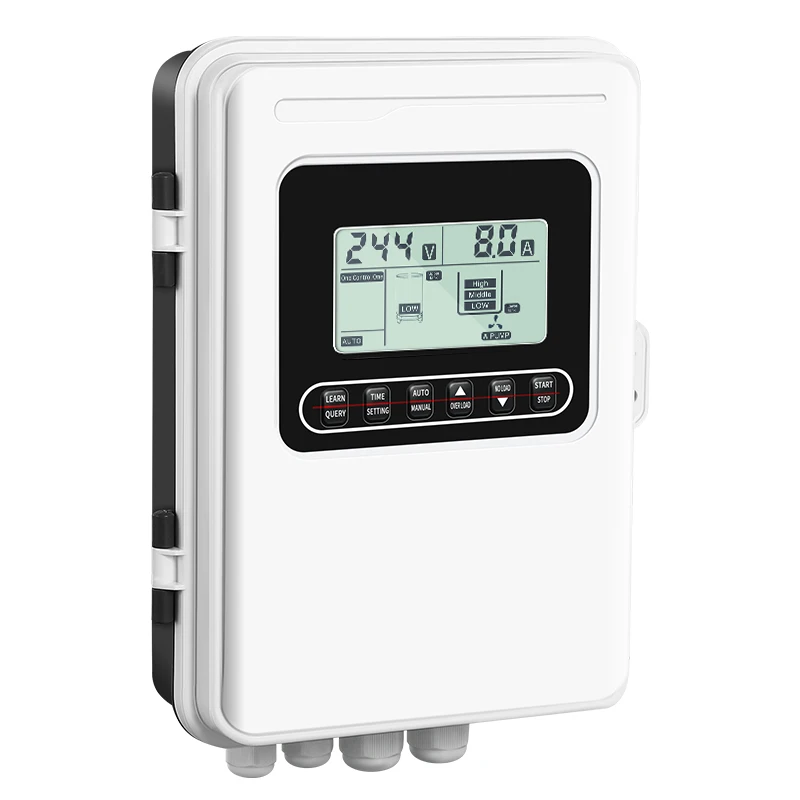

20Y-CBB series single phase water pump controller, with plastic case,LCD display.
Can easily connect with liquid probe/ float switch /pressure switch and pressure gauge to
make the pump run smoothly, mainly for home and Household use .
Main Technical Parameters
Type | 20Y-CBB | ||
Model | 20Y-CBB-2.2KW | 20Y-CBB-3KW | |
Rated Power | 0.37-2.2KW | 0.37-3KW | |
Rated Input Voltage | 220VAC,50Hz/60Hz | ||
Qty.of Controlled Pump | Single pump | ||
Display | LCD display | ||
Signal Transmission Mode | Level float switch Level probe Pressure switch Electric contact pressure gauge Water | ||
Level Indication | High/Middle/Low | ||
Max.Control Distance | ≤2000m without strong electric and electromagnetic fields | ||
Over/under-voltage | 176V-264V adjustable | ||
Protections | Pump stalled protection Dry run protection Over-load protection Under-voltage protection Over-voltage protection Open phase protection Short circuit protection | ||
Main Functions | Time setting Fault detection Anti-rust inspection Automatic restart after power recovery | ||
Time setting ON | 0-99Hour adjustable | ||
Time setting OFF | 0-999Min adjustable | ||
Over- current setting | 2-20A adjustable | ||
Under-current setting | 0-10A adjustable | ||
Working temperature | -20℃+50℃ | ||
Working humidity | 20%--90%RH, no drips concreted | ||
Installation | Wall mounted | ||

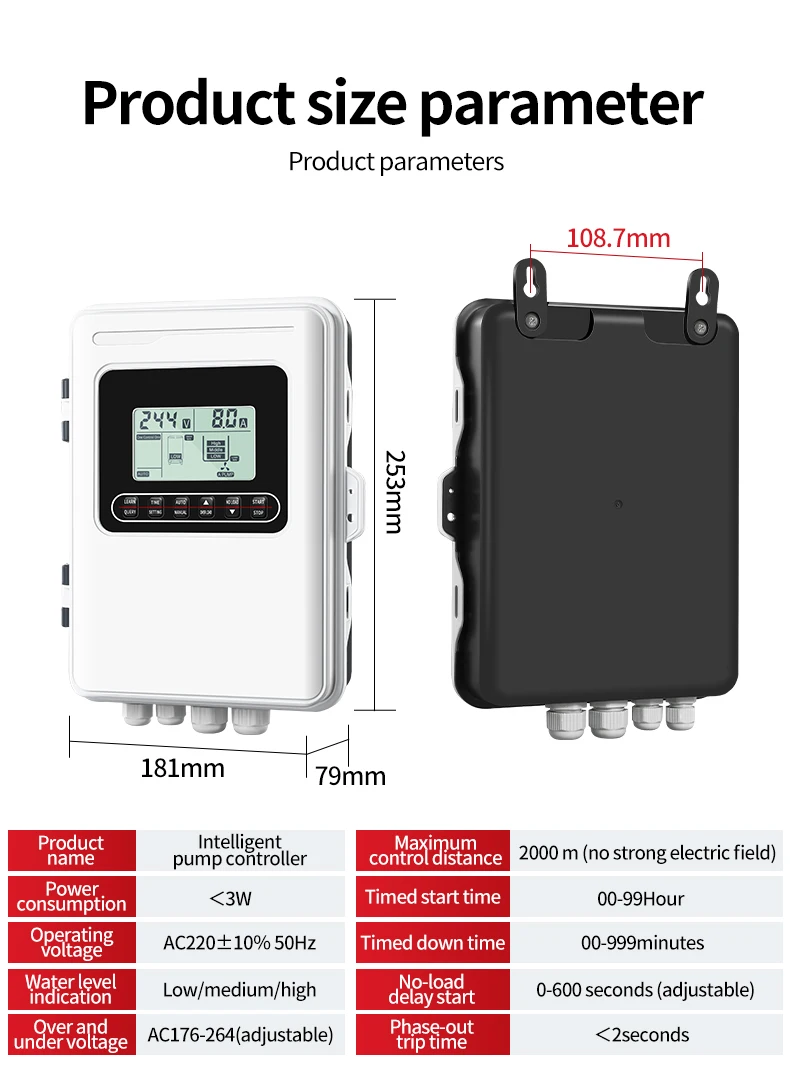

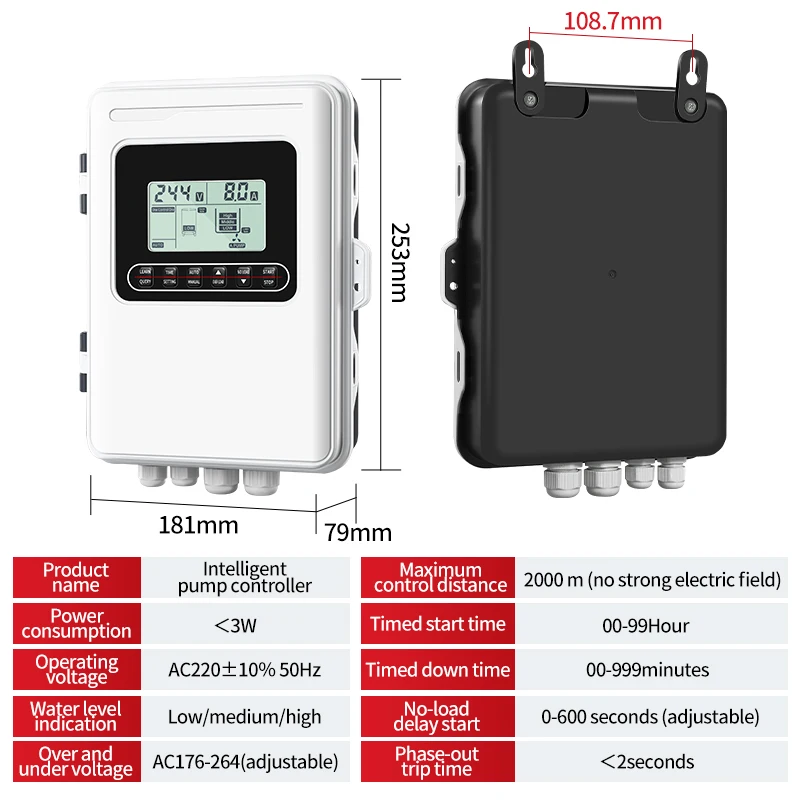

Product Size | 210*139*65mm ,0.64kgs | ||
Package | Box size:21.9*7.4*14.7cm Carton size:45.5*31.5*32cm PCS/CTN:16 N.W.:10.3Kgs G.W.:14.2kgs | ||

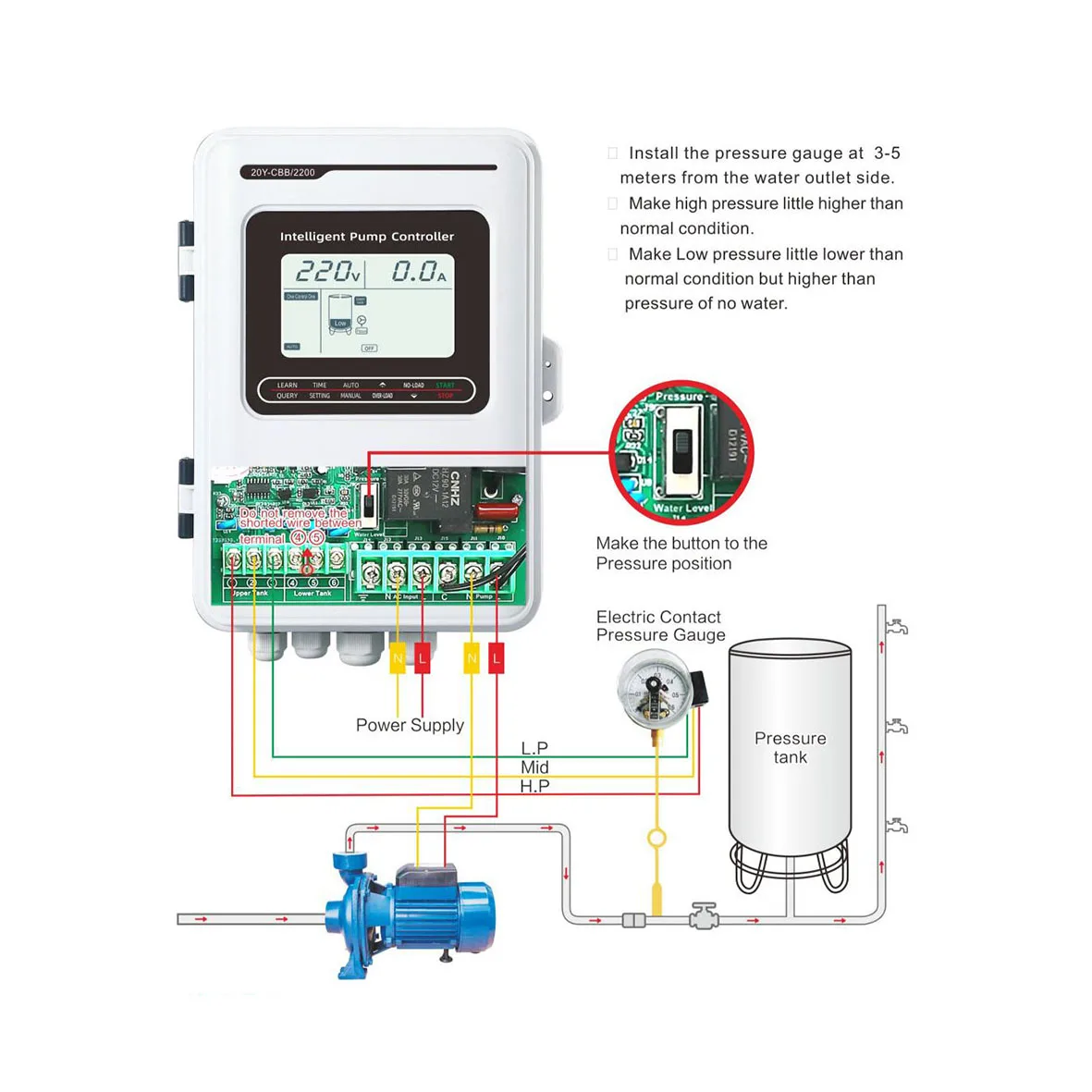

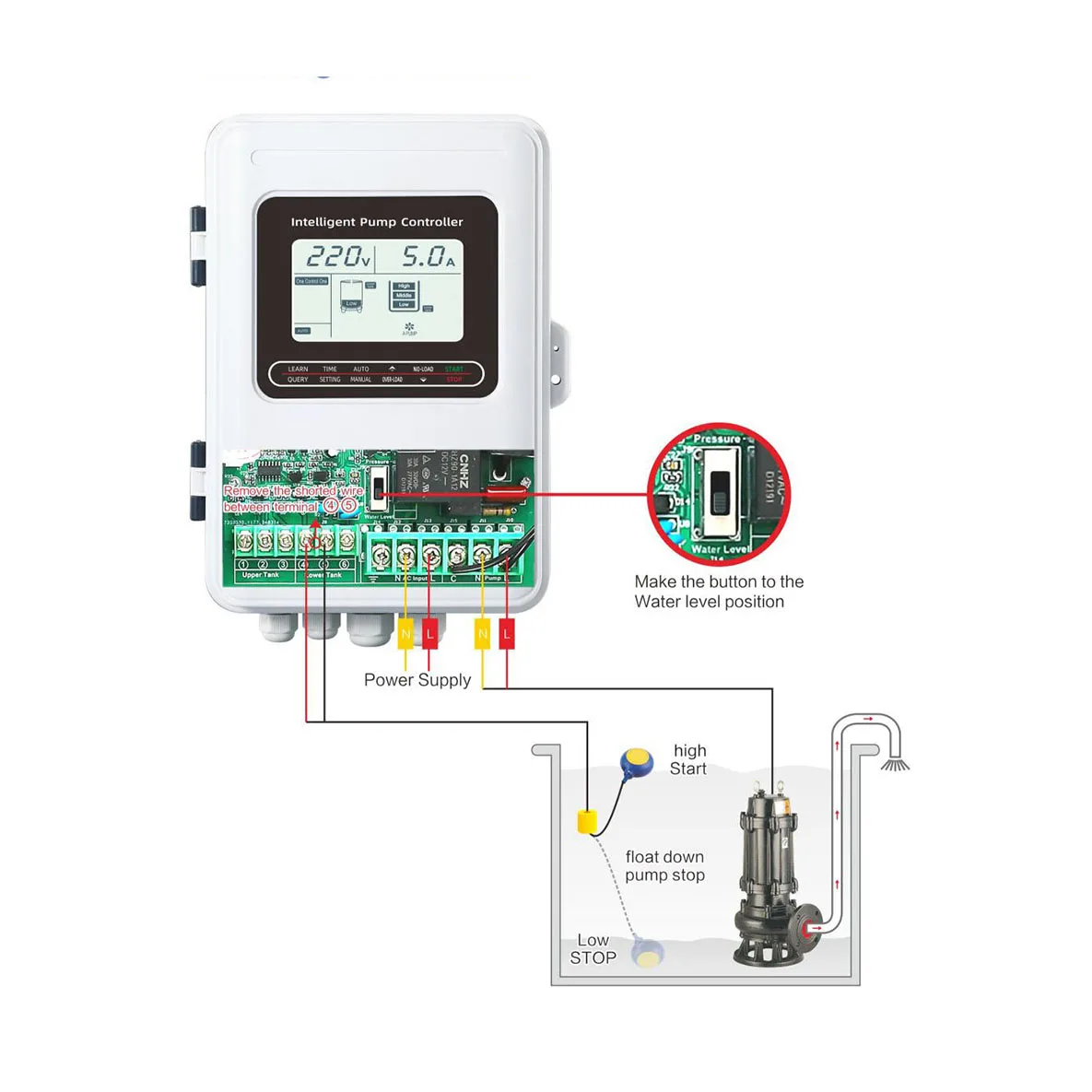

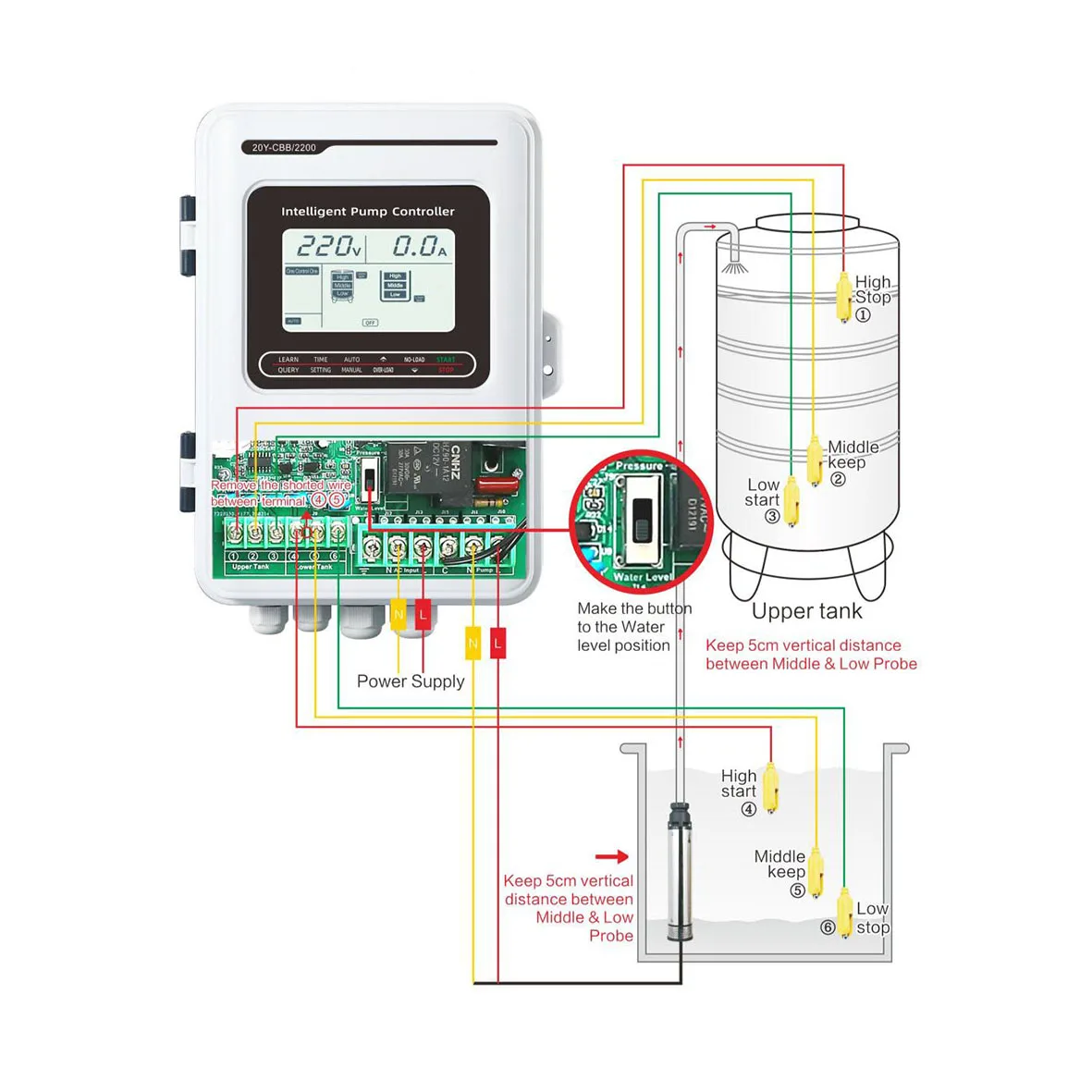

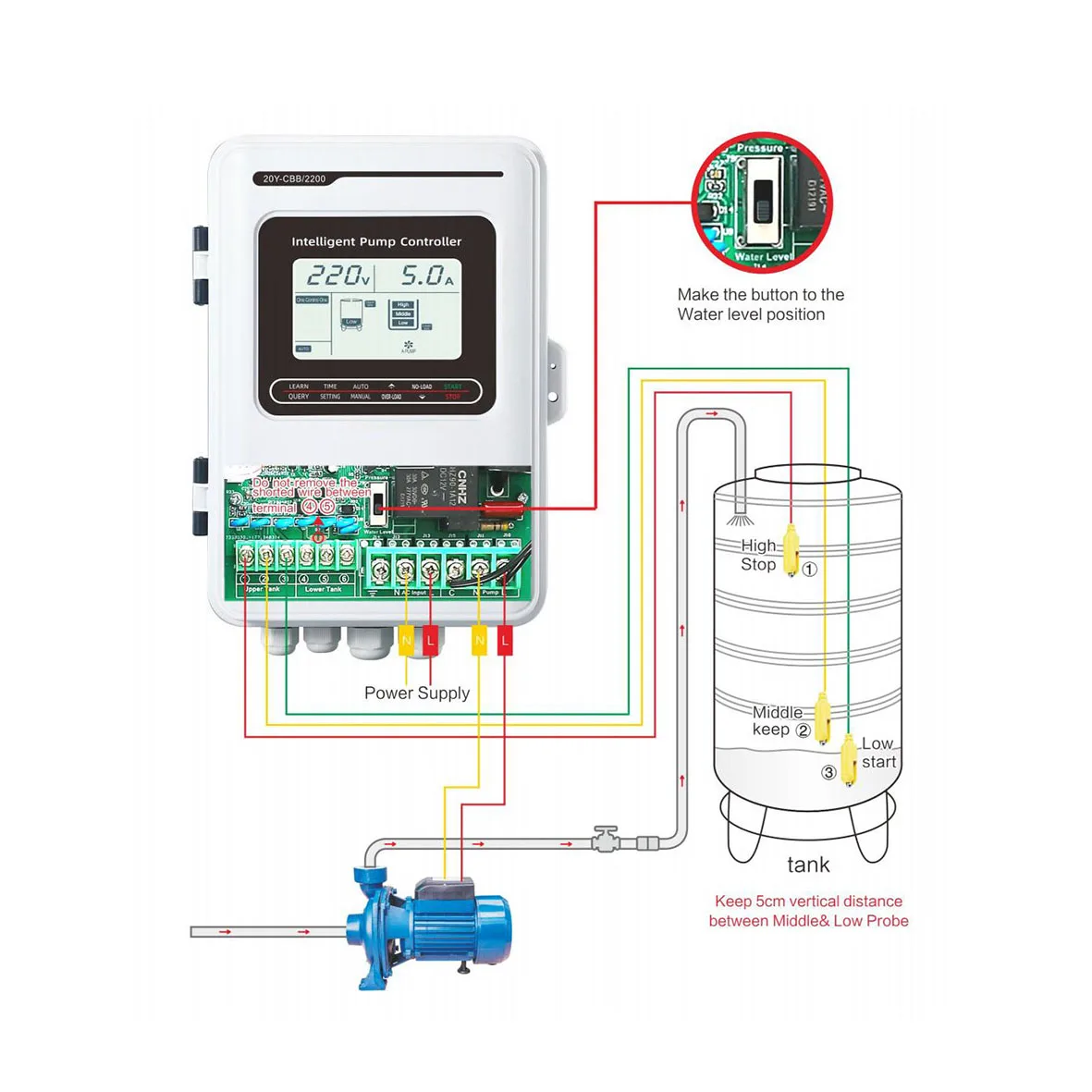

Installation Instructions
