Product Description

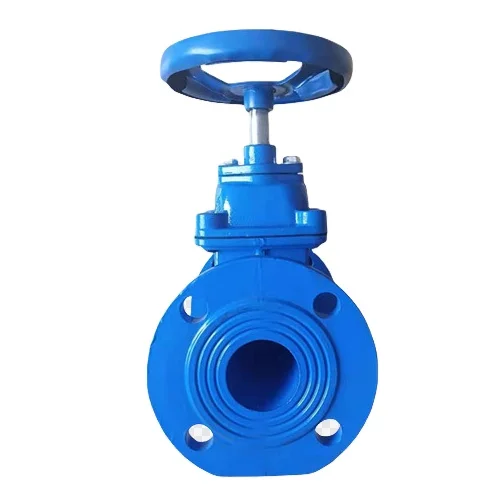

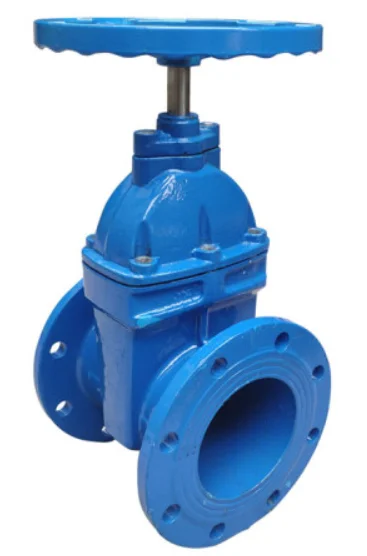

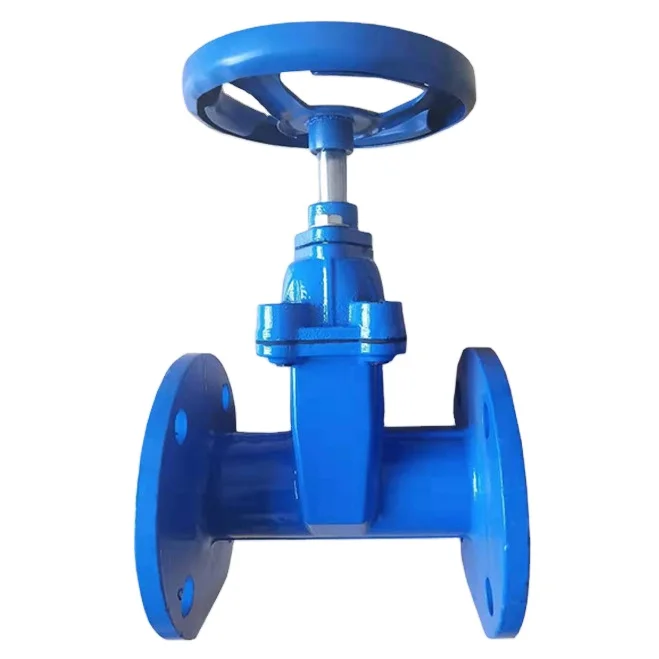

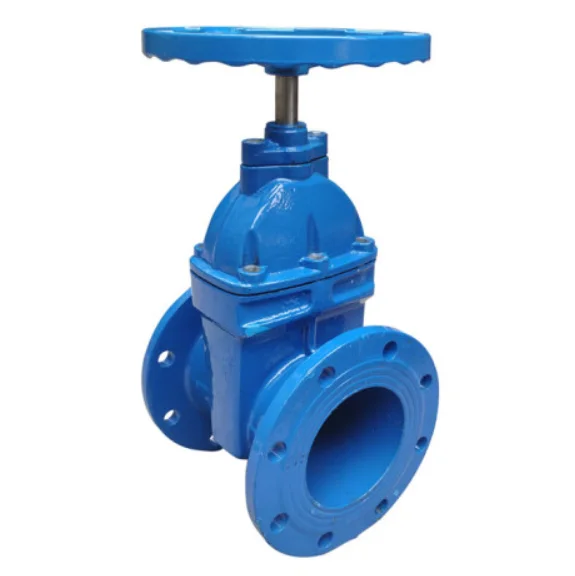

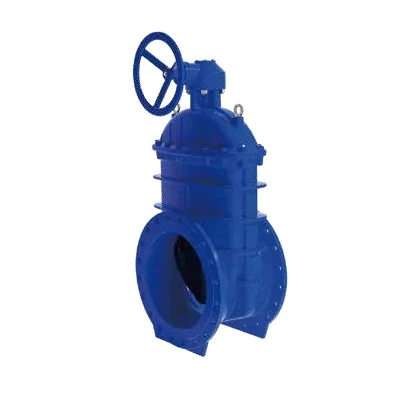

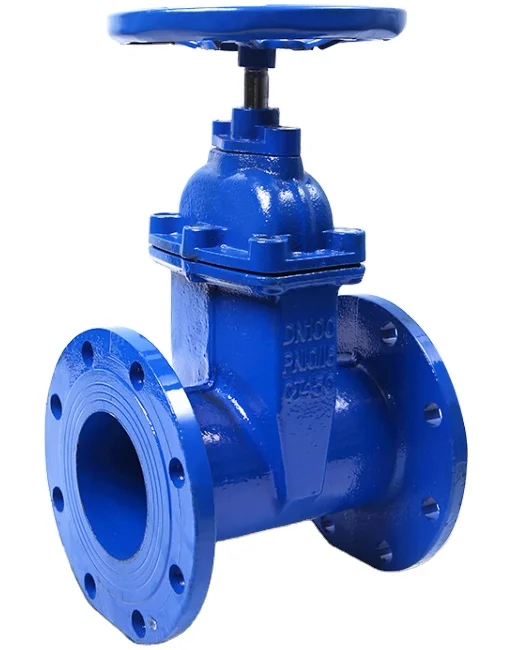

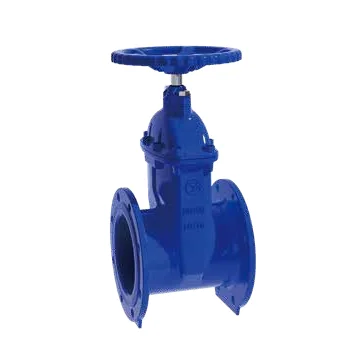

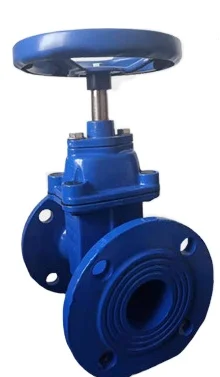

The opening and closing part of RVHX-16Q Non-Rising Stem Resilient Seated Gate Valve is the gate plate, the movement direction of the gate plate is perpendicular to the direction of the fluid, the gate valve can only be fully opened and closed, can not be adjusted and throttled.

The Non-rising Stem elastic seat seal gate valve RVHX-10Q uses the valve whole package to produce the deformation compensation effect to achieve the good seal, overcomes the general gate valve seal is not good, the water leakage and the rust phenomenon, saves the installation space more effectively.

Flexible seat seal soft seal gate valve can be widely used in tap water, sewage, construction, petroleum, chemical, food, medicine, textile, electric power, ships, gold, energy systems and other fluid pipeline as a regulation and interception device.

















Main features


1.Integral lagging: The gate of Non-Rising Stem Resilient Seated Gate Valve adopts integral lagging, and its good coverage
performance and precise geometric dimensions ensure reliable sealing and long service life.
2.Light weight: The valve body is made of ductile iron, which is light in weight and easy to install.
3.Flat-bottom valve seat: The bottom adopts the same flat-bottom valve seat design as the water pipe, which does not produce debris accumulation and makes the sealing more reliable.
4.Corrosion resistance: The inner cavity of the gate valve is coated with non-toxic epoxy resin to prevent corrosion and rust. It can be used not only for raw drinking, but also for sewage systems.
5.Three "0" seals: The valve stem is sealed with three 0-rings, with low friction resistance, light switch and no water leakage.


Relevant implementation standards


Design and manufacture standard: CJ/T 216-2005, JB/T6376-2005
Structure length standard: GB/T 12221-2005
Connection flange standard: GB/T 9113
Pressure temperature grade: GB/T 12224-2005
Test inspection standard: GB/T 13927-2008


item
value
Application
General
Port Size
DN40~DN800
Warranty
3 years
Place of Origin
China
Shanghai
Model Number
RVHX-16Q
Power
Hydraulic
Temperature of Media
HighTemperature, Low Temperature, Medium Temperature, Normal Temperature
Brand Name
Structure
Gate
Media
Water
Customized support
OEM, ODM, OBM, Software reengineering
Product name
RVHX-16Q
Design and manufacture standard
CJ/T 216-2005, JB/T6376-2005
Structure length standard
GB/T 12221-2005
Connection flange standard
GB/T 9113
Pressure and temperature class
GB/T 12224-2005
Test and inspection standard
GB/T 13927-2008


Main parts and materials


Parts name
Materials
Body
Ductile Iron
Valve plate
ethylene propylene rubber
Nut
Brass
Bolt
SS201
Bonnet
Ductile iron
split ring
brass
O-ring
Ethylene propylene rubber
Stem
20Cr13
Top cover
Ductile iron
Handwheel
l Ductile Iron
Dust cover
ethylene propylene rubber

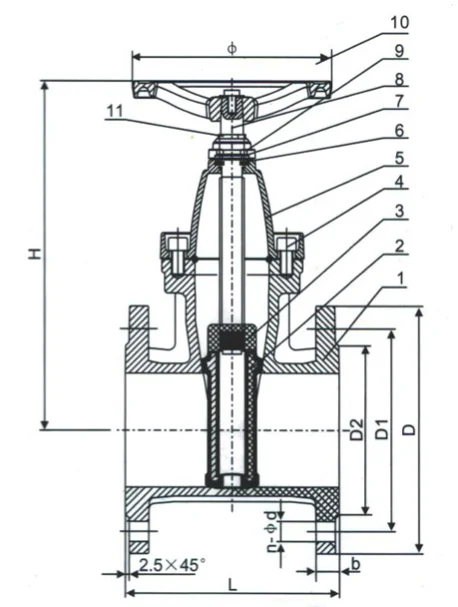

Main structure and connection dimensions




DN
Dimensions
L
D
D1
D2
C
F
Z-d
H
40
165
150
110
84
19
3
4-Φ19
240
50
178
165
125
99
19
3
4-Φ19
240
65
190
185
145
118
19
3
4-Φ19
260
80
203
200
160
132
19
3
8-Φ19
275
100
229
220
180
156
19
3
8-Φ19
380
125
254
250
210
184
19
3
8-Φ19
410
150
267
285
240
221
19
3
8-Φ23
435
200
292
340
295
266
20
3
12-Φ23
630
250
330
405
355
319
22
3
12-Φ28
645
300
356
460
410
370
24.5
4
12-Φ28
697
350
381
520
470
429
26.5
4
16-Φ28
802
400
406
580
525
480
28
4
16-Φ31
842
450
432
640
585
548
30
4
20-Φ31
1060
500
457
715
650
609
31.5
4
20-Φ34
1170
600
508
840
770
720
36
5
20-Φ37
1300
700
610
910
840
794
39.5
5
24-Φ37
1550
800
660
1025
950
901
43
5
24-Φ40
1750
