Factory Price Economical Laser Pipe Cutter 1kw 2kw Small Metal Tube Fiber Laser Cutting Machine Metal
- Category: >>>
- Supplier: Shandong Leapion Machinery Co. Ltd.
Share on (1601196942892):
Product Overview
Description
Product Description

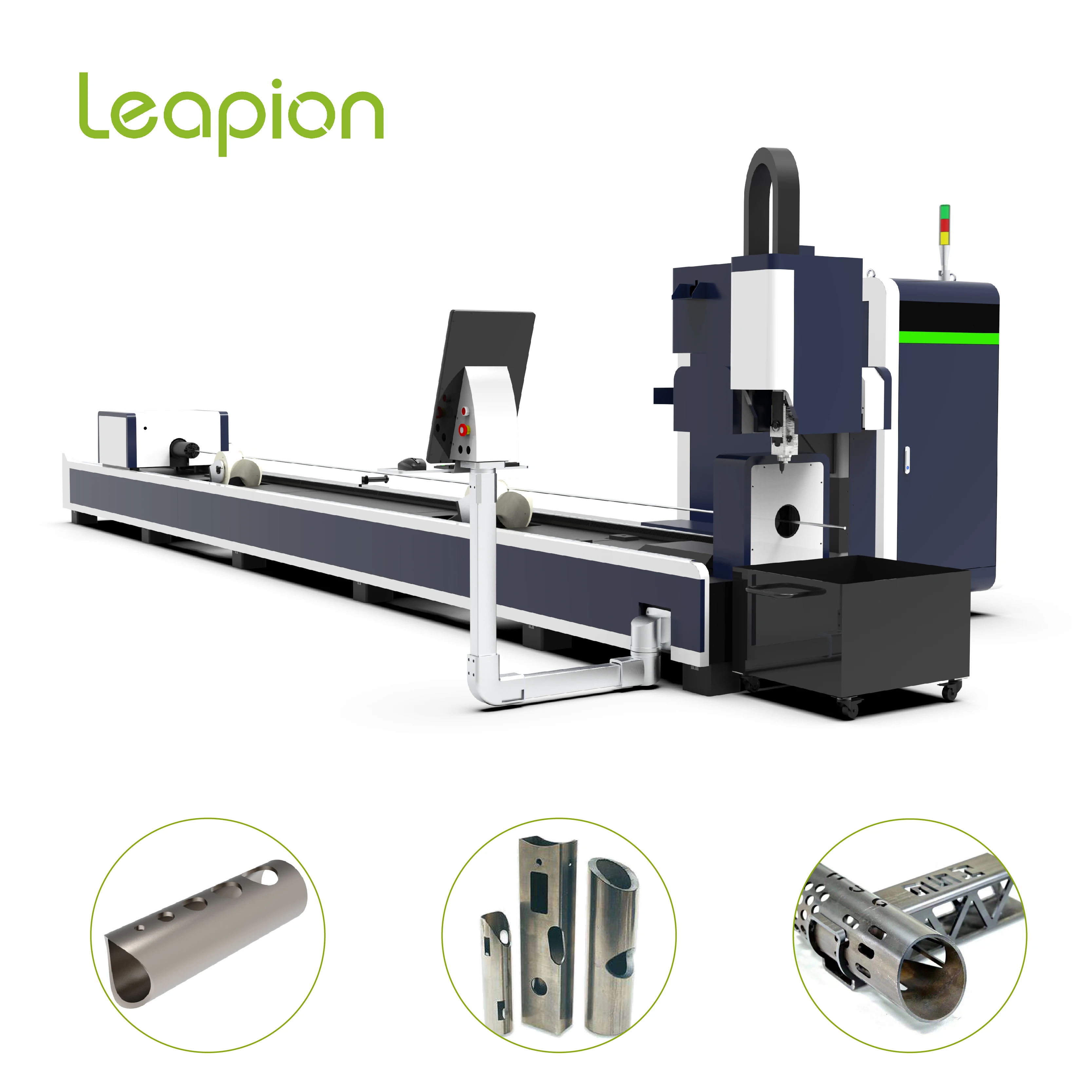

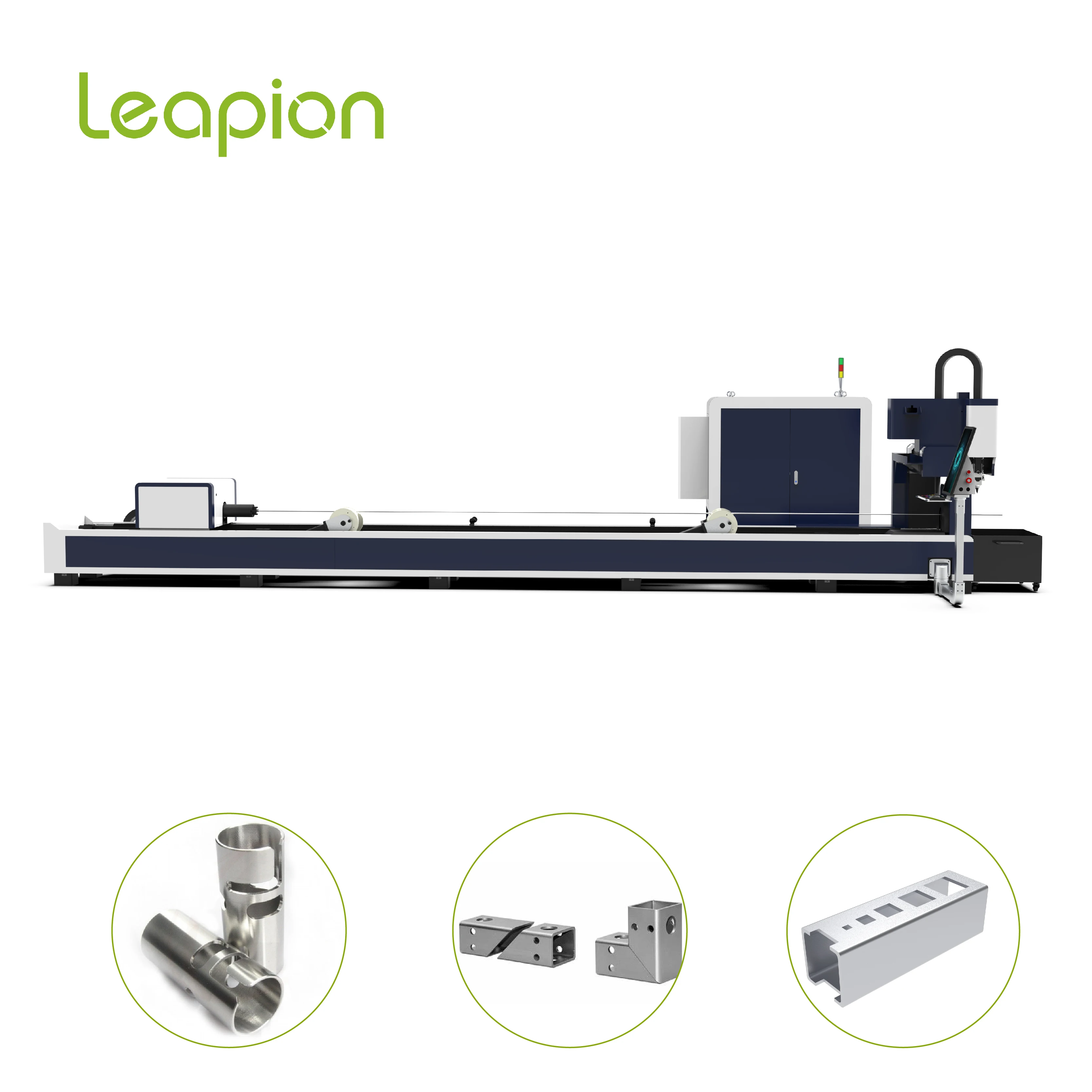

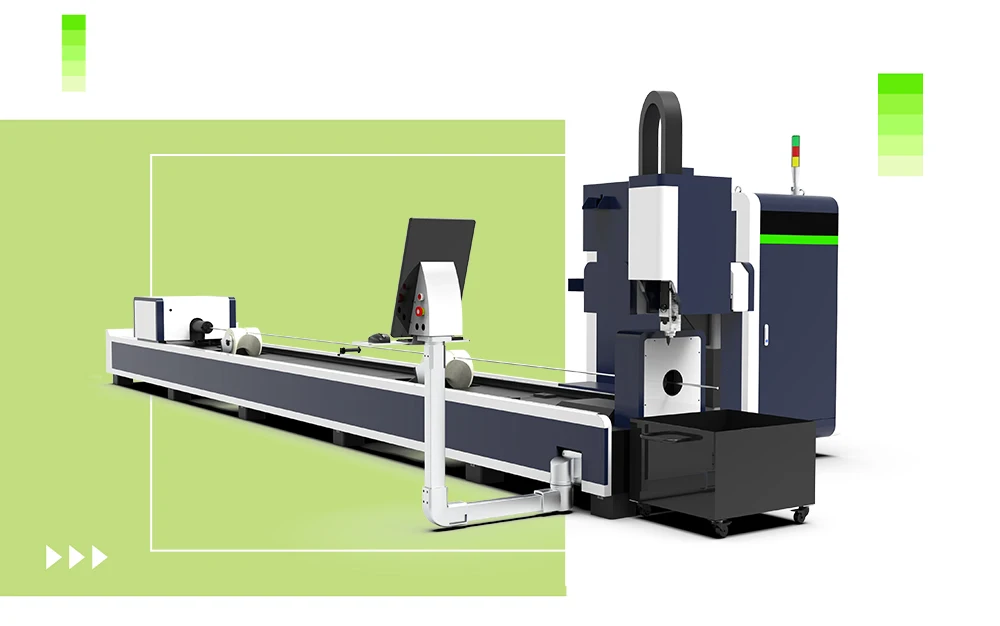

LF-MT Fiber Laser Tube Cutting Machine
For Small Metal Tube 1500W
For Small Metal Tube 1500W
LF-MT Fiber Laser Tube Cutting Machine is specially designed for small pipe cutting. For its high speed cutting, the chuck can support 110mm and 160mm. This laser cutter excels with a fully automatic pneumatic chuck and precise mechanics, engineered for swift and efficient cutting of small pipes. Its compactness guarantees cost savings and ease of setup, perfect for environments where space is premium. At the same time, machines can be equipped with automatic feeding to save time and human cost, easy to operate and suitable for large bulk production.
Machine Advantage

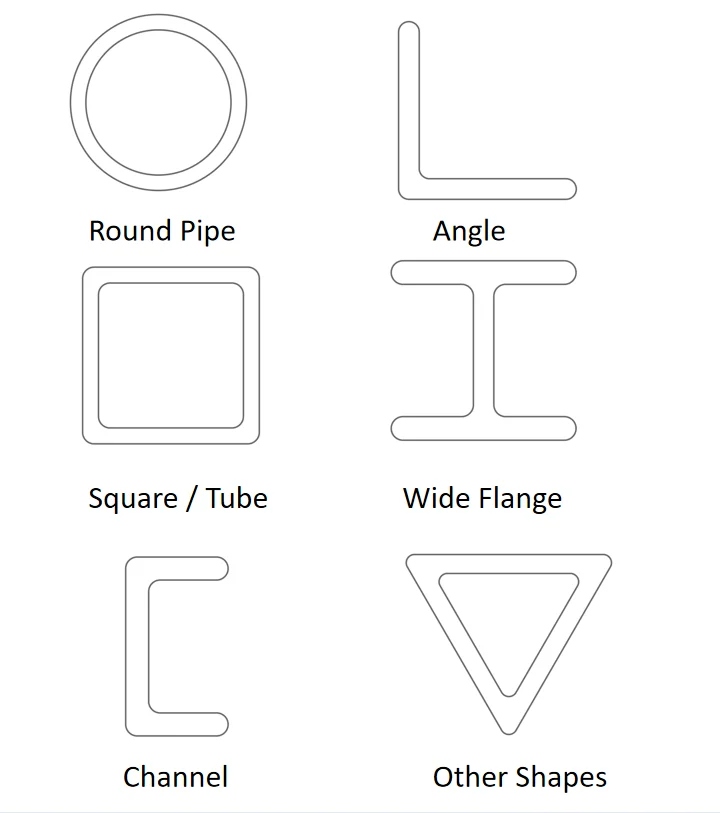

Shape Identification:
Automatically recognizes standard and special-shaped pipes, including round, oval, square, and more, eliminating manual configuration.
Non-Inductive Detection:
Employs continuous, high-efficiency detection without human intervention, streamlining operations and boosting productivity.Exceptional Precision:
Guarantees cutting accuracy with a position deviation within 0.15mm over the entire meter section, ensuring consistency and quality in every cut.

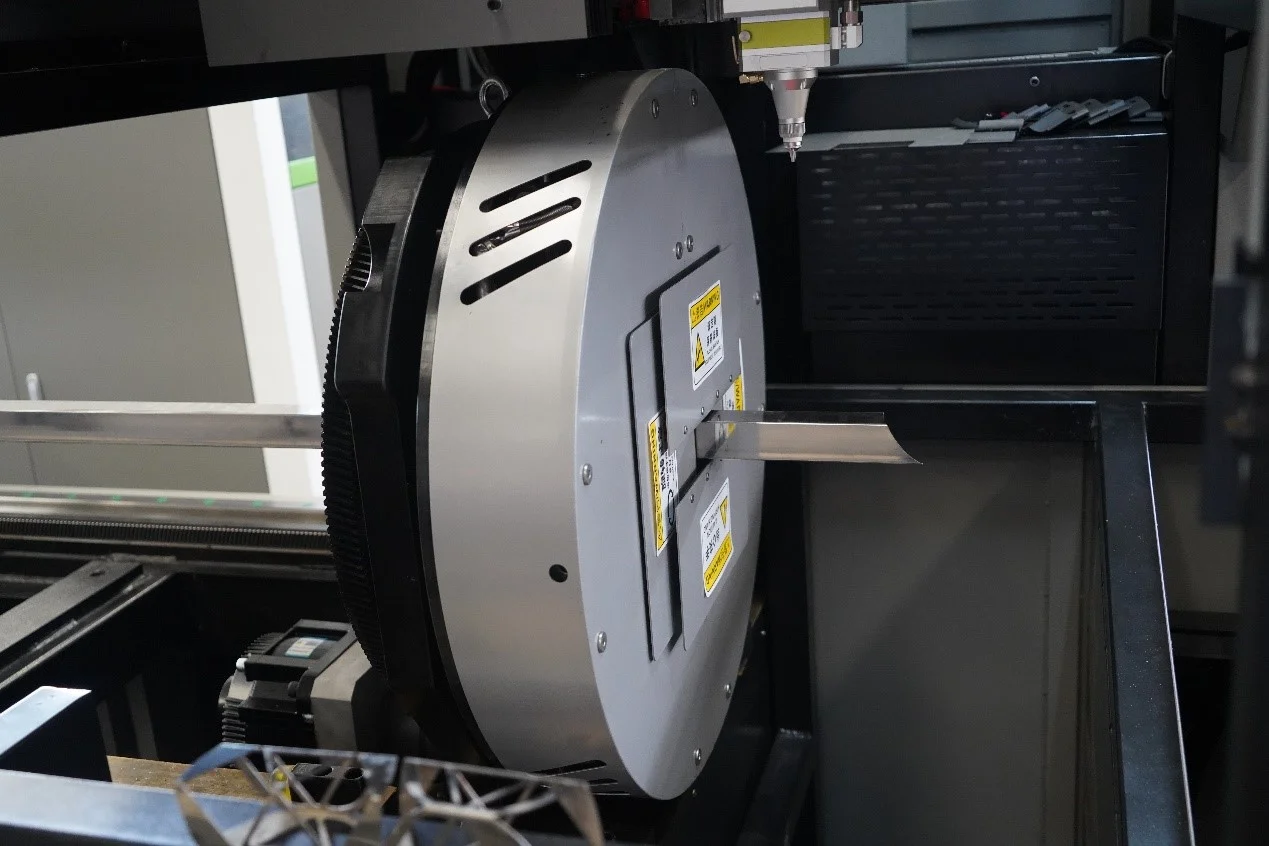

Pneumatic Chuck
The fully automatic pneumatic chuck features a precise internal transmission structure that utilizes rack and pinion drive for enhanced accuracy.
Specifically designed for cutting small pipes, it offers flexible rotation capabilities and high rotate speed to meet the demands of fast and efficient cutting.
Machine Details

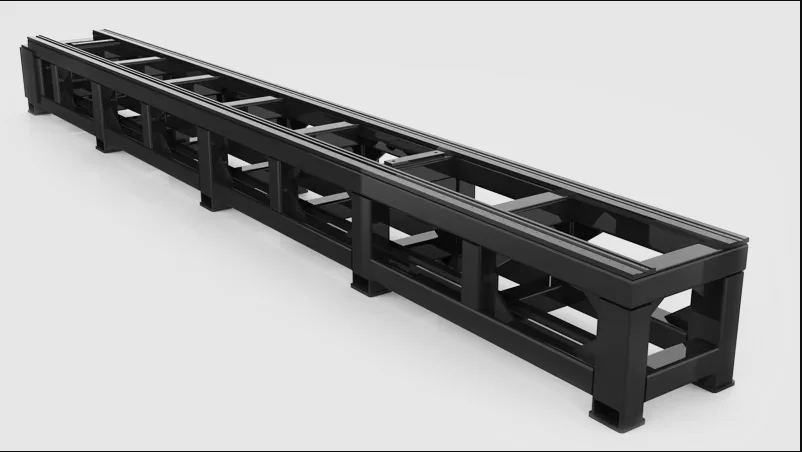

Machine frame
This machine adopts plate welding structure bed, the bed structure reaches the optimal stress point and support, the one-piece welding fixation can withstand greater load, and after aging treatment, greatly reducing the internal stress of the bed, to ensure the long-term stable operation of the equipment.

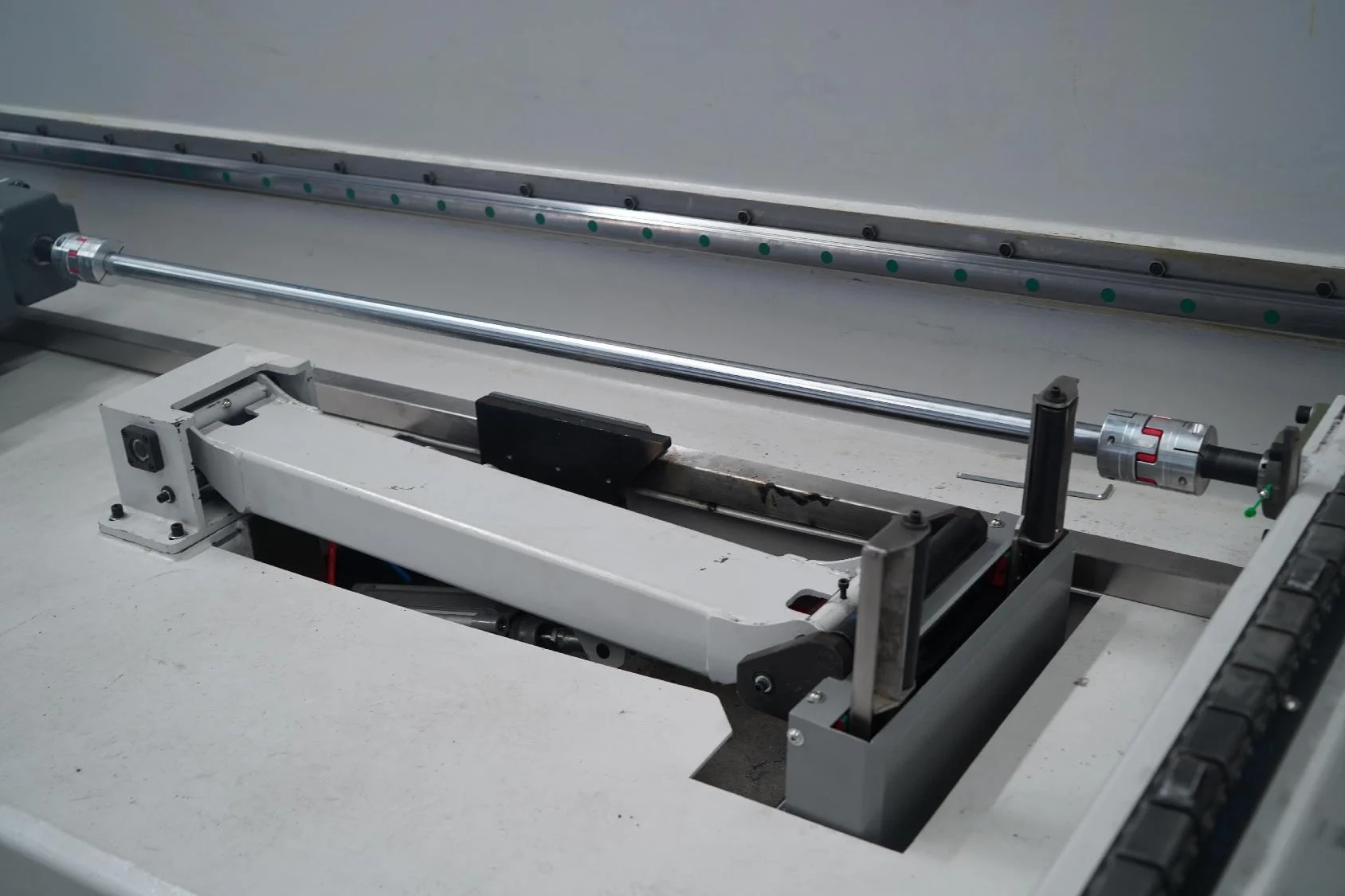

Automatic Support
Leapion's Small Pipe Cutting Machine features an advanced automatic support system, ensuring stability and precision during the cutting process. This component plays a vital role in maintaining the alignment of the pipes, ensuring that the cuts are clean, accurate, and consistent regardless of the length or diameter of the material.
Front Chuck
The front chuck adopts a fully sealed appearance dust-proof structure to prevent dust from entering, and is beautiful and generous with aluminum alloy panel + stainless steel cover buckle. Full stroke clamping range without gripper transposition adjustment, clamping force and load bearing force is strong, stable performance, high efficiency and clamping accuracy.
Rear Chuck
The rear chuck with claw can clamp the special-shaped pipe, keep the pipe fitting does not slip, and has the function of dust extraction or blowing, the clamping stroke is large, the type of claw is small, easy to use, the clamping force is strong, can realize the heavy pipe fitting processing, and the integral support base structure, improve the support bearing stability.
Laser System
Laser Source
Professional cutting laser source, small in size, light in weight, and easy to move and operate. With high-quality beam quality, high light conversion efficiency, the light emitting mode is more conducive to achieving a good and stable cutting effect.
Servo Driver
The fast-responding, enabling high-speed, high-precision control and efficient use of energy, with stable motors. Keeping the distance between the nozzle and the pipe unchanged, effectively guaranteeing the cutting quality and the cutting speed.
Servo Motor
Servo motors stabilise and drive the beam to control the movement of the Z-axis according to the programmed instructions to
complete the cutting operations with complex precision, and the user can adjust the parameters according to their needs..
complete the cutting operations with complex precision, and the user can adjust the parameters according to their needs..
Laser Head
Equiped with laser cutting head which is a modular design with easy maintenance and dual water cooling circuits. Auto focus to reduce human intervention and improve piercing and cutting efficiency. IP65 class dustproof, patented cover glass cover plate.
HIWIN Rail
Hiwin linear guide, for the four-row single arc tooth contact linear guide, while integrating the optimised structure design of the heavy-duty precision linear guide, high speed, high load, high rigidity, high precision and stabilise the cutting process.
YYC Gear
YYC Gear adopts German standard precision manufacturing, rack tooth surface quenching hardness HRC58, can reach DIN6 level precision requirements, suitable for precision CNC equipment, high precision, wide range of applications.
Control System
Control Software
We used a tube nesting software designed for Tube laser cutting system. From parts drawing and modification, full type compensation, strategic nesting to report generation, using TubesT will meet and exceed your production needs. It can achieve
intelligent production.at the same time, the modular design provides users with a more concise and efficient operation.
intelligent production.at the same time, the modular design provides users with a more concise and efficient operation.
Control System
Leapion use the most famous brand for high power in China, with great feedback from our customers and special functions such as flying cutting to help customers better use, improve production efficiency and save resources. Working with TubesT 3D nesting
software, it will achieve most efficiency and minimum waste.We also supply Leapion own made system.
software, it will achieve most efficiency and minimum waste.We also supply Leapion own made system.
Independent Height Adjuster
The high-performance stand-alone capacitive height adjuster with its unique Ethernet communication interface can easily work with tube laser cutting software to achieve automatic height edge finding, frog jumping.
Control Panel
The intuitive control panel simplifies operation without sacrificing performance. With customizable settings and keyboard for easy data recording, it offers unparalleled control for a wide range of cutting applications.
Wireless Controller
Wireless connection control handle to keep a safe distance to control the machine operation for operators, and the handle has iron
absorber on the back to reduce the occurrence of loss and easy to place.
absorber on the back to reduce the occurrence of loss and easy to place.
Technical Parameters
Products Name | LF-MT Small Tube Fiber Laser Tube Cutting Machine | ||||||
Laser Power | 1500W (Option: 1500w, 2000w) | ||||||
Model | LF-6011MT | LF-6016MT | |||||
Min Diameter | Φ10mm | Φ20mm | |||||
Tube Cutting Diameter | Φ110mm | Φ160mm | |||||
Tube Cutting Length | 6000mm | ||||||
Laser Source | MAX (Option: Raycus, IPG, BWT, Reci) | ||||||
Laser Cutting Head | Leapion (Option: Raytools, WSX, Au3tech) | ||||||
Control System | Leapion (Option: FSCUT, Au3tech, Raytools) | ||||||
Support Languages | Chinese Simplified, Chinese Traditional, English, Polish, Turkish, Arabic, Korean, German, Spanish, Russian, French, Italian, Czech, Japanese, Portuguese, Hungarian, Finnish, Vietnamese and so on Customized language accepted | ||||||
Chuck Speed | 80r/min | ||||||
Maximum Acceleration | 1.5G | ||||||
Positioning Accuracy | ±0.03mm | ||||||
Auxiliary Gas | Compressed air, oxygen, nitrogen | ||||||
Voltage | 380V 3PH 50HZ/60HZ (Option: 440V) | ||||||
Recommend Container | One 40HQ | ||||||
Application & Samples
Application Industry
Wide range of industry applications, advertising sheet metal processing, cabinet production industry, machinery and equipment manufacturing industry, kitchenware industry, automotive industry, aerospace, shipbuilding, lift production industry, etc.

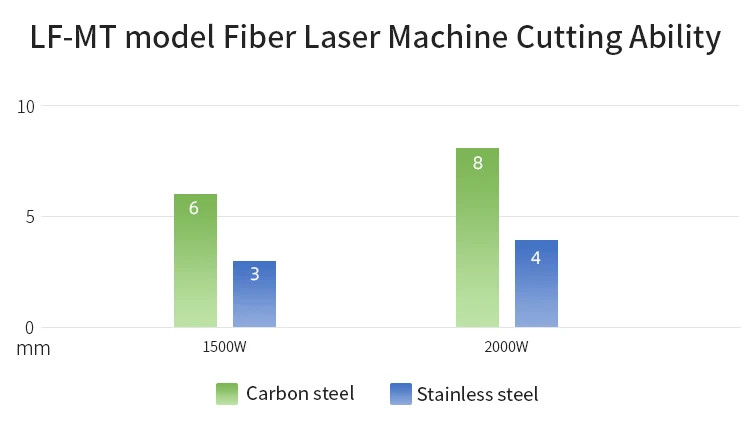

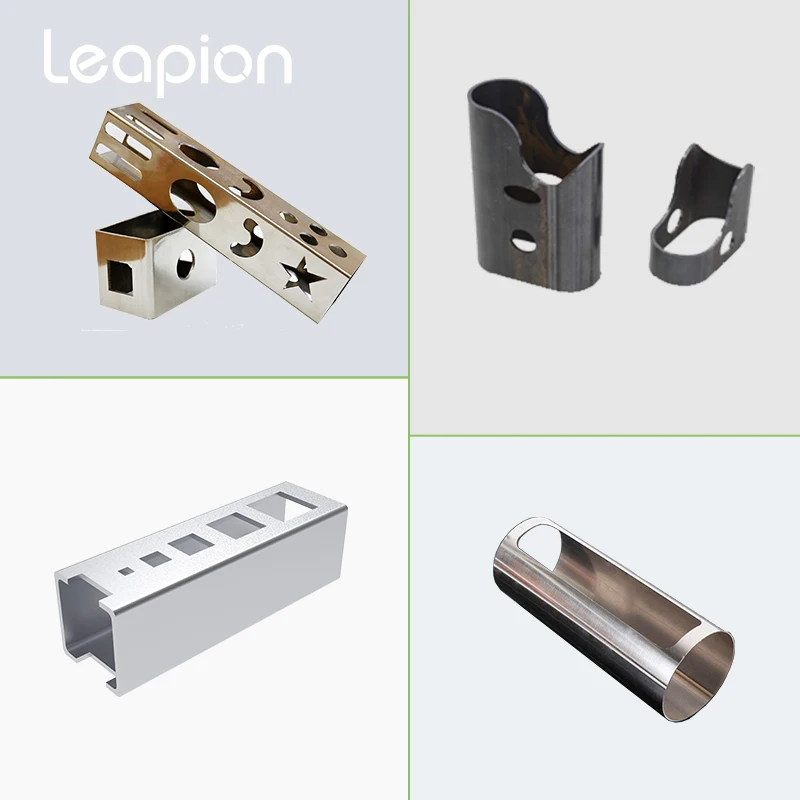

Cutting Sample & Ability
Product Shipment
Shipment Method | Land freight, Sea Freight |
Package Method | Direct load machine into Container . Load 1 set 6011/6016 MT Machine in One 40HQ . |
Certifications
Warm Tips
If you need us to make the corresponding certification. Please inform Leapion's sales staff and we will do our best to cooperate and provide maximum support to you.
Company Introduction
Control Video
FAQ
1. What is the MOQ?
The minimum order is 1 unit. For customers who need to customize the logo, the MOQ is also 1 unit, and for customers who need to modify the exterior color,the MOQ is also 1 unit, but the production time will be longer.
2. What terms of trade are offered?
Leapion can provide suitable terms according to your specific needs, including: EXW, FOB, etc.3. What payment methods are accepted?
We accept: credit card, debit card, bank transfer, L/C, etc. You are welcome to pay us through Alibaba's "Trade Assurance Order", which can guarantee your rights and interests. 4. How to get sample testing service?
We provide three options for sample testing service.
① If you don't need us to mail the tested samples to your address, and we have the metal materials you need to tested in stock, then we offer free testing service. Simply contact us with your specific needs. We will send you the test pictures and videos within 5 working days.
② if you need us to send the tested samples by post, please pay the express fee.
③ If you need special samples for testing, please mail the samples to our address or pay us the cost of purchasing metal materials.
5. How to confirm the most suitable model of equipment for me?
We suggest you can contact us, Leapion will provide you 1 to 1 VIP service, professional sales staff will recommend the most suitable equipment for you.
For faster communication, we recommend that you confirm the following information before contacting us:
① which metal material you need to cut ② the maximum thickness of each metal material plate and tube
③ The length and diameter for tube to cut
④ the voltage of your local factory
④ the voltage of your local factory
⑤ the trade terms you required
⑥Required Time
⑥Required Time
