Dowell DM10 16 Plus high yield 3d printing machine large format big size 1000mm 1600mm impresora 3d printer
- Category: >>>
- Supplier: Luoyang Dowell Electronics Technology Co. Ltd.
Share on (1601196999716):
Product Overview
Description
Best Budget Fast speed and ease of use Dowell 3D Printers! Contact us for the latest quotation.

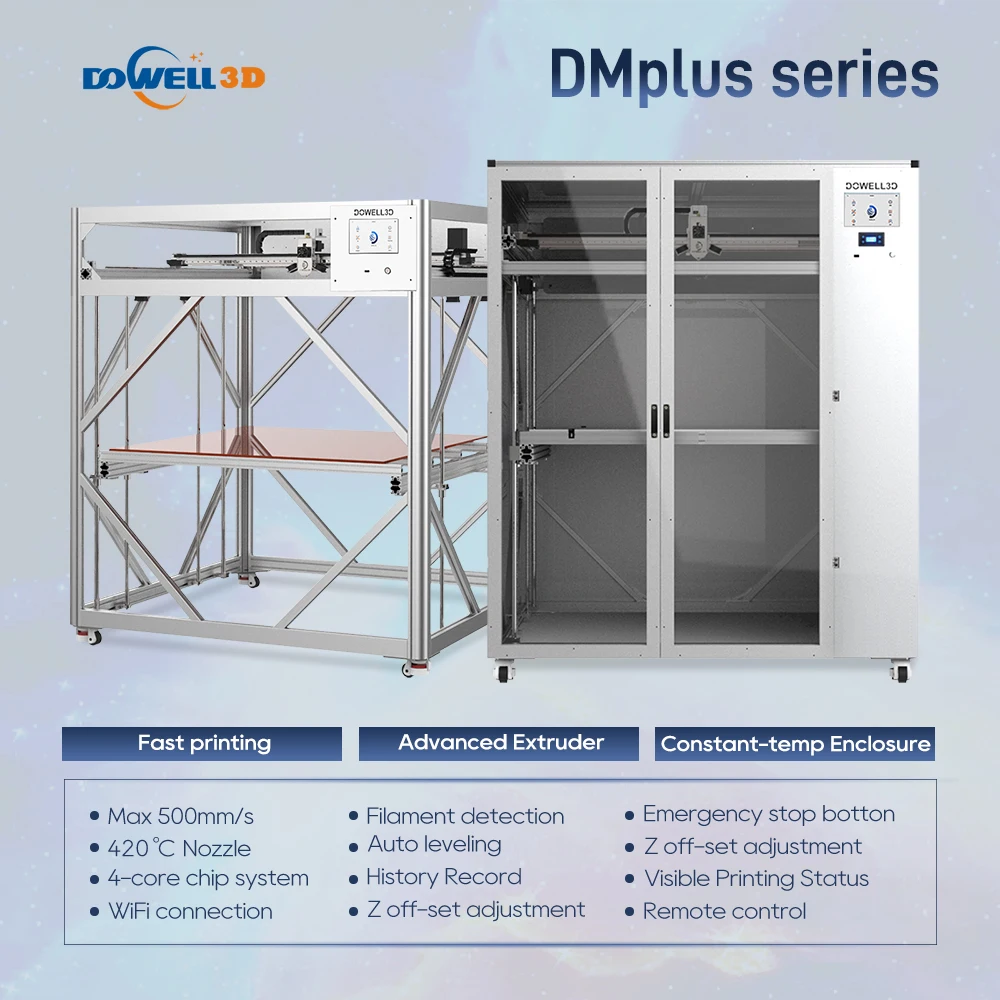

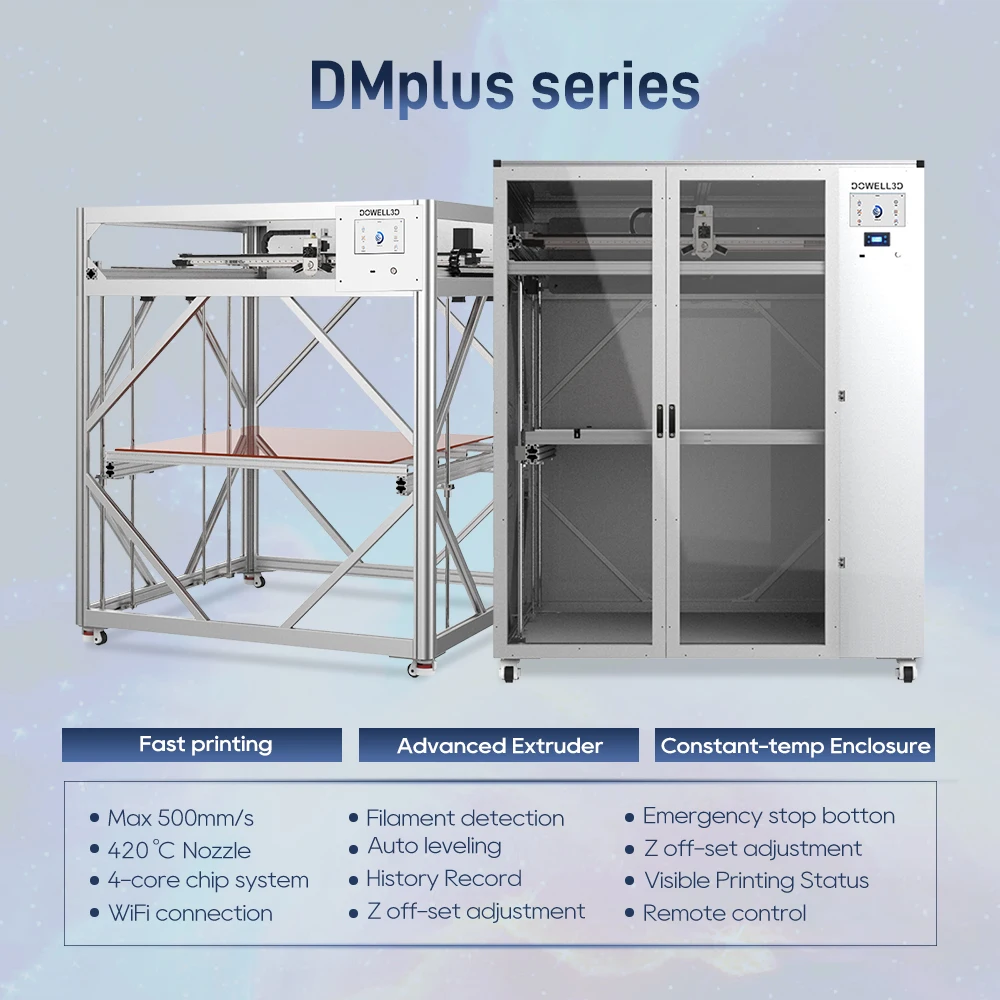

The Dowell 3D Plus series printers have eliminated most traditional 3D printers and replaced them with faster, more professional, larger, and more mechanically precise industrial 3D printers.
The latest 4-core chip motherboard combined with the upgraded klipper system greatly improves production speed and makes your 3D printing simpler and easier.
Specification
Model | DM10-16Plus | ||||||
Printing volume | 1000*1000*1600mm | ||||||
Frame | 60mm aluminum section | ||||||
Printing bed | 6mm tempered glass | ||||||
Nozzle diameter | 0.4/0.6/0.8mm | ||||||
Nozzle temperature | 0-350℃ | ||||||
Bed temperature | 0-100℃ | ||||||
Location accuracy | 0.002mm | ||||||
Layer height accuracy | 0.04-0.6mm | ||||||
Extrusion flow rate | Max 400g/hour | ||||||
Operation firmware | R&D Based On Klipper | ||||||
Operation interface | 7'' full color touch screen | ||||||
File format | STL/OBJ/GCODE/JPG | ||||||
Filament available | 1.75mm PLA,PETG,ASA,ABS,PVA,TPU,WOOD,CARBON FIBER,etc. | ||||||
Connection | SD Card/ U Disk/ WIFI | ||||||
Input power | 110/220V | ||||||
Basic functions | *Auto leveling *Filament sensor *Remote control *Wifi connection *Visible Printing status *Visible temperature graph *Installable external camera *Configuration editable *Z-offset adjustment *Speed & extrusion & cooling adjustment *Gcode viewer *History record *Emergency stop button | ||||||
Optional | *60°c Enclosure *Customize printing size | ||||||
Product Description
Dowell 3D printer is an excellent solution with simple setup and intuitive operation. Whether you work in aerospace, automotive, power, energy, furniture, outdoor advertising, sculpture, statue, or any other industry that requires high-performance parts, Dowell 3d printers can unlock endless possibilities.

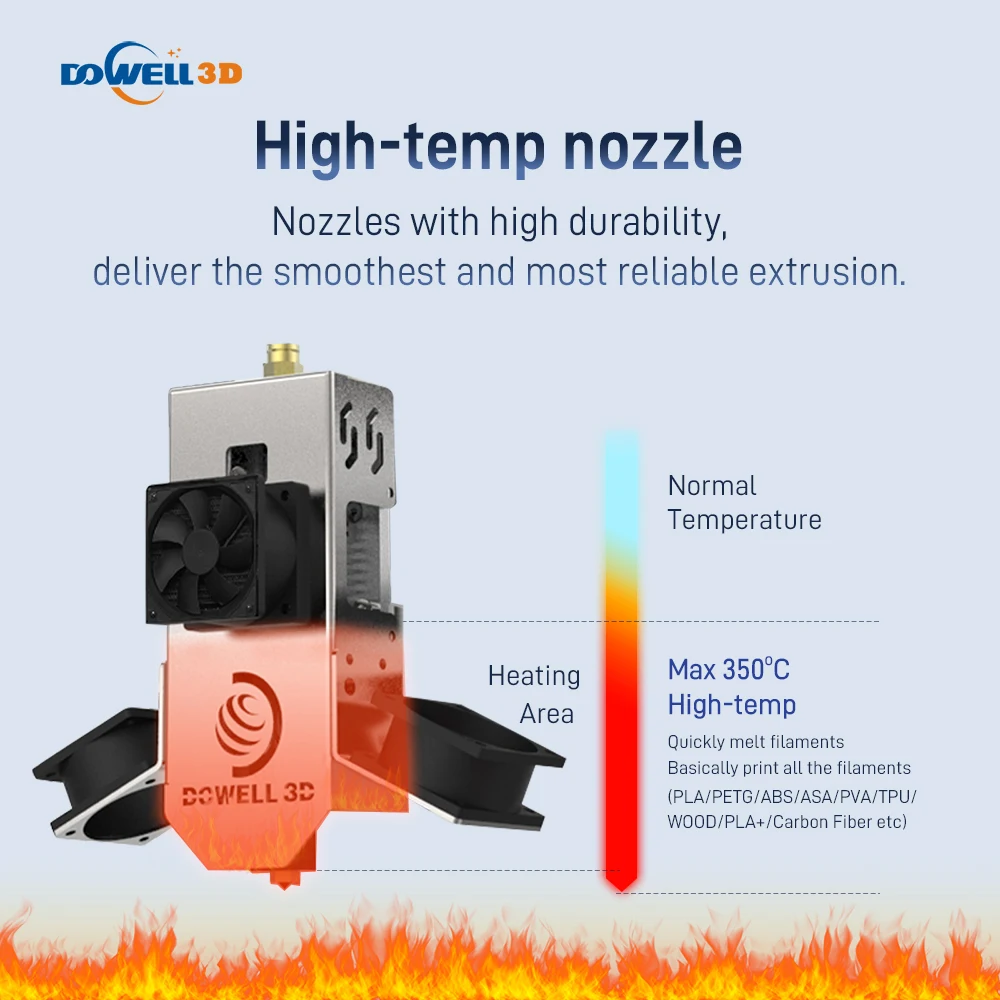

350°c HIGH-TEMP NOZZLES
Dowell extruder features a dual drive gear system and metal heating block for enhanced heat transfer and high temperature compatibility. It uses thermal insulation and an upgraded temperature sensor to support printing temperatures up to 350°C.

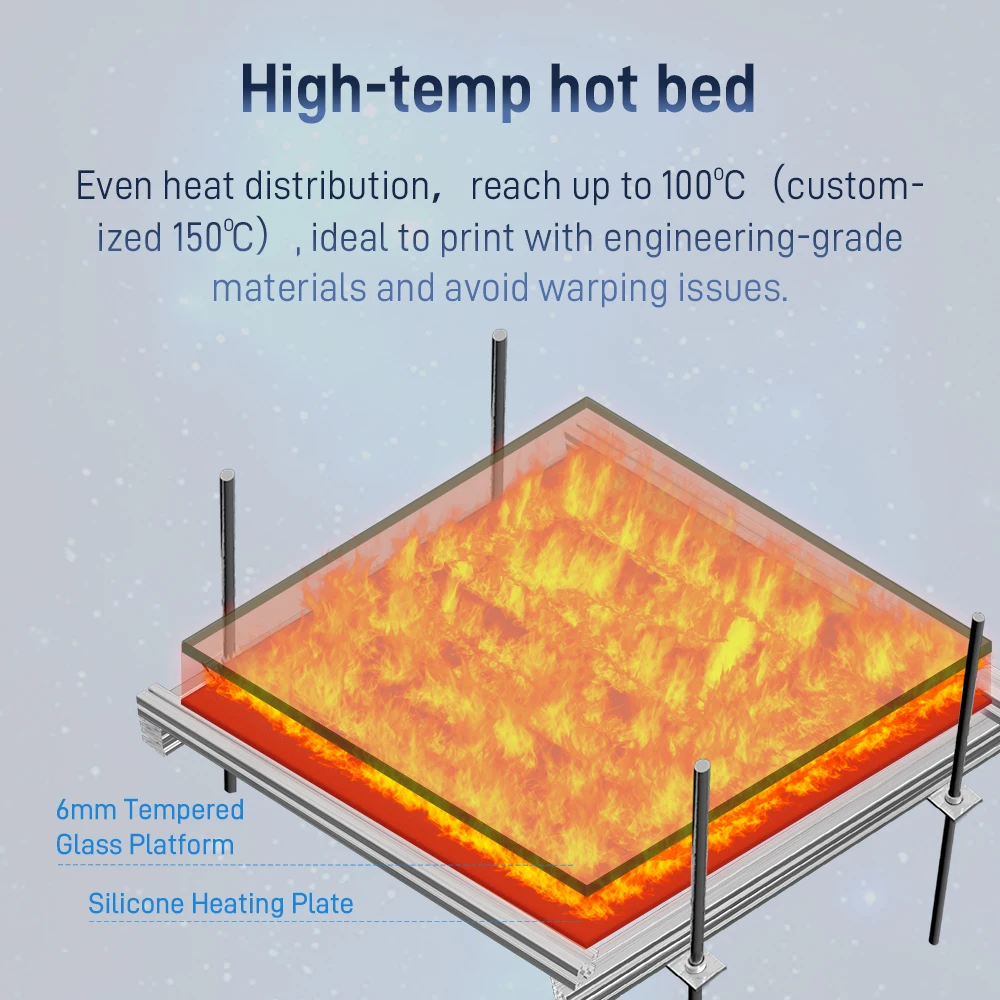

100℃ HIGH-TEMP PLATFORM
DM Plus comes standard with a 6mm tempered glass platform heated bed, which has high surface flatness, is not easy to deform, has good thermal conductivity, strong adhesion, and also easy to clean, Suitable for high-temperature printing materials.

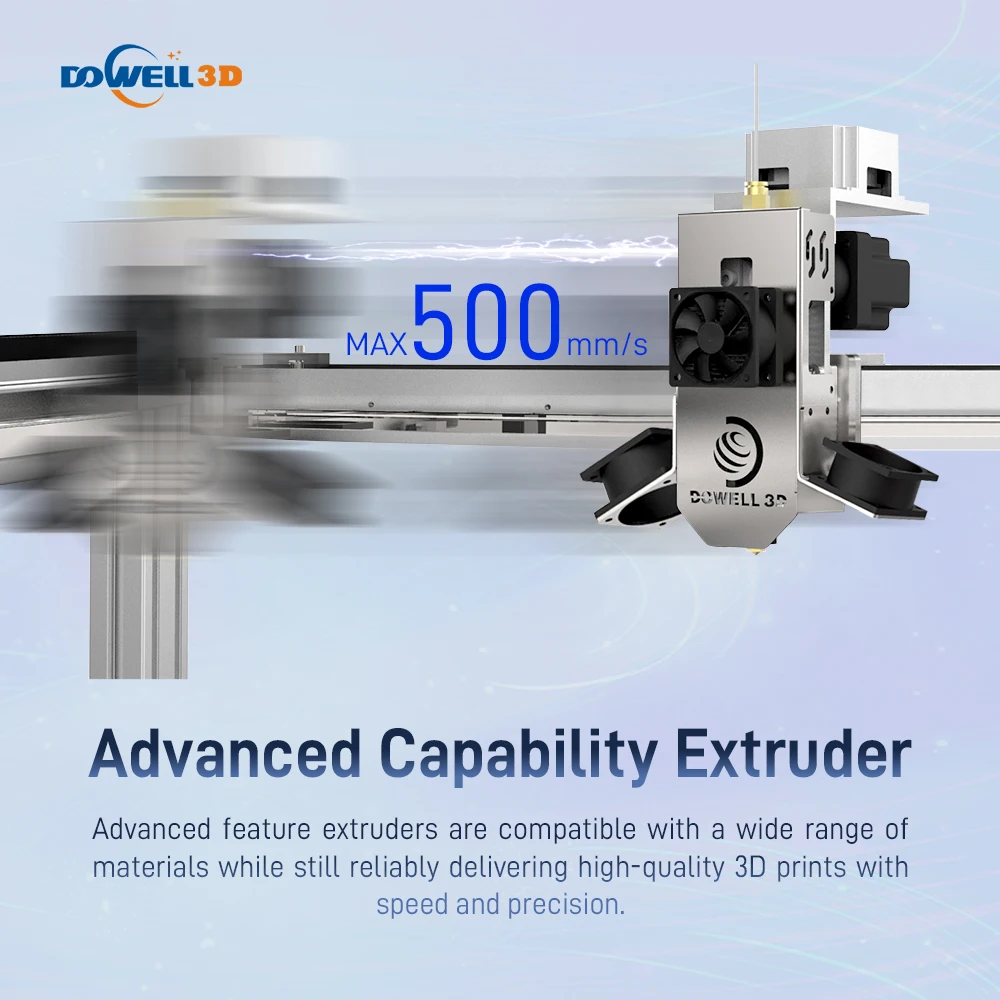

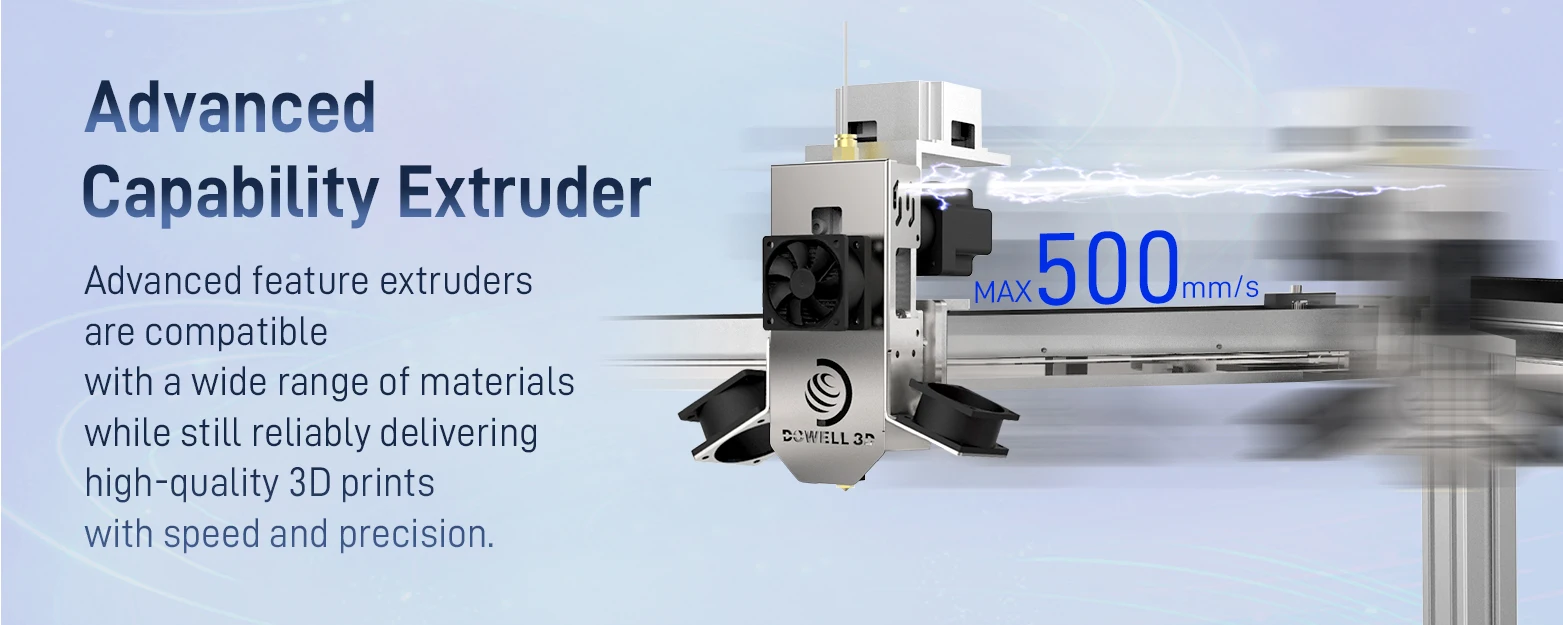

Fast Printing speed
The affordable Dowell 3D printer enables rapid prototyping, allowing users to create prototypes in a fraction of the time, turning ideas into reality faster for mass production.

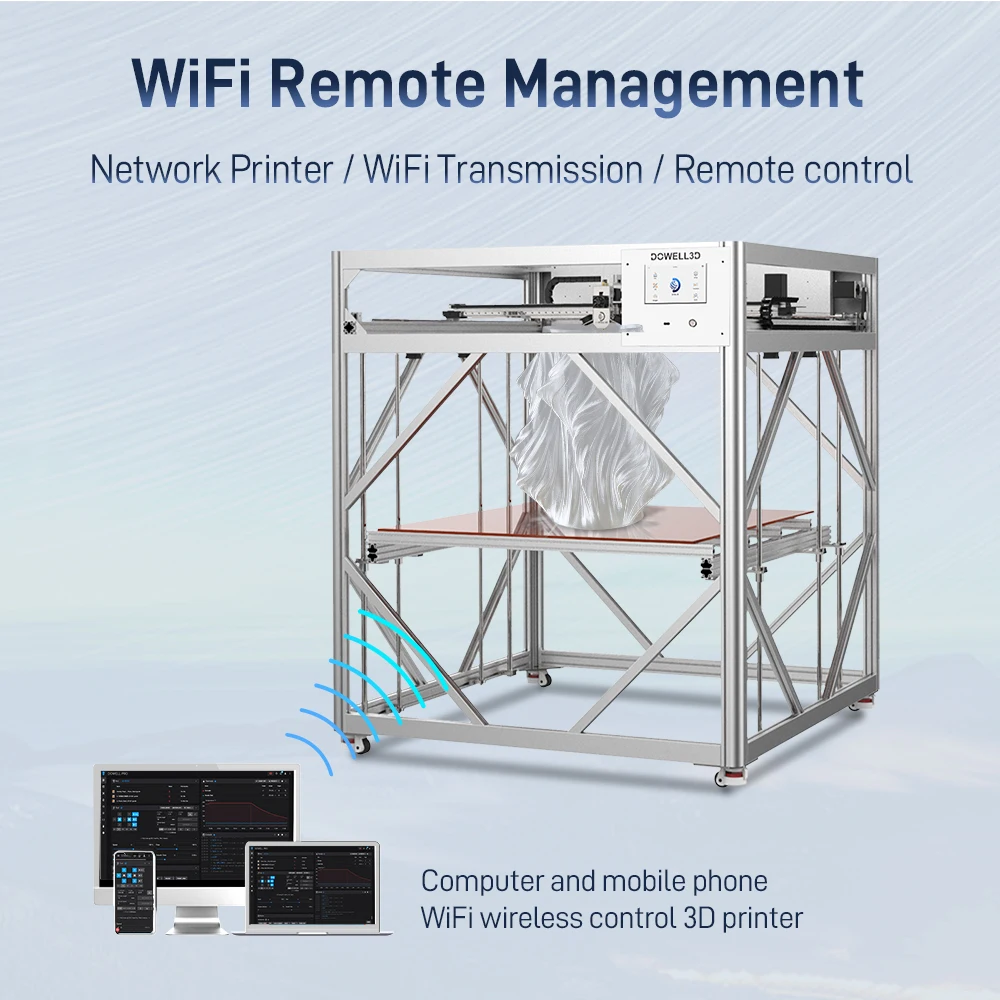

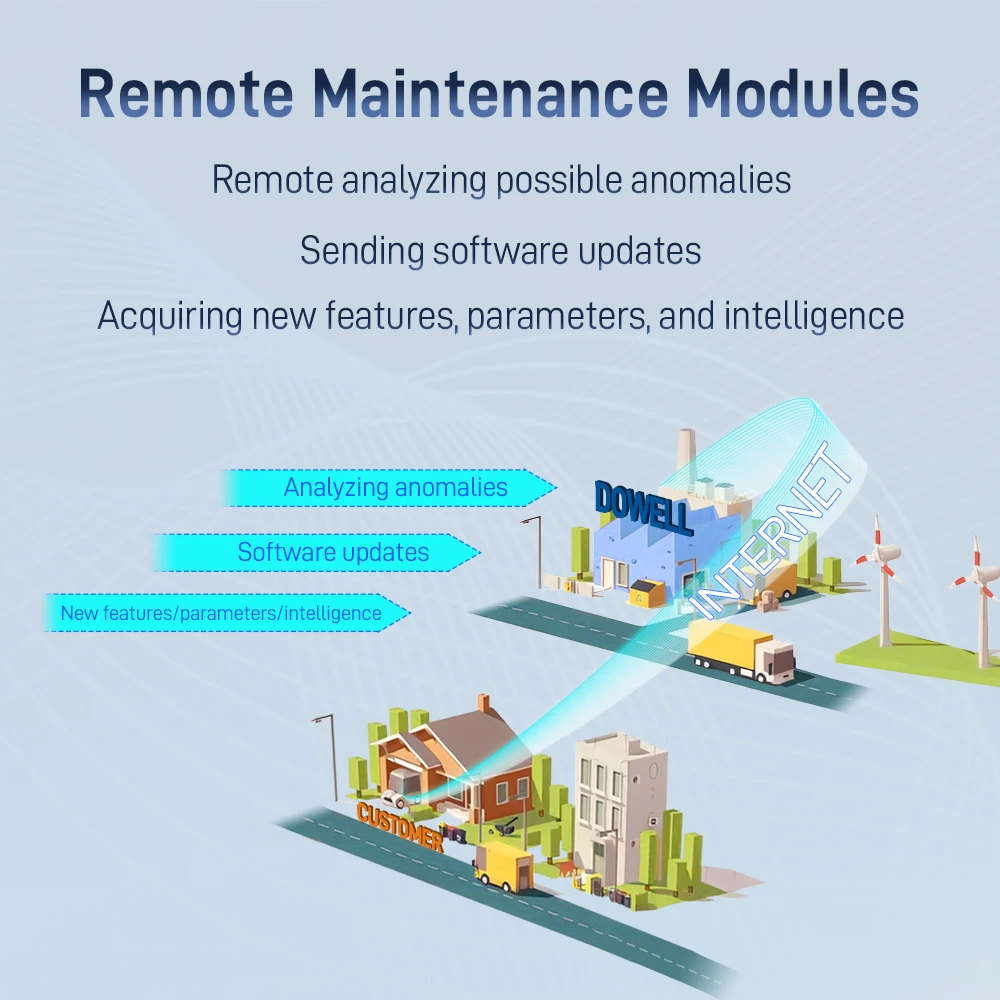

Built-in remote module
DOWELL3D printer is equipped with remote maintenance modules to analyze possible anomalies and to reduce the possibility of downtime for the advantage of productivity. The remote management feature includes sending software updates to allow the DOWELL 3D Printer to evolve over time, acquiring new features, parameters, and intelligent functions.

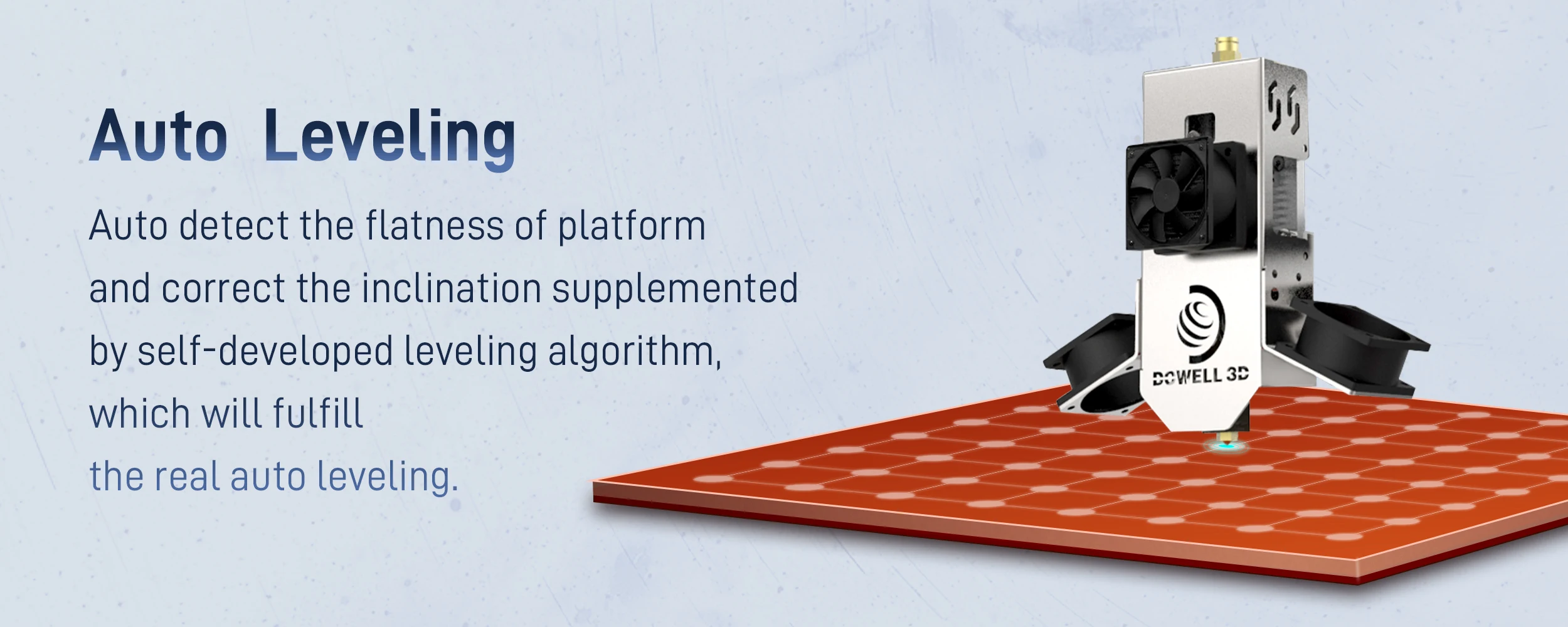

64-Points mesh bed auto leveling
First, the 4 corners are detected, and then the 8*8, 64 points rectangular detection of the flatness of the bed is carried out. It adjusts the inclination by rotating the screw and automatically compensates for unevenness to ensure perfect flatness before each printing job.

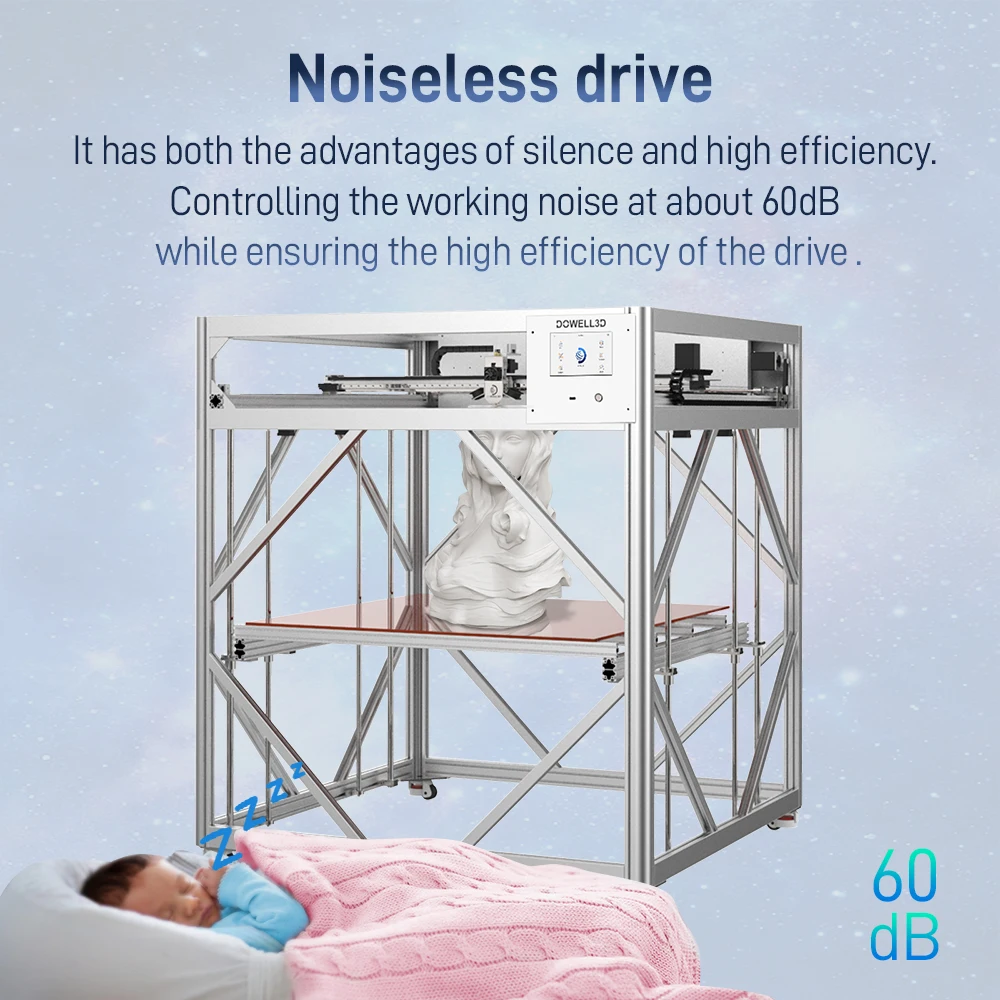

Noiseless Drive
DM Plus series 3d printer has both the advantages of silence and high efficiency. Say goodbye to traditional mechanical noise, which will have no impact on your work and personal life.

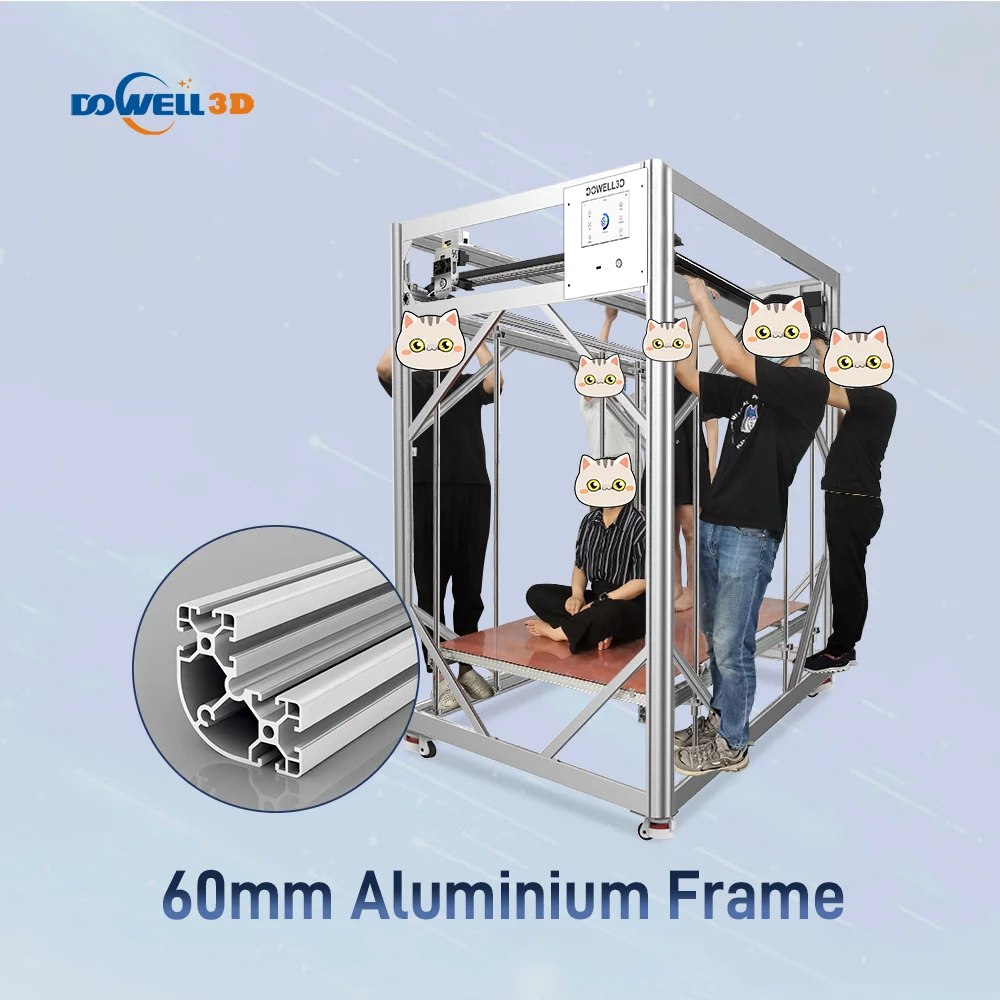

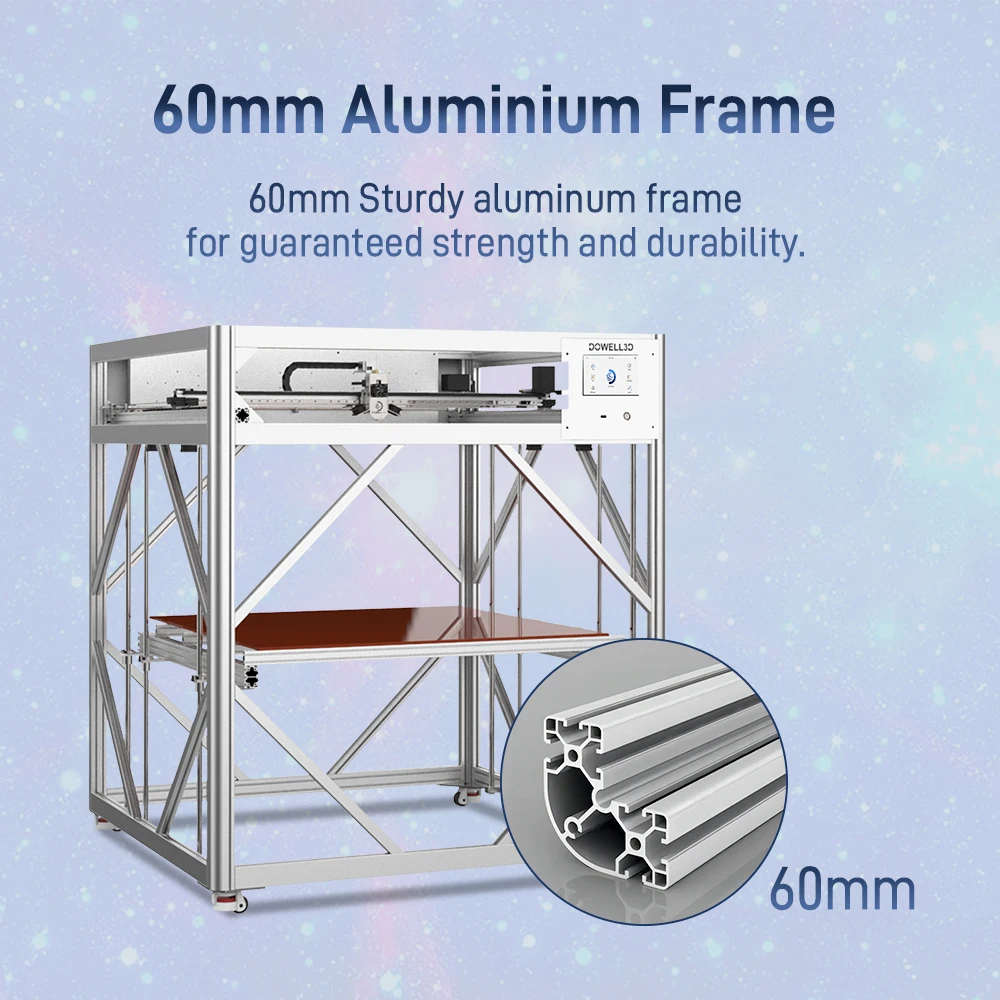

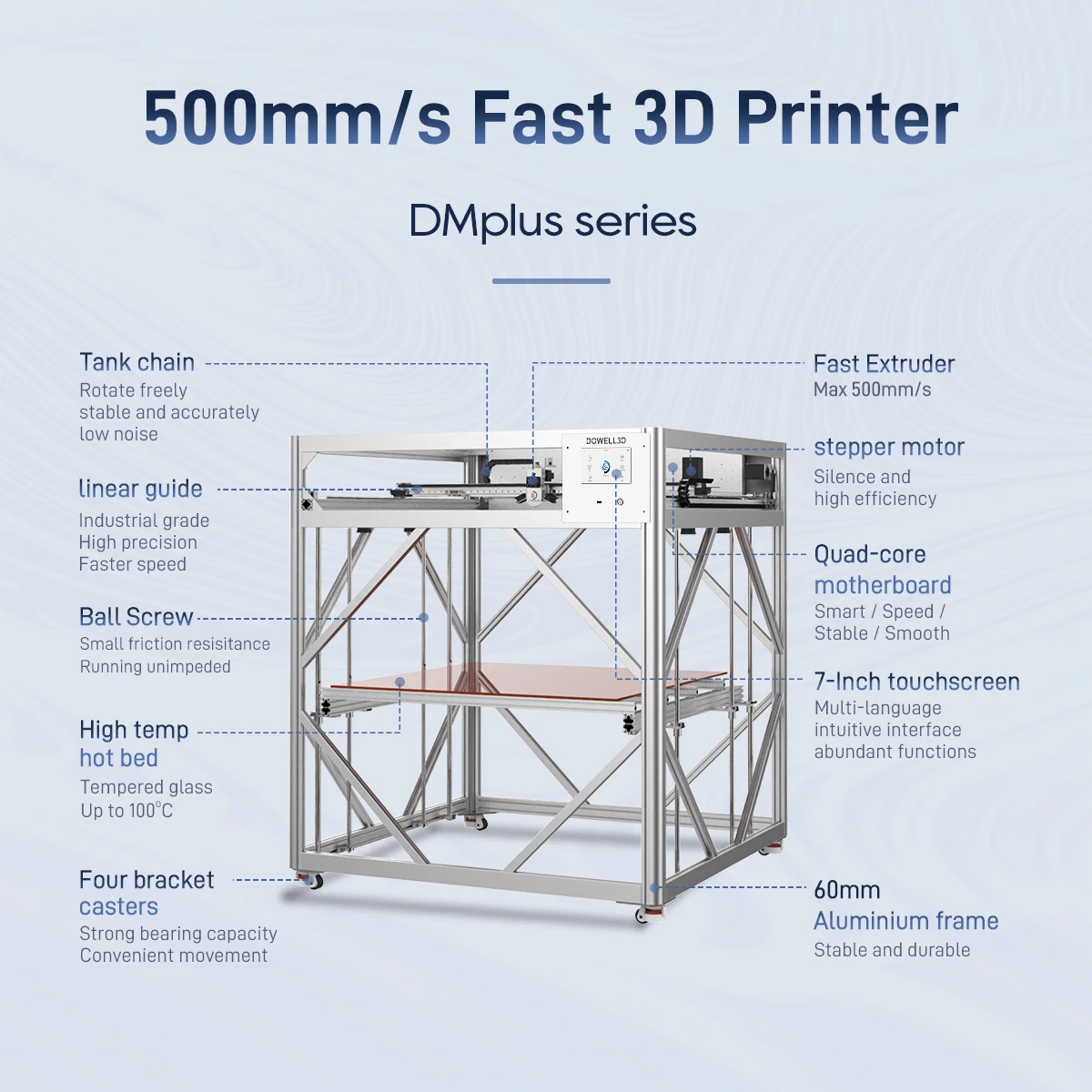

Strong Frame Structure
DM Plus series 3d printer all using high quality 60mm thicken aluminum alloy as the main body, is reinforced with diagonal supports to ensure stronger stability in the printing process.

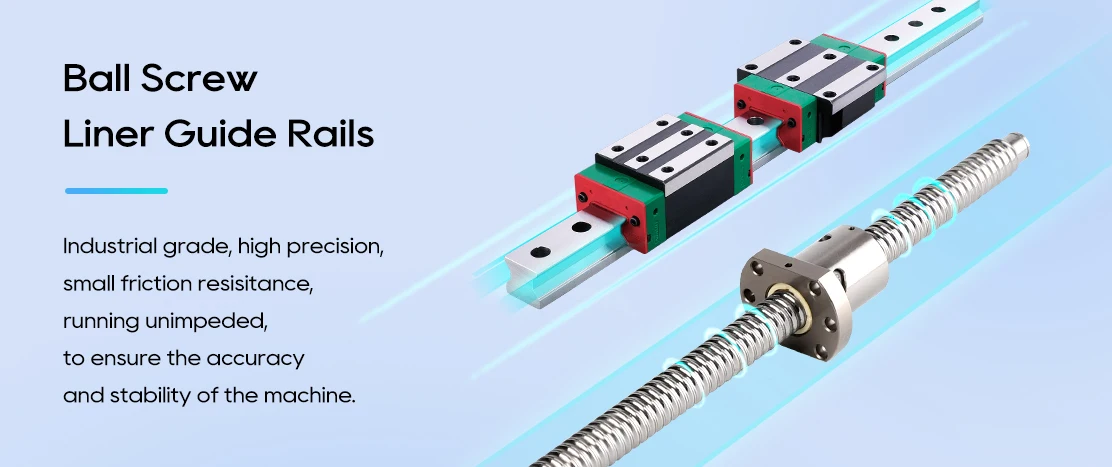

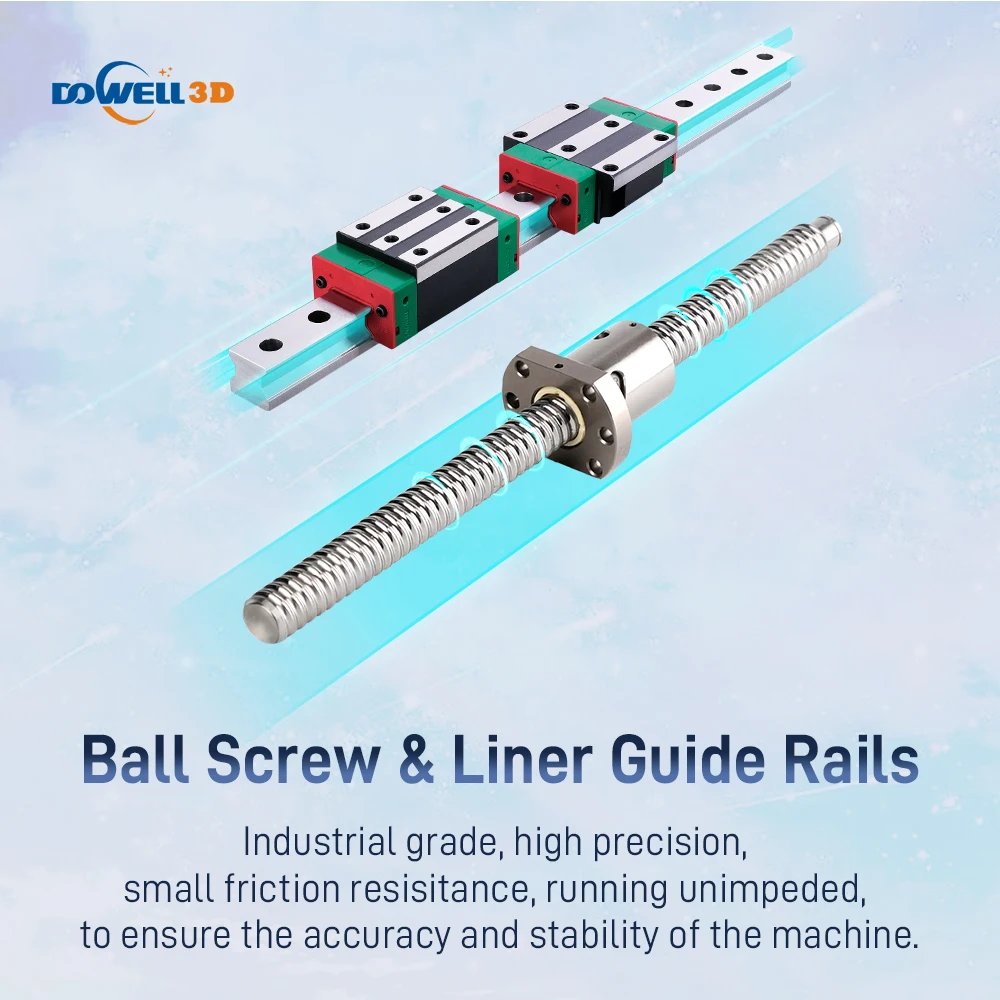

Industrial Grade Ball Screw & Linear Guide Rails
Industrial-grade movements are used to achieve the mechanical precision of typical machine, improving the production speed, accuracy and repeatability of printed parts.

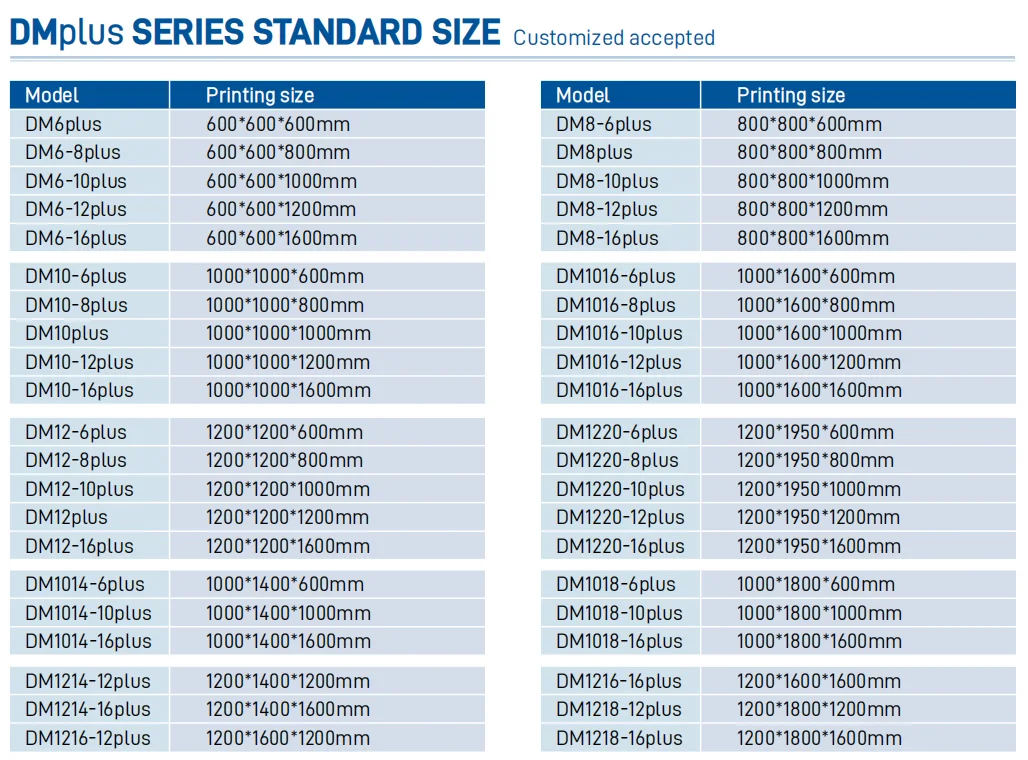

*Extensive Printer Size Options
*In addition to these sizes, you can contact us for customized dimensions tailored to your specific requirements.

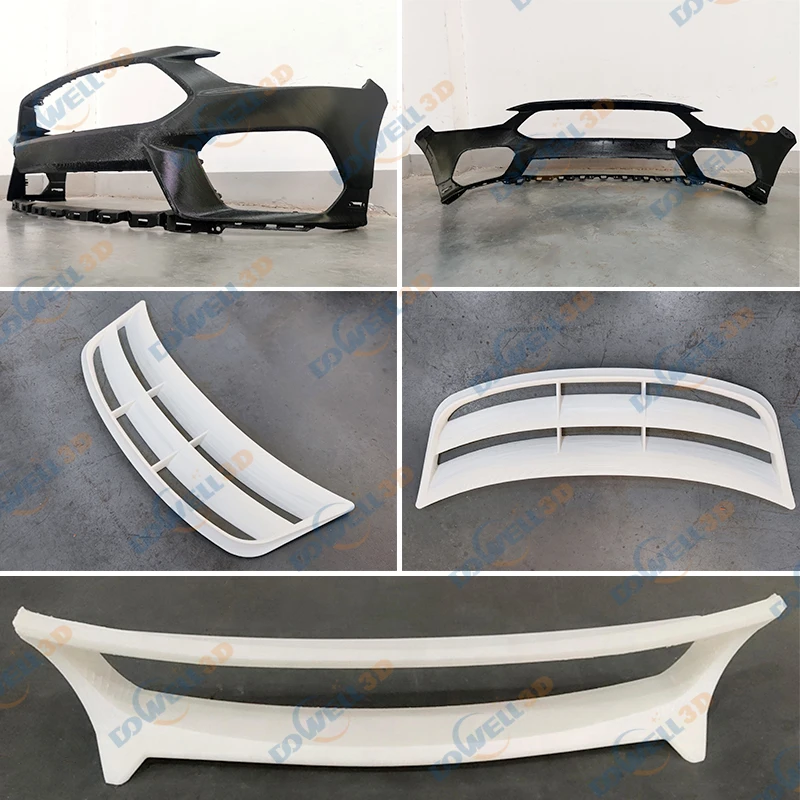

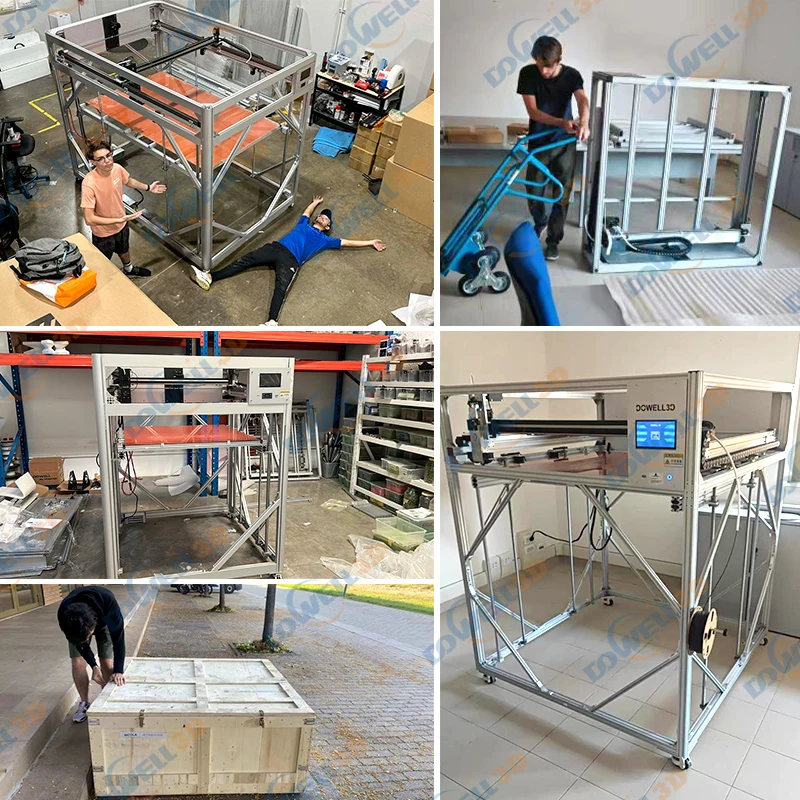

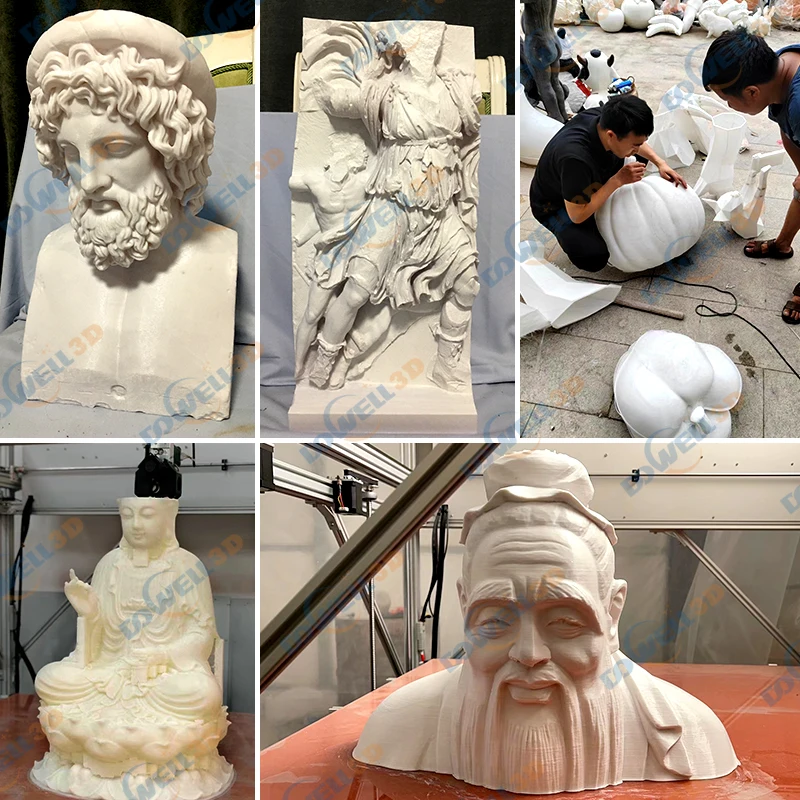

Customer's Printing Cases

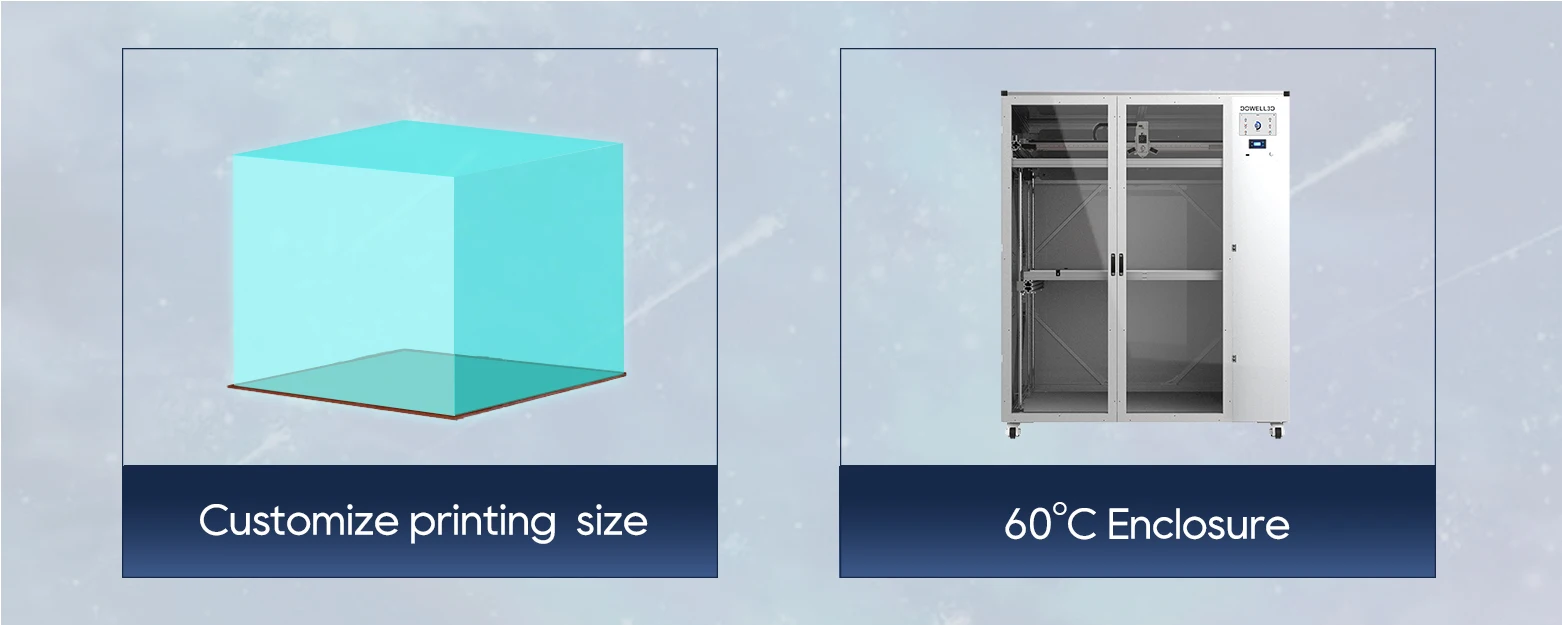

Customization options
In addition to its fundamental features, DOWELL 3D printers are also equipped with customizable functionalities, allowing users to tailor the printer to their specific needs.
Company Profile
Dowell 3D Printer will be your best choice with no doubt!
The Dowell3d was created to make industrial 3D printing of large-scale objects and prototype as easy as possible.
Dear Customers:
This is the only official store of Luoyang Dowell 3D PrintersOn Alibaba.
We do not authorize any third party to selling our products, all DOWELL3D products sold in other stores are counterfeits, can not get any technical support and after-sale service. Please carefully to buy!
FAQ
1-Are you a factory?
Yes, we are a directly manufacturer focus on developing and produce large industrial 3d printers.
2-Payment method
T/T (Bank transfer), Paypal, West union, Credit card, Wechat pay, Ali Pay, T/T
3-Shipping method
DHL, UPS, Fedex, TNT, sea shipping, air freight, by train.
4-What's your lead time?
If the product you order is our standard model, lead time is around14 days; or else lead time is negotiable.
5-How do you guarantee the quality of the printer?
We have 100% tests before shipment. We will supply photos and video of tests before shipment. We can guarantee that our 3D printer will have absolutely no quality problems before shipment. Then we will arrange the shipping under the confirming.
