GT DMTG CT40 Automatic 4 Axis Cnc Lathe Machine Small Cnc Lathe With Bar Feeder Torno Cnc Cama Inclinada
- Category: >>>
- Supplier: General Technology Group Dalian Machine Tool Import & Export Co. Ltd.
Share on (1601197044010):
Product Overview
Description
VR
PRODUCT DETAILS

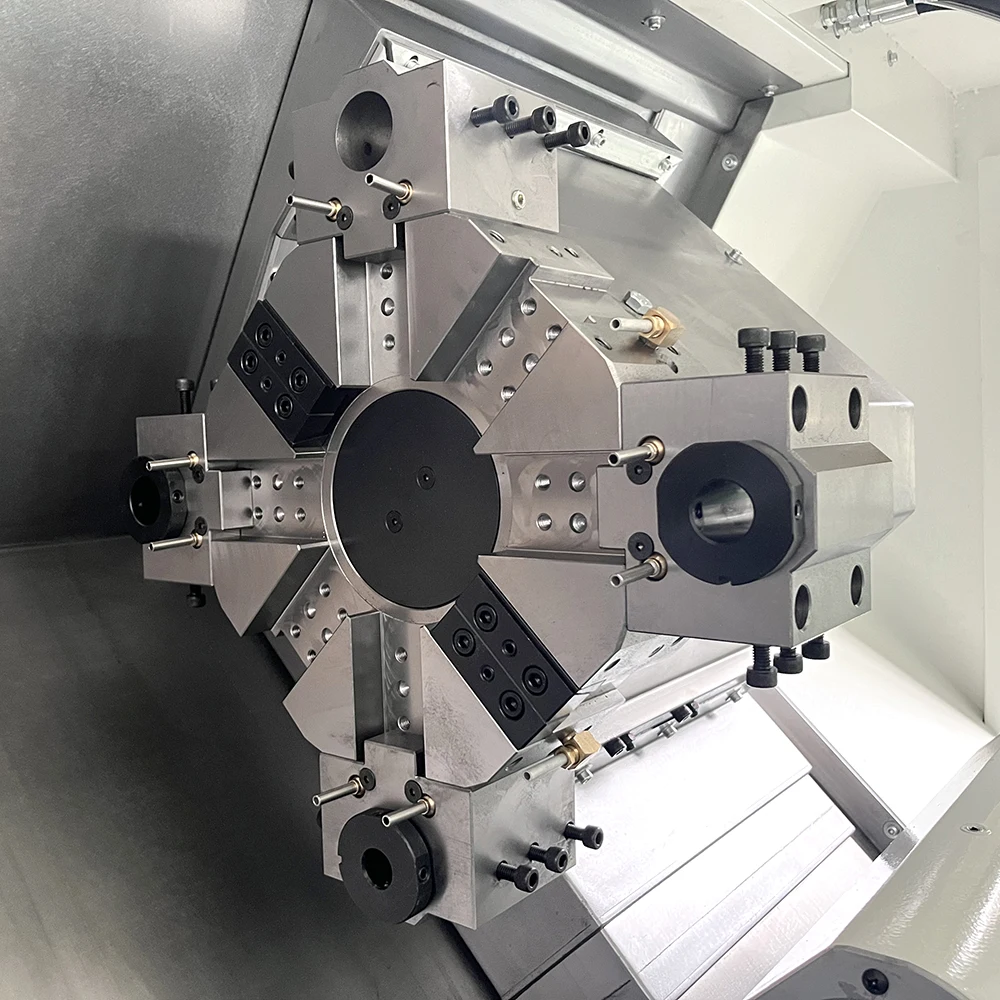

1.Hydraulic 8-position turret
2.NSK spindle bearings and X/Z axis bearings
3.X/Z ball screws&linear guideways

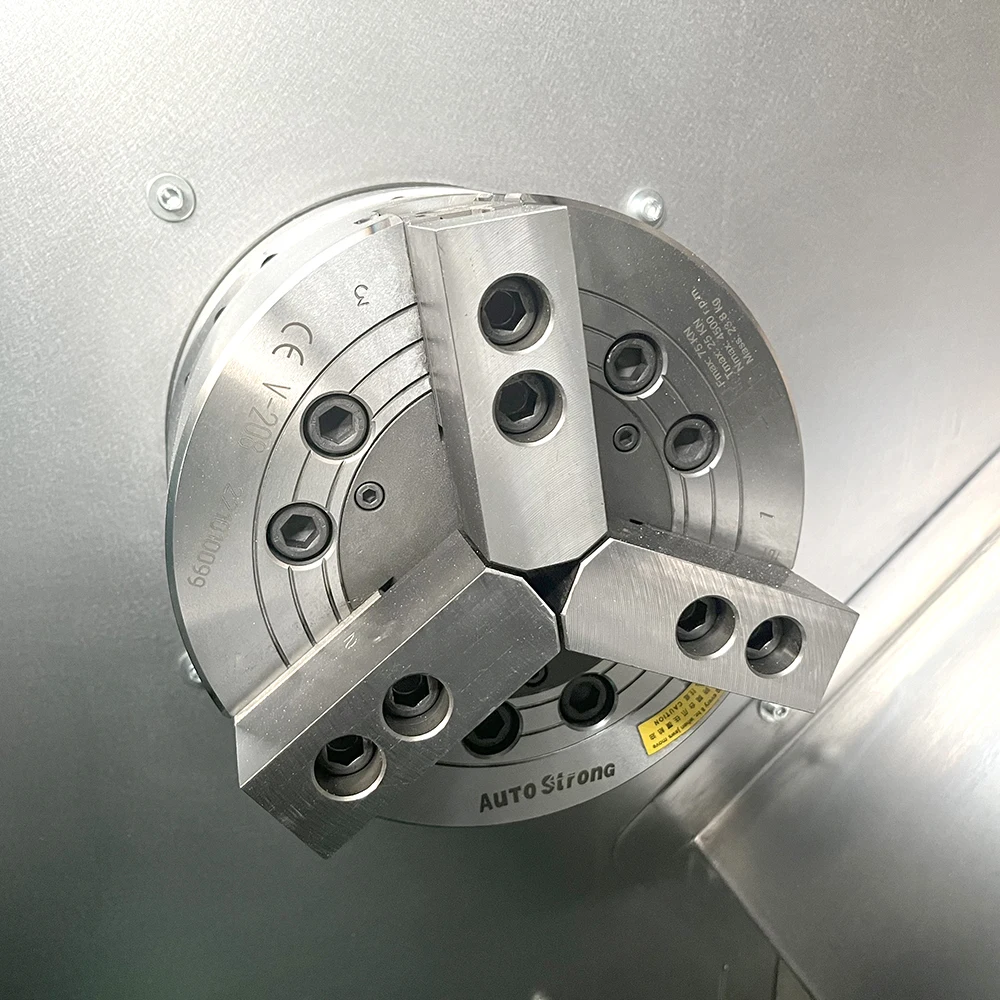

4.Non through-hole hydraulic chuck

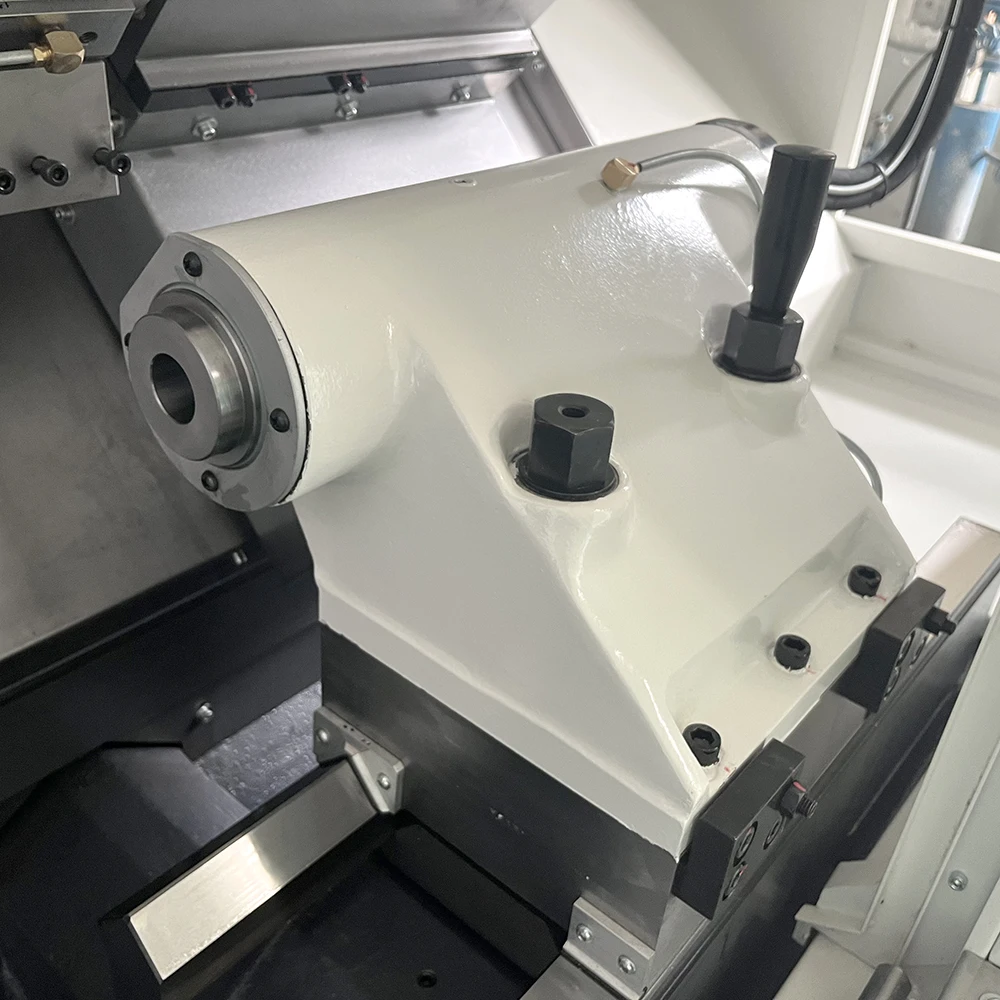

5.Hydraulic tailstock
6.Heat exchanger
7.Chip collection box
8.Automatic lubrication system
9.Standard toolkit
Specification | Unit | CLS20 | ||||
Max swing diameter over bed | mm | Φ500 | ||||
Max. turning diameter | Shaft parts | mm | Φ260 | |||
Disc parts | mm | Φ300 | ||||
Max. turning length | mm | 450 | 430 | |||
Guideway type | Linear guideway | |||||
Chuck size | 8" | 10" | ||||
Type of spindle nose | A2-6 | A2-8 | ||||
Spindle speed range | rpm | 45~ 4500 | 35 ~3500 | |||
Spindle motor power | KW | 11/15 FANUC Oi-TF(5) | ||||
Spindle bore | mm | Φ62 | Φ87 | |||
Max. bar capacity (Equipped with through-hole hydraulic chuck) | mm | Φ51 | Φ74 | |||
Max. travel of X/Z axis | mm | 165/500 | ||||
Rapid traverse of X/Z axis | m/min | 20/24 | ||||
Cutting feed rate | mm/min | 0~5000 | ||||
Turret type and tool numbers | Hydraulic 8-position turret (Opt:12-position turret) | |||||
Tool shank size | mm | 25 X 25 | ||||
Indexing time(adjacent/farthest) | s | 0.45/1.2 (0.45/1.45 12-position turret) | ||||
Max. travel of tailstock | 460 | |||||
Diameter of tailstock quill | Φ80 | |||||
Tailstock quill stroke | mm | 130 | ||||
Taper of tailstock | MT4 | |||||
X/Z axis positioning accuracy | mm | 0.008/0.008 | ||||
X/Z axis repeatability accuracy | mm | 0.004/0.004 | ||||
CNC Controller | FANUC 0i-TF(5)Plus、SIEMENS 828D、GSK 988T | |||||
Machine dimensions(L×W×H) | mm | 2900×2870×2000(Rear chip conveyor) 3900×1740×2000 (Side chip conveyor) | ||||
Machine weight | kg | 4000 | ||||
COMPANY PROFILE
EXHIBITION
After-Sales Service
CUSTOMER
DMTG’s main products are: Conventional lathes, Flat and slant Bed CNC Lathes, Vertical Milling Machines, Vertical Machining Center 5-axis Vertical Machining Centers, Horizontal Machining Centers, Gantry Machining Centers and Automatic lines, etc.
General Technology Group Dalian Machine Tool Co., Ltd. belongs to the central enterprise China General Technology Group, formerly known as DMTG, which was established in 1935. In 1995, the major state-owned machine tool enterprises in Dalian were merged together to be DMTG. Since 2002, it has successively merged three famous machine tool factories, which were Ingersoll Production Systems, Ingersoll CM System from America, and Zimmermann in Germany. Also established eight joint ventures with the company from America, Germany, Japan, Switzerland, Israel, South Korea and other countries. In April. 2019, China General Technology Group strategically reorganized DMTG and established General Technology Group Dalian Machine Tool Co., Ltd.
PACKING&SHIPPING
CERTIFICATIONS
FAQ
1. Is your company a factory or trading company ? |
We are factory and DMTG was founded in 1935. |
2. Can we pay by L/C or others ？ |
Yes ,you can make the payment by T/T , l/C etc. |
3. What is your payment terms ? |
30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation. |
4. What is your delivery time ? |
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not. |
5. Do you have CE certificate? |
Yes , we have CE certification, machine quality is guaranteed. |
6. What is the warranty period ? |
The warranty period is general 13 monthes after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are easy damaged. |
7. Can you send the service engineer to our company ? |
When the machine arrive the destination, we timely send service engineers to install machine according to buyer's schedule, the buyer shall bear all expenses. |
