HaiLin 4 Pipe FCU Thermostat 0 10V Modulating Valve 24V RS485 Programmable Schedule Remote Sensor OEM

Share on (1601197129364):


Price:

Quantity:


Product Overview

Description





VR


Product Name

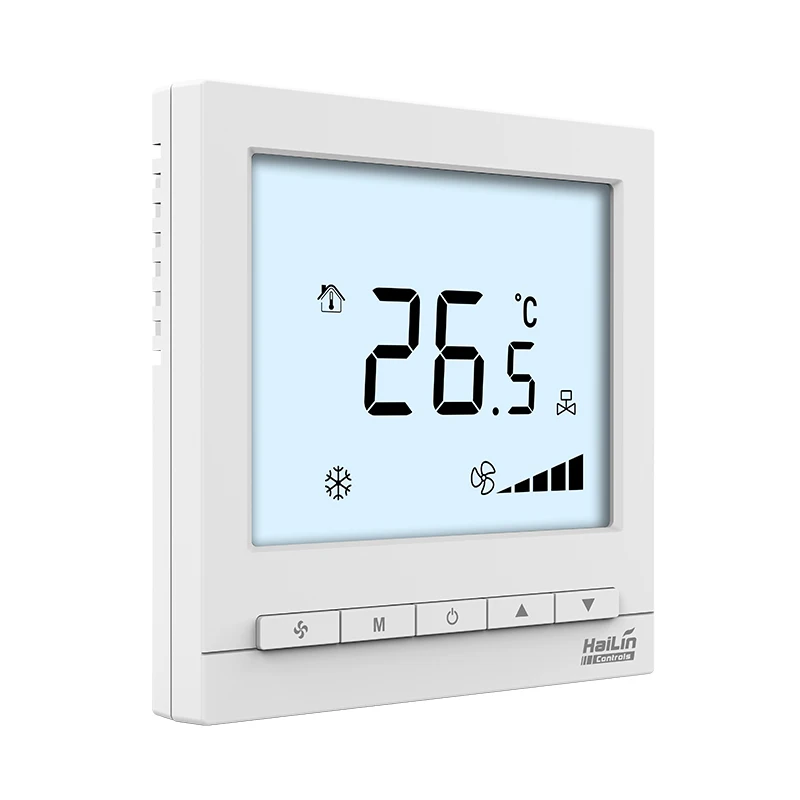

Versatile D Series FCU Thermostat
Model
HL8123V4-E
Power Supply
AC/DC 24V, 50/60Hz
Display Temp.Resolution
0.5℃
Operating Temperature Range
0~55℃
Operating Humidity Range
5-95%RH (No Condensation)
Power Consumption
<2 W

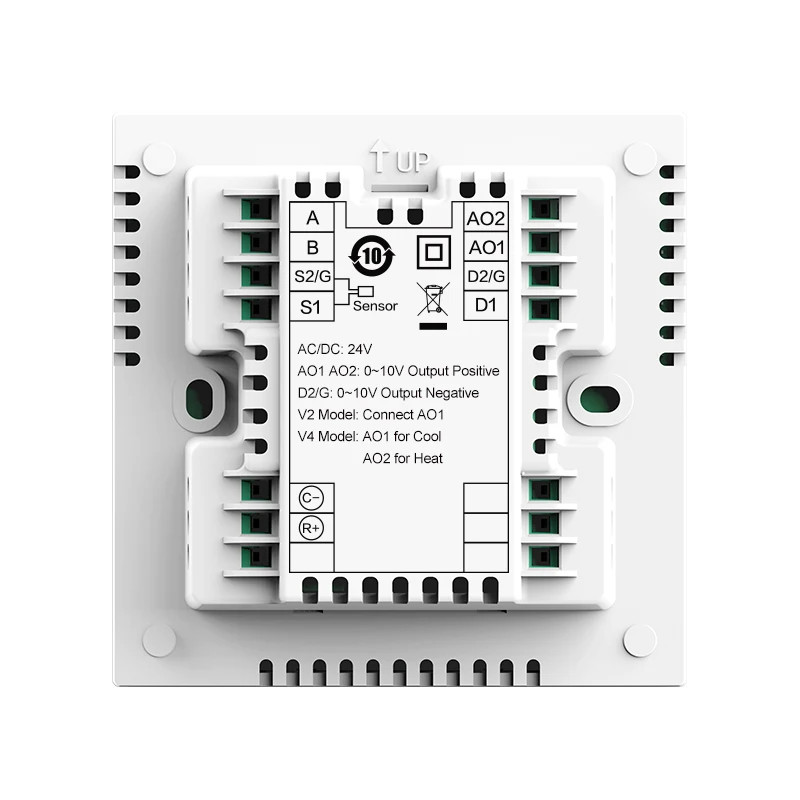

Terminations
One 2.5mm² Or Two 1.5mm² Wires
Max Load Current
< 2A (Resistive),< 1A (Inductive)
Shell Material
PC+ABS Anti-flaming
Dim. H × W × D (mm)
86 x 86 x 12.5
Protection Class
IP30
