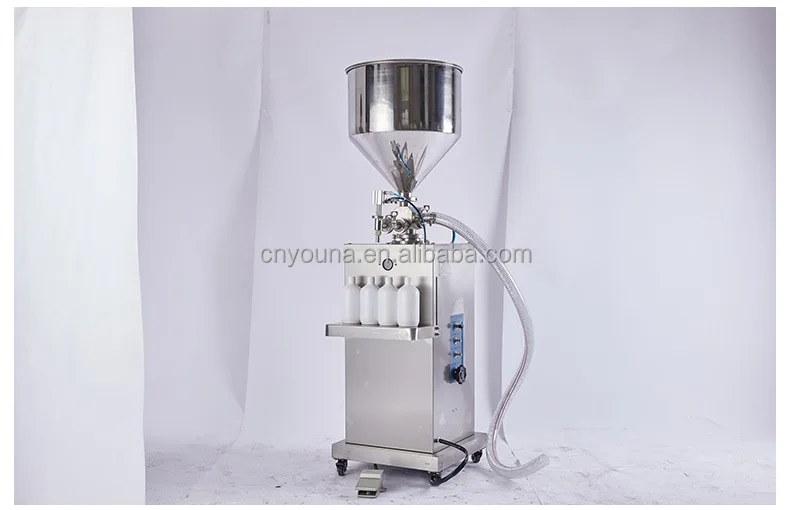

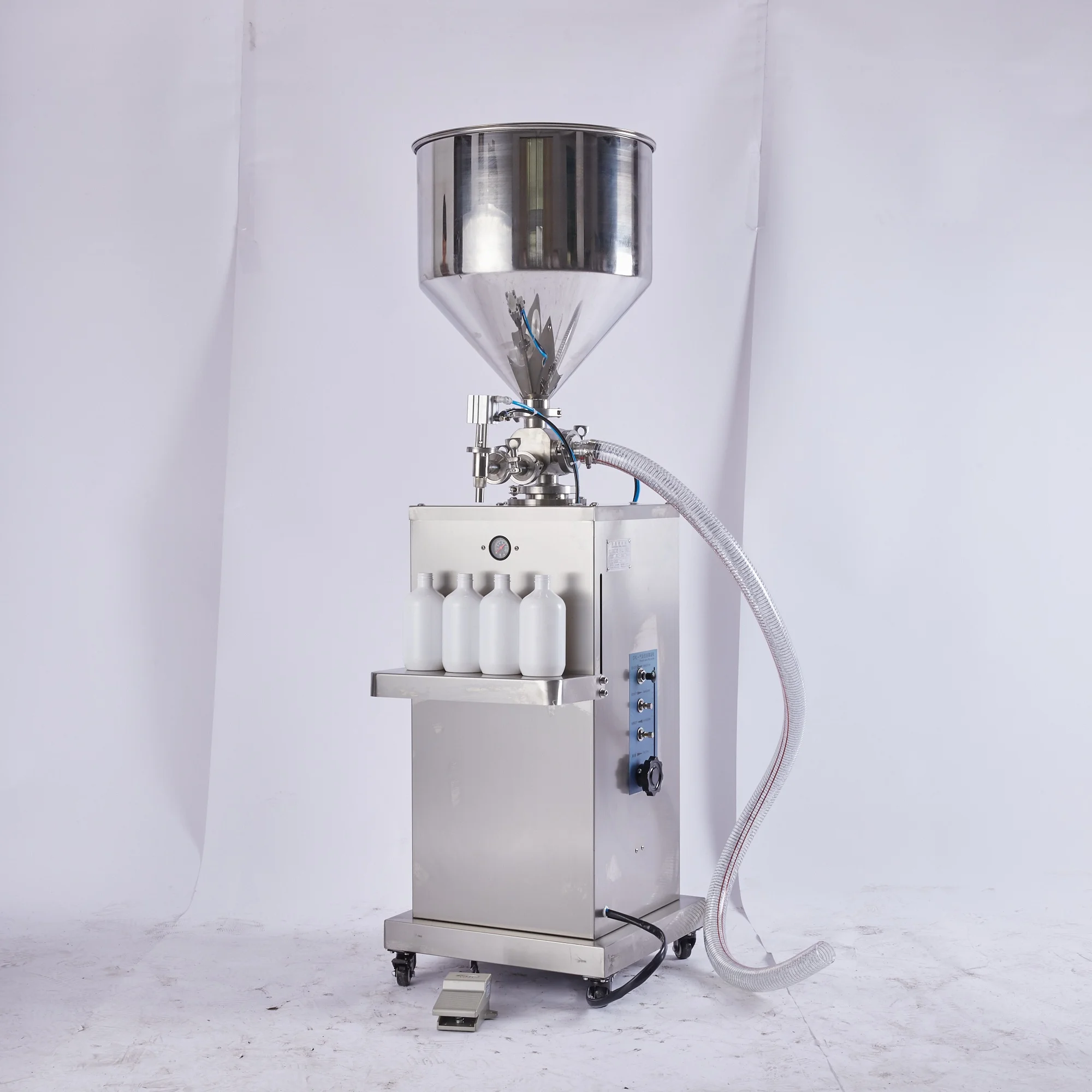

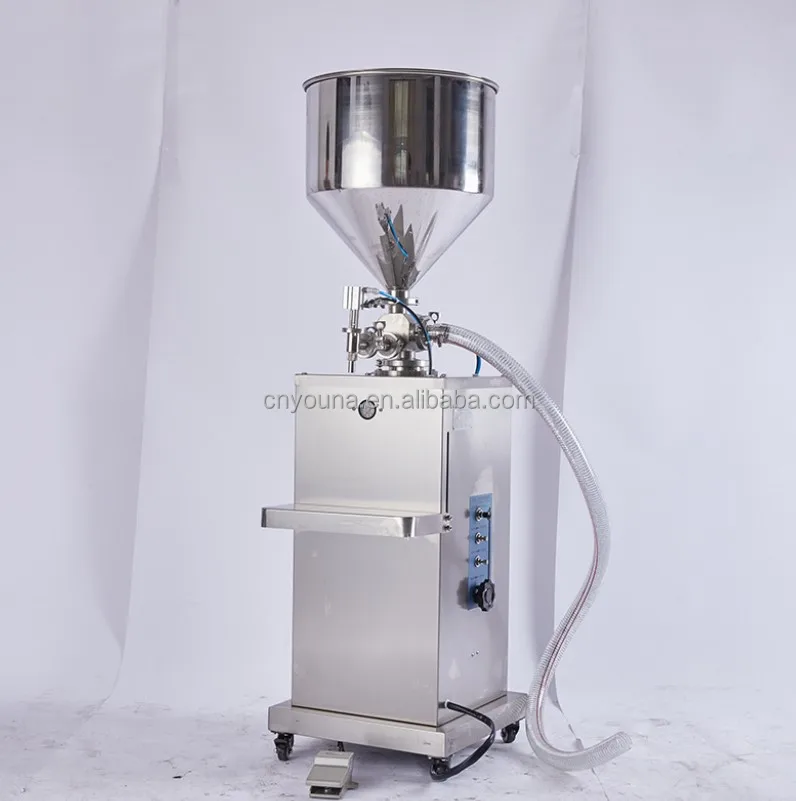

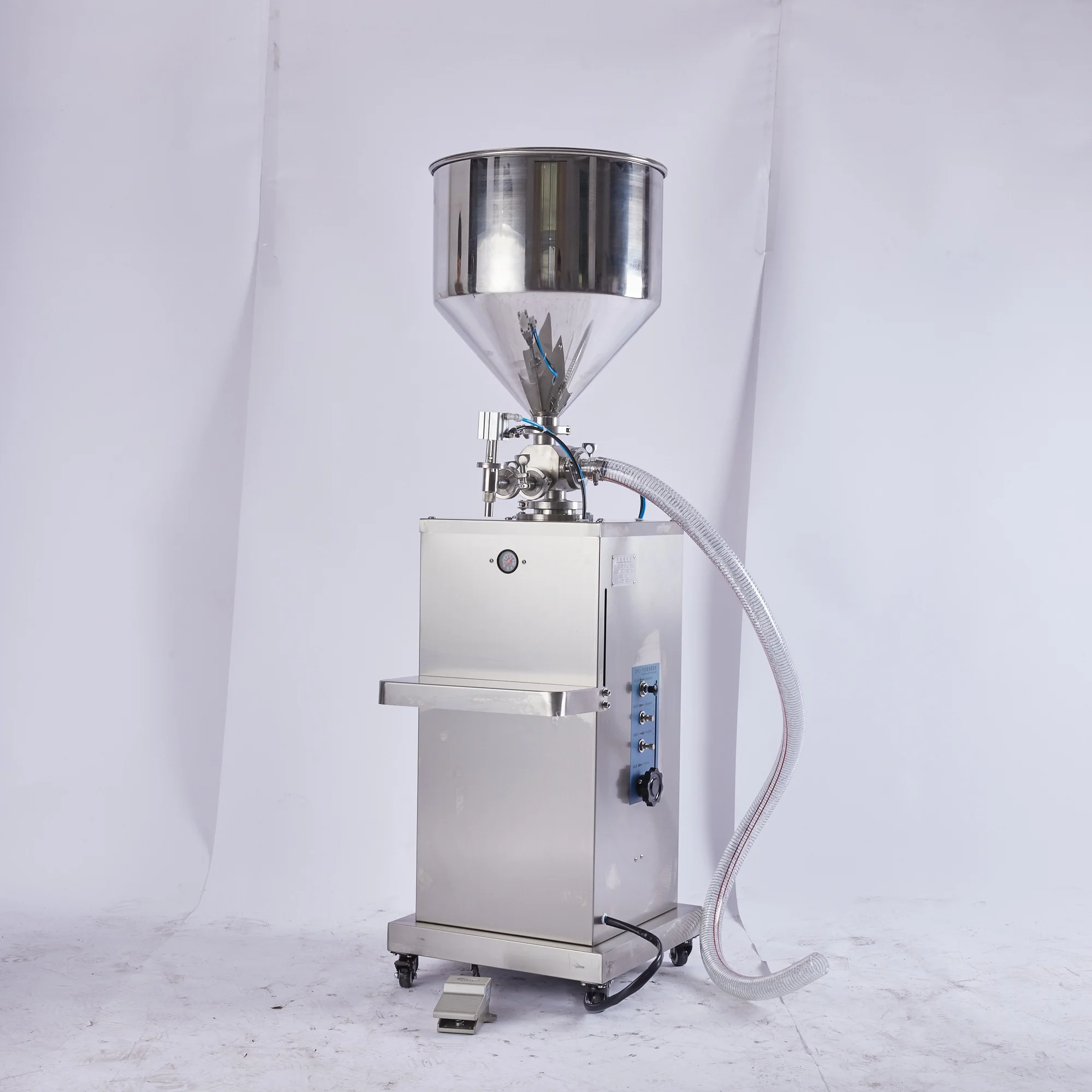

semi automatic pneumatic Vertical filling machine for liquid paste
- Category: >>>
- Supplier: Henan Rui Youna Machinery Co. LTD
Share on (1601197160458):
Product Overview
Description
Product Description
Application：
the filling machine is suitable for kinds of paste and liquid material such as water, juice, honey, tomato paste, chilli sauce, peanut butter, seasame paste, jam,cosmetic paste, shampoo, etc. it is widely used in the chemical industry, food, cosmetic, medicine, etc.

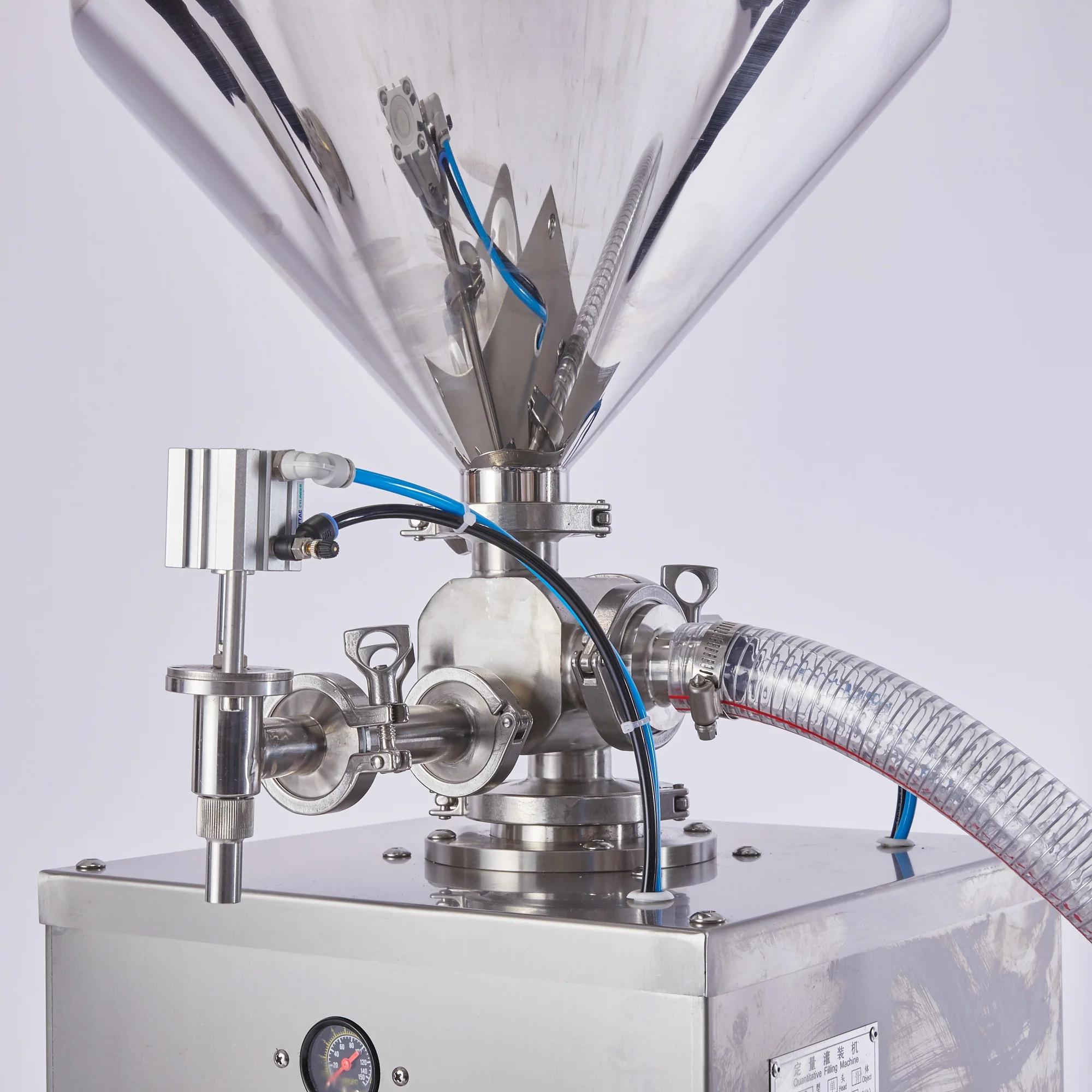

1.adopts piston measuring mode and compressed air as the power to work.
2. Adopts 304 stainless steel, corrosion resisting, compact structure with easy operation.

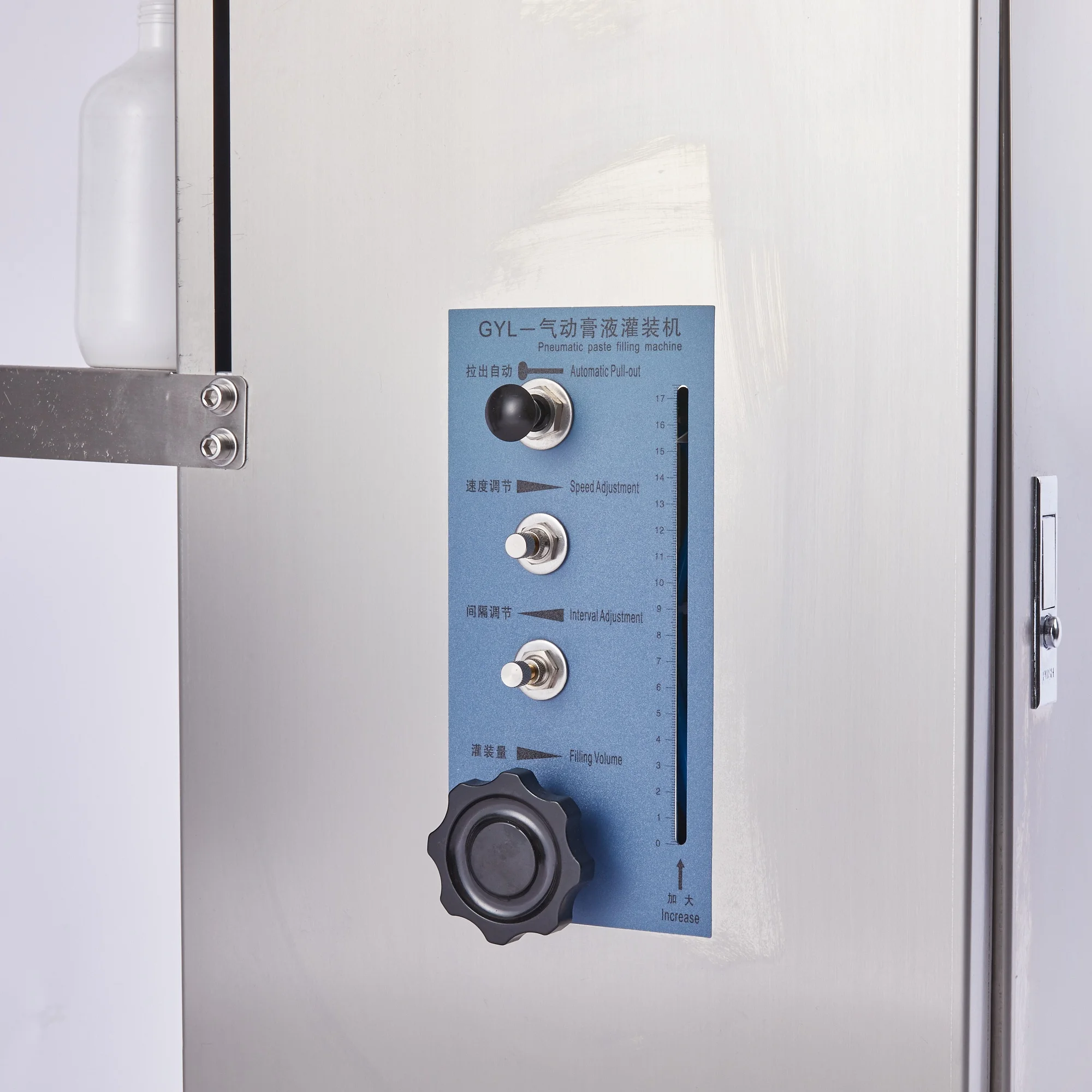

3. Filling capacity can be adjusted easily.
4. it can work automatically or controlled by a operation pedal.
Specification
item | filling machine |
voltage | full pneumatic |
power | 20w |
filling range | 5-50ml, 10-100ml, 15-150ml, 30-300ml, 50-500ml, 100-1000ml |
filling mouth diameter | 3mm 6mm 8mm 10mm 12mm 14mm |
body | full stainless steel body, contact material 304SUS, 316SUS accept customized |
filling nozzles | 1 |
work way | pneumatic (air compressor) |
air pressure | 0.5-0.7MPa |
speed | 5-30bottle/min (influenced by filling volume and operate speed) |
machine size | 442*440*1580mm |
weight | 50kg |
Features
FULL STAIN BODY
TO MAKE SURE CLEAN PRODUCTION AND EASY MAINTAIN
Product shows
liquid filling machine filling nozzles at one end
liquid filling machine filling nozzles at one side
filling machine with support table
stand model filling machine
liquid filling machine
4 heads filling machine for paste sauce
4 heads filling machine for liquid
