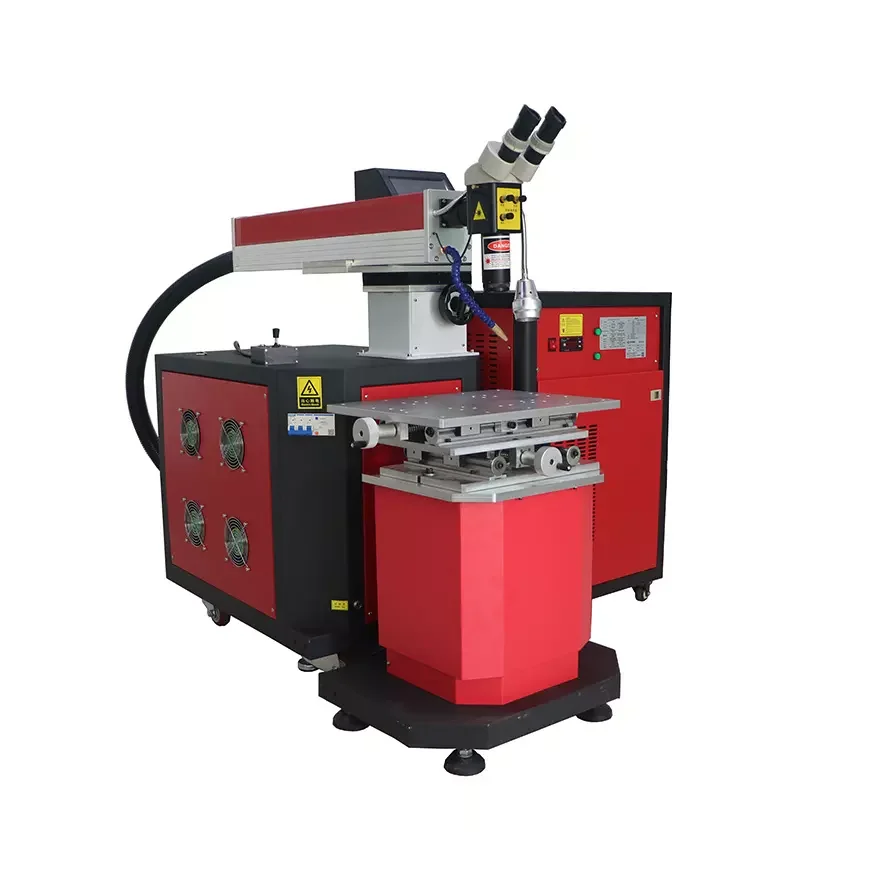

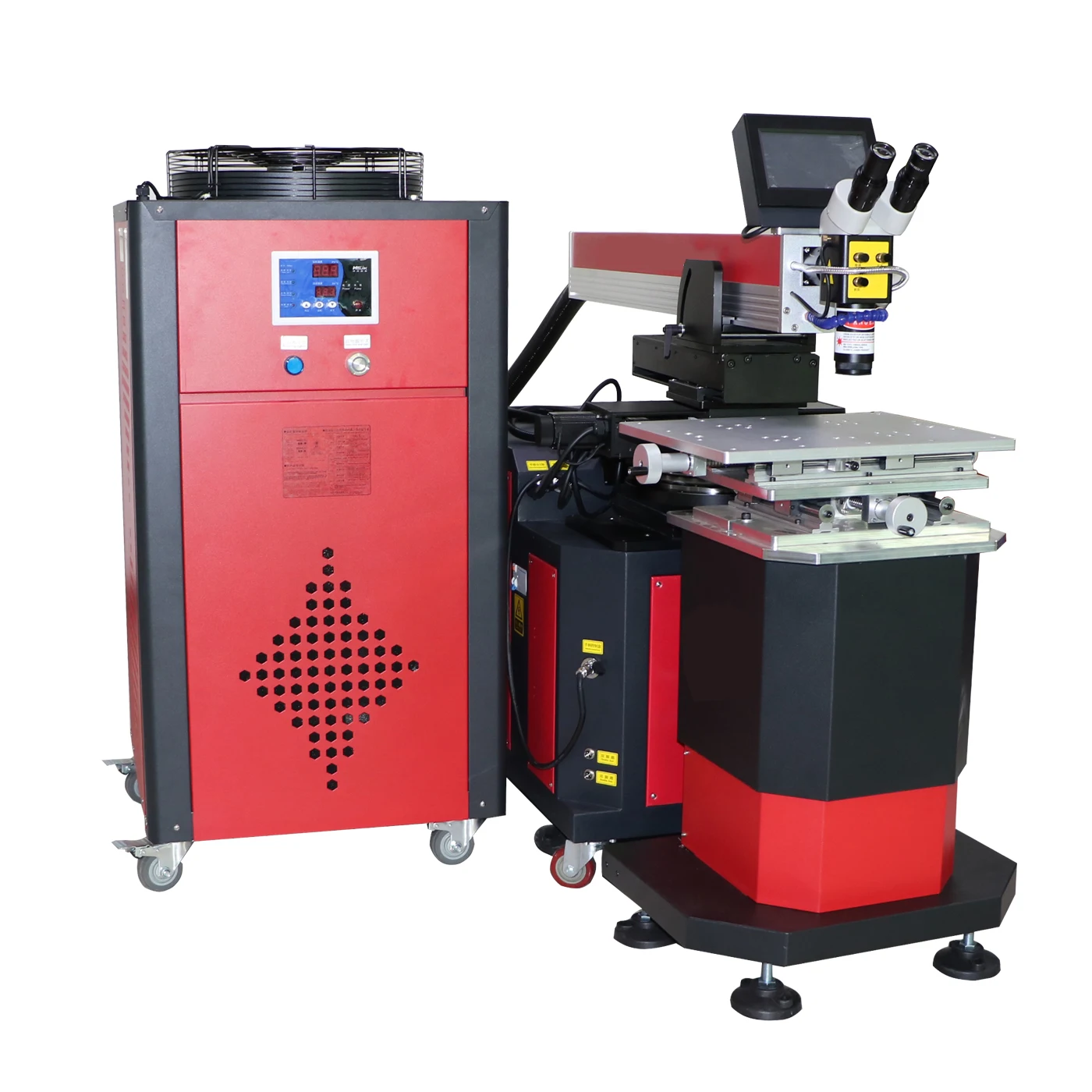

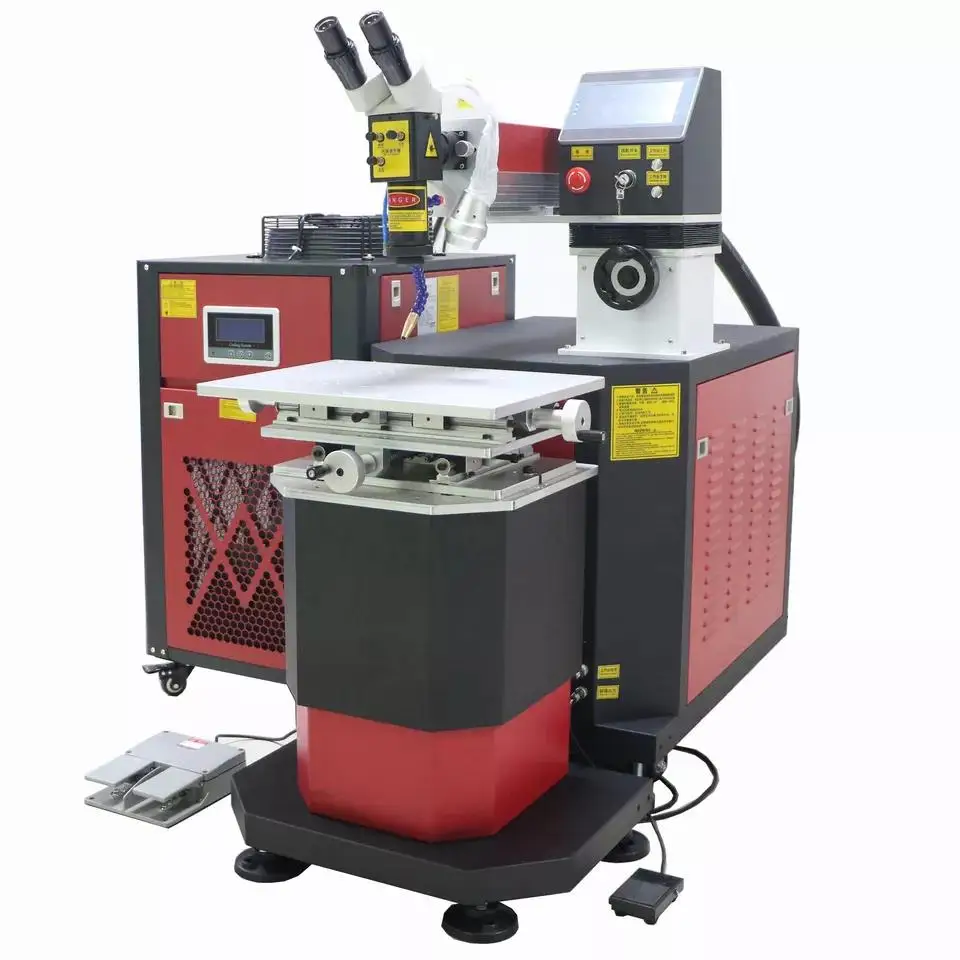

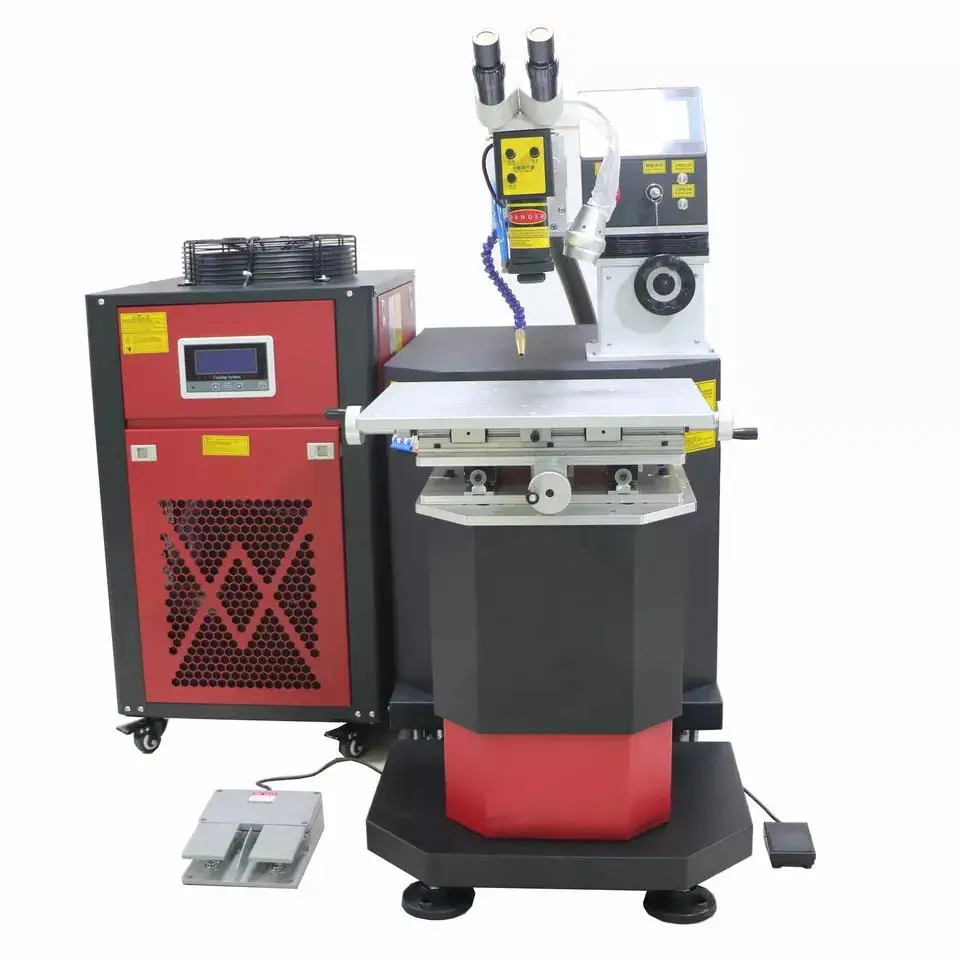

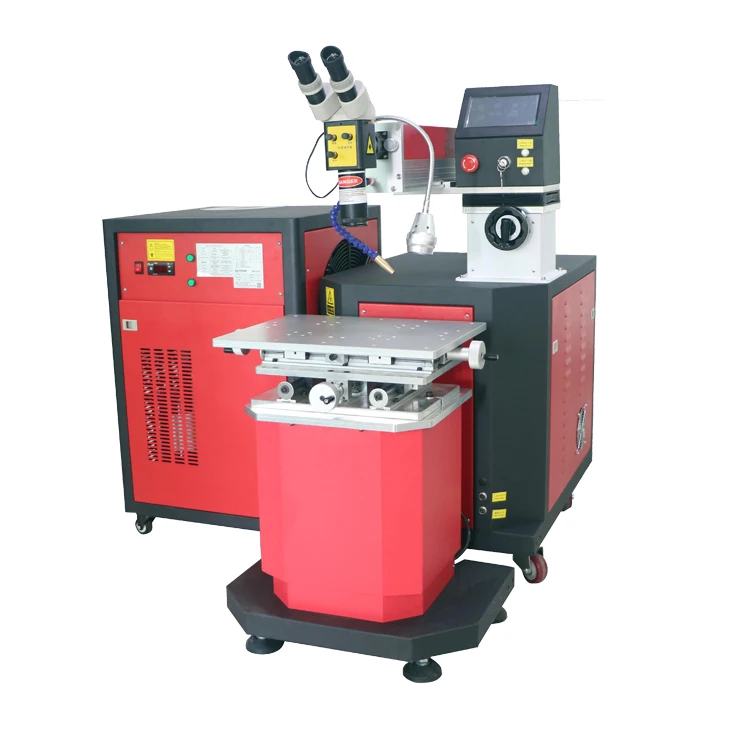

Mold Laser Welding Machine 200w 400w

Rated Laser Power

200W         400W

Condenser reflector

Imported ceramic condenser

The laser frequency

1-20Hz

The pulse width

0.1-10Ms

Spot adjustment range

0.3-2mm

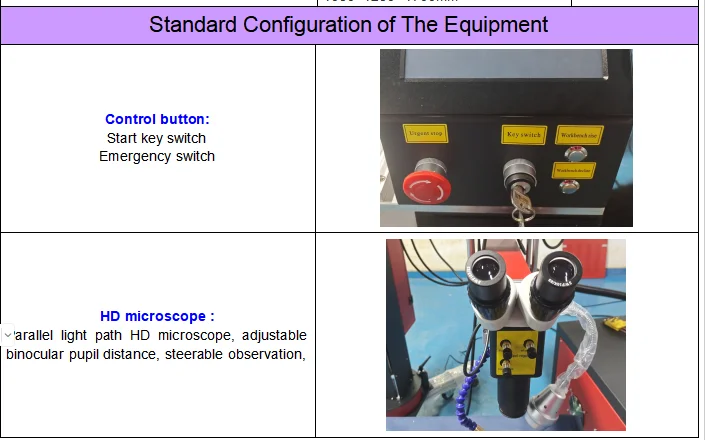

Aimed at positioning

Microscope (optional camera system)

Cold power of cold water mechanism

1.5P for 200w      3P for 400w

The engine power

8KW

Demand for electricity

220V±5V 50Hz   380V±5V 50Hz

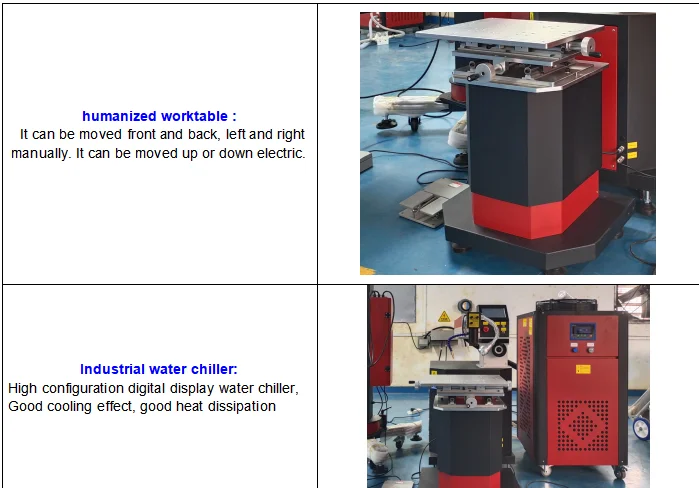

Range of three dimensional load-bearing table

125×100×300mm

bearing capacity of three dimensional load-bearing table

150kg

Manual suspension arm

Lifting height

600mm

stretch scope

3m

External dimensions/net weight

Host computer: 1000×550×1150mm

103kg

cooling-water machine: 550×550×850mm

80kg

Three dimensional load-bearing table: 550×400×700mm

57kg

Manual suspension arm: 1050×1250×1700mm

147kg
