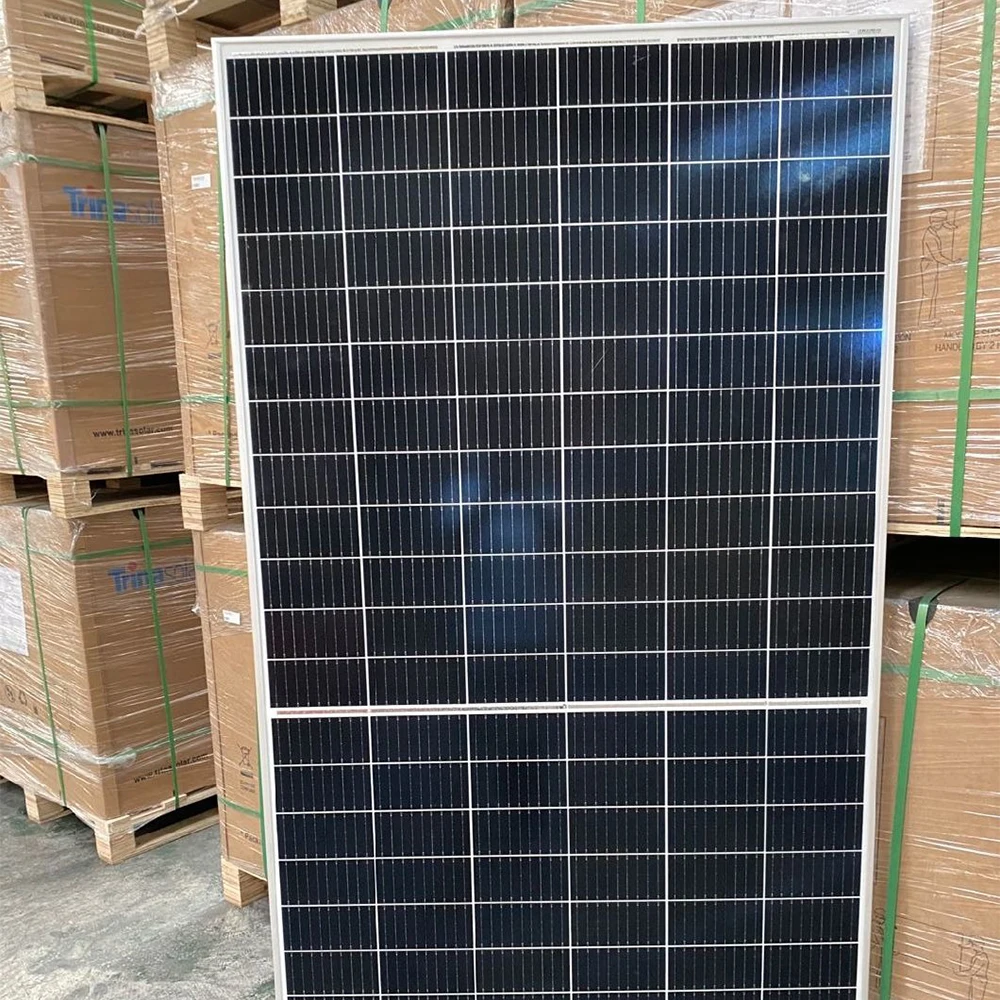

Trina Solar Panel Double Glass 590W Monocrystalline Silicon Panel Solar Price
- Category: >>>
- Supplier: Sunpal Energy Co. Ltd.
Share on (1601197281243):
Product Overview
Description
Product Description
Trina Solar Co., Ltd, a global leader in smart PV and energy storage solutions, has un-veiled upgrades to its Vertex N family of modules.
As an outstanding member of the Vertex N product portfolio, the Vertex N 720 W+series module offers the lowest LCOE for utility scale ground-mounted solar farms with level terrain, with its low voltage feature for high string power and thus low system cost.
As an outstanding member of the Vertex N product portfolio, the Vertex N 720 W+series module offers the lowest LCOE for utility scale ground-mounted solar farms with level terrain, with its low voltage feature for high string power and thus low system cost.

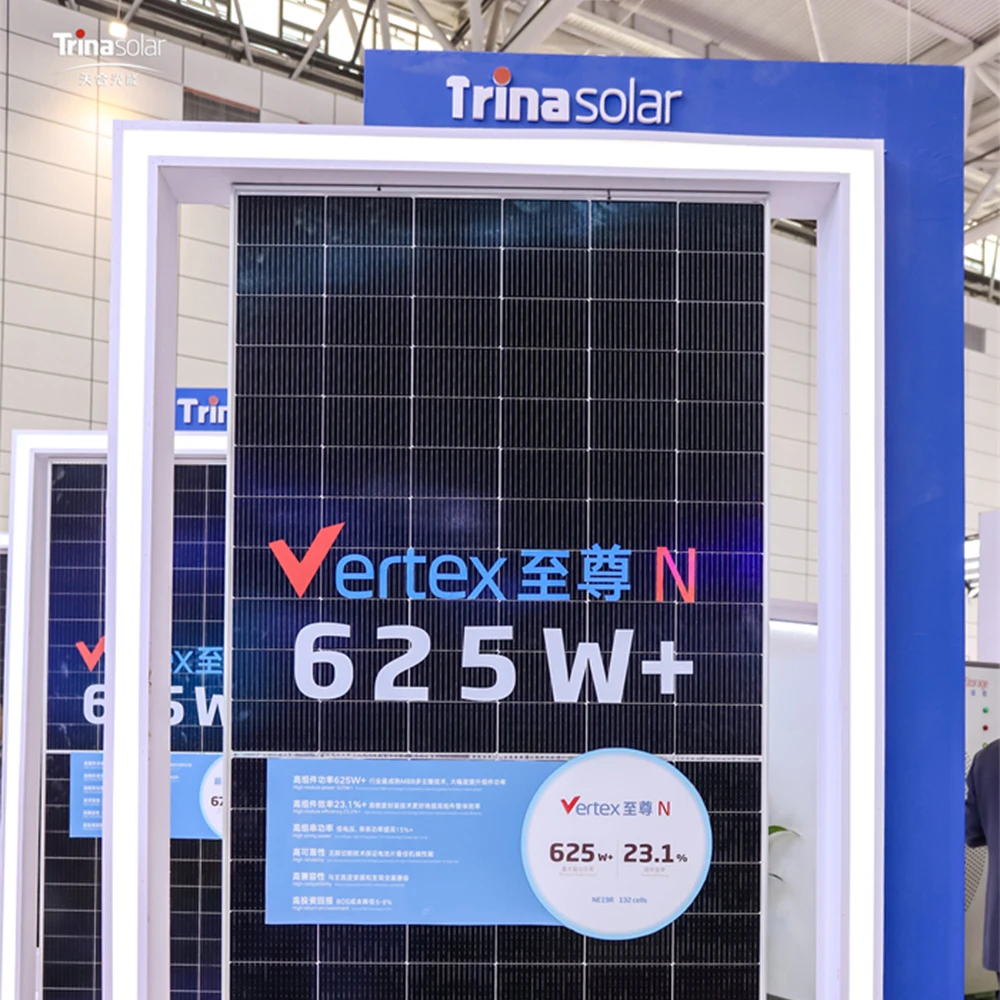

Vertex N 625 W+ modules, suitable for small and medium sized ground-mounted solar farms, particularly with complex terrain or irregular shape, offer high flexibility in system design and are highly compatible with tracking systems. The Vertex N 625 W+module is 2382 mm by 1134 mm in size, designed by Trina Solar and now adopted by industry peers as a standard module configuration.
After an initiative to standardise 700 W+ module dimensions and upgrading the Photovoltaic Open Innovation Ecological Alliance,propelled by Trina Solar at the end of 2023, the Vertex N 720 W+ series products are empowering the company to lead the industry further into the 700 W+ era.
Trina Solar continues to push the industry toward industrialising 700W+ PV modules by promoting ultra-high-power and
ultra-high-efficiency modules. The company will continue to innovate with its mainstream n-type i-TOPCon technology and products,offering greater customer value with advanced technology, reliable products andsolutions.
After an initiative to standardise 700 W+ module dimensions and upgrading the Photovoltaic Open Innovation Ecological Alliance,propelled by Trina Solar at the end of 2023, the Vertex N 720 W+ series products are empowering the company to lead the industry further into the 700 W+ era.
Trina Solar continues to push the industry toward industrialising 700W+ PV modules by promoting ultra-high-power and
ultra-high-efficiency modules. The company will continue to innovate with its mainstream n-type i-TOPCon technology and products,offering greater customer value with advanced technology, reliable products andsolutions.
Specification
ELECTRICAL DATA (STC) | ||||||||||||||||

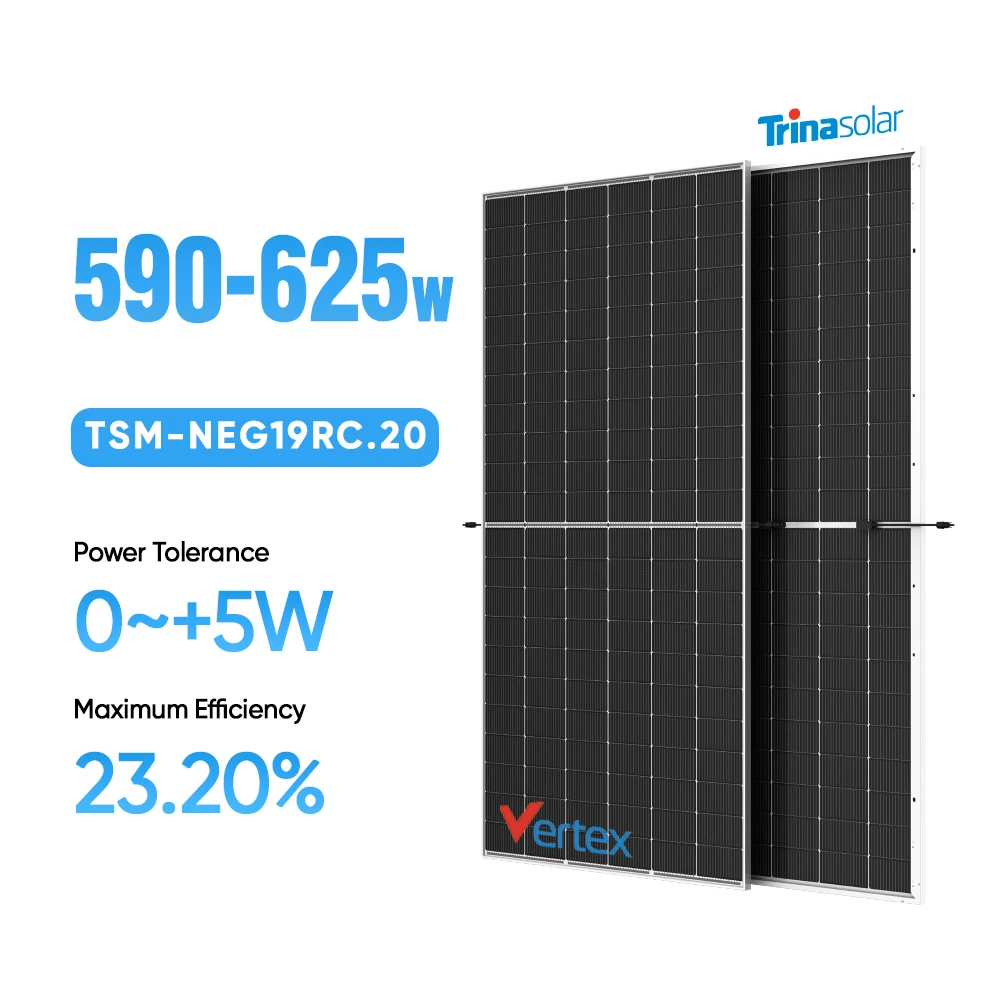

TSM-NEG19RC.20 | ||||||||||||||||
Module Type | 590W | 595W | 600W | 605W | 610W | 615W | 620W | 625W | ||||||||
Maximum Power (Pmax/W) | 590 | 595 | 600 | 605 | 610 | 615 | 620 | 625 | ||||||||
Short-circuit Current (Isc) | 15.72A | 15.76A | 15.80A | 15.83A | 15.86A | 15.89A | 15.92A | 15.95A | ||||||||
Open-circuit Voltage (Voc) | 47.8V | 48.1V | 48.4V | 48.7V | 49V | 49.3V | 49.6V | 49.9V | ||||||||
Maximum Power Current (Imp) | 14.86A | 14.86A | 14.91A | 14.94A | 14.96A | 14.98A | 15A | 15.02A | ||||||||
Maximum Power Voltage (Vmp) | 39.7V | 40.0V | 40.3V | 40.5V | 40.8V | 41.1V | 41.4V | 41.V7 | ||||||||
Module Efficiency(%) | 21.8% | 22% | 22.2% | 22.4% | 22.6% | 22.8% | 23% | 23.1% | ||||||||
STC (Standard Testing Conditions): Irradiance 1000W/m², Cell Temperature 25 ℃, Spectra at AM1.5 | ||||||||||||||||
Product Advantage
The medium-format N-type series modules adopt 210R rectangular silicon wafer design.
210R technology not only breaks through the bottleneck of conventional medium-sized module power being unable to exceed 600W but also possesses higher system value.
210R technology not only breaks through the bottleneck of conventional medium-sized module power being unable to exceed 600W but also possesses higher system value.

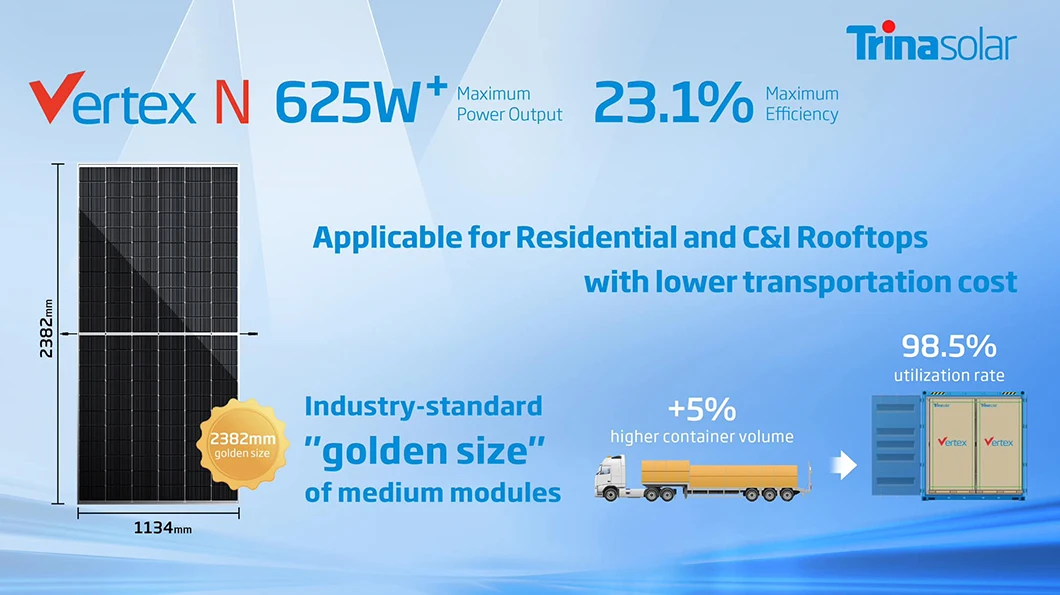

With golden sized dimensions of 2382mm by 1134mm, the medium-format N-type series modules allow for a 40HC container space use of nearly 99%, which currently boasts the highest container space utilization rate, significantly reducing logistics.

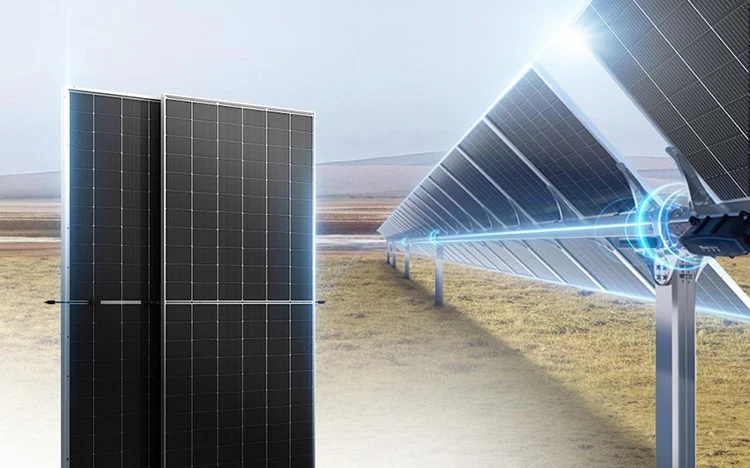

The medium-format N-type series modules, with its advantages of low voltage and high compatibility, perfectly utilizes the length of conventional tracker.
Compared to the previous generation of medium-sized products in the industry, the installed capacity of the single-row tracker has increased by 13%. This configuration results in higher string power, making Vertex N 625W module an optimal partner for tracker.
Trina Solar Panels Series

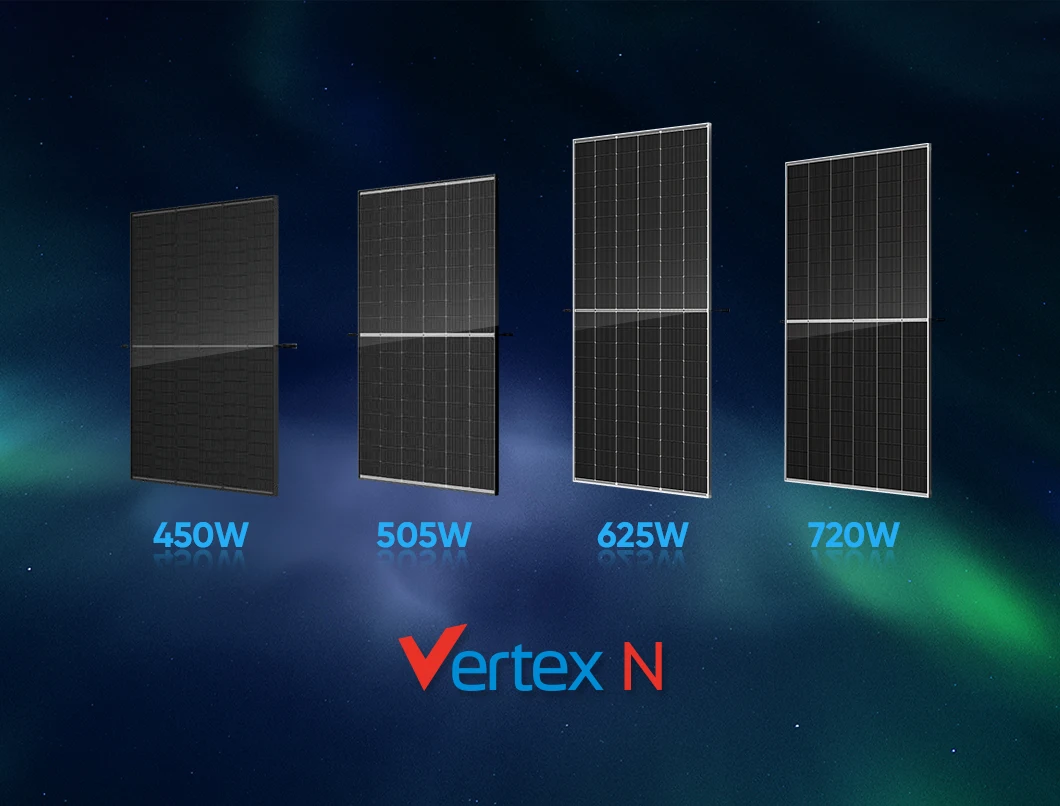

Vertex N Series
Trina Solar’s 210mm n-type scenario-based solutions, including Vertex N 720W series modules, Vertex N 625W modules, On the industry-leading 210mm product technology platform and with n-type TOPCon Advanced technology innovation, Trina Solar has delivered an increase in the efficiency of laser-induced firing by 0.3%, upgrading TOPCon modules in all settings, including ground-mounted power stations and for residential and commercial and industrial (C&I) applications. The upgraded Vertex N 720W modules have an efficiency of 23.2%, Vertex N 625W modules have an efficiency of 23.1%, and Vertex S+ 455W modules have an efficiency of up to 22.8%.
Vertex N 720W series modules — featuring low-voltage, high-power, ultra-low degradation, and high bifaciality to deliver higher string power, greater installed system capacity, higher energy yield, and lower LCOE for utility projects — have been used in many different settings for great reliability, especially in rugged conditions, such as in high-altitude areas and vast desert regions.
Vertex N 625W modules, suitable for utility-scale or C&I solar applications, especially offer more feasibility to utility-scale
projects in the most complex terrains and are highly compatible with trackers, with 13% more installation capacity for single-row tracker systems. The Vertex N 625W module is 2382mm by 1134mm, the dimensions promoted by Trina Solar and adopted in the industry, which improves the utilization rate of a 40HC container to 98.5%, reducing customers’ logistics and BOS costs.
The Vertex S+ 455W modules, based on 210mm rectangular silicon wafer (210R) cell technology with n-type TOPCon advanced technology, offer a high-powered yet compact solution dedicated to residential solar applications.
Vertex N 720W series modules — featuring low-voltage, high-power, ultra-low degradation, and high bifaciality to deliver higher string power, greater installed system capacity, higher energy yield, and lower LCOE for utility projects — have been used in many different settings for great reliability, especially in rugged conditions, such as in high-altitude areas and vast desert regions.
Vertex N 625W modules, suitable for utility-scale or C&I solar applications, especially offer more feasibility to utility-scale
projects in the most complex terrains and are highly compatible with trackers, with 13% more installation capacity for single-row tracker systems. The Vertex N 625W module is 2382mm by 1134mm, the dimensions promoted by Trina Solar and adopted in the industry, which improves the utilization rate of a 40HC container to 98.5%, reducing customers’ logistics and BOS costs.
The Vertex S+ 455W modules, based on 210mm rectangular silicon wafer (210R) cell technology with n-type TOPCon advanced technology, offer a high-powered yet compact solution dedicated to residential solar applications.
Project Case

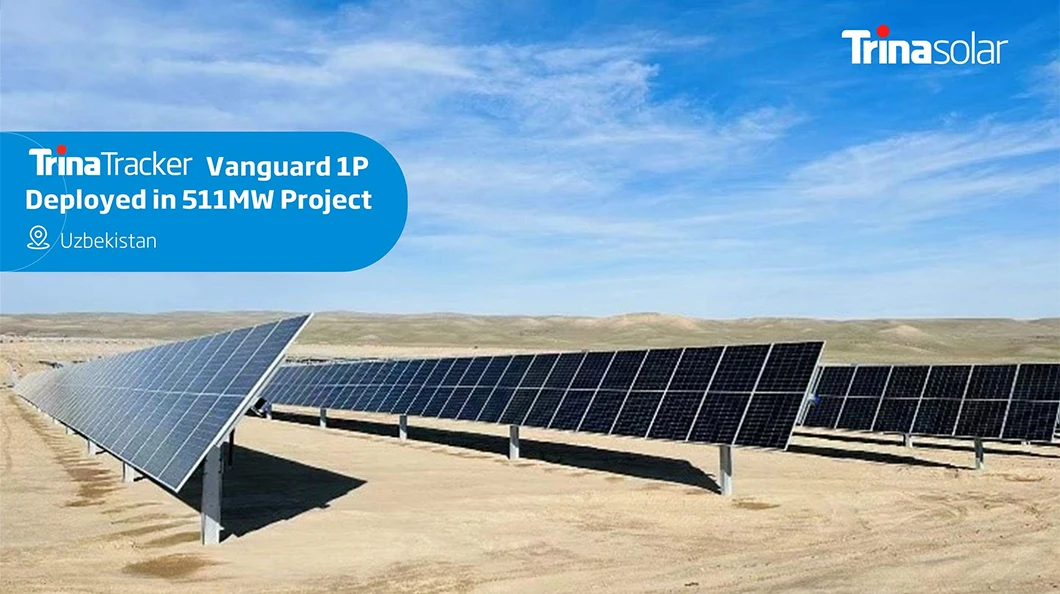

The first phase of the Samarkand and Jizzakh solar power plants in Uzbekistan is now connected to the grid.
TrinaTracker exclusively supplied both plants with 11,248 sets of Vanguard 1P trackers and the supporting Trina Smart Cloud digital SCADA platform at tracker level. With a combined installed capacity of 511MW, once fully connected to the grid, the project will generate 1.12 billion kWh annually, powering 240,000 households and cutting carbon dioxide emissions by more than 1 million tons a year.
Leveraging its adaptability to diverse terrains, our reliable Vanguard 1P helps advance Uzbekistan's clean energy transition.
Leveraging its adaptability to diverse terrains, our reliable Vanguard 1P helps advance Uzbekistan's clean energy transition.

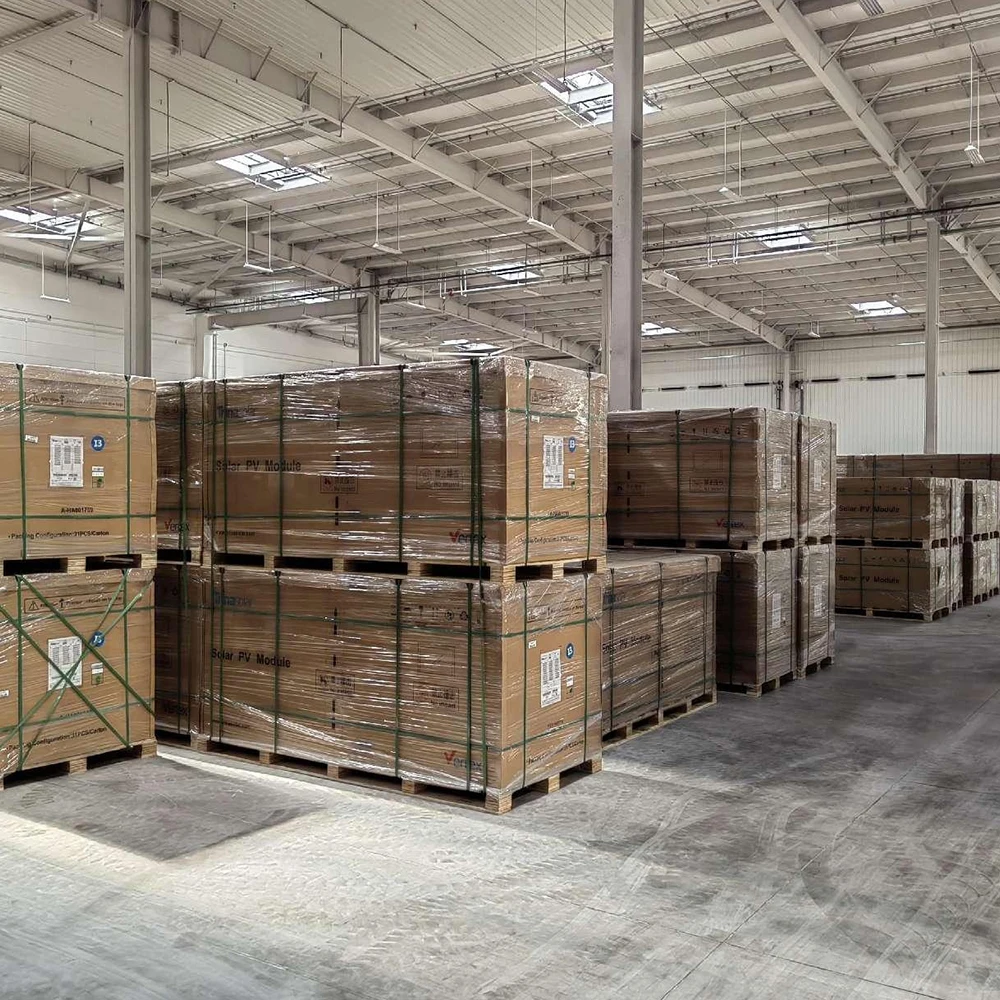

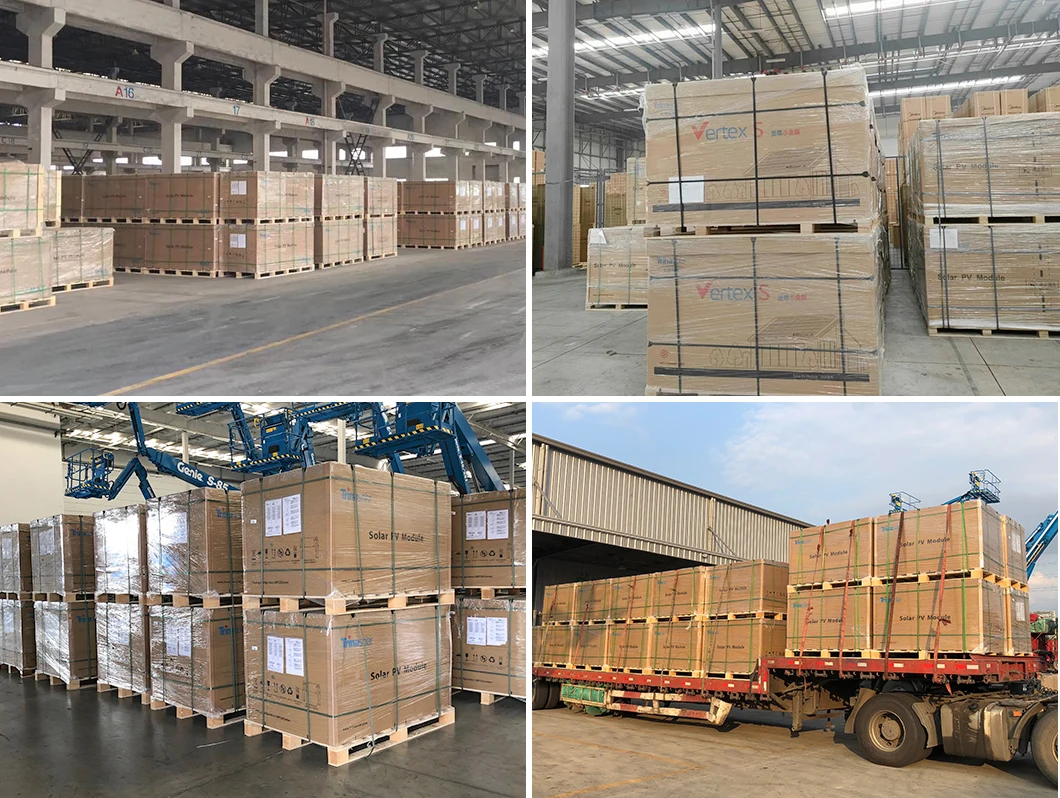

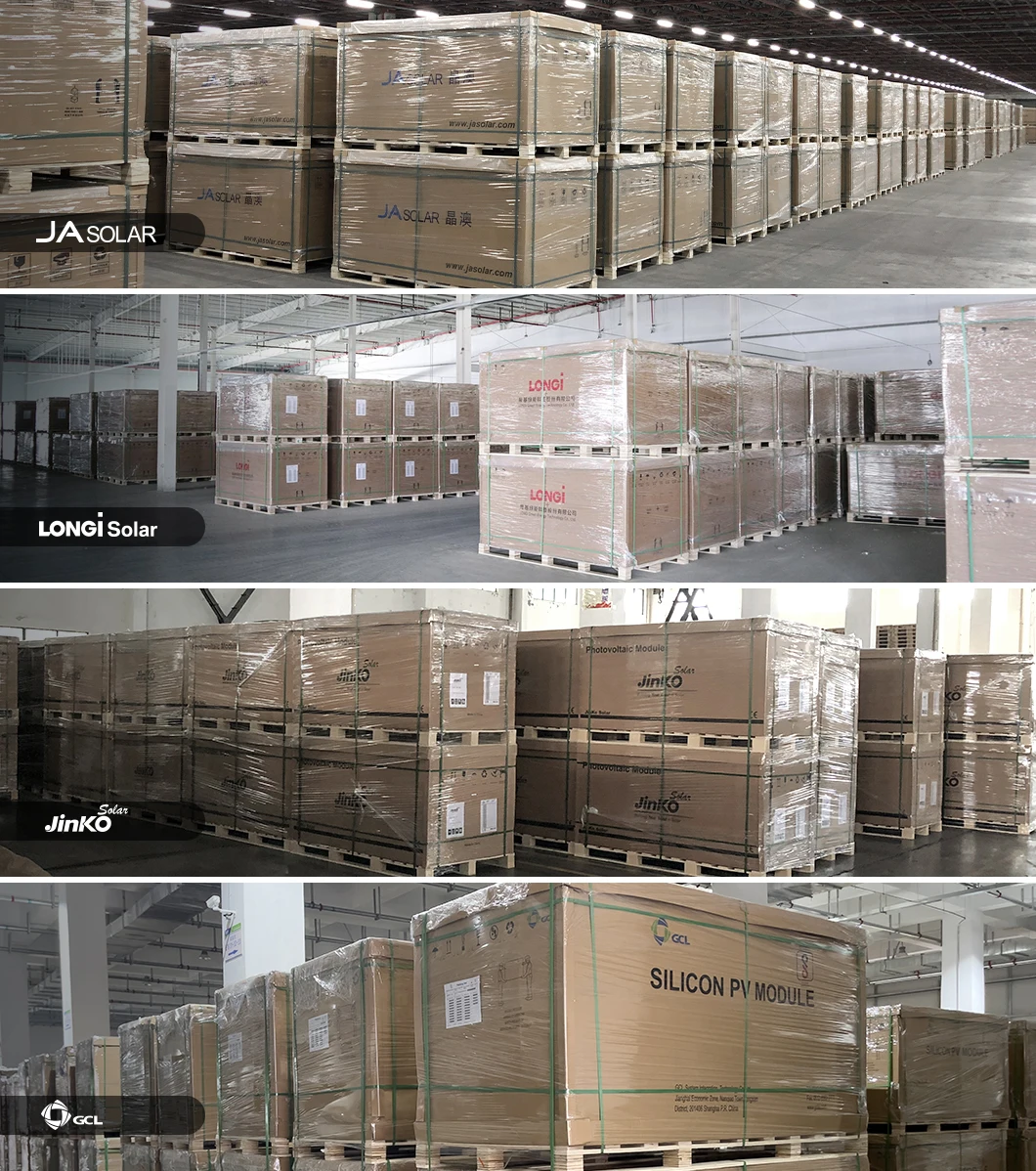

Fast Delivery

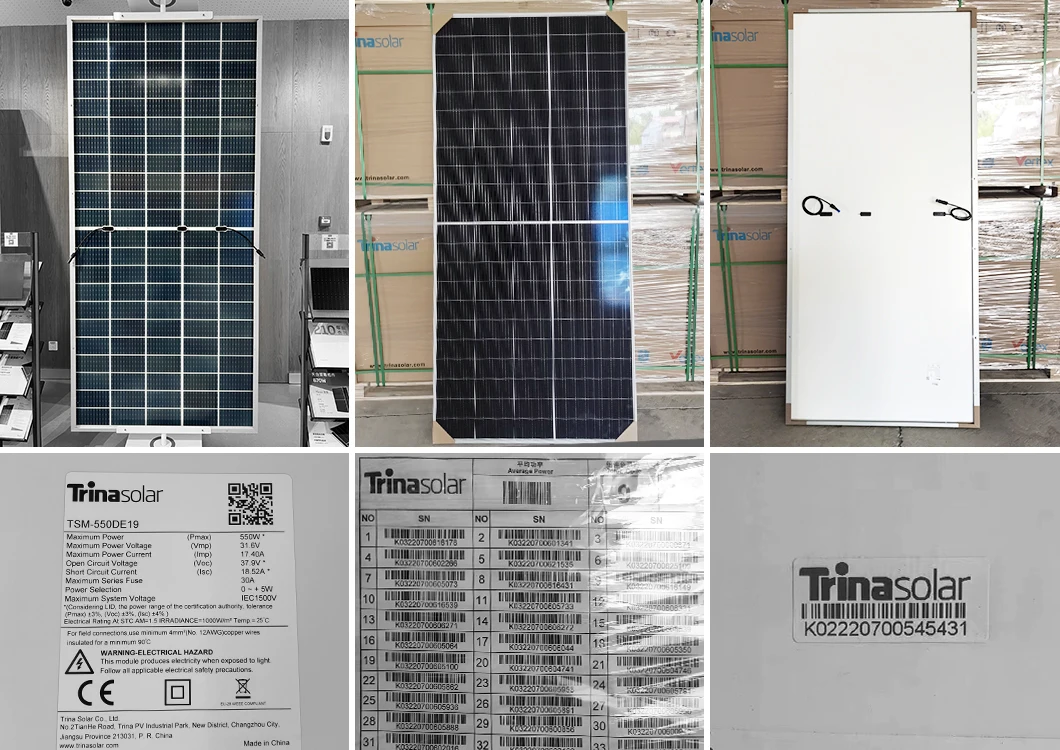

Tier 1 Solar Module
About Us
Who is Sunpal?

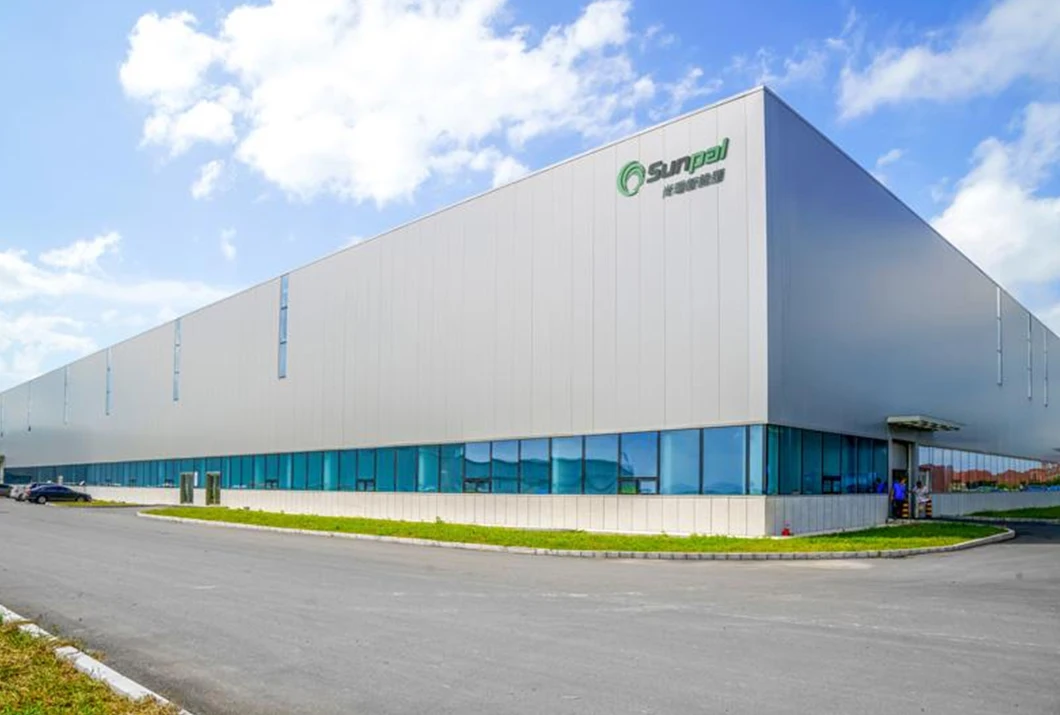

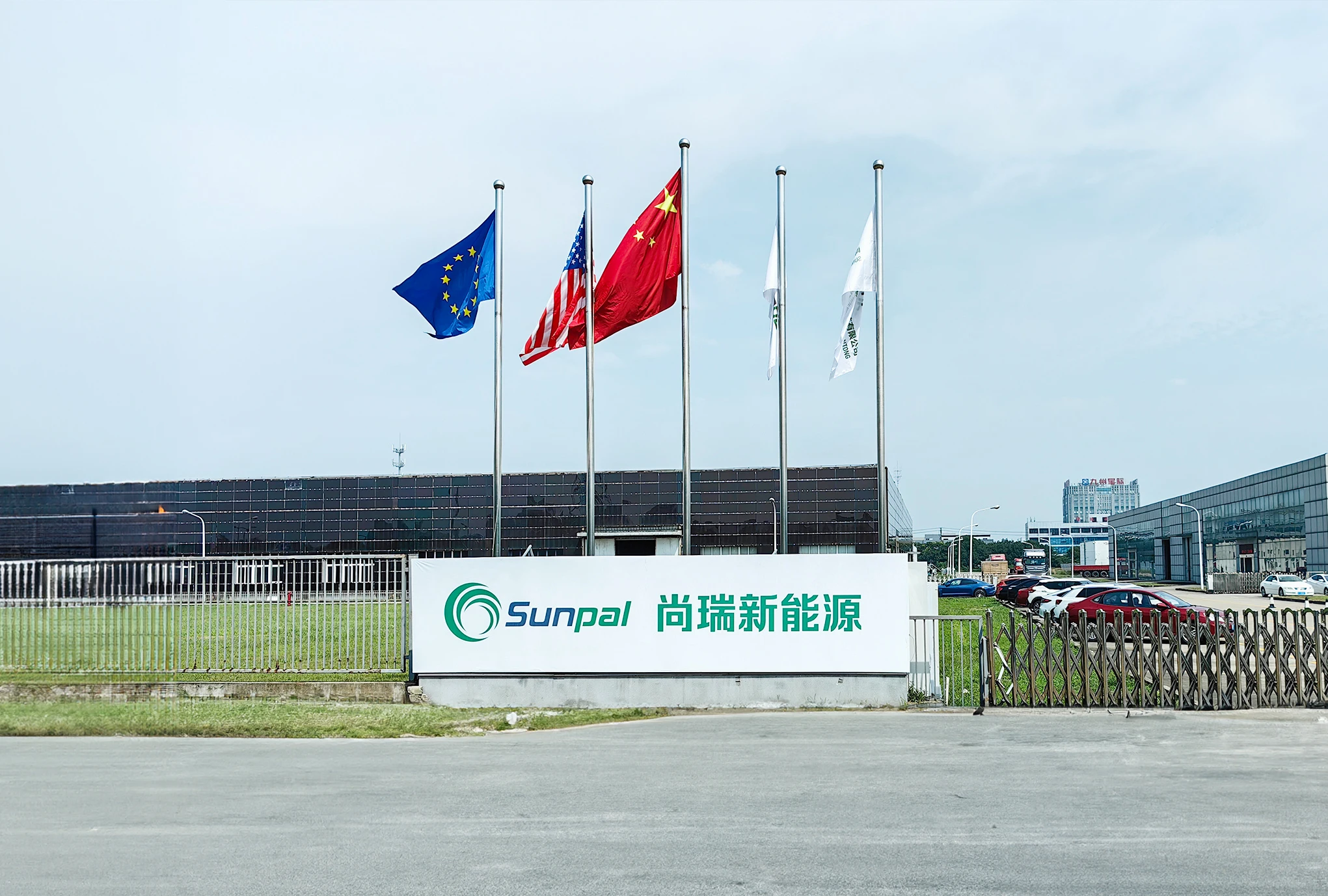

As a world-class solar products manufacturer, Sunpal specializes in research, development, production, and sales of solar PV products. Since its foundation in 2008, Sunpal has accomplished significant achievements that outpaced most of our main competitors in terms of production capacity and the number of innovative designs. Sunpal factory is based in Jiangsu Province, with a factory area of 150,000 square meters, 1000 workers, and 100 staff members in the sales team. The daily capacity is 13MW.
