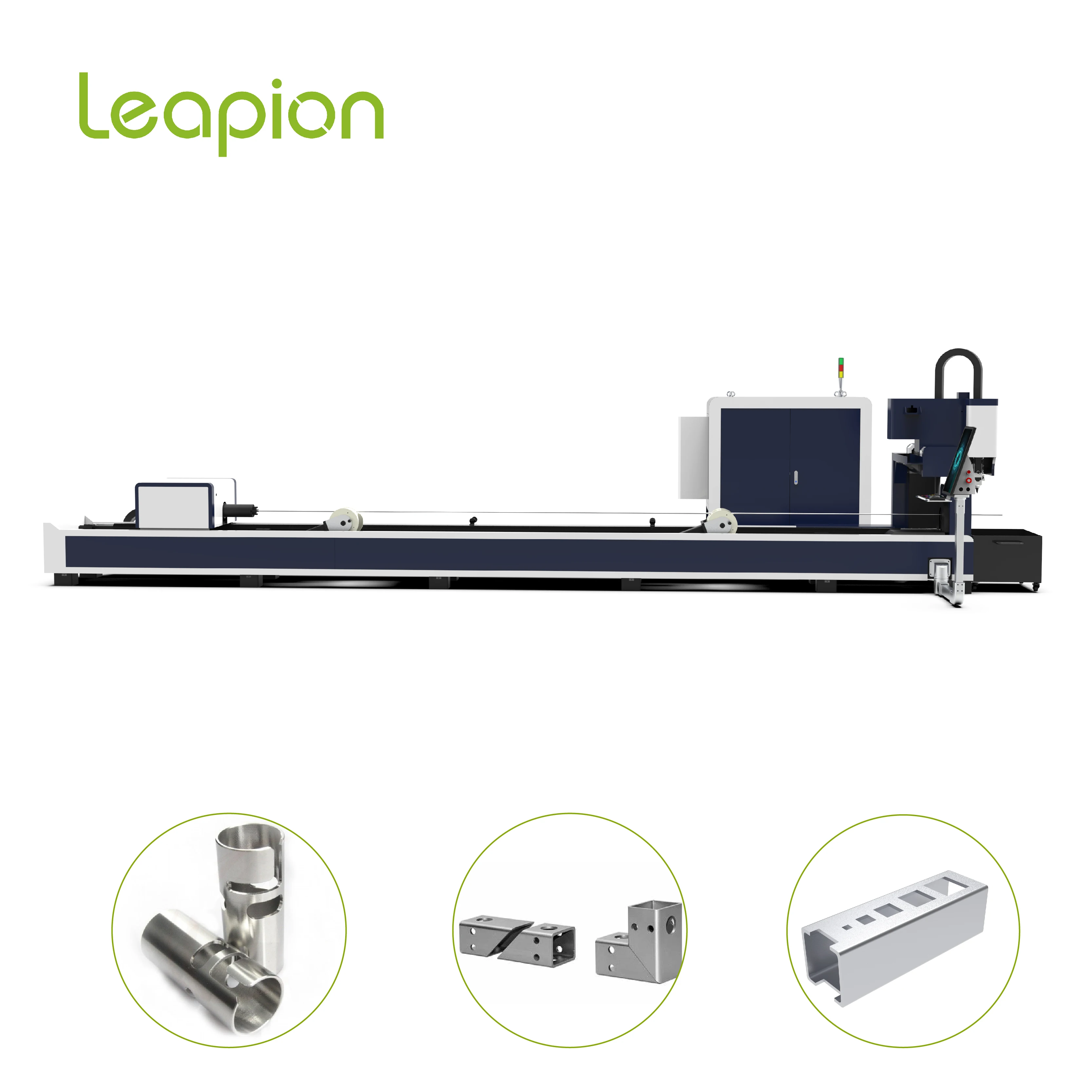

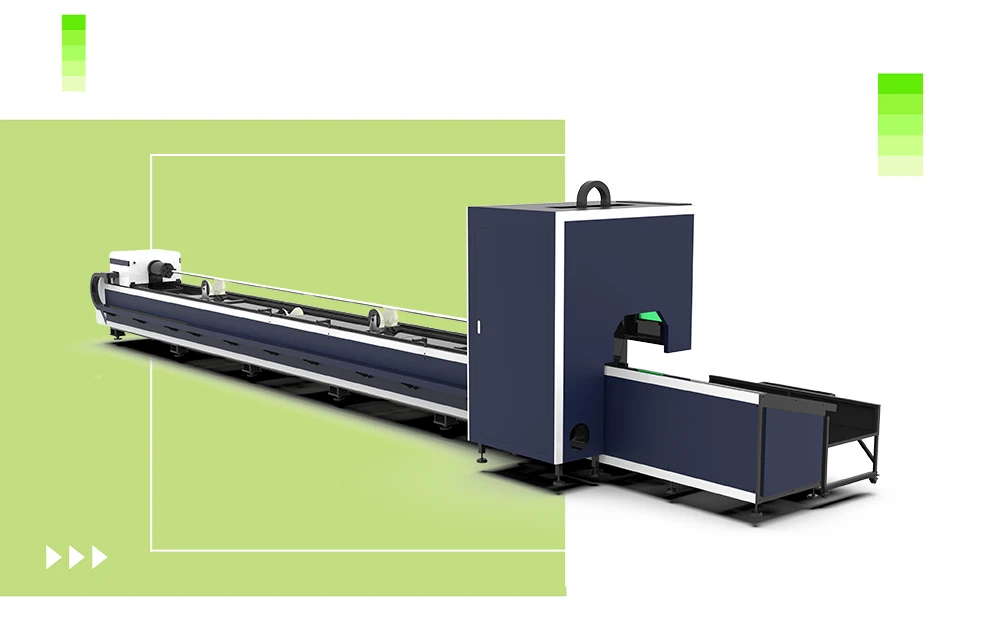

LF-T3 Fiber Laser Tube Cutting Machine
Three Chuck For Metal Tube 3000W

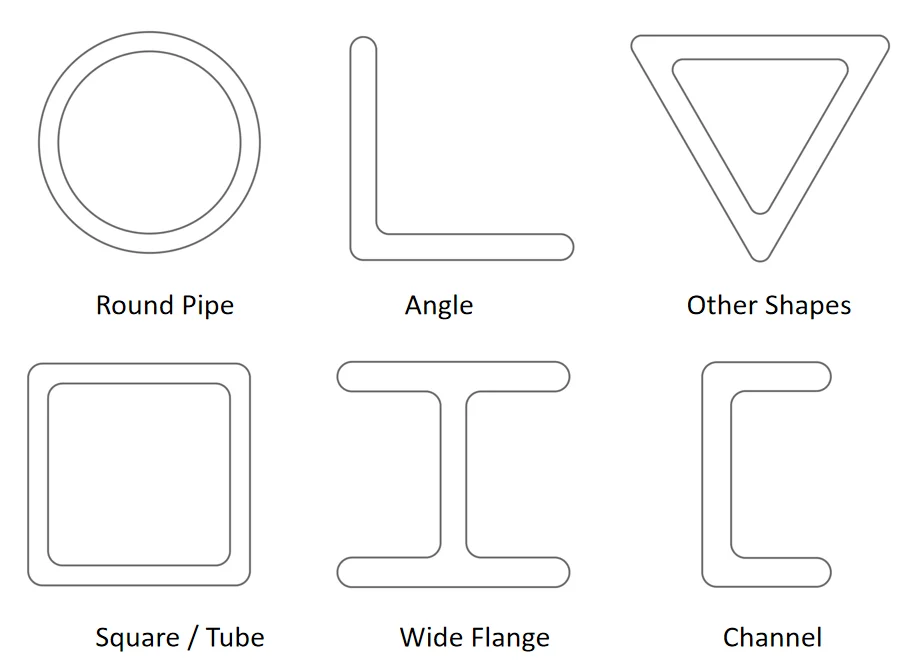

LF-T3 Three Chuck Fiber Laser Tube Cutting Machine equipped with Three-Chuck design, it can easily realize 'zero waste' and save cost . At the same time, this machine has high positioning accuracy, fast cutting speed, simple operation, convenient and low maintenance cost. The machine is equipped with a servo system to track the position of the pipe to adjust the height in real time, effectively support to prevent the pipe from sagging. The chuck has the function of self-adjusting center, and can maintain the horizontal state of the pipe during the cutting process, which can realize the rapid centering clamping. Leapion choose professional tube cutting system which has automatic edge finding function to reduce the collision of cutting head. And it also can apply more large materials, for example, support square pipe round pipe and I-steel and other shaped pipes.

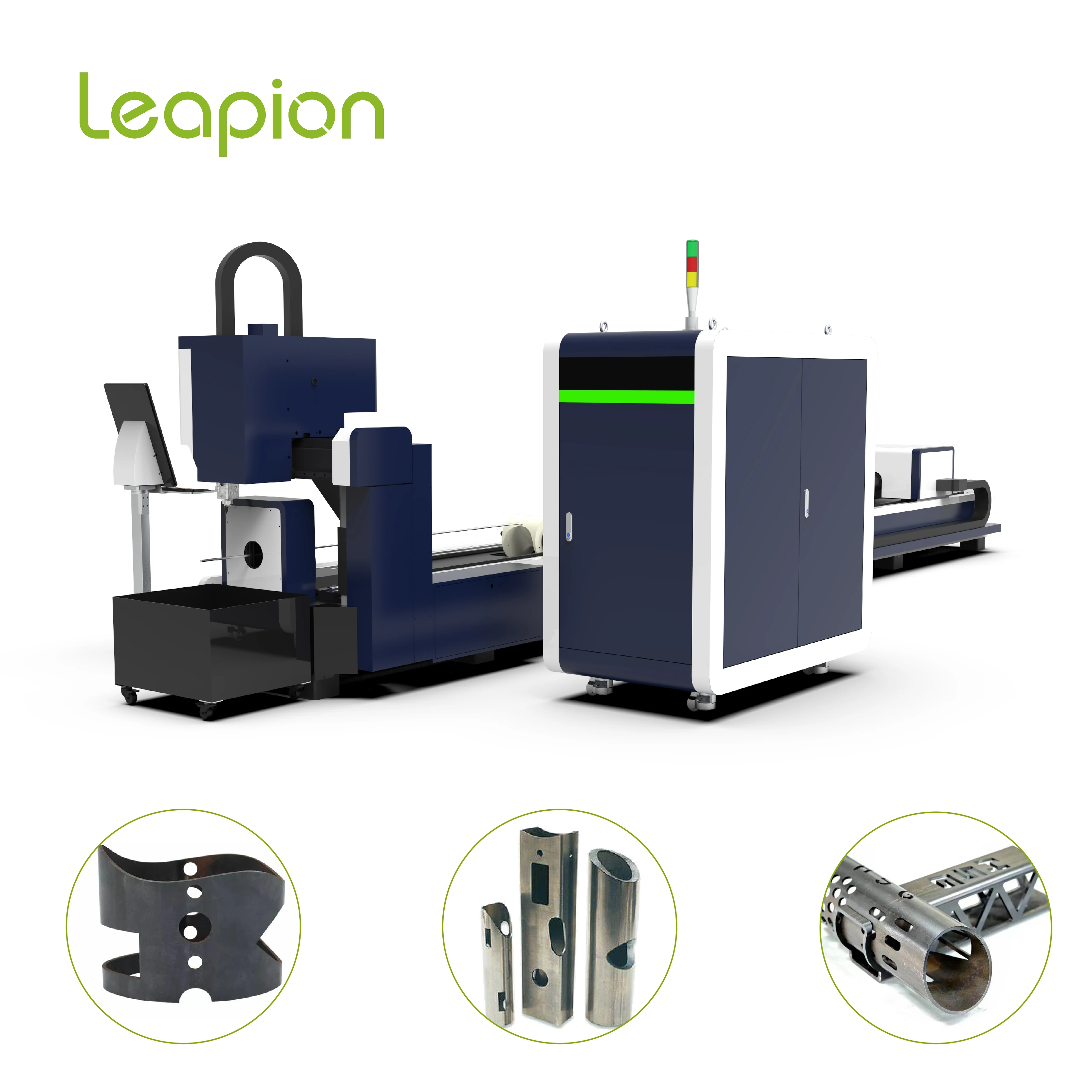

Machine Pictures
Machine Video
Machine Features
With contour recognition system, it can automatically identify standard round, oval, square and other special-shaped pipes.
Tubes realize non-inductive and high-efficiency detection, and realize the position deviation of the whole meter section’s cutting accuracy within 0.15mm.
Tubes realize non-inductive and high-efficiency detection, and realize the position deviation of the whole meter section’s cutting accuracy within 0.15mm.

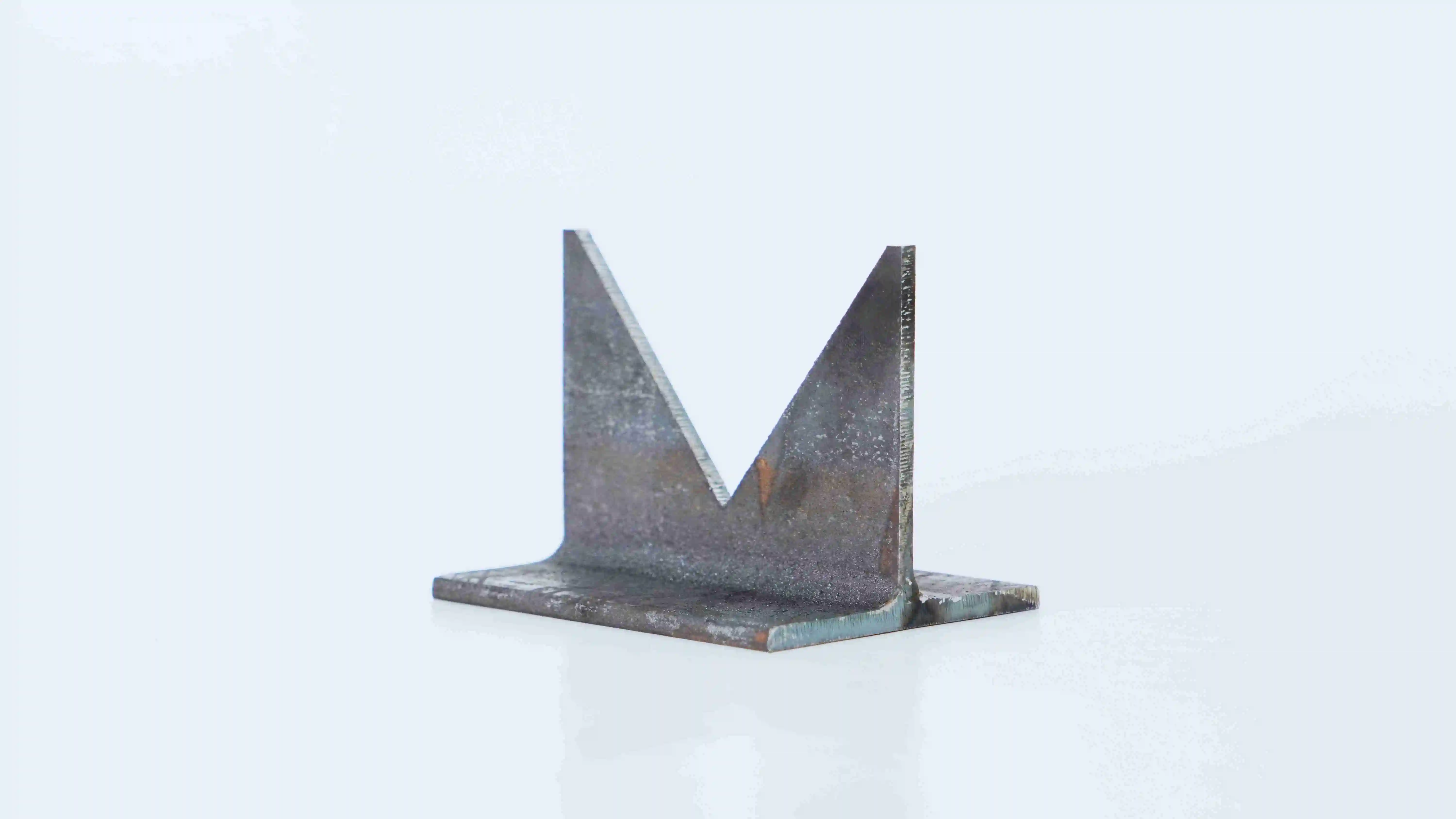

Bevel Cutting The Bevel Cutting process greatly improves efficiency, quality assurance, resource saving, high quality of cut parts, high dimensional accuracy, bevel stay root uniformity and consistency, with high surface quality. |
Three Chuck Design The three-card structure with the double clamping function of the middle chuck can help correct the self-deformation of the small pipe, improve the cutting accuracy, and the segmented feeding cutting can improve the cutting accuracy and realize the cutting of “zero tail material” . |
Automatic Loading And Uploading The machine is equipped with automatic loading and unloading, which can improve the utilization rate of the machine tool andimprove the work efficiency, save a lot of human resources, and meet the needs of a variety of simple material handling until the full automatic operation. |
Follow-Up System The machine is equipped with a servo system to track the position of the pipe to adjust the height in real time, effectively support to prevent the pipe from sagging, ensure the cutting stability of the pipe, and improve the machining accuracy of parts |
Machine Details
Machine frame
This machine adopts plate welding structure bed, the bed structure reaches the optimal stress point and support, the one-piece welding fixation can withstand greater load, and after aging treatment, greatly reducing the internal stress of the bed, to ensure the long-term stable operation of the equipment.
Front Chuck
The front chuck adopts a fully sealed appearance dust-proof structure to prevent dust from entering, and is beautiful and generous with aluminum alloy panel + stainless steel cover buckle. Full stroke clamping range without gripper transposition adjustment, clamping force and load bearing force is strong, high efficiency and clamping accuracy.
Middle Chuck
The middle chuck adopts a fully sealed appearance dust-proof structure to prevent dust from entering, and is beautiful and generous with aluminum alloy panel + stainless steel cover buckle. Full stroke clamping range without gripper transposition adjustment, clamping force and load bearing force is strong, stable performance, high efficiency and clamping accuracy.
Rear Chuck
The rear chuck with claw can clamp the special-shaped pipe, keep the pipe fitting does not slip, and has the function of dust extraction or blowing, the clamping stroke is large, the type of claw is small, easy to use, the clamping force is strong, can realize the heavy pipe fitting processing, and the integral support base structure, improve the support bearing stability.
Laser System
Laser Source
Professional cutting laser source, small in size, light in weight, and easy to move. With high-quality beam quality, high light conversion efficiency, the light emitting mode is more conducive to achieving a good and stable cutting effect with high quality.
Servo Driver
The fast-responding, enabling high-speed, high-precision control and efficient use of energy, with stable motors. Keeping the distance between the nozzle and the pipe unchanged, effectively guaranteeing the cutting quality and the cutting speed.
Servo Motor
Servo motors stabilise and drive the beam to control the movement of the Z-axis according to the programmed instructions to complete the cutting operations with complex precision, and the user can adjust the parameters according to their needs..
Laser Head
The Leapion is equipped with an autofocus CNC laser head. Fast follow-up response. 3D fiber laser cutting head, high induction precision, sensitive response, the most stable and performance, the sharp cutting nozzle part effectively avoid irregular section
HIWIN Rail
Hiwin linear guide, for the four-row single arc tooth contact linear guide, while integrating the optimised structure design of the heavy-duty precision linear guide, high speed, high load, high rigidity, high precision and stabilise the cutting process.
YYC Gear
YYC Gear adopts German standard precision manufacturing, rack tooth surface quenching hardness HRC58, can reach DIN6 level precision requirements, suitable for precision CNC equipment, high precision, wide range of applications.
Control System
Control Software
We used a 3D tube nesting software designed for Tube laser cutting system. From parts drawing and modification, full type compensation, strategic nesting to report generation, using TubesT will meet and exceed your production needs. It can achieve intelligent production. At the same time, the modular design provides users with a more concise and efficient operation.
Control System
Leapion use the most famous brand for high power in China, with great feedback from our customers and special functions such as flying cutting to help customers better use, improve production efficiency and save resources. Working with TubesT 3D nesting software, it will achieve most efficiency and minimum waste.We also supply Leapion own made system.
Independent Height Adjuster
The high-performance stand-alone capacitive height adjuster with its unique Ethernet communication interface can easily work with tube laser cutting software to achieve automatic height edge finding, frog jumping.
Control Panel
The intuitive control panel simplifies operation without sacrificing performance. With customizable settings and keyboard for easy data recording., it offers unparalleled control for a wide range of cutting applications.
Wireless Controller
Wireless connection control handle to keep a safe distance to control the machine operation for operators, and the handle has iron
absorber on the back to reduce the occurrence of loss and easy to place.
absorber on the back to reduce the occurrence of loss and easy to place.
Product Paramenters
Products Name | LF-6024T3 Three Chuck Fiber Laser Tube Cutting Machine | ||
Laser Power | 3000W (Option: 1500w, 2000w, 3000w, 6000w) | ||
Model | LF-6024T3 | LF-6035T | |
Min Diameter | Φ15mm □15mm | Φ20mm □20mm | |
Max Diameter | Φ230mm □160mm | Φ350mm □350mm | |
Laser Source | MAX (Option: Raycus, IPG, BWT, Reci) | ||
Laser Cutting Head | Leapion (Option: Raytools, WSX,Au3tech) | ||
Control System | Leapion (Option: FSCUT, Raytools,Au3tech) | ||
Support Languages | Chinese Simplified, Chinese Traditional, English, Polish, Turkish, Arabic, Japanese, Korean, German,Spanish, Russian, French, Italian, Portuguese, Hungarian, Czech, Finnish, Vietnamese and so on. Customized language accepted | ||
Maximum Acceleration | 1.5G | ||
Positioning Accuracy | ±0.03mm | ||
Auxiliary Gas | Compressed air, oxygen, nitrogen | ||
Voltage | 380V 3PH 50HZ/60HZ (Option: 440V) | ||
Recommend Container | One 40HQ | One 40HQ | |
Application & Samples
Application Industry
Wide range of industry applications, Large diameter pipes, pressure vessels, boilers, bridges, offshore platforms, ships, tanks, armour, vehicles, building components, machine structures, steel construction industry, metal processing industry, lift manufacturing, and other fields.

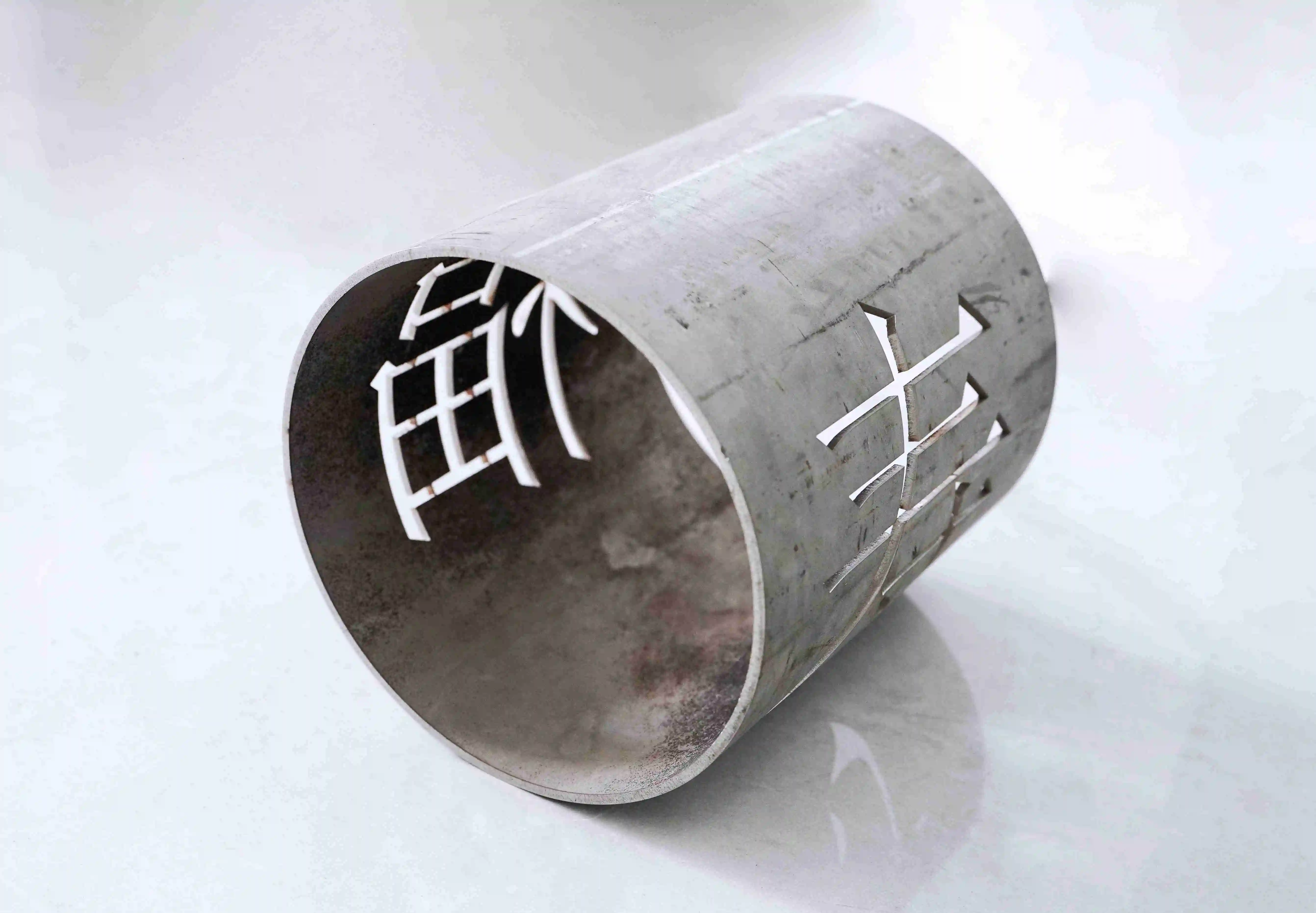

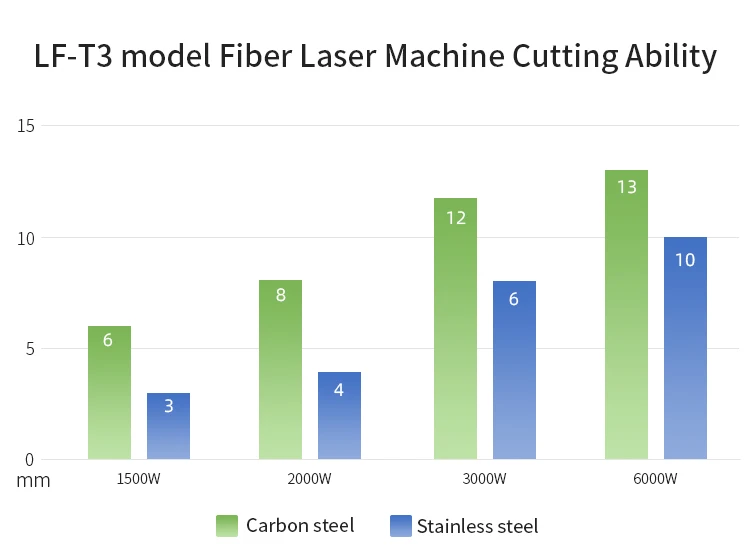

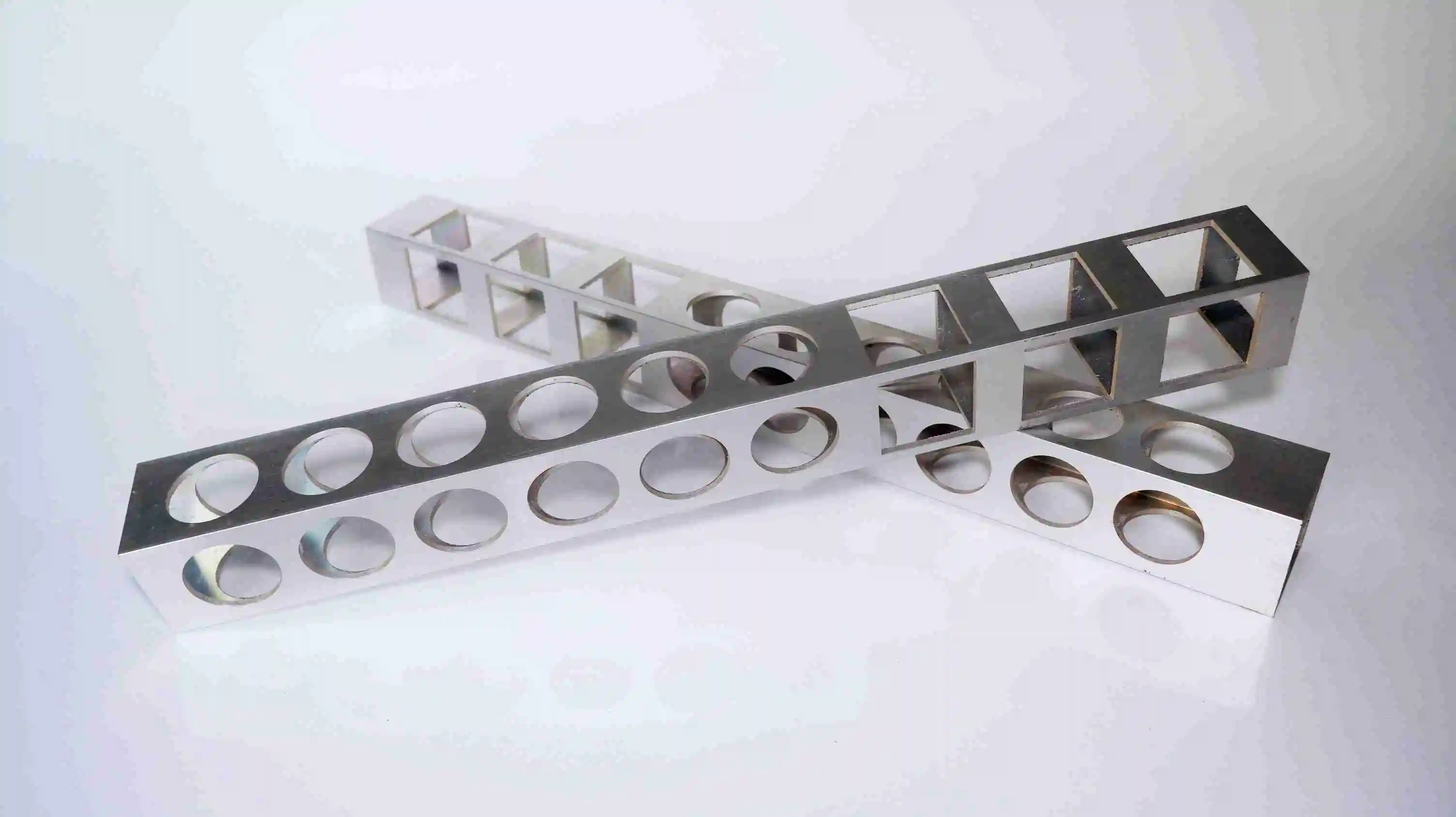

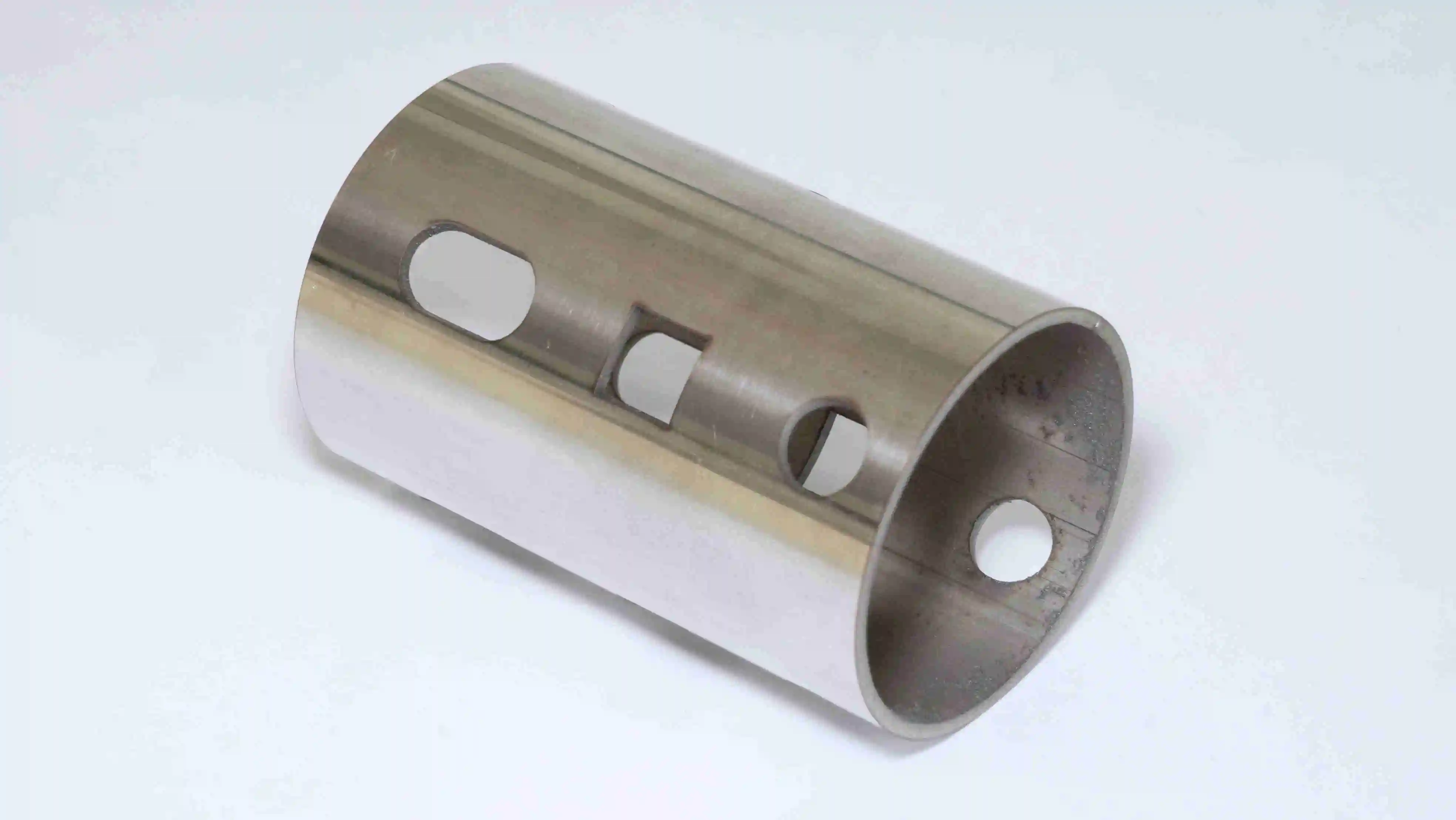

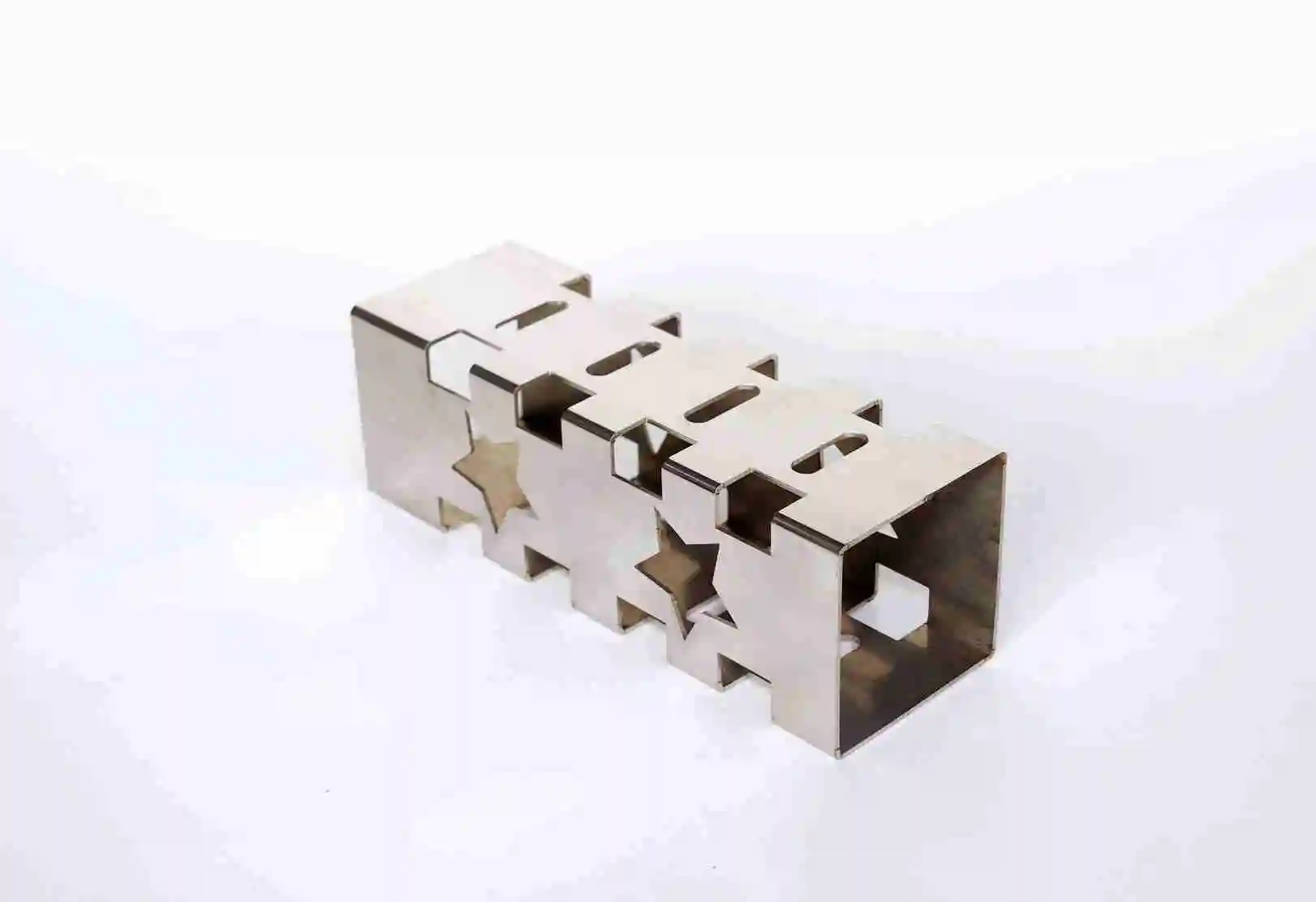

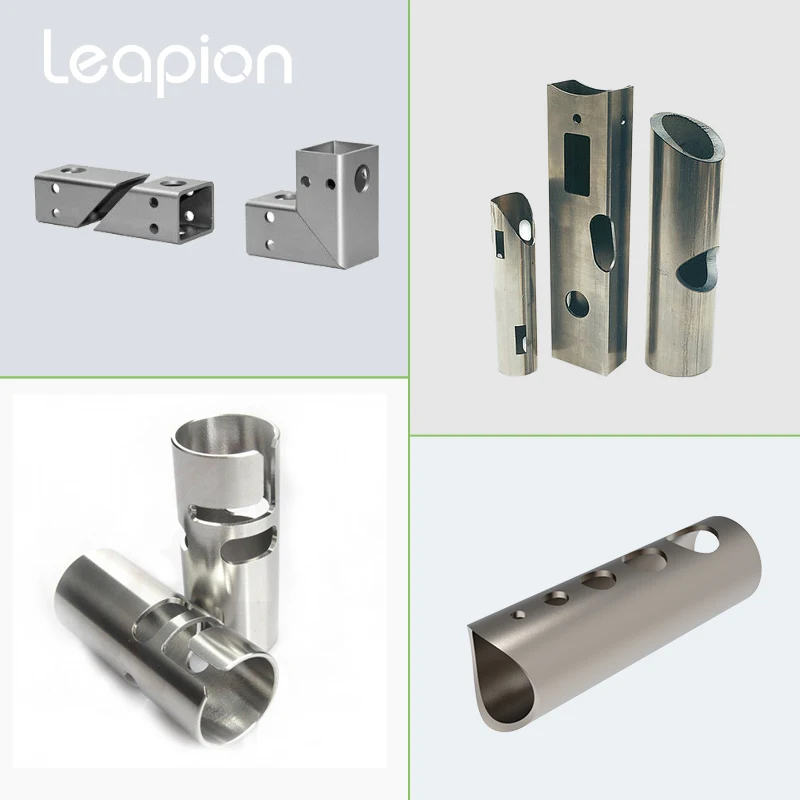

Cutting Sample & Ability
Product Shipment
Shipment Method | Land freight, Sea Freight . |

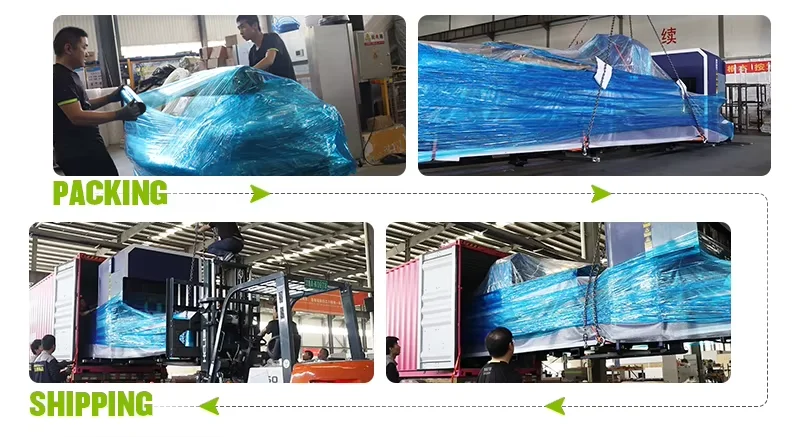

Package Method | Direct load machine into Container . Load 1 set 6024T3 Machine in One 40HQ . |
Certifications
Warm Tips
If you need us to make the corresponding certification. Please inform Leapion's sales staff and we will do our best to cooperate and provide maximum support to you.
Company Introduction
FAQ
1. What is the MOQ?
The minimum order is 1 unit. For customers who need to customize the logo, the MOQ is also 1 unit, and for customers who need to modify the exterior color, the MOQ is also 1 unit, but the production time will be longer.
2. What terms of trade are offered?
Leapion can provide suitable terms according to your specific needs, including: EXW, FOB, etc.3. What payment methods are accepted?
We accept: credit card, debit card, bank transfer, L/C, etc. You are welcome to pay us through Alibaba's "Trade Assurance Order", which can guarantee your rights and interests.
4. How to get sample testing service?
Please send us the DXF. format to make the cutting test for you. We provide three options for sample testing service.
① If you don't need us to mail the tested samples to your address, and we have the metal materials you need to tested in stock, then we offer free testing service. Simply contact us with your specific needs. We will send you the test pictures and videos within 5 working days.
② if you need us to send the tested samples by Express, please pay the express fee.
③ If you need special metal samples for testing, please send the samples to our address or pay us the cost for purchasing metal materials.
① If you don't need us to mail the tested samples to your address, and we have the metal materials you need to tested in stock, then we offer free testing service. Simply contact us with your specific needs. We will send you the test pictures and videos within 5 working days.
② if you need us to send the tested samples by Express, please pay the express fee.
③ If you need special metal samples for testing, please send the samples to our address or pay us the cost for purchasing metal materials.
5. How to confirm the most suitable model of equipment for me?
We suggest you can contact us, Leapion will provide you 1 to 1 VIP service, professional sales staff will recommend the most suitable equipment for you.For faster communication, we recommend that you confirm the following information before contacting us:
① which metal material and pipe type you need to cut
② the maximum thickness and length of each metal pipe
③ the voltage of your local factory
④ the trade terms you required
⑤ Required Time
