Product Overview
Description

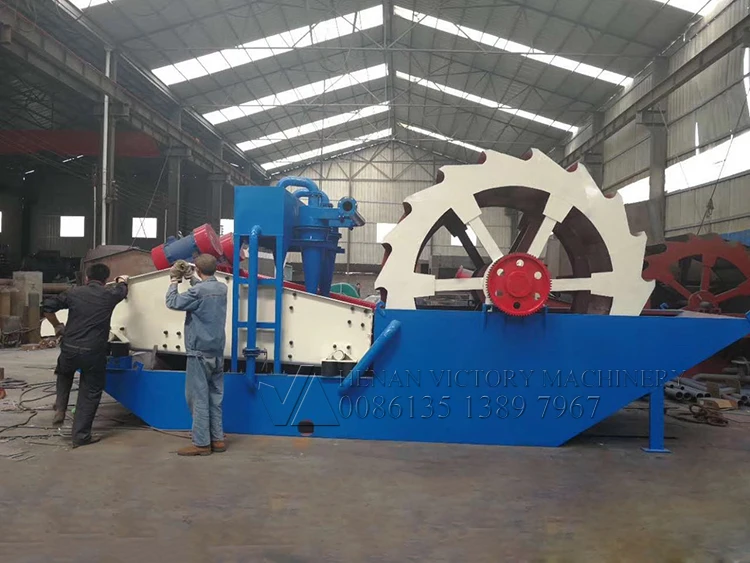

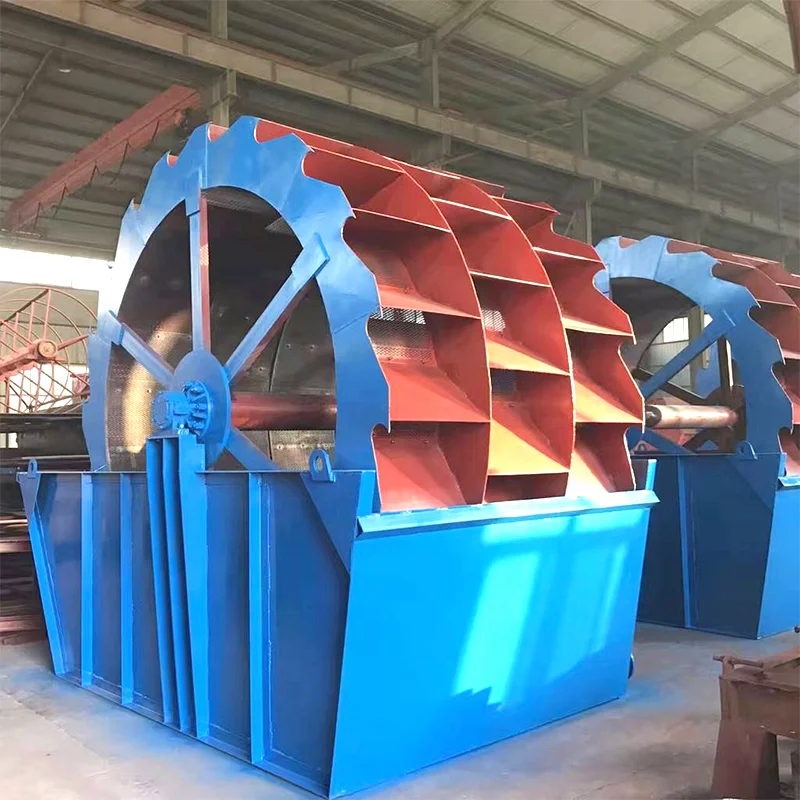

Reliable Cheap Wheel Sand Washing Machine for Sale Washing Cleaning Sand Washer Machine
Product Introduction
The sand washing and recycling machine integrate water washing and fine sand dewatering and recycling as a whole, so it is also called sand washing and recycling conjoined machine, fine sand recycling and dewatering integrated machine, mud and sand washing and separating equipment. This machine cleverly connects the fine sand recycling machine with the sand washing machine, the structure is reasonable, the floor space is small, and the cost is lower than the price of the two types of equipment.

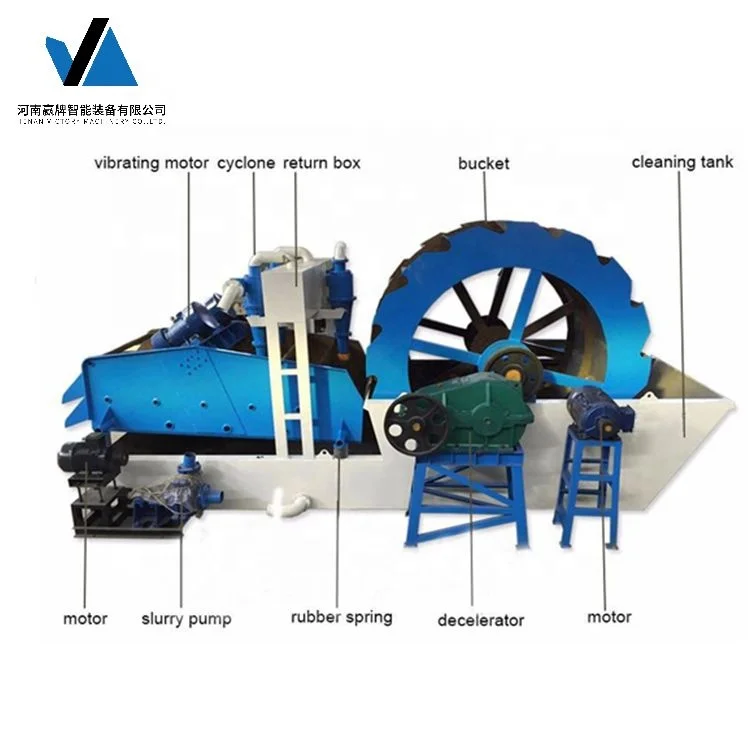

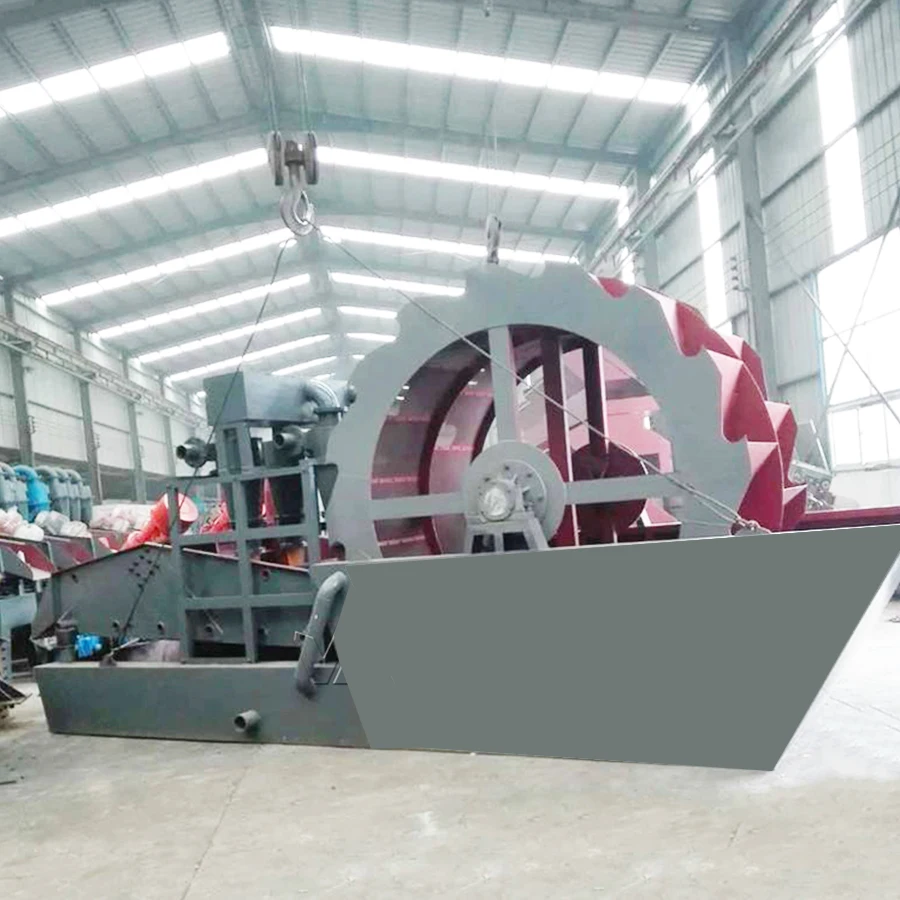

The sand washing and recycling machine is mainly divided into sand washing parts and fine sand recycling parts; the sand washing parts have the same functions as general wheel sand washing machines, and are used for water washing, dehydration, and mud removal; and the recycling parts can be combined according to customer needs If you need fine sand recovery, you can connect to a general fine sand recovery system. If you need fine sand dewatering, you can connect a dewatering type fine sand recovery machine. If you need different sand production effects, you can also configure a multi-layer dewatering screen. The sand washing and recycling machine is composed of a pressure separator, a dewatering screen, an impeller separator, a reducer, a vacuum, a pressure pump, a cleaning box, a return water tank, a motor, a vibration motor, and other components.
Structures
1. Impeller separator: cleaning degree, processing capacity, low power consumption and long service life.
The impeller drive bearing device is isolated from water and water-receiving materials, avoiding bearing damage due to water immersion, sand and pollutants, and reducing the failure rate.
2.Vacuum. Pressure pump: The power is depressurized, compact and sealed, and the slurry is not easy to leak.
The vacuum pressure pump is a wear-resistant and energy-saving type. It adopts the design theory of upper and lower losses and the principle of small loss design makes the shape of the flow part and the flow state of the slurry achieve the ideal effect.
3. Dewatering sieve: The self-cleaning performance of the sieve surface does not block the holes, the screening efficiency is long, and the service life is long.
Because the polyurethane elastic screen uses a steel structure as a skeleton material, plus the polyurethane itself has a very high elastic modulus, strength absorption, impact resistance, and abrasion resistance, so it has very high tensile strength, and its bearing capacity is a rubber screen More than 2.5 times the net, its service life is 8-10 times longer than that of ordinary metal screens, 3 times that of stainless steel screens, and 3.9 times that of natural rubber, which is the current screen surface material with wear resistance.
The impeller drive bearing device is isolated from water and water-receiving materials, avoiding bearing damage due to water immersion, sand and pollutants, and reducing the failure rate.
2.Vacuum. Pressure pump: The power is depressurized, compact and sealed, and the slurry is not easy to leak.
The vacuum pressure pump is a wear-resistant and energy-saving type. It adopts the design theory of upper and lower losses and the principle of small loss design makes the shape of the flow part and the flow state of the slurry achieve the ideal effect.
3. Dewatering sieve: The self-cleaning performance of the sieve surface does not block the holes, the screening efficiency is long, and the service life is long.
Because the polyurethane elastic screen uses a steel structure as a skeleton material, plus the polyurethane itself has a very high elastic modulus, strength absorption, impact resistance, and abrasion resistance, so it has very high tensile strength, and its bearing capacity is a rubber screen More than 2.5 times the net, its service life is 8-10 times longer than that of ordinary metal screens, 3 times that of stainless steel screens, and 3.9 times that of natural rubber, which is the current screen surface material with wear resistance.
4. Vibration motor: Reasonable design, excellent materials selection, high efficiency, low-temperature rise and long service life.
I talked about the dewatering screen, of course, about the vibration motor. The vibration motor's excitation force and output force are properly matched, the body is light in weight, the starting torque is small, and the volume is small. Due to the use of smooth rotation to generate vibration, low noise; fully enclosed structure, can work under any dust without explosion-proof requirements. Just by adjusting the angle of the eccentric block, the excitation force can be infinitely adjusted. The direction of the exciting force can be changed according to the installation mode of the vibration motor; multiple vibration units can be combined to complete various operation requirements.
5, pressure separator: wear-resistant raw materials, elasticity, wear resistance, tear resistance, cutting.
The separation principle of the pressure separator is centrifugal sedimentation. When the slurry to be separated enters with a certain pressure, the periphery of the pressure separator enters. After the pressure separator performs the rotary motion, due to the centrifugal force, centripetal buoyancy and fluid drag force it receives. Small differences. The solid coarse particles in the slurry move the hydraulic resistance to the wall of the vessel and, under the combined effect of their own gravity, move downward along the wall of the vessel. Fine and small particles and some water are affected. The centrifugal force is small, and the rotary motion is performed with the slurry before it is close to the wall.
The separation principle of the pressure separator is centrifugal sedimentation. When the slurry to be separated enters with a certain pressure, the periphery of the pressure separator enters. After the pressure separator is forced to perform a rotary motion, due to the centrifugal force, centripetal buoyancy, and fluid. The drag force is small. The solid coarse particles in the slurry move the hydraulic resistance to the wall of the vessel, and together with their own gravity, they move downward spirally along the vessel wall. Fine and small particles and some water The centrifugal force is small, and the rotary motion is performed with the slurry before it is near the wall.
6. Bit return water tank:
For the wastewater discharged from the pressure separator, it acts as a buffer to facilitate the use of various places on the site for easy drainage. In addition, the water supply in the lower cleaning tank is insufficient, resulting in an insufficient vacuum. The pressure pump has insufficient water pressure. The centrifugal force decreases, providing hydration.
7, other small parts
Underflow port: Made of.Abrasion-resistant material. The machine comes with three different types of underflow ports, which are used with the material content to adjust the material concentration.
Spring: Rubber metal spiral composite spring is a spring made by wrapping a layer of rubber material around the metal spiral spring. It has the characteristics of nonlinearity and structural damping of rubber springs, as well as the characteristics of metal spiral springs. Deformation and bearing capacity. , Its stability and load capacity are better than rubber springs.
I talked about the dewatering screen, of course, about the vibration motor. The vibration motor's excitation force and output force are properly matched, the body is light in weight, the starting torque is small, and the volume is small. Due to the use of smooth rotation to generate vibration, low noise; fully enclosed structure, can work under any dust without explosion-proof requirements. Just by adjusting the angle of the eccentric block, the excitation force can be infinitely adjusted. The direction of the exciting force can be changed according to the installation mode of the vibration motor; multiple vibration units can be combined to complete various operation requirements.
5, pressure separator: wear-resistant raw materials, elasticity, wear resistance, tear resistance, cutting.
The separation principle of the pressure separator is centrifugal sedimentation. When the slurry to be separated enters with a certain pressure, the periphery of the pressure separator enters. After the pressure separator performs the rotary motion, due to the centrifugal force, centripetal buoyancy and fluid drag force it receives. Small differences. The solid coarse particles in the slurry move the hydraulic resistance to the wall of the vessel and, under the combined effect of their own gravity, move downward along the wall of the vessel. Fine and small particles and some water are affected. The centrifugal force is small, and the rotary motion is performed with the slurry before it is close to the wall.
The separation principle of the pressure separator is centrifugal sedimentation. When the slurry to be separated enters with a certain pressure, the periphery of the pressure separator enters. After the pressure separator is forced to perform a rotary motion, due to the centrifugal force, centripetal buoyancy, and fluid. The drag force is small. The solid coarse particles in the slurry move the hydraulic resistance to the wall of the vessel, and together with their own gravity, they move downward spirally along the vessel wall. Fine and small particles and some water The centrifugal force is small, and the rotary motion is performed with the slurry before it is near the wall.
6. Bit return water tank:
For the wastewater discharged from the pressure separator, it acts as a buffer to facilitate the use of various places on the site for easy drainage. In addition, the water supply in the lower cleaning tank is insufficient, resulting in an insufficient vacuum. The pressure pump has insufficient water pressure. The centrifugal force decreases, providing hydration.
7, other small parts
Underflow port: Made of.Abrasion-resistant material. The machine comes with three different types of underflow ports, which are used with the material content to adjust the material concentration.
Spring: Rubber metal spiral composite spring is a spring made by wrapping a layer of rubber material around the metal spiral spring. It has the characteristics of nonlinearity and structural damping of rubber springs, as well as the characteristics of metal spiral springs. Deformation and bearing capacity. , Its stability and load capacity are better than rubber springs.
FAQ
Q: Are you a trading company or manufacturer?
A: We are a factory.
A: We are a factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What are your terms of payment?
A: 30% advanced payment by T/T, balance paid before shipment.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What are your terms of payment?
A: 30% advanced payment by T/T, balance paid before shipment.
