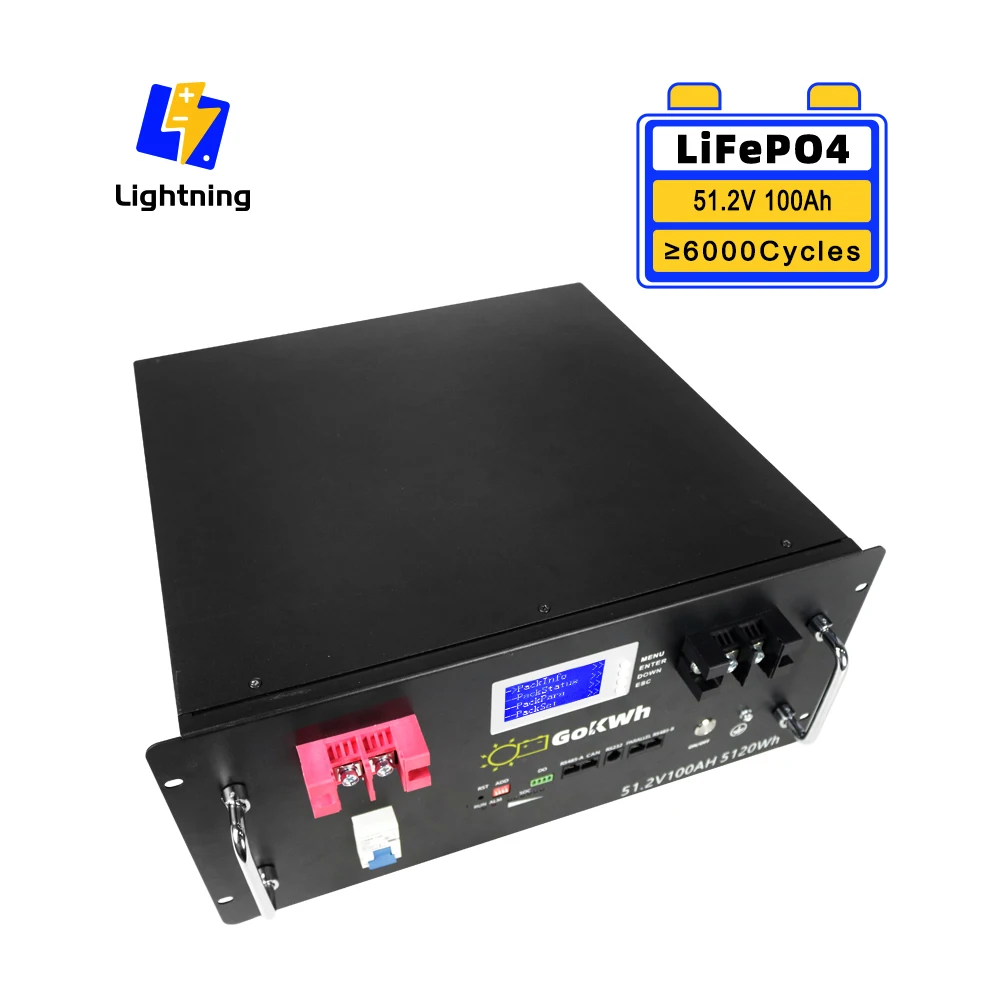

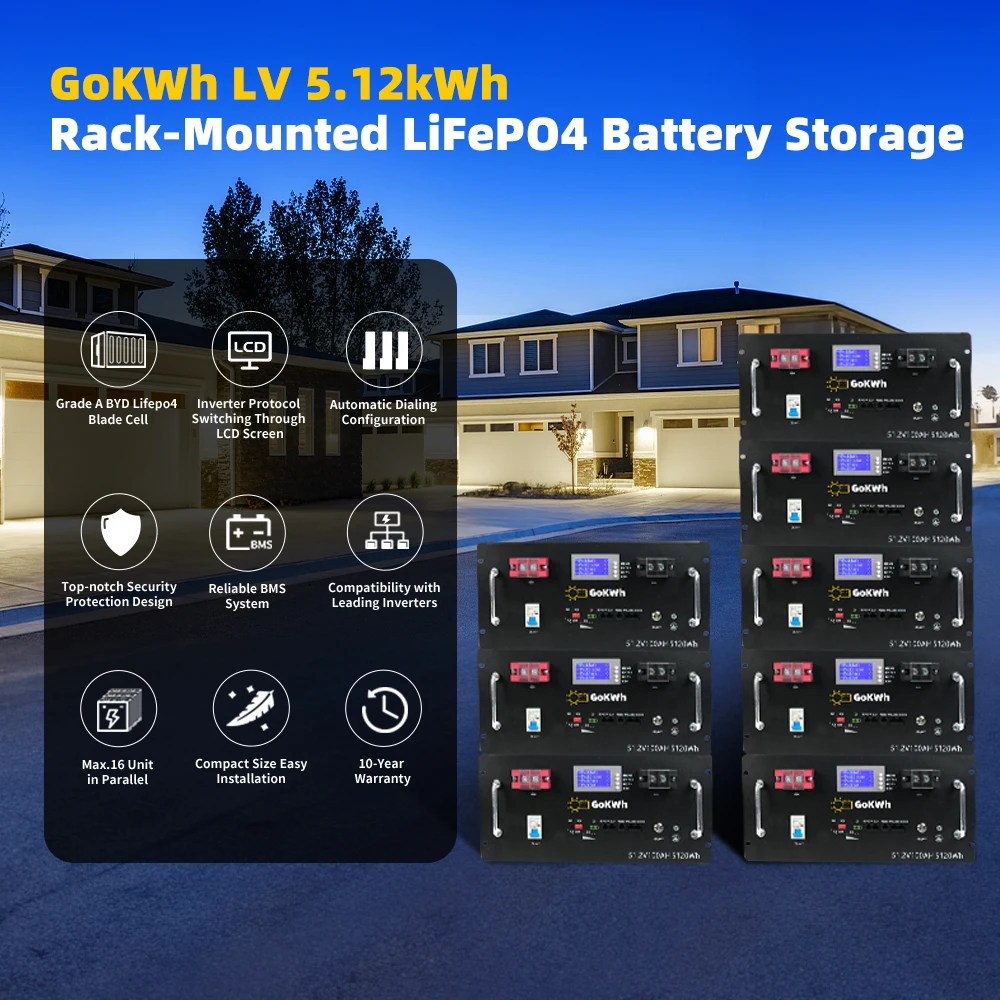

48V 100Ah Lithium iron Phosphate Battery Rack Mounted 51.2v 5kWh Solar ESS ON Off Grid Indoor and Outdoor Energy Storage System
- Category: >>>
- Supplier: Dongguan Lightning New Energy Technology Co. Ltd.
Share on (1601197306207):
Product Overview
Description
48V 51.2V 100Ah 5kWh Lithium Lifepo4 Battery for 10kw 20kw 30kw 40kw 50kw Hybrid Energy Storage System
#Grade A Lifepo4 Prismatic Cell
#Inverter Protocol Switching Through LCD Screen
#Automatic Dialing Configuration
#Top-notch Secur ity Protection Design
#Reliable BMS System
#Compatibility with Leading Inverters
#Max.16 Unit in Parallel
#Compact Size Easy Installation
#10-Year Warranty
#Inverter Protocol Switching Through LCD Screen
#Automatic Dialing Configuration
#Top-notch Secur ity Protection Design
#Reliable BMS System
#Compatibility with Leading Inverters
#Max.16 Unit in Parallel
#Compact Size Easy Installation
#10-Year Warranty

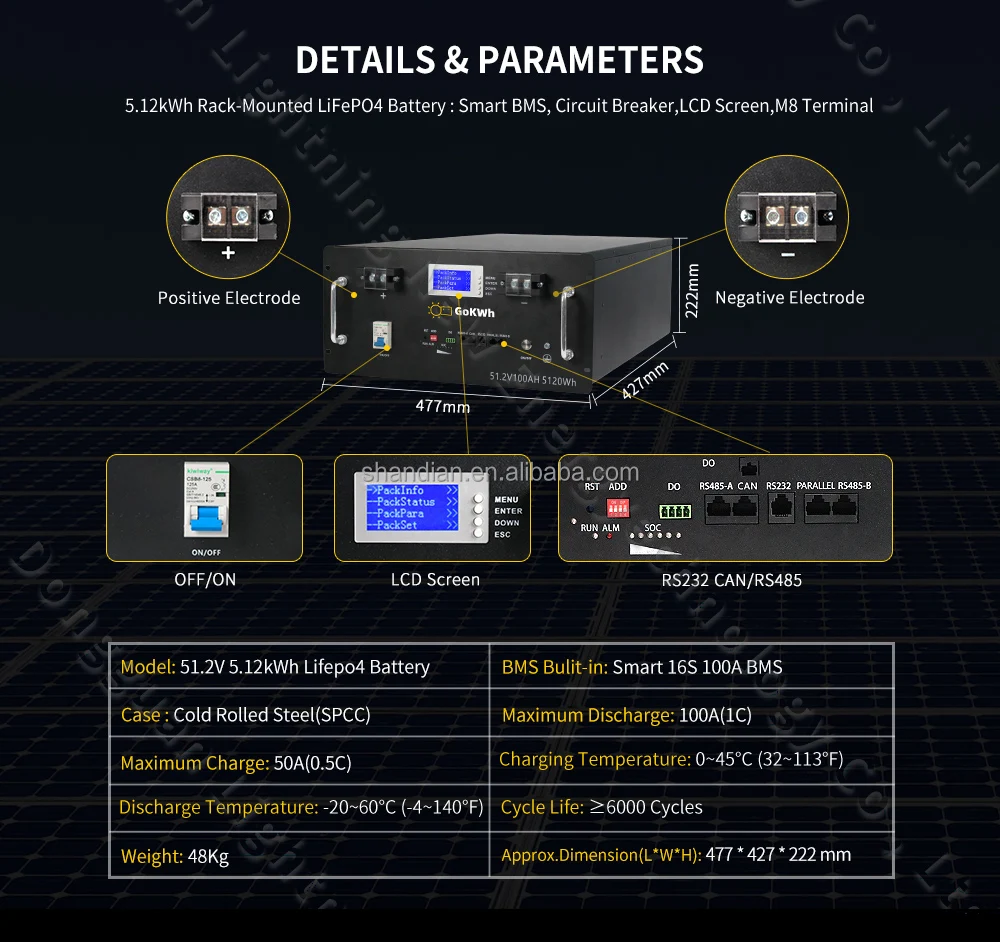

Product Description

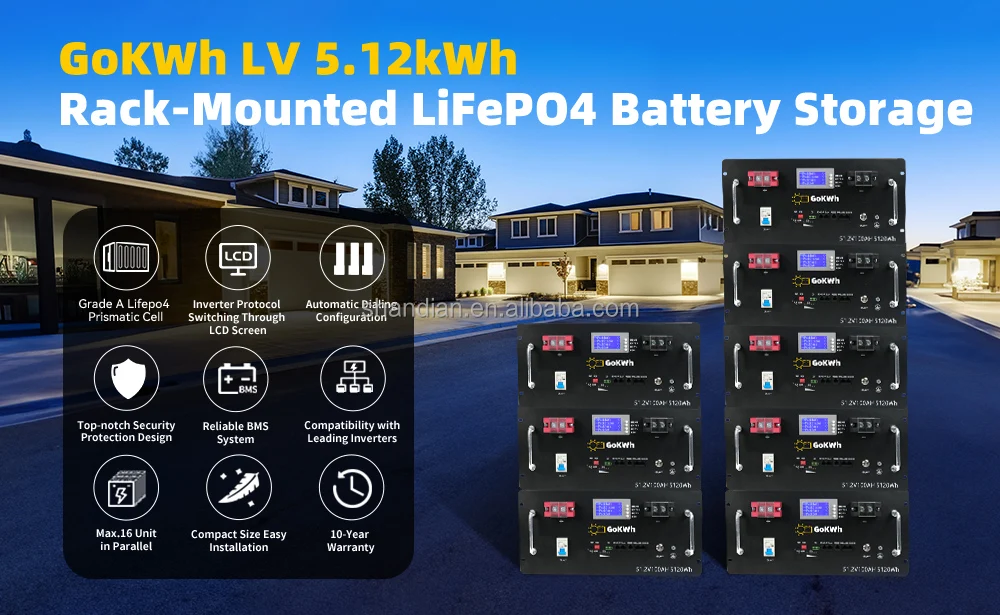

Details of GoKWh 5.12kWh Rack-Mounted LiFePO4 Battery
#Smart BMS
#Circuit Breaker
#LCD Screen
#M6 Terminal
#ON/OFF Switch
Model:51.2V 5.12kWh Lifepo4 Battery
BMS Built-in:Smart 16S 100A BMS
Case:Cold Rolled Steel(SPCC)
Maximum Discharge:100A(1C)
Maximum Charge:50A
Charging Temperature:0~45°C (32~113°F)
Discharging Temperature:-20~60°C (-4~140°F)
Cycle Life:≥6000 Cycles
Approx.Weight:48Kg
Approx.Dimension(L*W*H):477 * 427 * 222mm
#Circuit Breaker
#LCD Screen
#M6 Terminal
#ON/OFF Switch
Model:51.2V 5.12kWh Lifepo4 Battery
BMS Built-in:Smart 16S 100A BMS
Case:Cold Rolled Steel(SPCC)
Maximum Discharge:100A(1C)
Maximum Charge:50A
Charging Temperature:0~45°C (32~113°F)
Discharging Temperature:-20~60°C (-4~140°F)
Cycle Life:≥6000 Cycles
Approx.Weight:48Kg
Approx.Dimension(L*W*H):477 * 427 * 222mm

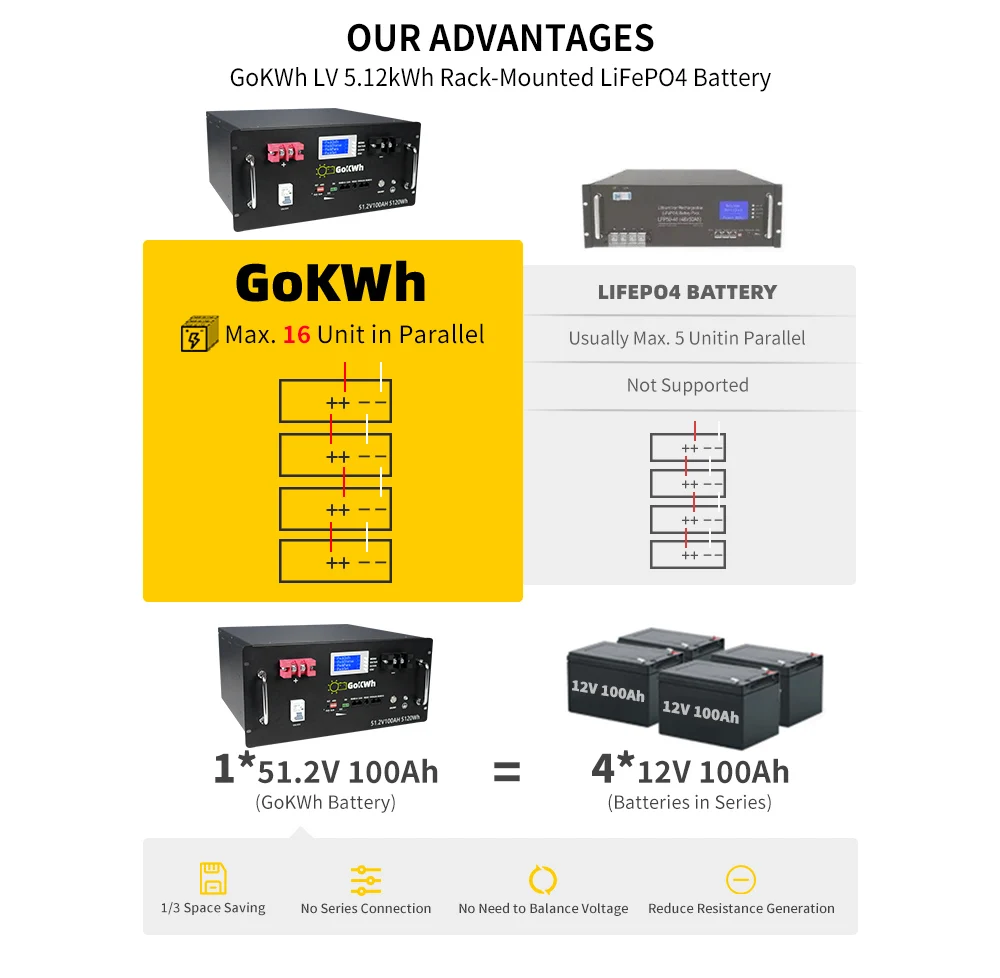

Why Choose Us
GoKWh VS Others
GoKWh：
Max. 16 Unit in Parallel
OEM Series Connection
Others：
Usually Max. 5 Unit in Parallel
OEM Series Connection
Others：
Usually Max. 5 Unit in Parallel
1*GoKWh 51.2V 100Ah=4*Other 12.8V 100Ah
1/3 Space Saving
No Series Connection
No Need to Balance Voltage
Reduce Resistance Generation
1/3 Space Saving
No Series Connection
No Need to Balance Voltage
Reduce Resistance Generation

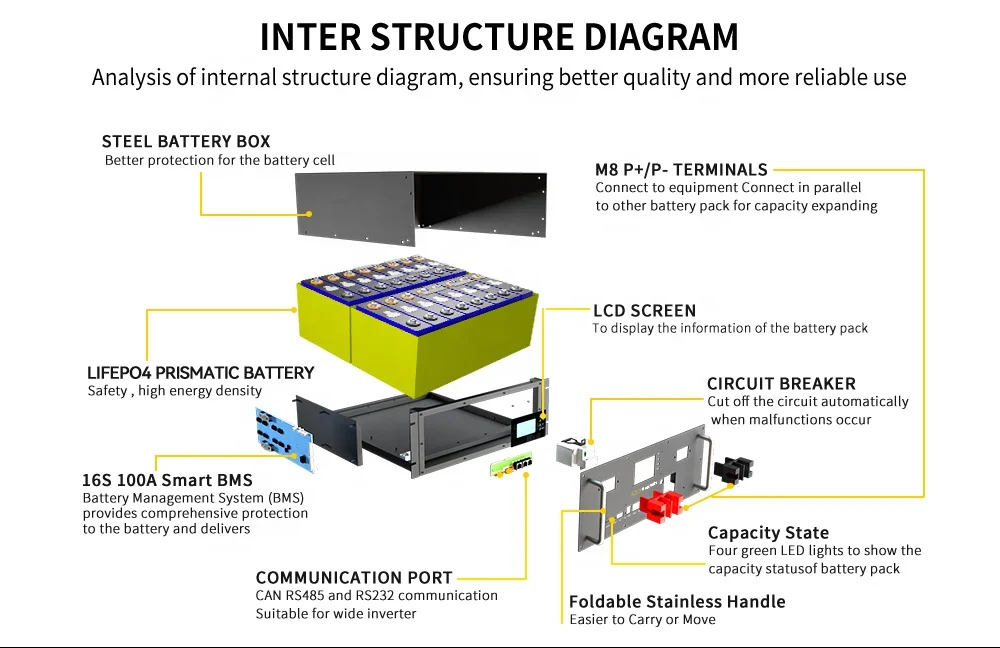

Structure of GoKWh 5kWh Rack Mounted Battery
LCD Screen
To display the information of the battery pack
Communication Port
CAN RS485 and RS232 communication Suitable for wide inverter
ADS Switch
To setup battery address for identification
Capacity State
Four green LED lights to show the capacity statusof battery pack
M6 P+/P- Terminals
Connect to equipment Connect in parallel to other battery pack for capacity expanding
Circuit Breaker
Cut off the circuit automatically when malfunctions occur
Foldable Stainless Handle
Easier to Carry or Move
16S 100A Smart BMS
Battery Management System (BMS) provides comprehensive protection to the battery and delivers
To display the information of the battery pack
Communication Port
CAN RS485 and RS232 communication Suitable for wide inverter
ADS Switch
To setup battery address for identification
Capacity State
Four green LED lights to show the capacity statusof battery pack
M6 P+/P- Terminals
Connect to equipment Connect in parallel to other battery pack for capacity expanding
Circuit Breaker
Cut off the circuit automatically when malfunctions occur
Foldable Stainless Handle
Easier to Carry or Move
16S 100A Smart BMS
Battery Management System (BMS) provides comprehensive protection to the battery and delivers

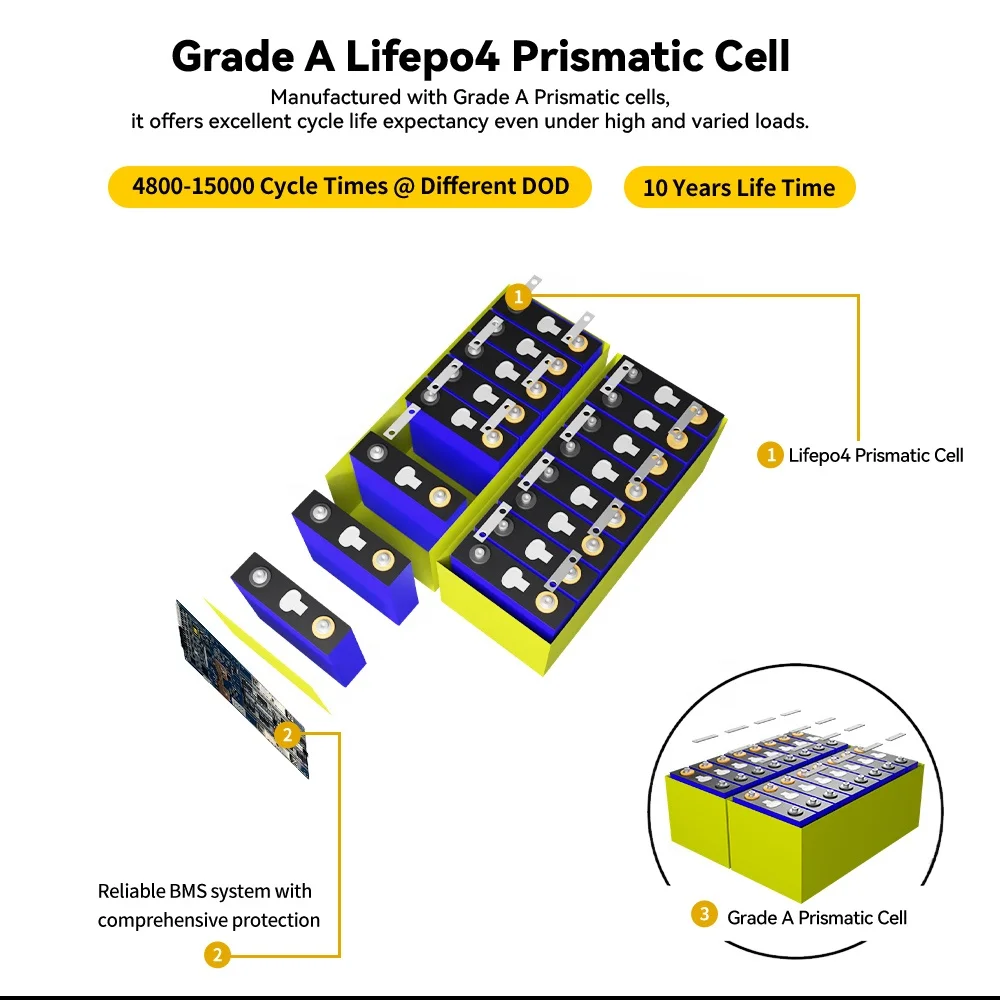

Safe and Reliable LFP Technology
Grade A Prismatic Lifepo4 Cell
Manufactured with Grade A prismatic cells, it offers excellent cycle life expectancy even under high and varied loads.
6000-15000 Cycle Times @ Different DOD
10 Years Life Time
Manufactured with Grade A prismatic cells, it offers excellent cycle life expectancy even under high and varied loads.
6000-15000 Cycle Times @ Different DOD
10 Years Life Time

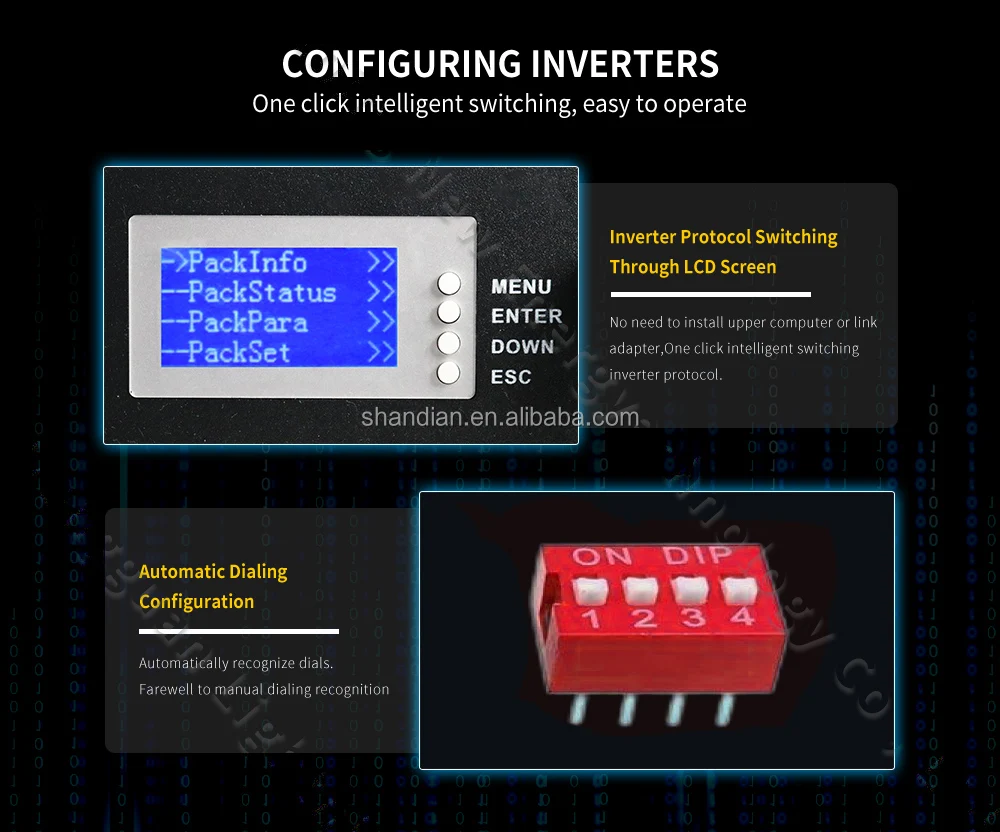

User-friendly Inverter Configuration Operation
Inverter Protocol Switching Through LCD Screen
Compared to traditional operations that require the installation of upper computers, link adapters, etc., and the replacement of inverter protocols, it is simpler for customers to replace inverters and adjust protocols when using them
Automatic Dialing Configuration
Automatically recognize dials. Farewell to manual dialing recognition
Compared to traditional operations that require the installation of upper computers, link adapters, etc., and the replacement of inverter protocols, it is simpler for customers to replace inverters and adjust protocols when using them
Automatic Dialing Configuration
Automatically recognize dials. Farewell to manual dialing recognition
Top-notch Security Protection Design
Circuit breaker
Communication with BMS, with protection functions such as overload, open circuit, leakage, undervoltage, overvoltage, imbalance, etc
Air circuit breaker
If the current in the circuit exceeds the rated current Switch that will automatically disconnect
Reset switch
Reduce BMS self damage and reset
Built-in fuse
When a circuit experiences a short circuit or overload, the current is too high, and the melt melts due to overheating, thereby cutting off the circuit
Communication with BMS, with protection functions such as overload, open circuit, leakage, undervoltage, overvoltage, imbalance, etc
Air circuit breaker
If the current in the circuit exceeds the rated current Switch that will automatically disconnect
Reset switch
Reduce BMS self damage and reset
Built-in fuse
When a circuit experiences a short circuit or overload, the current is too high, and the melt melts due to overheating, thereby cutting off the circuit

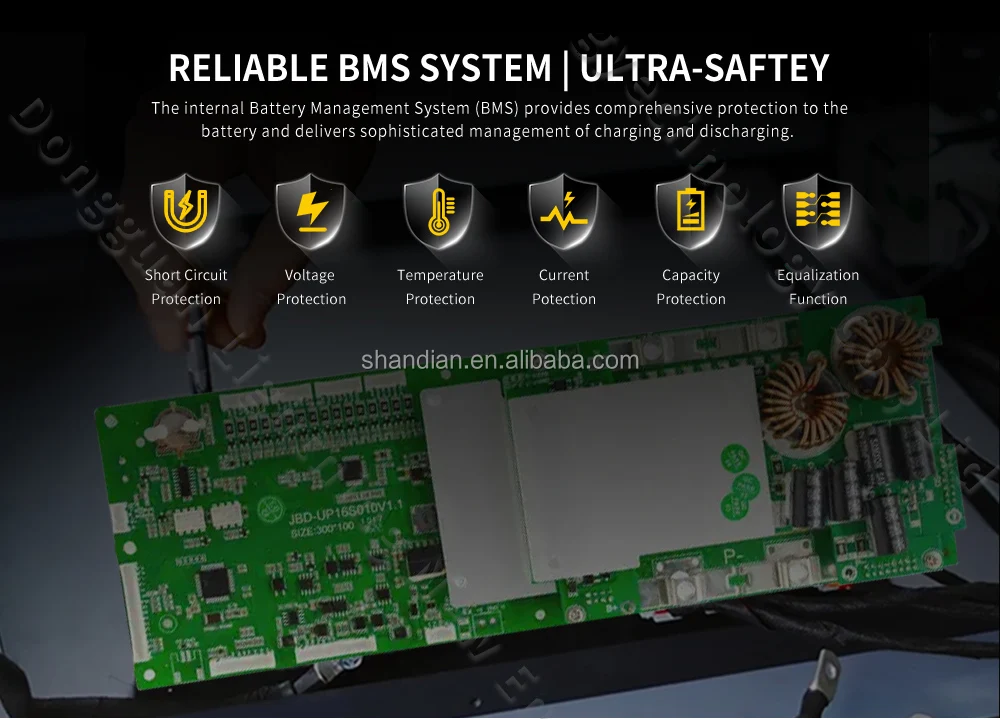

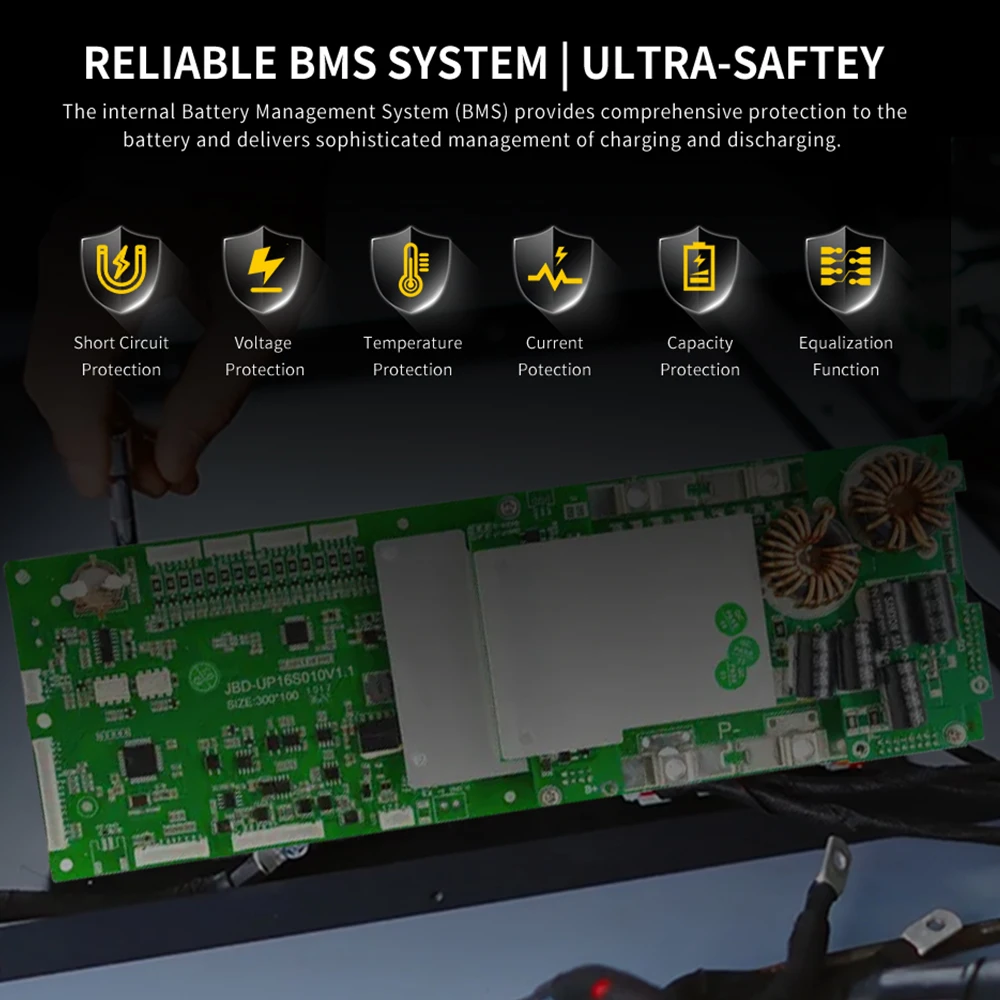

Reliable BMS System | Ultra-Saftey
The internal Battery Management System (BMS) provides comprehensive protection to the battery and delivers sophisticated management of charging and discharging.
Short Circuit Protection
Voltage Protection
Current Potection
Capacity Protection
Temperature Protection
Equalization Function
Short Circuit Protection
Voltage Protection
Current Potection
Capacity Protection
Temperature Protection
Equalization Function
Compatibility With Leading Inverters
Now our CANBUS communication board supports these brands of inverters,and our BMS has built-in CANBUS protocol of matching inverter brand, which can be automatically matched or manually switched:
*Pylontech
*Goodwe
*Growatt
*SMA
*Victron
*TBB POWER
*MUST
*DEYE
*SRNE
*MEGAREVO
*INVT
*Pylontech
*Goodwe
*Growatt
*SMA
*Victron
*TBB POWER
*MUST
*DEYE
*SRNE
*MEGAREVO
*INVT
Due to the numerous models and iteration issues of the same brand, please verify your inverter model with sales before purchasing so that we can provide matching services for you

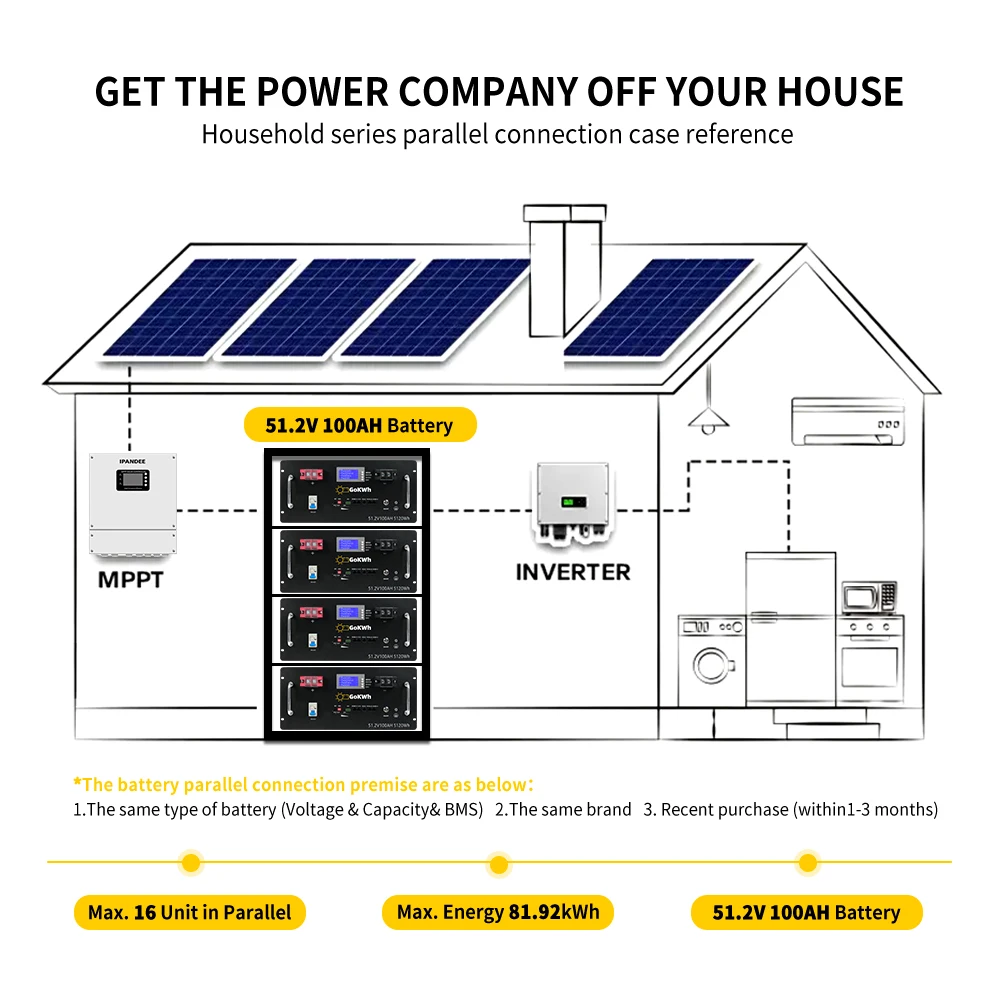

Get The Power Company OFF Your House
The battery parallel connection premise are as below:
The same type of battery (Voltage & Capacity& BMS)
The same brand
Recent purchase (within1-3 months)
Max. 16 Unit in Parallel
Max. Energy 81.92kWh
51.2V 100Ah Battery
Please DO NOT series these 51.2V 100Ah batteries
The same type of battery (Voltage & Capacity& BMS)
The same brand
Recent purchase (within1-3 months)
Max. 16 Unit in Parallel
Max. Energy 81.92kWh
51.2V 100Ah Battery
Please DO NOT series these 51.2V 100Ah batteries
High Output Power
5120Wh Uasble Energy
Home Backup
Meet the needs of your various application scenarios
Home& BACK UP POWER
RV&CAMPING
SOLAR POWER
SOLAR SYSTEM
Home Backup
Meet the needs of your various application scenarios
Home& BACK UP POWER
RV&CAMPING
SOLAR POWER
SOLAR SYSTEM
What's in the box
1 * GoKWh 51.2V 100Ah LiFePO4 Battery
2 * Battery Cables
1 * Communication Cable
2 * Battery Cables
1 * Communication Cable
Shipping&Delivery
Total Delivery Time = Handling Time + Transit Time (+ any holidays and weekends) | ||||||||
Purchase Region | Warehouse | Shipping Option | Handling Time | Estimated Delivery Time | ||||
USA/Canada | USA/CA | FedEx/DHL/UPS | 1~7 working days | 2~7 working days | ||||
CN | By sea+Express(FedEx/DHL/UPS, Tax free) | 30~60 working days | ||||||
EU Country | DE(*2)/PL | DPD/UPS/TNT | 1~7 working days | 2~7 working days | ||||
CN | By railway or sea+Express(DPD/UPS/TNT, Tax free) | 30~60 working days | ||||||
Asia | CN | By sea/railway+Express(DPD/Toll/UPS/FedEx/TNT, most country are Tax free) | 1~7 working days | 25~60 working days | ||||
Australia or other | CN | |||||||
We can't deliver the following address directly | ||||||||
A | USA: Military address and PO box address are not acceptable; Puerto Rico, Virgin Islands, Guam, Alaska Note: Hawaii does not include customs duties and requires additional freight, Please contact us online. | |||||||
B | Portugal: Azores and Madeira | |||||||
C | Spain:Canary Islands, hueda,Missily and melilia and some other Island | |||||||
D | Russia: Kamchatka Peninsula | |||||||
E | Other:Some remote areas not listed，Please provide shipping address and zip code to to us to check. | |||||||
Noted: *The above transportation time is only the reference time of most orders, excluding inspection time or other special time,such as natural accidents, congestion and other uncontrollable factors.*The tracking will be update after pick up by local express. Please wait patiently or contact us for help. *Countries that do not appear in the table, Please Click Here to consult us forfreight charges | ||||||||
FAQ
Q1. Are you a manufacturer?
A. Yes, sir, we have our own factory, the price is factory direct.
Q2. Can I have a sample order?
A. Yes,welcome sample order to test and check quality.
A. Yes, sir, we have our own factory, the price is factory direct.
Q2. Can I have a sample order?
A. Yes,welcome sample order to test and check quality.
Q3.I need more function such Bluetooth and LED screen,i also want anti vibration design,can i customized my battery pack?
A: Yes of course, just let me know what exactly you need, our professional engineer team will give you an excellent solution, more than you expection.
Q4: Can these battery pack be compatible with my inverter? do you have a company list of the inverter which is compatible?
A: Yes sir, our battery pack can compatible with most brand of inverter on the market, contact us and let me tell you more.
Q5: I'm very sensible in price, i am a wholesaler of battery pack, if i sell your battery pack in my city , the profit is very
low,can i get a cheaper price? and i can see your competitor sells more cheap then you.
A: It is highly suggest that you can have a comparision with our competitor. Indeed, there are also some supplier provide low price battery pack but using cheap material. Pls pay attention to the cycle life and the warranty, and we have anti vibration design and communication design. maybe you know the price of cylindrical cell is far cheap then prismatic cell.besides, we also provide cylindrical cell solution , pls contact us directly and we will tell you more. Most Importantly, we can give you a professional solution according to your local market? low profit? Don't worry about that, our engineer team will help you help you to solve it.
low,can i get a cheaper price? and i can see your competitor sells more cheap then you.
A: It is highly suggest that you can have a comparision with our competitor. Indeed, there are also some supplier provide low price battery pack but using cheap material. Pls pay attention to the cycle life and the warranty, and we have anti vibration design and communication design. maybe you know the price of cylindrical cell is far cheap then prismatic cell.besides, we also provide cylindrical cell solution , pls contact us directly and we will tell you more. Most Importantly, we can give you a professional solution according to your local market? low profit? Don't worry about that, our engineer team will help you help you to solve it.
