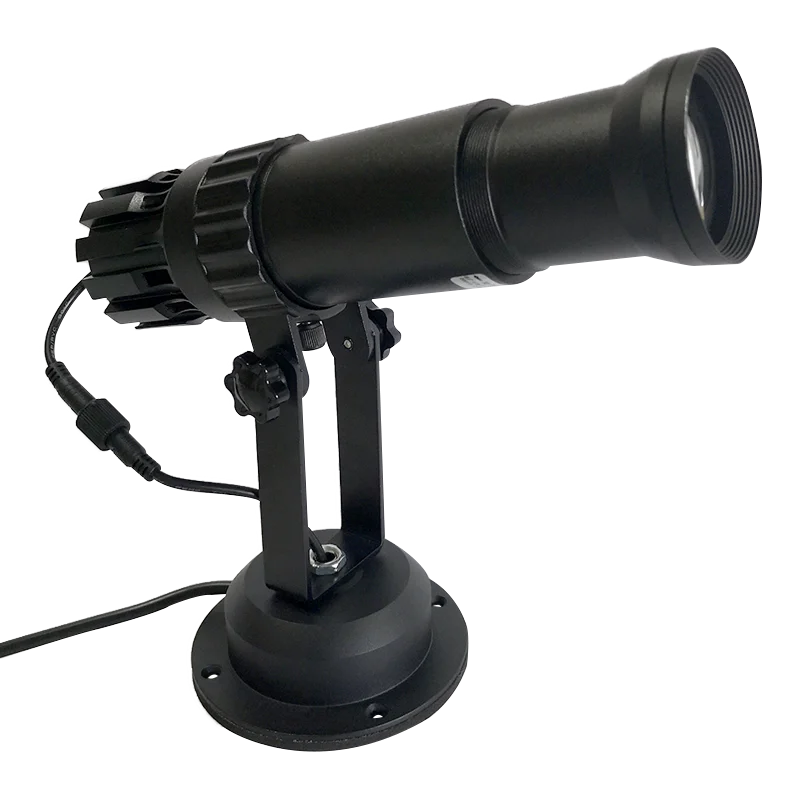

3D Advertising Custom Logo Projector Light Outdoor Logo Projector Gobo Multiple Logos Lens
- Category: >>>
- Supplier: Shenzhen Cozemate Technology Co. Ltd.Shenzhen Ltd.
Share on (1601197391096):
Product Overview
Description
Main Parameters
Item | 25W 35W 50W Logo Projector Indoor | ||||||
Model | COTY-A11 | ||||||
The main material | Structural section | ||||||
Body color | Black/white | ||||||

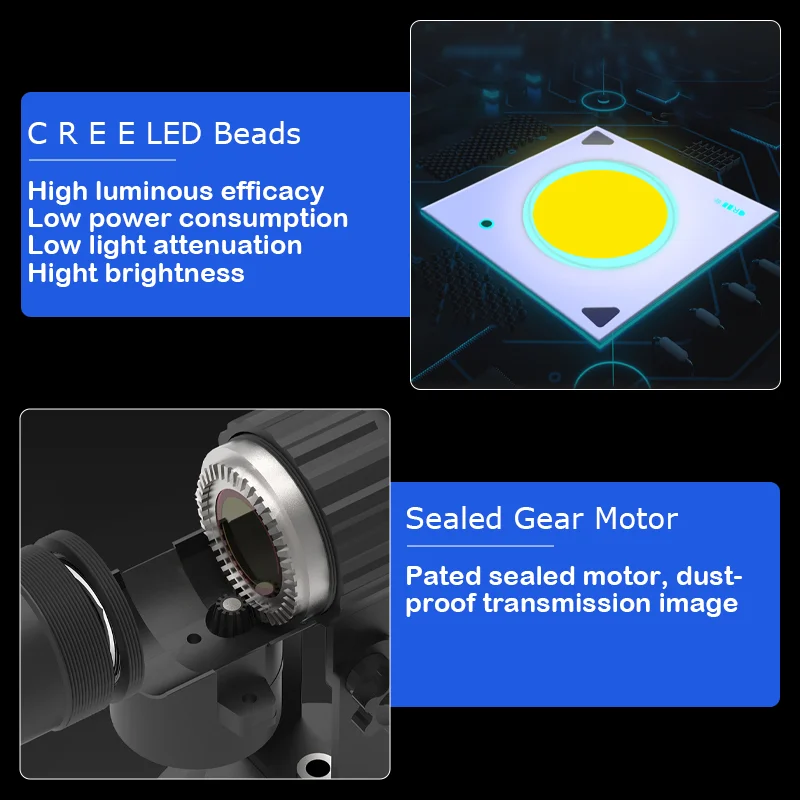

Matching light source | C R E E | ||||||
Supporting drive | Constant voltage and current | ||||||
Light source color temperature | 6500-8000K | ||||||
Lens material | Optical glass | ||||||
Beam angle | 20° | ||||||
Lighting distance | 3-10m | ||||||
Lumens | 25W: 2000lm 35W: 2800lm 50W: 4000lm | ||||||
Gobo Slides size | 37-27mm | ||||||
Input voltage | AC 85V-265V | ||||||
Current frequency | 50Hz | ||||||
Input power | 85V-265V (default) or DC 12-24V (Only for 25W & 35W) | ||||||
Motor power | 3.5W | ||||||
Input voltage | AC110/AC220 | ||||||
Rotation speed | 1.2R/MIN | ||||||
Waterproof level | IP20 | ||||||
Operating temperature | -40-75℃ | ||||||
Working humidity | 20%-80% | ||||||
Installation method | Screwed (default) / Tracked / Embedded (The Embedded Hole size φ100MM) | ||||||
Certification | CE ROHS CNAS CMA | ||||||
Cooling system | Profile air-cooled | ||||||
Warranty period | Two years | ||||||
Version Explanation | ||||||||
1. Static: It's the basic version. The projection pattern is static, rigid, no any movement or rotation. | ||||||||
2. Rotated: The projection pattern is rotated around the circle, rotated speed 1.2R/Min. | ||||||||
3. Flashed: The projector will be run 3 seconds and power off 1 second, and running cycling. | ||||||||
4. Remote Control: The remote controller can control the projector Logo switch Rigid/Rotated, or Power on/off. | ||||||||

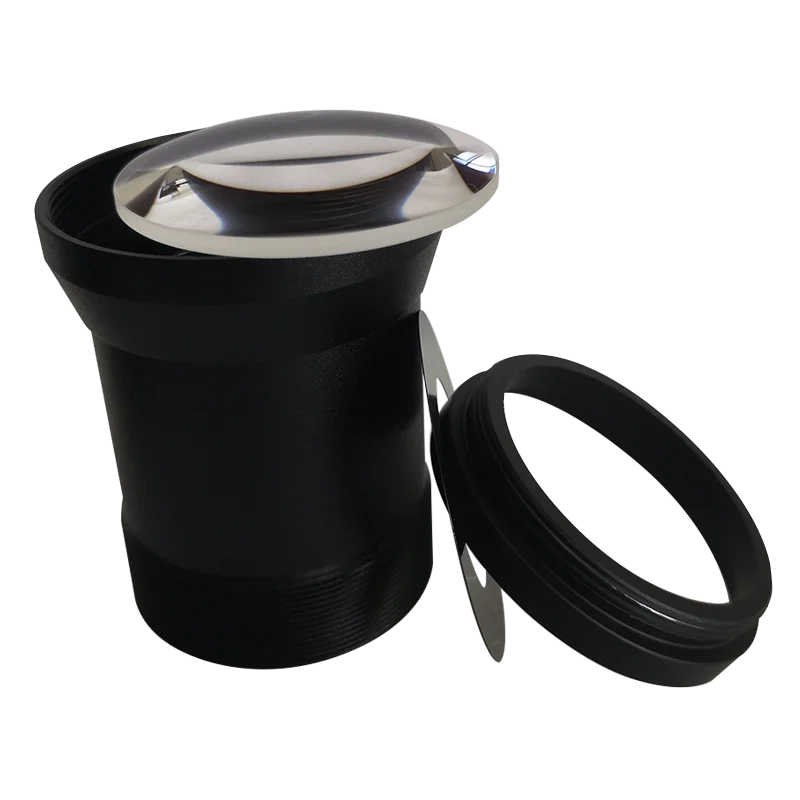

Note | This projector without gobo lens slides. If you need make your own gobo lens, please order the projector together with the lens. | ||||||
Suggest Distance | Wattage | Ratio | ||||||
1:0.3 | 1:0.5 | 1:0.8 | 1:1 | |||||
20W | 1~6m | 1~4m | 1~4m | 1~2m | ||||
25W | 1~7m | 1~4m | 1~4m | 1~2m | ||||
35W | 2~8m | 2~5m | 2~4m | 2~3m | ||||
55W | 3~10m | 3~6m | 3~4m | 3m | ||||
Products Description

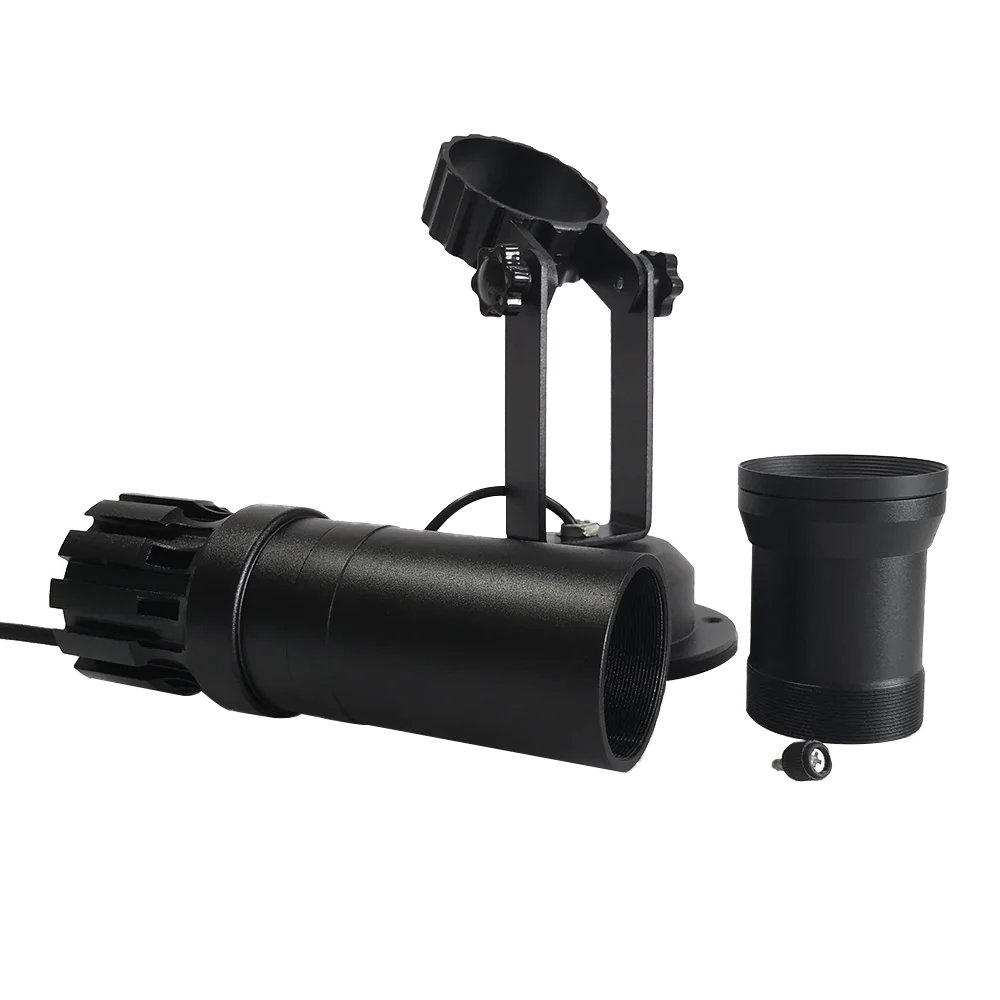

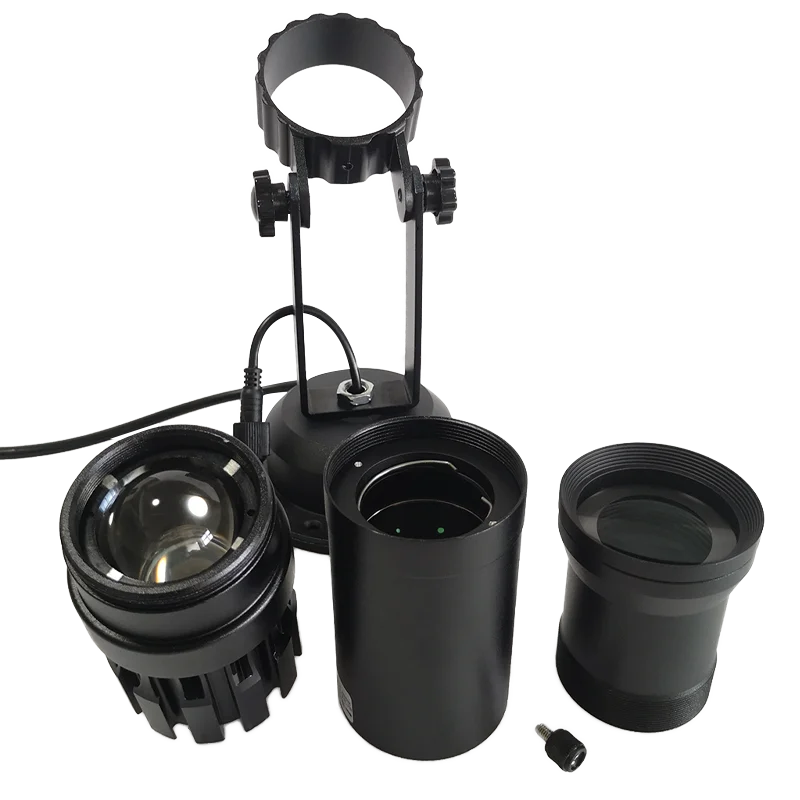

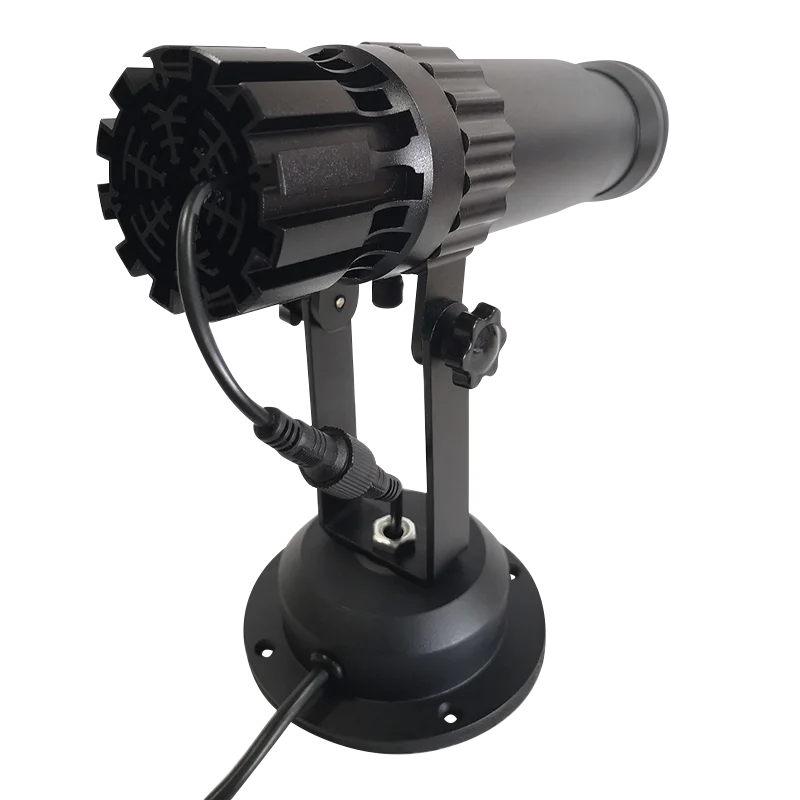

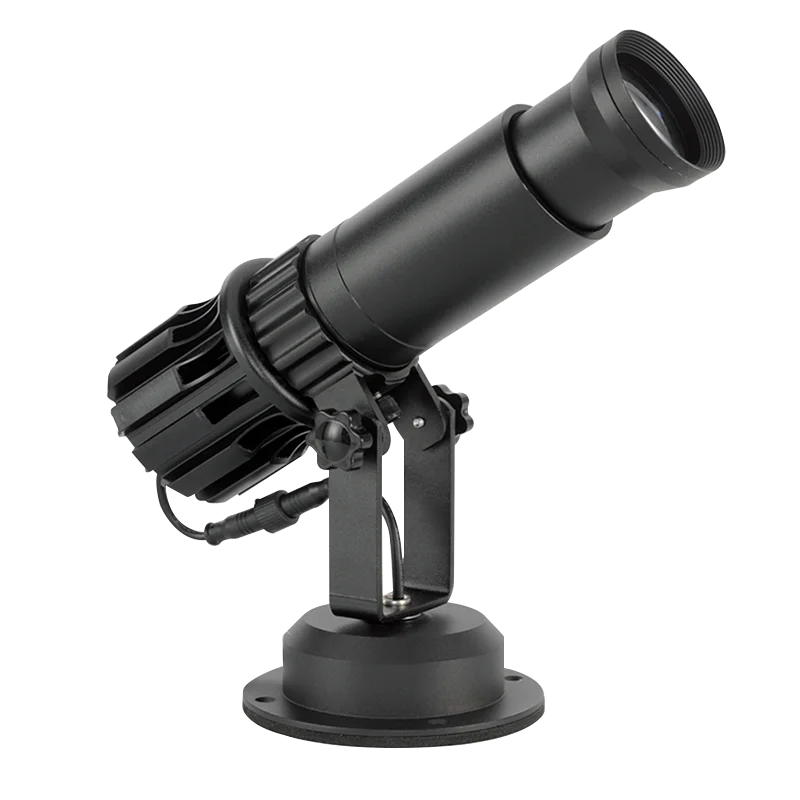

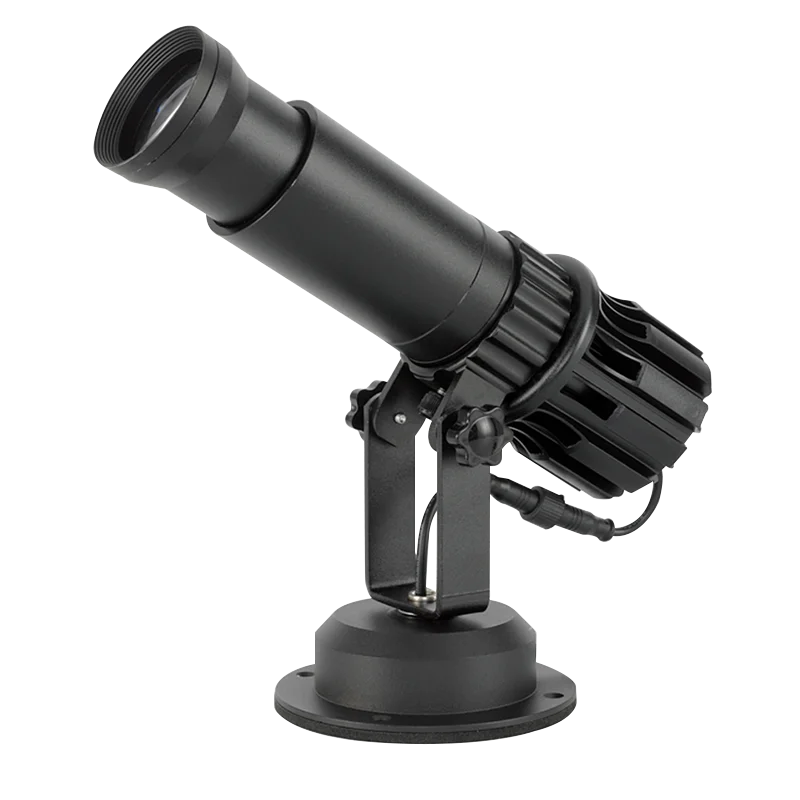

Details Images
