Forede Manual Fire Fighting Monitor for Fire Fighting Truck
- Category: >>>
- Supplier: Quanzhou Forede Firefighting Equipment Co. Ltd.
Share on (1601197657644):
Product Overview
Description
\t\t\t\t\t\t\t\t\tContact Us \t\t\t\t\t\t\t
Product Description
PS50-100B

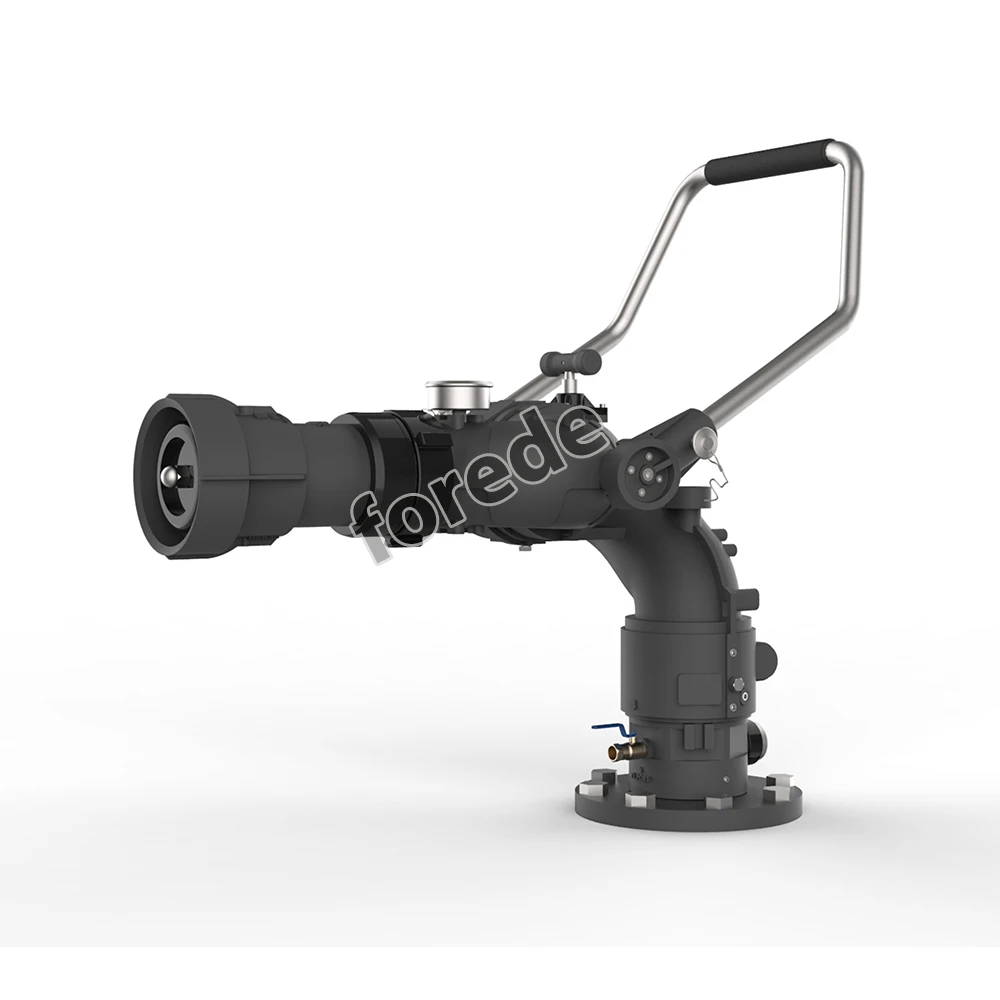

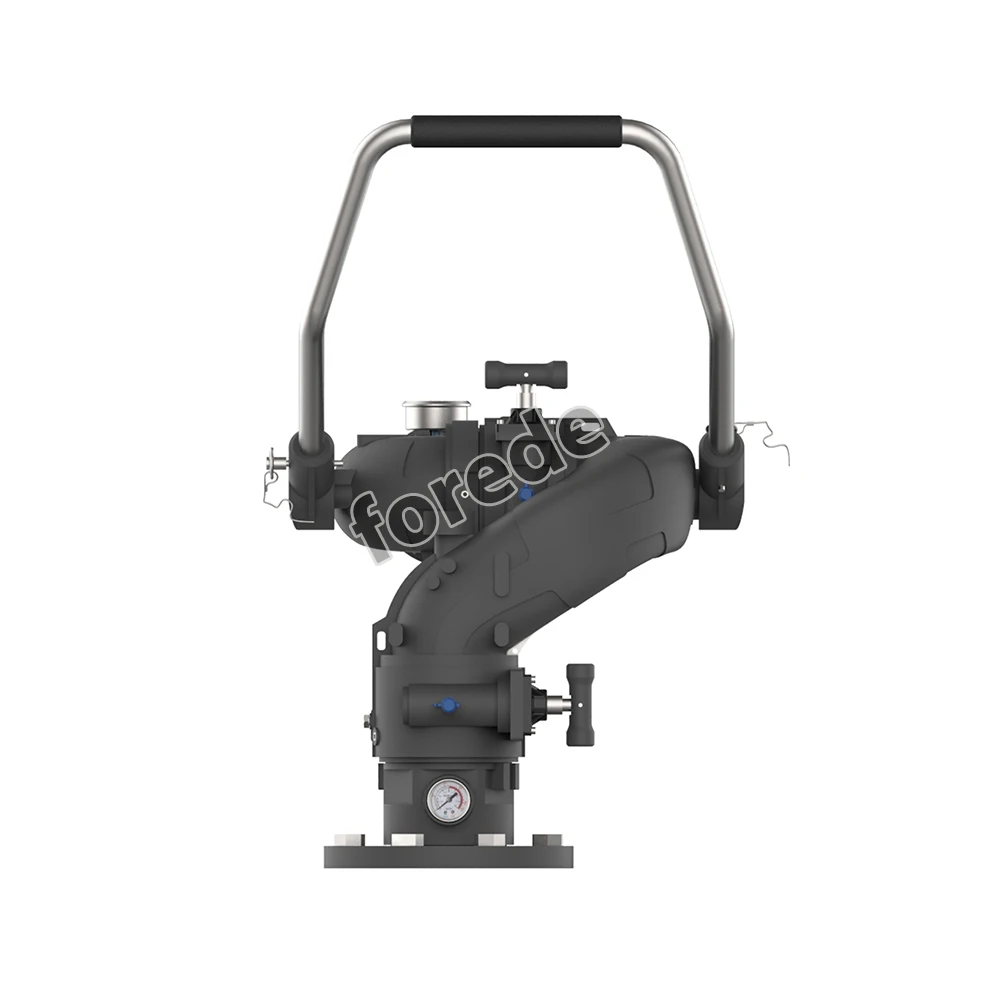

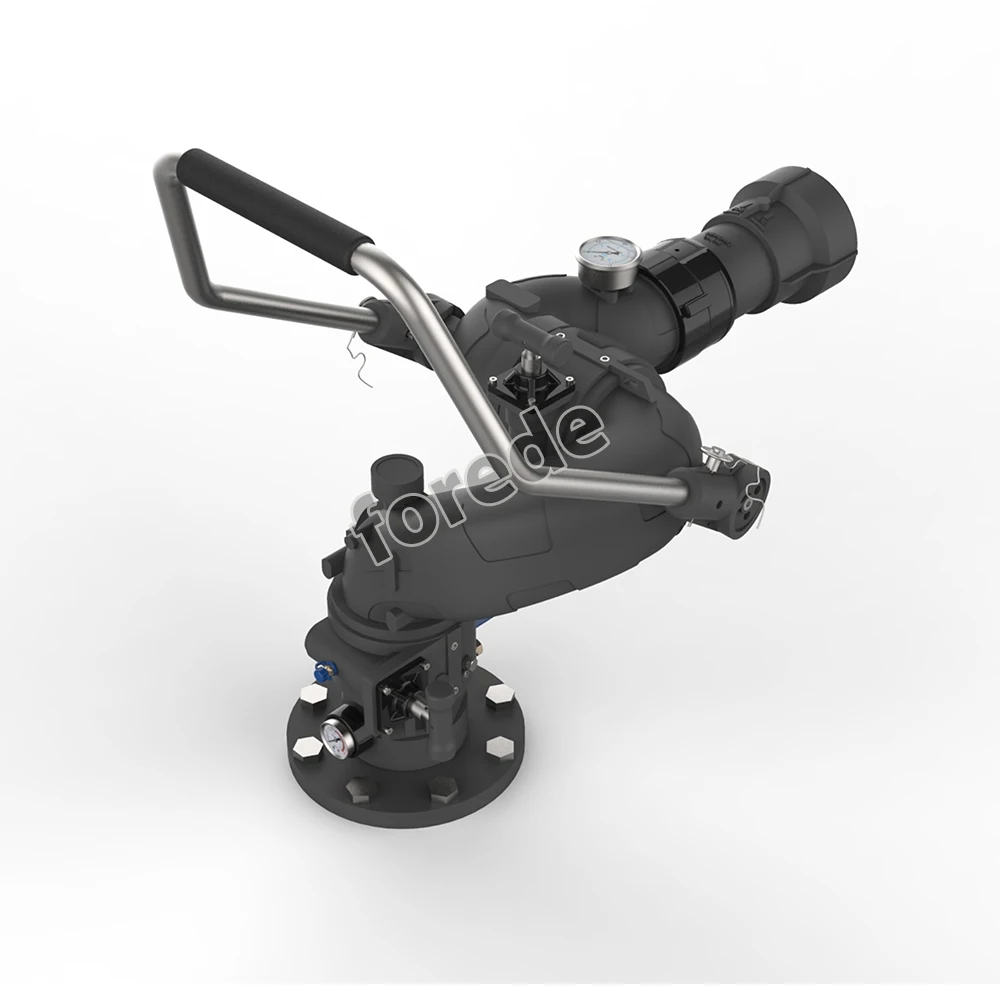

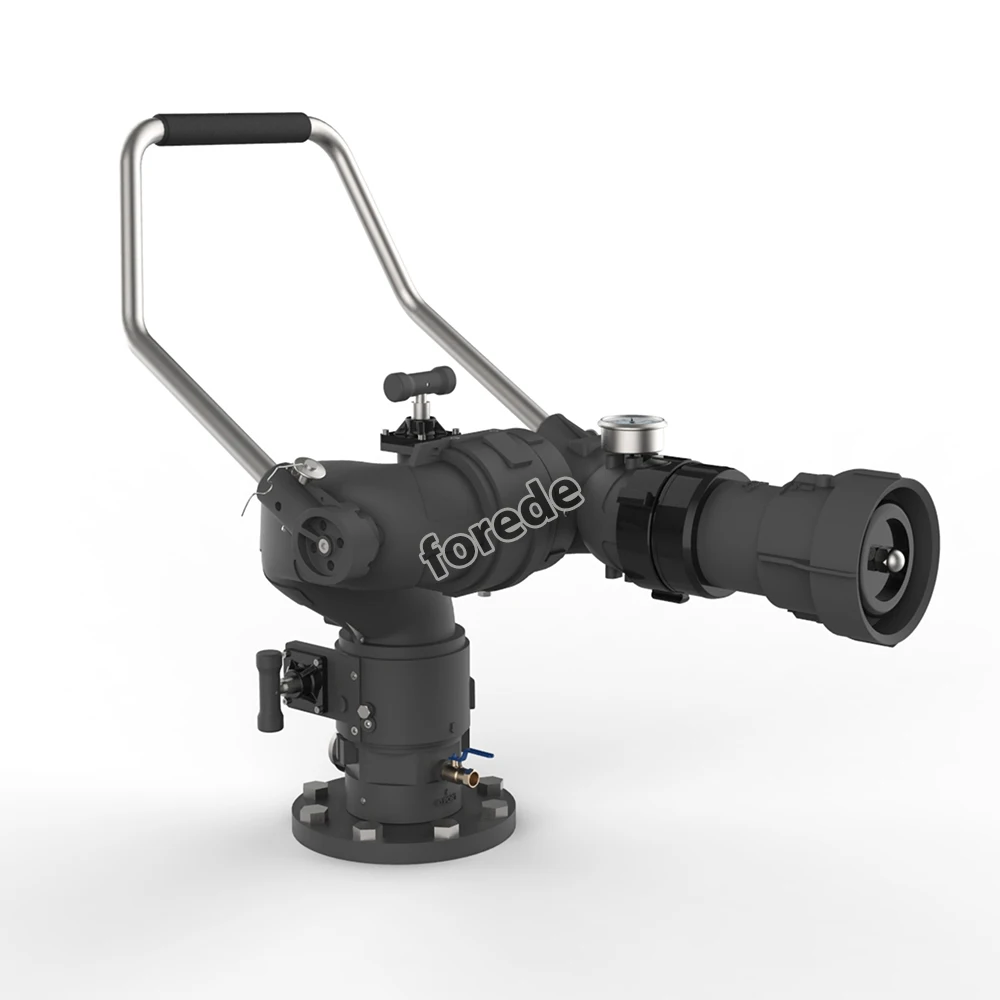

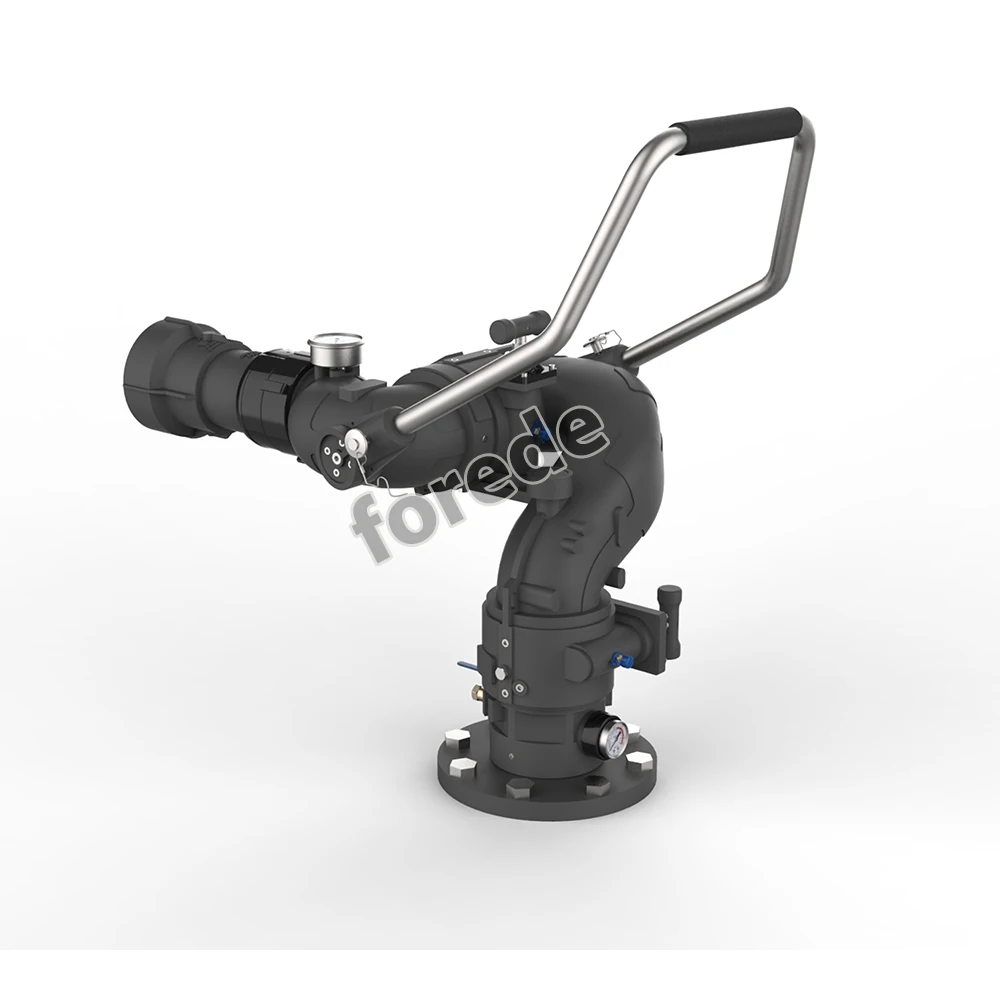

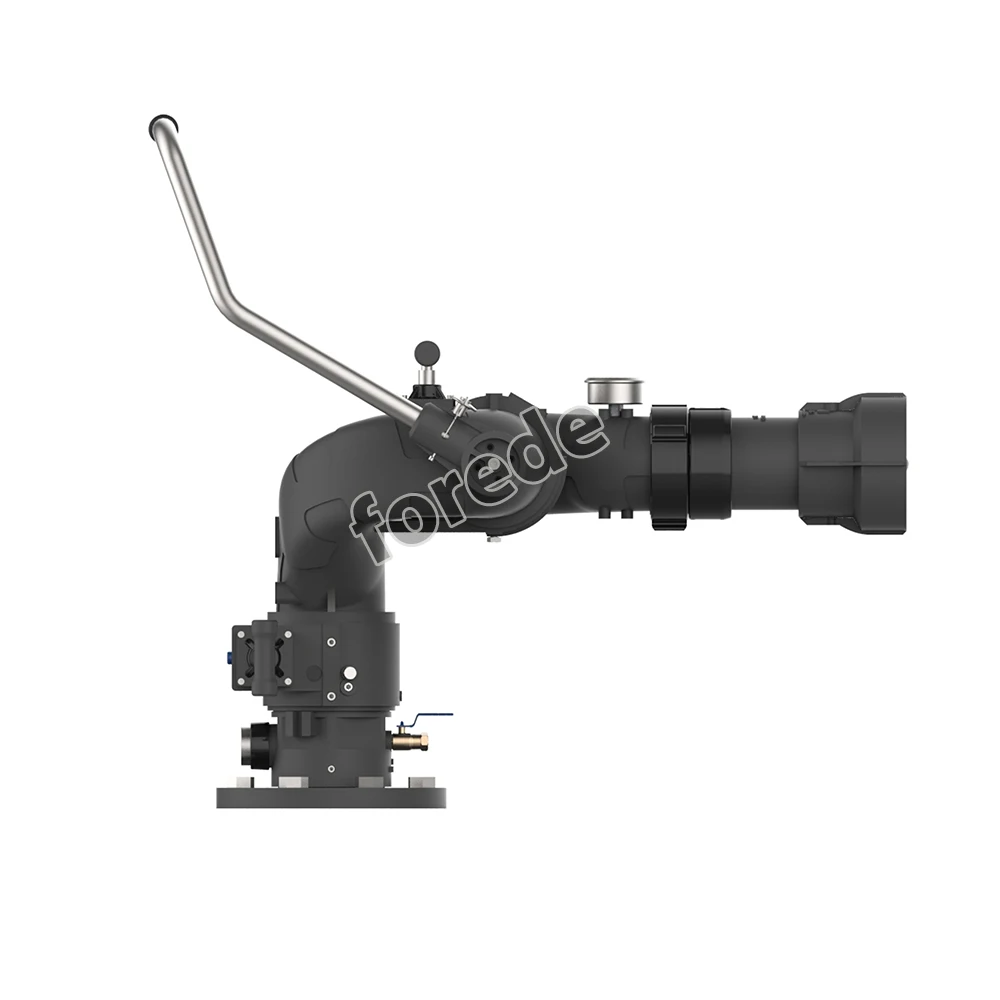

The FOREDE® Brand PS-B Fire Water Monitor with a “U” type handle level to control the elevation and horizontal movement. It provides good long jet range and stable quality, flow rate from 3000 LPM up to 6000 LPM.
A lightweight and highly durable flow-efficient monitor due to the Aluminum Alloy with Hard Anodized workmanship. PS-B with few and easy maintenance, suitable for good range of Industries.
A lightweight and highly durable flow-efficient monitor due to the Aluminum Alloy with Hard Anodized workmanship. PS-B with few and easy maintenance, suitable for good range of Industries.
Detailed Image
Feature:
- Aluminium alloy construction,hard coated anodized;
- Flow Rate:Constant 50 - 60 - 80 - 100 LPS;
- Jetting Pattern: Straight stream,Fog;
- 360° rotation horizontally;
- -75° to +90° elevate vertically;
- Flange standard: BS4504,ANSI150,GB,etc.
- Flow Rate:Constant 50 - 60 - 80 - 100 LPS;
- Jetting Pattern: Straight stream,Fog;
- 360° rotation horizontally;
- -75° to +90° elevate vertically;
- Flange standard: BS4504,ANSI150,GB,etc.
Specification
Model Number | PS50B | PS60B | PS80B | PS100B | |||
Flow Rate | 3000LPM | 3600LPM | 4800LPM | 6000LPM | |||
Working Pressure | 8.5 Bar | 9.5 Bar | 10 Bar | 12 Bar | |||
Max. Reach @ 8 bar | 75 meters | 75 meters | 85 meters | 85 meters | |||
Max. Fog Angle | 120° | ||||||
Max Range Of Motion | -75° to +90° Vertically, 360° Rotation | ||||||
Waterway Size | 4”(100mm) | ||||||
Monitor Outlet | 4” (100mm) NH male thread | ||||||
Monitor Inlet | Flange 4” BS4504 is standard ( other sizes & standards are available ) | ||||||
Material | Monitor & Nozzle - Hard coated anodized aluminium alloy Tiller - SS304 Stainless steel | ||||||
