4 40 block making machinery

Product Overview

Description

4-40 block making machinery

QTJ4-40 concrete block making machine is one of the well sold models of our factory, This machine is very easy in operating. For this machine ,a larger reductor of high quality is equpped, its key rotary parts are changed into bearings, thickened square steel frame is used and wear resisting material is adopted for its inside sleeves for directional positioning for four guiding columns so that the service life of this machine can be largely prolonged.



Advantages of QTJ4-40 Concrete Block Machine to Make Concrete Blocks

(1) adopt 350 reductor when other's 250 reductor

(2) for the steel frame 5mm, much stronger

(3) 2.2kw mortor, 3kw vibrator(upper mould) and 2x2.2kw vibrator(down mould), the hollow block

(4) Pressure 8-10Mpa, solid blocks pressure 10-12Mpa.

(5) For the moulds: high temperature carburizing heat treatment, it is durable.

(6) low investment for small scaled factory.





Main technical specifications of QTJ4-40 Concrete Block Machine to Make Concrete Blocks



Power	9.6kw
Cycle	35-40s
Main machine	350 reductor
Weight	1.5 T
Overall size	1160*1650*2000mm
pallet	850*450*20mm
standards	GB/T8533-2008



QTJ4-40 Concrete Block Machine to Make Concrete Blocks



Details Images

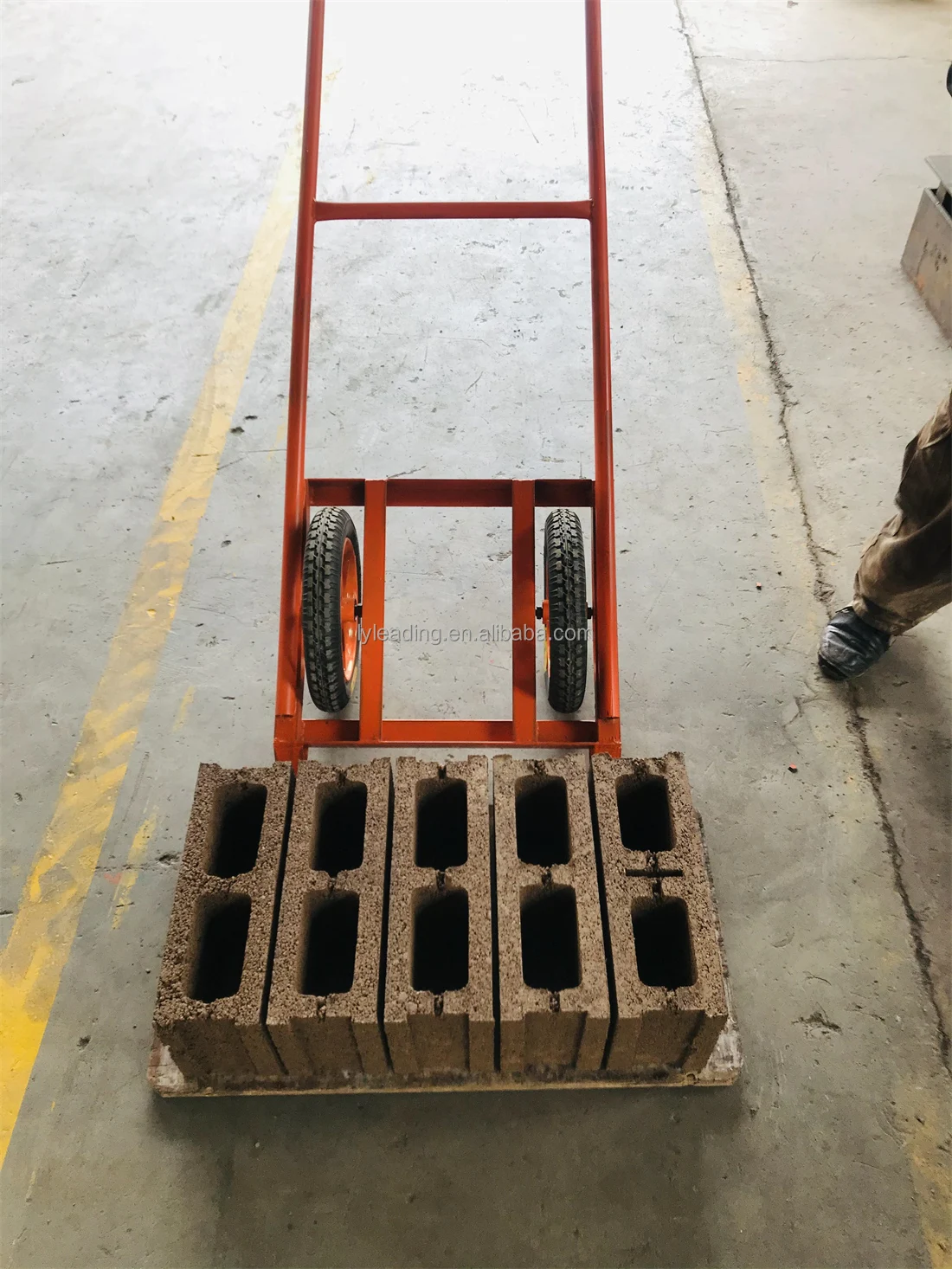

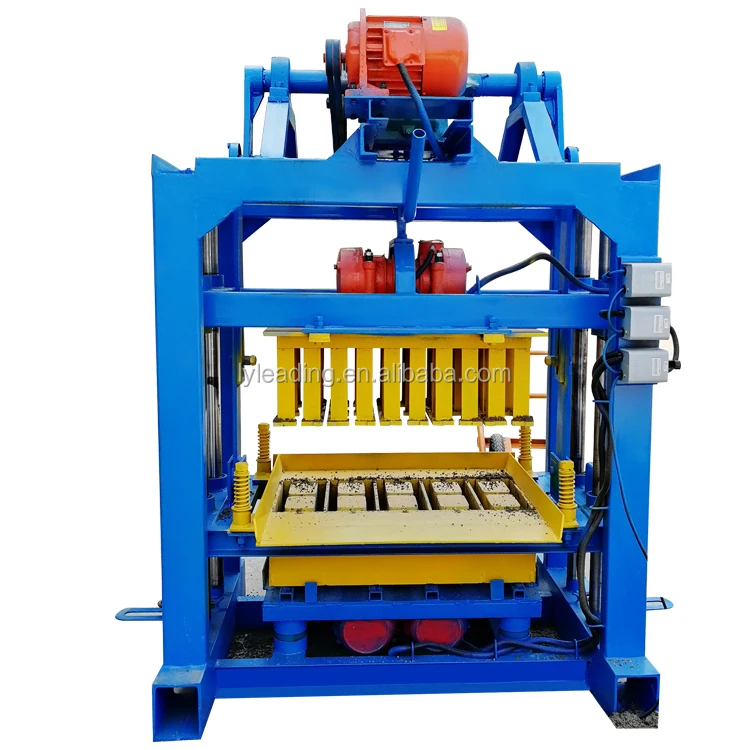

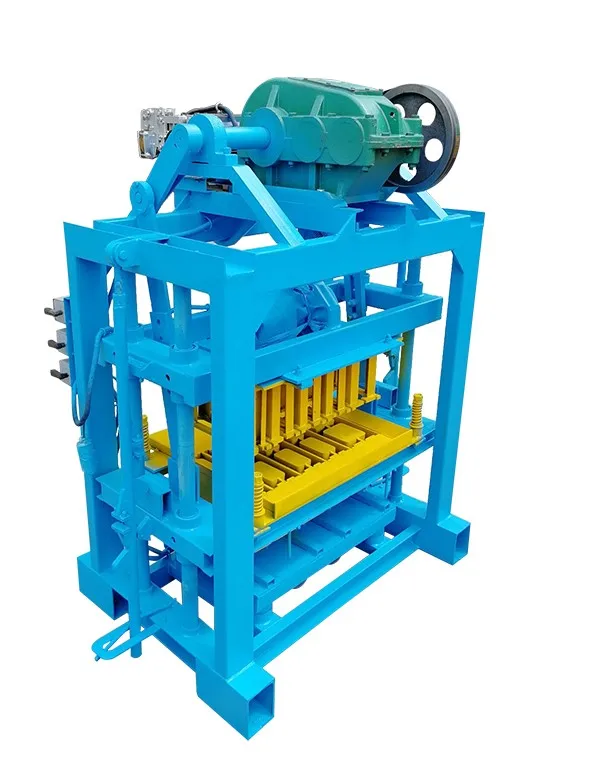

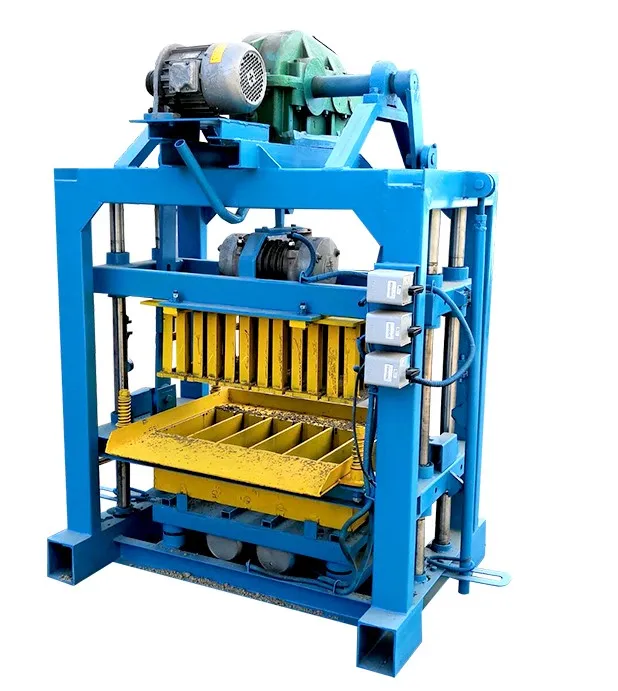

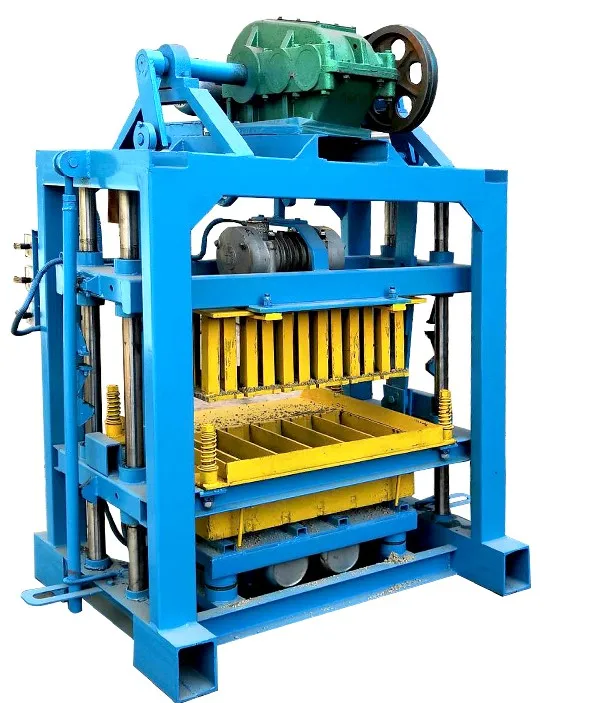

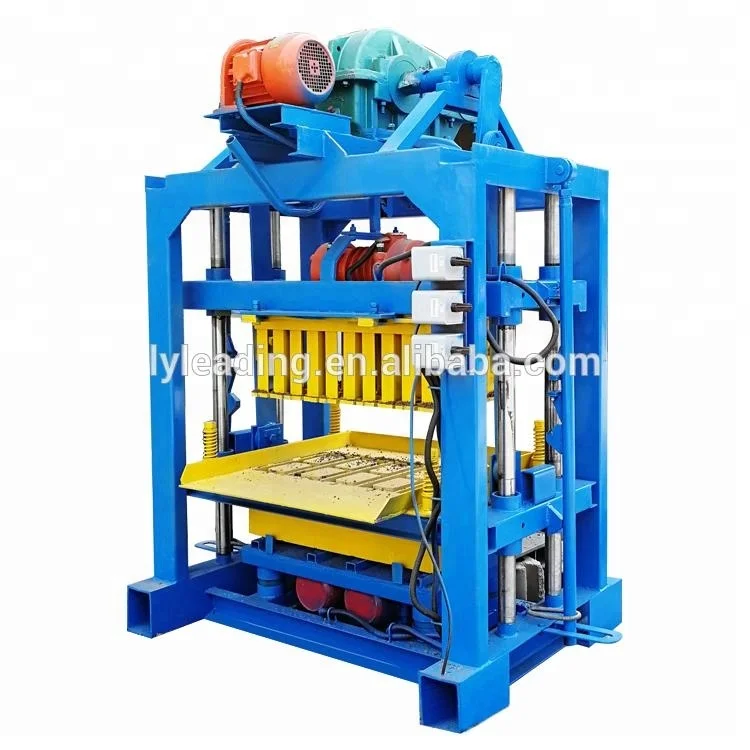

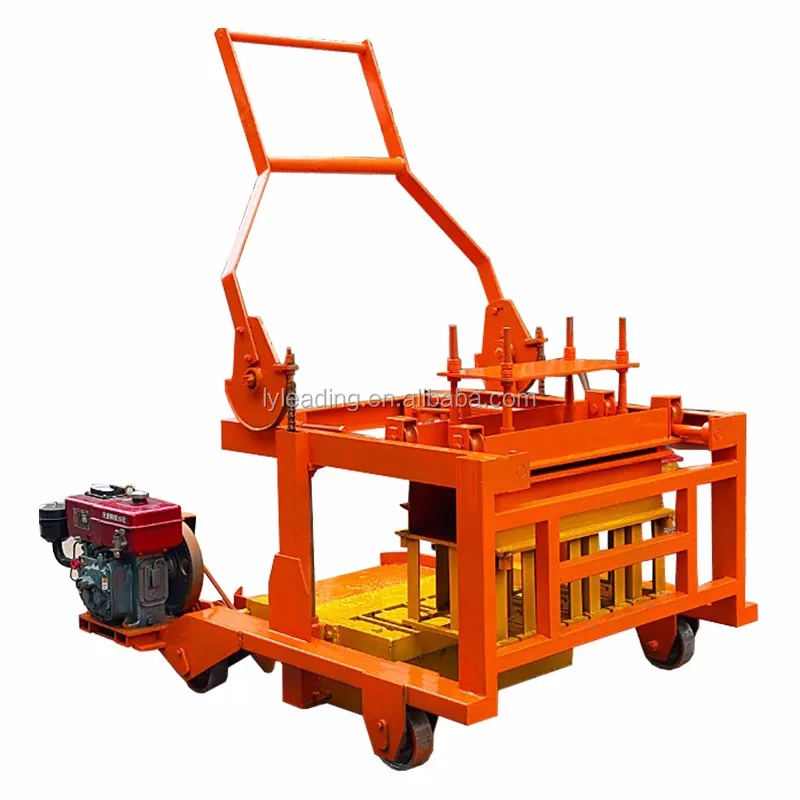

QTJ4-40 Concrete Block Machine to Make Concrete Blocks

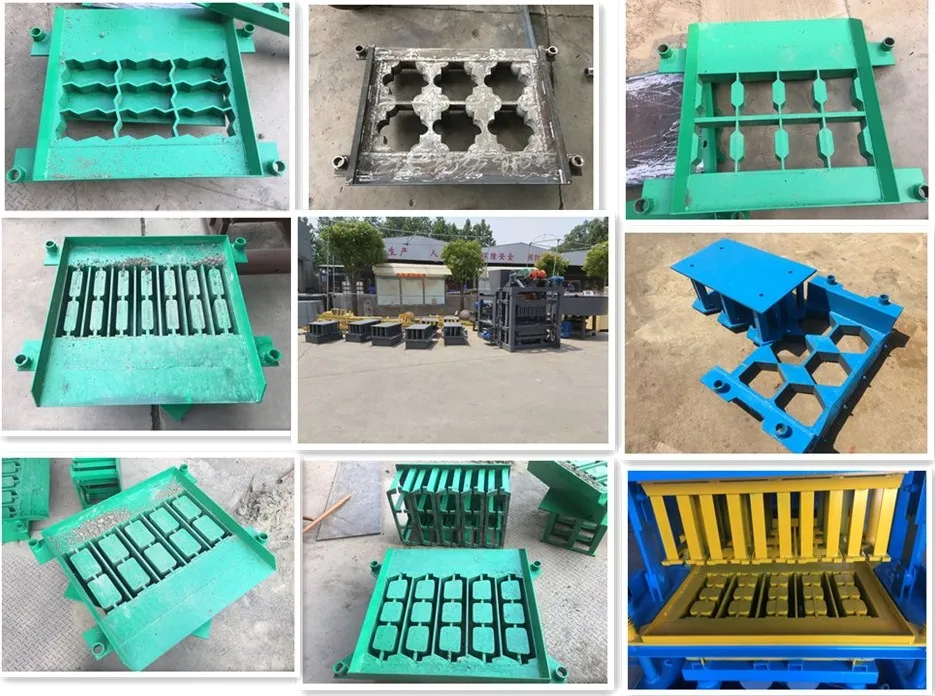

 QTJ4-40 Brick Making Machine Mould To Make Blocks

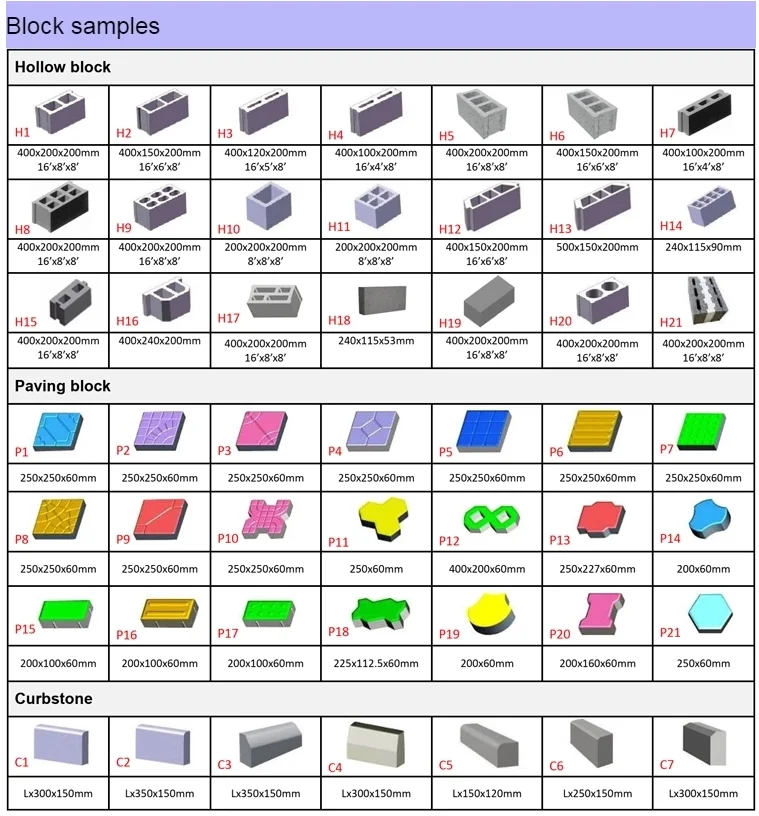

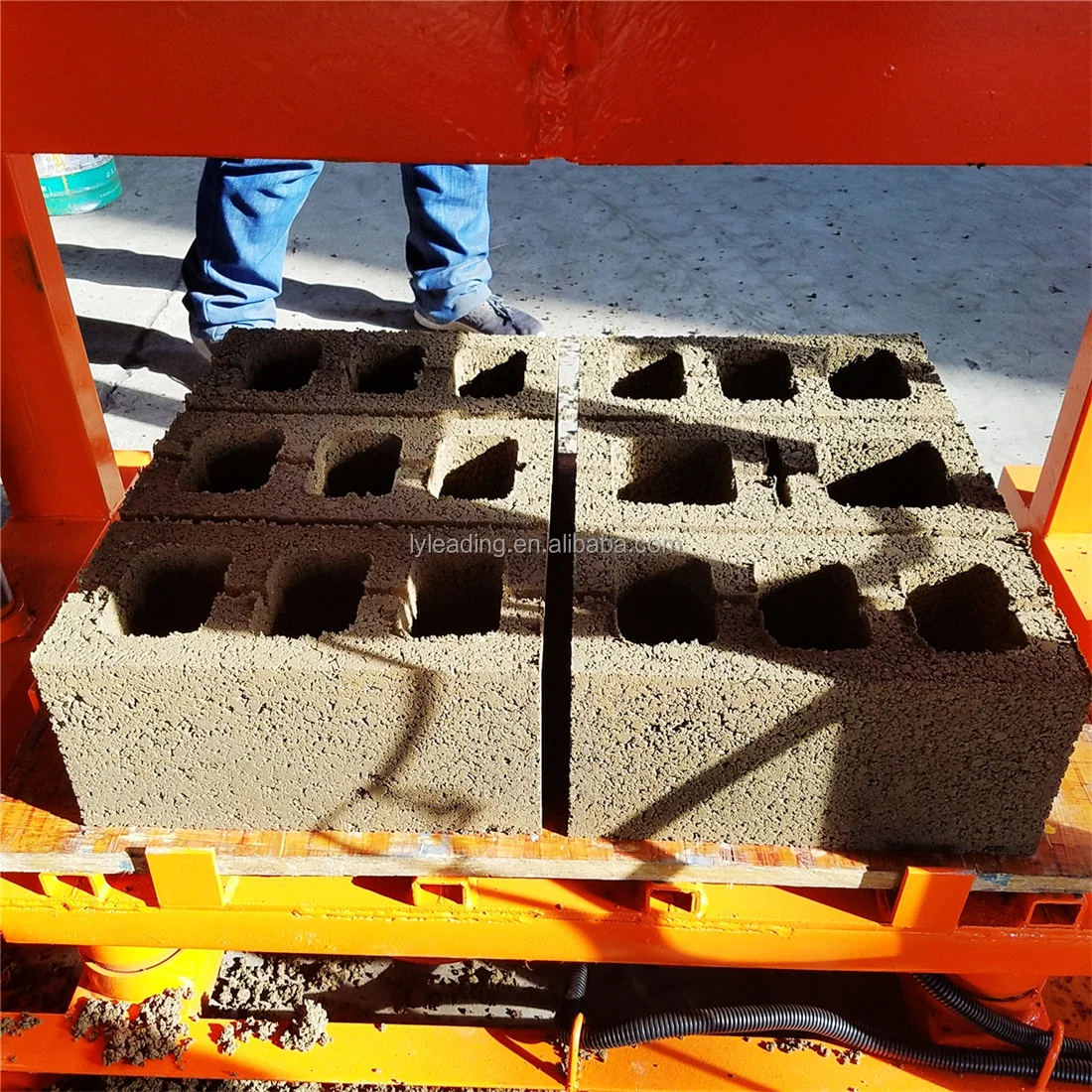

QTJ4-40 Brick Making Machine Produce Available Sizes and Thickness of Block or Brick
Applied Block or Brick Products: concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.



This Automatic Block Making Equipment or Brick Production Machine machine can make all kinds of bricks by changing mould, so we can make the mould according to customer's need .Below type of bricks just for your reference.



Only for your reference, these blocks or bricks can be customized according to customers' requirements.

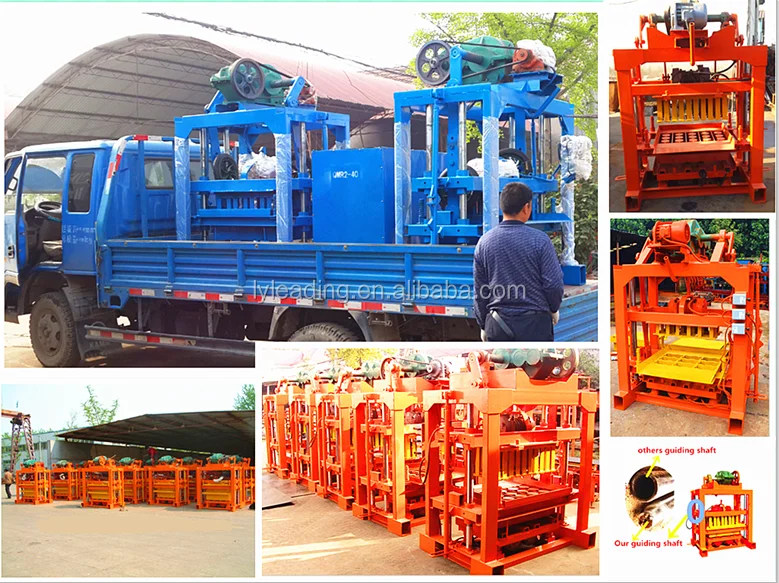

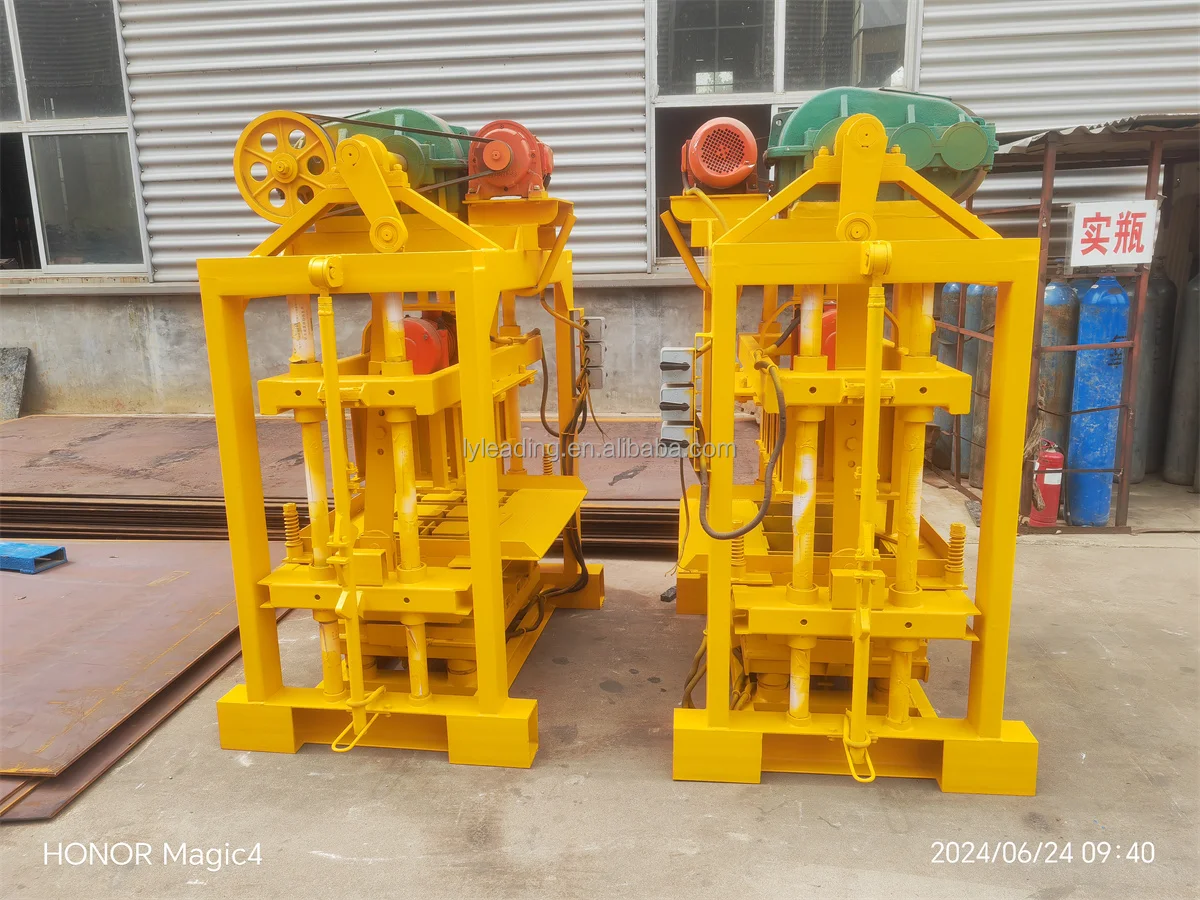

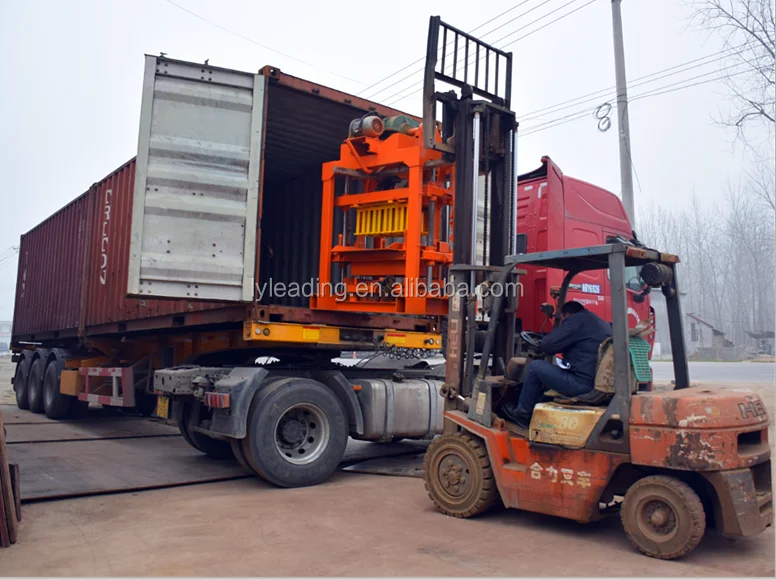

Packing and Delivery

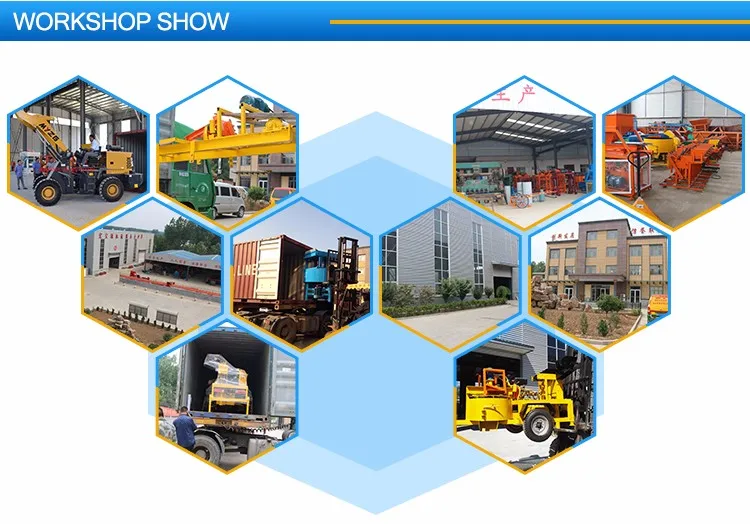

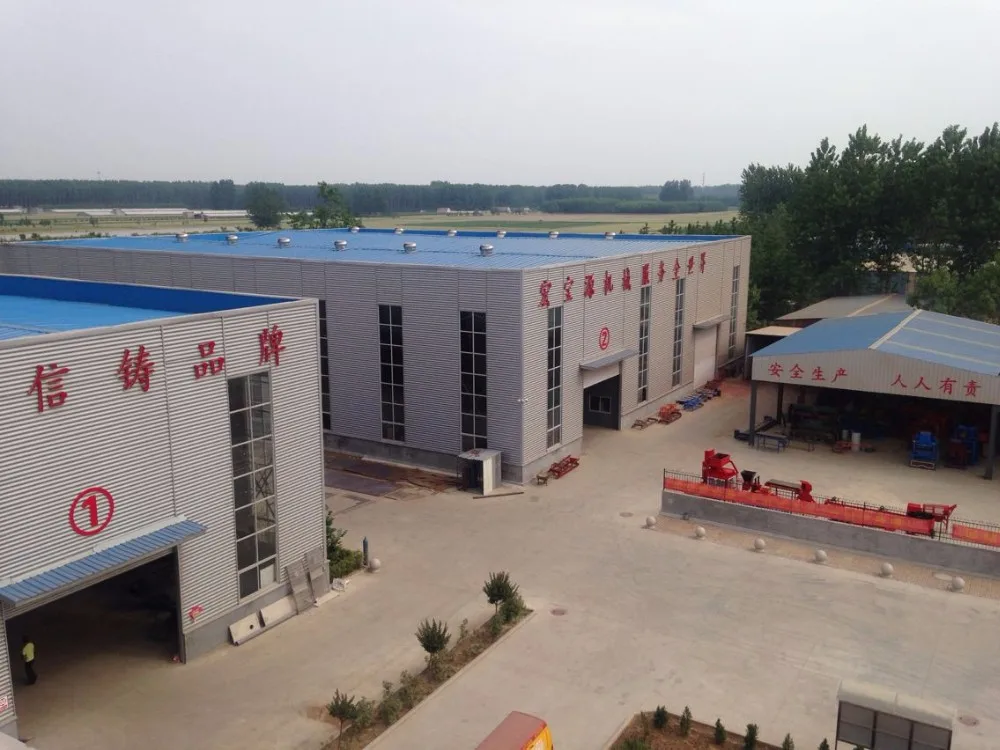

Company Information:

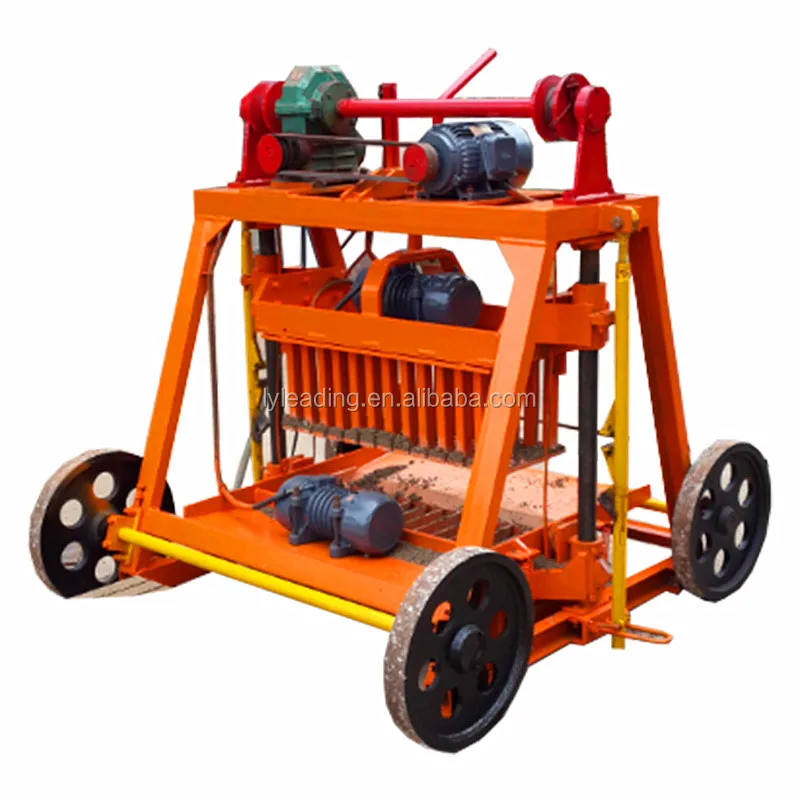

Related Production:
