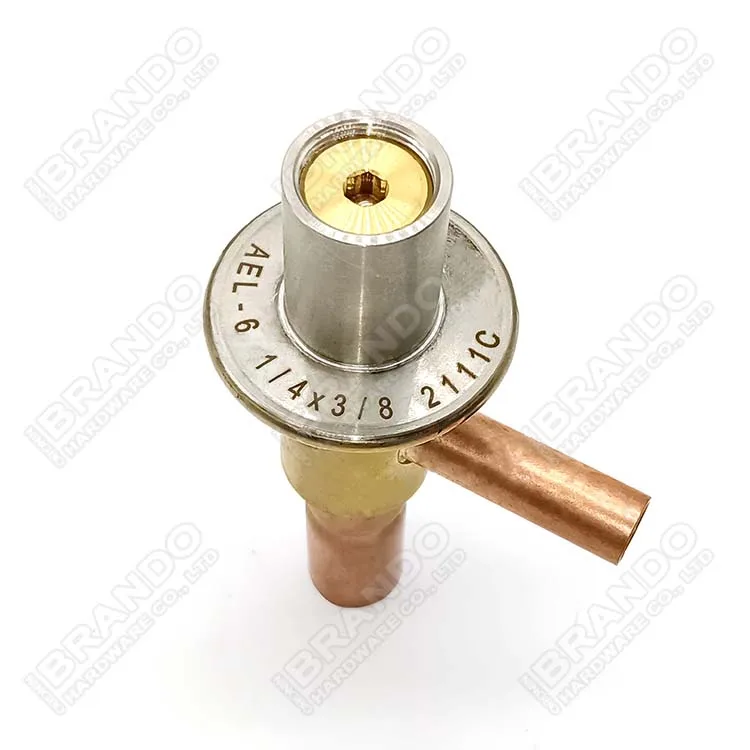

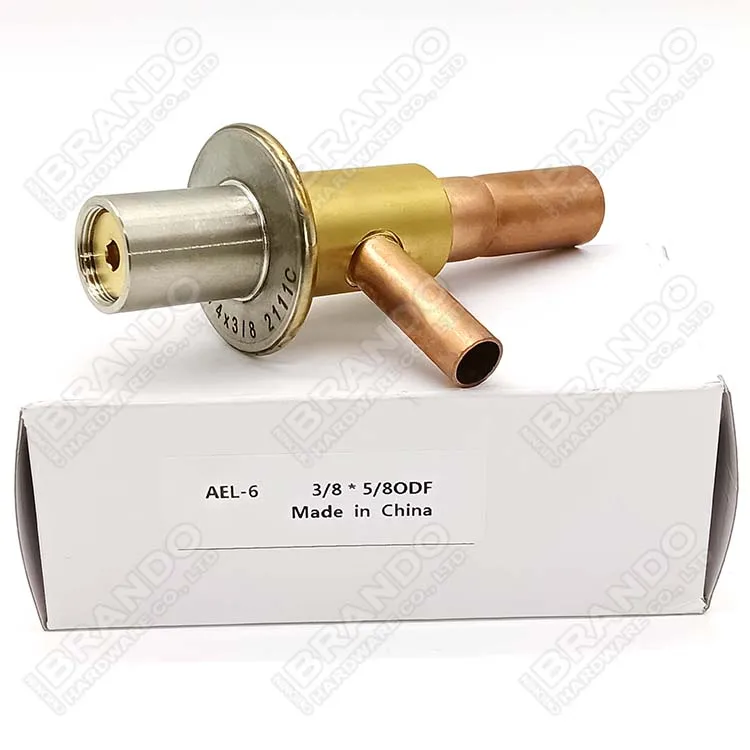

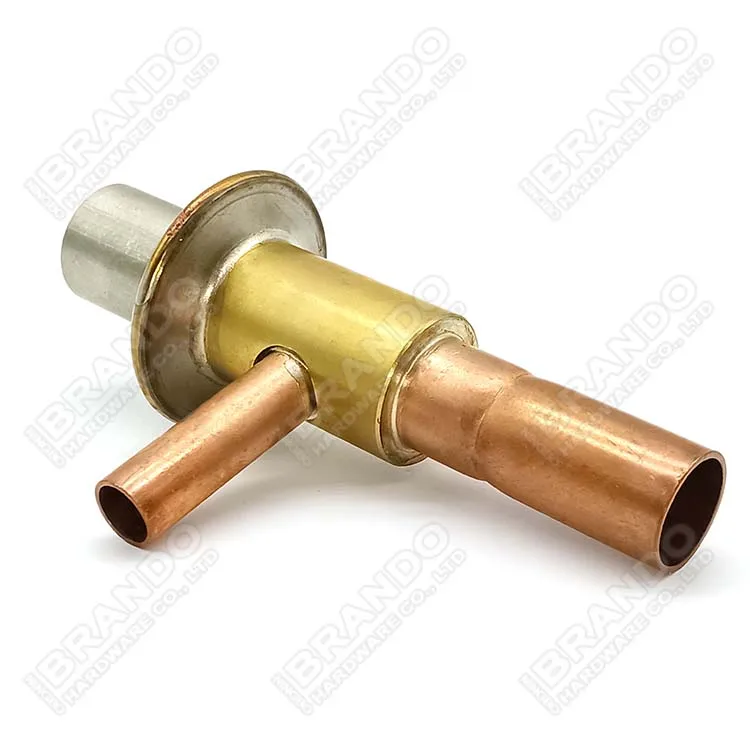

AEL 6 Expansion Valve AEL 222205 AEL 222215 For Air Dryer Air Conditioner Dehumidifier And Air Dryer
- Category: >>>
- Supplier: Ningbo Brando Hardware Co. Ltd.
Share on (1601197717430):
Product Overview
Description
Products Description

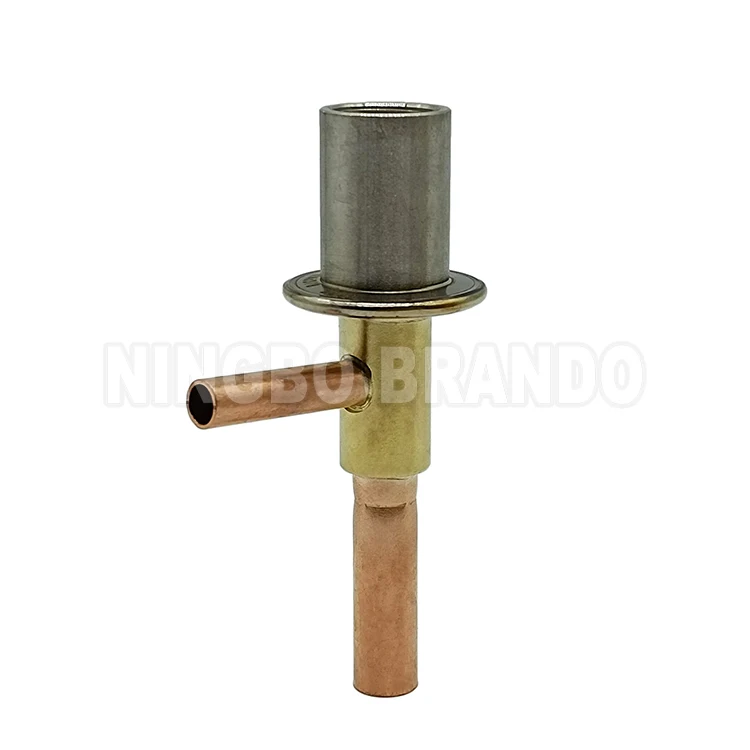

AEL automatic expansion valve is also know as hot gas bypass valve or constant pressure expansion valve. Its main function is that when the outlet pressure of the valve changes, the valve will automatically adjust to close or open to keep the outlet pressure constant at the set value, and not affected by inlet pressure (certain range).
Features:
1. Smallest dimensions
2. High performance
3. Hermetic construction
4. Adjustable evaporating pressure setting
5. Extreme durable due to stainless steel head and stainless steel diaphragm welded using protective gas
6. Maximum pressure PS 25.5 bar
7. Maximum test pressure PF 28 bar
Features:
1. Smallest dimensions
2. High performance
3. Hermetic construction
4. Adjustable evaporating pressure setting
5. Extreme durable due to stainless steel head and stainless steel diaphragm welded using protective gas
6. Maximum pressure PS 25.5 bar
7. Maximum test pressure PF 28 bar

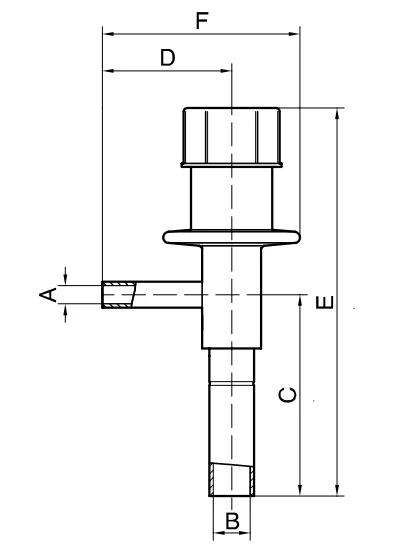

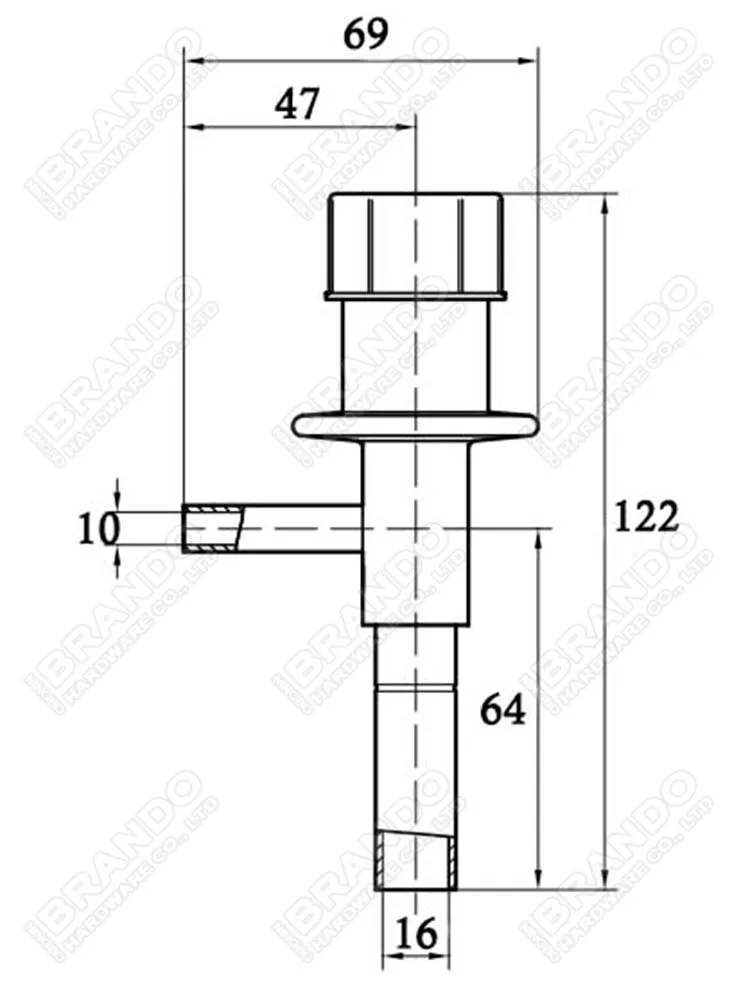

Main Dimension
Ordering Code
Model | Valve Size | Orifice Size | Nominal Capacity (KW) | Orifice Size | Max. Temperature | Max. Pressure | ||||||
R22 | R134a | R404A | R507A | |||||||||
0.5 | 0.7 | 1.4 | 1.0 | 0.97 | 0.98 | 0.7 | 100℃ | 25.5 bar | ||||
1.0 | 1.0 | 2.0 | 1.4 | 1.4 | 1.4 | 1.0 | ||||||
2.0 | 2.0 | 4.0 | 2.9 | 2.8 | 2.9 | 2.0 | ||||||
3.0 | 3.0 | 9.3 | 6.6 | 6.5 | 6.6 | 3.0 | ||||||
4.0 | 3.5 | 12.2 | 8.7 | 8.6 | 8.7 | 3.5 | ||||||
5.0 | 4.75 | 22.4 | 15.9 | 15.8 | 15.9 | 4.75 | ||||||
6.0 | 5.0 | 29.1 | 20.0 | 20.5 | 20.7 | 5 | ||||||
Related Products
OEM ODM Service
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

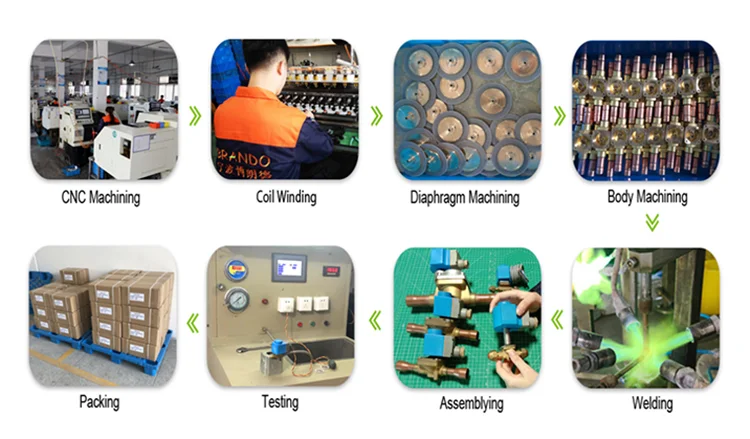

Our Production
