7 inch IPS display screen with high resolution 1000 brightness for outdoor fishing and underwater monitoring display
7-inch IPS display screen with high-resolution 1000 brightness for outdoor fishing and underwater monitoring display
7-inch IPS display screen with high-resolution 1000 brightness for outdoor fishing and underwater monitoring display
7-inch IPS display screen with high-resolution 1000 brightness for outdoor fishing and underwater monitoring display
7-inch IPS display screen with high-resolution 1000 brightness for outdoor fishing and underwater monitoring display
7-inch IPS display screen with high-resolution 1000 brightness for outdoor fishing and underwater monitoring display
7-inch IPS display screen with high-resolution 1000 brightness for outdoor fishing and underwater monitoring display

7 inch IPS display screen with high resolution 1000 brightness for outdoor fishing and underwater monitoring display

Share on (1601197732461):


Price:$13.00

Quantity:


Product Overview

Description

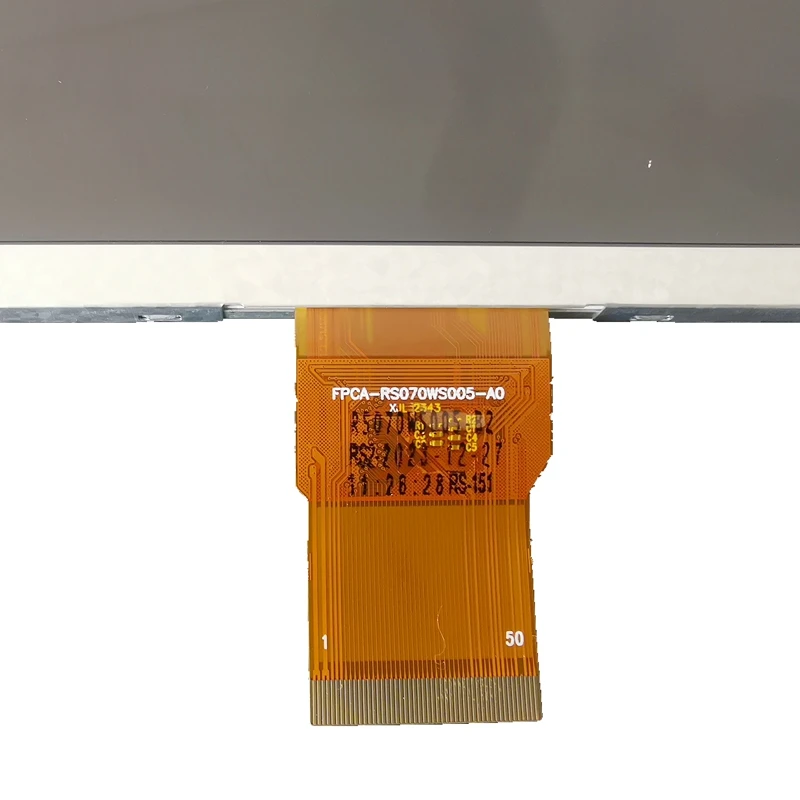

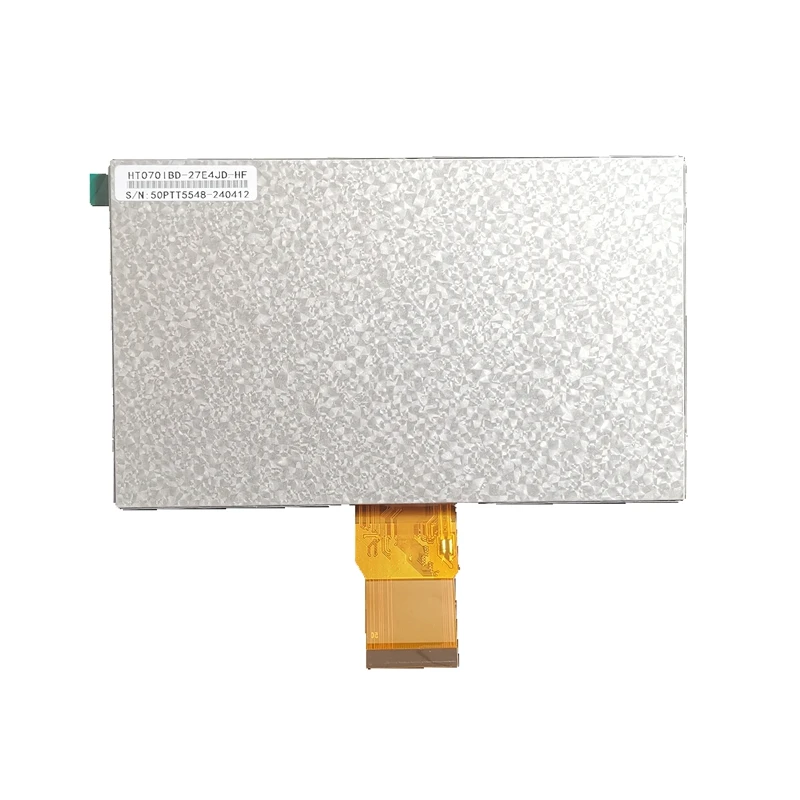

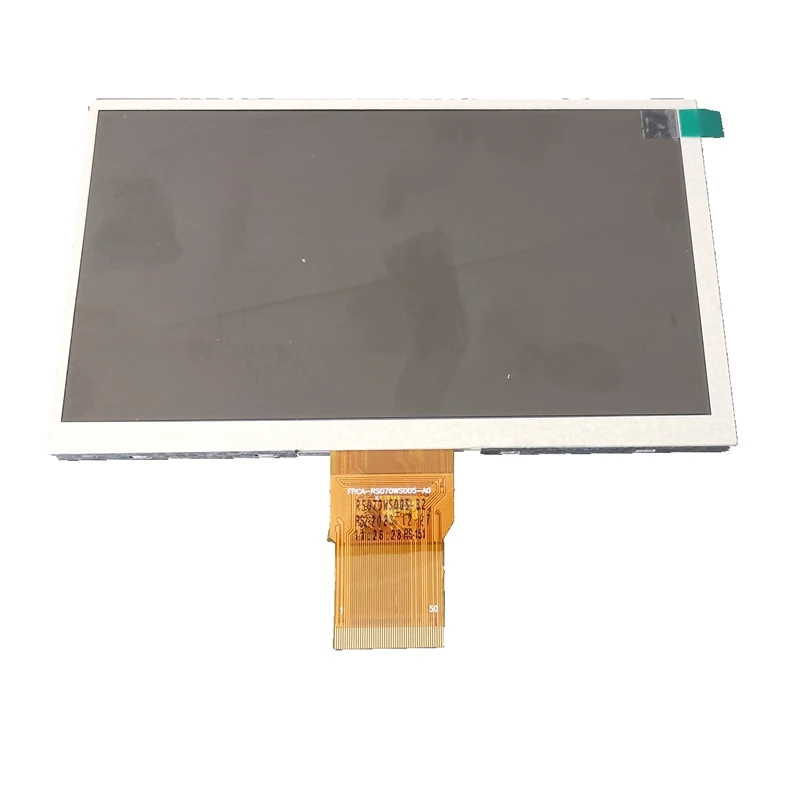

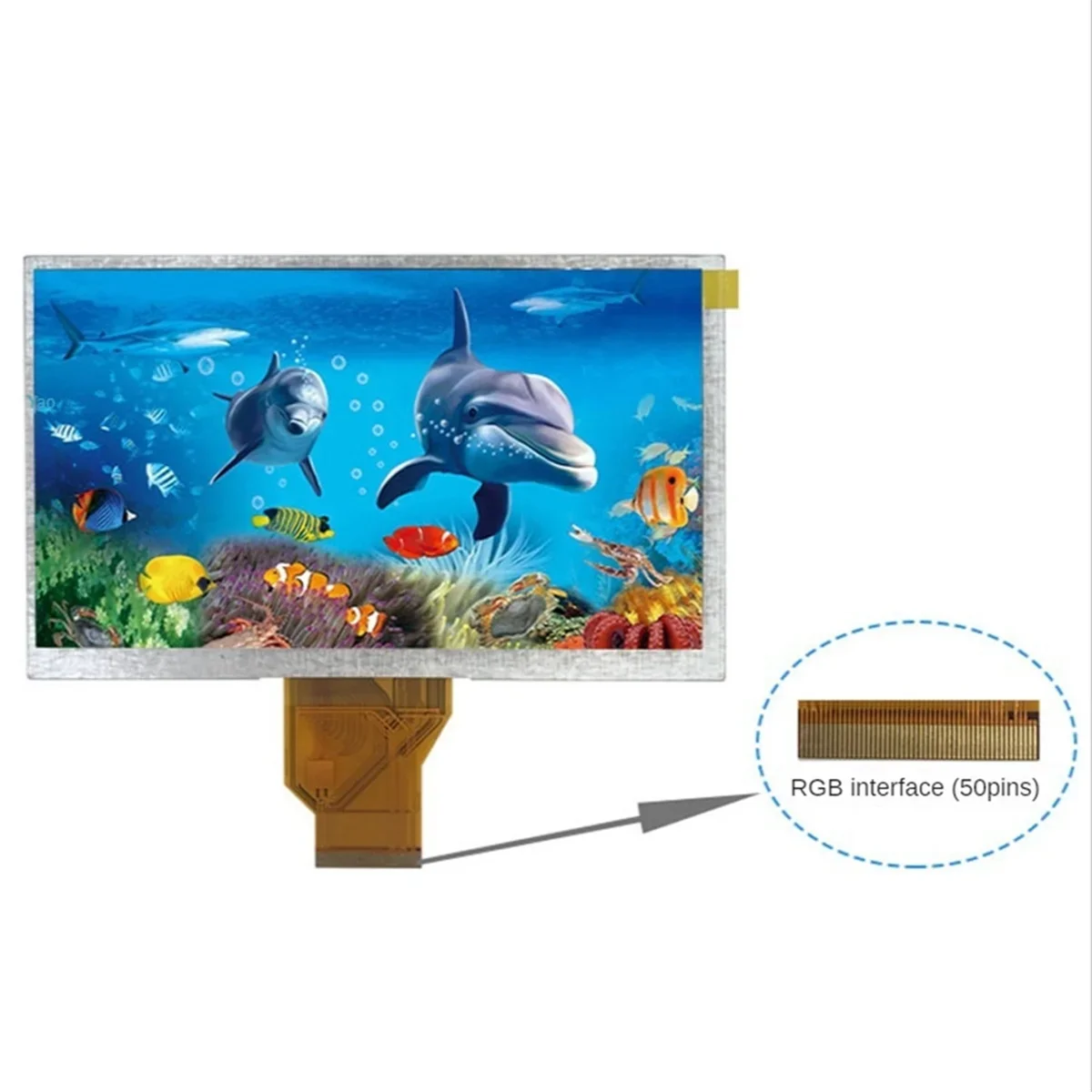

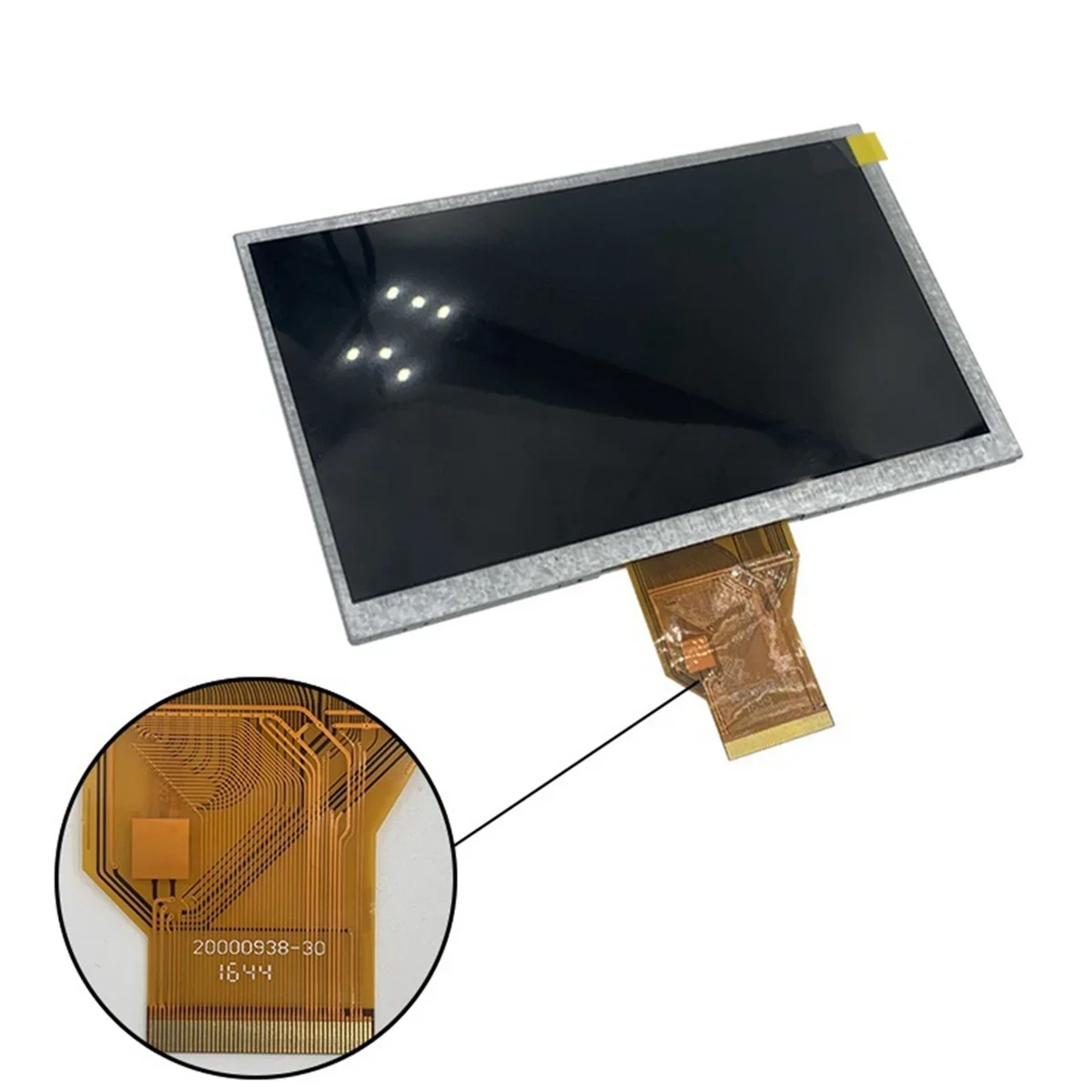

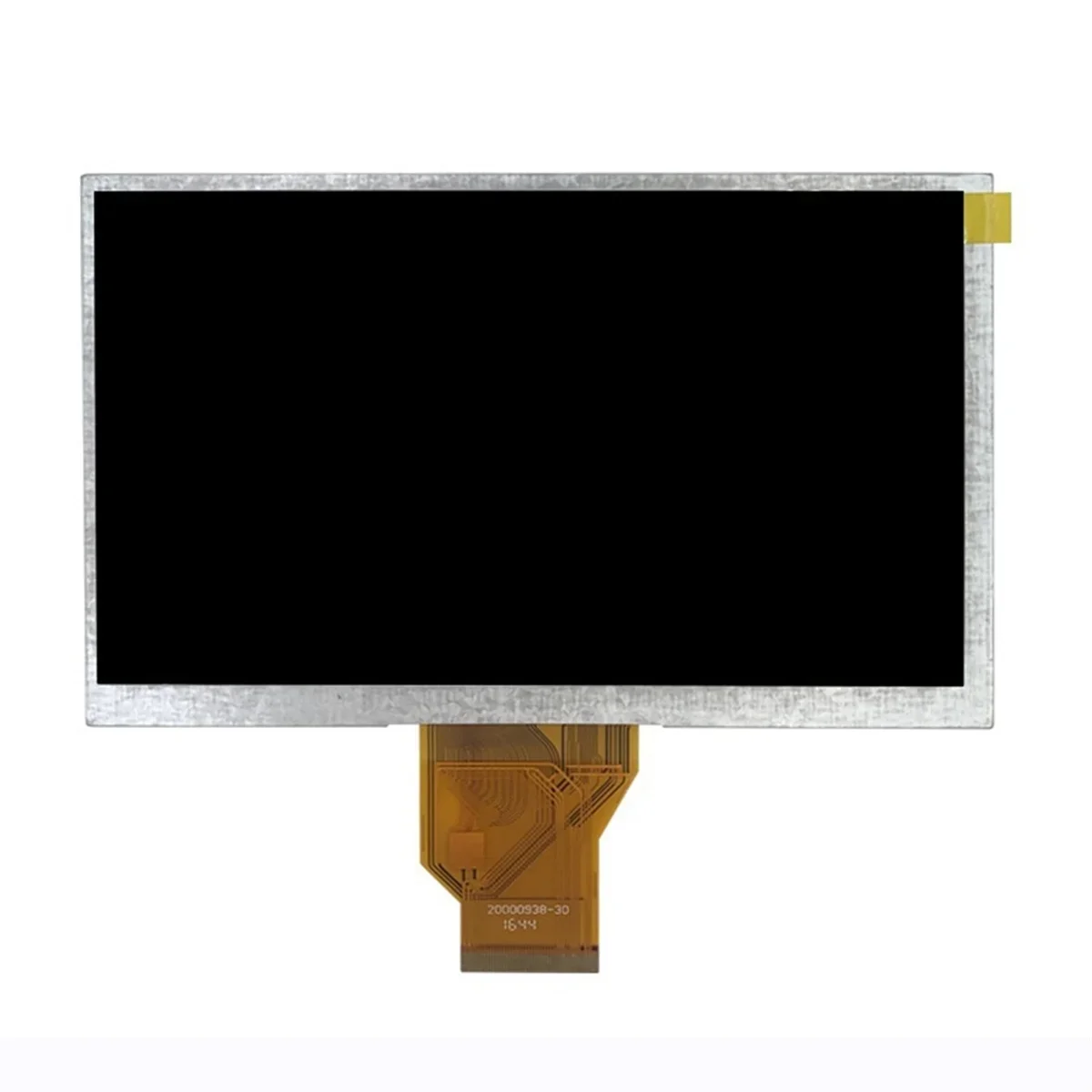

7 inch TFT display screen


1


2


_









































































































Pin.NoSymbolFunction
1LEDKback light power supply negative
2LEDAback light power supply positive
3GNDGround
4VCCPower supply
5-12R0-R7Red Data
13-20G0-G7Green Data
21-28B0-B7Blue Data
29GNDGround
30CLKColock signal
31DISPDisplay on/off
32HSYNCHorizontal sync input in RGB mode(short to GND if not used)
33VSYNCVertical sync input in RGB mode(short to GND if not used)
34DEData enable
35NCNo Connection
36GNDGround
37XRTouch panel X-right
38YDTouch panel Y-bottom
39XLTouch panel X-left
40YUTouch panel Y-upl

 2345678FAQ9
