IDEALPLUSING 220V AC 16A Sts Static Transfer Switch STS Price Automatic Transfer Switch Testing
- Category: >>>
- Supplier: Guangzhou Idealplusing Information Technology Co. Ltd.
Share on (1601197734541):
Product Overview
Description
Product Overview
Static Transfer Switch
STS is a dual-input AC converter switch, and the other way is disconnected, and the one AC input is used to power the load. When the power supply supply is abnormal, STS will automatically switch to the other power supply to ensure that the load is continuously supplied by the other power supply.
FEATURES AT A GLANCE
◆Adopting full digital control, strong anti-interference ability and fast operation speed;
◆Switching time ≤4ms, high reliability;
◆Strong overload capacity, can withstand full load startup;
◆With input undervoltage, overcurrent and other protection functions;

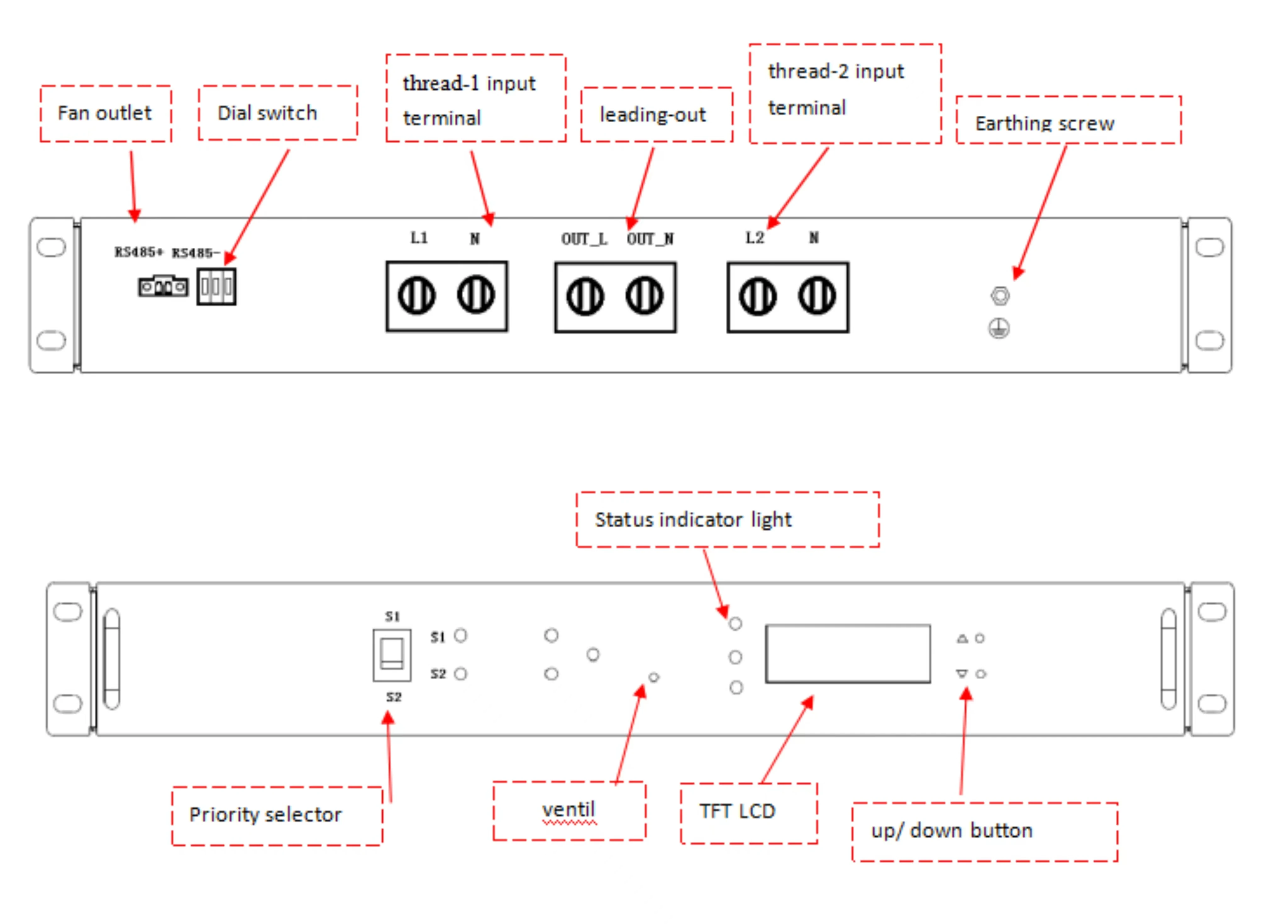

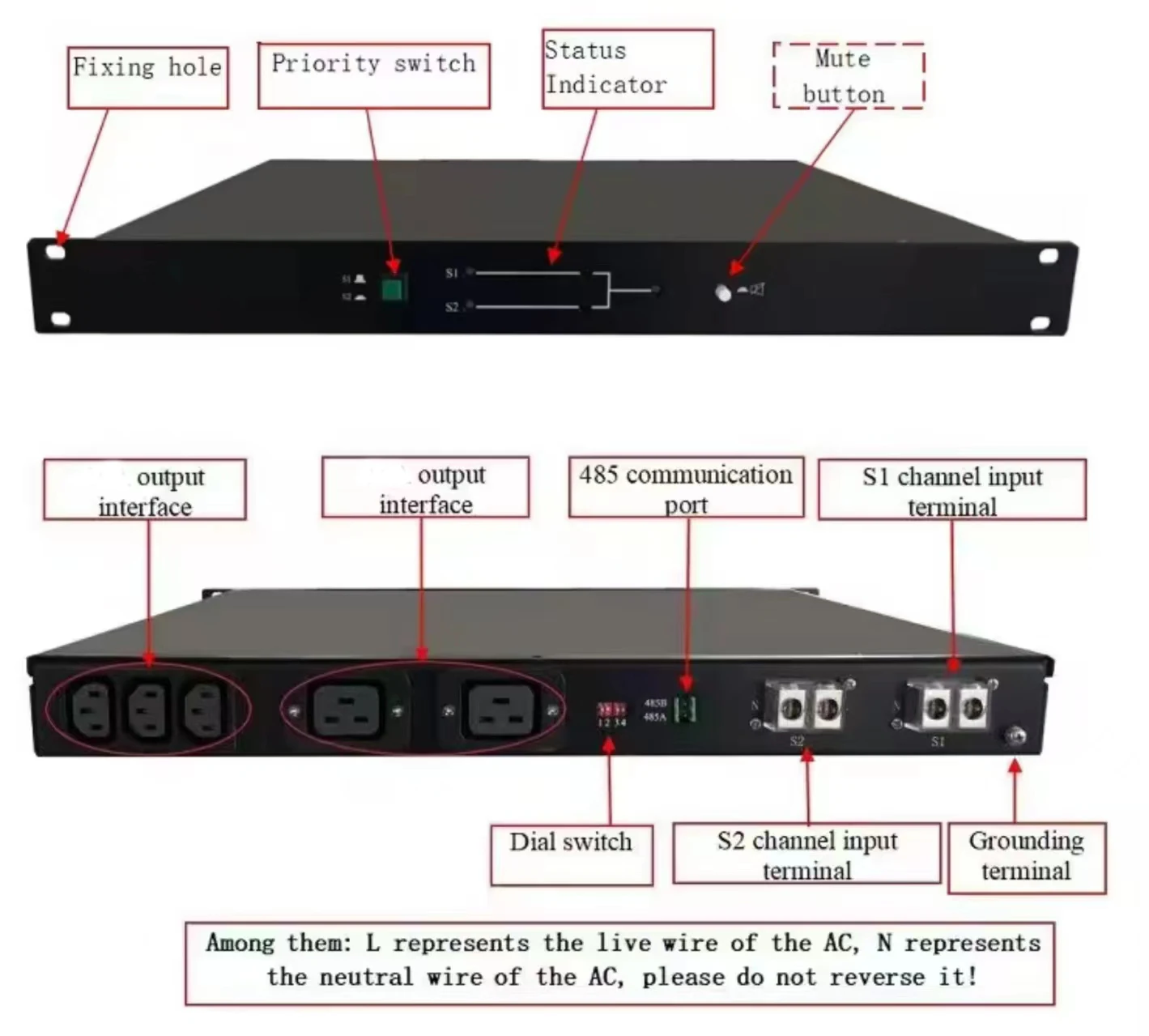

◆The front panel is equipped with a display screen and indicator light to intuitively understand the STS status information;
◆Provide STS version with live and neutral lines that can be switched at the same time, with the same appearance structure and performance
◆Switching time ≤4ms, high reliability;
◆Strong overload capacity, can withstand full load startup;
◆With input undervoltage, overcurrent and other protection functions;
◆The front panel is equipped with a display screen and indicator light to intuitively understand the STS status information;
◆Provide STS version with live and neutral lines that can be switched at the same time, with the same appearance structure and performance
Details Images
PRODUCT SPECIFICATIONS
Brand | IDEALPLUSING | ||
Model | IPS-DQ16J | ||
Switching types | Dual | ||
Display type | Priority switching | ≤4m s | |
Input characteristics | Rated voltage | 220VAC | |
Input voltage range | 190～260VAC | ||
rated frequency | 50/60HZ | ||
power factor | 1 | ||
Auto convert threshold voltage | ≤ 190Vac ± 5Vac or ≥260Vac ± 5Vac | ||
Auto convert threshold frequency | ≤45Hz±0.2Hz or ≥65Hz±0.2Hz | ||
Over-limit protection shutdown threshold voltage | 160Vac or 265Vac, return ± 5V | ||
Over-limit protection shutdown threshold frequency | 45Hz or 65Hz, with differential ± 0.2Hz | ||
overload capacity | Load current is 110%, operating continuously Load current> 110%, immediately shut-off; | ||
Environment | insulation strength | 2KVAC，1min | |
Noise (1m) | ≤55dB | ||
operating ambient temperature | -25～50℃ | ||
Transport and storage temperature | －40～70℃ | ||
humidity | 0~90%, with no condensation | ||
levels of protection | IP20 | ||
height (m) | ≤3000 2000～3000m Output reduction of 2% per 100m increase | ||
defencive function | Input under voltage, over voltage protection, output overload protection, over temperature protection, short circuit protection | ||
