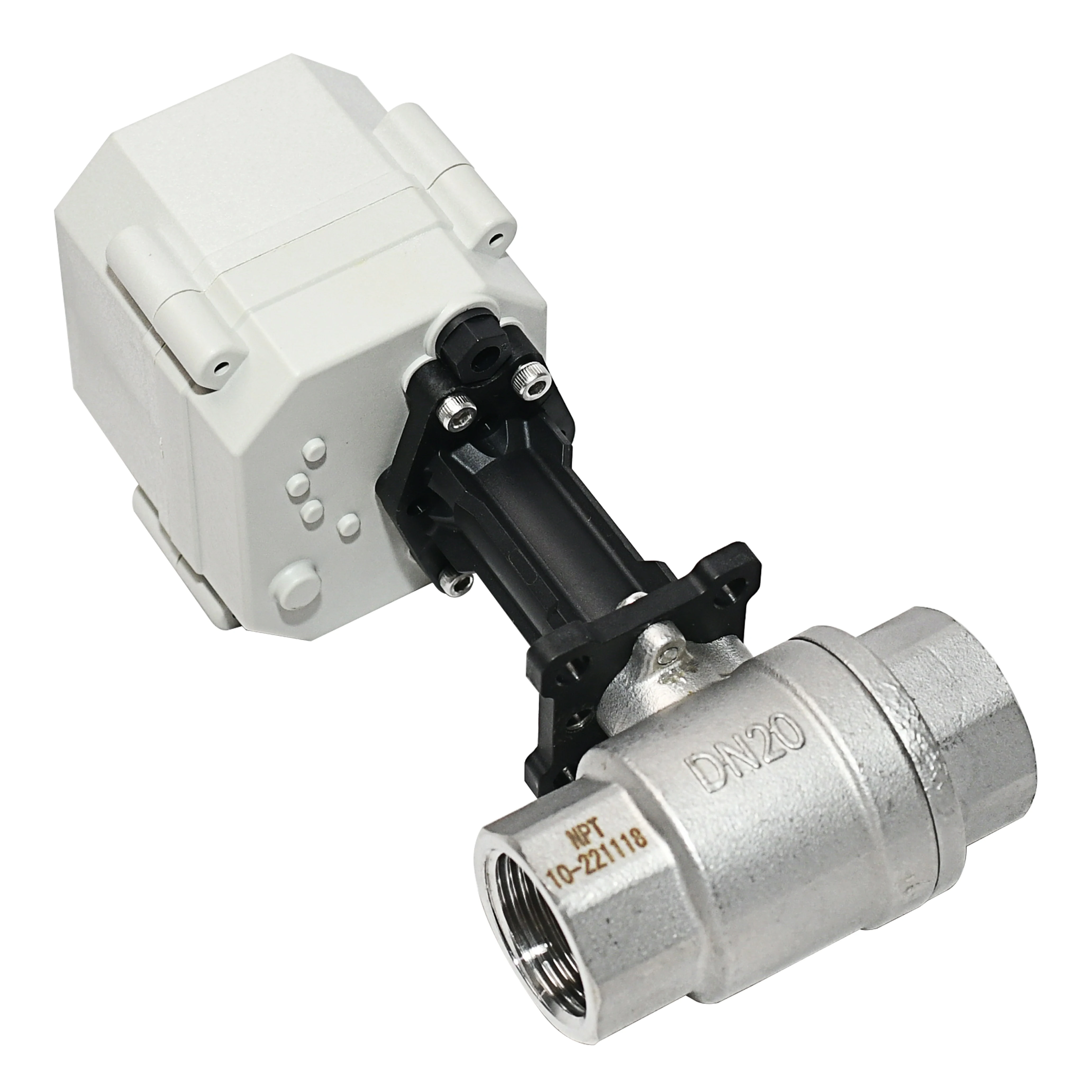

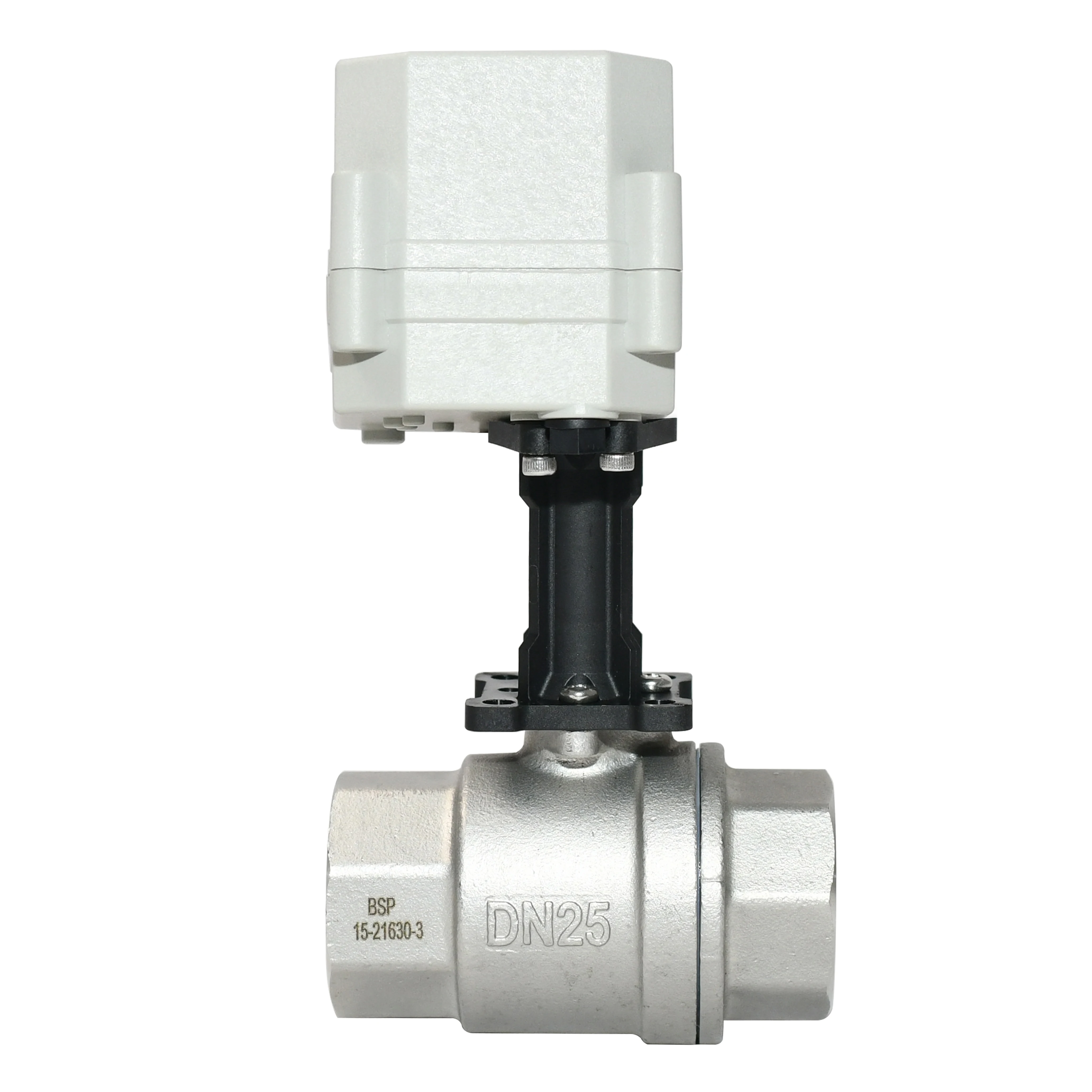

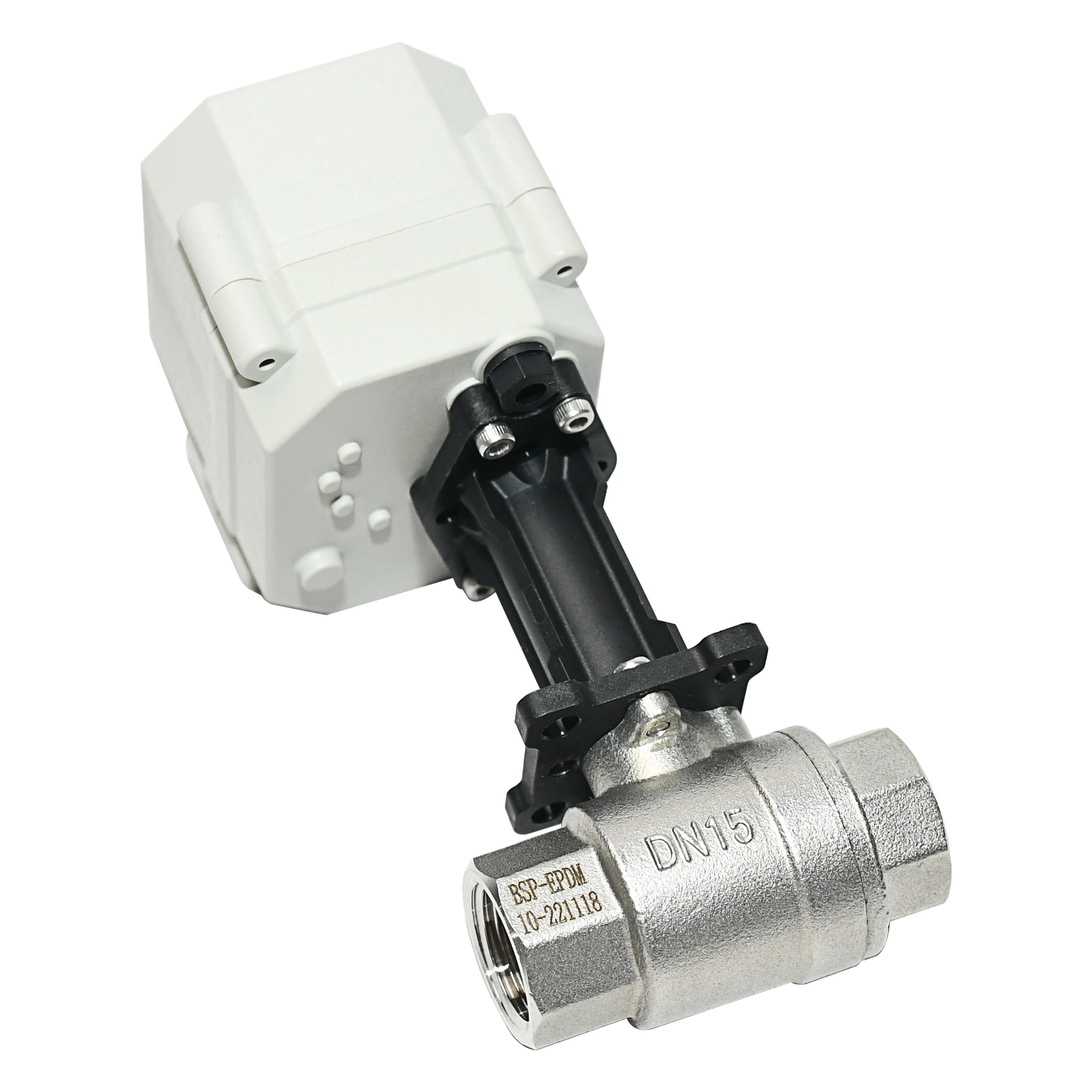

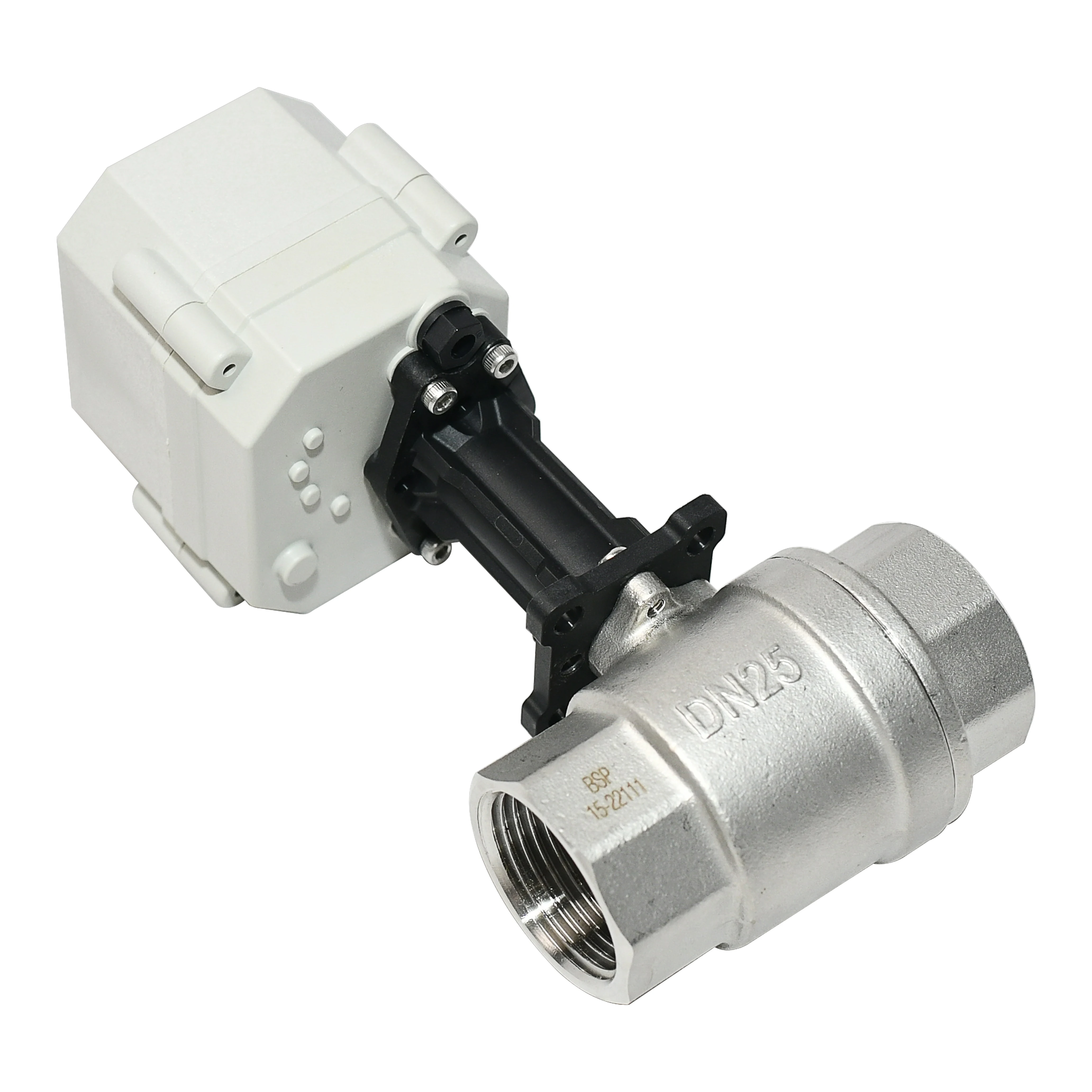

2 way food grade 1' inch Stainless Steel 304 AC230V Electrical actuated ball valve with longer bracket
- Category: >>>
- Supplier: Taizhou Tonhe Flow Control Co. Ltd.
Share on (1601197737423):
Product Overview
Description
Tonhe 2 way electric actuated water ball valve with feedback signal and manual override, 1/2'' - 1-1/4'' in brass and ss304 ,AC110-230V , AC/DC9-24V,DC5V/DC12V, long time presetting ,CE, IP67, operating time 5s, 100000 circles life .
Technical Parameters:
| valve size | 1/4''-1'' |
Maximum working pressure 1.3 MPa
Circulation medium Fluid, air
Valve open /closed time ≤ 5 seconds
Rated voltage :DC5V/DC12V/DC24V ,AC110-230V (Optional )
wire control : CR501/CR502/CR704(Optional)
Working current ≤500MA
Working life: 100000 times
Valve Body material Brass Nickel plated Brass 304 Stainless steel (Optional)
Actuator material Engineering Plastics
Sealing material EPDM & PTFE
Actuator rotation 90°
Max. torque force 2N.M/4n.m
Cable Length 0.5m,1.5m(Optional)
Environment temperature -15℃~50℃
Liquid temperature 2℃~90℃
Manual override yes/no ( optional)
Indicator Yes
Protection class IP67
Application
Water meter , water leak detection system and water treatment etc equipment
HAV and fire works. Automatic drain system
Irrigation ect small control equipment
Packaging & Shipping
Our Services
Pre-sale service
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can
totally believe our service.
After you choose:
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
TONHE is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved
CE certification and SS valve approved NSF61 international certification.
we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .
Company Information
When you inquiry the product , pls confirm below technical info:
1, valve size , material ,
2, working voltage
3, wire control
4, cable length
Then Nadine( Skype: nadine84081) will give you a reasonable price , thanks .
