Product Overview
Description
Product Description
internet broadcasting equipment Multi-screen HD-SDI iptv streamer Broadcast,Cable,Satellite,IPTV/OTT,Mobile,Government/ISP

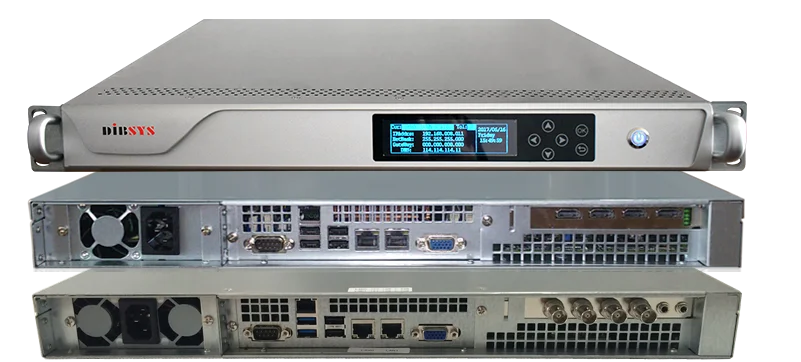

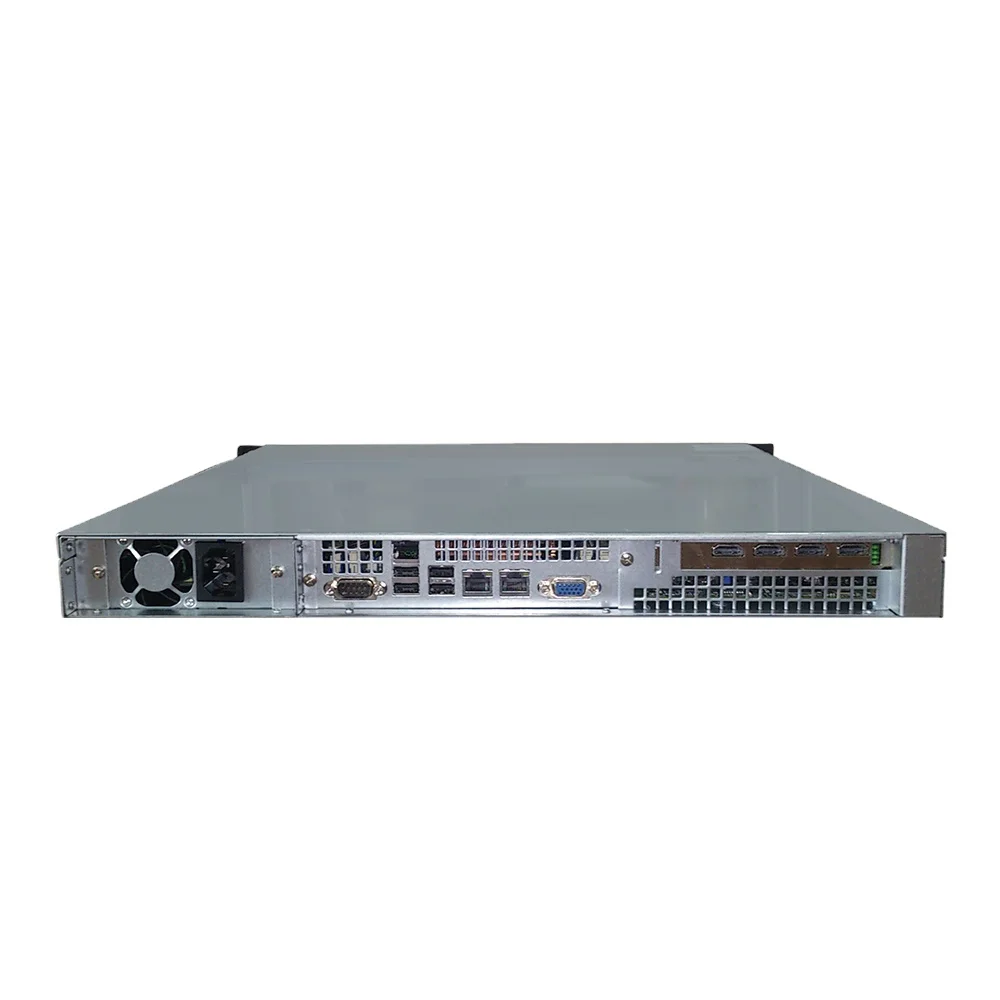

Caster-T315 high-performance High definition solution allows content owners and service providers to significantly increase the content hours delivered while adhering to processing timetables and video quality targets in a cost-effective and scalable manner. A real-time multi-channel, codec, format IP-based encoder for multi- screen delivery. With the support for various encapsulation formats base on embedded Linux operating system appliances.
Caster-T315 can push/pull 4Channels H.264, MPEG-4 encoding video streams deliver to various servers, such as Adobe Flash Server, Wowza Server, Windows Media Server, Apples HTTP Live Streaming, and some other servers base on UDP/RTSP/RTMP/ HTTP/RTP/HLS protocols.The all HD-SDI live content delivery by enabling to repurpose content over numerous devices such as TV, tablets, PCs or web players while maintaining uncompression video quality. It is a answer for all market requirements and is a suitable solution to Terrestrial, Satellite, Cable, IPTV networks.
Features
●Up to 4Channels HD-SDI or HD MI per chassis(1RU)
●Highly Reliable, High density 1-RU platform can process up to 4*1080P Full HD profiles
●Optimized for 1500 Kbps for SD, 2.5 Mbps for HD 720p, 5 Mbps for HD 1080p.
●Multiple output streams per input service to support Broadcast, IPTV, Set top box applications
●Mulltiple Codec, Protocol,Bitrate, Resolution, Profile per channel
●GbE IP outputs –UDP, RTSP, RTMP, Pull/Push HTTP,HTTP Live Smooth(HLS), FTP M3u8 playlist files
●Picture-in-picture (PIP) operation supported
●Flexible GOP structures with Reference-frame and B-frame edit
●Broadcast-grade HD/SD up and down converter
●Frame rate down- and up-conversion
●Up to 2 audio channels Per embeded SDI inputs, Option Provides up to 8 audio channels for customization
●High quality pre-processing including filtering, Deinterlacing, cross scaling
●Support for Variable Bit Rate (VBR) encoding maximizes adaptive streaming video quality and bandwidth efficiency
●Based on embedded Ubuntu Linux
●DVB Subtitle and Logo insertion
●High contrast LCD display
●Parameter template settings and imports
●Real time preview of input video stream in encoding and parameter configuration
●Selectable any resolution from QSIF to 1080P
●Designed for 24*365 uninterrupted working
●Easy-to-Use System Management via Web

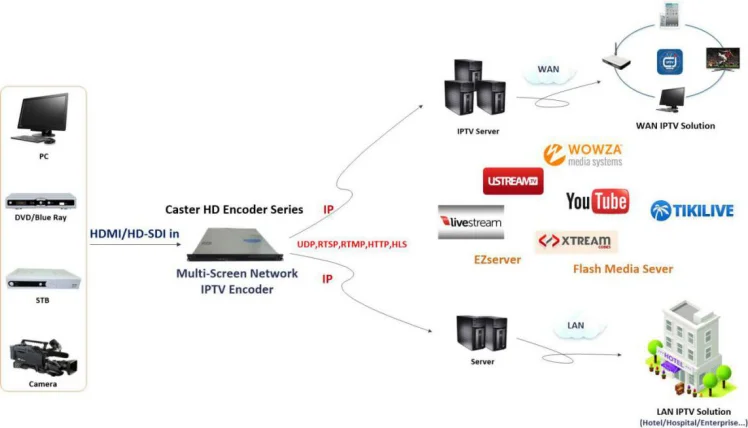

Main Application
●Digital broadcast and IPTV headend
●Multimedia and games, animation, video production
●Repurposing HD-SDI Video Feeds for Streaming
●Transrating for Bandwidth Reduction
Specification
Input | ||
Number of Channels | 4 Ports | |
SD-SDI | SMPTE 259M - 270Mbit/s | |
HD-SDI | SMPTE 292M - 1.485Gbit/s | |
3G-SDI | SMPTE424M - 2.97Gbit/s | |
Connector | 1x BNC (75 Ohm) | |
HD MI 1.4a | ||
Output | ||
IP Output type | Two Gig Ethernet Ports | |
Connector Type | RJ45 100/1000M - Auto Negot | |
MPEG-2 TS (SPTS),Over IP out | ||
TS Over UDP/RTP/HTTP | ||
\tRTP over HTTP | ||
FLV Over HTTP | ||
RTMP | ||
MP3 over HTTP | ||
FLV | ||
ASP | ||
HTTP Live streaming Apple HLS (m3u8) | ||
Pre-processing | ||
LOGO insertion Subtitle Overlay | Option Static or roll subtitle, up to 3 way | |
Deinterlace | default, Close, Linear, Blend, Bob, Yadif | |
PID Configuration | PMT/Video/Audio PID; | |
PCR delay/disp interval | ||
Advanced Processing | De-blocking filter, Scene detection, Automatic MBAFF,CABAC Entropy Encoding | |
Video encoding | ||
Bitrate Control | VBR, CBR, ABR, NearCBR | |
Resolutions | 1920x1080p,1280x720p, 720x480p,720x576p, 480x360p, Auto | |
Frame rate | 2-30fps | |
Screen Ratio | 4:3, 16:9 | |
Option | Multiple concurrent outputs per each encoding input | |
H.263 Profile Levels 10, 20, 30 | ||
MPEG-4 SP, Levels 0, 0b, 1, 2, 3 | ||
H.264 Baseline Levels 1, 2, 3 | ||
H.264 Main/High Profile 3.0- 5.1 | ||
Encoding delay | 1000-2000ms | |
B-Frame | 0-5 | |
Reference Frame | 1-6 | |
Key frame rate | 1-18 | |
Video Bitrate | 32kbps to 10Mbps | |
Enhancement filter | Deinterlacing; MABFF CABAC; Noise reduction; Sharpening; Visual Optimizing | |
Video Delay | 0-1000ms | |
Scale | Ordinary, Auto Paddingintelligent Scale | |
Fast Mode | Quality Priority,Balanced, Speed Priority | |
Audio encoding | ||
Numbers of encoding | 2 Channels via embedded in SDI (Provides up to 8 audio channels for customization) | |
AAC,AACv2,AMR | ||
D Digital(AC-3)/D Digital Plus(EAC-3) | ||
MP2A,MP3A,Transparent | ||
Audio Channel | Single, Dual, 5.1 Channel | |
Audio Track | 0, 1, 2, 3 | |
AV Sync | 0s, 0.5s, 1s, 3s, 4s, 5s, 6s | |
Sample rate | 8khz to 48khz | |
Bitrate rate | 8kbps to 384kbps | |
Volume | Ordinary,Intensity1,Intensity2,Intensity3 | |
AGC | On, Off | |
Management | ||
Local interface | LCD + control buttons | |
Configuration | Web Interface | |
Port | RJ45, 10/100/1000M BaseT | |
Language\t | English | |
Environment | ||
Power Supply | 110-240 VAC | |
Operation temperature\t | 0~50℃ (32 -122°F) | |
Storage temperature | -40-70°C (-40-158°F) | |
Power Consumption | 100W | |
Dimensions | 483mm (W) x 534mm (L) x 45mm (H) | |
Weight | 11kg (24lbs) | |
Product Infomration | ||
Models | Description | |
Caster-T310 | 4Channels HD MI (Without HDCP)Inputs | |
Caster-T315 | 4Channels SD/HD-SDI Inputs | |
