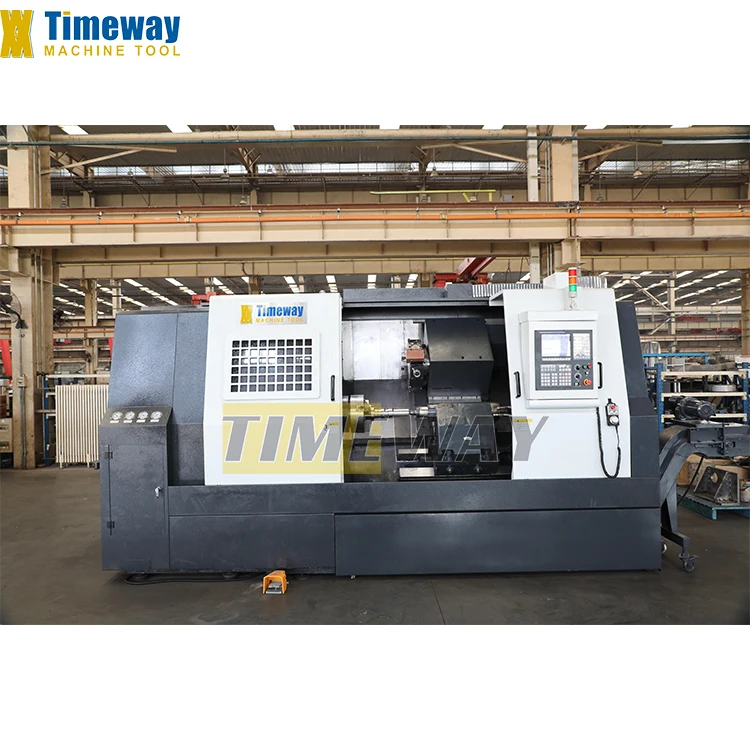

FANUC CNC System Slant Bed CNC Lathe AK 25 Torno CNC
- Category: >>>
- Supplier: Zhengzhou Timeway Machine Tool Co. Ltd.
Share on (1601197798425):
Product Overview
Description
Product Description

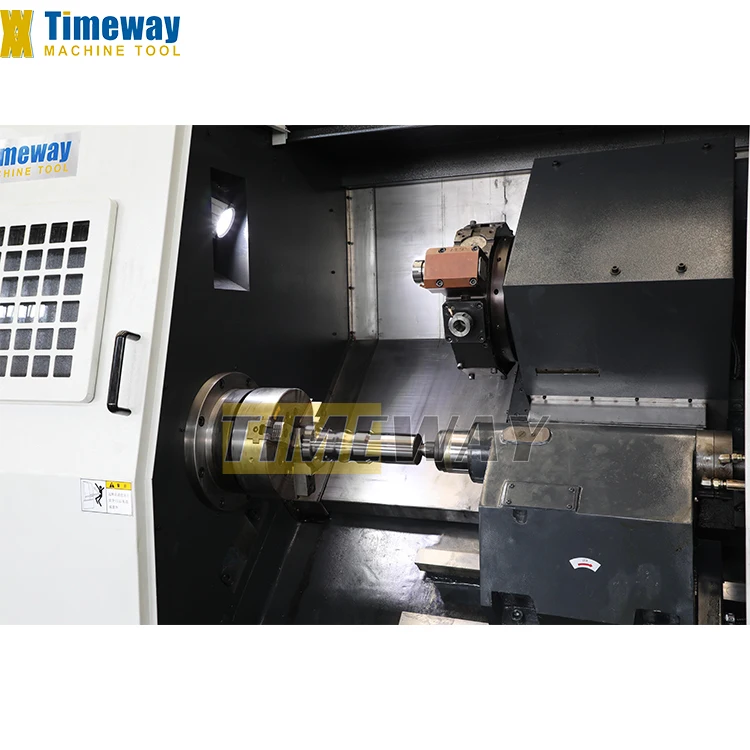

Main motor uses FANUC wide-area high-performance AC servo motor, stepless speed, spindle box without gear structure, high speed and low noise.
High quality hydraulic solid chuck and high-speed fuel cylinder, and equipped with foot switch, it is easier to quickly clamping the workpieces.
High quality hydraulic solid chuck and high-speed fuel cylinder, and equipped with foot switch, it is easier to quickly clamping the workpieces.
Specification
Specification | AK-25 |
Max.swing over bed | 520 mm |
Max. turning diameter | 420 mm |
Max. length of workpiece | 1000 mm |
Max. turning length | 905 mm |
Cross travel (X) | 230 mm |
Longitudinal travel (Z) | 965 mm |
X-axis rapid feed speed | 12 m/min |
Z-axis rapid feed speed | 15 m/min |
X/Z-axis feed speed | 1260 mm/min |
Spindle speed range | 35-3500 rpm |
Spindle nose | A2-8 |
Spindle bore | 87 mm |
Hydraulic chuck size | 10" inch |
Front bearing inner diameter | 130 mm |
Tool post type | H12 |
Tool section size (turning) | 25x25 mm |
Tool section size (boring) | 40 mm |
Tool change time | 0.3 sec |
Tailstock travel | 865 mm |
Tailstock quill diameter | 85 mm |
Tailstock quill taper | MT5 |
Tailstock quill travel | 80 mm |
Main motor power | 15/18.5 kw |
Total power | 30 kw |
Working accuracy | IT6 mm |
Roughness | Ra0.8 µm |
Bed structure | 45° |
CNC system | FANUC |
Machine length | 3380 mm |
Machine width & height | 1545x1950 mm |
Machine weight | 5.5 tons |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction

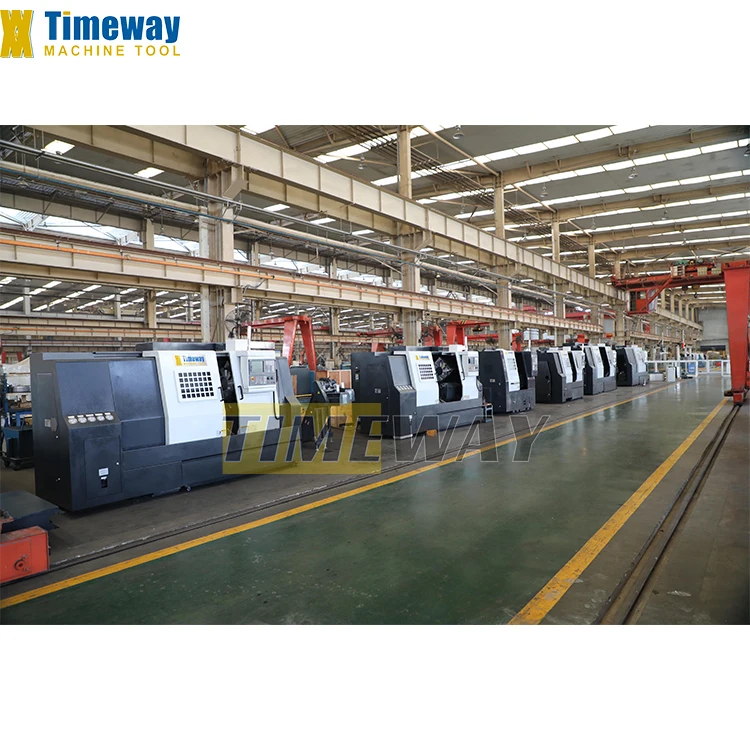

Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
