blades of chocolate conche machine refining machine
- Category: >>>
- Supplier: Suzhou Golden Eagle Machinery & Equipment Co. Ltd.
Share on (1601197812331):
Product Overview
Description
Products description
Application:
Chocolate conche machine is one of the major machines for fine grinding chocolates and can also be used to grind soya flour, oil plants and the raw materials for daily-use chemicals with requirements for fine granules.
Our max output reaches 38 units per month, Average monthly output 25 units.
More details:
- Double layers for hot water.
- Motor: good brand Chinese motor
- Electrics: Schneider or omron
- Sticks and scrapers Material: 65#Mn steel after heat treatment with high strength, hardness and good abrasion resistence. Life is about 3 yeasrs with normal use.
- Machine body: painted carbon steel
- with temperature probe and temperature controller for automatically control.
- Spare parts: 1pcs electrical heatings, some pcs linears, 1pcs scrapers, about 1 meter packing.
Technical parameters:
| Model | QYJ20 | QYJ100 | QYJ500 | QYJ1000 | QYJ1500 | QYJ2000 | QYJ3000 |
| Maximum capacity(L) | 20 | 100 | 500 | 1000 | 1500 | 2000 | 3000 |
| Grinding Fineness(micron) | 20~25 | 20~25 | 20~25 | 20~25 | 20~25 | 20~25 | 20~25 |
| Main Axle Rotating Speed(rpm) | 93 | 48 | 33 | 35 | 35 | 35 | 35 |
| Grinding time(h) | 8~10 | 12~16 | 16~22 | 16~22 | 16~22 | 16~22 | 16~22 |
| Main motor power(kw) | 1.5 | 5.5 | 15 | 18.5 | 30 | 37 | 45 |
| Electrical heating power(kw) | 0.6 | 2.5 | 5 | 2X2 | 6 | 3x2 | 12 |
| Power of spot operation motor(kw) | manual | manual | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Weight(kg) | 295 | 1050 | 2572 | 2950 | 4850 | 5350 | 7500 |
| Outside dimensions(mm) | 920*600 *1110 | 1200*1150 *1050 | 2465*1146 *1312 | 2627*1280 *1520 | 2918*1650 *1920 | 3040*1912 *1920 | 3450*2016 *2280 |
Optional:
- imported motor and electric parts.

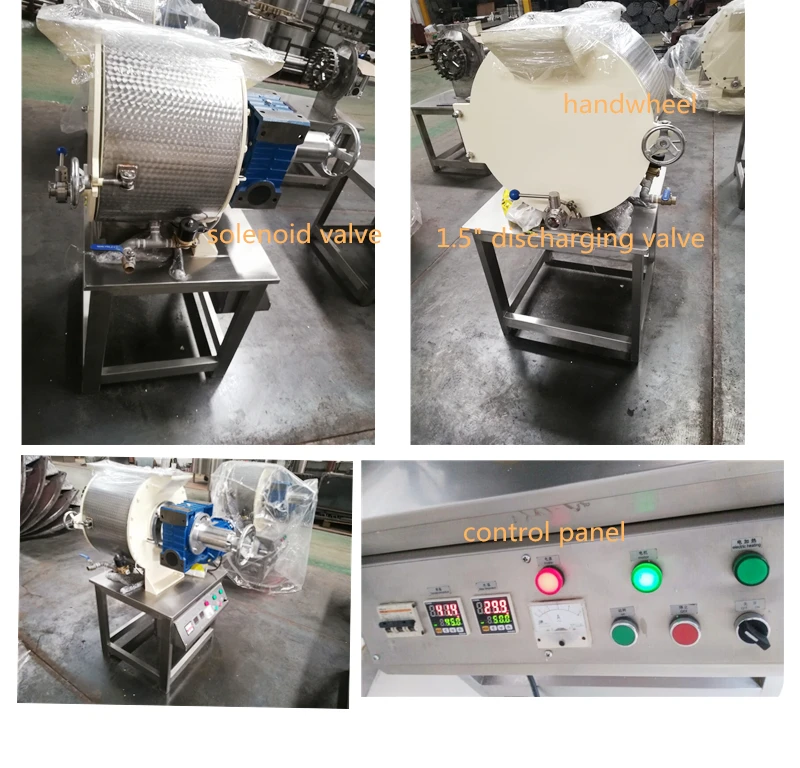

- Solenoid valve to control cooling water automatically.
- standard is button cotrol, we can make PLC control with touch screen if you want.
- Other speciall requirements, let us know before putting order.

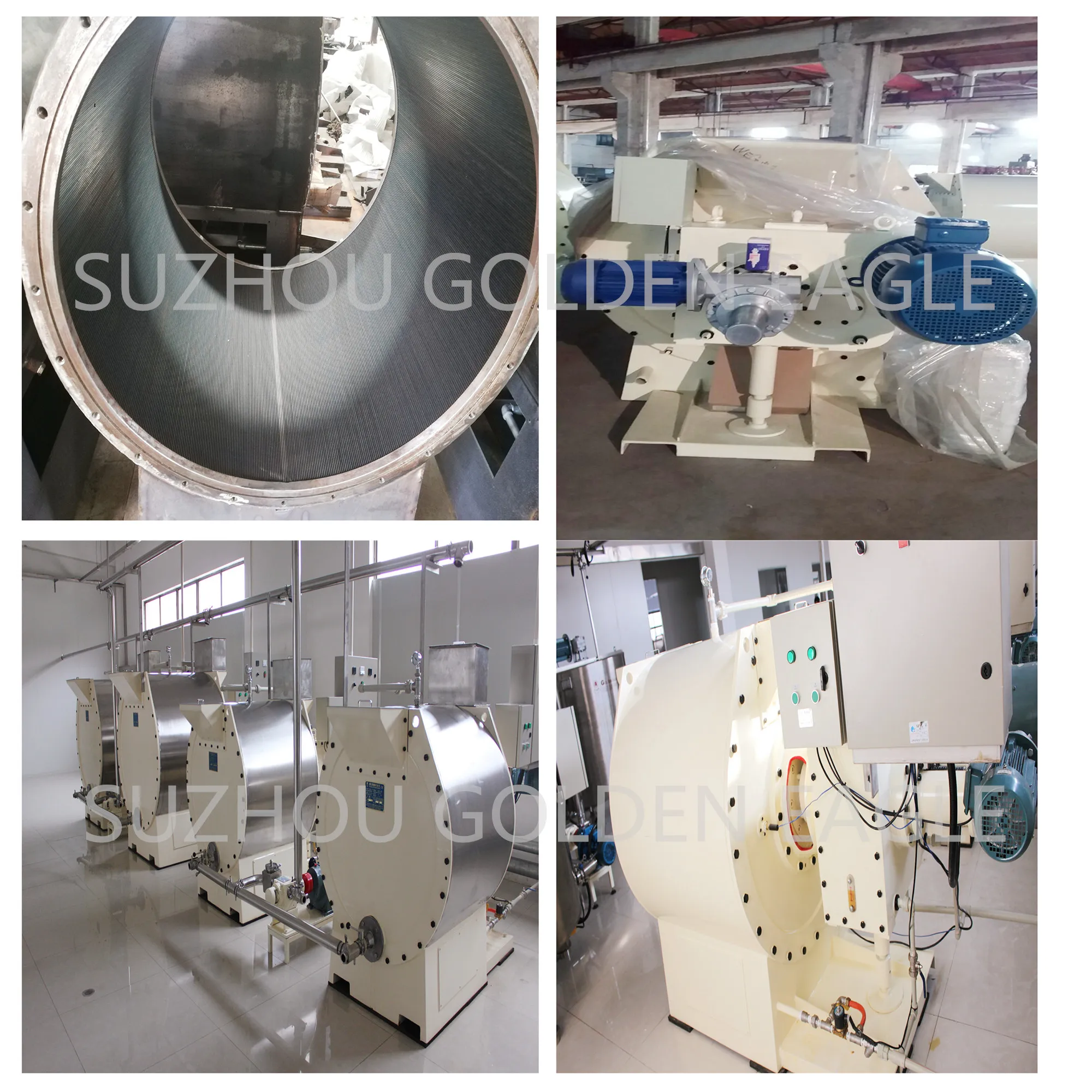

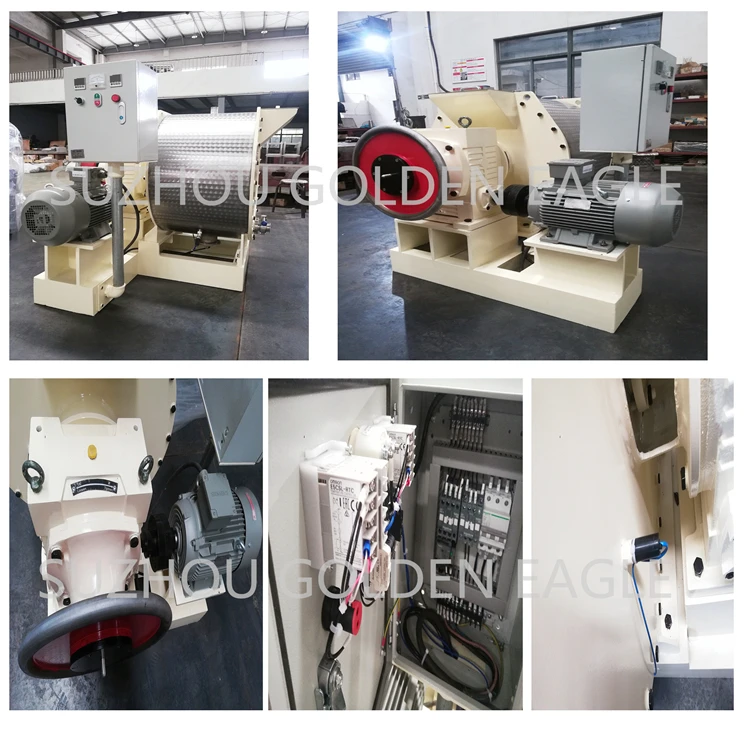

Products overviews:
Company Information
Suzhou Golden Eagle Machinery & Equipment Co.,Ltd is founded in 1994. Our company specializes in manufacturing chocolate equipments. We have owned a high popularity and prestige both at home and abroad. We help customers solve trouble encountered in the production process and develop new products. Besides we export our products to many countries, e.g. U.K, Australia, France, Turkey, Russia, Italy, Spain and S.E.Asia, Middle East, Africa and so on, about more than 50 countries and districts. Total export takes over 80%. Now we have two factories:
New factory:
New factory is totally 48000m2, Named Suzhou M.E.X Machinery & Equipment Co.,Ltd, Just about 20 minutes to the old factory. Presently our office and main production both are in this new factory.
Old factory:
R & D center:
We have a small chocolate laboratory to make testing for customer's new products and for learning how to make chocolate.
Workshop:
Our Services
Pre-sales service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-sales service:
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
