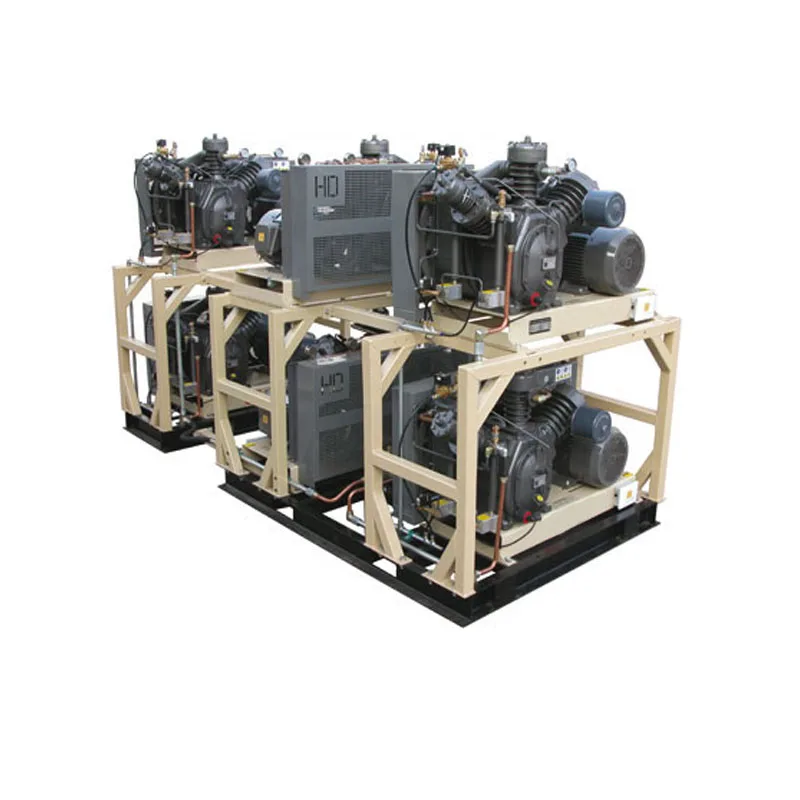

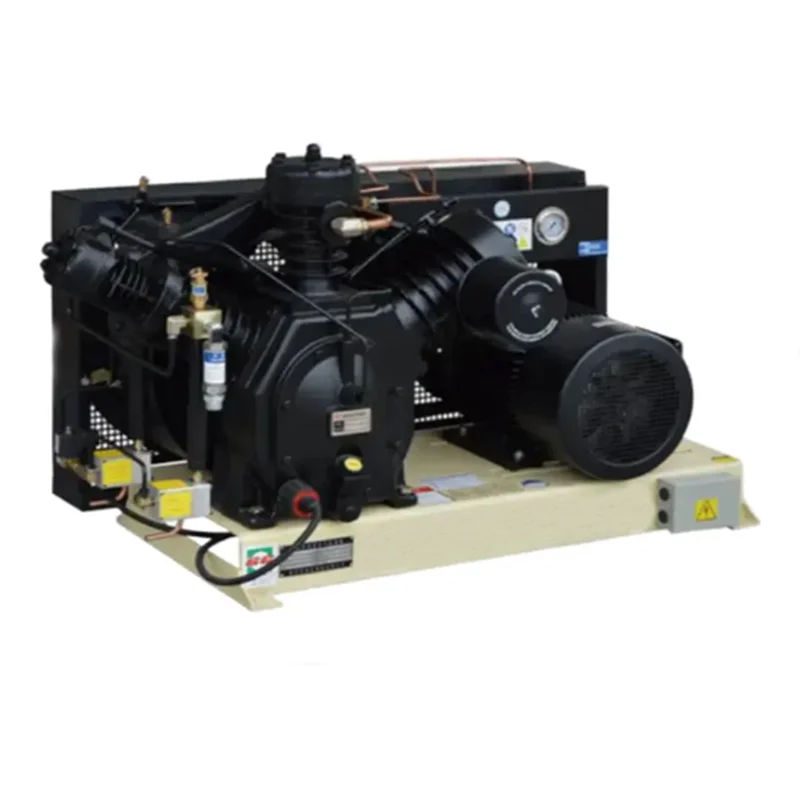

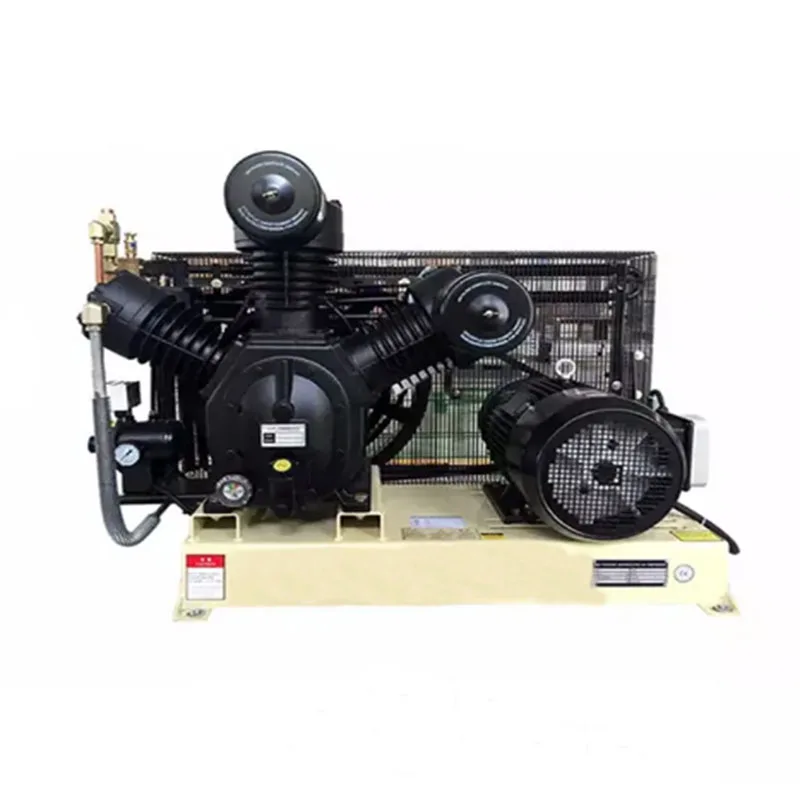

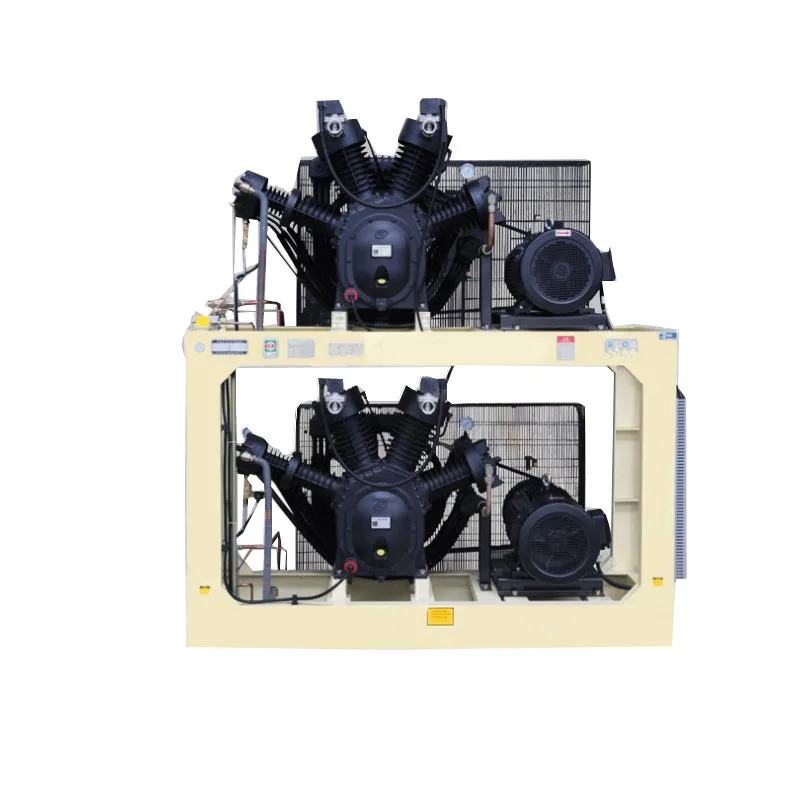

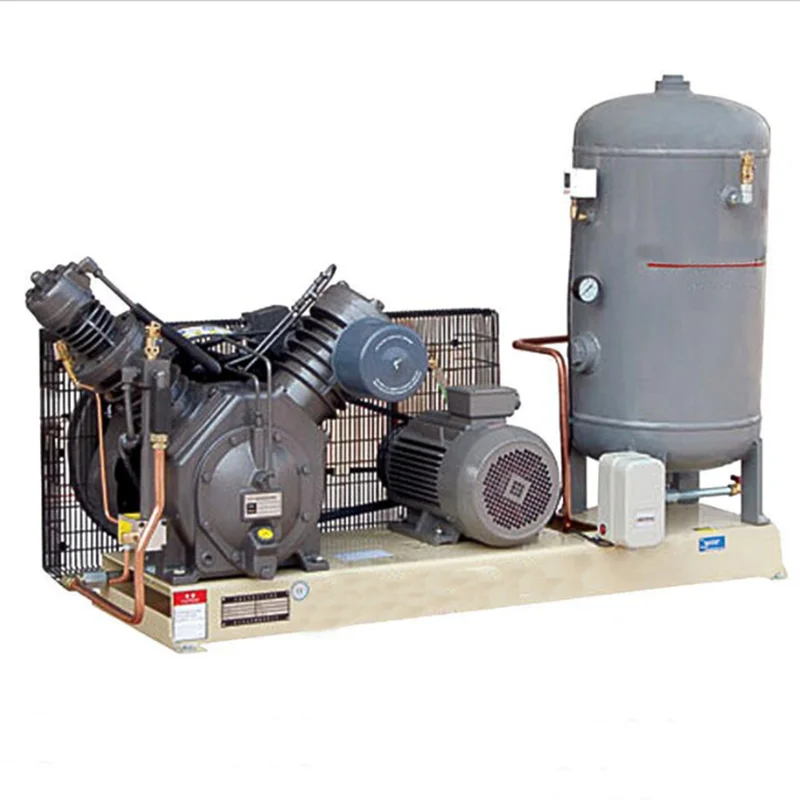

High Quality 30bar 40bar 7.5KW 3 Cylinder 2 stage Piston Air Compressor with Air Tank
- Category: >>>
- Supplier: Shandong Dassaw Import And Export Co. Ltd.
Share on (1601197821181):
Product Overview
Description
Product Overview
222
Piston air compressor
A piston type air compressor is a type of reciprocating air compressor, whose compression component is a
piston, which reciprocates inside the cylinder and moves with the same gas as the piston. Derivative products include air compressors, assembly line equipment, plastic machines, fans,etc.
piston, which reciprocates inside the cylinder and moves with the same gas as the piston. Derivative products include air compressors, assembly line equipment, plastic machines, fans,etc.
Basic composition of piston air compressor:
1. Exhaust valve 2.Cylinder 3. Piston 4. Piston rod 5. Slider 6. Connecting rod 7. Crane 8. Suction valve 9. Valve spring
Operational principle
When the reciprocating piston in the cylinder moves to the right, the pressure in the left chamber of the piston in the cylinder is lower than atmospheric pressure pa, the suction valve opens, and external air is sucked into the cylinder. This process is called compression. When the pressure in the cylinder is higher than the pressure p in the output air pipeline, the exhaust valve opens. The process of compressed air being sent into the gas pipeline is called the exhaust process. The reciprocating motion of the piston is formed by a crank slider mechanism driven by an electric motor. The rotational motion of the crank is converted into sliding - the reciprocating motion of the piston.
PRODUCT SPECIFICATIONS
Model | Bare Model | Air flow (m3/min) | Pressure (bar) | Power (KW) | R.P.M | Weight (Kg) | Size (L*W*H)mm |
35VH-0.7/30A-SB | H0621A | 0.7 | 30 | 7.5 | 680 | 310 | 1360*630*780 |
35VH-0.7/30A | H0621A | 0.7 | 30 | 7.5 | 680 | 410 | 1830*625*970 |
33WH-1.6/30-SB | H1531A | 1.6 | 30 | 18.5 | 790 | 520 | 1600*960*1230 |
2-33WH-3.2/30B | H1531B | 3.2 | 30 | 18.5*2 | 790 | 1200 | 2100*1700*1320 |
24WH-2.0/30A-WEB | H1631A | 2.0 | 30 | 22 | 735 | 490 | 2000*1010*1260 |
2-24WH-4.0/30A | H1631A | 4.0 | 30 | 22*2 | 735 | 1170 | 2260*1650*1240 |
Factory Show
Recommend Products
Our Advantages
Pre-Sales Service After-Sales Service
*inquiry and consulting support. * Training how to install and use the machine.
* Sample testing support. * Online technical support.
*inquiry and consulting support. * Training how to install and use the machine.
* Sample testing support. * Online technical support.
Company Profile
Packaging & Shipping
FAQ
1.Why do you choose us?
Our company has been focused on air compressor field 15 years. We can make most suitable proposal for our customer according to customers’ different requirements.
2.Can technical support be provided?
When air compressor running, any problems can be solved quickly via 24-hour online guidance freely. Technician can also guide customer online.
3.Can original spare parts be provided?
Our company can supply all original parts for our compressors, even other air compressors of customers, only if customers provide nameplate, we can also provide parts for customers.
4. What products can we provide?
a.Our company can supply several types of air compressors like piston air compressor, screw air compressor and other air compressors which can be used in different industry fields.
Our company has been focused on air compressor field 15 years. We can make most suitable proposal for our customer according to customers’ different requirements.
2.Can technical support be provided?
When air compressor running, any problems can be solved quickly via 24-hour online guidance freely. Technician can also guide customer online.
3.Can original spare parts be provided?
Our company can supply all original parts for our compressors, even other air compressors of customers, only if customers provide nameplate, we can also provide parts for customers.
4. What products can we provide?
a.Our company can supply several types of air compressors like piston air compressor, screw air compressor and other air compressors which can be used in different industry fields.
b. Except of air compressor, other machines like air dryer and air tank, blowing machine can also be supplied.
5. Do we have enough products in stock?
Normal machines and most parts are usually enough in stock and can be shipped within 5 -7 days. Customized machines need 10-20 days.
5. Do we have enough products in stock?
Normal machines and most parts are usually enough in stock and can be shipped within 5 -7 days. Customized machines need 10-20 days.
