Sunrain OEM Factory CE Keymark 6kw 8kW 12kW 18kw Air to Water Heat pump R290 gas Erp A WIFI Full DC Inverter China heat pump
- Category: >>>
- Supplier: Jiangsu Sunrain Solar Energy Co. Ltd.
Share on (1601197828256):
Product Overview
Description
Product Description

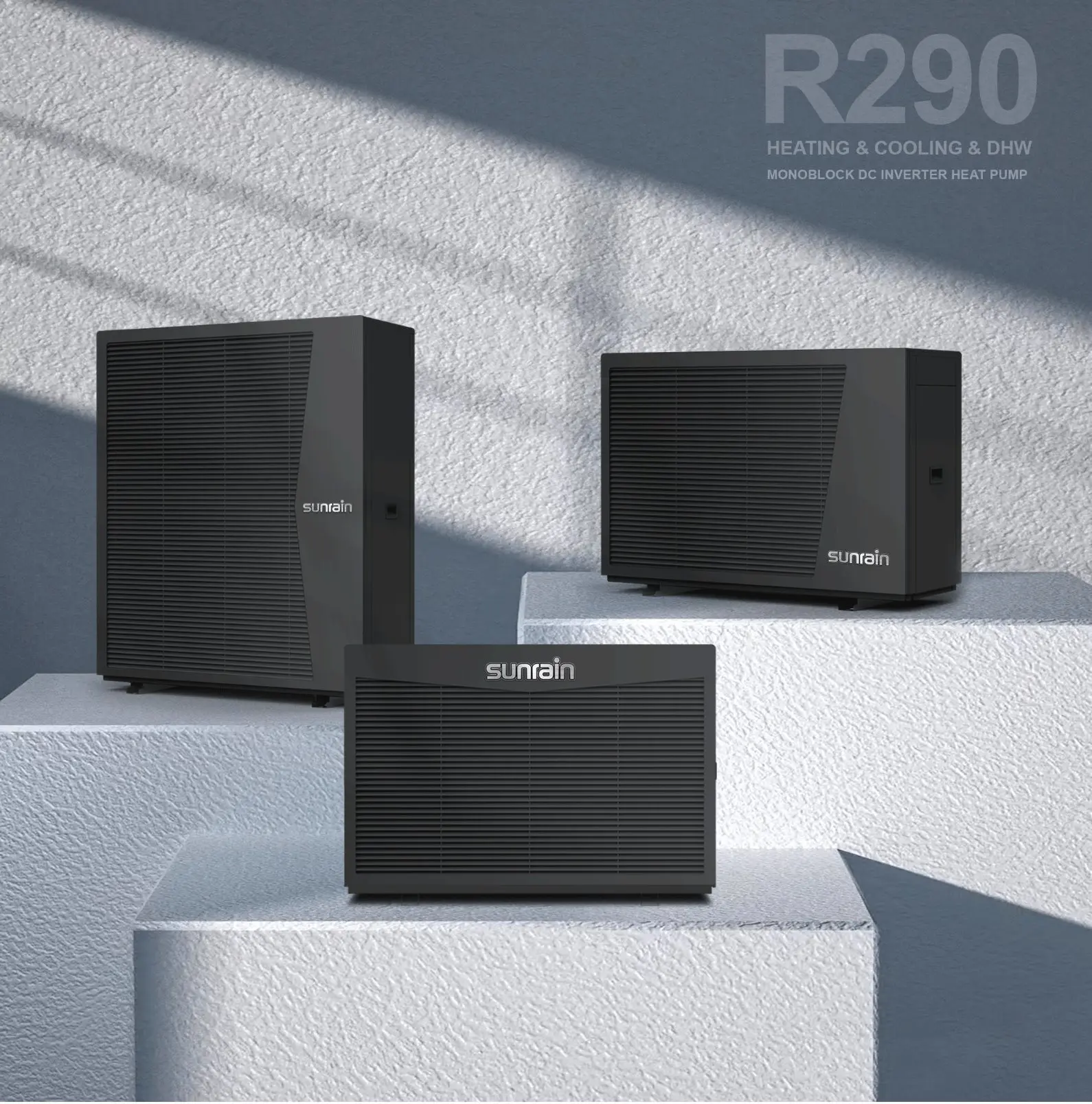

Sunrain High Efficiency R290 Monoblock Heat Pump
Sunrain R290 monoblock air to water heat pump water heaters(Model BLN-006TC1， BLN-012TC1, BLN-012TC3, BLN-018TC1, BLN-018TC3) are specially designed for cold area, to satisfy family demand for heating, cooling and hot water. With EVI technology, Sunrain heatpump can have a stable perfomance even under -35ºC.
* R290 refrigerant,low GWP(GWP=3)
* Energy class: A+++
* Heating+Cooling+DHW
* Full DC inverter compressor and fan motor
* -30ºC inverter
* WIFI smart control
* Outlet water temperature up to 75ºC
* BAFA CE certified
* SG ready function
* Energy class: A+++
* Heating+Cooling+DHW
* Full DC inverter compressor and fan motor
* -30ºC inverter
* WIFI smart control
* Outlet water temperature up to 75ºC
* BAFA CE certified
* SG ready function

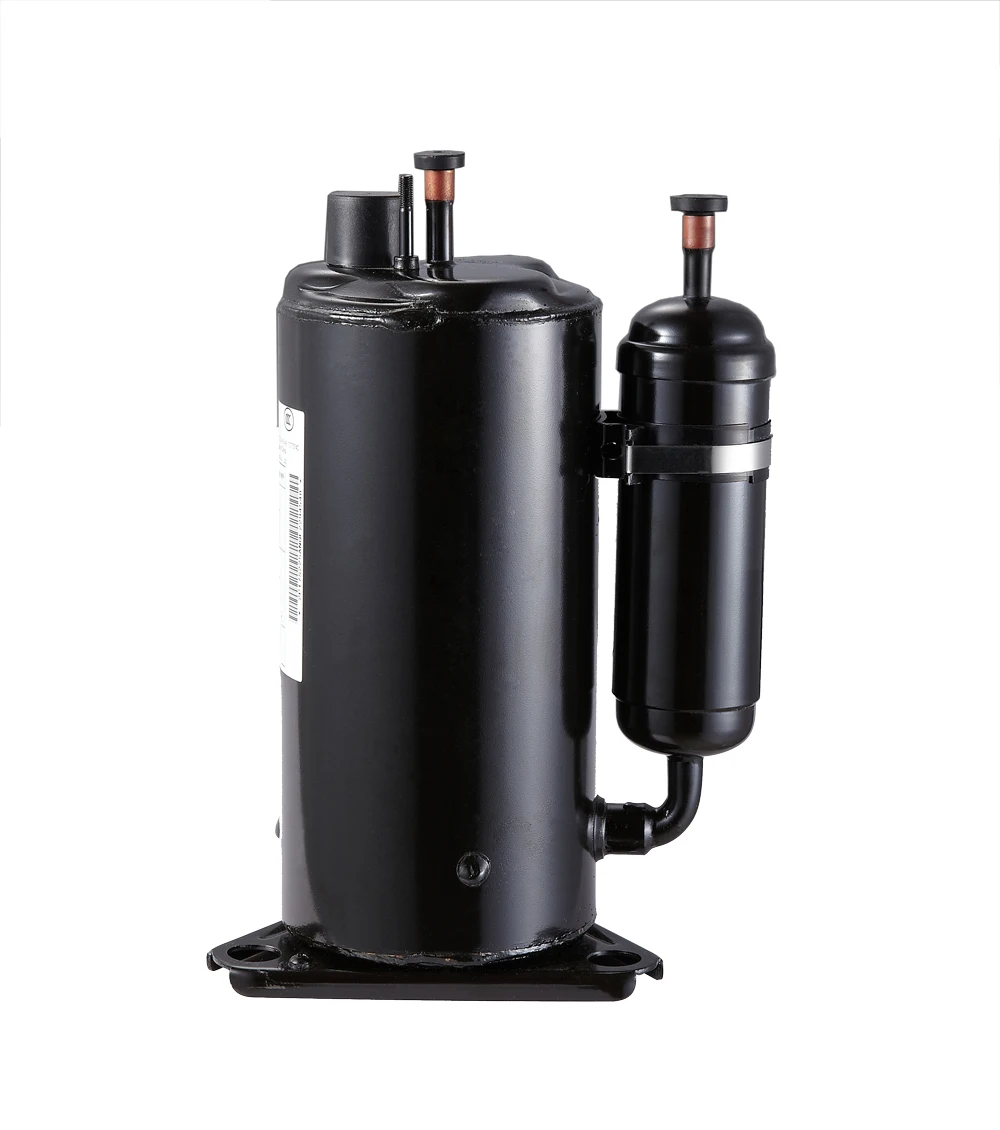

Top Brand Inverter Compressor
More Stable & Durable

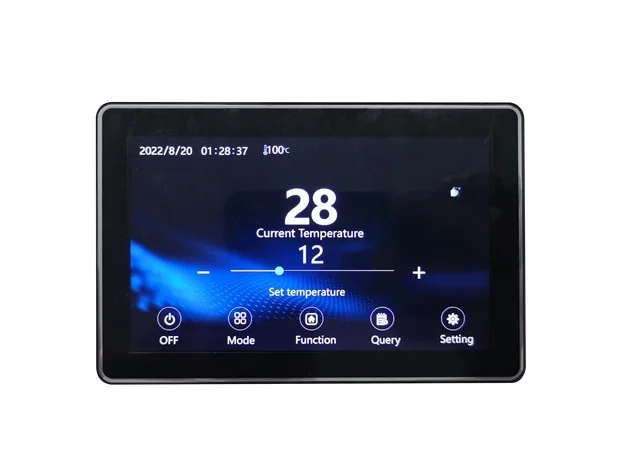

TFT Touch Screen
Better View

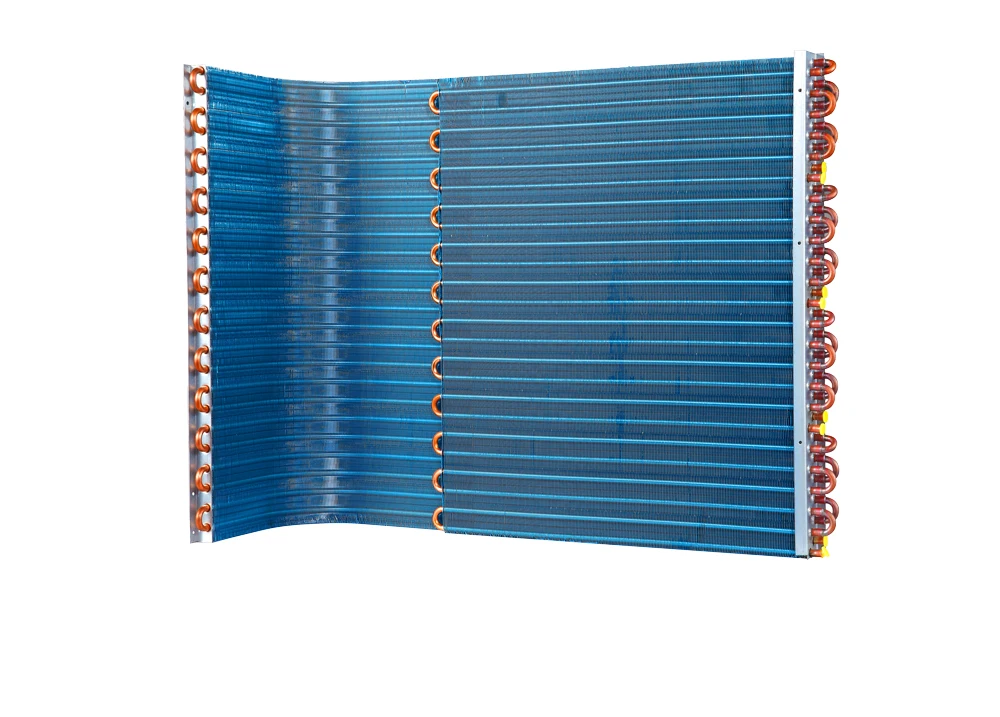

Blue Hydrophilic Fin Evaporators
More Efficiency
Product Parameters
Model | BLN-006TC1 | BLN-012TC1 | BLN-018TC1 | |||||
Rated voltage / Frequency | 220-240V~ / 50Hz | 220-240V~ / 50Hz | 220-240V~ / 50Hz | |||||
Heating¹ | Capacity | kW | 2.92-9.10 | 4.30-15.20 | 7.24-21.90 | |||
Input Power | kW | 0.61-2.11 | 0.87-3.73 | 1.50-5.88 | ||||
Input Current | A | 2.80-9.25 | 4.02-16.38 | 6.86-30.25 | ||||
Heating² | Capacity | kW | 2.99-8.16 | 4.25-14.55 | 6.36-19.45 | |||
Input Power | kW | 1.03-2.92 | 1.45-4.28 | 2.15-6.85 | ||||
Input Current | A | 4.57-12.79 | 6.71-18.80 | 9.84-30.12 | ||||
Cooling | Capacity | kW | 1.38-5.70 | 3.65-11.04 | 4.55-17.20 | |||
Input Power | kW | 0.67-2.44 | 1.12-3.97 | 1.85-7.31 | ||||
Input Current | A | 3.06-10.27 | 5.18-17.44 | 8.47-32.1 | ||||
SCOP (35℃) | 4.98 | 4.90 | 4.91 | |||||
SCOP (55℃) | 3.84 | 3.86 | 3.94 | |||||
Rated Input Power | kW | 3.5 | 5.40 | 7.50 | ||||
Rated Input Current | A | 15.0 | 25.0 | 35.0 | ||||
Refrigerant Type/Charge/GWP | .../kg | R290/0.55/3 | R290/0.90/3 | R290/1.4/3 | ||||
CO2 Equivalent | / | 0.0017t | 0.0027t | 0.0042t | ||||
Operation Pressure(Low Side) | MPa | 0.8 | 0.8 | 0.8 | ||||
Operation Pressure(High Side) | MPa | 3.0 | 3.0 | 3.0 | ||||
Maximum Pressure | MPa | 3.0 | 3.0 | 3.0 | ||||
Electrical Shockproof | / | I | I | I | ||||
IP Class | / | IPX4 | IPX4 | IPX4 | ||||
Max. Outlet Water Temp. | ℃ | 75 | 75 | 75 | ||||
Operating Ambient Temp. | ℃ | -25~45 | -25~45 | -25~45 | ||||
Water Piping Connections | inch | G1 | G1 | G1-1/4 | ||||
Rated Water Flow | m³/h | 1.0 | 2.06 | 3.10 | ||||
Water Pressure Drop | kPa | 20 | 20 | 55 | ||||
Min/Max Water Pressure | MPa | 0.1/0.3 | 0.1/0.3 | 0.1/0.3 | ||||
Noise Level | dB(A) | 48 | 50 | 55 | ||||
Net Dimensions ( L×W×H ) | mm | 1187×418×805 | 1287×448×904 | 1187×488×1456 | ||||
Net Weight | kg | 110 | 123 | 184 | ||||
Compressor | / | WHP32900VSKTQ9JK /HIGHLY | WHP13300PSDPC8FQ /HIGHLY | WHP32900VSKTQ9JK /HIGHLY | ||||
Heat Exchanger | / | C39-EZ-42/Danfoss | C39-EZ-54/Danfoss | C62L-EZ-J-50/Danfoss | ||||
Water Circulation Pump | / | UPM3K/25-75/130/Grundfos | ||||||

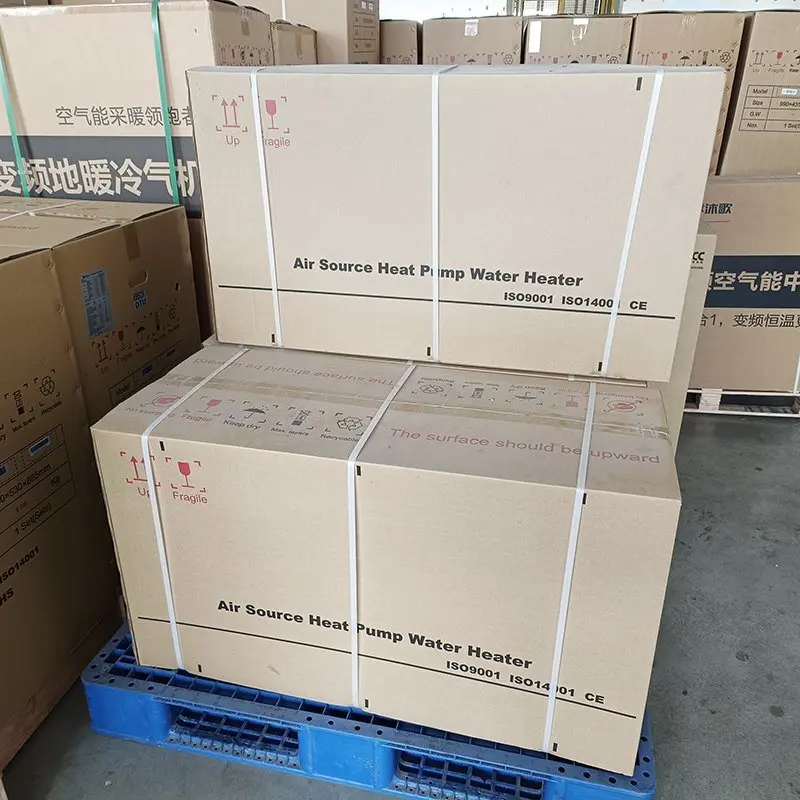

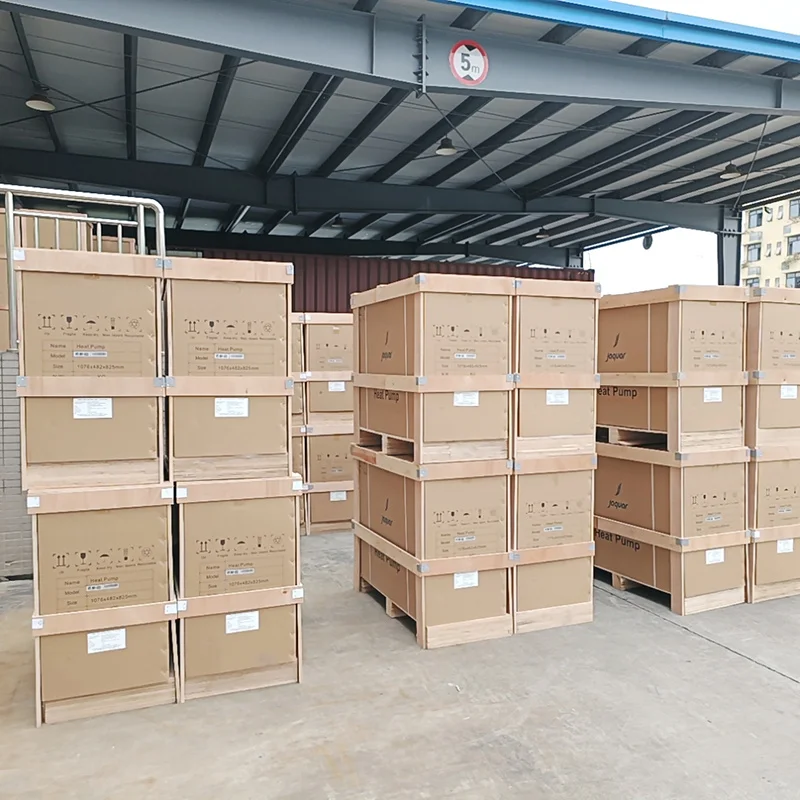

Packing&Shipping

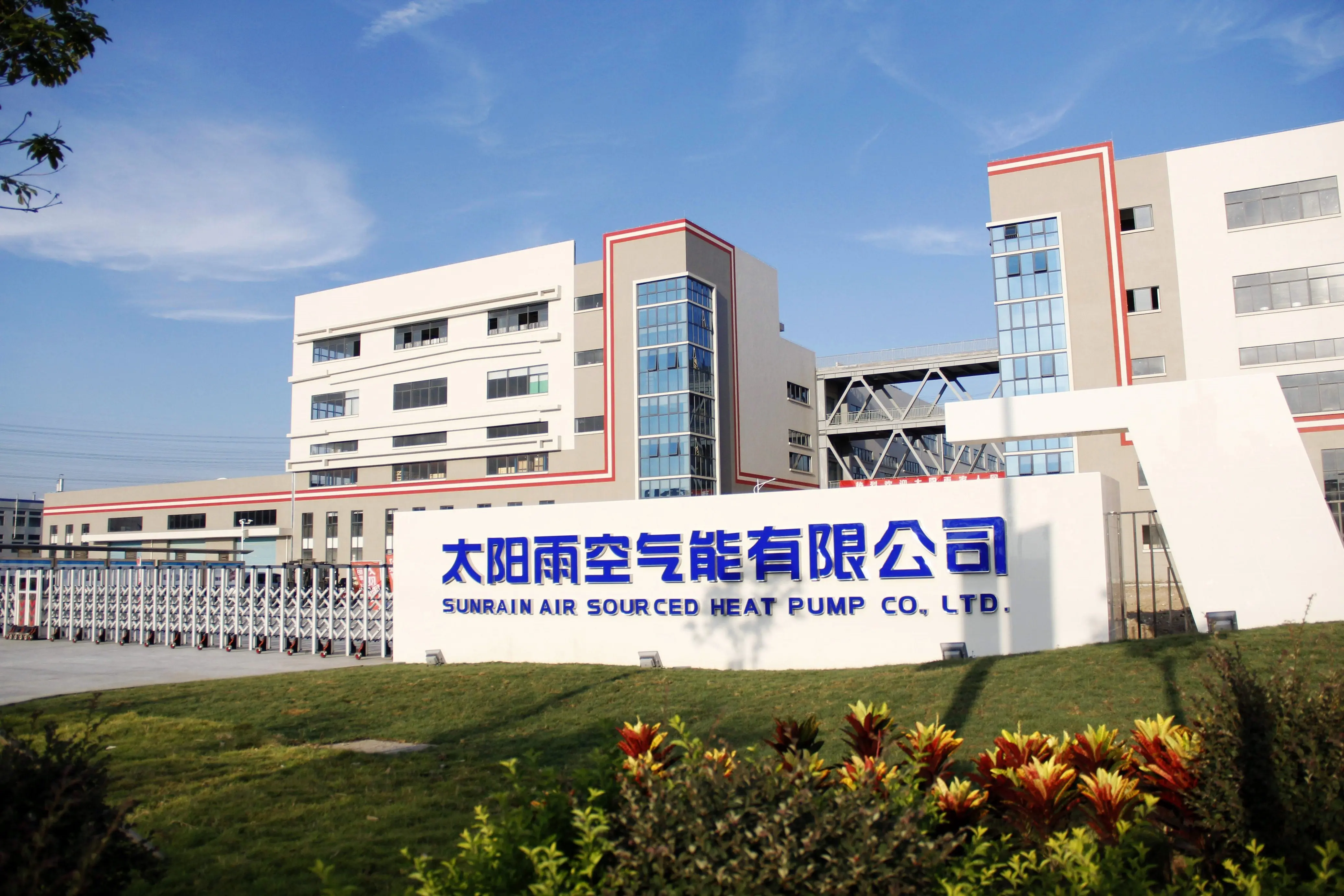

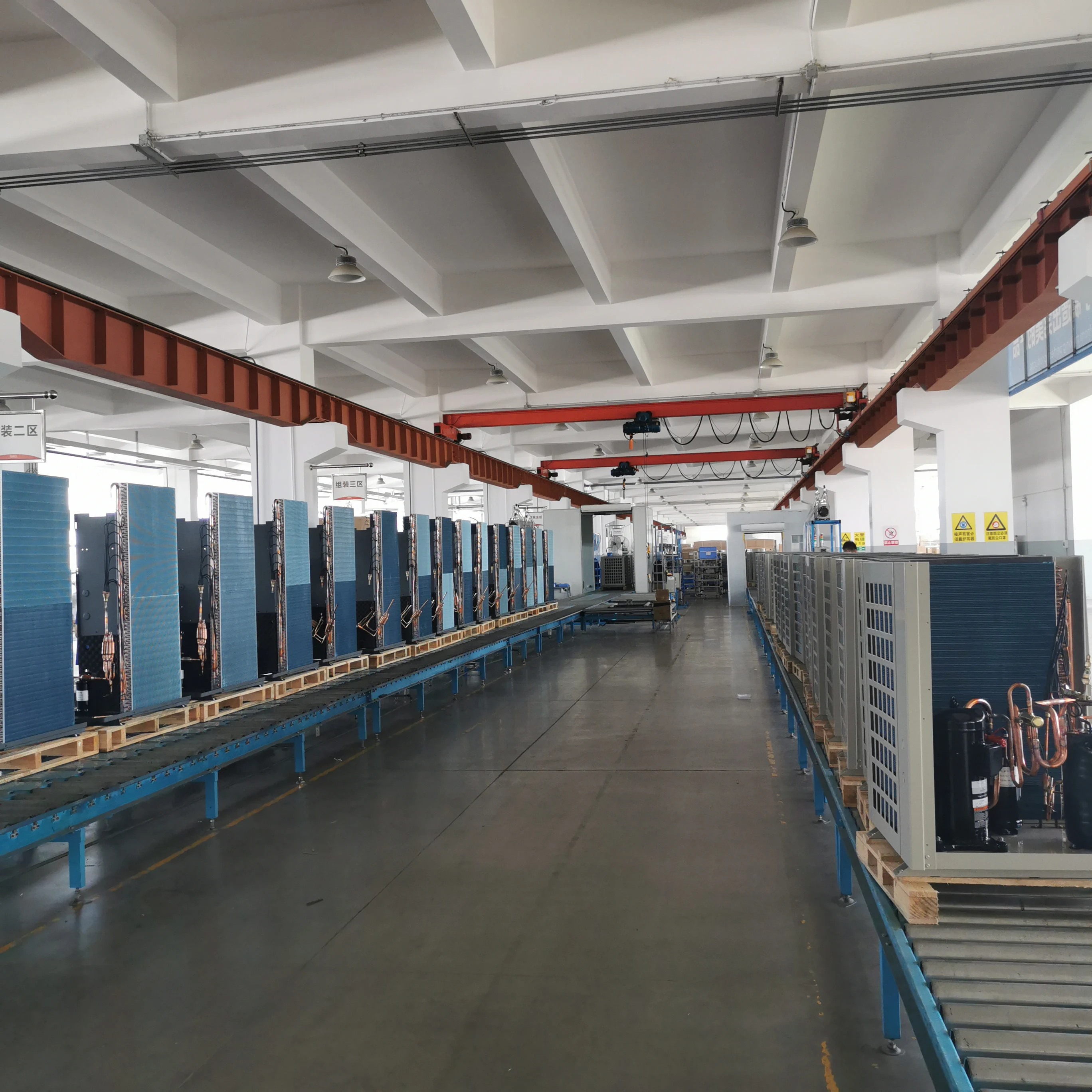

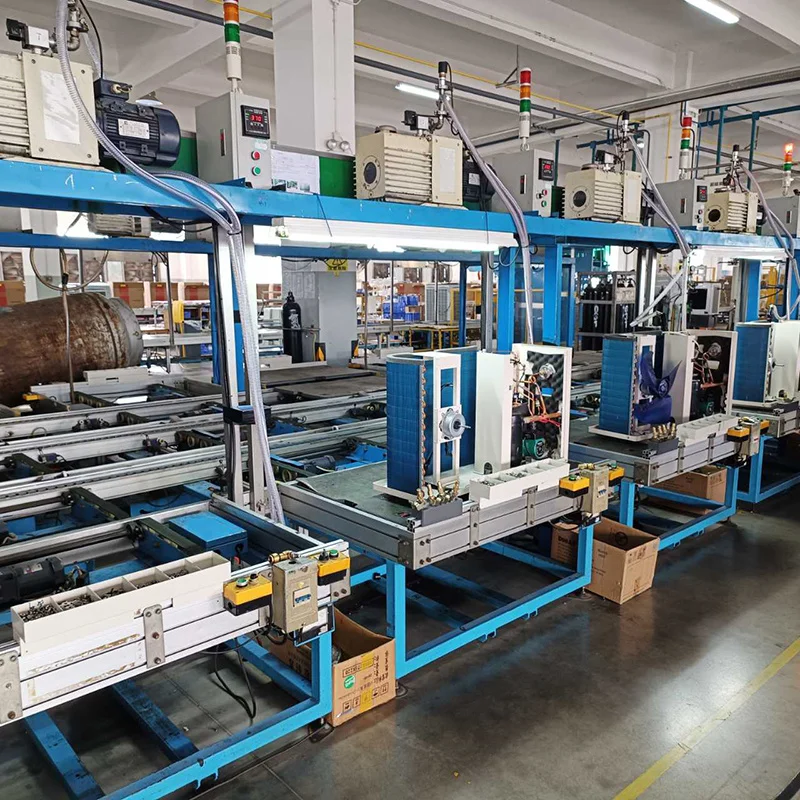

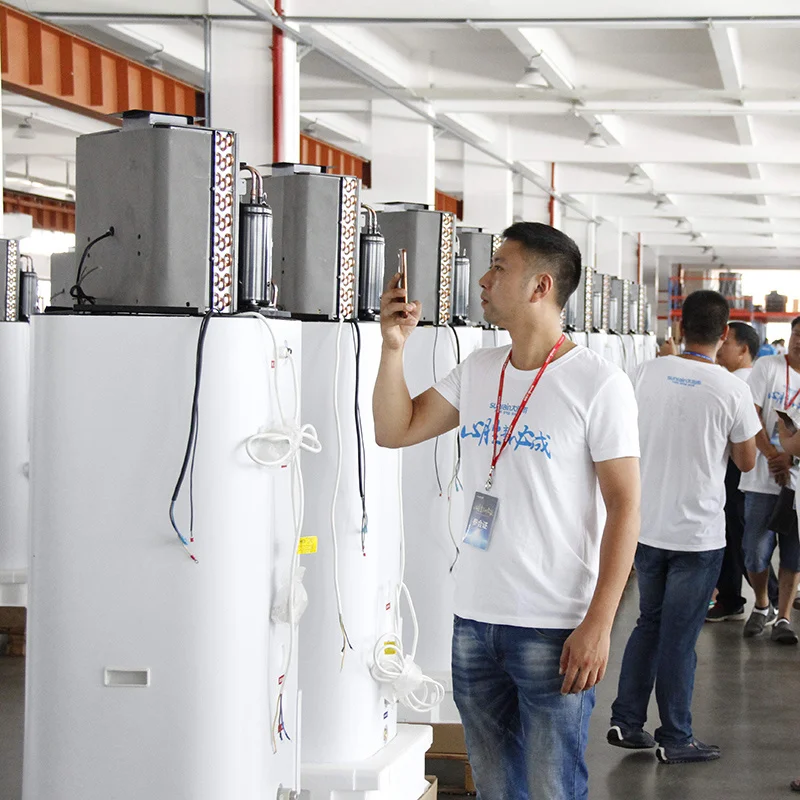

Company Introduction
Jiangsu Sunrain is a listed company engaged in renewable energy products for more than 26 years. We have 6 production bases with annual turnover of more than 6 billion. Sunrain can supply a full range of air source heat pumps and heat pump components, like air to water heat pump water heaters, all in one heat pumps, split heat pump water heaters system, swimming pool heat pumps, commercial heat pump and monoblock heat pump for domest heating. It is more safe and flexible to do business with Sunrain.
After Sales Service
a. 2 years warranty for the whole heat pump
b. Free spare parts provided
c. OEM ODM project solution service available
b. Free spare parts provided
c. OEM ODM project solution service available
