Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
Bodor High Performance T Series 1500w High Speed Laser Cutter for Metal Tubes Efficient and Reliable
- Category: >>>
- Supplier: Jinan Bodor CNC Machine Co. Ltd.
Share on (1601197830399):
Product Overview
Description
Marketing Campaign
5-year warranty offer
When purchasing a new Bodor laser
cutting machine, you can enjoy the exclusive 5-year warranty for our Bodor laser core parts (laser source BodorPower, laser head
BodorGenius, control system BodorThinker).
cutting machine, you can enjoy the exclusive 5-year warranty for our Bodor laser core parts (laser source BodorPower, laser head
BodorGenius, control system BodorThinker).
Safeguarding your metal cutting success
A reliable and valuable warranty gives your metal cutting process and business a promise of long-term succes. That's why we want
to help you protect your investment and ensure your productivity by extending the warranty for you.
to help you protect your investment and ensure your productivity by extending the warranty for you.
Product Overview
All-round fiber laser metal tube cutting machine
Multiple function options help the laser tube cutting machine be used in numerous tube cutting processes.
Model | T2 | T3 | |
Effective Tube Cutting Length | 6500mm/9200mm | 6500mm/9200mm | |
Laser Output Power | 6000w/3000w/1500w | ||
Effective Round Tube Cutting Diameter | Φ8-230mm | Φ20-350mm | |
Effective Square Tube Cutting Diameter | □8*8-□230*230mm | □20*20-□350*350mm | |
Rectangular tube Edge Length | 8-230mm | 20-350mm | |
X/Y-axis positioning accuracy | 0.05mm | ||
X/Y-axis repositioning accuracy | 0.03mm | ||

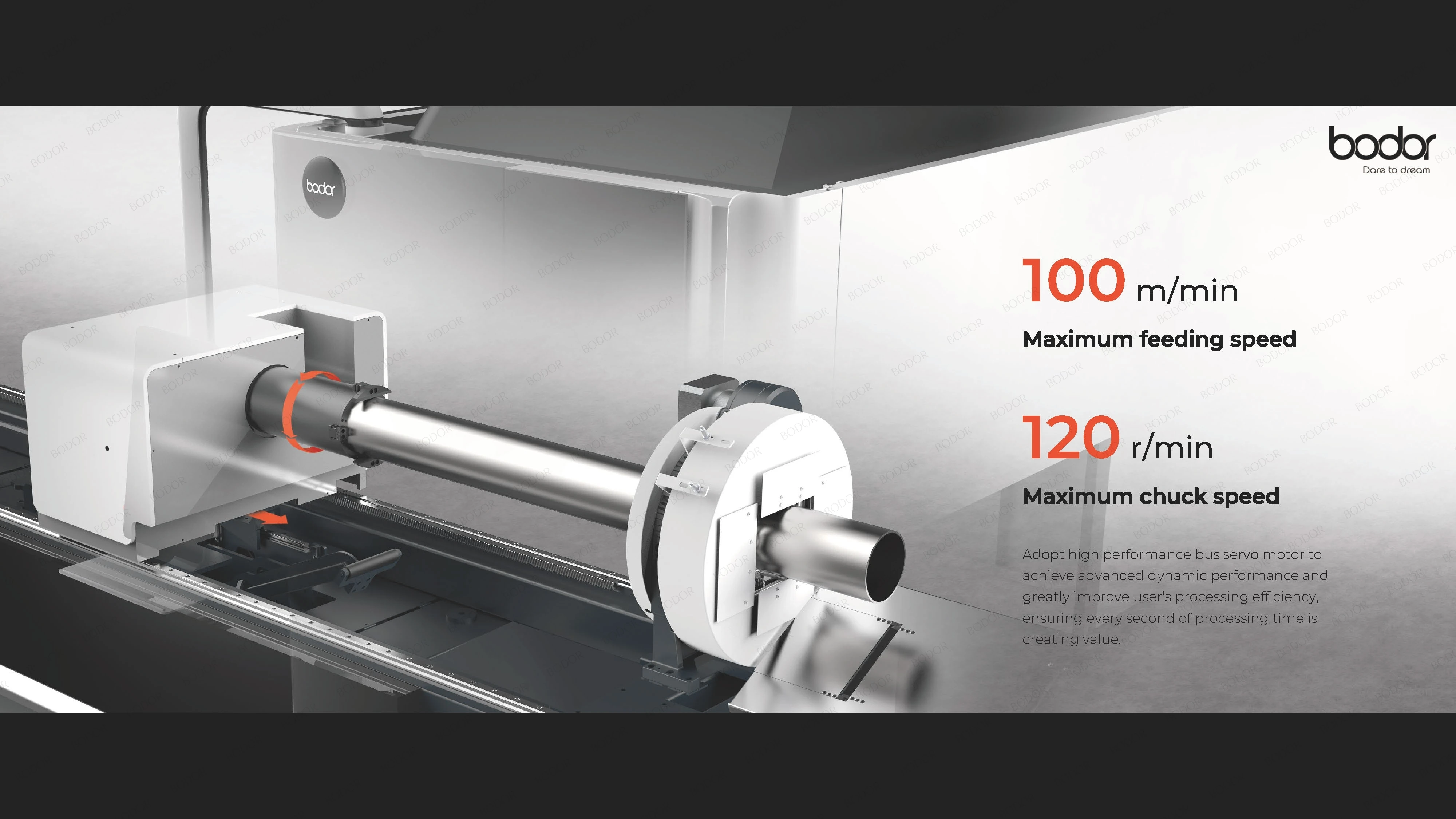

X axis maximum speed | 140m/min | 100m/min | |
Y axis maximum speed | 100m/min | 90m/min | |

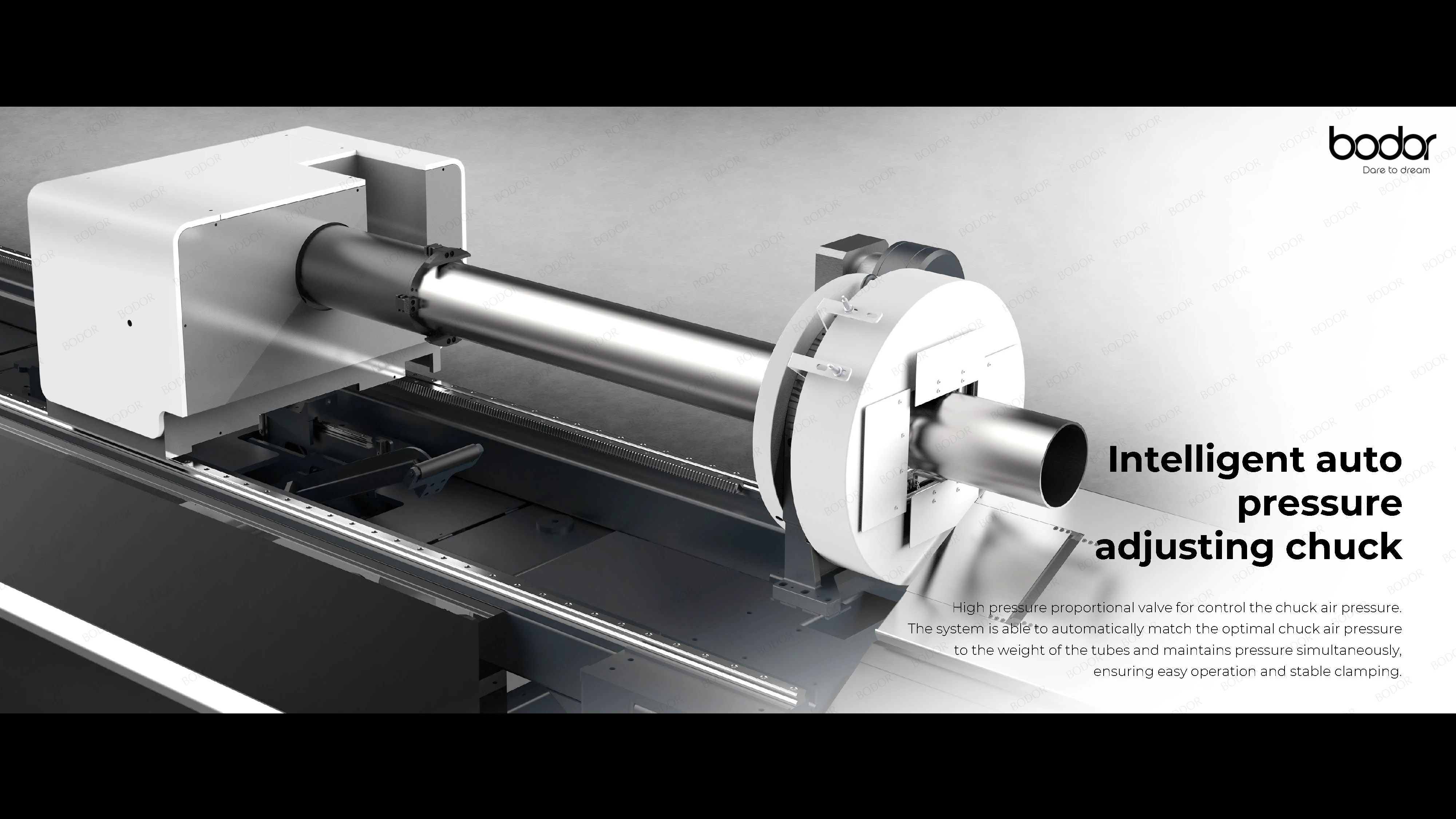

Penumatic Chuck
Cutting machine clamping becomes convenient, easy and fast, with 3 seconds at the soonest to clamp and high repeat precision
Angle Steel and Channel Steel Cutting
Angle steel and channel steel cutting are standard with no need fior additional installation.
Four-side Edge Searching, Higher Precision
Optimized edge searching method and algorithm guarantee higher cutting precision and better steadiness of the laser cutter.
BodorThinker
BodorThinker is a high-end intelligent control system for a CNC laser cutter, featuring reliable stability, convenient
installation and adjustment, safe production, multiple functionality, and robust performance. With BodorThinker, your laser cutting solutions can be modular, customized, automated and information-based.
installation and adjustment, safe production, multiple functionality, and robust performance. With BodorThinker, your laser cutting solutions can be modular, customized, automated and information-based.

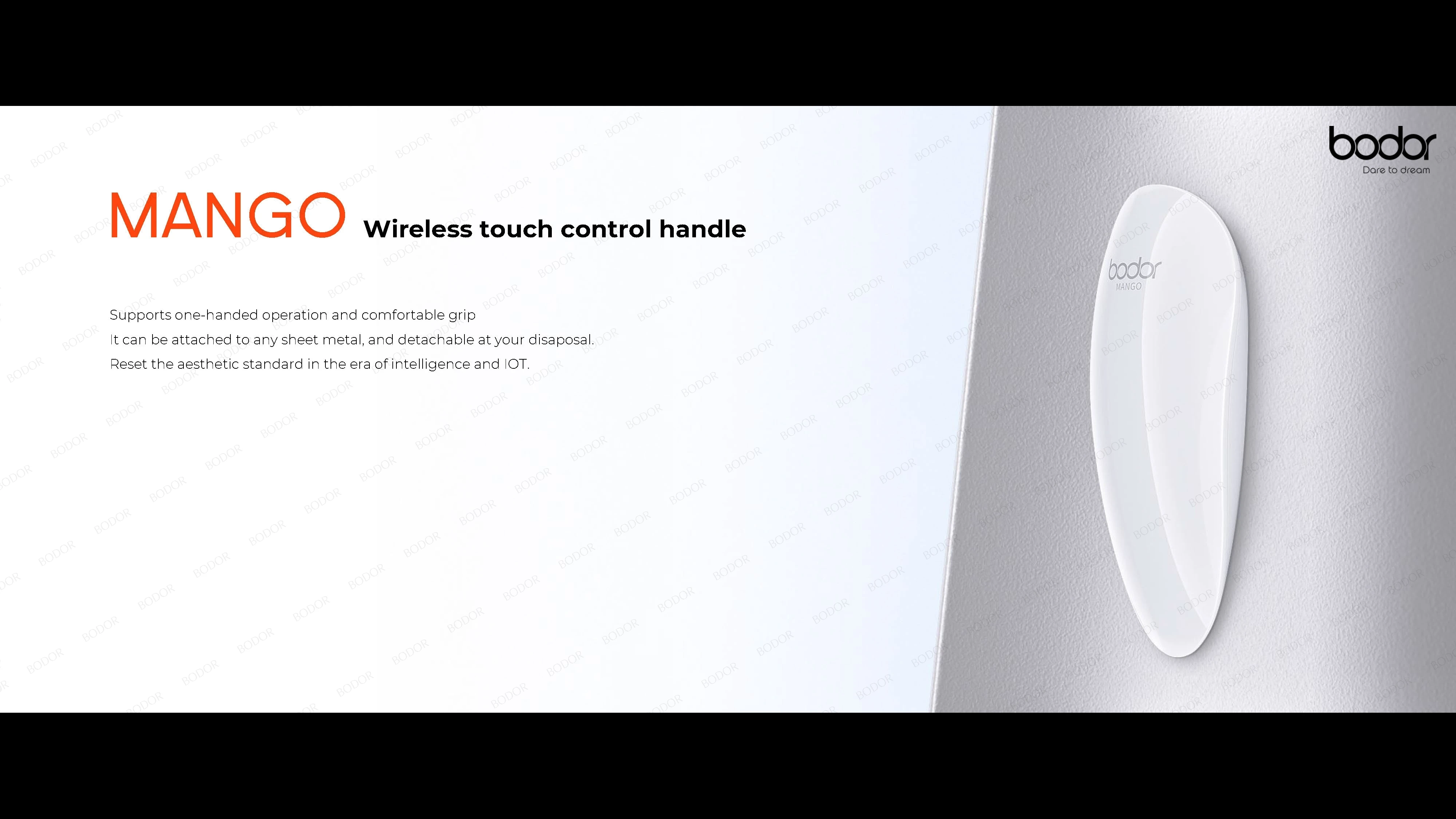

Remote Control
A mango shape and convenient magnetic securing help you control with just one hand

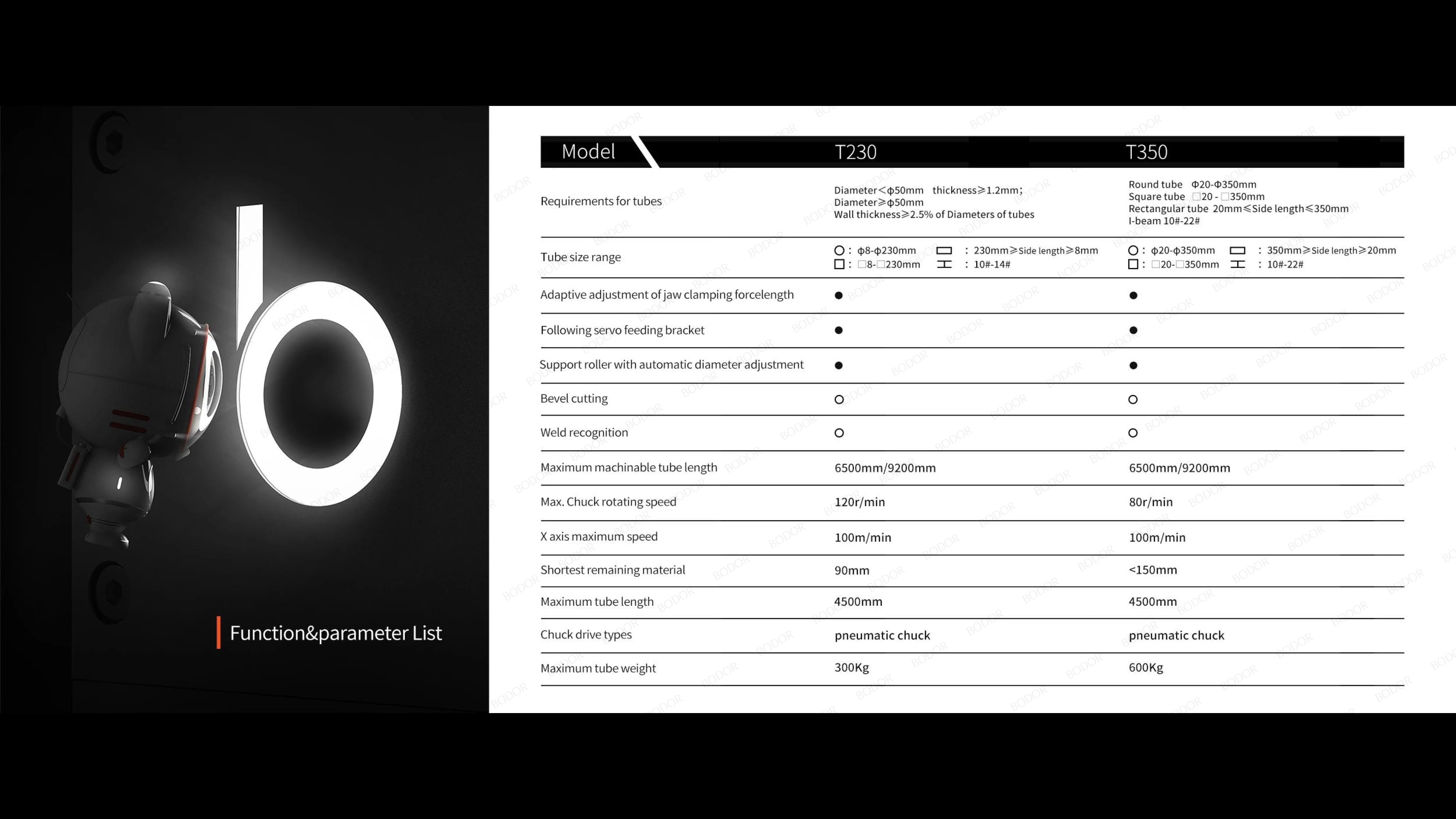

PRODUCT SPECIFICATIONS
PRODUCT CONFIGURATION
Six-in-one laser technology full ecology
Fully self-devloped BodorThinker control system, BodorNest nesting software, BodorGenius laser head and BodorPower laser source matched with MES system and Bodordrive drive system, enabling stable operation of the machine, with premium quaility cuts and incredible working efficiency.
SALES AND SERVICE NETWORK
Cutting Samples
Applicable to cutting carbon steel, stainless steel, aluminum, copper, alloy metals, etc.
Company Introduction
International Brand, European Quality, Intelligent Manufacturing in China
Title goes here.
Founded in 2008, Bodor Inc. is an international intelligent and automated laser cutting and welding solution provider for automobiles, aviation, medical care, electronics, metal processing, and various industries. With more than 2,000 employees worldwide, including 300+ dedicated to R&D, its service scope spans over 180 countries and regions. The global service centers and engineers provide customers with 24/7 timely support, maintaining long-term and stable partnerships with a variety of manufacturing enterprises. Bodor has launched more than 100 laser products covering the power range from 1.5kW to 60kW, including sheets, tubes, coils, sheet-and-tube integrated laser cutting machines, laser welders, and automation devices.
Bodor offers flagship machines with ultra-high configuration, speed, and precision, high-performance machines that lead the development of the industry, and economical machines with high quality, high performance, high security, and great experience.
From 2019 to 2022, Bodor has been leading the global sales volume of laser cutting machines for four consecutive years.
Maintaining a reputable partner, Bodor also provides laser solutions to numerous international events.
Bodor offers flagship machines with ultra-high configuration, speed, and precision, high-performance machines that lead the development of the industry, and economical machines with high quality, high performance, high security, and great experience.
From 2019 to 2022, Bodor has been leading the global sales volume of laser cutting machines for four consecutive years.
Maintaining a reputable partner, Bodor also provides laser solutions to numerous international events.
Super Factory, International Quality
The white floor & the largest monomer laser cutting equipment production workshop in the world (30,000 square meters); Production
meets the European standards and international quality control, obtains certificates such as CE/ISO9001/SGS etc.
meets the European standards and international quality control, obtains certificates such as CE/ISO9001/SGS etc.
Listed company, serving the world
(Offering more than 150 countries and regions)
(Offering more than 150 countries and regions)
