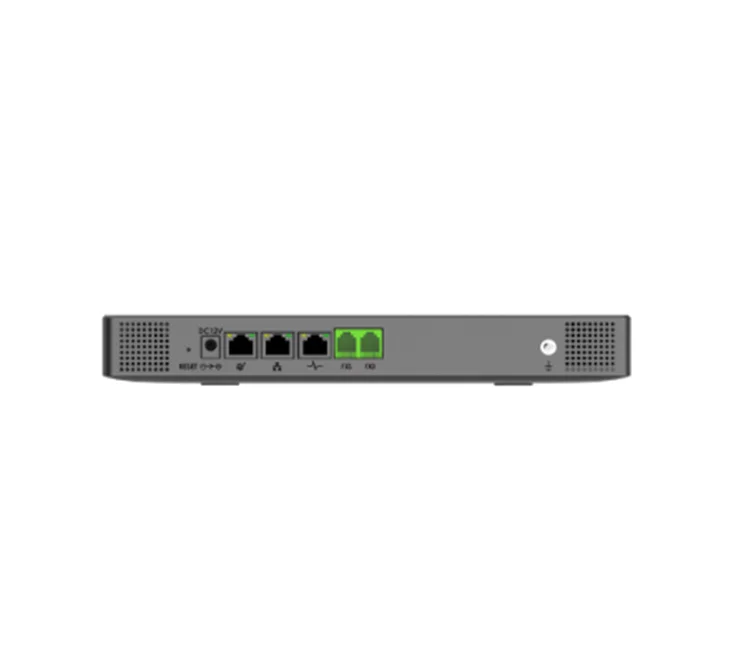

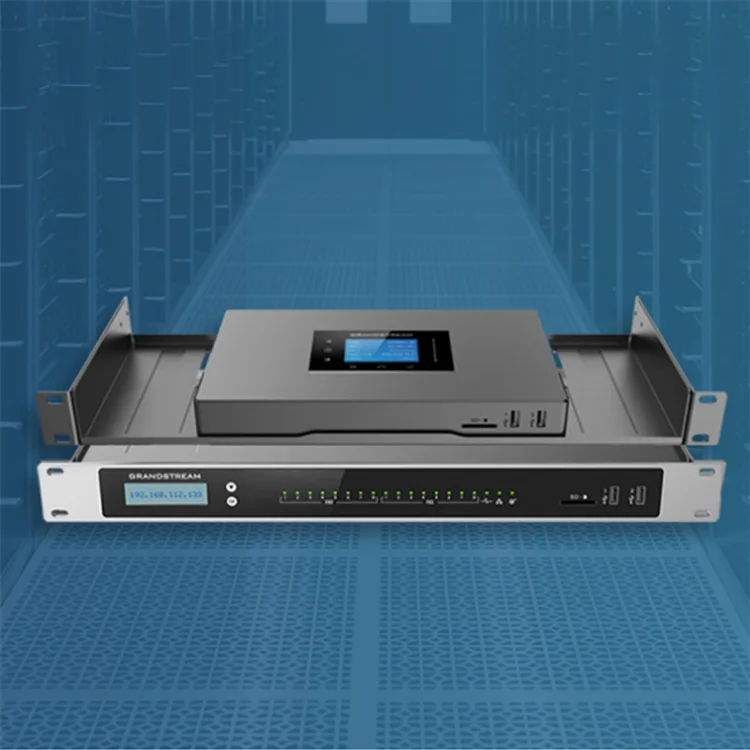

Unified Communication & Collaboration Solution IP PBX UCM6300 Audio Series Grandstream UCM6302
- Category: >>>
- Supplier: Shenzhen Rongchengxing Technology Co. Ltd.
Share on (1601197851295):
Product Overview
Description
Description

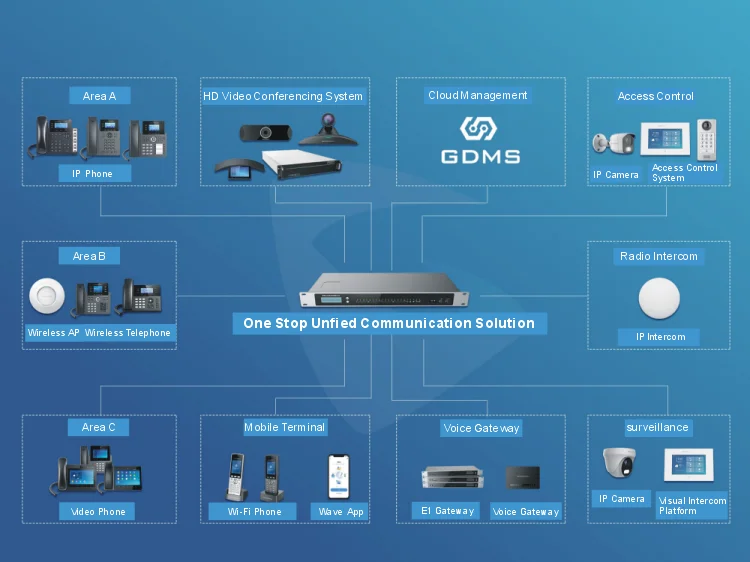

This series of IP PBXs provide a platform that unifies all business communication on one centralized network, including voice, video calling, video conferencing, video surveillance, web meetings, data, analytics, mobility, facility access, intercoms and more.
Features
* Supports up to 3000 users and up to 450 concurrent calls
* Zero configuration provisioning of Grandstream SIP endpoints
* Built-in conferencing & meetings platform; supports desktop, Wave app, and SIP endpoints
* Wave for Android, iOS, Chrome and Firefox browsers allows communication with all UCM6300 users & solutions
* API available for third-party integrations, including CRM and PMS platforms
* Advanced security protection with secure boot, unique certificate and random default password to protect calls and accounts
* Three Gigabit auto-sensing RJ45 network ports with integrated PoE+ and support NAT router
* Automated NAT firewall traversal service facilitates secure remote connections
* Supports Full-Band Opus voice codec and H.264/H.263/ H.263+/H.265/VP8 video codec, jitter resilience up to 50% packet loss
* Compatible with GDMS for cloud setup, management and monitoring
* Based on Asterisk* version 16 open source telephony operating system
* Zero configuration provisioning of Grandstream SIP endpoints
* Built-in conferencing & meetings platform; supports desktop, Wave app, and SIP endpoints
* Wave for Android, iOS, Chrome and Firefox browsers allows communication with all UCM6300 users & solutions
* API available for third-party integrations, including CRM and PMS platforms
* Advanced security protection with secure boot, unique certificate and random default password to protect calls and accounts
* Three Gigabit auto-sensing RJ45 network ports with integrated PoE+ and support NAT router
* Automated NAT firewall traversal service facilitates secure remote connections
* Supports Full-Band Opus voice codec and H.264/H.263/ H.263+/H.265/VP8 video codec, jitter resilience up to 50% packet loss
* Compatible with GDMS for cloud setup, management and monitoring
* Based on Asterisk* version 16 open source telephony operating system

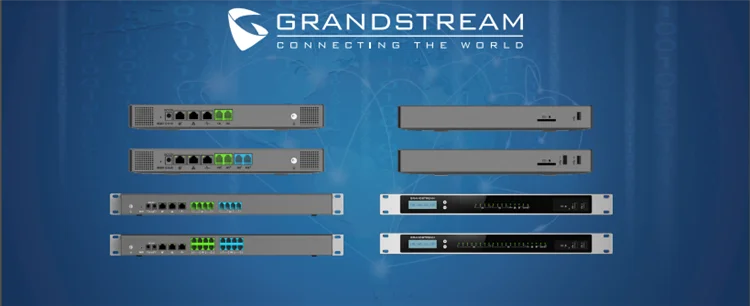

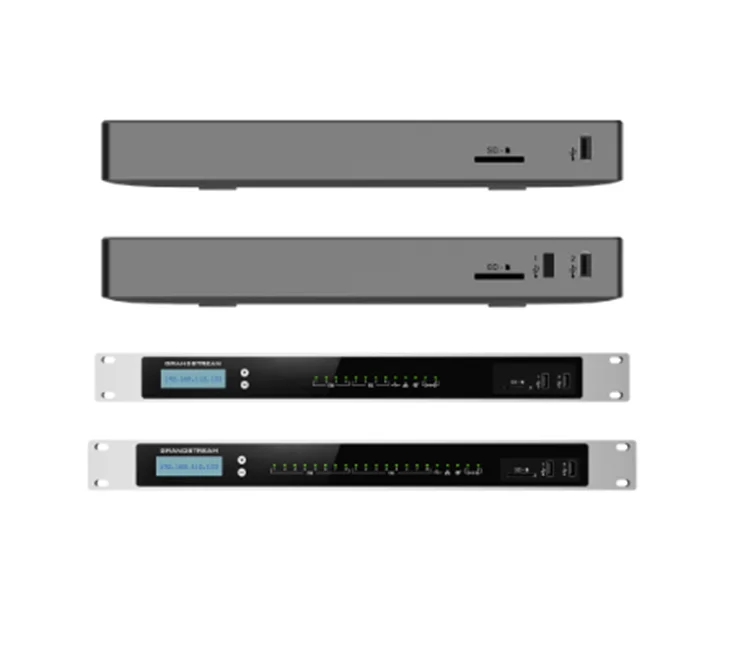

UCM6301 | UCM6302 | UCM6304 | UCM6308 | |
Analog Telephone FXS Ports | 1 RJ11 Port | 2 RJ11 Ports | 4 RJ11 Ports | 8 RJ11 Ports |
Analog Telephone FXS Ports | All ports have lifeline capability in case of power outage; number of ports can be expanded by peering with an FXS gateway | All ports have lifeline capability in case of power outage; number of ports can be expanded by peering with an FXS gateway | All ports have lifeline capability in case of power outage; number of ports can be expanded by peering with an FXS gateway | All ports have lifeline capability in case of power outage; number of ports can be expanded by peering with an FXS gateway |
PSTN Line FXO Ports | 1 RJ11 Port | 2 RJ11 Ports | 4 RJ11 Ports | 8 RJ11 Ports |
PSTN Line FXO Ports | All ports have lifeline capability in case of power outage; number of ports can be expanded by peering with an FXO gateway | All ports have lifeline capability in case of power outage; number of ports can be expanded by peering with an FXO gateway | All ports have lifeline capability in case of power outage; number of ports can be expanded by peering with an FXO gateway | All ports have lifeline capability in case of power outage; number of ports can be expanded by peering with an FXO gateway |
Network Interfaces | Three self-adaptive Gigabit ports (switched, routed or dual mode) with PoE+ | Three self-adaptive Gigabit ports (switched, routed or dual mode) with PoE+ | Three self-adaptive Gigabit ports (switched, routed or dual mode) with PoE+ | Three self-adaptive Gigabit ports (switched, routed or dual mode) with PoE+ |
NAT Router | Yes (supports router mode and switch mode) | Yes (supports router mode and switch mode) | Yes (supports router mode and switch mode) | Yes (supports router mode and switch mode) |
Peripheral Ports | 1*USB 3.0, 1*SD card interface | 1*USB 2.0, 1*USB 3.0, 1*SD card interface | 2*USB 3.0, 1*SD card interface | 2*USB 3.0, 1*SD card interface |
LED Indicators | None | None | Power 1/2, FXS, FXO, LAN, WAN, Heartbeat | Power 1/2, FXS, FXO, LAN, WAN, Heartbeat |
LCD Display | 320x240 color LCD with touch screen for Shortcut Keys and Scroll Bar | 320x240 color LCD with touch screen for Shortcut Keys and Scroll Bar | 128x32 dot matrix graphic LCD with DOWN and OK buttons | 128x32 dot matrix graphic LCD with DOWN and OK buttons |
Reset Switch | Yes, long press for factory reset and short press for reboot | Yes, long press for factory reset and short press for reboot | Yes, long press for factory reset and short press for reboot | Yes, long press for factory reset and short press for reboot |
Voice-over-Packet Capabilities | LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711, NetEQ, FEC 2.0,jitter resilience up to 50% audio packet loss | LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711, NetEQ, FEC 2.0,jitter resilience up to 50% audio packet loss | LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711, NetEQ, FEC 2.0,jitter resilience up to 50% audio packet loss | LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711, NetEQ, FEC 2.0,jitter resilience up to 50% audio packet loss |
Voice and Fax Codecs | Opus, G.711 A-law/U-law, G.722, G722.1 G722.1C, G.723.1 5.3K/6.3K, G.726-32, G.729A/B, iLBC, GSM; T.38 | Opus, G.711 A-law/U-law, G.722, G722.1 G722.1C, G.723.1 5.3K/6.3K, G.726-32, G.729A/B, iLBC, GSM; T.38 | Opus, G.711 A-law/U-law, G.722, G722.1 G722.1C, G.723.1 5.3K/6.3K, G.726-32, G.729A/B, iLBC, GSM; T.38 | Opus, G.711 A-law/U-law, G.722, G722.1 G722.1C, G.723.1 5.3K/6.3K, G.726-32, G.729A/B, iLBC, GSM; T.38 |
Video Codecs | H.264, H.263, H263+, VP8 | H.264, H.263, H263+, VP8 | H.264, H.263, H263+, VP8 | H.264, H.263, H263+, VP8 |
QoS | Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS | Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS | Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS | Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS |
API | Full API available for third-party platform and application integration | Full API available for third-party platform and application integration | Full API available for third-party platform and application integration | Full API available for third-party platform and application integration |
Telephony Operating System | Based on Asterisk version 16 | Based on Asterisk version 16 | Based on Asterisk version 16 | Based on Asterisk version 16 |
DTMF Methods | In-band audio, RFC2833, and SIP INFO | In-band audio, RFC2833, and SIP INFO | In-band audio, RFC2833, and SIP INFO | In-band audio, RFC2833, and SIP INFO |
Provisioning Protocol & Plug-and-Play | Mass provisioning using AES encrypted XML configuration file, auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk | Mass provisioning using AES encrypted XML configuration file, auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk | Mass provisioning using AES encrypted XML configuration file, auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk | Mass provisioning using AES encrypted XML configuration file, auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk |
Network Protocols | SIP, TCP/UDP/IP, RTP/RTCP, IAX, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, STUN, SRTP, TLS, LDAP, HDLC, HDLC-ETH, PPP, Frame Relay (pending), IPv6, OpenVPN® | SIP, TCP/UDP/IP, RTP/RTCP, IAX, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, STUN, SRTP, TLS, LDAP, HDLC, HDLC-ETH, PPP, Frame Relay (pending), IPv6, OpenVPN® | SIP, TCP/UDP/IP, RTP/RTCP, IAX, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, STUN, SRTP, TLS, LDAP, HDLC, HDLC-ETH, PPP, Frame Relay (pending), IPv6, OpenVPN® | SIP, TCP/UDP/IP, RTP/RTCP, IAX, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, STUN, SRTP, TLS, LDAP, HDLC, HDLC-ETH, PPP, Frame Relay (pending), IPv6, OpenVPN® |
Disconnect Methods | Busy/Congestion/Howl Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect | Busy/Congestion/Howl Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect | Busy/Congestion/Howl Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect | Busy/Congestion/Howl Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect |
Media Encryption | SRTP, TLS, HTTPS, SSH, 802.1X | SRTP, TLS, HTTPS, SSH, 802.1X | SRTP, TLS, HTTPS, SSH, 802.1X | SRTP, TLS, HTTPS, SSH, 802.1X |
Universal Power Supply | Input: 100 ~ 240VAC, 50/60Hz; Output: DC 12V, 1.5A | Input: 100 ~ 240VAC, 50/60Hz; Output: DC 12V, 1.5A | 2x DC 12V Power Jack Input: 100~240VAC, 50/60Hz;Output: DC 12V, 2A | 2x DC 12V Power Jack Input: 100~240VAC, 50/60Hz;Output: DC 12V, 2A |
Dimensions | 270mm(L) x 175mm(W) x 36mm(H) | 270mm(L) x 175mm(W) x 36mm(H) | 485mm(L) x 187.2mm(W) x 46.2mm(H) | 485mm(L) x 187.2mm(W) x 46.2mm(H) |
Weight | Unit Weight: 715g; Package Weight: 1211g | Unit Weight: 725g; Package Weight: 1221g | Unit Weight: 2490g; Package Weight: 3260g | Unit Weight: 2550g; Package Weight: 3320g |
Temperature & Humidity | Operating: 32 - 113ºF / 0 ~ 45ºC, Humidity 10 - 90% (non-condensing) Storage: 14 - 140ºF / -10 ~ 60ºC, Humidity 10 - 90% (non-condensing) | Operating: 32 - 113ºF / 0 ~ 45ºC, Humidity 10 - 90% (non-condensing) Storage: 14 - 140ºF / -10 ~ 60ºC, Humidity 10 - 90% (non-condensing) | Operating: 32 - 113ºF / 0 ~ 45ºC, Humidity 10 - 90% (non-condensing) Storage: 14 - 140ºF / -10 ~ 60ºC, Humidity 10 - 90% (non-condensing) | Operating: 32 - 113ºF / 0 ~ 45ºC, Humidity 10 - 90% (non-condensing) Storage: 14 - 140ºF / -10 ~ 60ºC, Humidity 10 - 90% (non-condensing) |
Mounting | Wall mount & Desktop | Wall mount & Desktop | Rack mount & Desktop | Rack mount & Desktop |
Multi-Language Support | -Web UI: English, Simplified Chinese, Traditional Chinese, Spanish, French, Portuguese, German, Russian, Italian, Polish, Czech, Turkish -Customizable IVR/voice prompts: English, Chinese, British English, German, Spanish, Greek, French, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Turkish, Hebrew, Arabic, Nederlands -Customizable language pack to support any otherlanguages | -Web UI: English, Simplified Chinese, Traditional Chinese, Spanish, French, Portuguese, German, Russian, Italian, Polish, Czech, Turkish -Customizable IVR/voice prompts: English, Chinese, British English, German, Spanish, Greek, French, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Turkish, Hebrew, Arabic, Nederlands -Customizable language pack to support any otherlanguages | -Web UI: English, Simplified Chinese, Traditional Chinese, Spanish, French, Portuguese, German, Russian, Italian, Polish, Czech, Turkish -Customizable IVR/voice prompts: English, Chinese, British English, German, Spanish, Greek, French, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Turkish, Hebrew, Arabic, Nederlands -Customizable language pack to support any otherlanguages | -Web UI: English, Simplified Chinese, Traditional Chinese, Spanish, French, Portuguese, German, Russian, Italian, Polish, Czech, Turkish -Customizable IVR/voice prompts: English, Chinese, British English, German, Spanish, Greek, French, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Turkish, Hebrew, Arabic, Nederlands -Customizable language pack to support any otherlanguages |
Caller ID | Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT | Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT | Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT | Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT |
Polarity Reversal/Wink | Yes, with enable/disable option upon call establishment and termination | Yes, with enable/disable option upon call establishment and termination | Yes, with enable/disable option upon call establishment and termination | Yes, with enable/disable option upon call establishment and termination |
Call Center | Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/ work-load, in-queue announcement | Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/ work-load, in-queue announcement | Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/ work-load, in-queue announcement | Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/ work-load, in-queue announcement |
Customizable Auto Attendant | Up to 5 layers of IVR (Interactive Voice Response) in multiple languages | Up to 5 layers of IVR (Interactive Voice Response) in multiple languages | Up to 5 layers of IVR (Interactive Voice Response) in multiple languages | Up to 5 layers of IVR (Interactive Voice Response) in multiple languages |
Maximum Call Capacity | Users: 500 Concurrent calls (G.711): 75 Max concurrent SRTP calls (G.711): 50 | Users: 1000 Concurrent calls (G.711): 150 Max concurrent SRTP calls (G.711): 100 | Users: 2000 Concurrent calls (G.711): 300 Max concurrent SRTP calls (G.711): 200 | Users: 3000 Concurrent calls (G.711): 450 Max concurrent SRTP calls (G.711): 300 |
Maximum Attendees of Conference Bridges | 4 Video Conference rooms and up to 20 parties with 1080p, assuming 4 video feeds + 1 screen sharing (H.264 & Opus) Voice Conference: Up to 75 parties (G.711) | 6 Video Conference rooms and up to 30 parties with 1080p, assuming 4 video feeds + 1 screen sharing (H.264 & Opus) Voice Conference: Up to 150 parties (G.711) | 8 Video Conference rooms and up to 60 parties with 1080p, assuming 4 video feeds + 1 screen sharing (H.264 & Opus) Voice Conference: Up to 200 parties (G.711) | 10 Video Conference rooms and up to 80 parties with 1080p, assuming 4 video feeds + 1 screen sharing (H.264 & Opus) Voice Conference: Up to 300 parties (G.711) |
Wave App | Free; Available for desktop (Windows 10+, Mac OS 10+), web (Firefox and Chrome Browsers) and mobile (Android & iOS), allows users to join UCM- hosted meetings/conferences, communicate with other users/solutions and make/receive calls using SIP accounts registered to a UCM6300 series IP PBX | Free; Available for desktop (Windows 10+, Mac OS 10+), web (Firefox and Chrome Browsers) and mobile (Android & iOS), allows users to join UCM- hosted meetings/conferences, communicate with other users/solutions and make/receive calls using SIP accounts registered to a UCM6300 series IP PBX | Free; Available for desktop (Windows 10+, Mac OS 10+), web (Firefox and Chrome Browsers) and mobile (Android & iOS), allows users to join UCM- hosted meetings/conferences, communicate with other users/solutions and make/receive calls using SIP accounts registered to a UCM6300 series IP PBX | Free; Available for desktop (Windows 10+, Mac OS 10+), web (Firefox and Chrome Browsers) and mobile (Android & iOS), allows users to join UCM- hosted meetings/conferences, communicate with other users/solutions and make/receive calls using SIP accounts registered to a UCM6300 series IP PBX |
Call Features | Call park, call forward, call transfer, call waiting, caller ID, call record, call history, ringtone, IVR, music on hold, call routes, DID, DOD, DND, DISA, ring group, ring simultaneously, time schedule, PIN groups, call queue, pickup group, paging/intercom, voicemail, call wakeup, SCA, BLF, voicemail to email, fax to email, speed dial, callback, dial by name, emergency call, call follow me, blacklist/whitelist, voice conference, video conference, eventlist, feature codes, busy camp-on/ call completion, voice control, post-meeting reports, virtual fax sending/receiving, email to fax | Call park, call forward, call transfer, call waiting, caller ID, call record, call history, ringtone, IVR, music on hold, call routes, DID, DOD, DND, DISA, ring group, ring simultaneously, time schedule, PIN groups, call queue, pickup group, paging/intercom, voicemail, call wakeup, SCA, BLF, voicemail to email, fax to email, speed dial, callback, dial by name, emergency call, call follow me, blacklist/whitelist, voice conference, video conference, eventlist, feature codes, busy camp-on/ call completion, voice control, post-meeting reports, virtual fax sending/receiving, email to fax | Call park, call forward, call transfer, call waiting, caller ID, call record, call history, ringtone, IVR, music on hold, call routes, DID, DOD, DND, DISA, ring group, ring simultaneously, time schedule, PIN groups, call queue, pickup group, paging/intercom, voicemail, call wakeup, SCA, BLF, voicemail to email, fax to email, speed dial, callback, dial by name, emergency call, call follow me, blacklist/whitelist, voice conference, video conference, eventlist, feature codes, busy camp-on/ call completion, voice control, post-meeting reports, virtual fax sending/receiving, email to fax | Call park, call forward, call transfer, call waiting, caller ID, call record, call history, ringtone, IVR, music on hold, call routes, DID, DOD, DND, DISA, ring group, ring simultaneously, time schedule, PIN groups, call queue, pickup group, paging/intercom, voicemail, call wakeup, SCA, BLF, voicemail to email, fax to email, speed dial, callback, dial by name, emergency call, call follow me, blacklist/whitelist, voice conference, video conference, eventlist, feature codes, busy camp-on/ call completion, voice control, post-meeting reports, virtual fax sending/receiving, email to fax |
Firmware Upgrade | Supported by Grandstream Device Management System (GDMS), a zero-touch cloud provisioning and management system, It provides a centralized interface to provision, manage, monitor and troubleshoot Grandstream products | Supported by Grandstream Device Management System (GDMS), a zero-touch cloud provisioning and management system, It provides a centralized interface to provision, manage, monitor and troubleshoot Grandstream products | Supported by Grandstream Device Management System (GDMS), a zero-touch cloud provisioning and management system, It provides a centralized interface to provision, manage, monitor and troubleshoot Grandstream products | Supported by Grandstream Device Management System (GDMS), a zero-touch cloud provisioning and management system, It provides a centralized interface to provision, manage, monitor and troubleshoot Grandstream products |
Internet Protocol Standards | RFC 3261, RFC 3262, RFC 3263, RFC 3264, RFC 3515, RFC 3311, RFC 4028. RFC 2976, RFC 3842, RFC 3892, RFC 3428, RFC 4733, RFC 4566, RFC 2617, RFC 3856, RFC 3711, RFC 4582, RFC 4583, RFC 5245, RFC 5389, RFC 5766, RFC 6347, RFC 6455, RFC 8860, RFC 4734, RFC 3665, RFC 3323, RFC 3550 | RFC 3261, RFC 3262, RFC 3263, RFC 3264, RFC 3515, RFC 3311, RFC 4028. RFC 2976, RFC 3842, RFC 3892, RFC 3428, RFC 4733, RFC 4566, RFC 2617, RFC 3856, RFC 3711, RFC 4582, RFC 4583, RFC 5245, RFC 5389, RFC 5766, RFC 6347, RFC 6455, RFC 8860, RFC 4734, RFC 3665, RFC 3323, RFC 3550 | RFC 3261, RFC 3262, RFC 3263, RFC 3264, RFC 3515, RFC 3311, RFC 4028. RFC 2976, RFC 3842, RFC 3892, RFC 3428, RFC 4733, RFC 4566, RFC 2617, RFC 3856, RFC 3711, RFC 4582, RFC 4583, RFC 5245, RFC 5389, RFC 5766, RFC 6347, RFC 6455, RFC 8860, RFC 4734, RFC 3665, RFC 3323, RFC 3550 | RFC 3261, RFC 3262, RFC 3263, RFC 3264, RFC 3515, RFC 3311, RFC 4028. RFC 2976, RFC 3842, RFC 3892, RFC 3428, RFC 4733, RFC 4566, RFC 2617, RFC 3856, RFC 3711, RFC 4582, RFC 4583, RFC 5245, RFC 5389, RFC 5766, RFC 6347, RFC 6455, RFC 8860, RFC 4734, RFC 3665, RFC 3323, RFC 3550 |

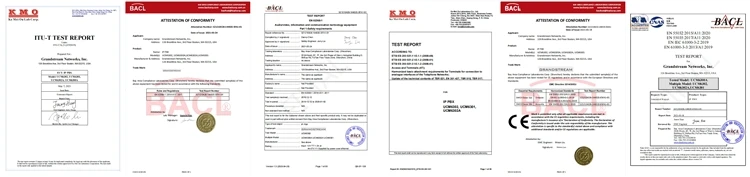

Compliance | FCC: Part 15 (CFR 47) Class B, Part 68 CE: EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 62368-1, ETSI ES 203 021, ITU-T K.21 IC: ICES-003, CS-03 Part I Issue 9 RCM: AS/NZS CISPR 32, AS/NZS 62368.1, AS/CA S002, AS/CA S003.1/.2 Power adapter: UL 60950-1 or UL 62368-1 | FCC: Part 15 (CFR 47) Class B, Part 68 CE: EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 62368-1, ETSI ES 203 021, ITU-T K.21 IC: ICES-003, CS-03 Part I Issue 9 RCM: AS/NZS CISPR 32, AS/NZS 62368.1, AS/CA S002, AS/CA S003.1/.2 Power adapter: UL 60950-1 or UL 62368-1 | FCC: Part 15 (CFR 47) Class B, Part 68 CE: EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 62368-1, ETSI ES 203 021, ITU-T K.21 IC: ICES-003, CS-03 Part I Issue 9 RCM: AS/NZS CISPR 32, AS/NZS 62368.1, AS/CA S002, AS/CA S003.1/.2 Power adapter: UL 60950-1 or UL 62368-1 | FCC: Part 15 (CFR 47) Class B, Part 68 CE: EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 62368-1, ETSI ES 203 021, ITU-T K.21 IC: ICES-003, CS-03 Part I Issue 9 RCM: AS/NZS CISPR 32, AS/NZS 62368.1, AS/CA S002, AS/CA S003.1/.2 Power adapter: UL 60950-1 or UL 62368-1 |

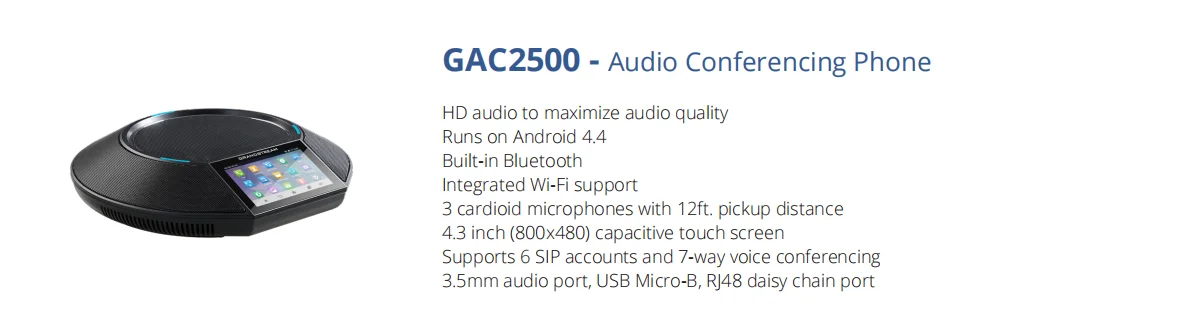

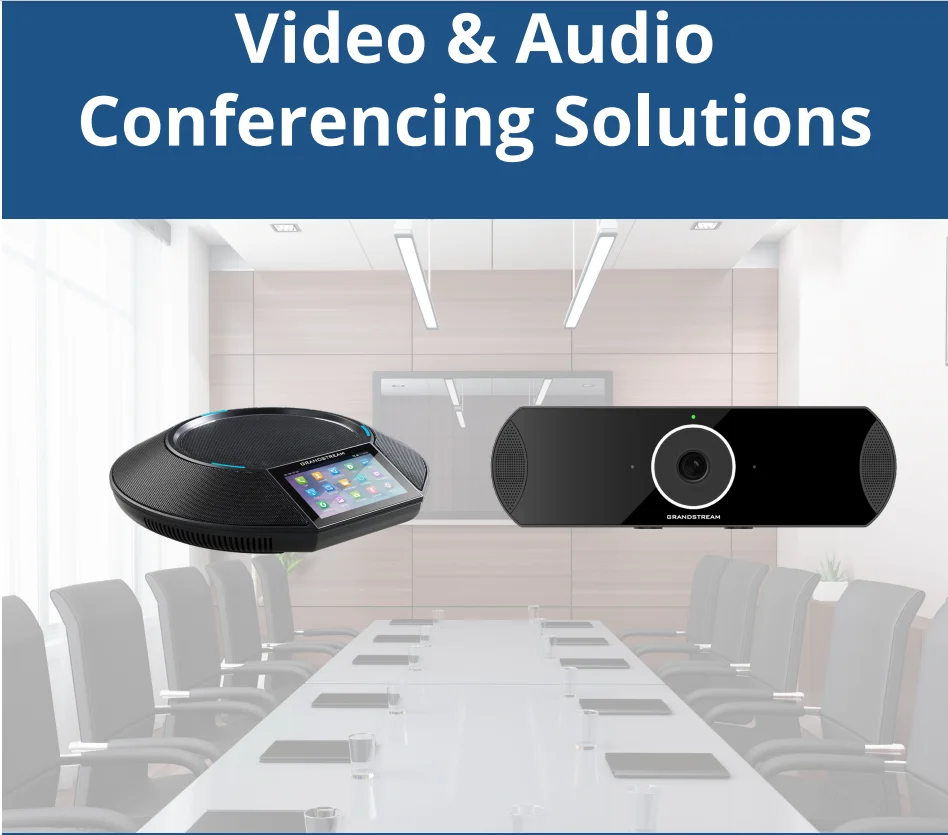

Audio video conferencing system

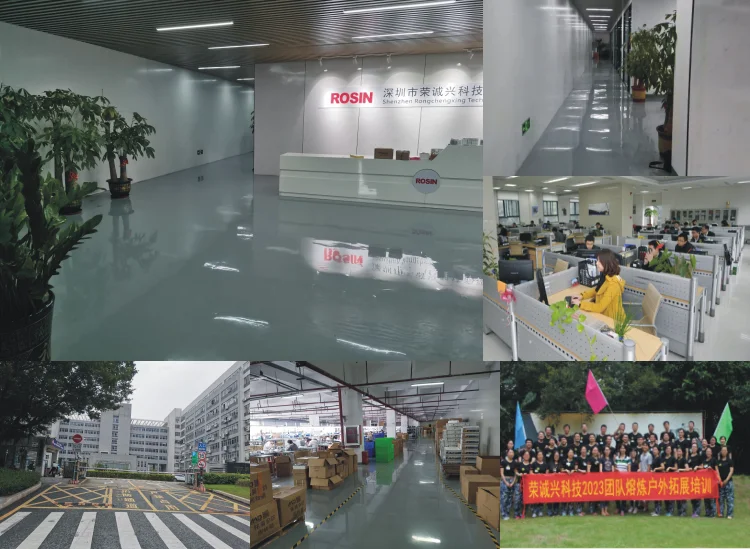

Shenzhen Rongchengxing Technology Co., Ltd. was founded in 2008, located in Shenzhen, the capital of science and technology innovation in China. It is one of the earliest companies engaged in the business of security electronic products and unified communication network solutions in China.
