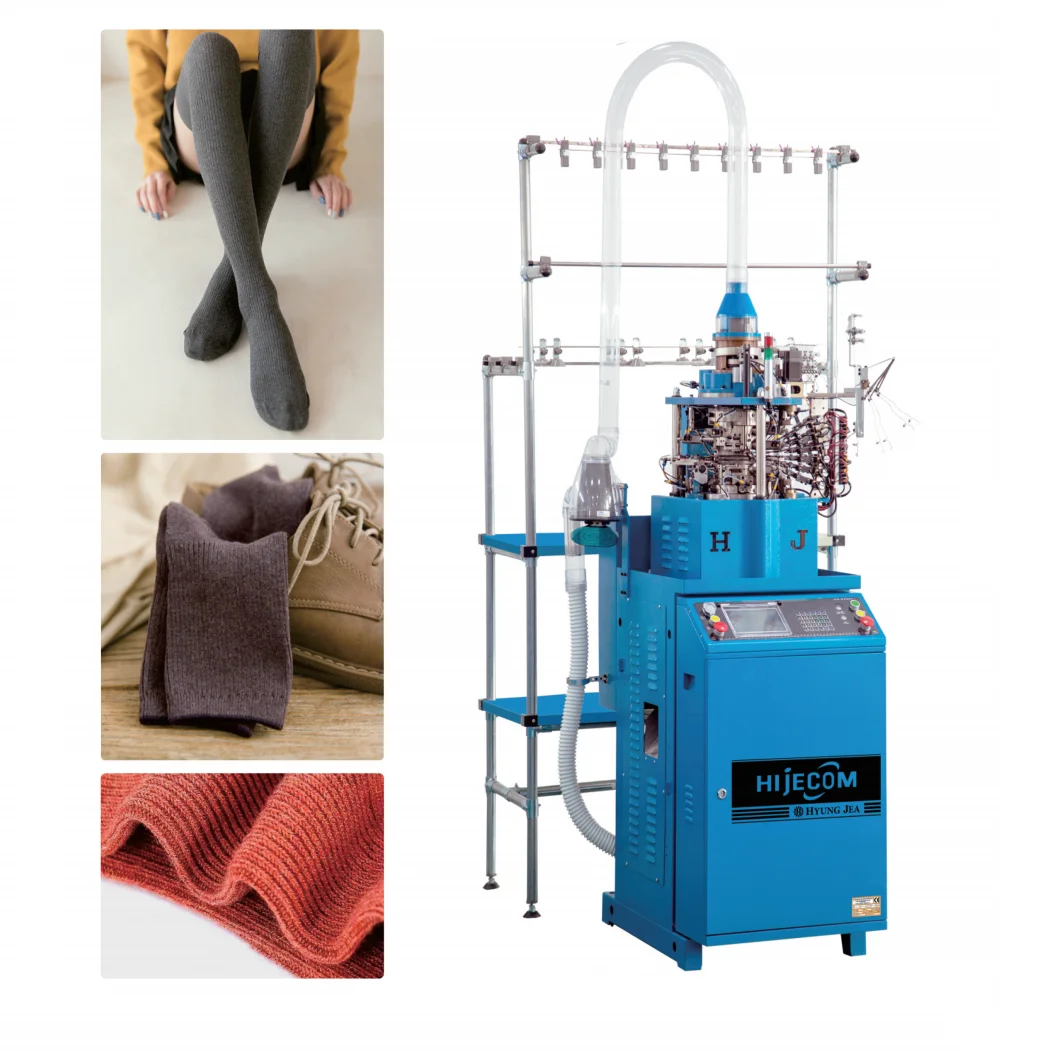

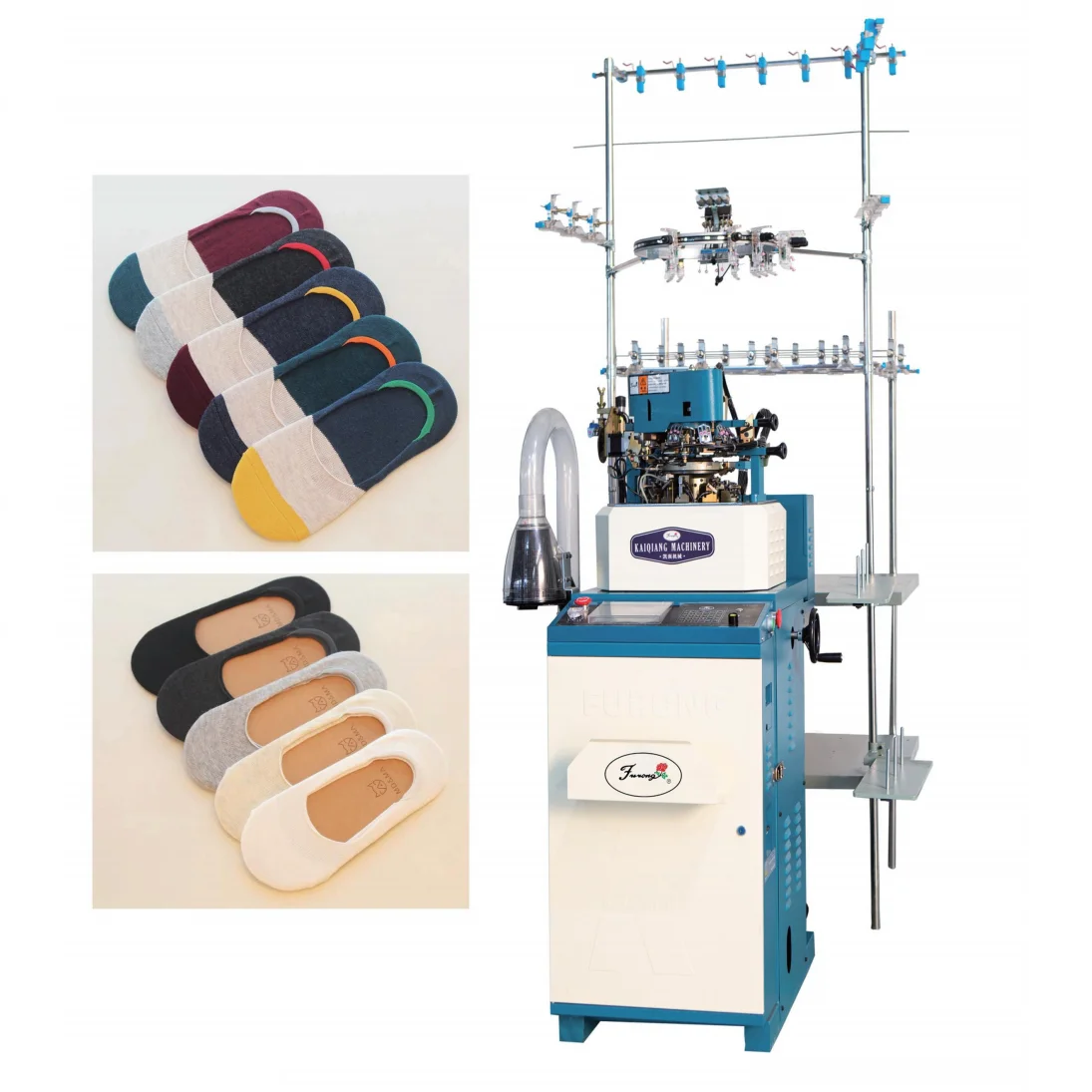

Single cylinder 6pcs electronic needles selections plain and jacquard automatic computerized plain socks knitting machine
Single cylinder 6pcs electronic needles selections plain and jacquard automatic computerized plain socks knitting machine
Single cylinder 6pcs electronic needles selections plain and jacquard automatic computerized plain socks knitting machine
Single cylinder 6pcs electronic needles selections plain and jacquard automatic computerized plain socks knitting machine
Single cylinder 6pcs electronic needles selections plain and jacquard automatic computerized plain socks knitting machine
Single cylinder 6pcs electronic needles selections plain and jacquard automatic computerized plain socks knitting machine
Single cylinder 6pcs electronic needles selections plain and jacquard automatic computerized plain socks knitting machine

Single cylinder 6pcs electronic needles selections plain and jacquard automatic computerized plain socks knitting machine

Share on (1601197877269):


Price:$3,400.00 - $3,500.00

Quantity:


Product Overview

Description

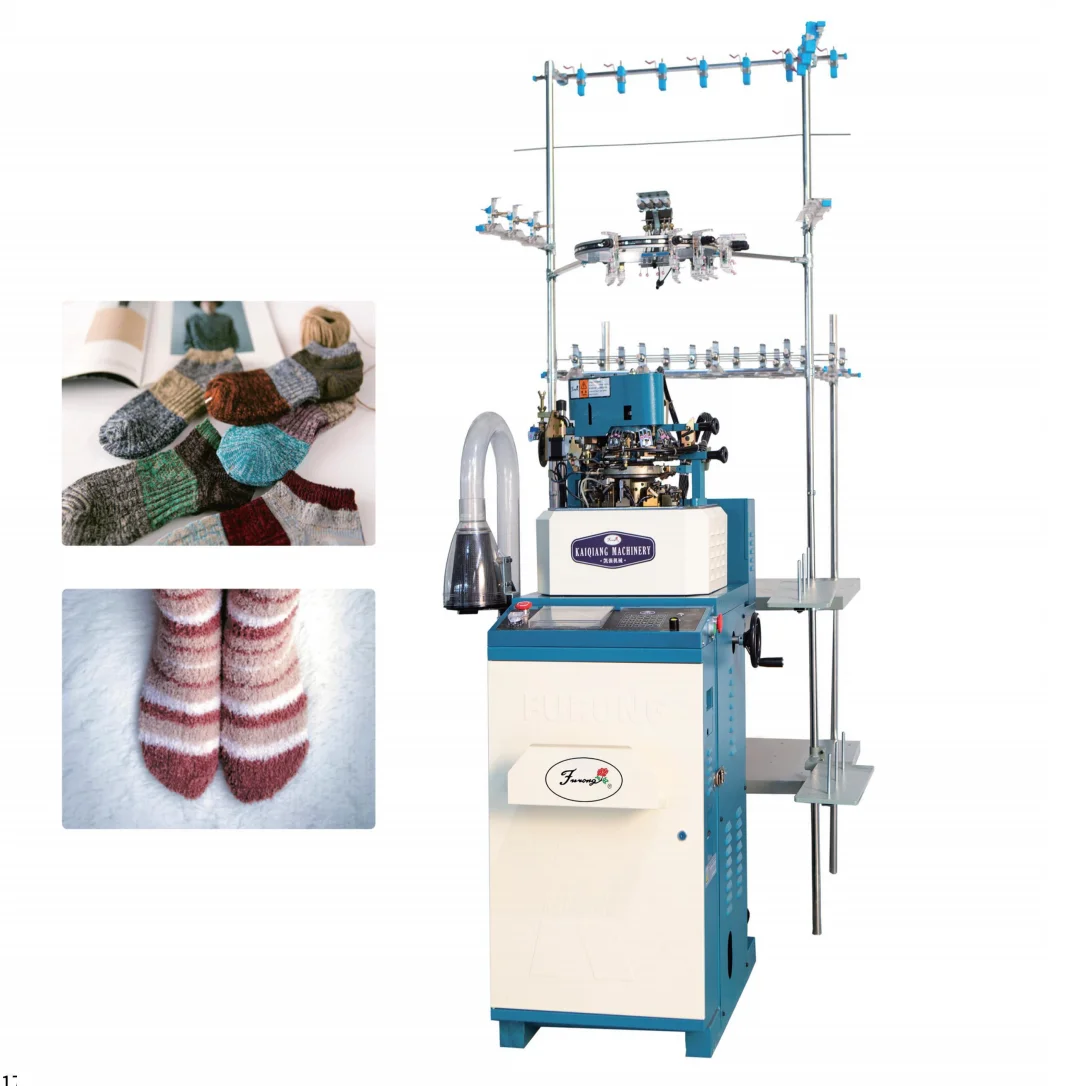

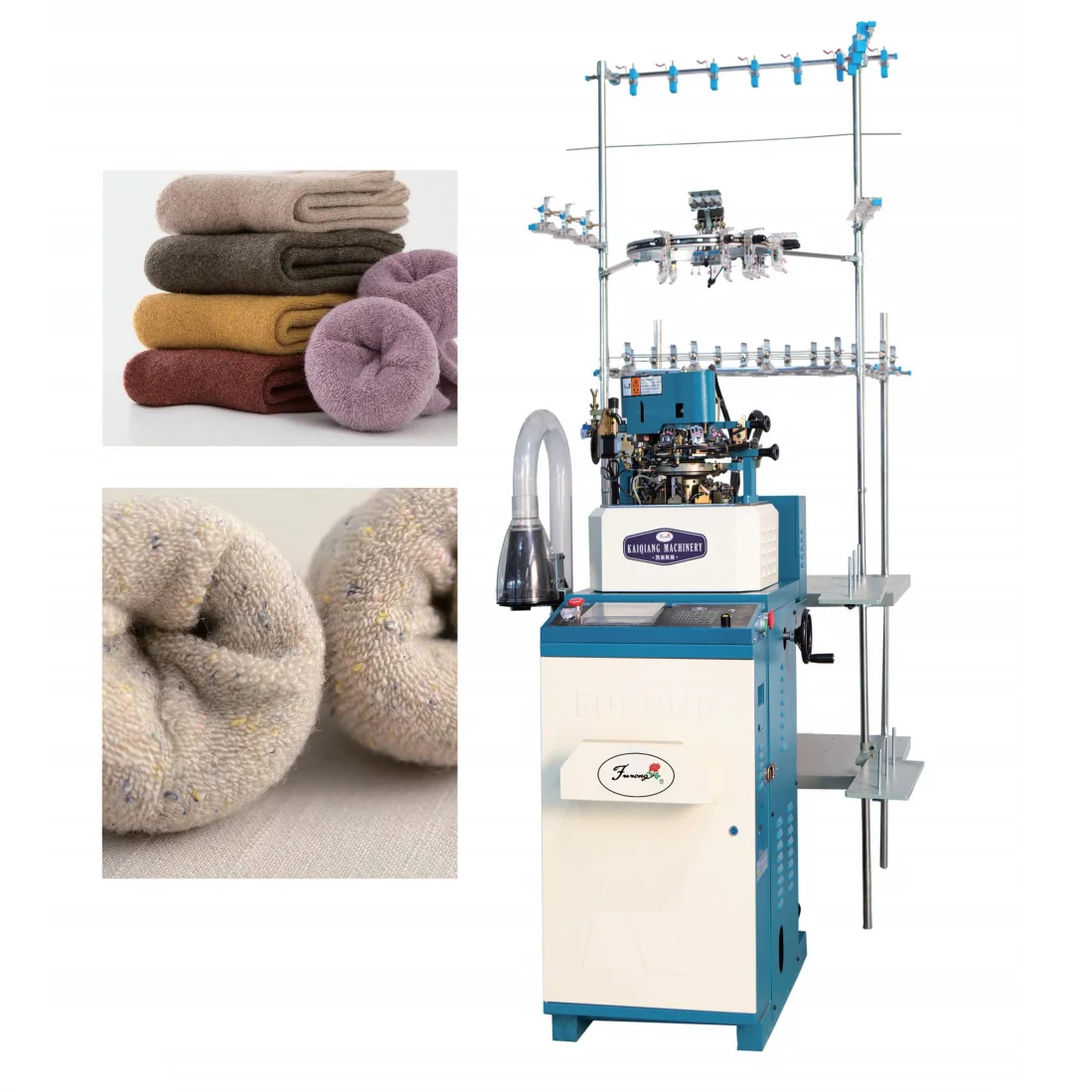

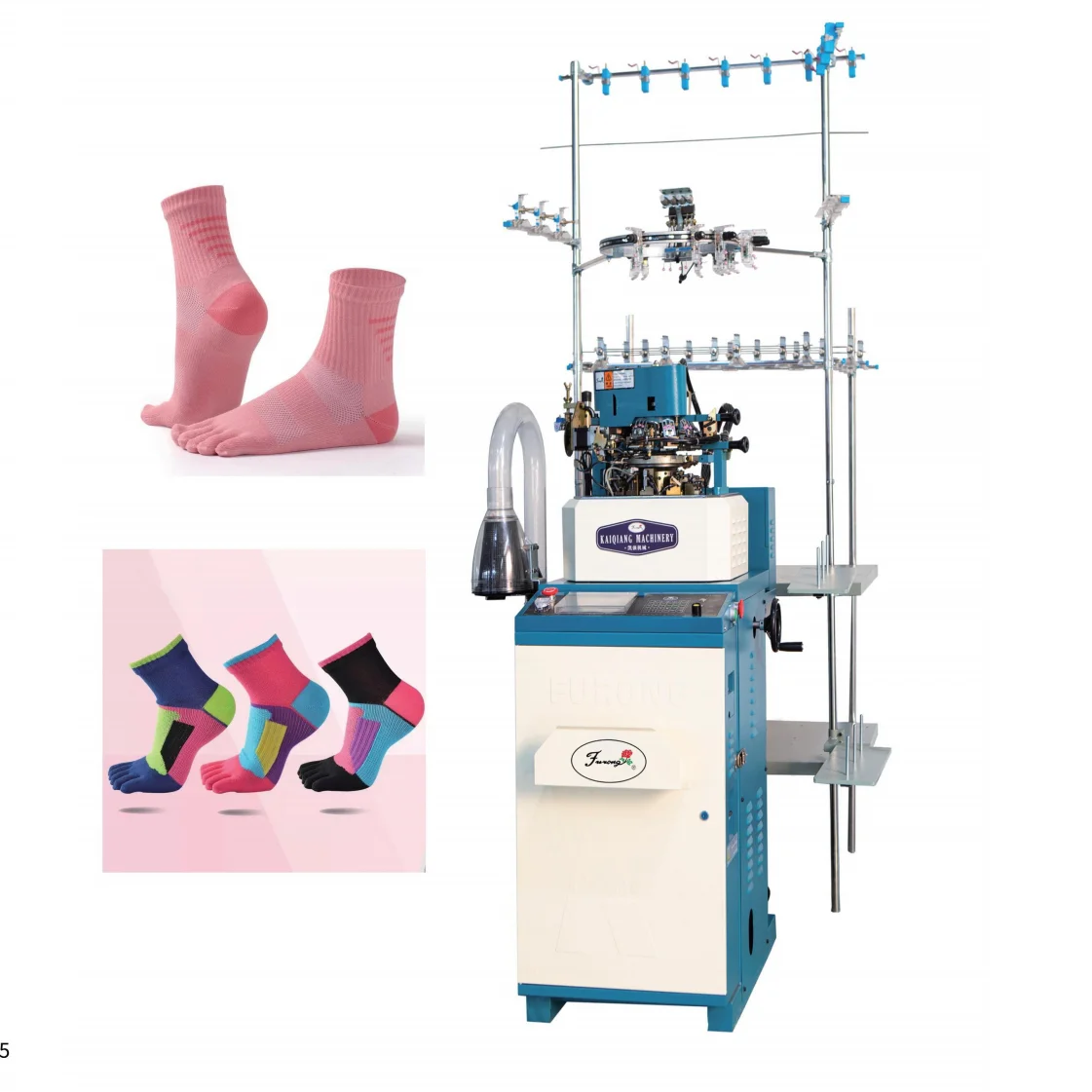

NINGBO HAOYUE Automatic Computerized Plain Socks Knitting Machine, Model: HY-6FBP.
HY-6FBP can be made:
1. By Way of Knitting: Plain Socks
2. By Sock Styles: Fashion Socks; Business Socks; Sports Socks; Casual Socks; Football Socks; Cycling Socks
3. By Sock Length: Ankle Socks; Knee High Socks; Over Knee High Socks
4. By Function: Mesh, Tuck Stitch, Rib, High Elastic Welt, Double Welt, Y Heel, Two-color Heel, five toe socks, left and right
socks, bottom toe sewing socks, Jacquard socks etc




Knitting Samples












Product Description


Specification parameter
Model
HY-6FBP
Cylinder Size
3.5 Inch
Number of Needles
84-220N
Working Speed
300-350 RPM for sock body
250-280 RPM for sock heel
Air Consumption
0.05-0.07m3 /Min-set
Air Pressure
0.6-0.7 MPa
Voltage
380V(3-phase)/220V(2-phase)
Main Motor Power
1KW
Fan Motor Powe
0.75KW
Computer Power
0.8KW
Weight
N.W./G.W. 240/280KGS
Machine size
1500*1200*2400mm
Package size
900*7500*1600mm
39 sets/40' gp; 18sets/20'gp


Technical Features
Designed to make normal plain socks
Designed to make normal plain socks
Maximun 6 colors in same course(include the main yarn)
Maximun 16 colors in one sock(include 3 colors of main yarn)
Using LCD and tuch screen, you can choose 10 different languages like Chinese, English, Russian, Farsi, Korean, Spanish, Japanese and so on
Using automatic oil lubricating system and high sensitive yarn breaking and needle breaking detector.
With UPS, It can save programs when power off
Can knit the heels and toes with different colors
Can choose double elastic motor
Can choose double main yarn feeder
Can make 3D socks


Detailed Images


Cylinder

Main Motor

Automatic lubrication

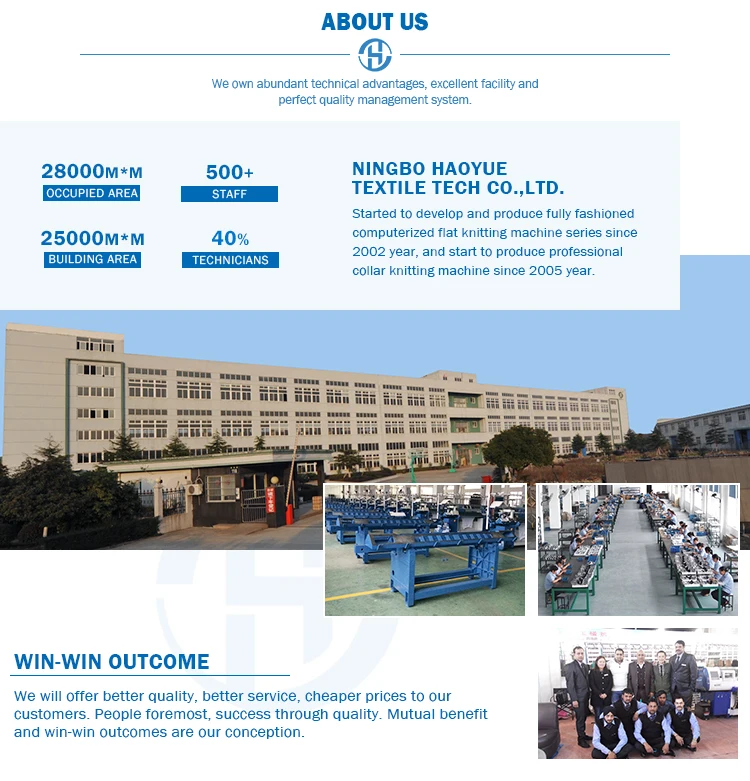

Company Introduction

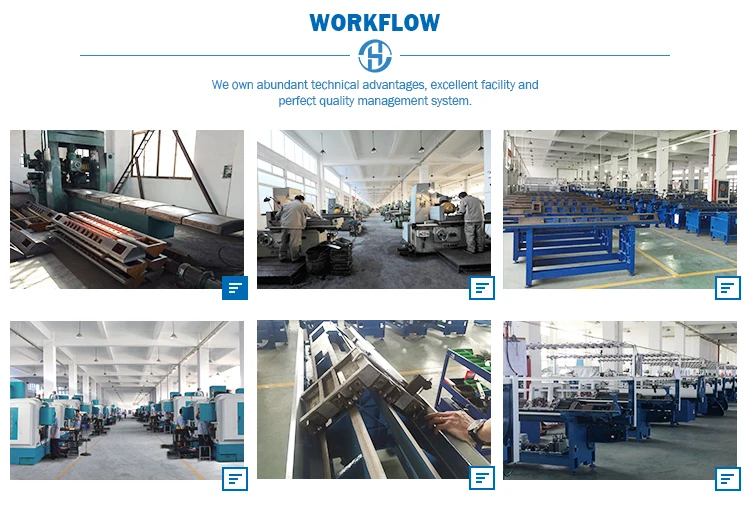

NINGBO HAOYUE TEXTILE TECH CO.LTD is a professional high-tech manufacturer, production & sales of computerized flat knitting machine and professional collar knitting machine(such as sweater, shoe upper, polo collar,rib, scarf, hat,blanket etc.) By 25 years concentration and persistence,accumulated experience and technical progress, We have won the trust from many domestic and overseas suppliers. We own abundant technical advantages. Excellent facility,perfect quality management system. We will offer better quality, better service, better prices to our customers. People foremost, success through quality. Mutual benefit and double-win outcomes are our conception.
