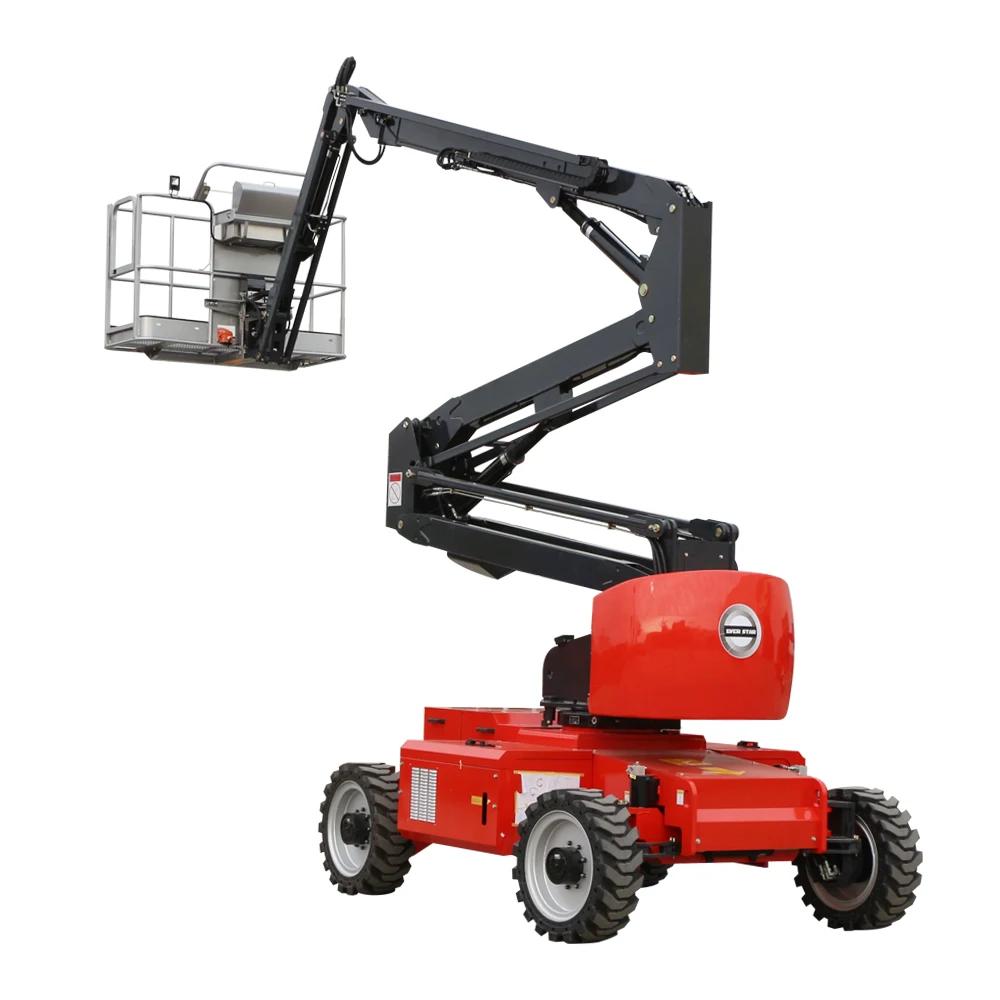

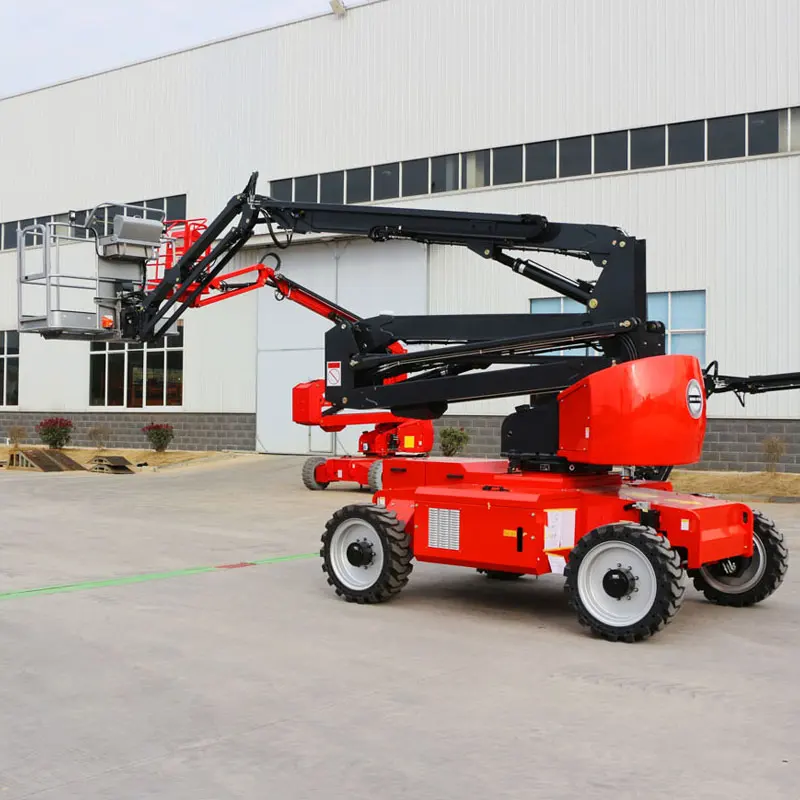

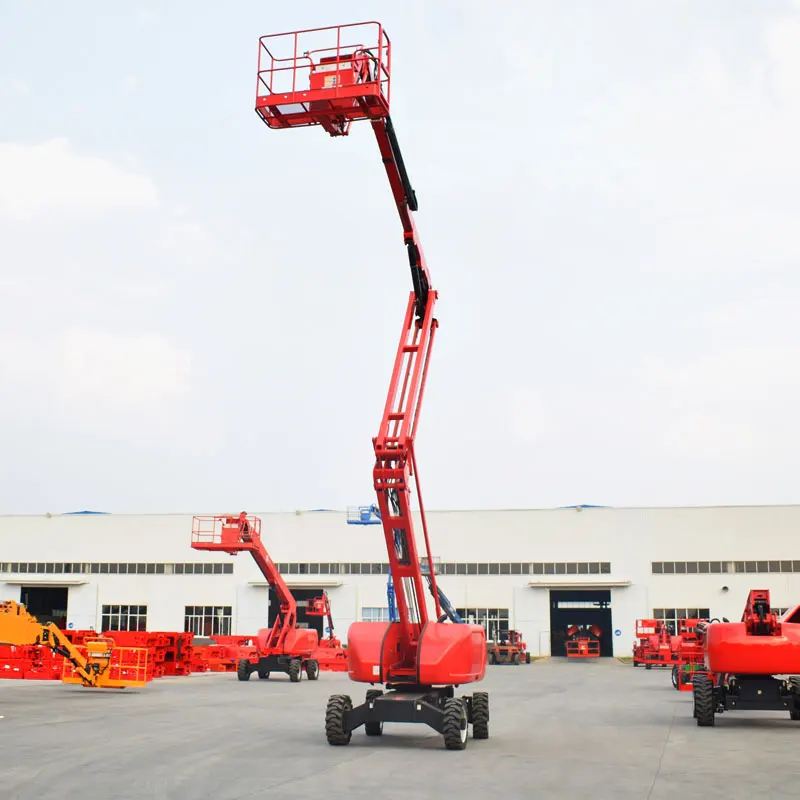

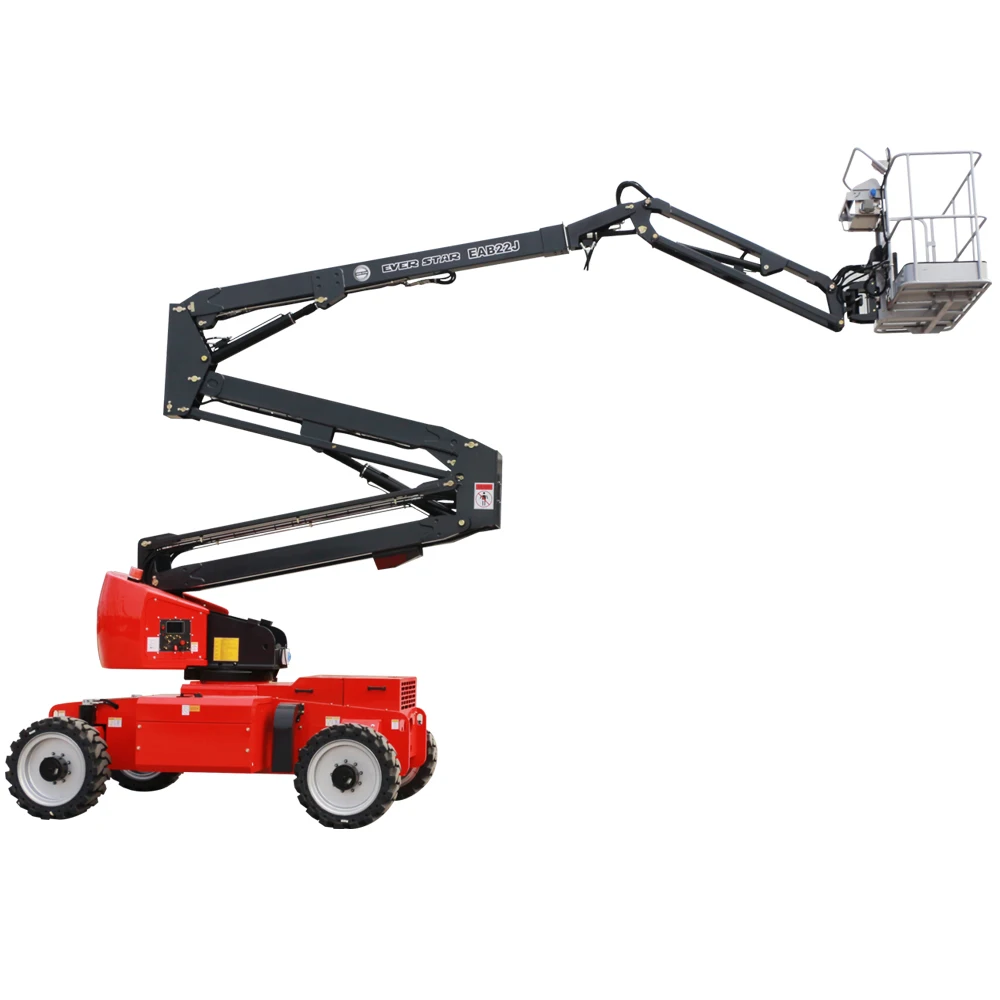

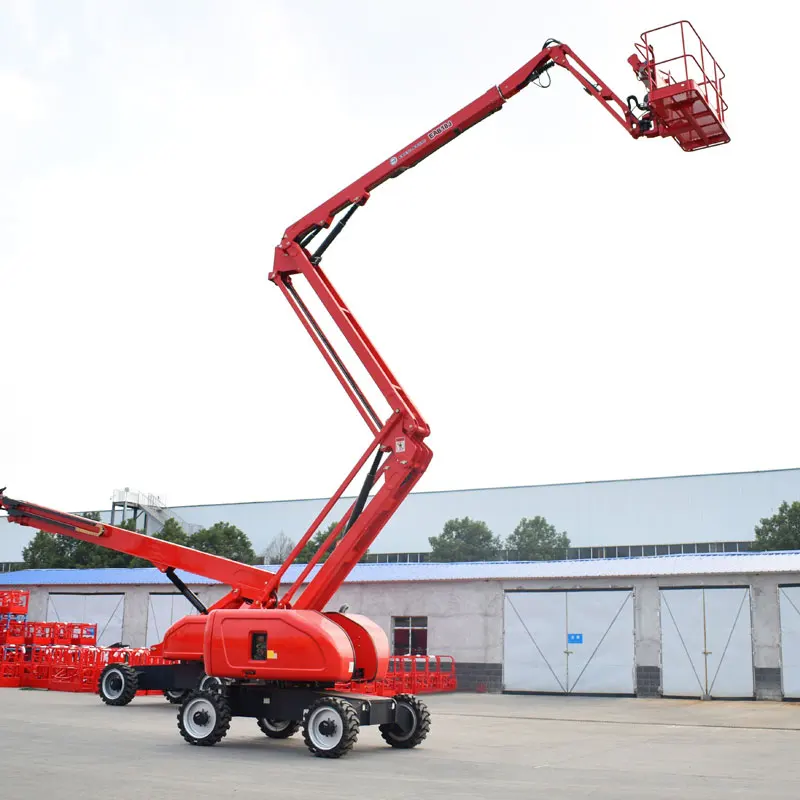

  • 14m 16m 18m Self Propelled Articulated Boom Lift Aerial Work Platform boom lift
14m 16m 18m Self Propelled Articulated Boom Lift Aerial Work Platform boom lift
14m 16m 18m Self Propelled Articulated Boom Lift Aerial Work Platform boom lift
14m 16m 18m Self Propelled Articulated Boom Lift Aerial Work Platform boom lift
14m 16m 18m Self Propelled Articulated Boom Lift Aerial Work Platform boom lift
14m 16m 18m Self Propelled Articulated Boom Lift Aerial Work Platform boom lift
14m 16m 18m Self Propelled Articulated Boom Lift Aerial Work Platform boom lift
14m 16m 18m Self Propelled Articulated Boom Lift Aerial Work Platform boom lift

14m 16m 18m Self Propelled Articulated Boom Lift Aerial Work Platform boom lift

Share on (1601197897239):


Price:$14,500.00 - $27,800.00

Quantity:


Product Overview

Description



Products Introduction

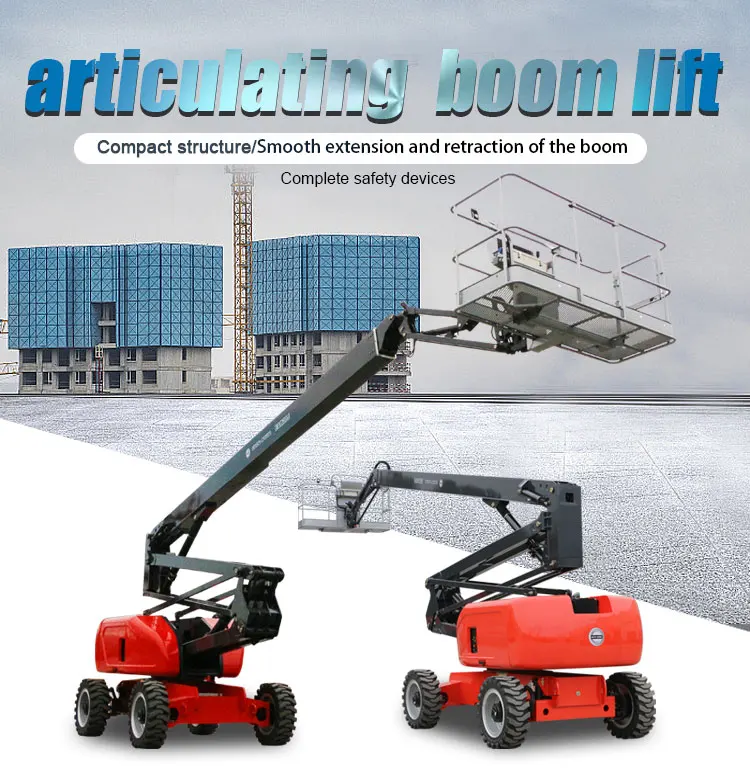

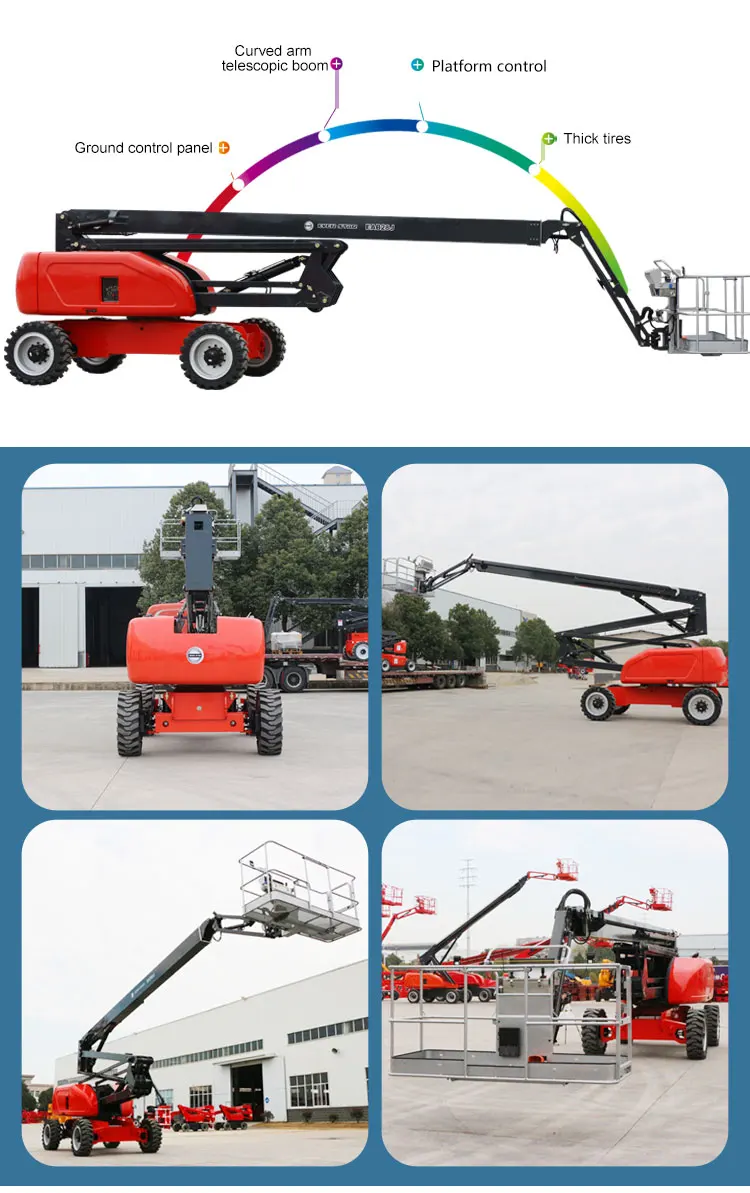

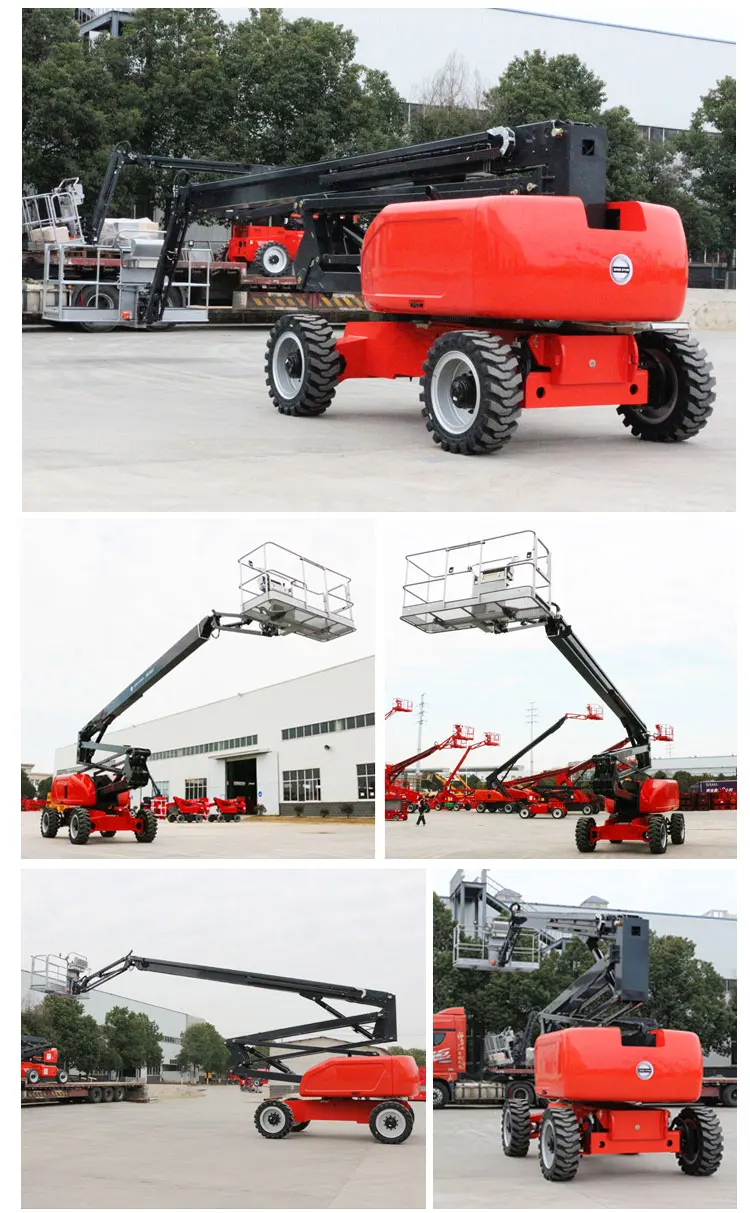

16-47m diesel articulating boom lifts










Product Specifications


Factory direct supply of 16-47m diesel articulating boom lifts
There are many product models, please send an inquiry for specific prices.


16-28m Diesel Articulating Boom Lifts


Model
EAB16J
EAB18J
EAB20J
EAB22J
EAB26J
EAB28J
 Max. Working Height(m)
16.7
18
20.2
22
26.2
28
Max. Platform Height(m)
14.7
16
18.2
20
24.2
26
Max. Lift Capacity(kg)
230
230
230
230
230
230
Max. Horizontal Outreach(m)
8.1
9.55
11.6
12
15.4
17.28
Stowed Length(m)
6.72
7.26
8.23
8.54
10.65
11.7
Stowed Width(m)
2.28
2.28
2.38
2.38
2.48
2.58
Stowed Height(m)
2.47
2.4
2.5
2.55
2.85
2.97
Platform Size
1.83×0.76
1.83×0.76
1.83×0.76
1.83×0.76
2.44×0.91
2.44×0.91
Wheel base
2.4
2.4
2.4
2.4
3
3
Drive speed stowed(km/h)
4.2
4.2
4.2
4.2
4.2
4.2
Gradea bility
45%
45%
45%
45%
45%
40%
Engine Power(kw)
≈36kw@2400rpm
≈36kw@2500rpm
Fuel tank capacity(L)
100
100
100
100
100
110
Weight(kg)
7500
7800
8800
9380
15870
17000


32-47m Diesel Articulating Boom Lifts


Model
EAB32J
EAB40J
EAB47J
 Max. Working Height(m)
32
40.1
47.5
Max. Platform Height(m)
30
38.1
45.5
Max. Lift Capacity(kg)
480
480
480
Max. Horizontal Outreach(m)
20.2
21.6
23
Platform Size
2.44×0.91
2.44×0.91
2.44×0.91
Wheel base
3.66
3.96
5.6
Drive speed stowed(km/h)
4.4
4.4
4.4
Gradea bility
40%
40%
40%
Engine Power(kw)
≈54kw@2400rpm
≈54kw@2400rpm
≈81kw@2400rpm
Fuel tank capacity(L)
151
151
200
Weight(kg)
18000
24500
26500


Related Products


Diesel Articulating Boom Lift
16-47m Working height maximum
Diesel Telescopic Boom Lift
16-63m Working height maximum


Electric Articulating Boom Lift
12-28m Working height maximum
Electric Telescopic Boom Lift
22-29m Working height maximum



Complete range of boom lift models of various heights
Since there are many product models,
if you want to know the specific product prices,
please send us an inquiry.






Certifications

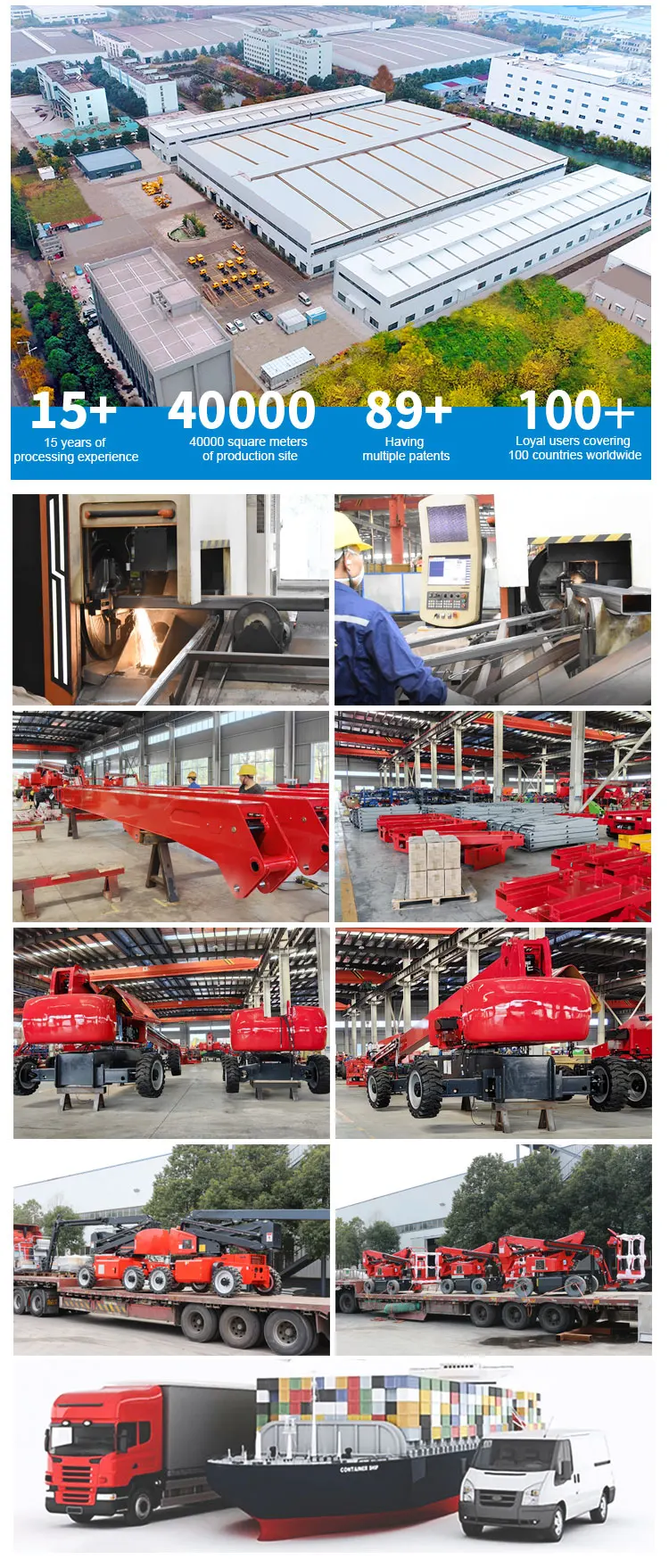

WHY CHOOSE US


- The company was founded in 2008
- We have 15 years of experience in the production of construction machinery
- Company has an area of 40,000 square meters and nearly 300 employees
- We have 4 invention patents, 51 utility model patents, 15 appearance patents
- All products have passed the CE certification
- Passed the ISO9001:2008 international quality certification
