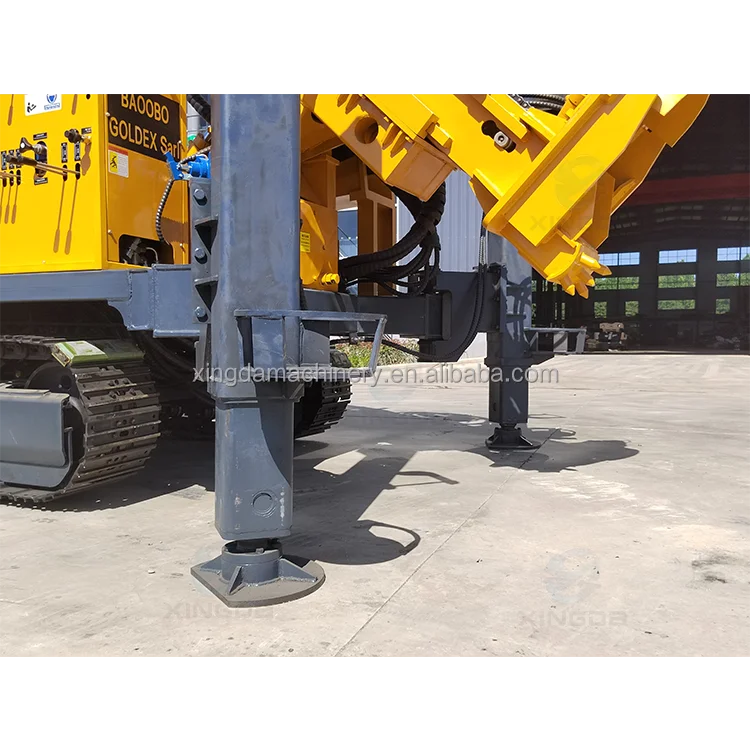

Hot Sale New Core Sample Drill Exploration 180 500m Reverse Circulation RC For Gold Mining
- Category: >>>
- Supplier: Hubei Xingda Imp&Exp Trading Co. Ltd.
Share on (1601197902107):
Product Overview
Description
Product Description

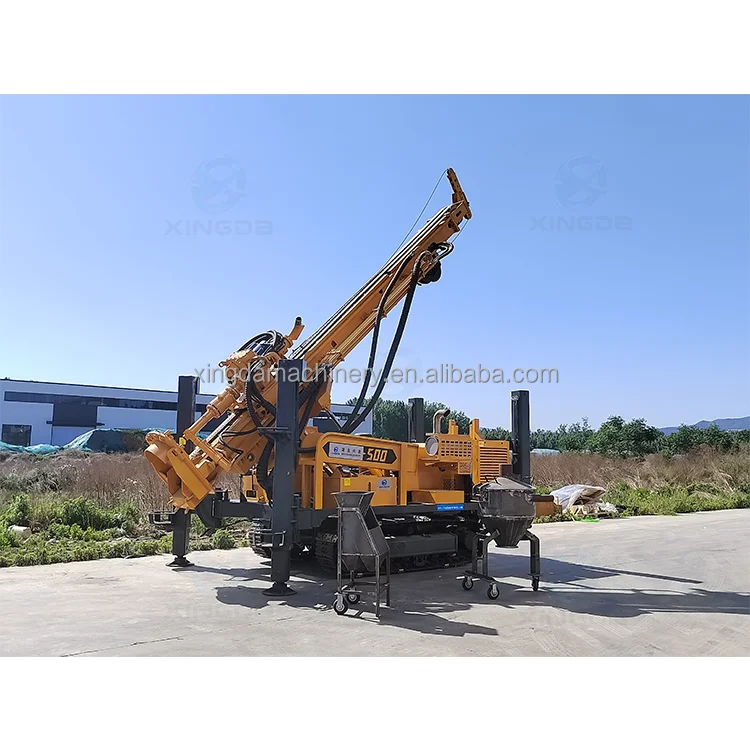

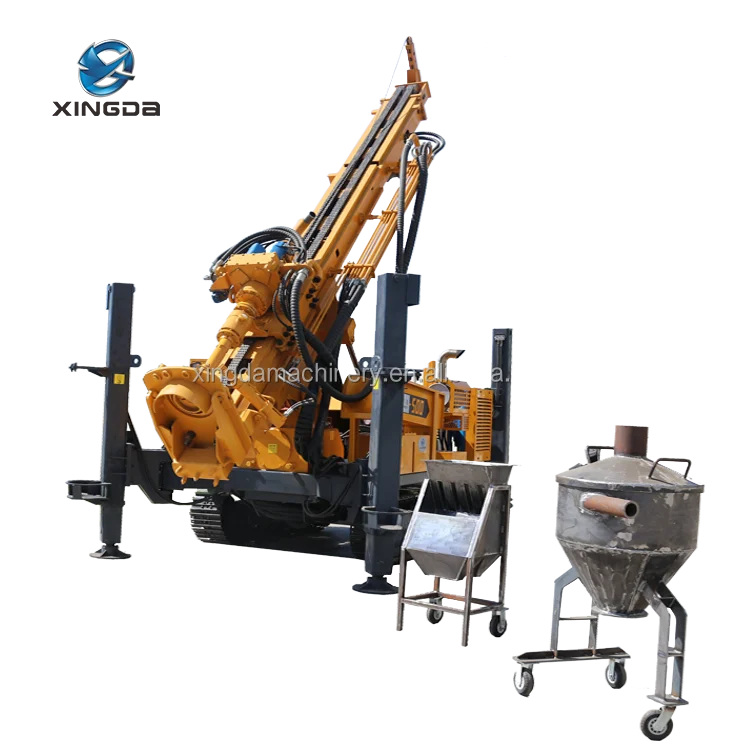

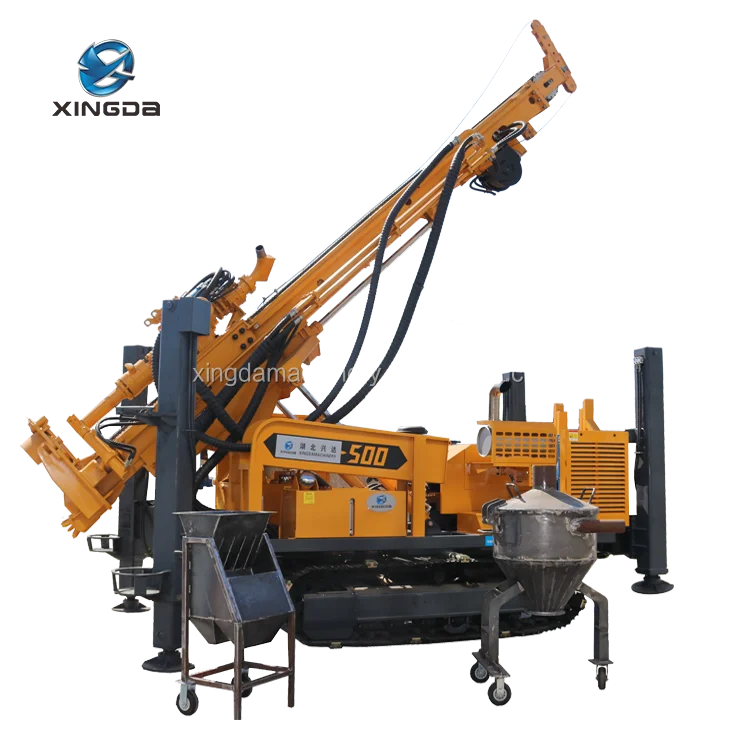

High Quality 180-500m Reverse Circulation RC Drilling Rig For Mine Core Sample
Applications：XDL- RC series drilling rig is mounted on a crawler chassis, driven by full hydraulic system, power
head type drilling rig, which is used to drill vertical or inclined hole, and also the drilling
techniques way of the following:
Drill auger drill
Down-The-Hole hammer drill
Mud forward circle drill
ODEX tools(casing pipe following) drill with DTH hammer
Medium reverse circle drill
The drilling rig is able to resolve the difficulty of boring in the soft and loose cover
ground condition, the screes and gravels area and also the fragmentation stratum according to different drilling techniques ways.
Therefore, it is widely used in varieties of the boring work.
The drilling rig is mainly applied in RC drill/water well and observation well, geothermal hole,mini foundation pile hole.
Technical parameters | ||||
Item | Unit | XDL-500RC | ||
Max drilling depth | m | 500 | ||
Drilling diameter | mm | 105-400 | ||
Air pressure | Mpa | 1.2-3.5 | ||
Air consumption | m3/min | 16-55 | ||
Rod length | m | 3m | ||
Rod diameter | mm | 102/114mm dual-wall | ||
Main shaft pressure | T | 7 | ||
Lifting force | T | 25 | ||
Fast lifing speed | m/min | 23 | ||
Rotary torque | N.m | 5000-10000 | ||
Rotary speed | r/min | 75-150 | ||
Small winch lifting force | T | 1.5 | ||
Drilling speed | m/h | 10-35 | ||
Walking speed | km/h | 2.5 | ||
Climbing capacity | ° | 21 | ||
Weight | T | 12 | ||
Dimension | mm | 7000*2100*2800 | ||

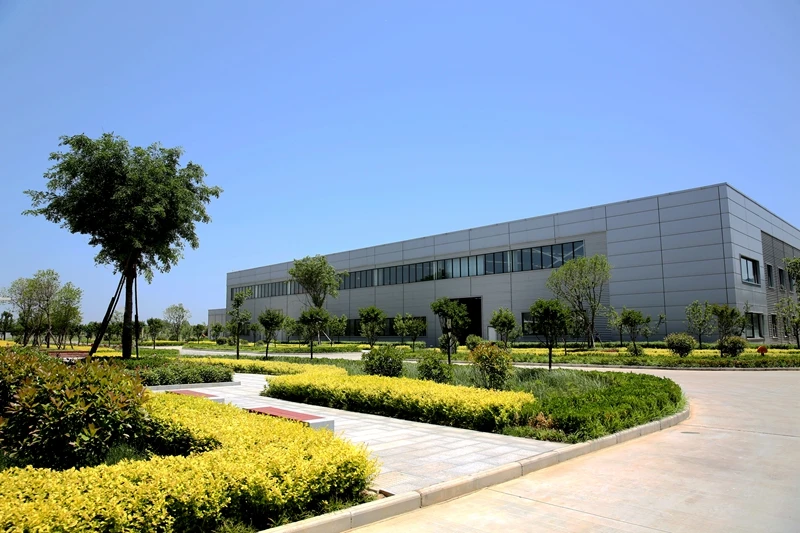

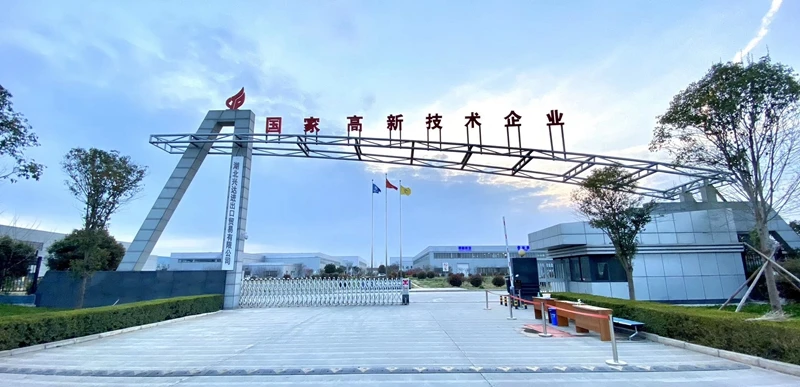

Company Profile
Hubei Xingda Imp&Exp Trading Co.,Ltd is a professional manufacturer and trader, specialized in the research and development, sales and service of the industry of engineering drilling,geological exploration,jet grouting drilling, water well drilling field. It has formed three main production system including machine manufacture, drilling construction and management service.
Our factory covers more than 23, 000 square meters. Equipped with more than 20 years professional manufacturing experience and professional production team as well as more than 400 excellent skillful workers, more than 50 experienced engineers. The geological drilling rig(full hydraulic core drilling rig and vertical spindle core drill rig), multifunction engineering drilling rig(top drive engineering drill rig), tunnel rotary jet grouting drilling rig and tunnel core drilling rig, jet grouting drilling rig, dth water well drilling rig and grouting pumps and jet grouting drilling tools, like MJS, RJP grouting are our leading production. The series of all products has gained the provincial appraisal and achieved the advanced level in China and abroad. The drilling tools are our traditional well-known production for its particular manufacturing technics and reliable quality. Our productions have been sold in domestic and abroad, with general recognition and best customer satisfaction.
We have received the ISO9001-2008 quality management system certification. We also obtain the "Province Level Honoring Contracts& Keeping Promise Enterprise " certification. "Faith, all for customers, providing the first-class production and service " is our eternal target.
Our factory covers more than 23, 000 square meters. Equipped with more than 20 years professional manufacturing experience and professional production team as well as more than 400 excellent skillful workers, more than 50 experienced engineers. The geological drilling rig(full hydraulic core drilling rig and vertical spindle core drill rig), multifunction engineering drilling rig(top drive engineering drill rig), tunnel rotary jet grouting drilling rig and tunnel core drilling rig, jet grouting drilling rig, dth water well drilling rig and grouting pumps and jet grouting drilling tools, like MJS, RJP grouting are our leading production. The series of all products has gained the provincial appraisal and achieved the advanced level in China and abroad. The drilling tools are our traditional well-known production for its particular manufacturing technics and reliable quality. Our productions have been sold in domestic and abroad, with general recognition and best customer satisfaction.
We have received the ISO9001-2008 quality management system certification. We also obtain the "Province Level Honoring Contracts& Keeping Promise Enterprise " certification. "Faith, all for customers, providing the first-class production and service " is our eternal target.
Sample Room

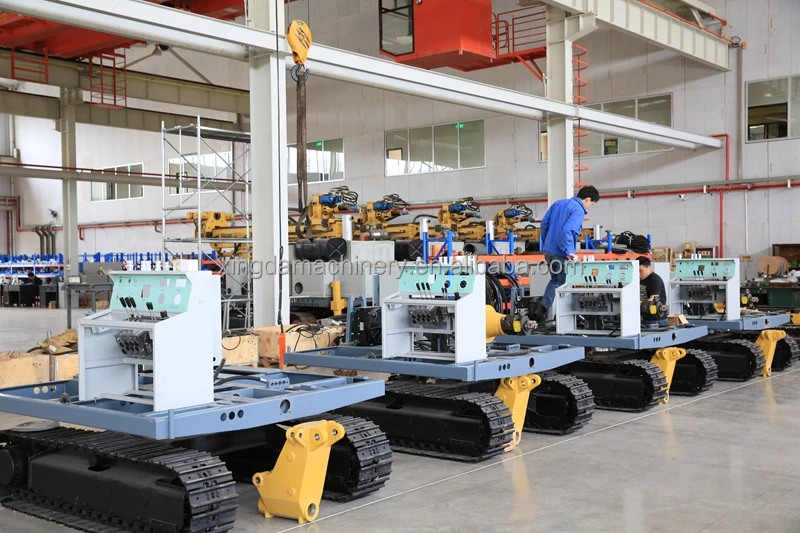

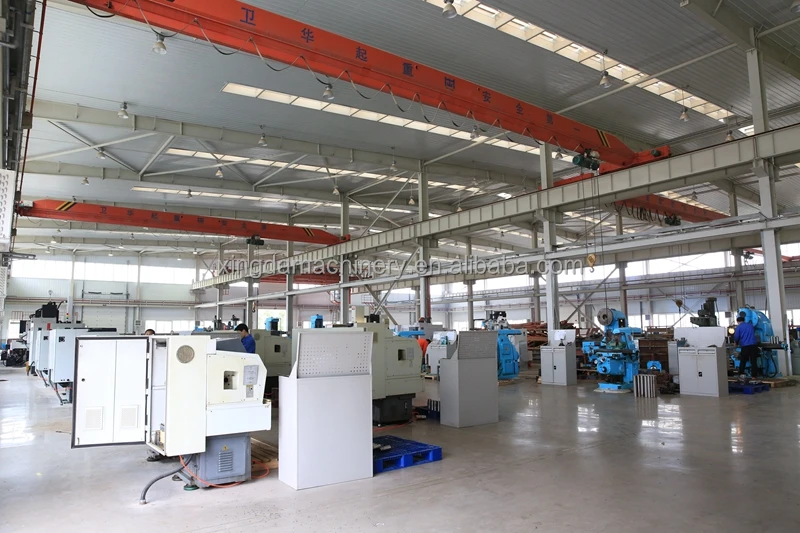

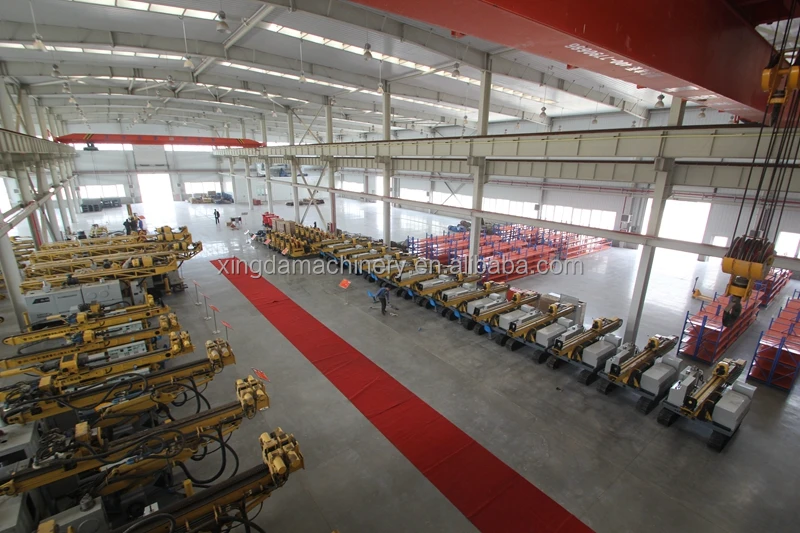

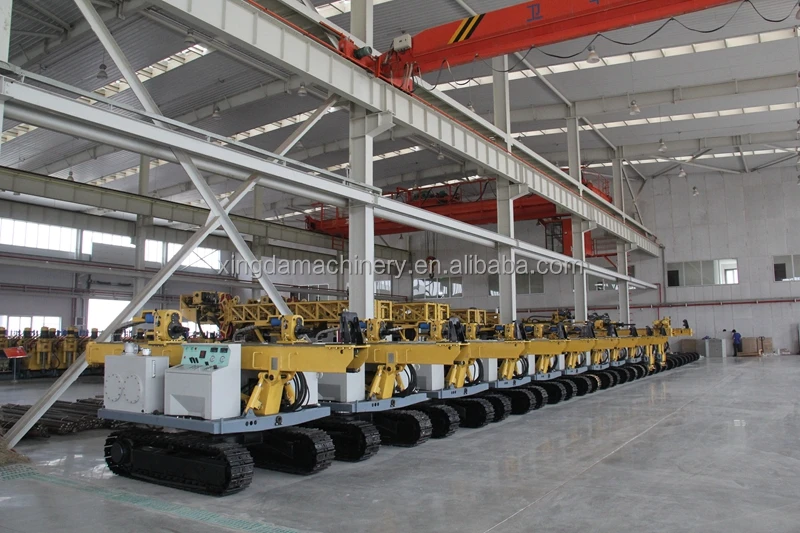

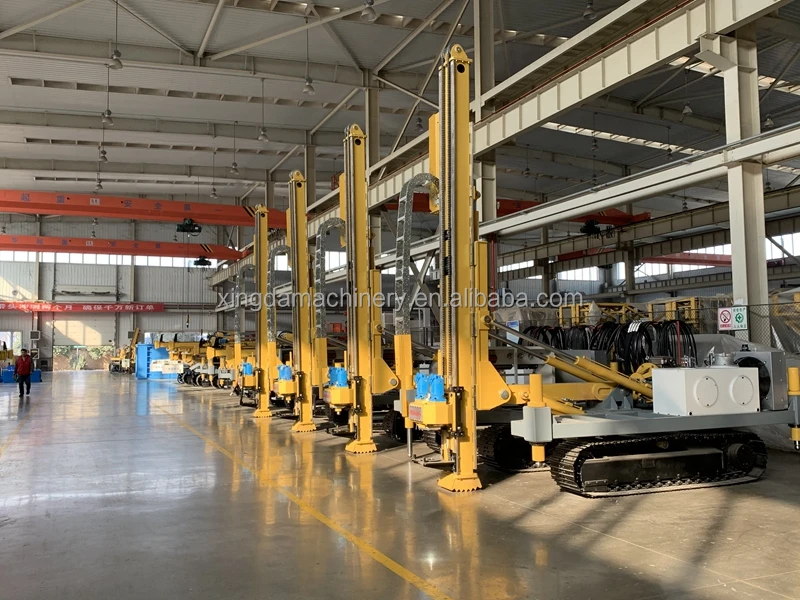

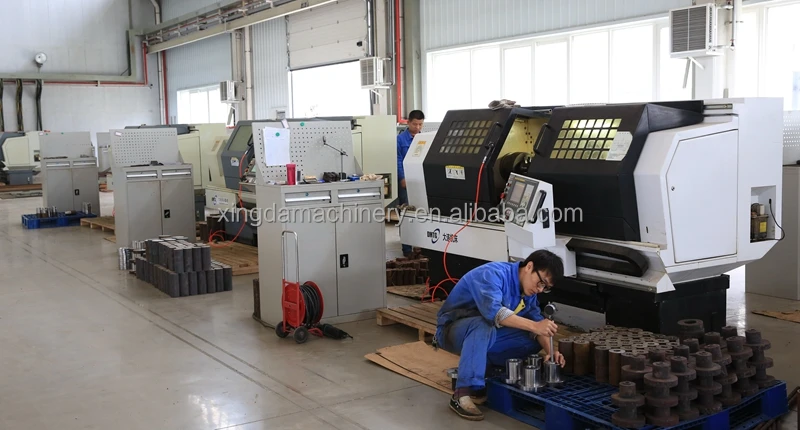

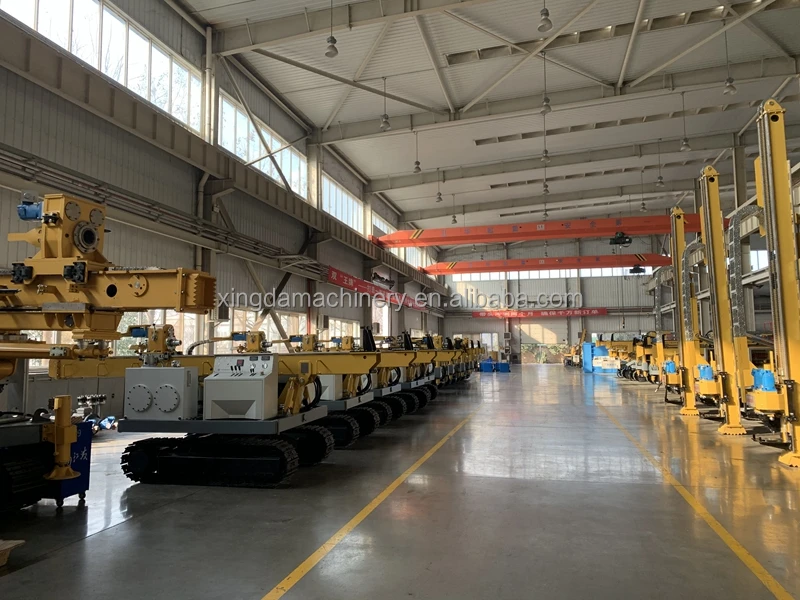

Production Process

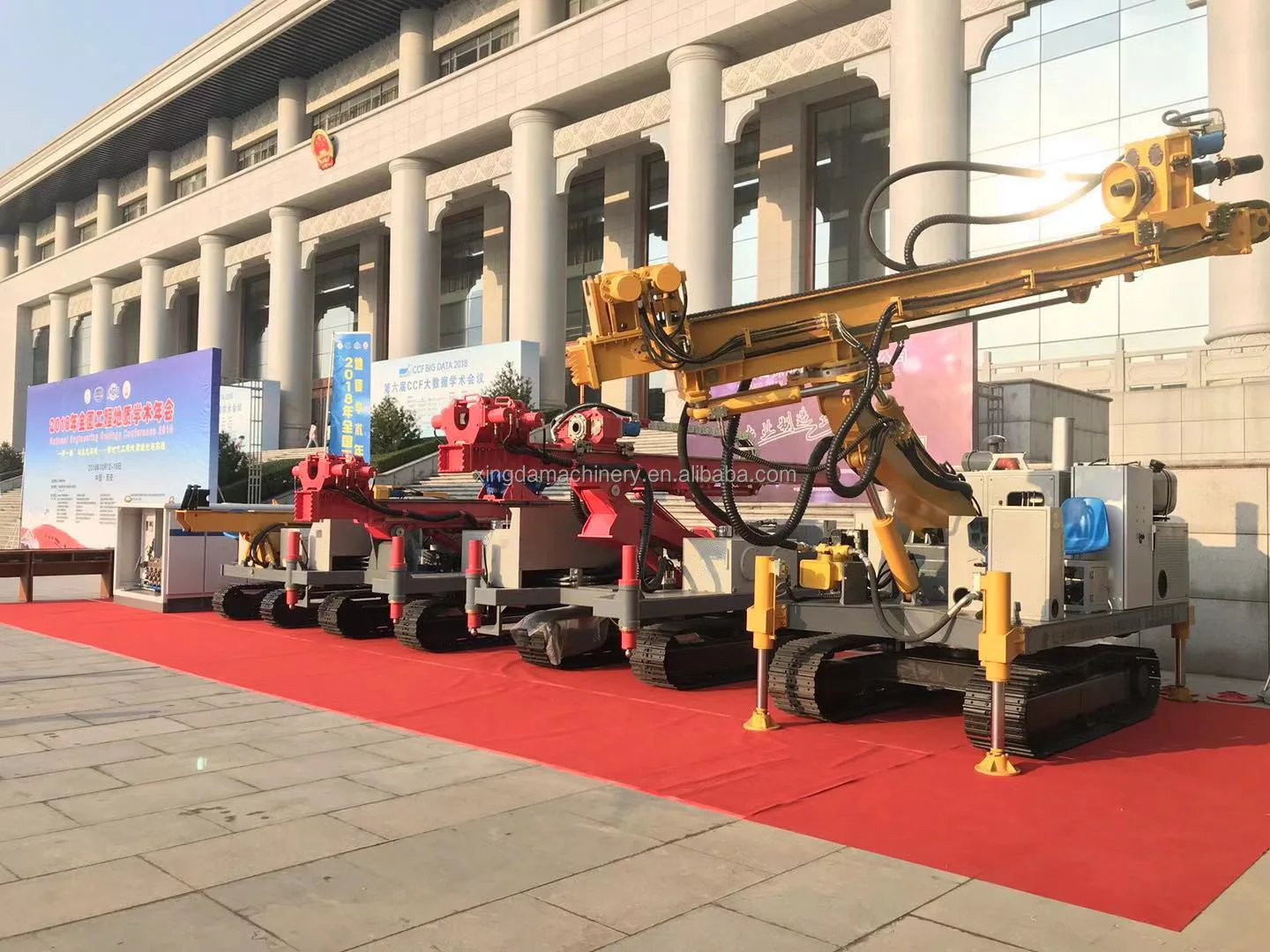

Exhibition

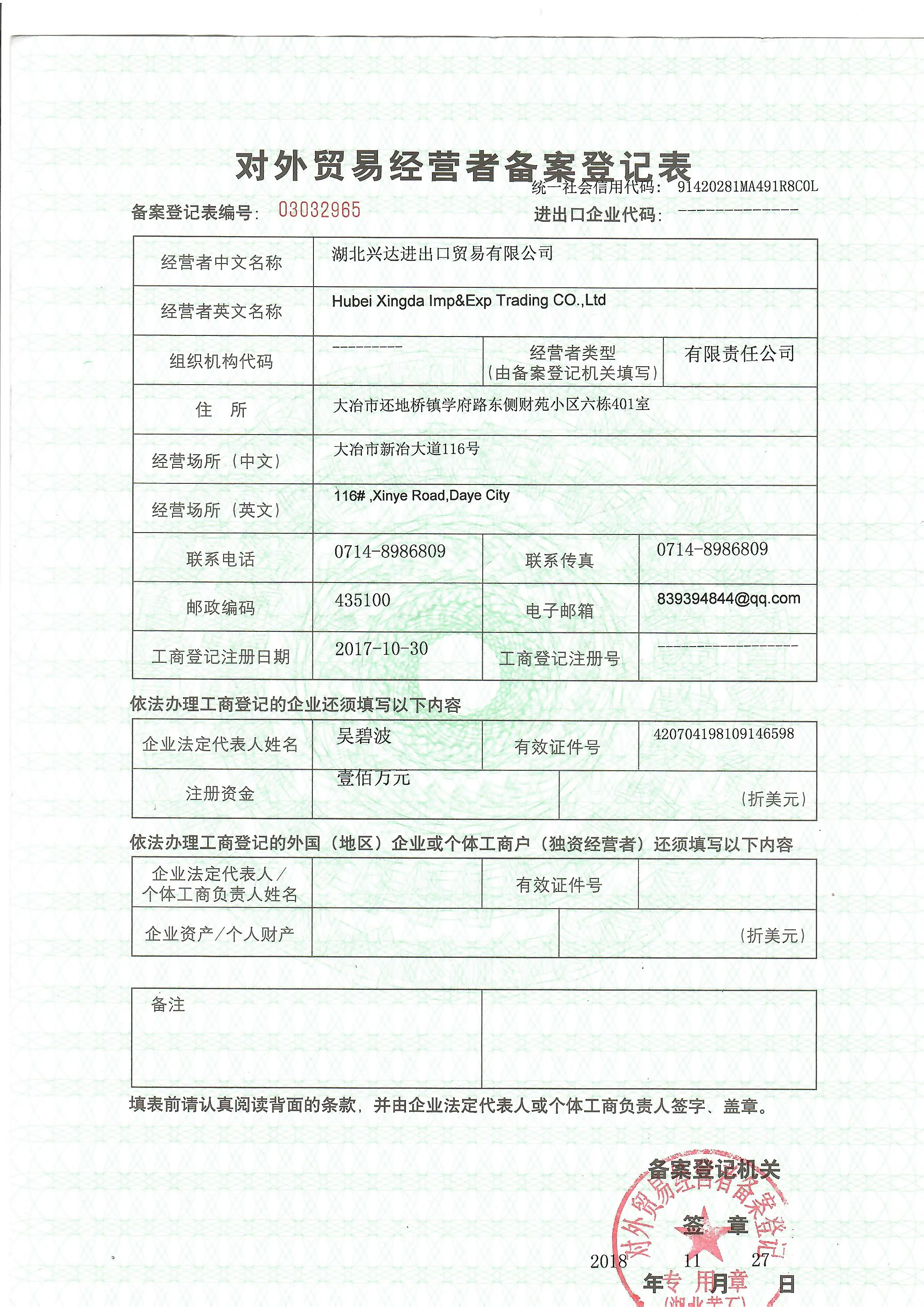

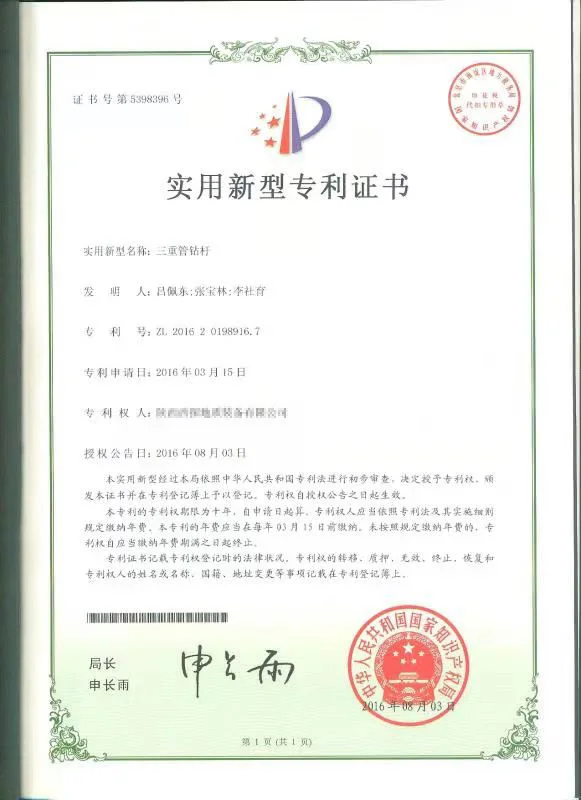

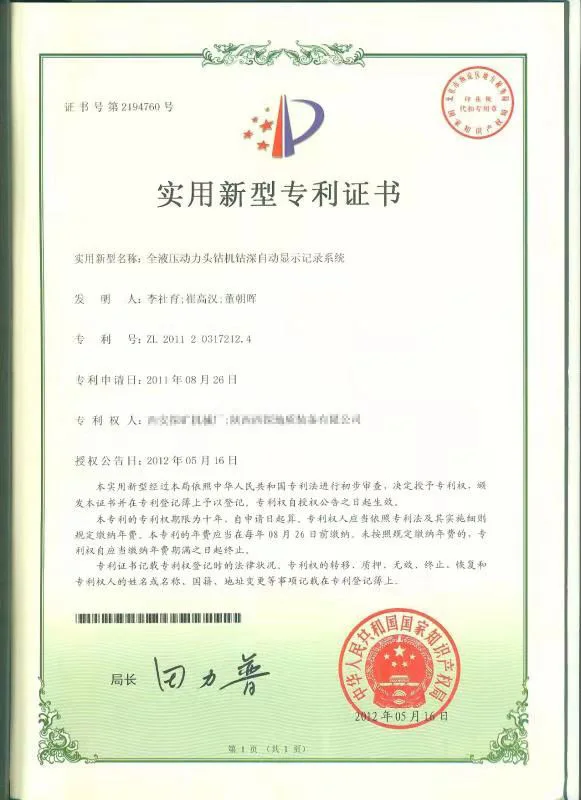

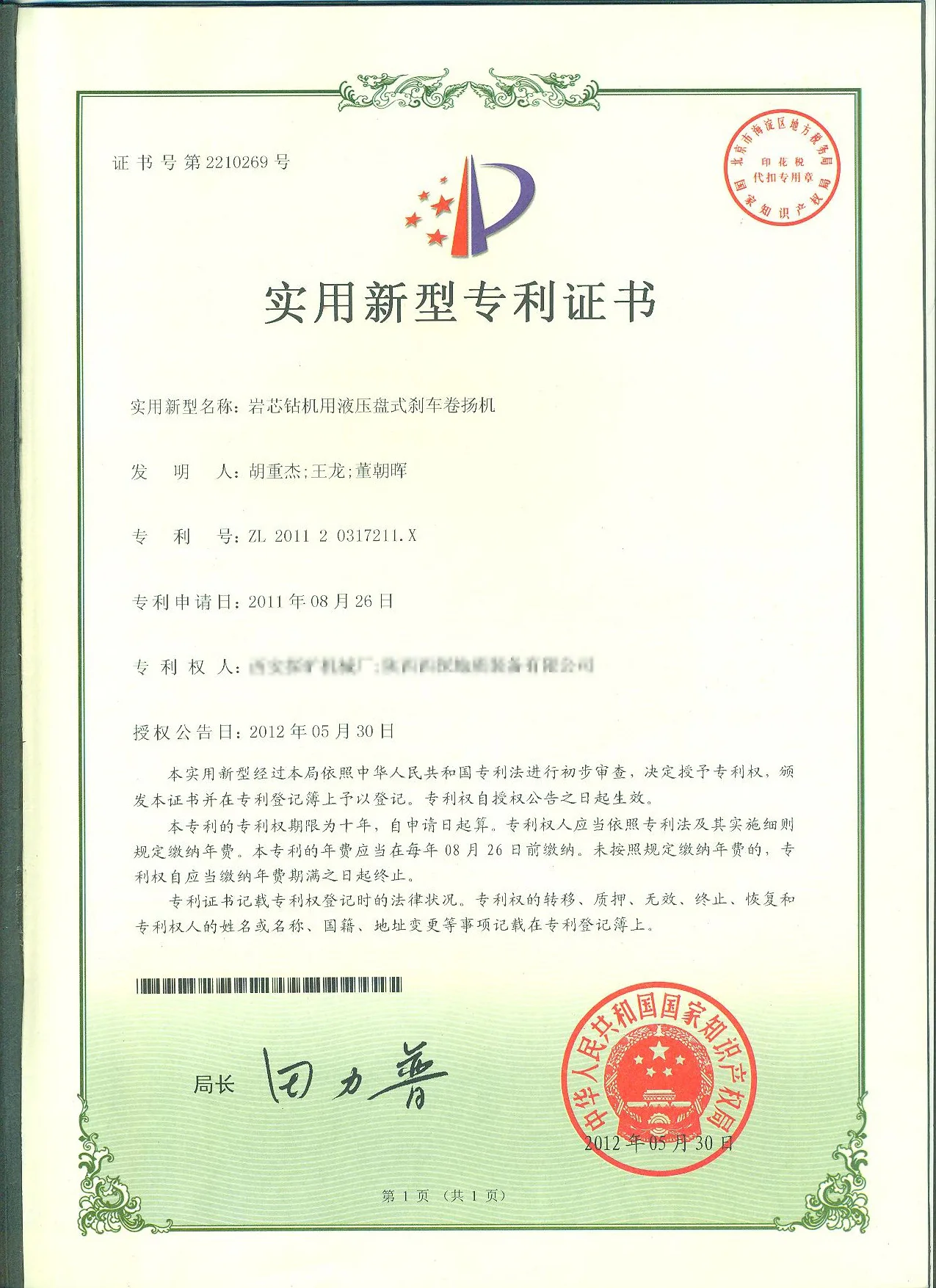

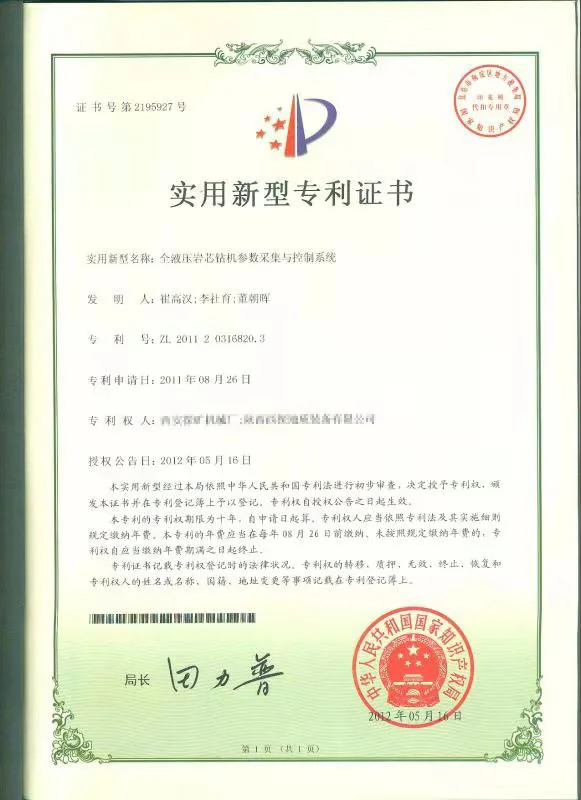

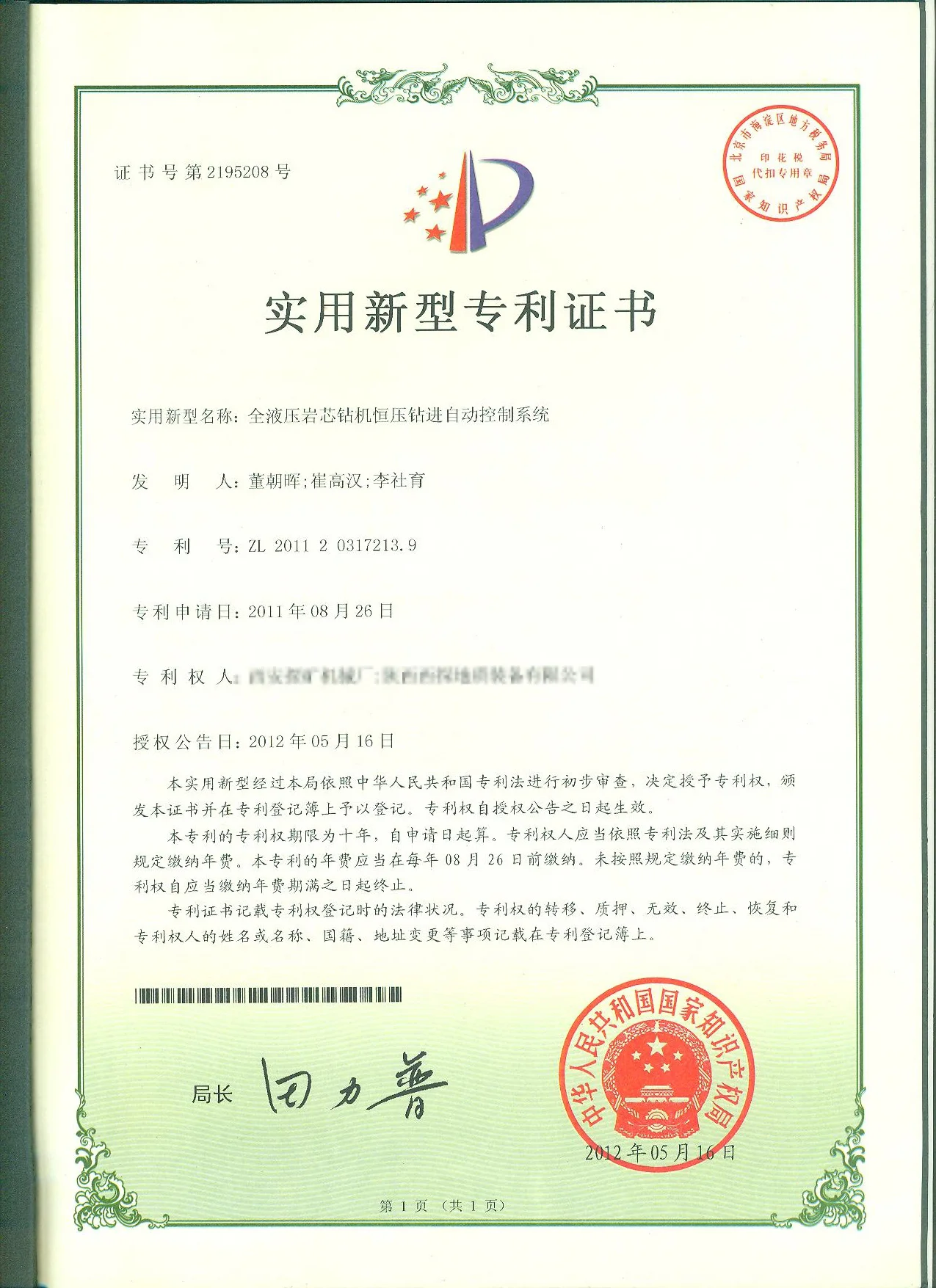

Certifications

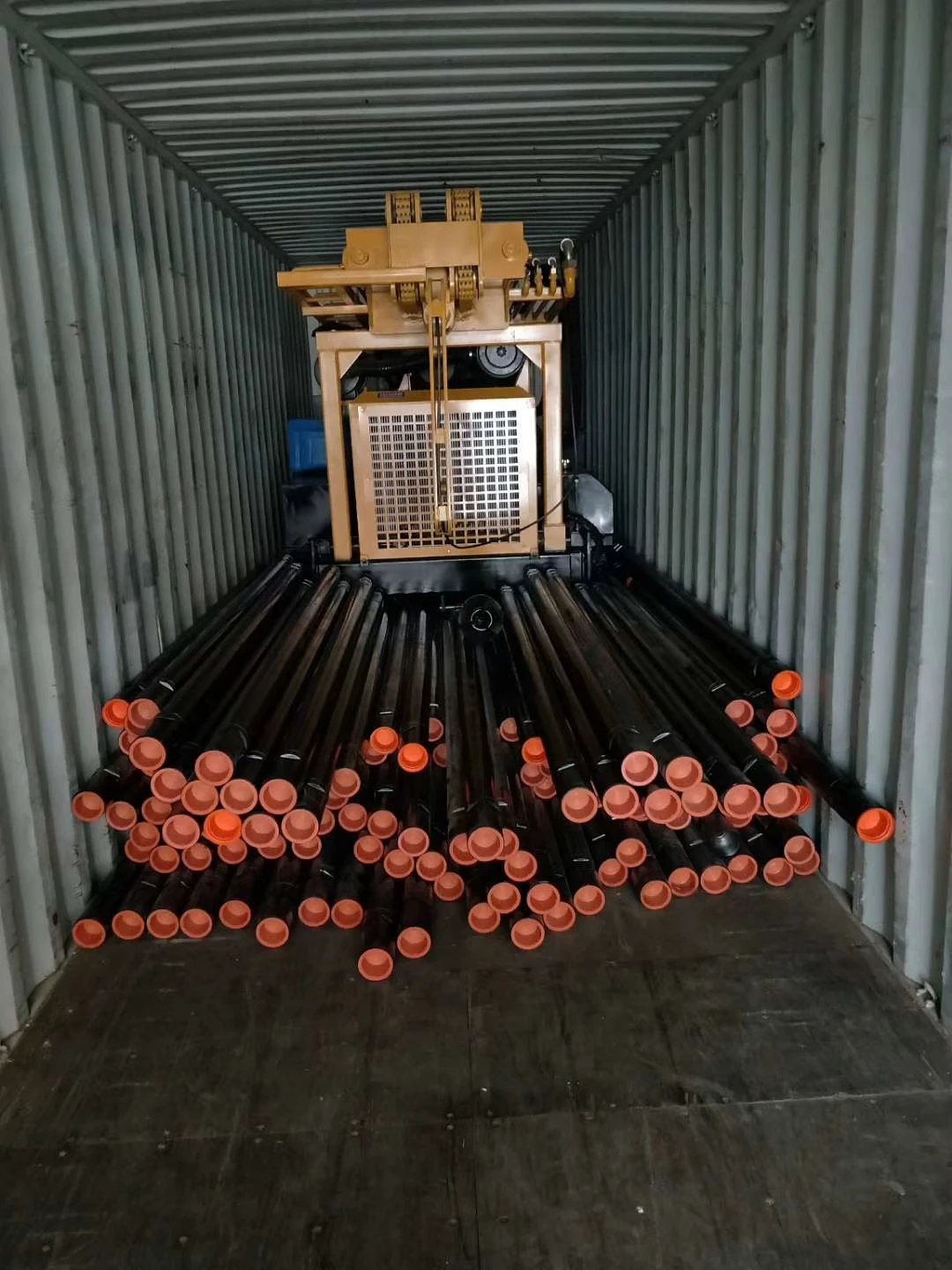

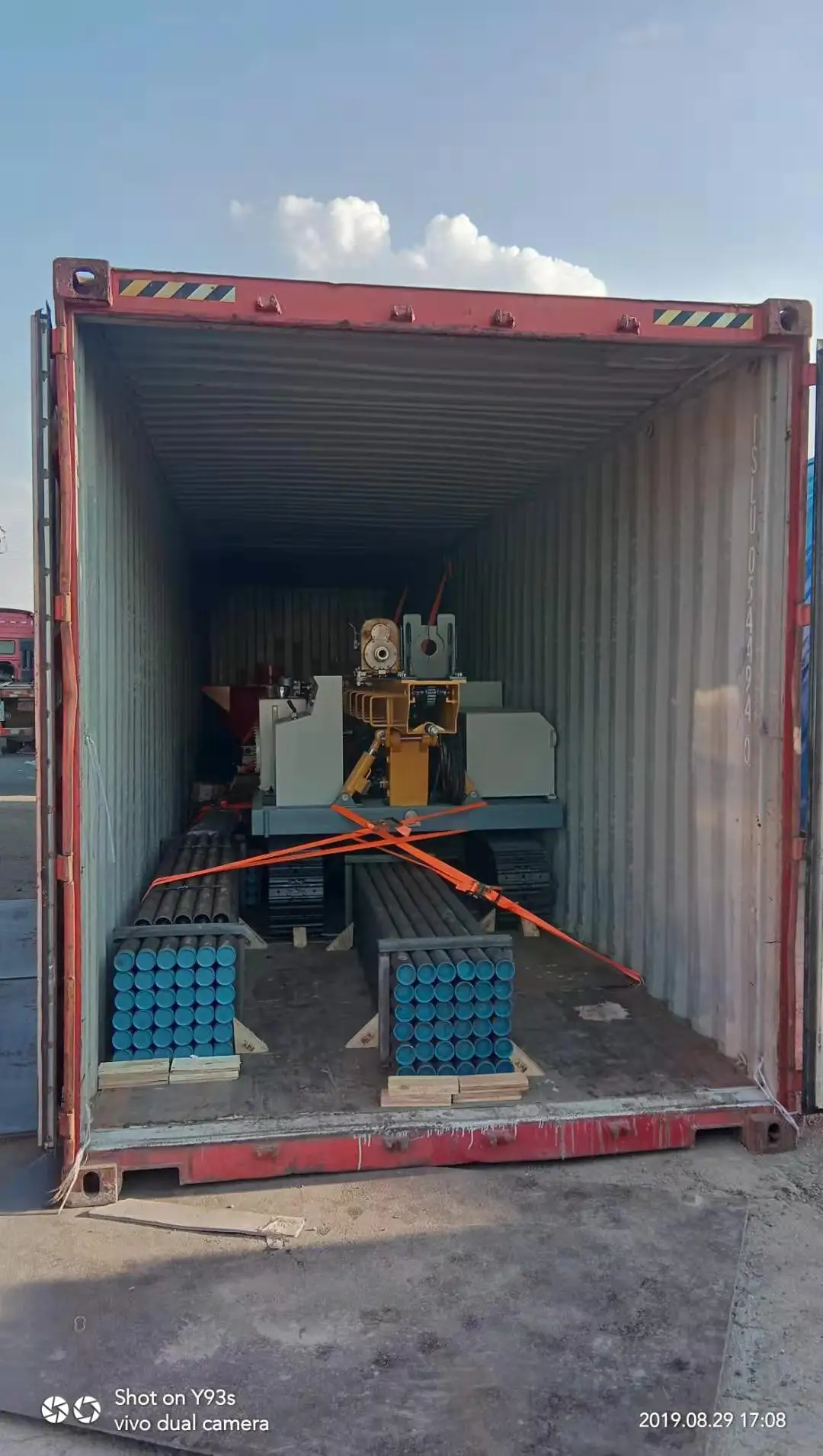

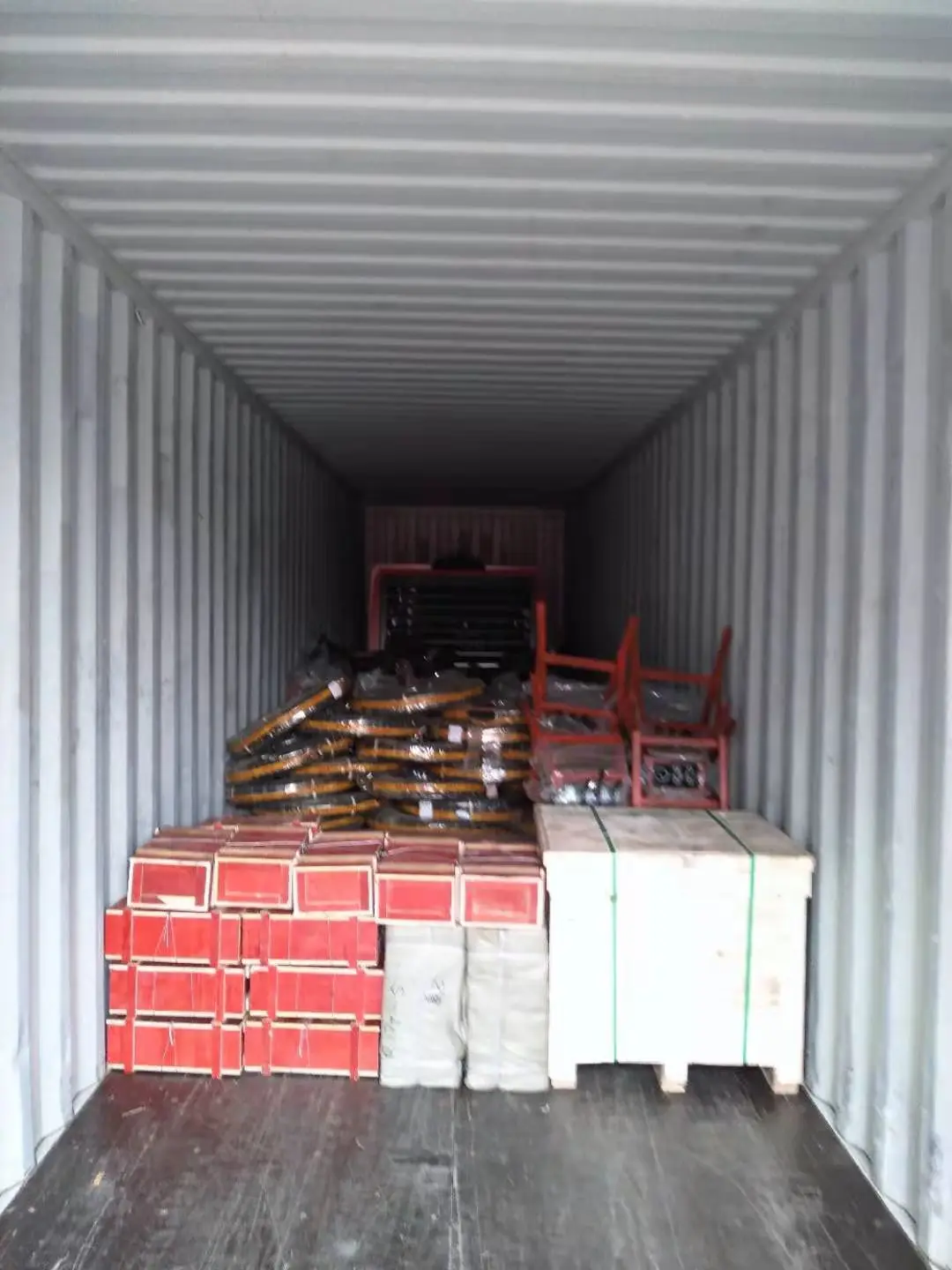

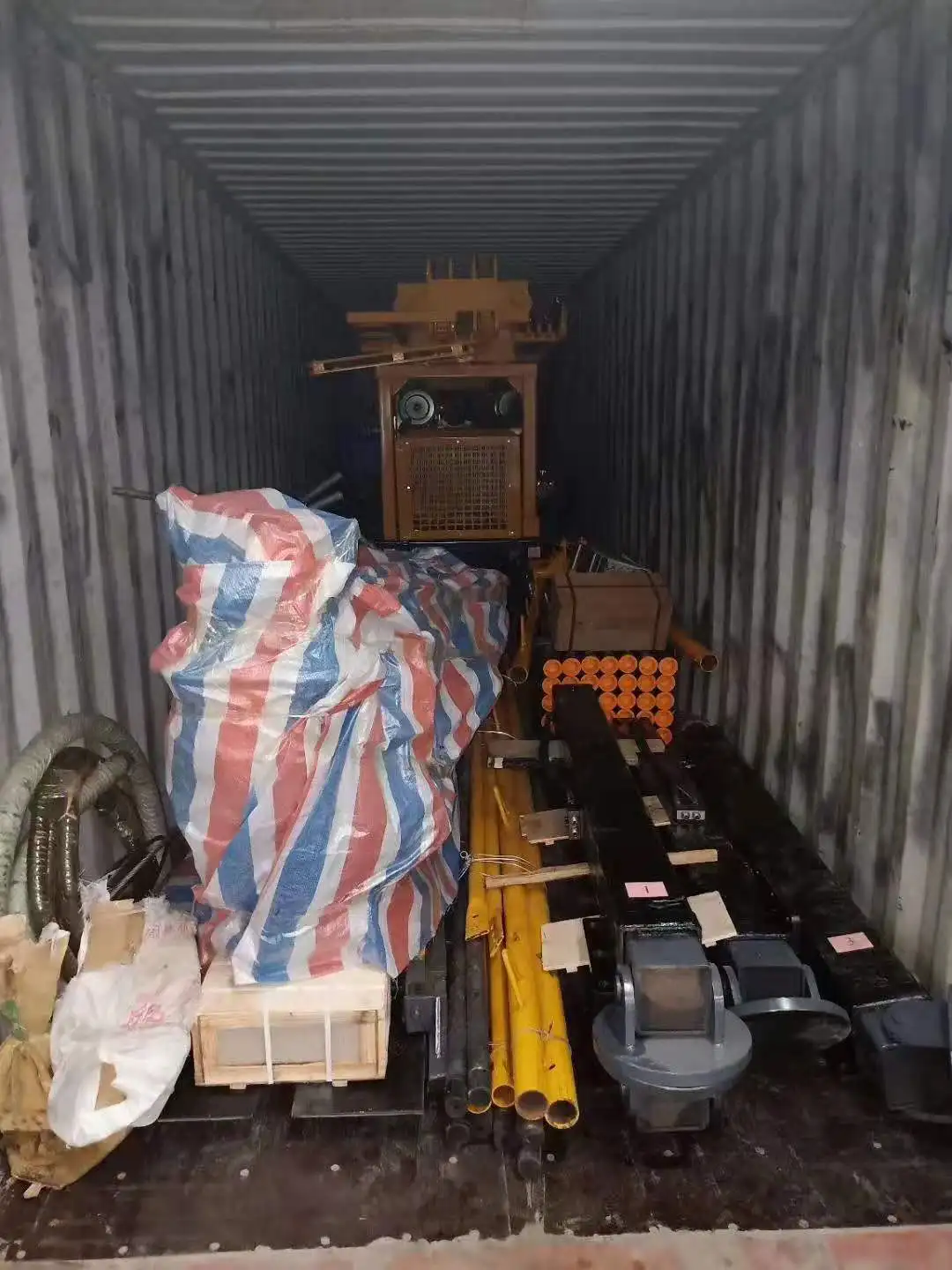

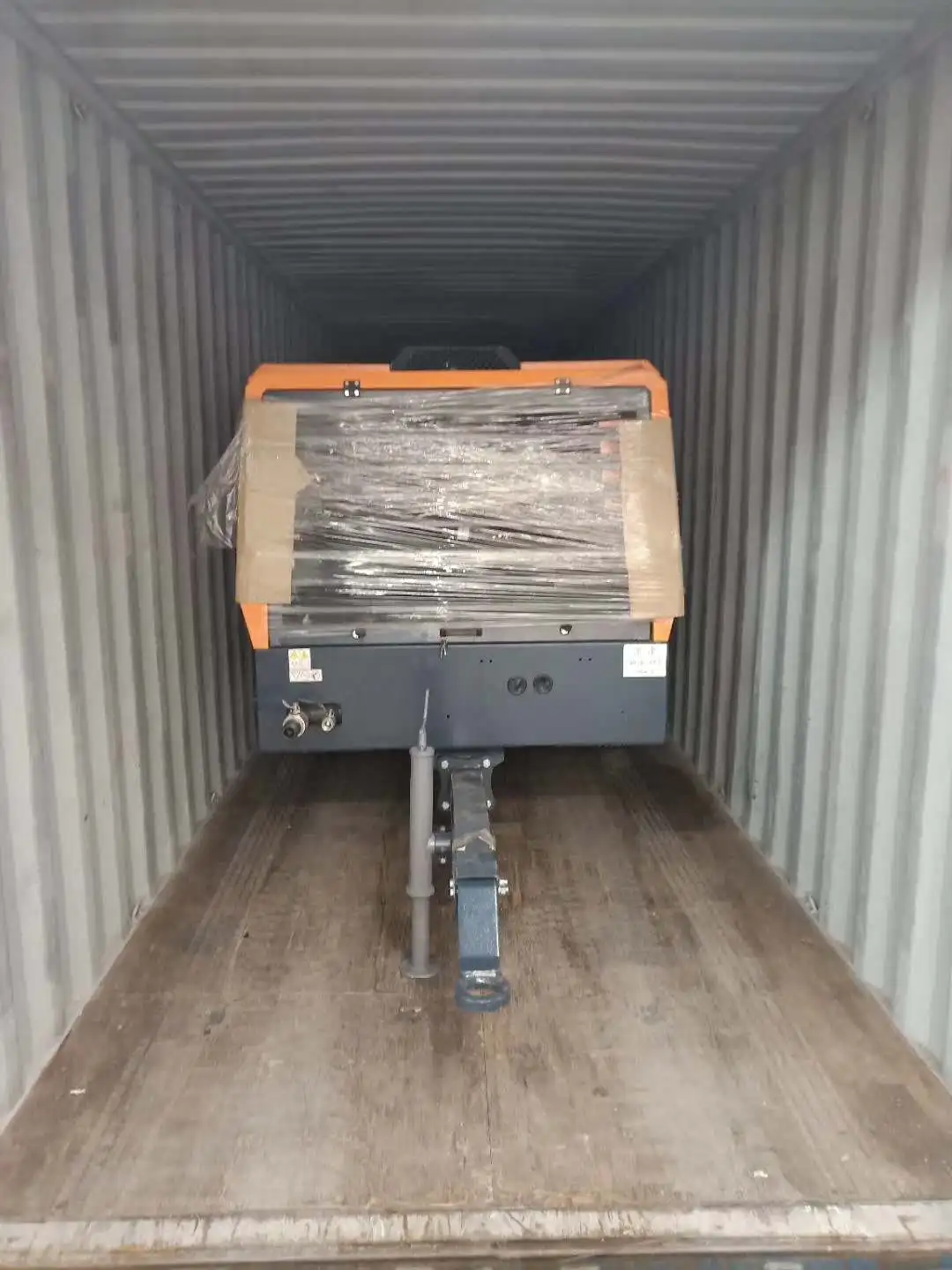

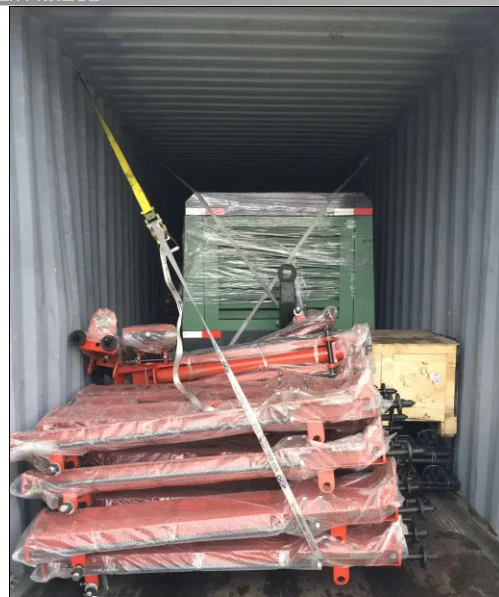

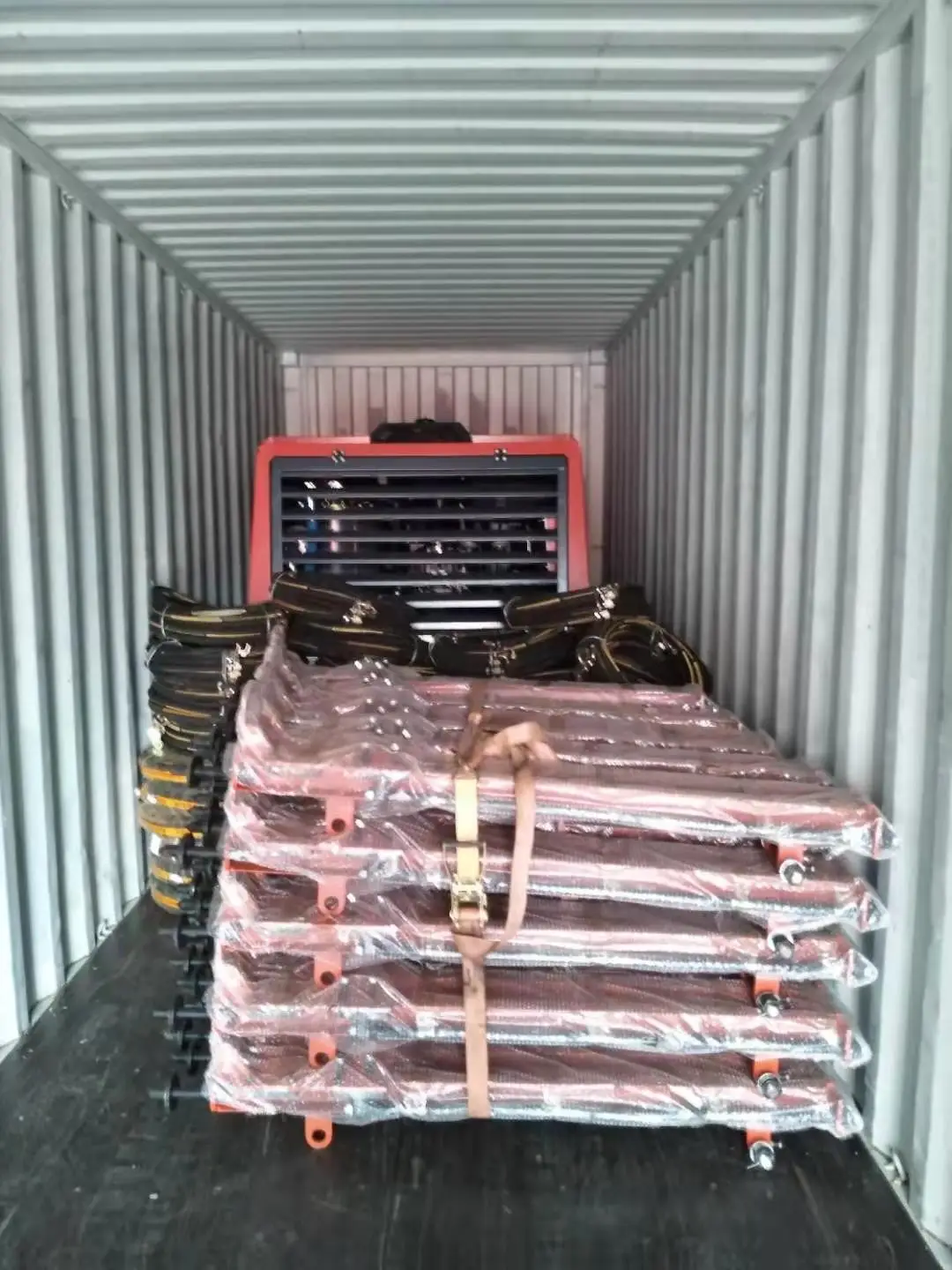

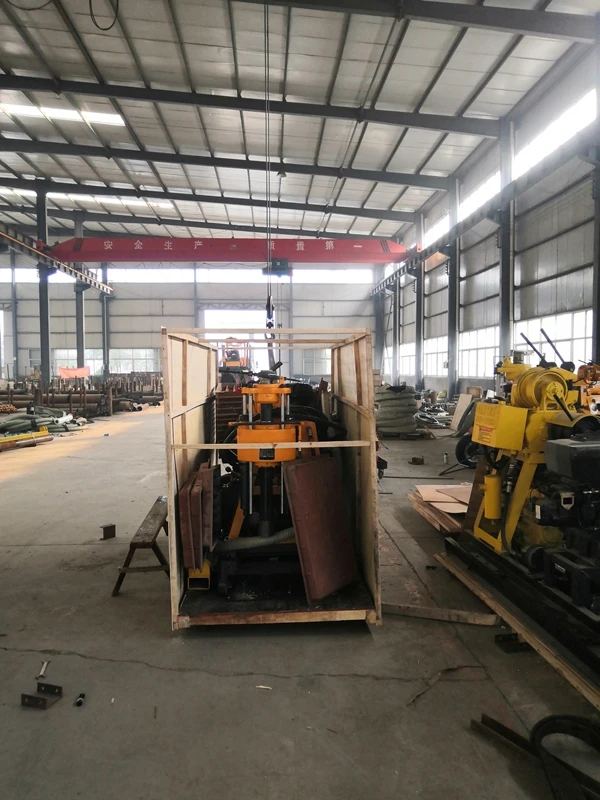

Packing & Delivery
FAQ
1. Are you a manufacturer, trading company or a third party?
We are a manufacturer and a trading company , our factory have more than 20 years experiences, our trading company have 6 years experiences.
2. What`s your terms of payment?
TT, 30-50% in deposit, the balance will be paid before delivery,we will send you photos of the products and packages before you pay the balance.
3. what`s your terms of delivery?
FOB,CIF,CFR
4. What about delivery time ?
Generally ,it ill take 7days after receiving your advance payment,the specific delivery time depends on the items and the quantity of your order.
5. What is your minimum order quantity?
Our minimum quantity for drillng machine is 1 set.
6. Is your price competitive?
A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service.
7.What is the warranty of our machine ?
Our main machine enjoys a 1 year warranty, but not include any vulnerable parts on it. We could offer vulnerable parts at any time when you need.
8,Could you stick customers brand on the products?
We warmly welcome the OEM orders.
We are a manufacturer and a trading company , our factory have more than 20 years experiences, our trading company have 6 years experiences.
2. What`s your terms of payment?
TT, 30-50% in deposit, the balance will be paid before delivery,we will send you photos of the products and packages before you pay the balance.
3. what`s your terms of delivery?
FOB,CIF,CFR
4. What about delivery time ?
Generally ,it ill take 7days after receiving your advance payment,the specific delivery time depends on the items and the quantity of your order.
5. What is your minimum order quantity?
Our minimum quantity for drillng machine is 1 set.
6. Is your price competitive?
A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service.
7.What is the warranty of our machine ?
Our main machine enjoys a 1 year warranty, but not include any vulnerable parts on it. We could offer vulnerable parts at any time when you need.
8,Could you stick customers brand on the products?
We warmly welcome the OEM orders.
