High Efficiency Wire Winding And Binding Machine,EW 20A Cable Wire Coil Winding Machine Tying Machine
- Category: >>>
- Supplier: Wenzhou East World Import&Export Co. Ltd.
Share on (1601197909338):
Product Overview
Description
Product Description

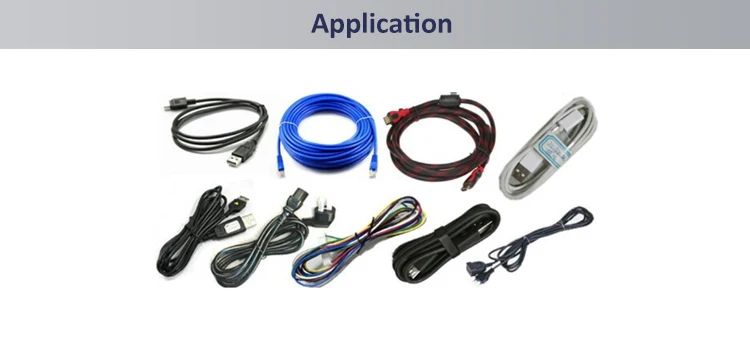

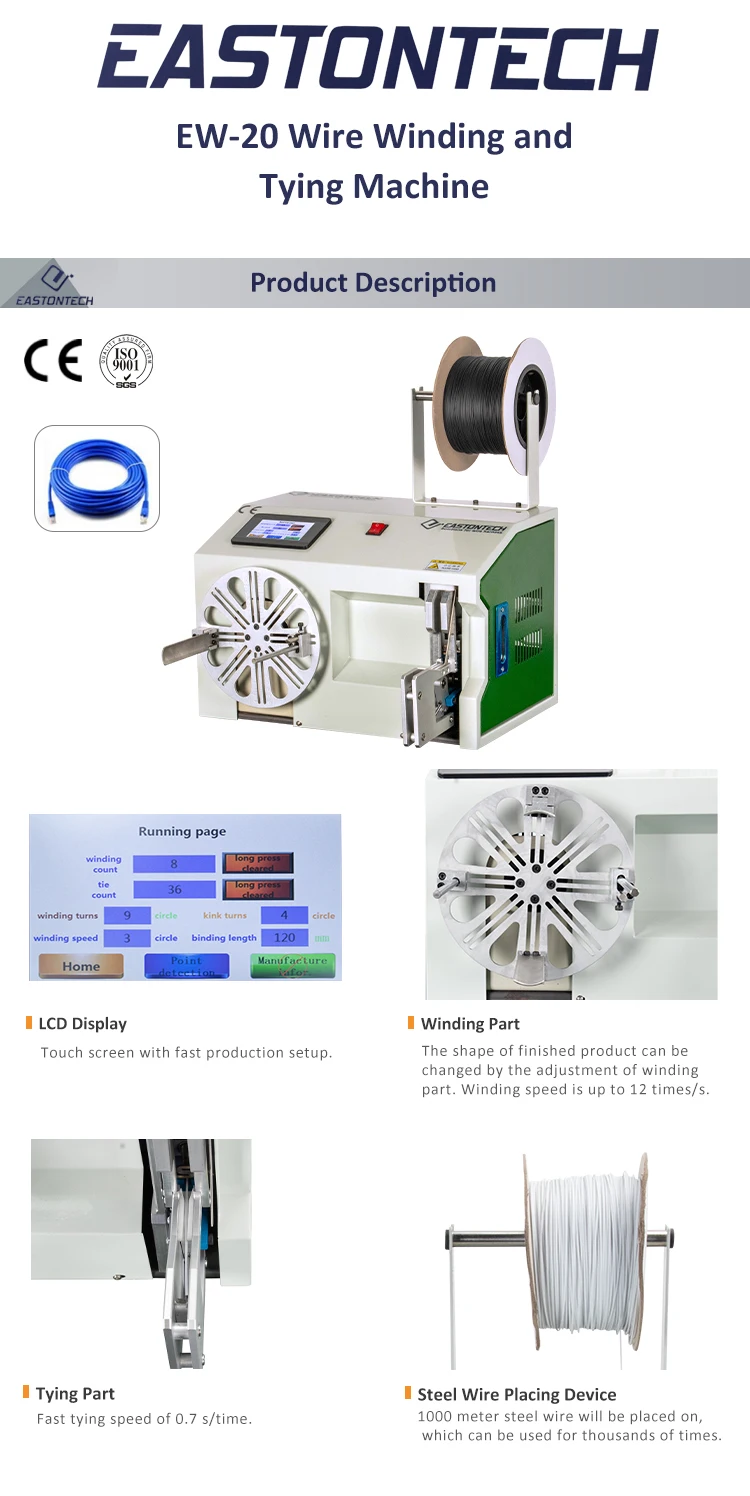

1.The machine is designed for winding and tying application.
2.Touch screen with intuitive program (custom language options).
3.NSK linear guides are selected for stable performance and repeatability guarantee.
4.Winding speed is up to 13 turns/s & tying speed of 0.7 s/time.
5.Winding process can be activated by touch screen or foot pedal according to practical need.
6.Each roll of tie wire can be used 5000 -8000 times according to tying diameter.
Product Paramenters
Model | EW-20A |
Winding ID | 50 - 150 mm |
Tying OD | |

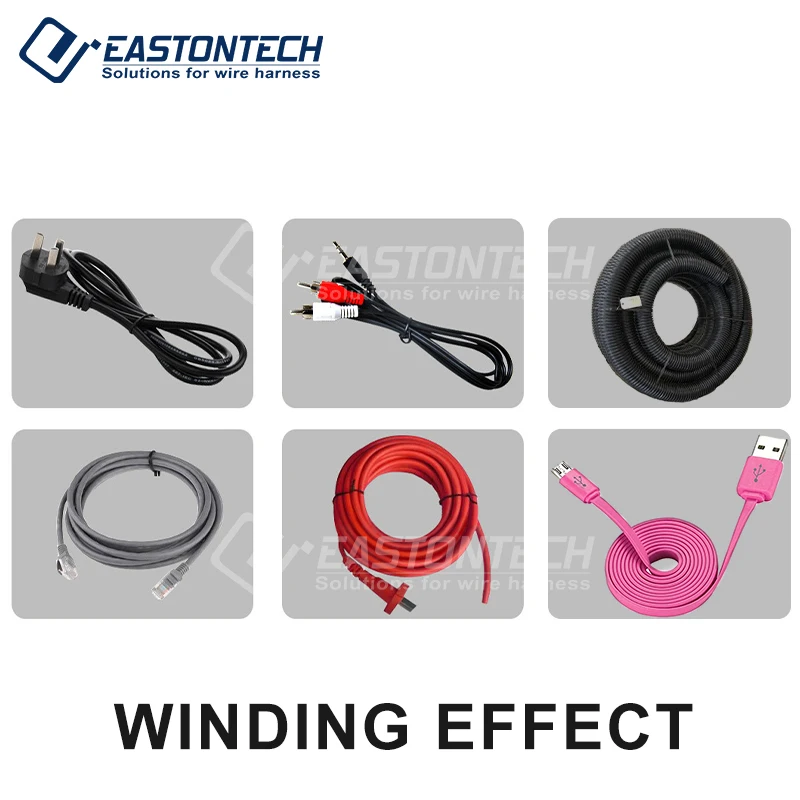

Winding shape | Round shape, 8 shape (mechanical adjustment on winding plate) |
Winding speed | 1 - 13 turns/s |
Tie wire length | 75 - 140 mm |
Twist number on tie wire end | Adjustable |
Noise level | < 70 dB(A) |
Power supply | 110, 220 V (50 - 60 Hz) |
Power | |
Program language | English (custom option) |
Dimension | 560 * 500 * 340 mm |
Weight | 30 kg |
