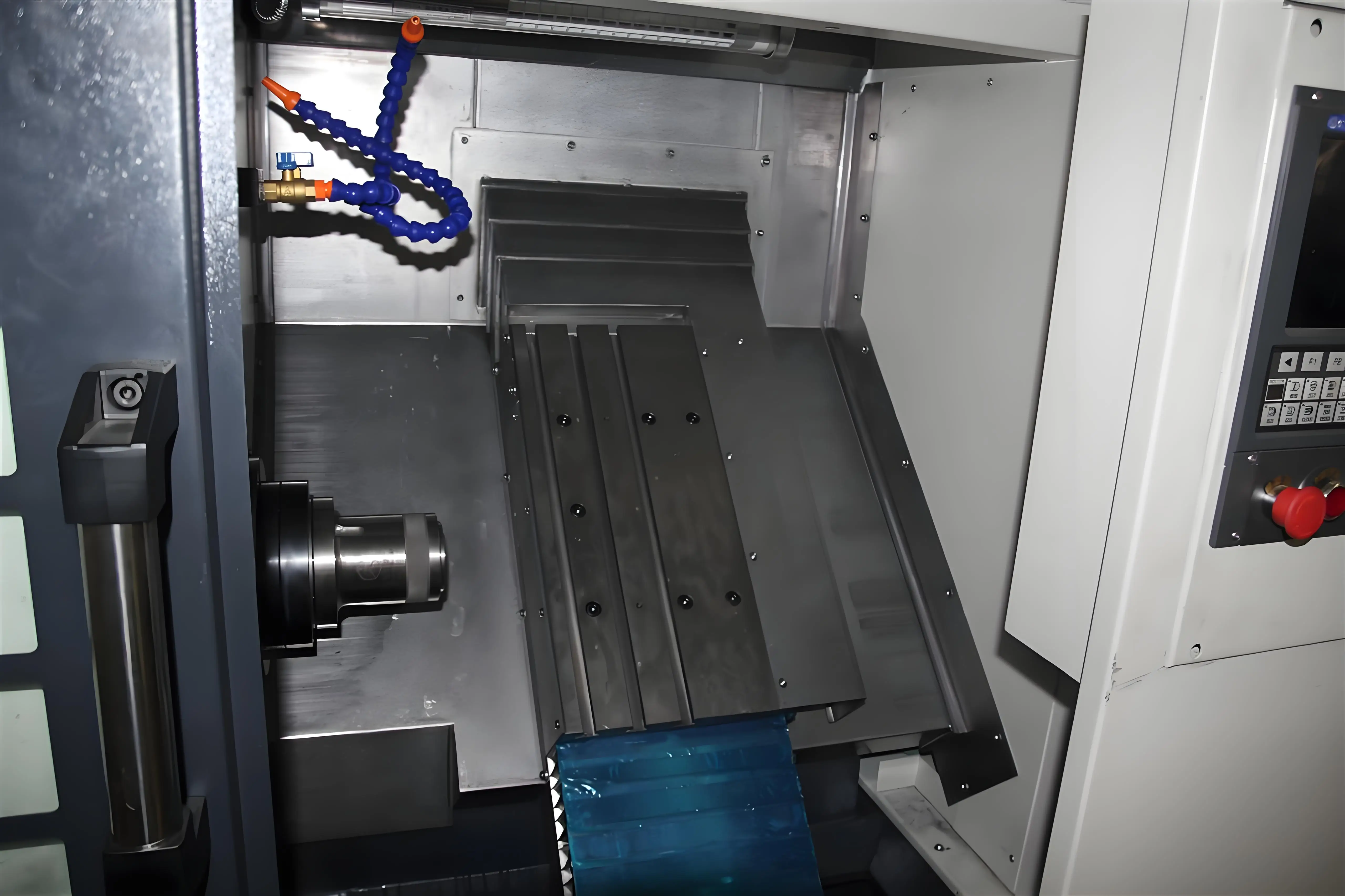

Factory Wholesale Cnc Lathe Slant Bed Control Desk Top Cnc Lathe Rubber Cutting Tools
- Category: >>>
- Supplier: Shandong Vv Machine Co .ltd
Share on (1601198004635):
Product Overview
Description
Factory Wholesale Cnc Lathe Slant Bed Control Desk Top Cnc-Lathe-Rubber-Cutting-Tools
Product Description
Machine tool characteristics

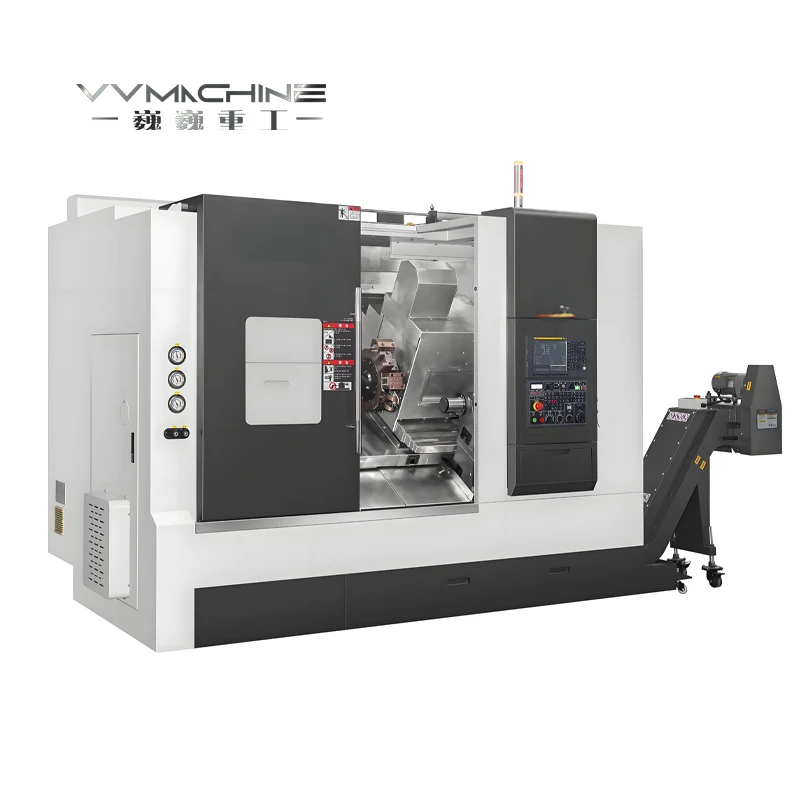

TCK50 full-function turning center, relying on the German technology platform design, the use of integral 30 degree inclined bed,
with high precision, high rigidity, high speed and better chip removal characteristics, ANSYS finite element force analysis,
reasonable casting layout, modular production assembly intelligence.
Specification
Item | unit | Specification | remark | ||
Maximum turning diameter on the bed | mm | 560 | |||
Maximum cutting length | mm | 500/1000 | |||
Standard cutting diameter | mm | 360 | 8 station | ||
Maximum cutting diameter | mm | 400 | |||
Standard cutting diameter | mm | 300 | 12 station | ||
Maximum cutting diameter | mm | 360 | |||
Maximum turning diameter on a skateboard | mm | 350 | |||
Spindle end type and code | A2-6 | Integral spindle unit | |||
Spindle front taper hole | 80 | ||||
Main shaft hole diameter | mm | 65 | |||
Headstock | Spindle speed range | r/min | 50～4500 | ||
Maximum output torque of spindle | Nm | 172 | |||
Spindle speed series | Stepless speed change | ||||
Main motor output power | kW | 15（15minutes）/11（rated） | |||
chuck | Chuck diameter/type | mm | ²12 | ||
X Shaft fast speed | m/min | 30 | |||
Z Shaft fast speed | m/min | 30 | |||
X Shaft travel | mm | 220 | |||
Z Shaft travel | mm | 550/1050 | |||
Overall tailseat travel | 450/950 | ||||
Tail seat sleeve taper | 5# | ||||
Standard tool holder form | Horizontal 12 stations | ||||
Tool size | Cylindrical cutter | mm | 25×25 | ||
Boring bar diameter | mm | Ф40/Ф32/Ф25/Ф20 | |||
Whether the cutter can select the tool nearby | Can be | ||||
Maximum bearing capacity | Disk-like parts | kg | 200(including chuck and other machine accessories) | ||
Axial parts | kg | 500 | |||
Height of center | Above ground | mm | 1050 | ||
Machine weight | kg | 3800KG/4500KG | |||
Dimensions (L × W × H) | mm | 2890/3390×1900×1850 | |||
Product application:
The machine through the numerical control system,this machine could process different inner bore,ex- circle,circular conicalsurface and screw thread,especially suitable for the small and middle-sized shaft and plate work piece fromrough processing in batch. lt has advantages like higher automaticity,simpler programming and higher accuracy.
CNC Lathe Machine features:
stability one-piece machine bed3-gear spindle speed,step-less in gearHigher rigidity pedestal Wider layer board Integrated automatic lubrication system
Details Images

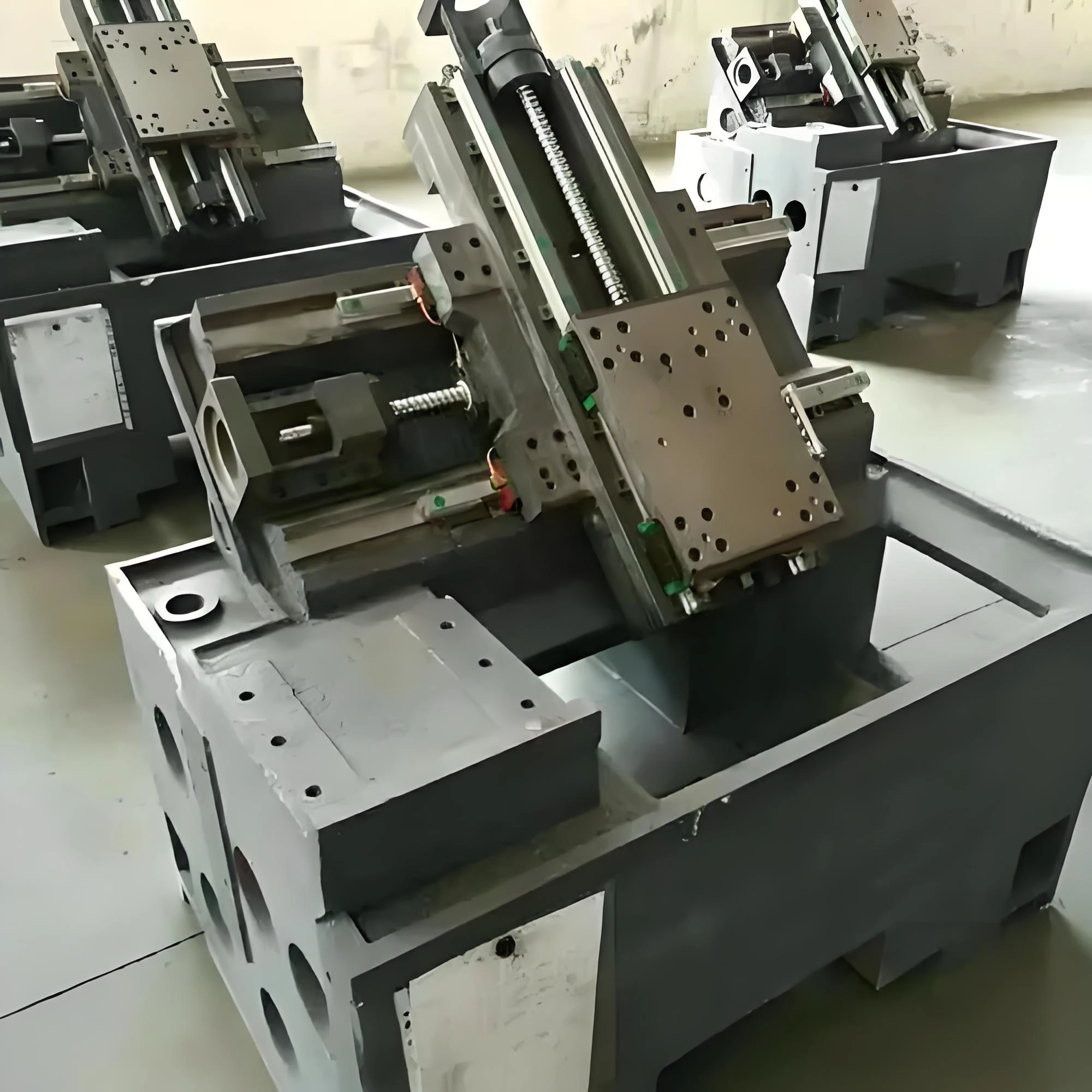

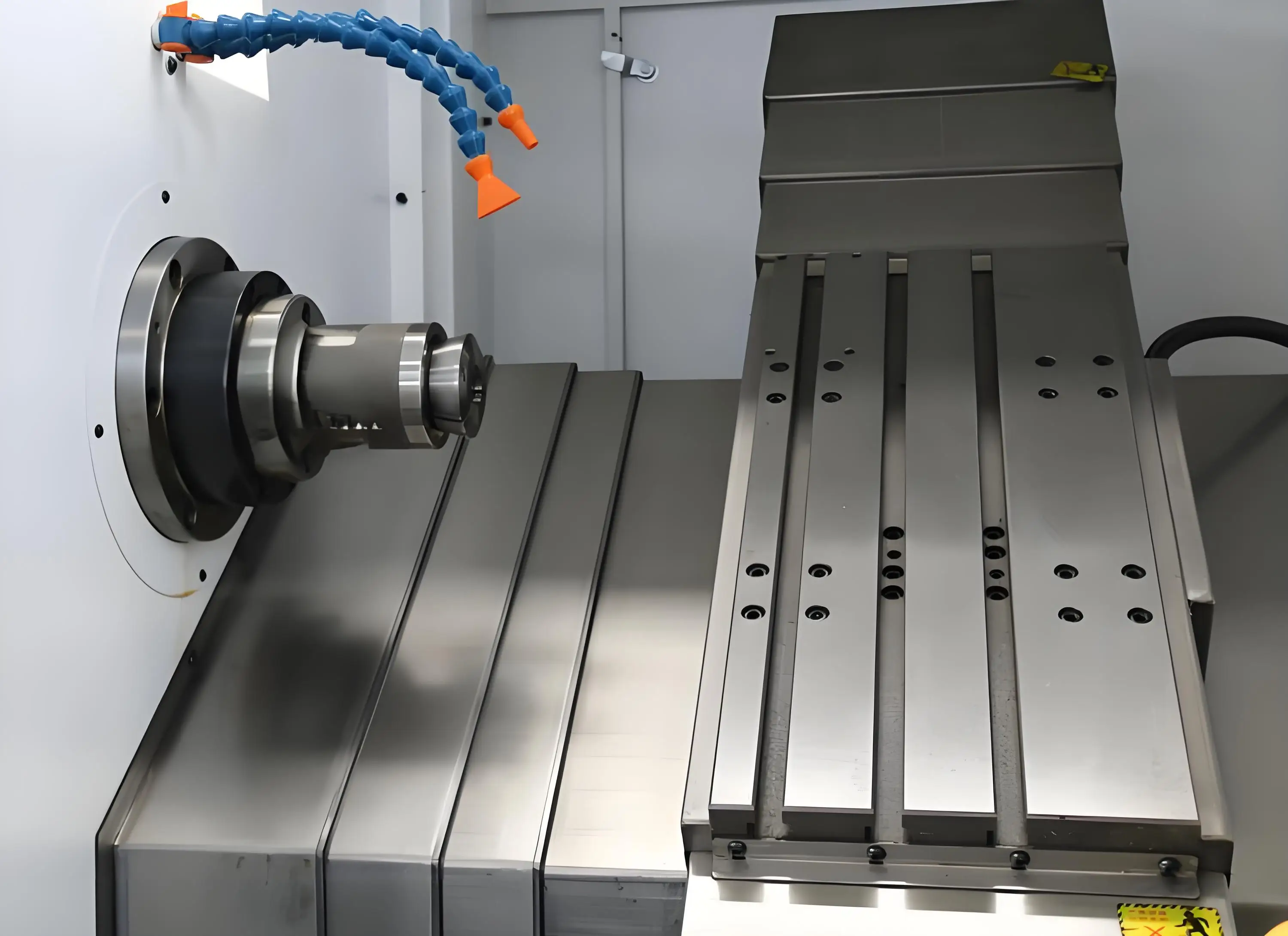

TAIWAN LINEARRAIL&BALL SCREW
Taiwan linear rail &ball screw with highprecision and speed.

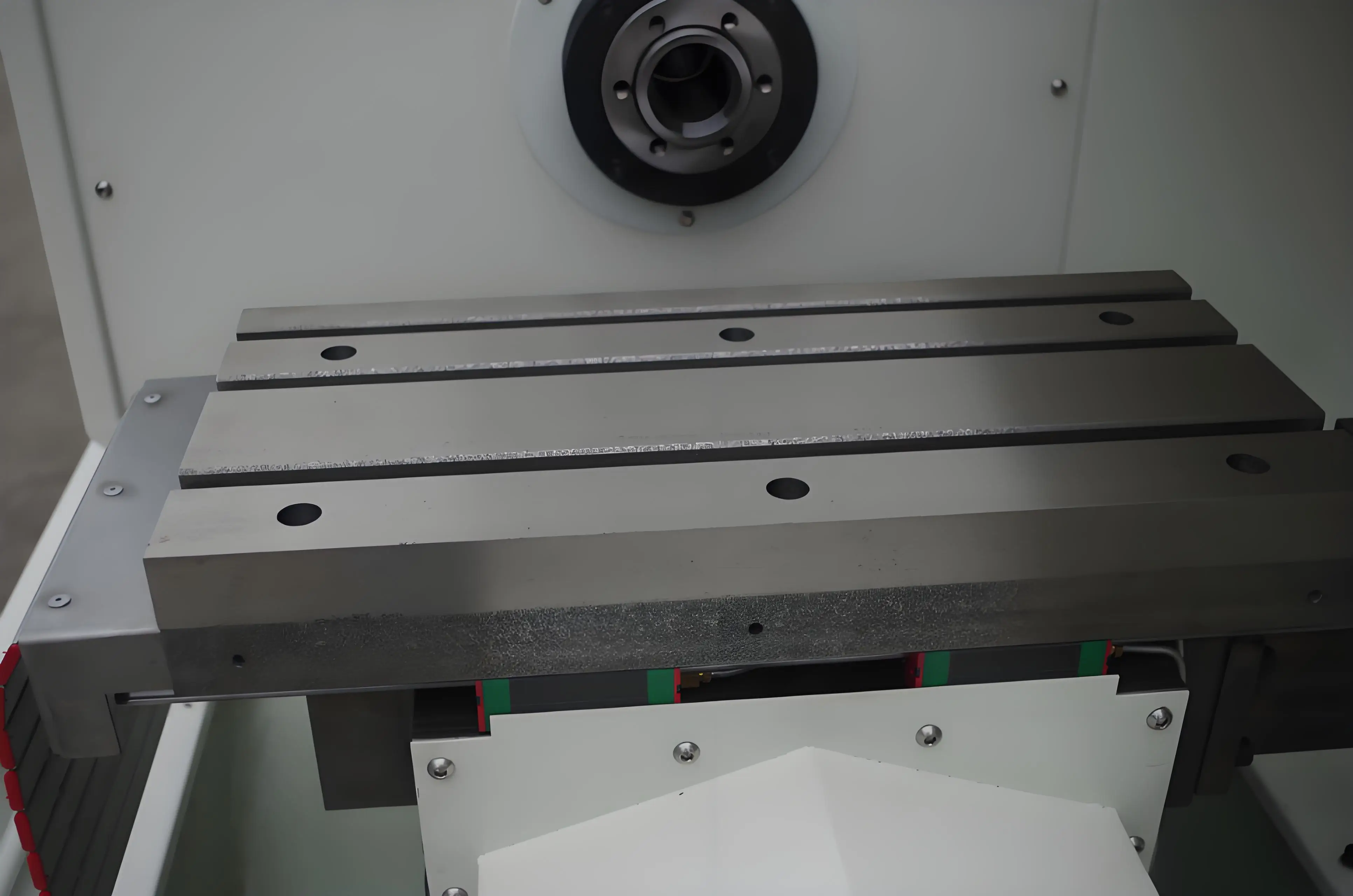

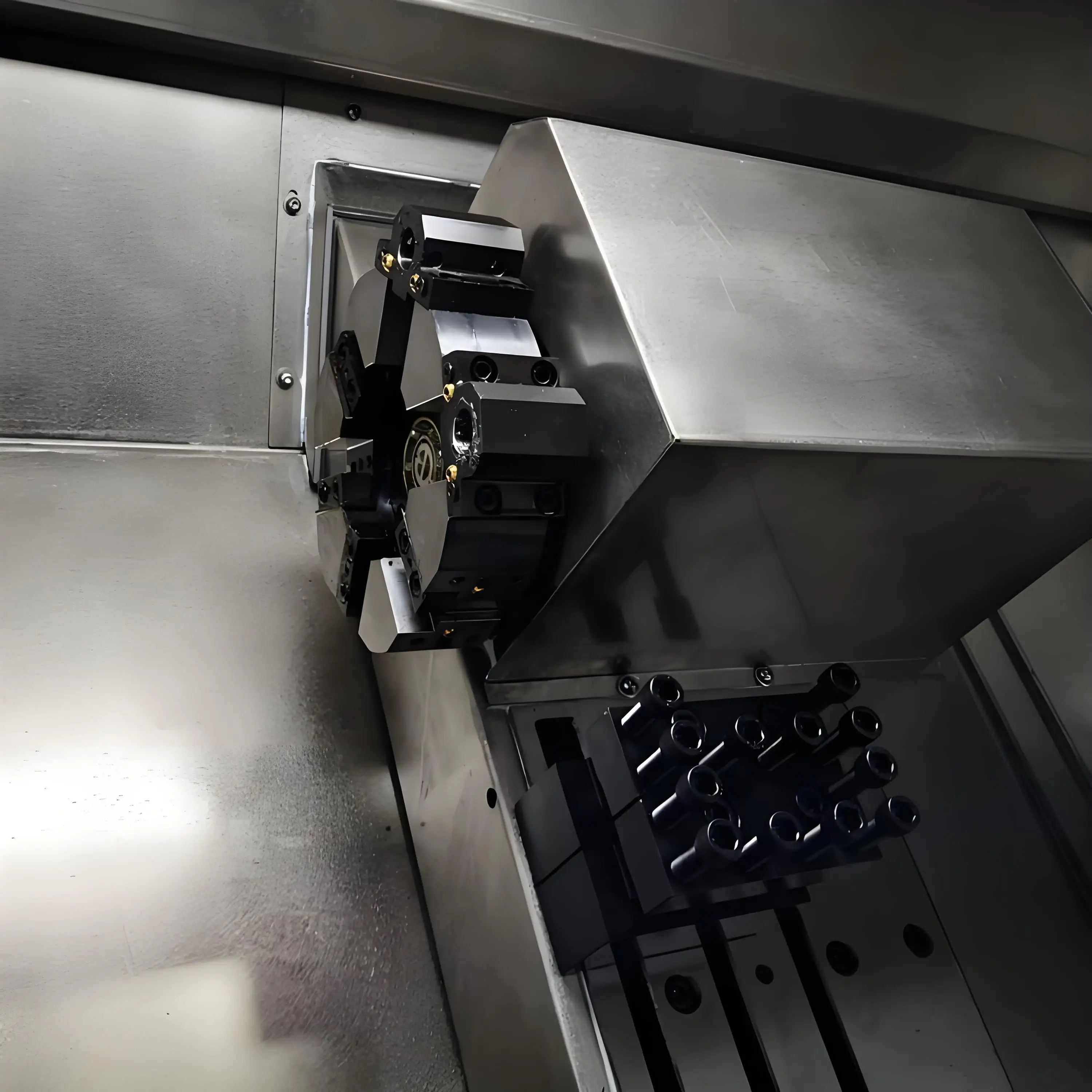

TOOL POST/TURRET
Standard with 4pcs gang type toolpost,4/6/8 stationturret are optional..

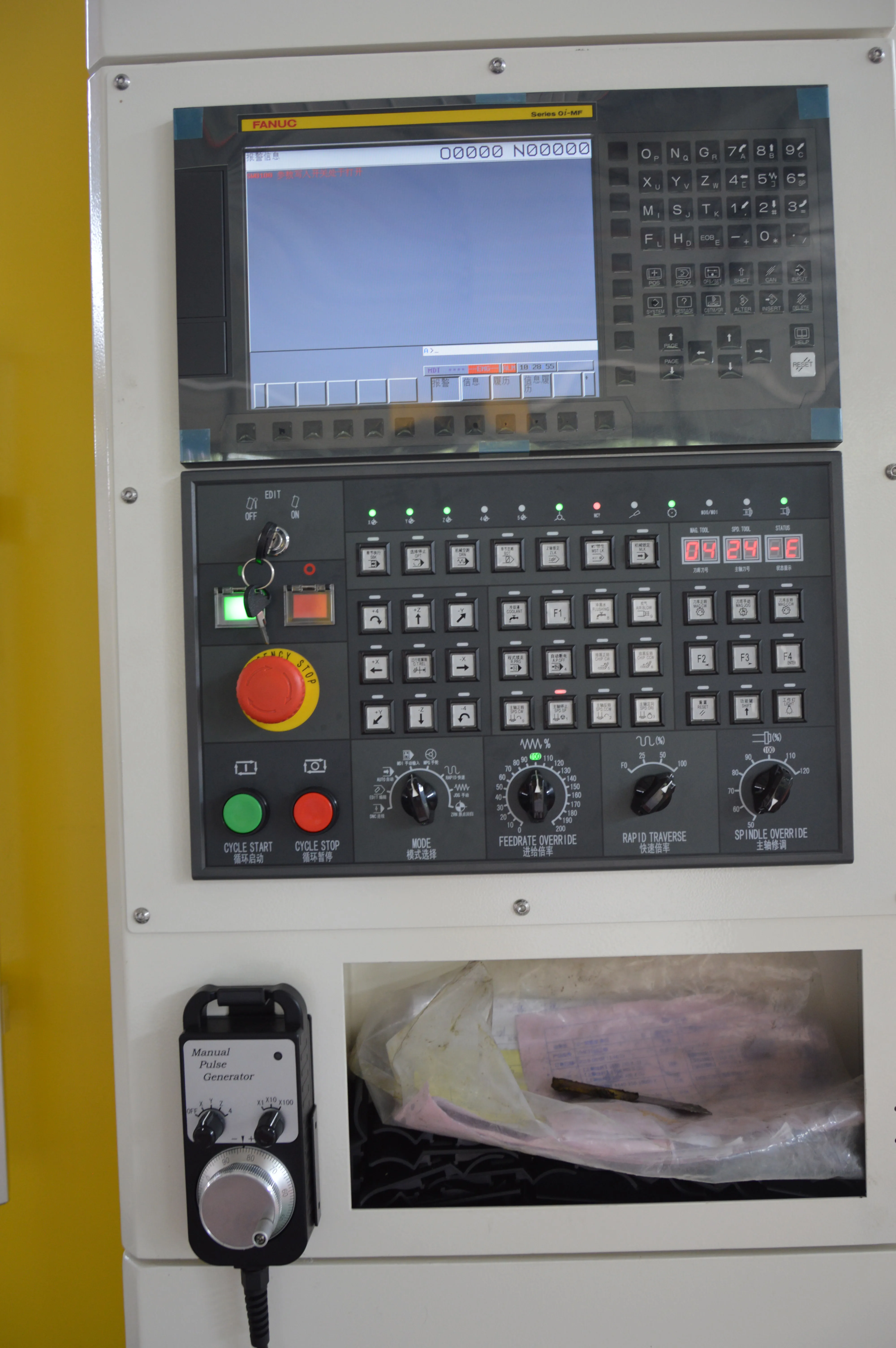

0CNC CONTROLSYSTEM
Standard :GSK
Optional:Siemens,Fanuc,Syntec,
Mitsubishi and others.

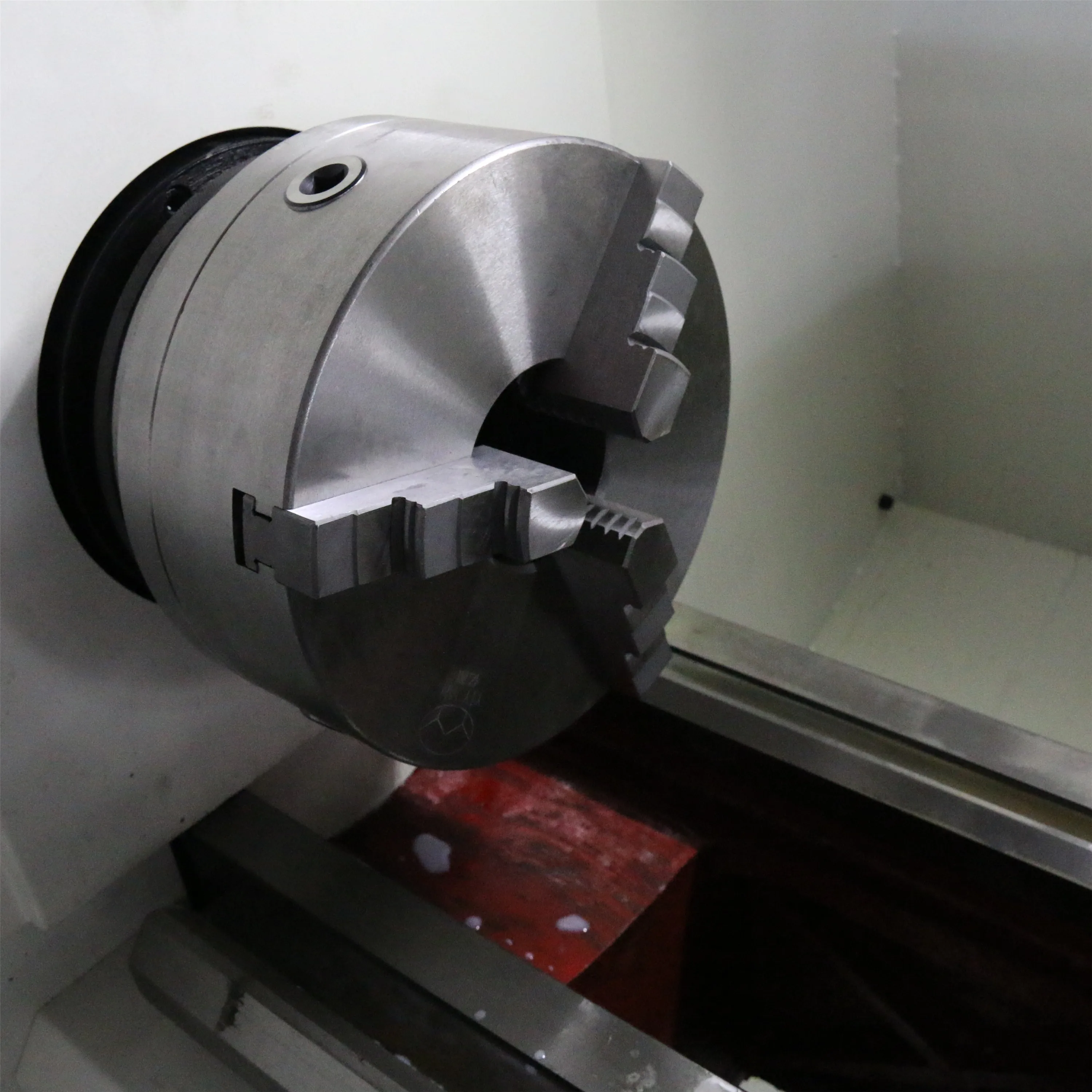

PRECISIONCHUCK
Standard withManual chuck,Optional:hydraulicchuck or pneumaticchuck.
SPINDLE UNIT
Taiwan brandspindle unit withhigh speed .

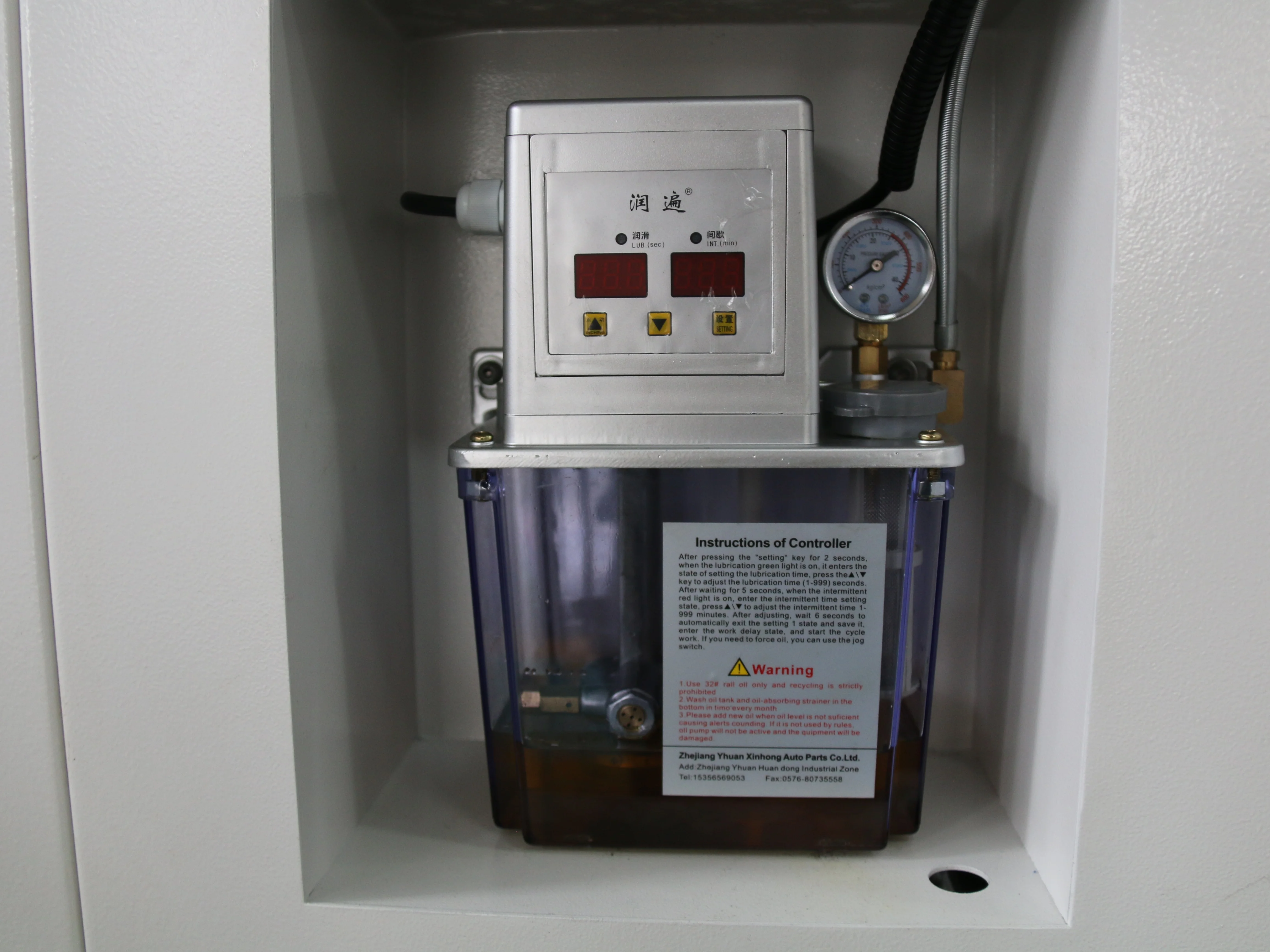

AUTO LUBRICATE
Timing automaticintermittentlubrication,stableand reliableoperation .
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is twoyears.
2. What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A: MOQ is one set, and warranty is twoyears.
2. What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
4.When is the delivery time?
A: Conventional Machines,We will delivery then within 2-30 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.
5. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
6.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
7. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
A: Conventional Machines,We will delivery then within 2-30 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.
5. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
6.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
7. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
