i2c CF Calibrator Face ID Alignment Machine Tool For iPhone X 11 12 13 Pro Max Dot Projector Matrix Fixture Holder

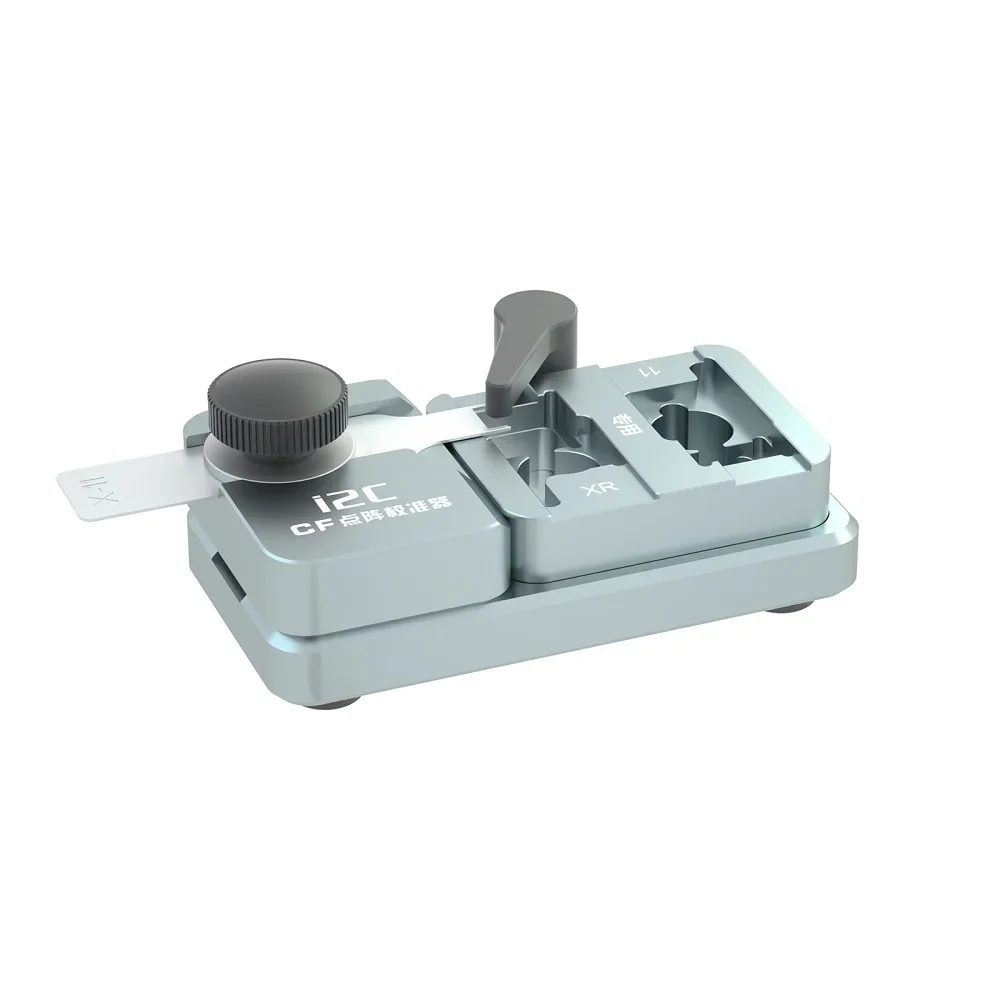

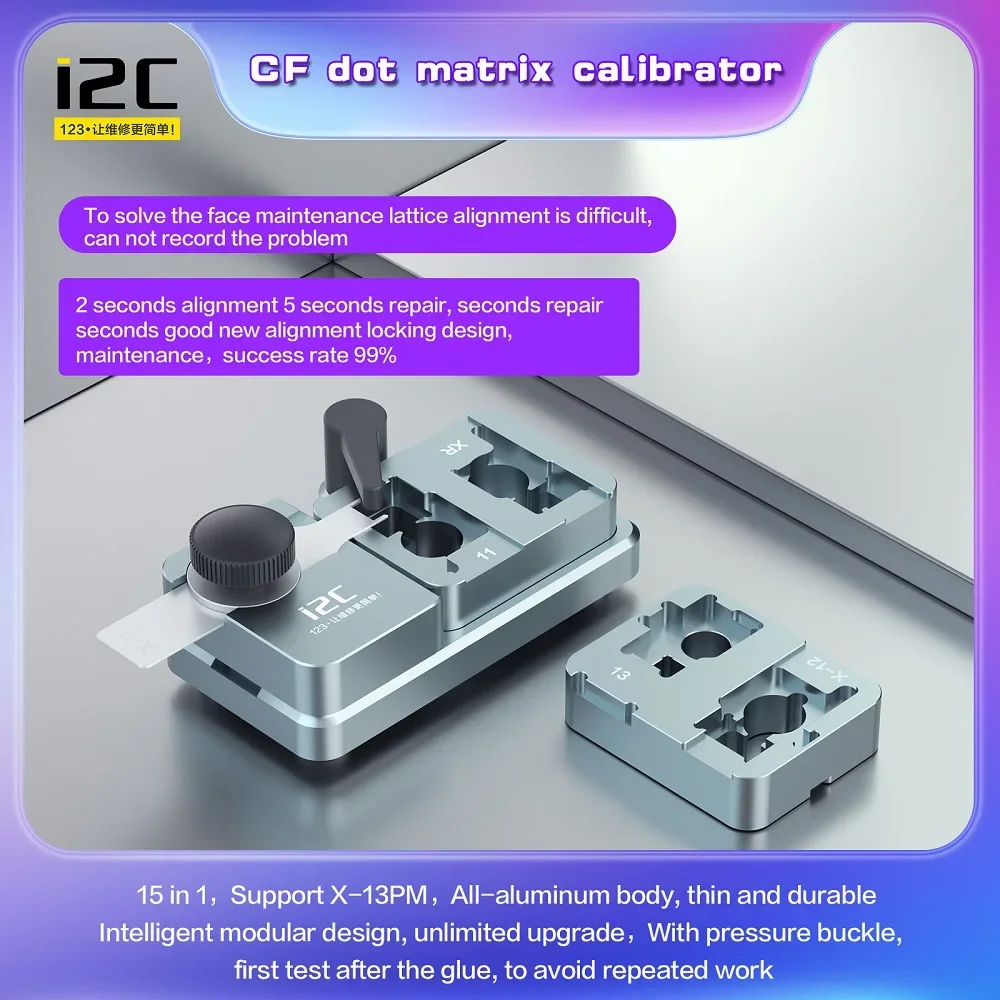

CF dot matrix calibrator
Solve the problem that the dot matrix alignment is difficult and cannot be entered during face maintenance
2 seconds to align, 5 seconds to repair, seconds to repair and seconds to fix,
New alignment locking design, 99% maintenance success rate



CF dot matrix calibrator
To solve the face maintenance lattice alignment is difficult,
can not record the problem
2 seconds alignment 5 seconds repair, seconds repair
seconds good new alignment locking design, maintenancesuccess rate 99%
●All-aluminum body, thin and durable
lntelligent modular design, unlimited upgrade
. Wwith pressure buckle, first test after the glue, to avoidrepeated work
Support X-13PM 15models
Air avoidance design, strong magnetic adsorption,
360℃rotary buckle,small body compatible with 15 models, high cost performance!

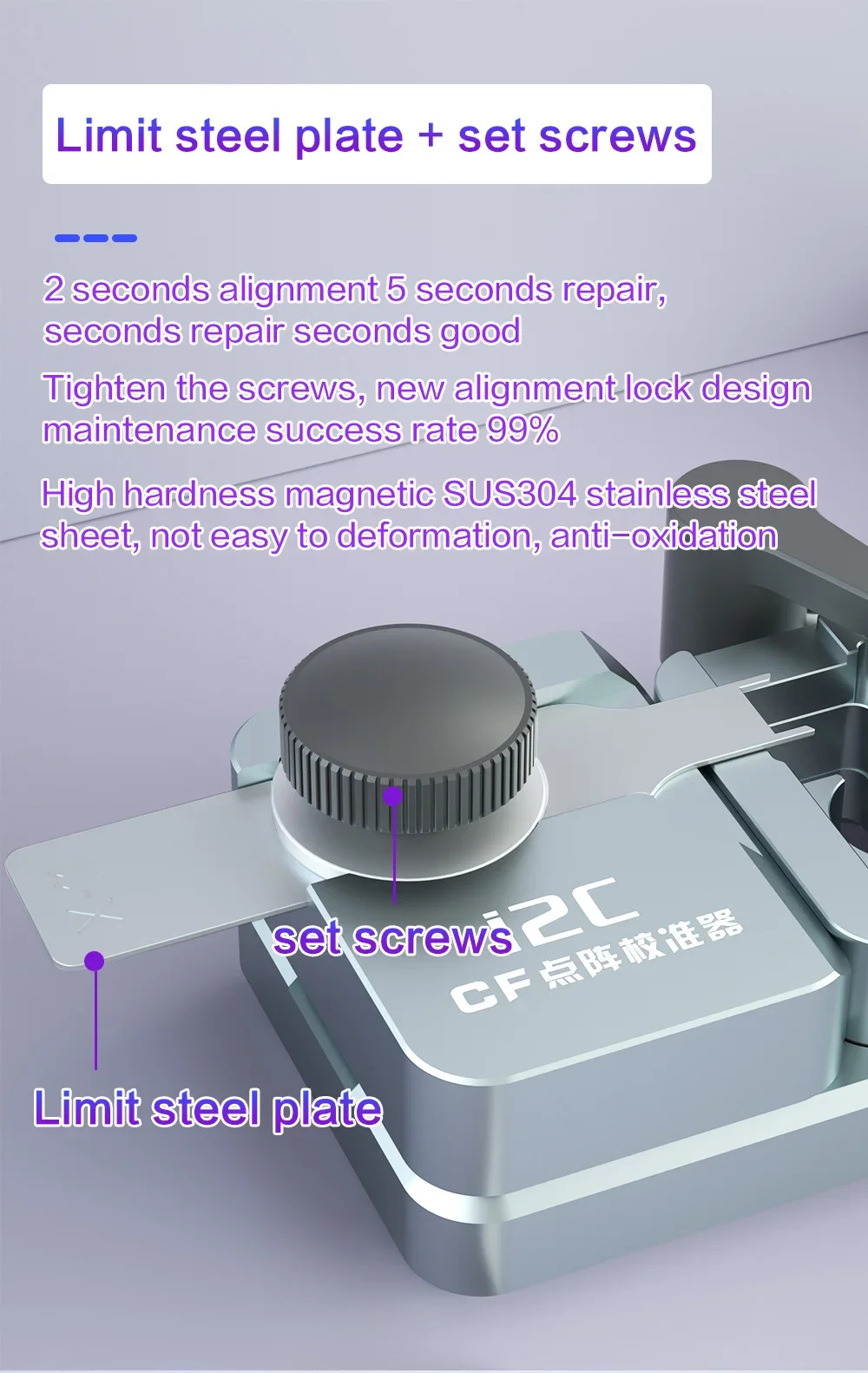

Limit steel plate + set screws
2 seconds alignment 5 seconds repair,seconds repair seconds good
Tighten the screws, new alignment lock designmaintenance success rate 99%
High hardness magnetic suS304 stainless steelsheet, not easy to deformation, anti-oxidation

Plug-and-pull high
intensity magnetic adsorption

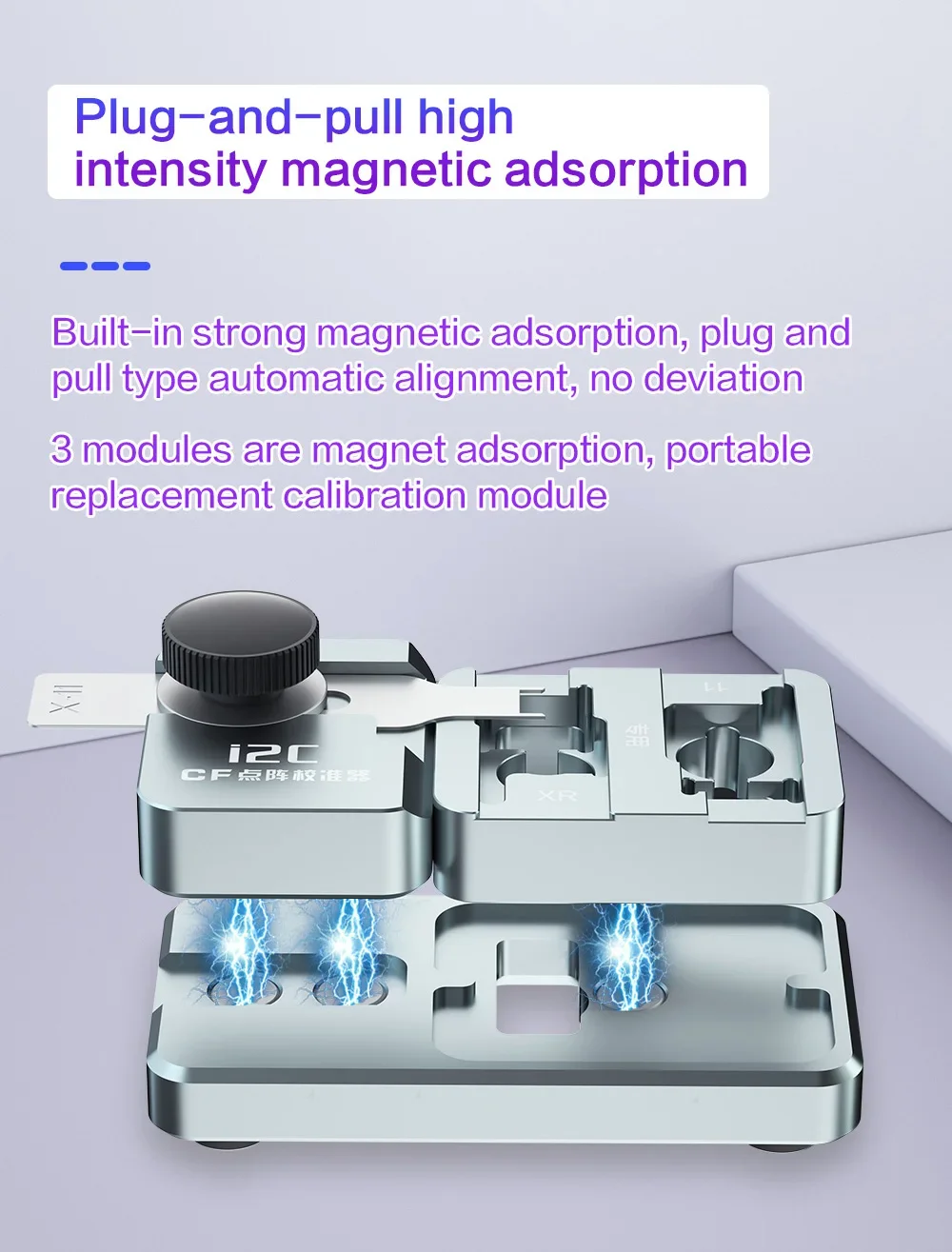

Built-in strong magnetic adsorption, plug andpull type automatic alignment,
no deviation3 modules are magnet adsorption, portablereplacement calibration module

Air avoidance design + rotary buckle---

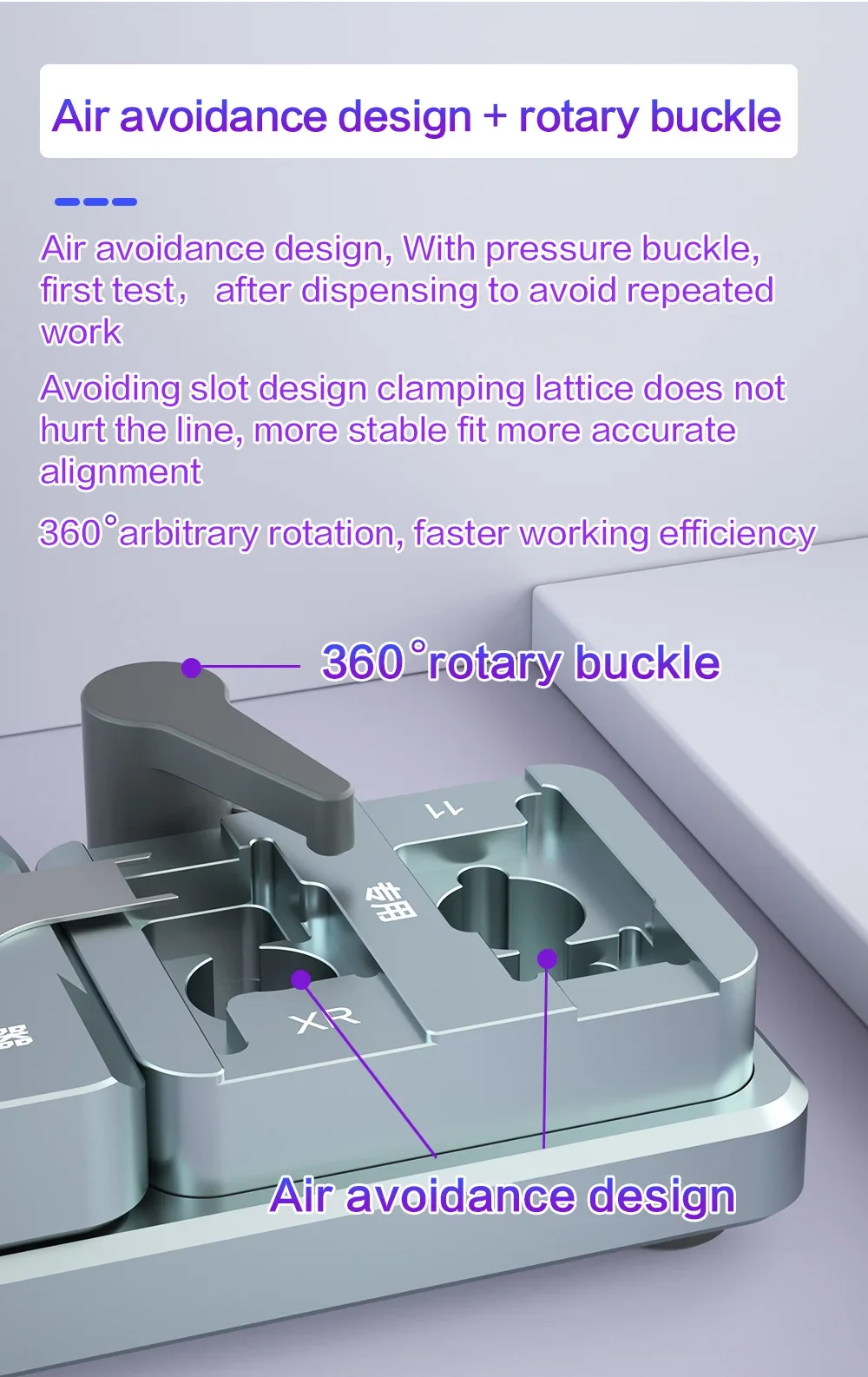

Air avoidance design, With pressure buckle,first test,after dispensing to avoid repeatedwork
Avoiding slot design clamping lattice does nothurt the line, more stable fit more accuratealignment
360°arbitrary rotation, faster working efficiency
—360 rotary buckle
Air avoidance design



Allaluminum body, thin and durable
Exquisite fuselage, refuse cumbersome, simpleroperation, can be chuai pocket, at any time
anywhere repair
The material is made of 6061 aluminum anodized,high precision CNC machining,not easy to
deform, durable

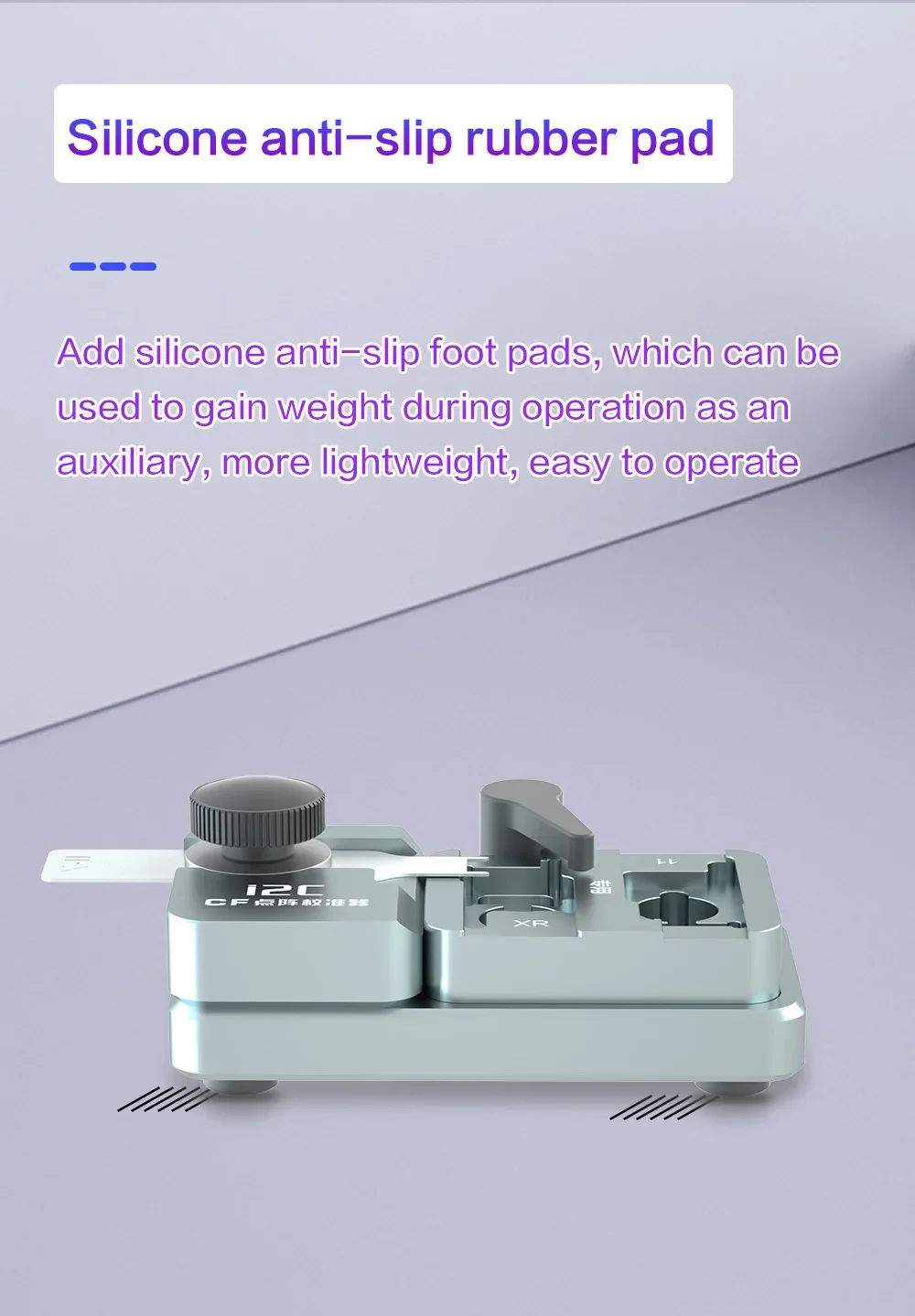

Silicone anti-slip rubber pad
Add silicone anti-slip foot pads, which can beused to gain weight during operation as anauxiliary, more lightweight, easy to operate

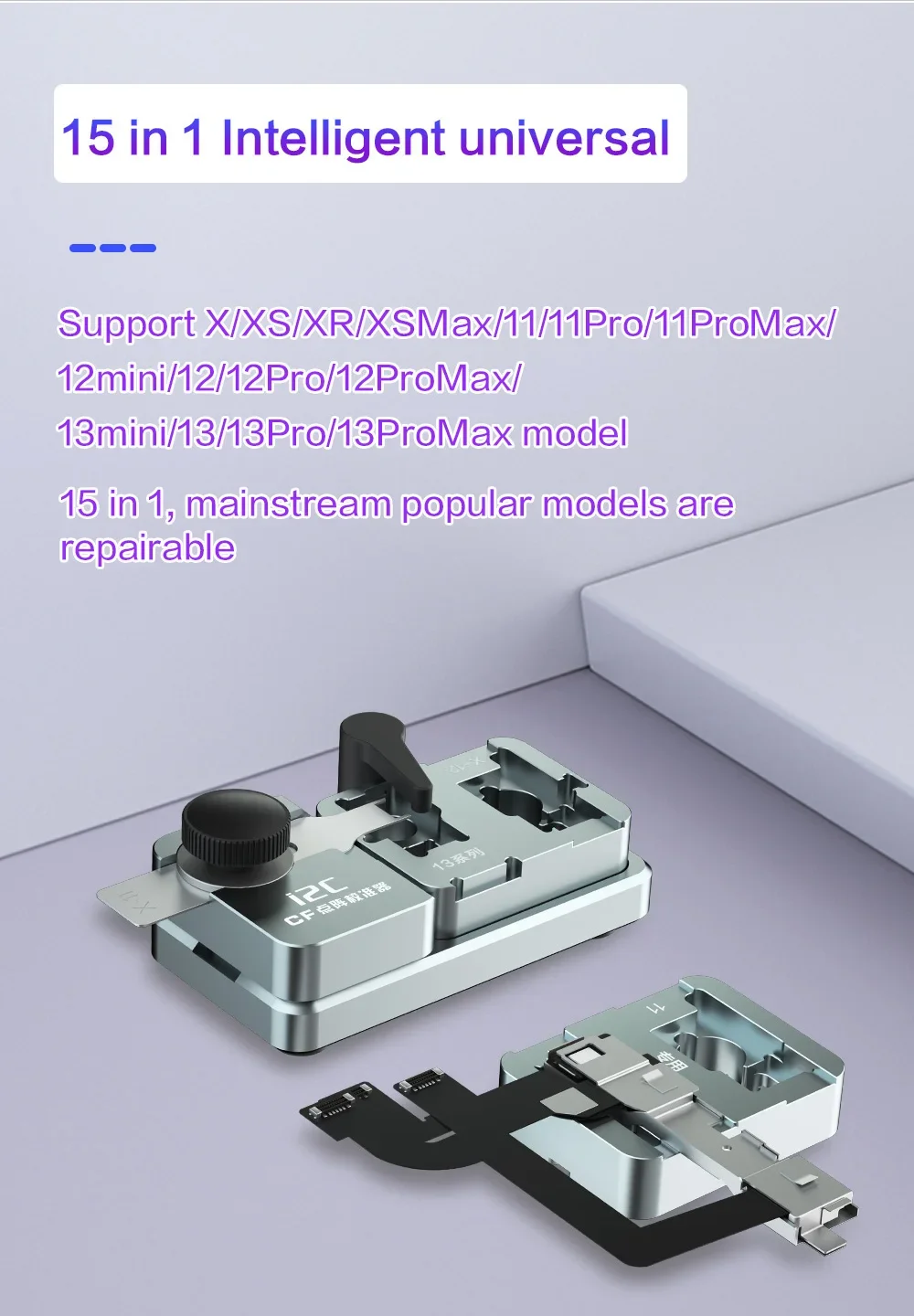

15 in 1 Intelligent universal
Support XI/XSIXR/XSMax/11/11Pro/11ProMaxl12mini/12/12Pro/12ProMax/
13mini/13/13Pro/13ProMax model
15 in 1, mainstream popular models arerepairable

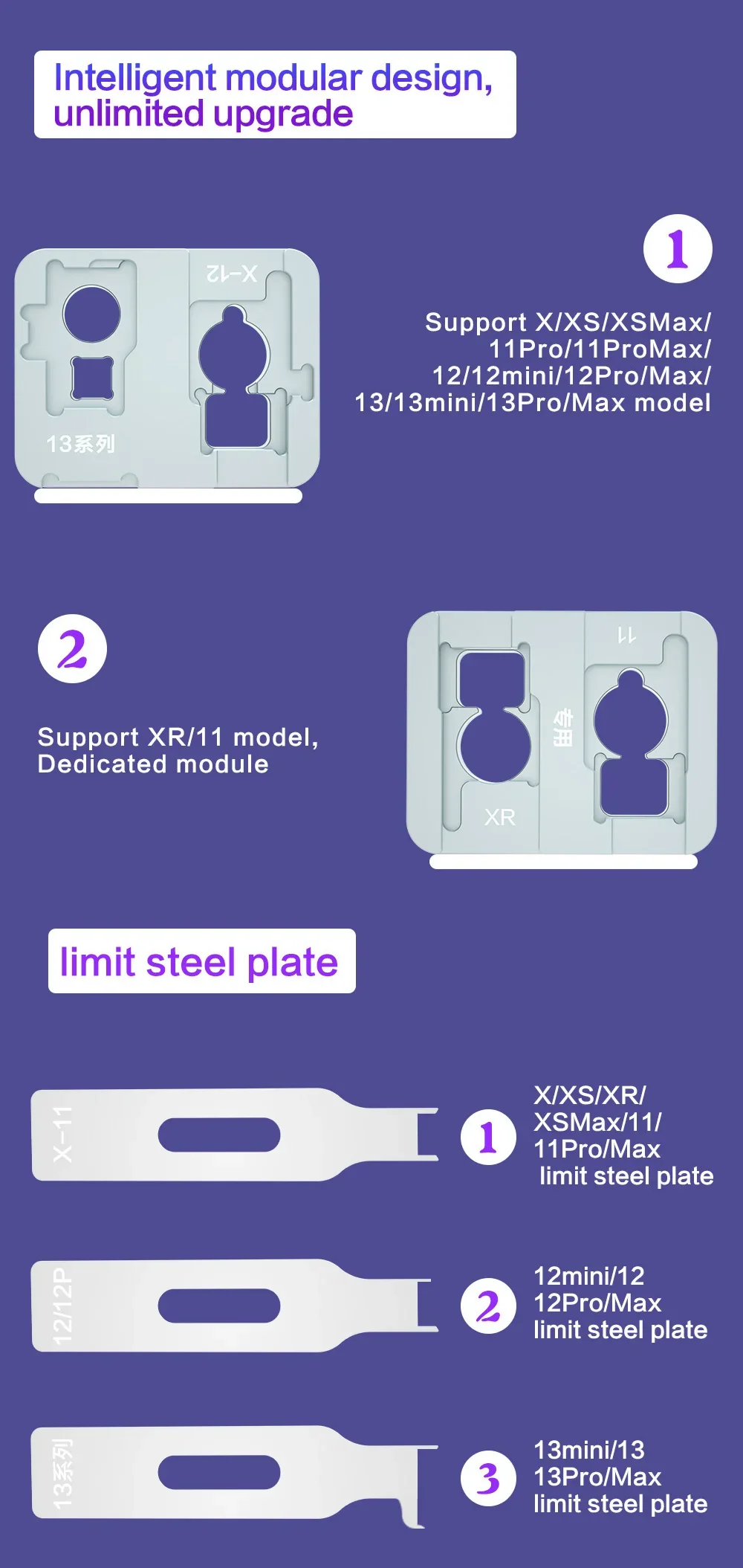

lntelligent modular design,unlimited upgrade
Support XIXS/XSMaxl
11 Pro/11 ProMaxl12/12mini/12Pro/Maxl13/13mini/13Pro/Max model

support XR/11 model,Dedicated module




limit steel plate
1= XXS/XR/XSMax/11/11Pro/Max
limit steel plate
2= 12mini/12
12Pro/Maxlimit steel plate
13mini/13
3=13Pro/Maxlimit steel plate

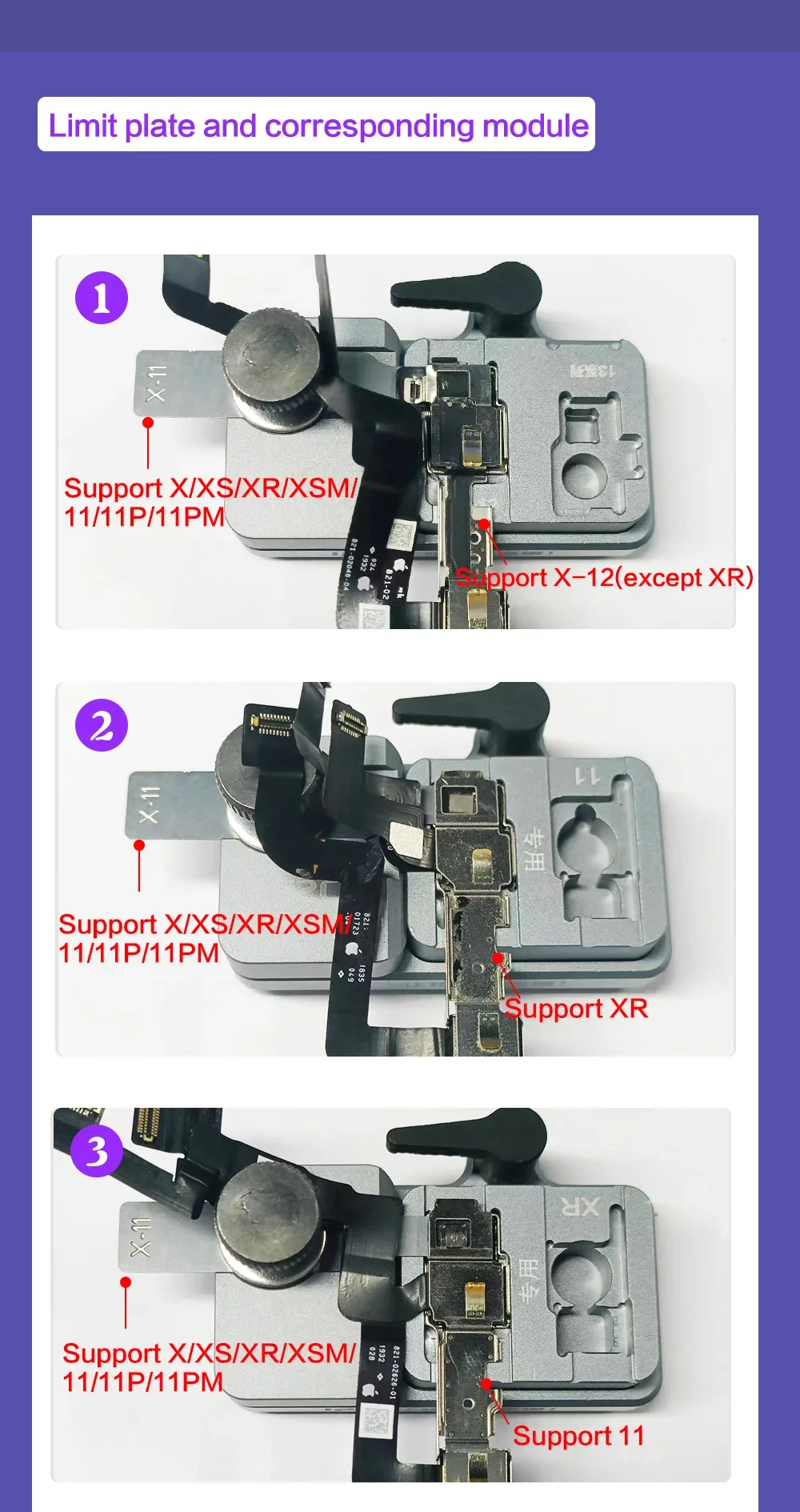

Limit plate and corresponding module


Operation procedure

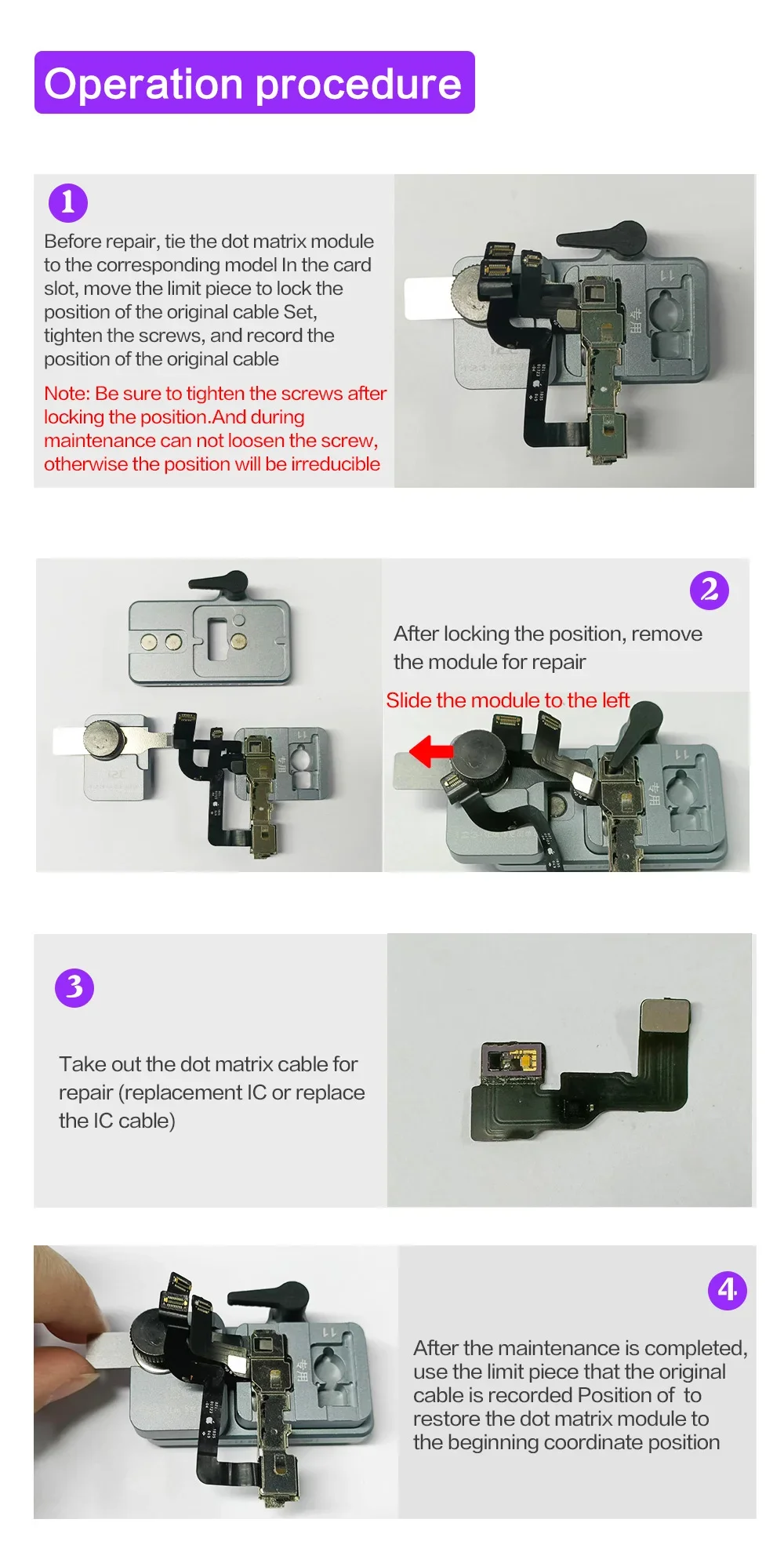

1-Before repair, tie the dot matrix module
to the corresponding model In the cardslot, move the limit piece to lock theposition of the original cable Set,tighten the screws, and record theposition of the original cable
Note: Be sure to tighten the screws afterlocking the position.And during
maintenance can not loosen the screw,otherwise the position will be ireducible


2-After locking the position, removethe module for repair
Slide the module to the left


3-Take out the dot matrix cable forrepair (replacement lC or replacethe lC cable)

4- After the maintenance is completed,use the limit piece that the originalcable is recorded Position of torestore the dot matrix module tothe beginning coordinate position


5-inspection after post-maintenance

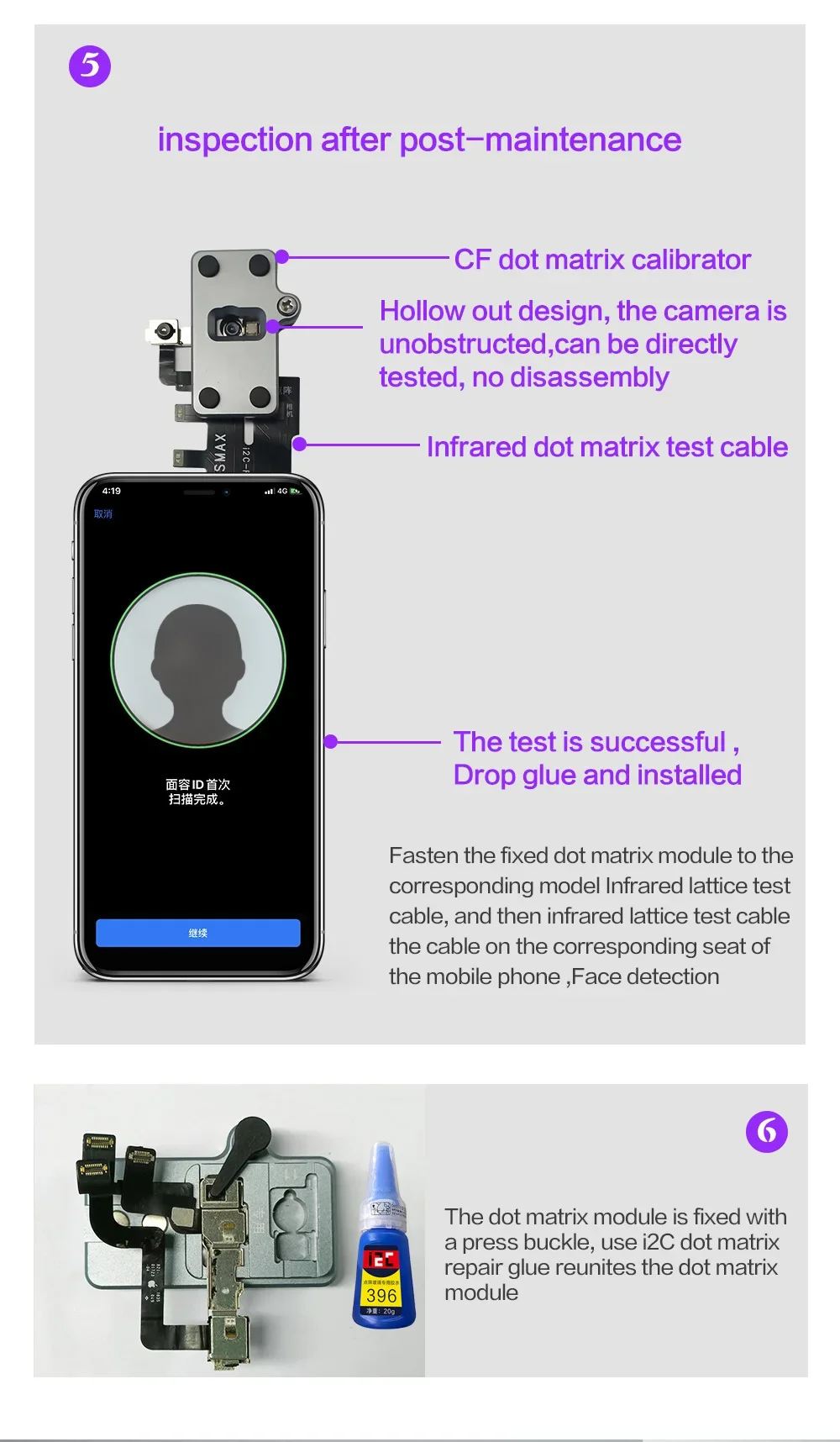

——CF dot matrix calibratorHollow out design, the camera isunobstructed,can be directlytested, no disassembly
——Infrared dot matrix test cable
— The test is successful ，

Drop glue and installed

Fasten the fixed dot matrix module to thecorresponding model lnfrared lattice test
cable, and then infrared lattice test cable

the cable on the corresponding seat ofthe mobile phone ,Face detection


6-The dot matrix module is fixed witha press buckle, use i2C dot matrixrepair glue reunites the dot matrixmodule

Product accessories

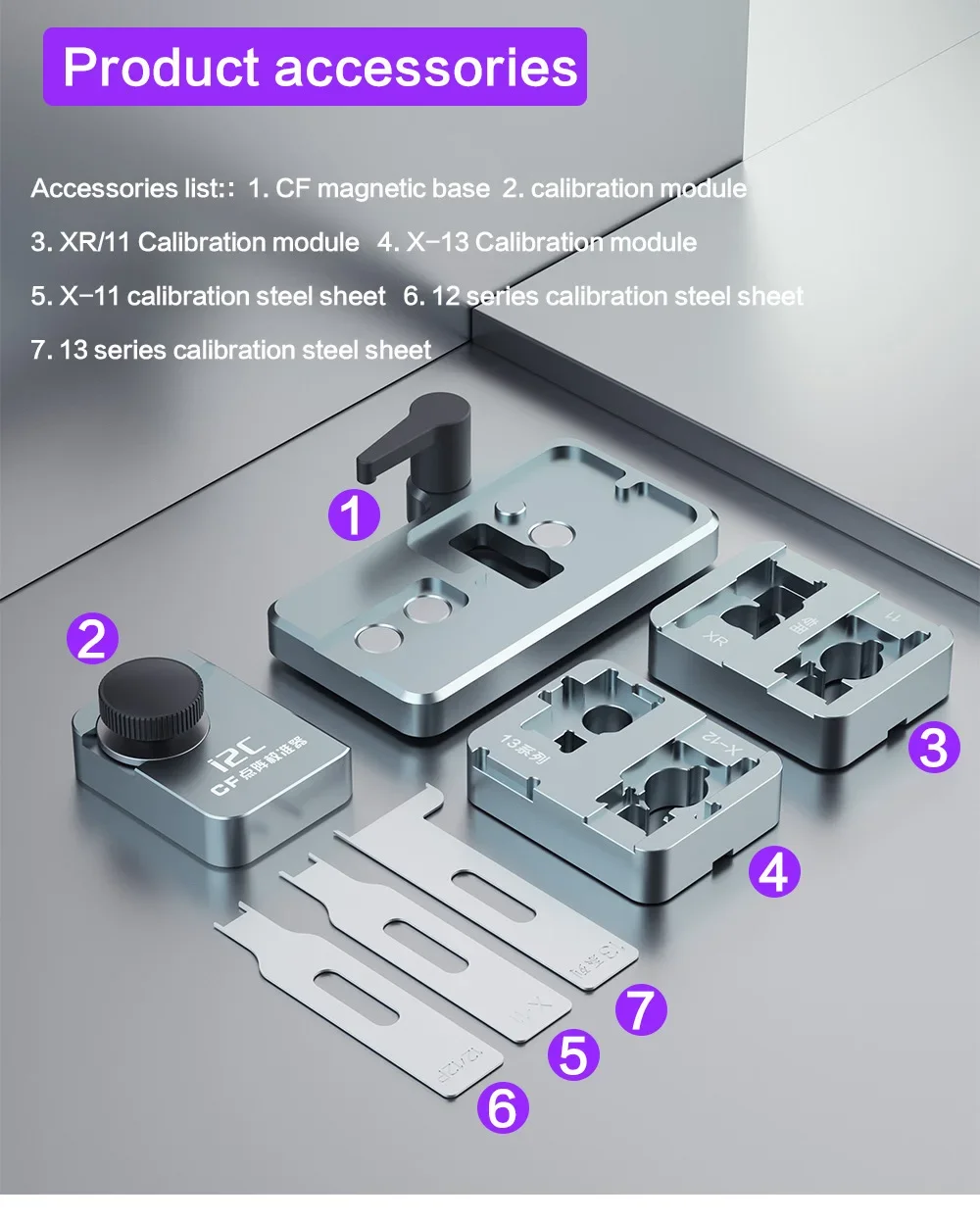

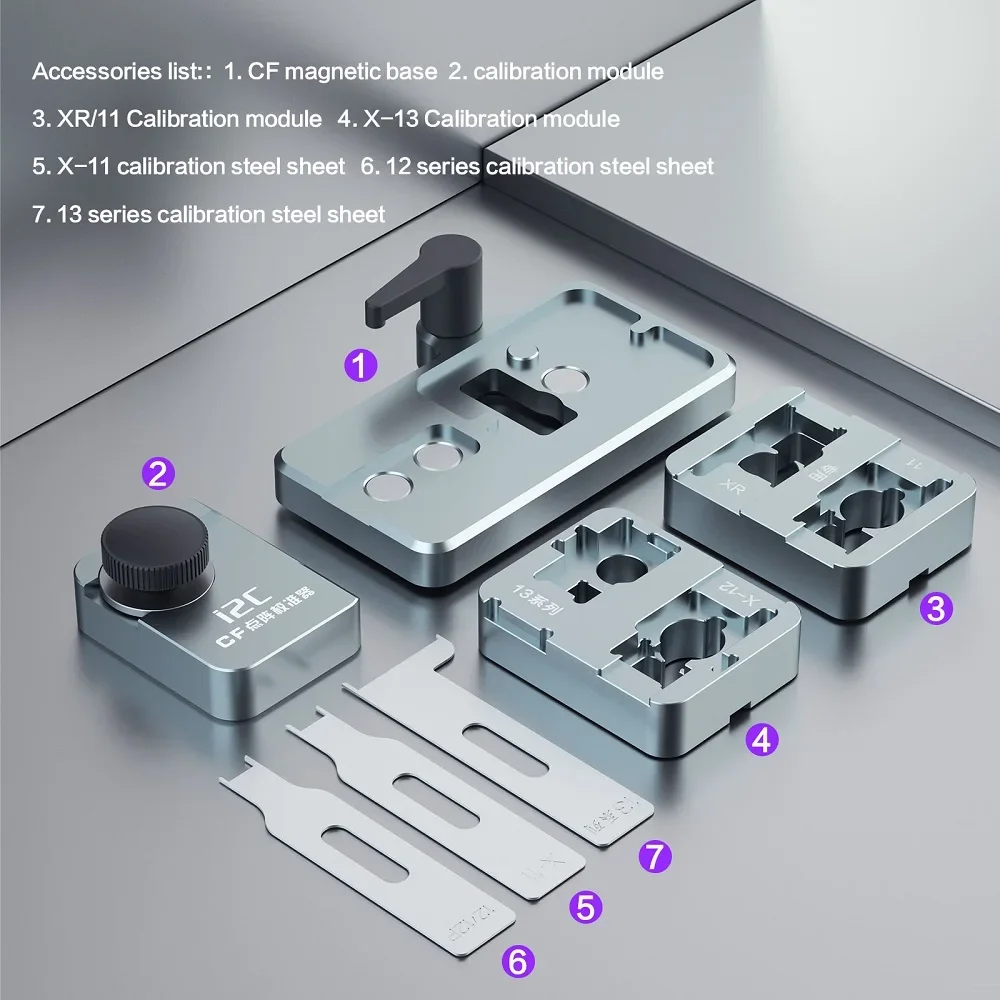

Accessories list::
1.CF magnetic base
2.calibration module
3.XR/11 Calibration module
4.X-13 Calibration module
5.X-11 calibration steel sheet
6.12 serles calibration steel sheet
7.13 series calibration steel sheet

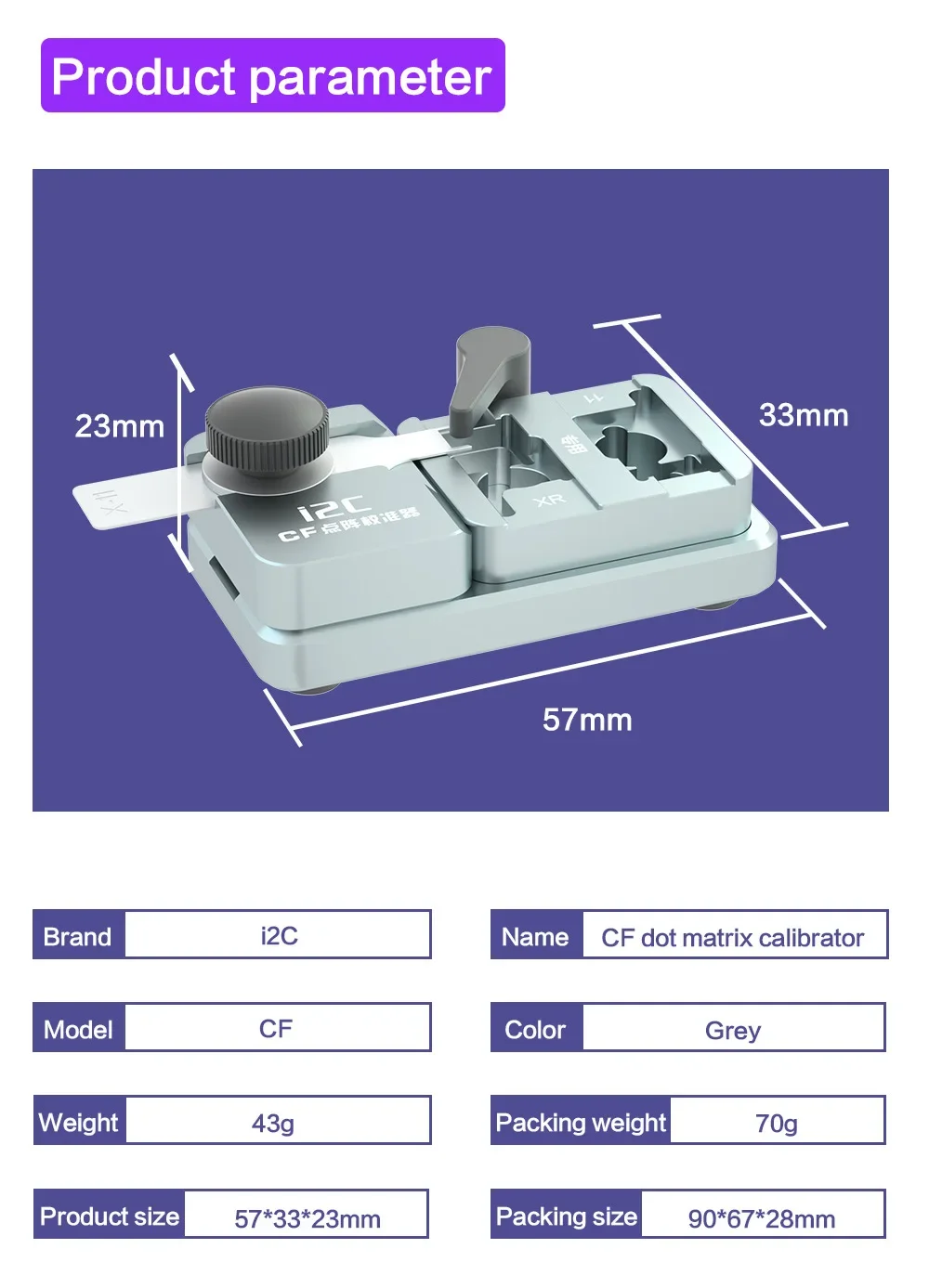

brand i2C
Name CF dot matrix calibrator
Model : CF
Color: Gray
Weight 43g
Packing weight 70g
Product size 57*33*23mm
Packing size 90*67*28mm
