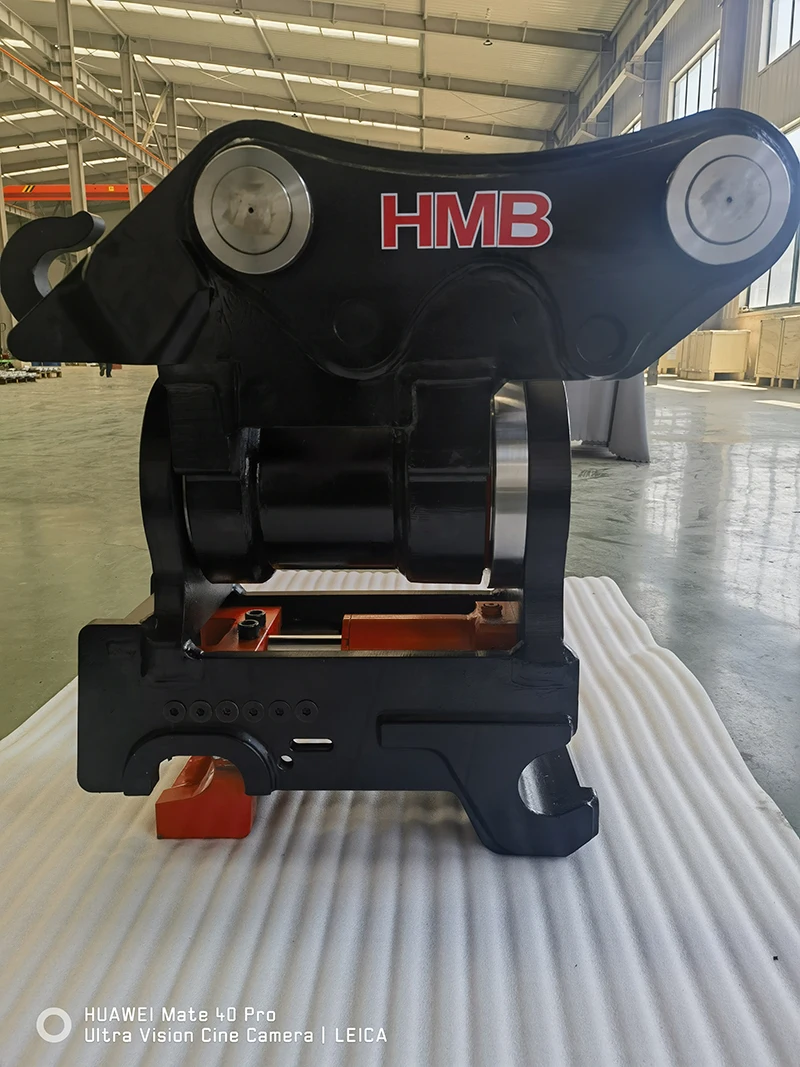

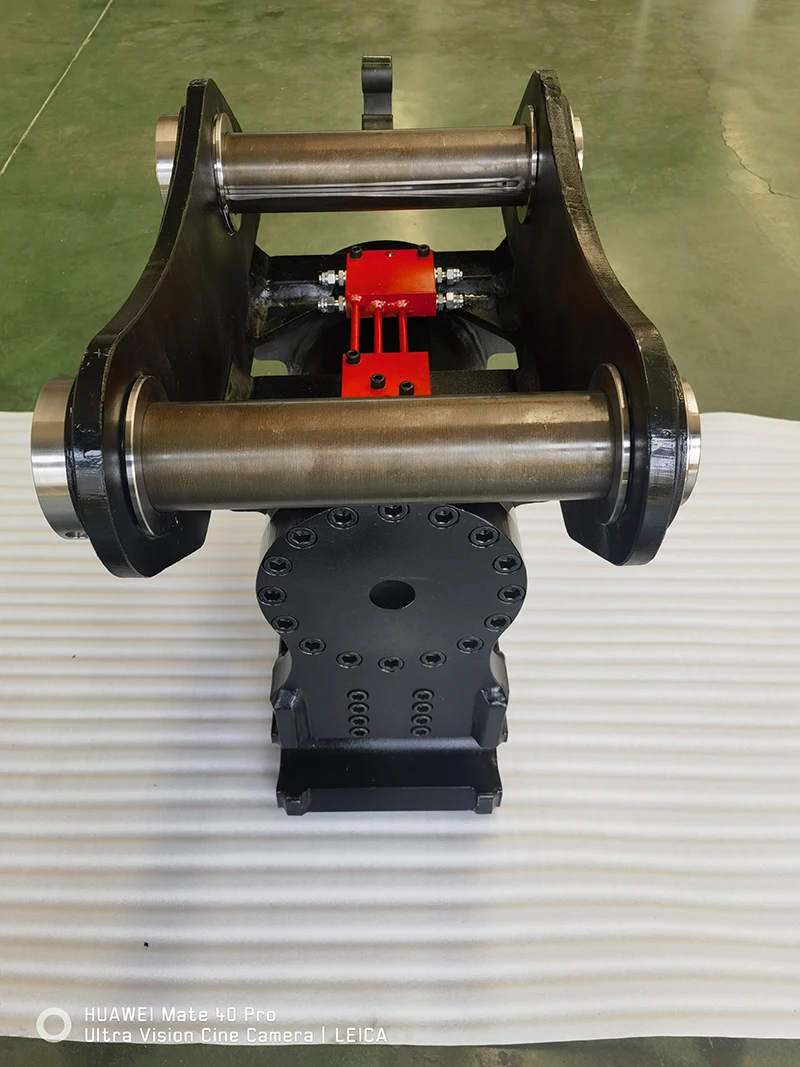

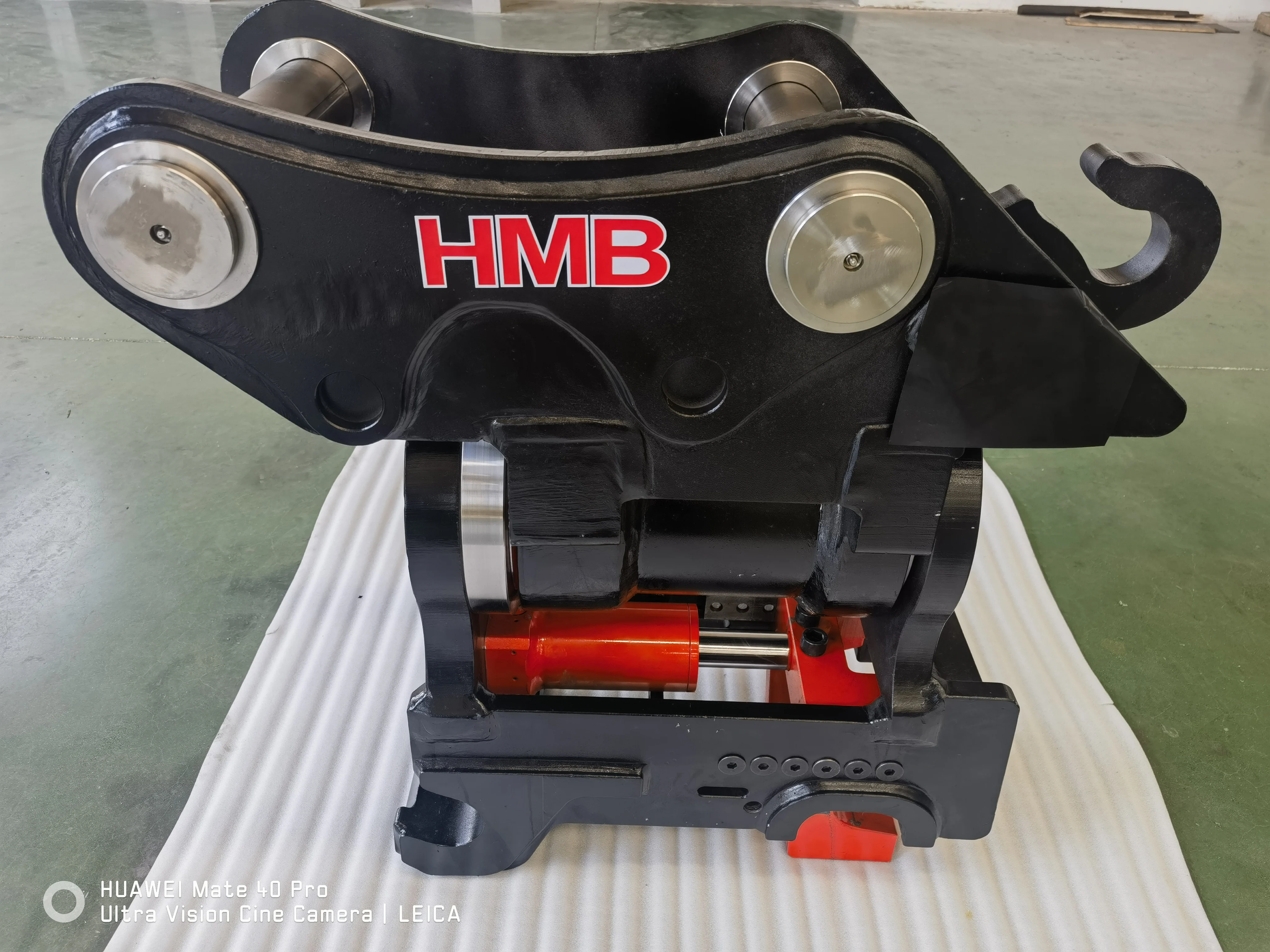

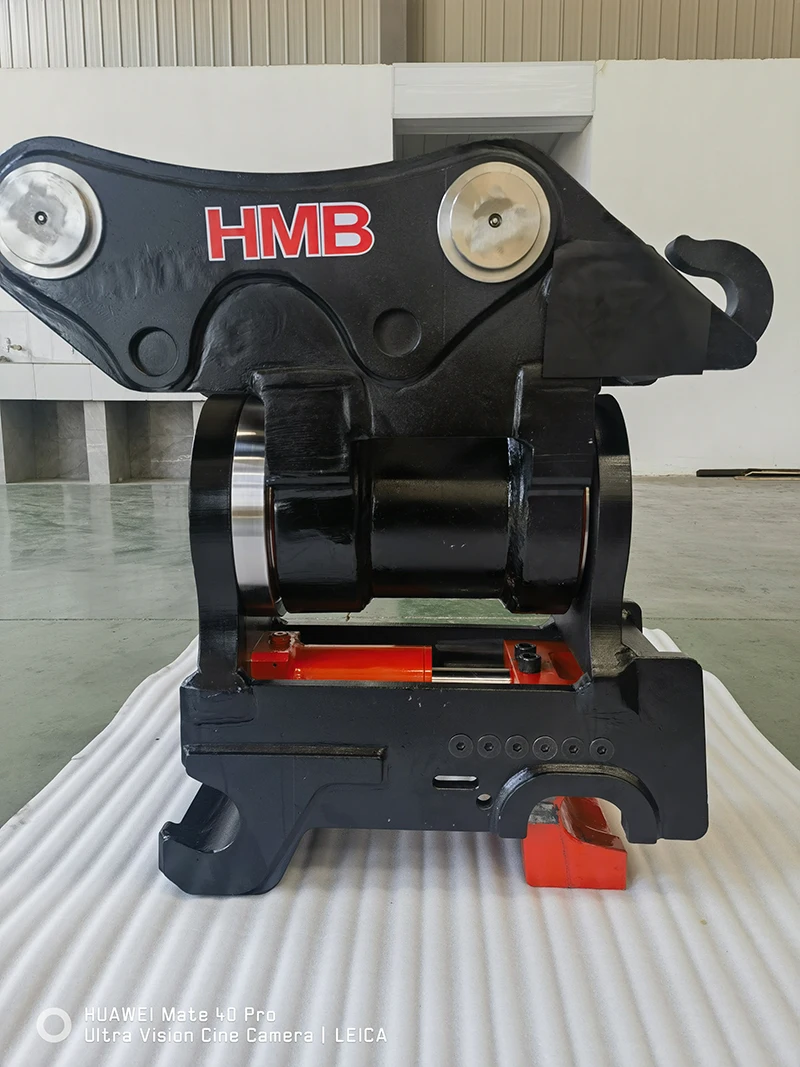

Mini excavator hydraulic tiltrotator tilting & rotating Quick Hitch Coupler for sale
- Category: >>>
- Supplier: Yantai Jiwei Construction Machinery Equipment Co. LTD
Share on (1601198322852):
Product Overview
Description
Product Description

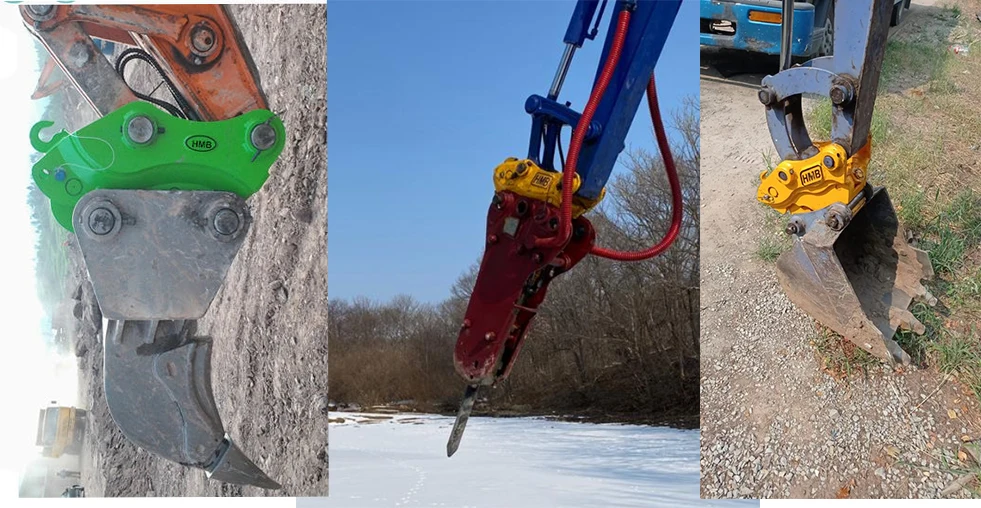

Excavator quick coupler, also named as quick hitch coupler, quick hitch, bucket pin grabber can quickly connect various
attachments (bucket, hydraulic breaker, plate compactor, log grapple, ripper, etc...) on excavators, which can expand the scope of use of excavators, and can save time and improve working efficiency.
attachments (bucket, hydraulic breaker, plate compactor, log grapple, ripper, etc...) on excavators, which can expand the scope of use of excavators, and can save time and improve working efficiency.

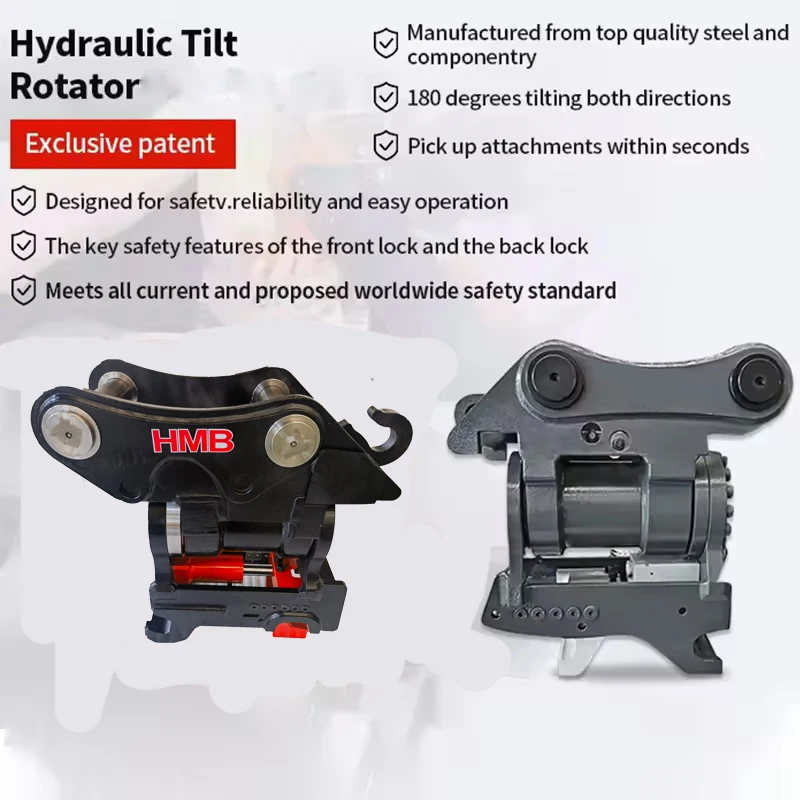

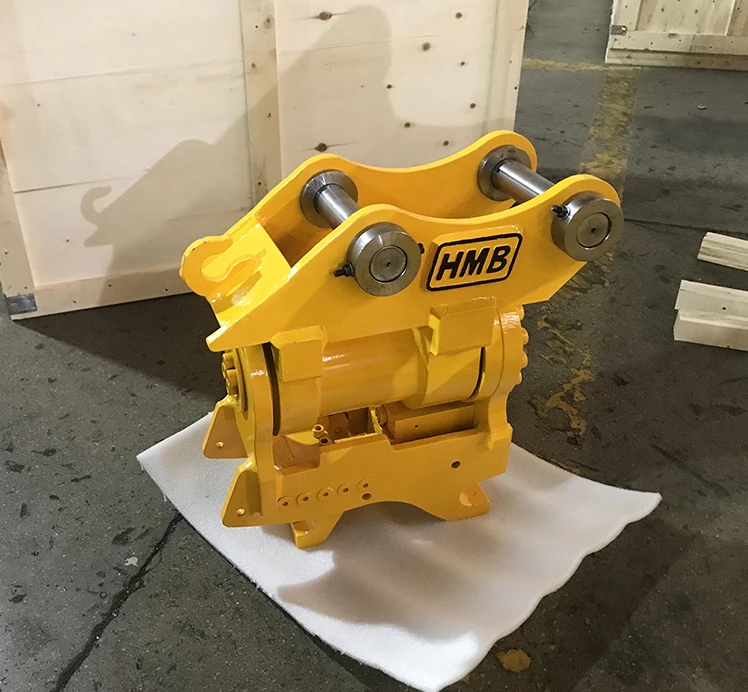

Main Features:

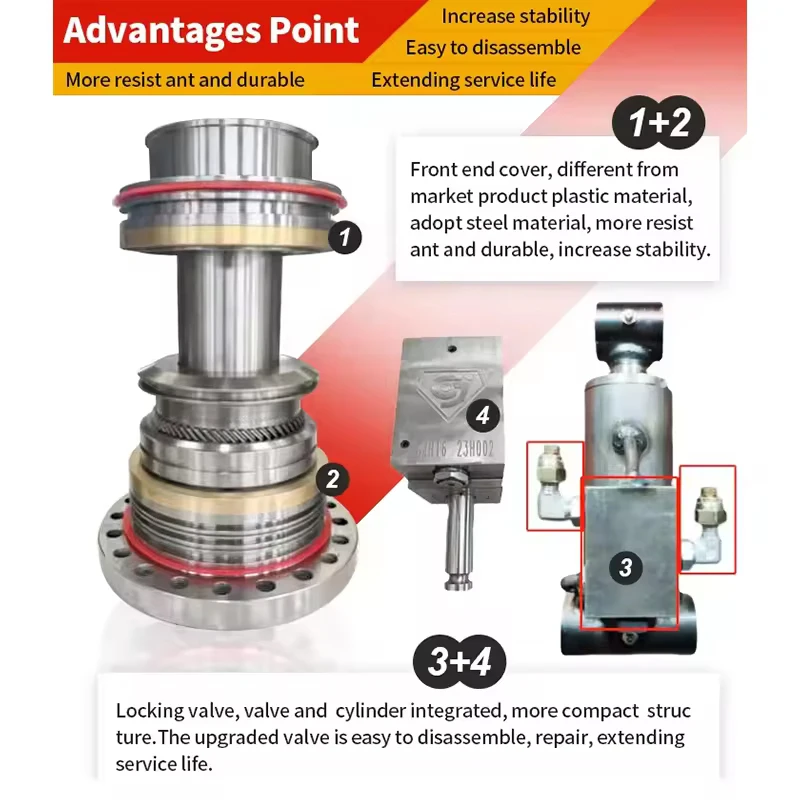

1.Tilt cylinder with higher torque,safety design
2. Double locking
3. Extra high strength steel is used throughout
body
4. Variable pin centre design
5. With a tilt angle of 0-140°, 180° for your option
As one of the leading Excavator quick coupler manufacturers in China, HMB has a full range of quick hitch couplers for
excavator from 1.5-90 ton.They are suitable for all kinds of brands and models of excavators, include MS01, MS03, MS08
excavator from 1.5-90 ton.They are suitable for all kinds of brands and models of excavators, include MS01, MS03, MS08
Model | HMB-mini | HMB02 | HMB04 | HMB06 | HMB08 | HMB10 |
Applicable ExcavatorWeight[T] | 0.8-2.8 | 3-5 | 5-8 | 8-15 | 15-23 | 23-30 |
Tit Degree | 180° | 180° | 180° | 180° | 180° | 134° |
湉萨缘utput Torque | 900 | 1600 | 3200 | 7000 | 9000 | 15000 |
Holding Torque | 2400 | 4400 | 7200 | 20000 | 26000 | 43000 |
Tilt forking Pressure(Bar) | 210 | 210 | 210 | 210 | 210 | 210 |
Tilt Necessary Flow(LPMM) | 2-4 | 5-16 | 5-16 | 5-16 | 19-58 | 35-105 |
Excavator workingPressure(Bar) | 80-110 | 90-120 | 110-150 | 120-180 | 150-230 | 180-240 |
Excavator working Flow(LPM) | 20-50 | 30-60 | 36-80 | 50-120 | 90-180 | 120-230 |
Weight(K G) | 88 | 150 | 176 | 296 | 502 | 620 |

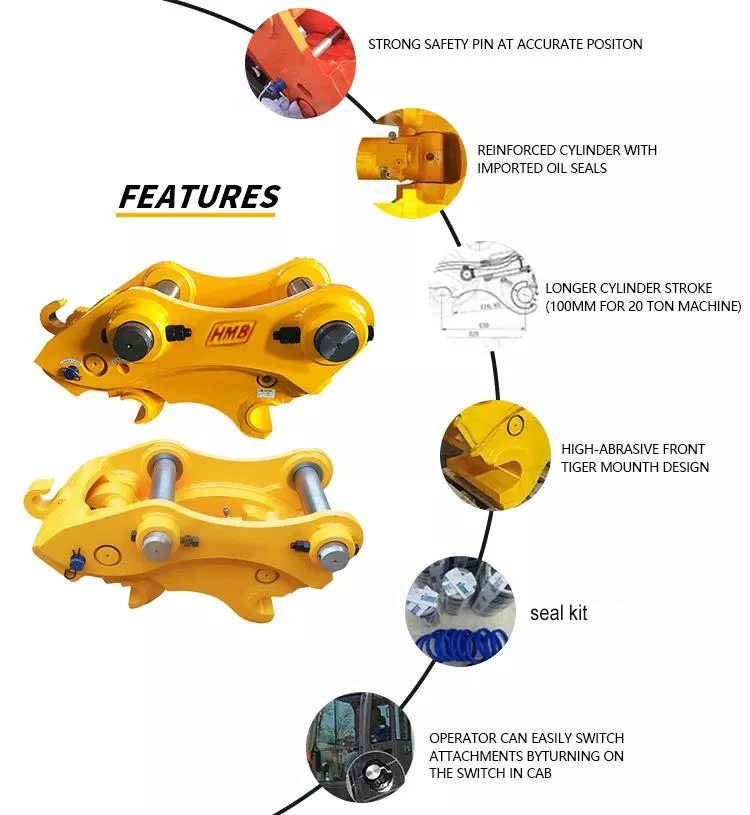

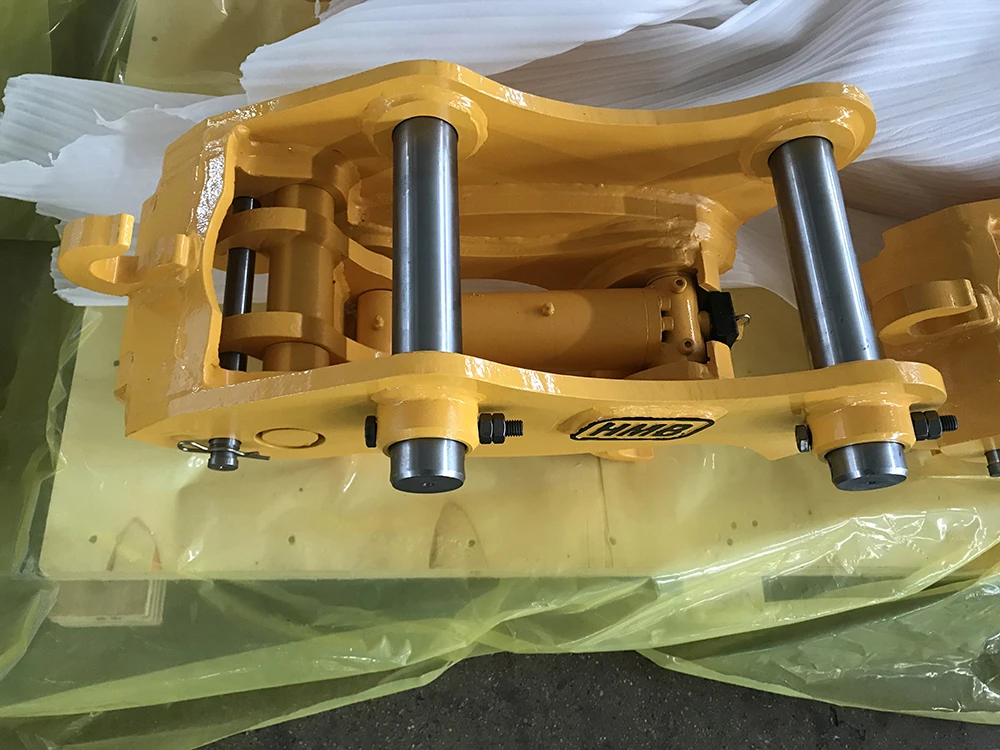

hydraulic quick hitch Main Features
1) Used high strength alloy. Suitable for different machines weights and models.
2) Can change the accessories without disassembling the pin shaft.
Provide high efficiency and easy installation.
3) Welding done by experienced worker with over 12 years of excavator attachment welding experience.
1) Used high strength alloy. Suitable for different machines weights and models.
2) Can change the accessories without disassembling the pin shaft.
Provide high efficiency and easy installation.
3) Welding done by experienced worker with over 12 years of excavator attachment welding experience.
Model name | HMB02 | HMB06 | HMB08 | HMB15 | HMB20 | HMB25 | HMB30 | HMB40 | ||
Pin diameter range(mm) | 25-35 | 40-50 | 50-55 | 60-65 | 70-80 | 90 | 90-100 | 100-110 | ||
Weight(KG) | 30-50 | 50-80 | 80-115 | 160-220 | 340-400 | 380-420 | 420-580 | 550-760 | ||
Carrier (Ton) | 0.8-3.5 | 4-7 | 8-9 | 10-18 | 20-24 | 25-29 | 30-39 | 40-45 | ||
Machanical quick hitch:
1.Machanical quick change,generallay used in mini ton excavactors,no additiononal tubing2.quick hitch change coupler used to
exchange excavator bucket by hand
exchange excavator bucket by hand
Company Introduction
Located in Yantai, Shandong province, established in 2009, Yantai Jiwei Construction Machinery Equipment Co.,Ltd registered HMB Brand in 2011. We started to develop oversea market in 2013.With 12 years experience, specialized in manufacturing Hydraulic Breakers, Quick Couplers, Excavator Palte Compactors, Earth Augers and Spare Parts. Our own brand "HMB" hydraulic breakers have full series and are compatible to all brands' excavators.
Packing&Shipping
Exhibition Show
FQA
Q: Are you a manufacturer?
A: Yes,our factory was established in 2010.
Q: Are you sure your product will fit my excavator?
A: Our equipments are suitable for most excavators. Show us your excavator model, we'll confirm the solution.
Q: How about your products warranty?
A: 12 months warranty for hydraulic breaker, beyond the warranty period.
Q: Can you produce according to customers' design?
A: Sure, OEM/ODM service available. We are professional manufacturer in Yantai.
Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment.
Q: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
Q: Which country have you exported?
A: Saudi Arabia, America, Thailand, Cyprus, India, Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc.
A: Yes,our factory was established in 2010.
Q: Are you sure your product will fit my excavator?
A: Our equipments are suitable for most excavators. Show us your excavator model, we'll confirm the solution.
Q: How about your products warranty?
A: 12 months warranty for hydraulic breaker, beyond the warranty period.
Q: Can you produce according to customers' design?
A: Sure, OEM/ODM service available. We are professional manufacturer in Yantai.
Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment.
Q: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
Q: Which country have you exported?
A: Saudi Arabia, America, Thailand, Cyprus, India, Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc.
