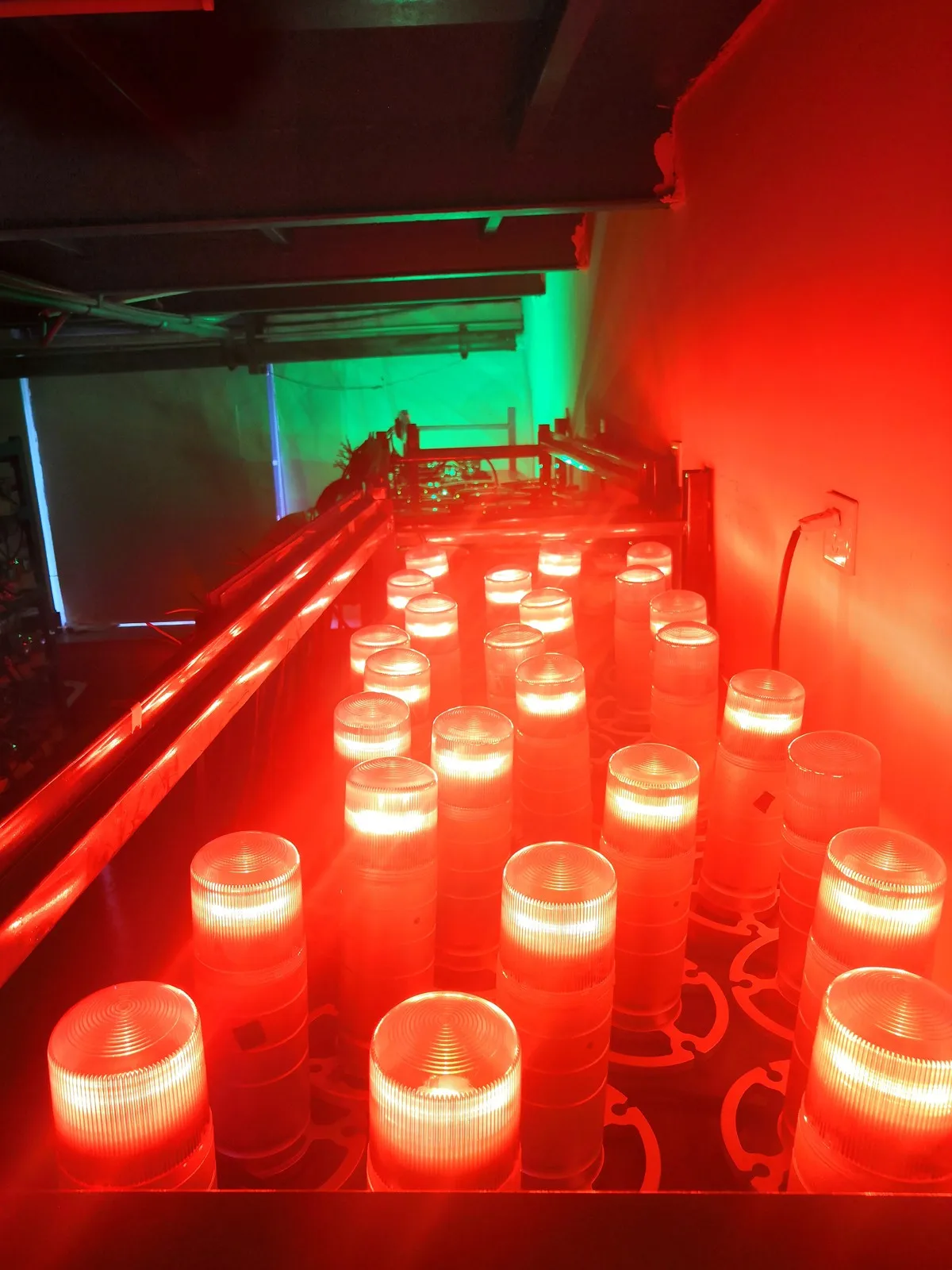

Low intensity acwl ICAO Annex 14 Type A Type B photocell & transfer relay night marking buildings antennas red obstruction light

As specified by Annex 14 of ICAO regulations, Low Intensity Obstruction Lights (LIOL) should be used to warn the presence of obstacles up to 45m height, such as telecommunication towers, wind turbines, chimneys, cranes, buildings and other structures.
Low Intensity Obstruction Lights are the simplest devices according to ICAO standards and they have the following characteristics and uses:
* Type A (intensity >10cd, red steady burning) can be used alone;
* Type B (intensity >32cd, red steady burning), can be used either alone or in combination with medium intensity obstacle
lights Type B, Type AB or with high intensity obstacle lights Type AB;
* Type E (intensity >32cd, red flashing), can be used either alone or in combination with medium intensity obstacle lights,
Type B. Flashing rate will be set at the same rate of other flashing beacons installed on the structure.

OPTIONS:
*Dual Versions
*Solar Powered






Item Name
Aviation Light
Model
CK-11L
Operating Voltage
AC90-260V
Power consumption
≤5W
Flashing frequency
Steady-Burning
Light intensity
Light intensity
Life span
＞100,000 hours
Emitting color
RED
Beam angle
360° horizontal,more than 3° vertical beam spread
Overall size
∅150mm×230mm
Installation size
Φ125-4*M10
Ingress protection
IP65
Operating temperature
-40℃～55℃
Net weight
1.5KG
Wind load
80m/sec.


 Specification

1. Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission up to
90%, quite high impact resistance and fits the harsh environment very well.
2. House of the light is made of aluminum alloy and steel, painted by spraying plastic, the structure is
high strength ,resistance to corrosion.
3. Using Parabolic reflector optical design, range further.
4. Light source adopts LED with long life-span ,lower power consumption and high efficiency.
5. Based on the single chip computer control , automatic identification syncsignal ,do not
distinguish the main light and auxiliary light ,and also could be controlled by the controller.
6. Same power supply voltage with synchronous signal , integrate in power supply cable ,eliminate
the damage by error installation caused.
7. Used the photosensitive probe fit for the natural light spectrum curve, automatic control light
intensity level.
8. The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax
15KA so that the light is suitable for a harsh environment.
9. Integral structure, protection level of IP65.
10. Synchronizing function is available.




Company Profile




FAQ


Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
