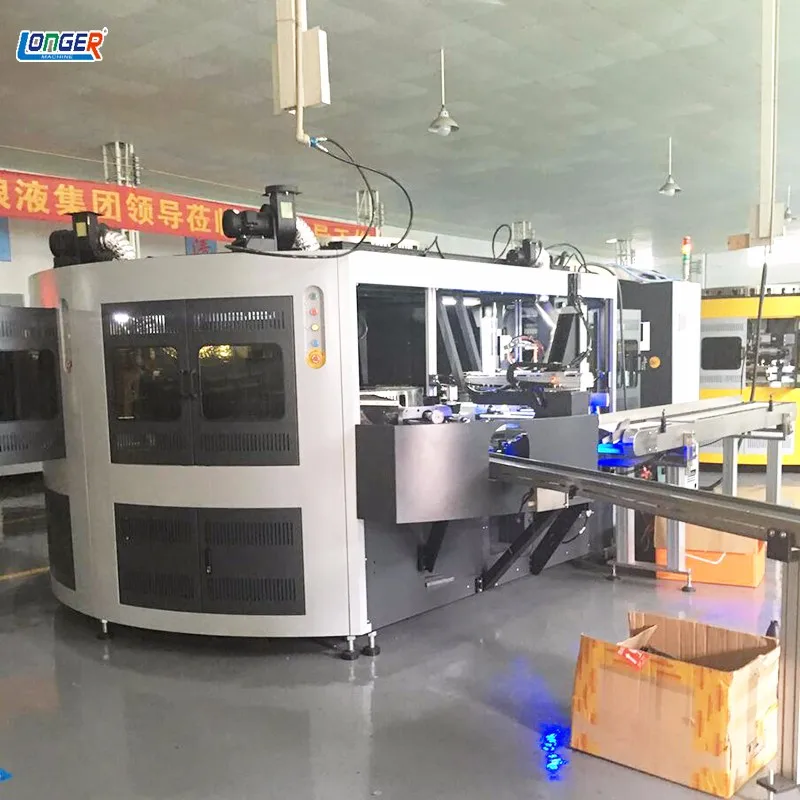

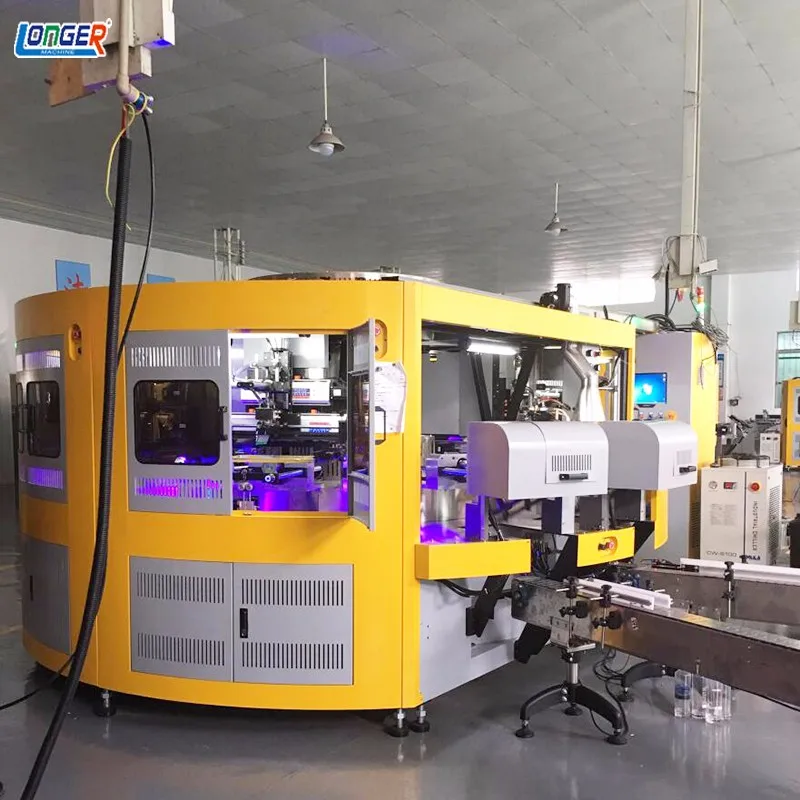

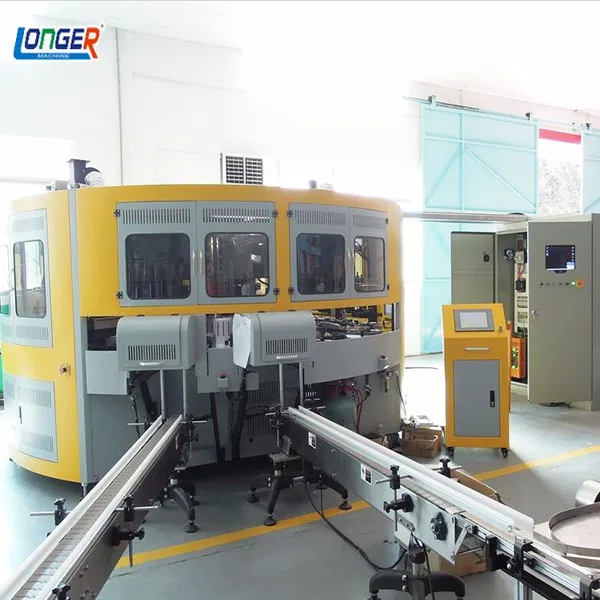

High Speed Printing Machines Glass Jars Plastic Cup Logo Automatic Silk Screen Printing Press Machine

Parameters:

1.Max Printing size(Bottle Outer Dia.): φ30mm--φ100mm Height:50-330mm
2.Speed:Round:45-50pcs/min
3.Air Pressure:0.6-0.7Mpa
4.Net Weight:4500Kg
5.Power:380VAC 3 phase 50Hz 30Kw
6.Machine Size(L*W*H):3800mmX3500MMX2250MM

Application:

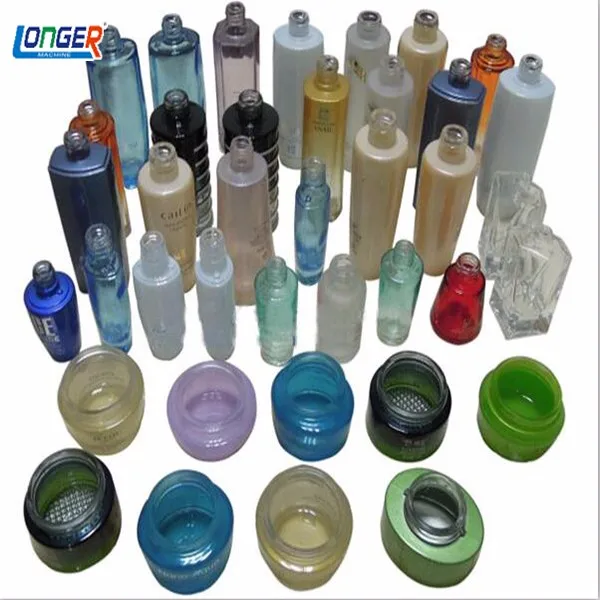

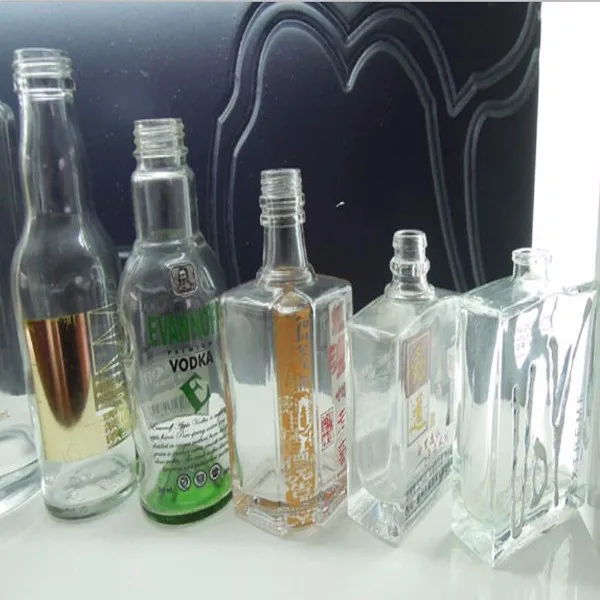

This automatic screen printer can print all shapes of glass containers, cups, mugs, bottles, jars all around in 1 time printing. It is suitable for glass bottle printing with thermoplastic ink, UV ink or LED ink. The screen printer is controlled by high accurate indexer, fully servo driven system. No gear for different shape or size, Vision system and mechanical registration optional.

Features:

1.Automatic loading and unloading system with multi axis servo robot
2.Indexing table system with best accuracy
3.Automatic printing system with all servo driven: printing head, mesh frame, rotation. container up/down all driven by servo motors .
4.All tooling with individual servo motor driven for rotation
5.Fast tooling changeover time, All parameters automatic setting by touch screen.
6.All Ethercat servo motors with industrial PLC control & touch screen operation system ,it is available for future maintenance and program upgrading by romote controlling.
7.Safety operation with CE.
8.Can use normal ink or thermo plastic ink or UV ink.
9.All German high quality motor and control system
