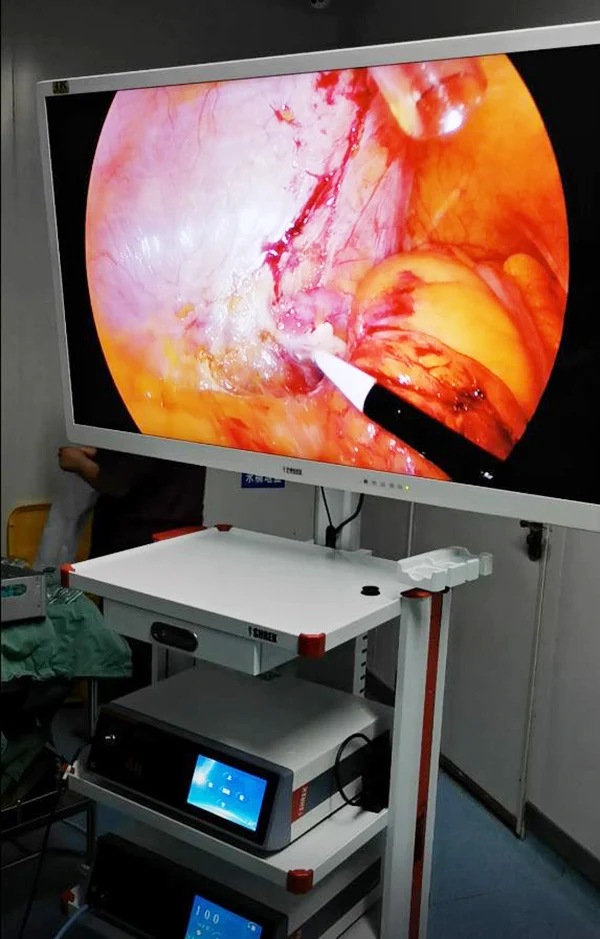

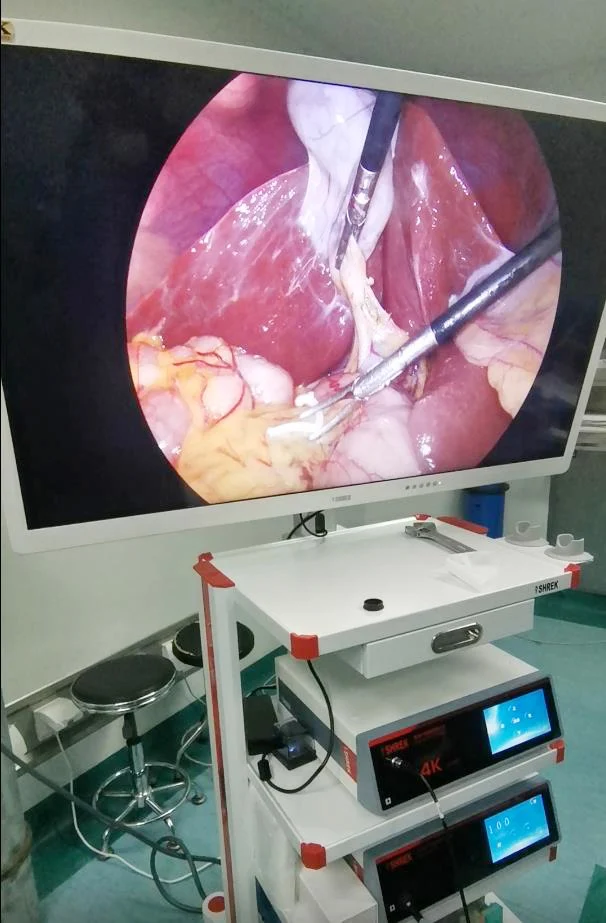

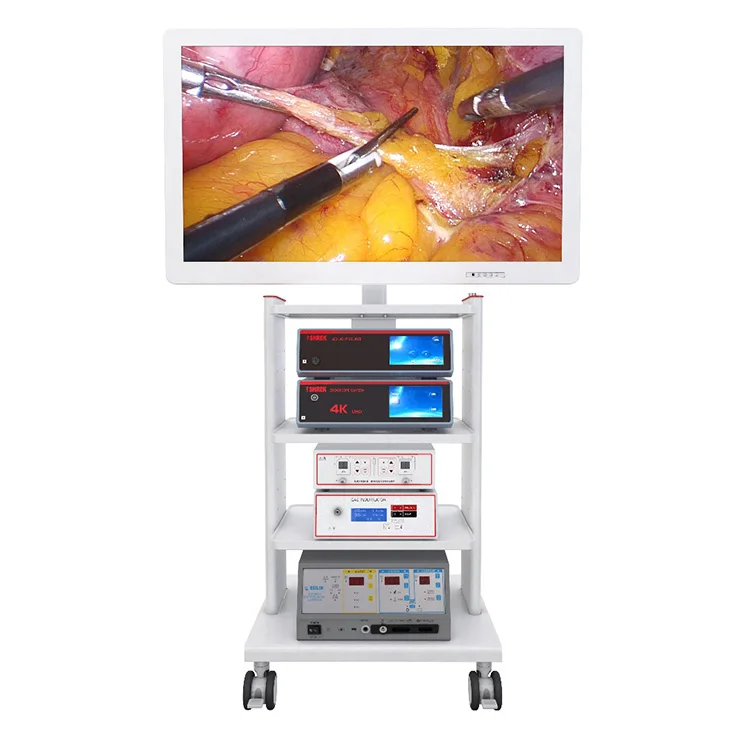

factory price medical 4k laparoscopy set manufacturer
- Category: >>>
- Supplier: Shanghai Shiyin Photoelectric Instrument Co. Ltd.Shanghai Ltd.
Share on (1601198409869):
Product Overview
Description
Products Description

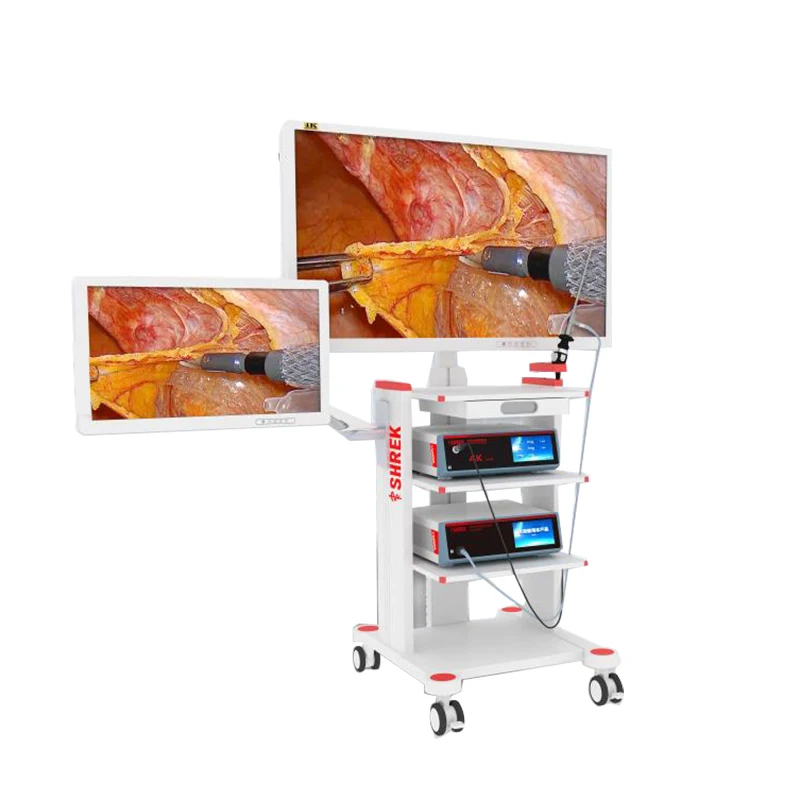

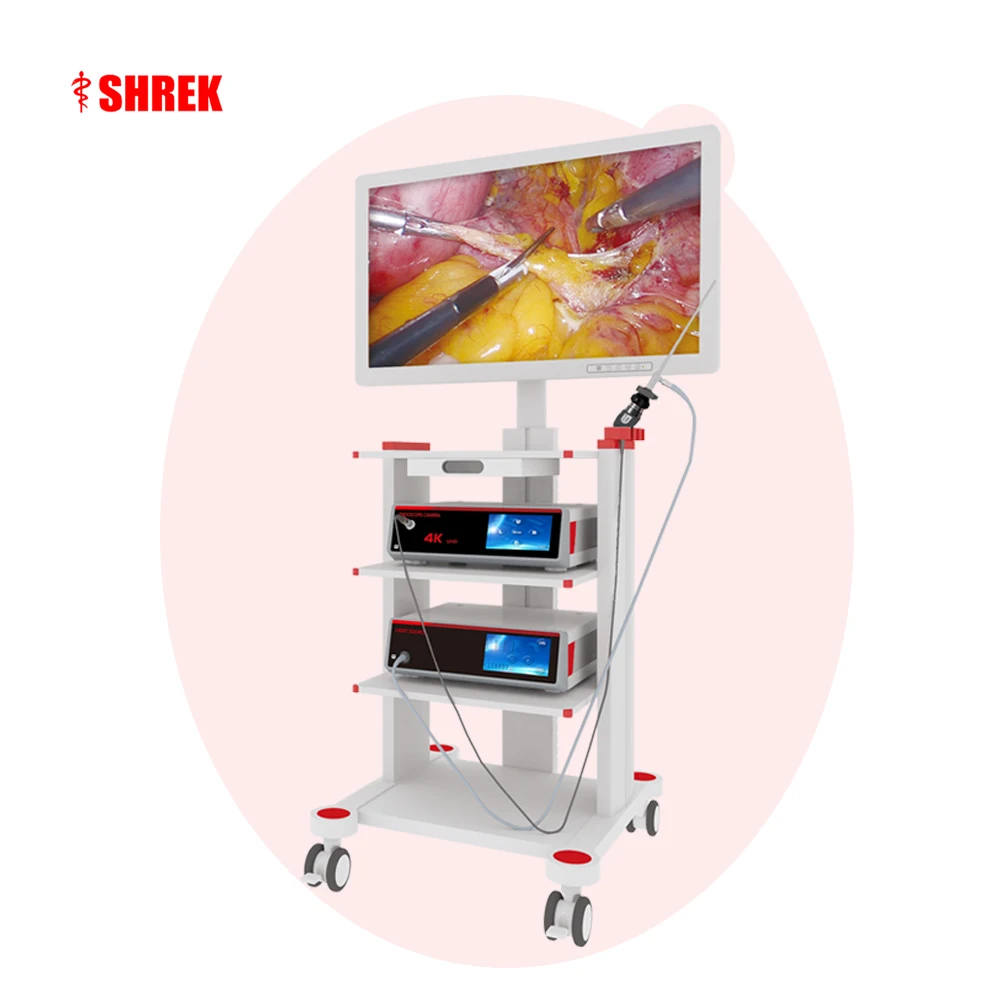

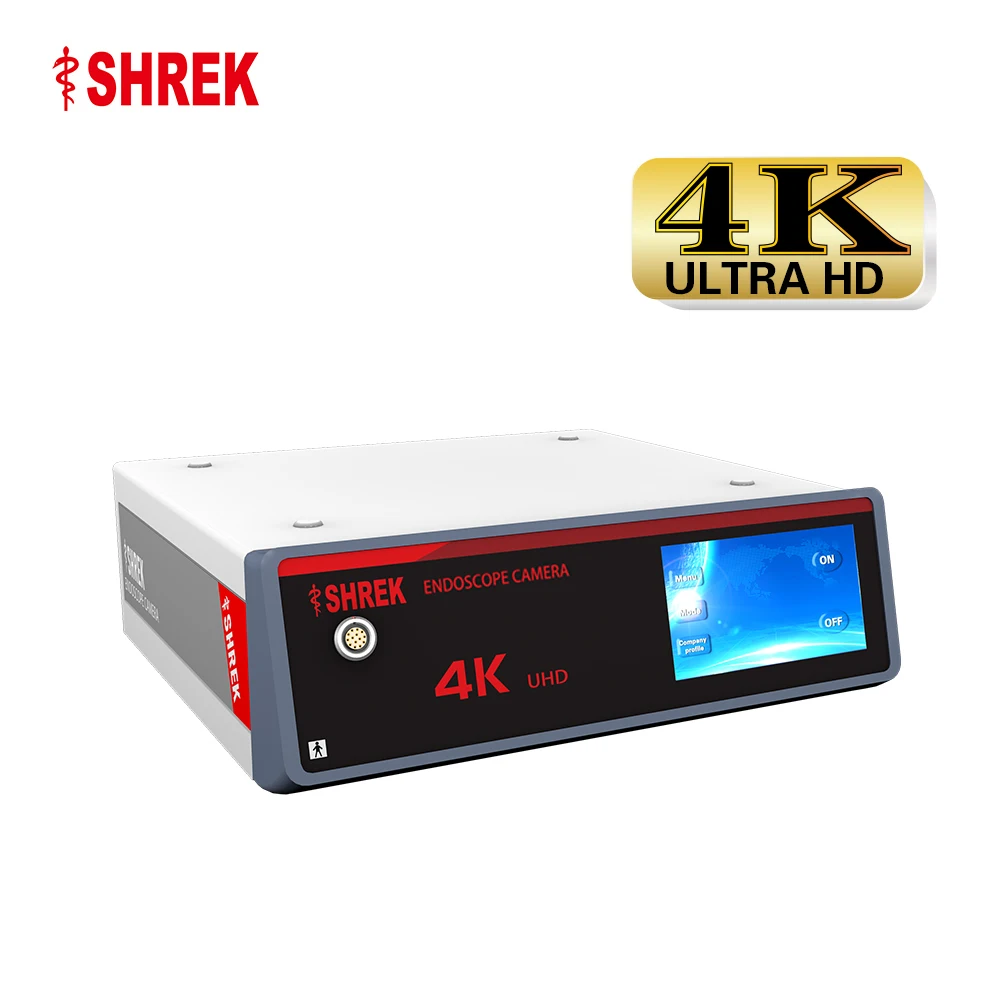

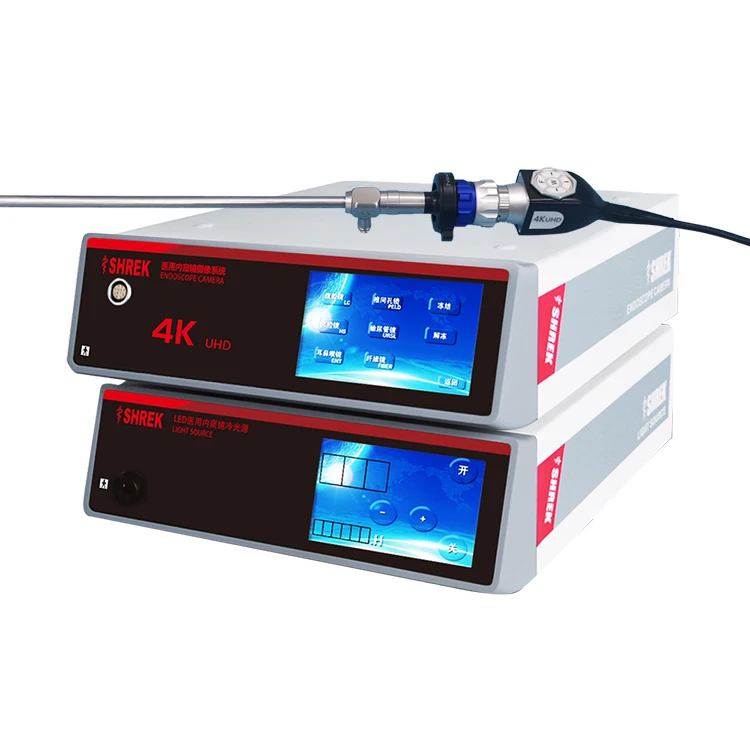

product name | medical endoscope camera 4k tower |
Image sensor | 1/1.8CMOS |
Language | English/Chinese |
Resolution | 3840 (RGB)*2160 UHD |
Scanning frequency | N:60HZ P:60HZ |
Scan mode | Progressive scan |
Pixel arrangement | RGB vertical |
Digital zoom | 0-60x |
Power | 70W |
Viewing angle | 89° |
Output port | HDMI*4, SDI, BNC, VGA, remote control port |
Brightness | ODS adjustable |
DSS | 30x |
Gamma Correction | 0.45 |
Definition of 4K:
The "UHD" standard released by the International Telecommunication Union (ITU), with a physical resolution of 3840x21 60 (4Kx2K) and above, which is called Ultra HD. It is twice the width and height of the Full HD (1920X1080) and four times of the area. 4K resolution is 4 times of 1080P
3840x2160 = 1920x2x1080x 2
Application：
SY-GW1200C-N can be used for arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, proctoscope, sigmoidoscope, urology resectoscope, plastic surgery endoscope, laparoscope, ductoscopy, breast implant endoscope, thoracoscopy, fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope, APP hernia repair, lacrimal passage, minimally invasive varicose veins, etc.
Product material：
1. Our endoscope camera system use 304 stainless steel, brushed metal which contributes to cleaning, disinfection and maintenance. Color of machine appearance wont change for long-term use.
2. Set screws use stainless steel material, so screws wont rust off and cause electrical short which extends service life of machine. 3. Baseboard of inner circuit board uses simple brass and protection cover, which is effective protection to antijamming of circuit and ground connection.
4. All signal cables use double-shielded,
enhanced antijamming material which guarantee the antijamming capacity and long working life. The signal cable can stand 50,000 times bend by testing.
enhanced antijamming material which guarantee the antijamming capacity and long working life. The signal cable can stand 50,000 times bend by testing.
Product advantages：
1.Core image: CMOS sensor:1/1.8 Original imported sensor parts, processor: More than 8 million Ultra HD processing system
2.Ultra Clear Coating: Ultra high resolution≥(3840*2160) Real color, Ultra Clear Coating, super delicate 3.More precise: More meticulous
observation of histopathology and vascular to operation. Real field of view can effectively improve visibility during surgery
observation of histopathology and vascular to operation. Real field of view can effectively improve visibility during surgery
4.More intelligent: 7" high-definition intelligent control screen, easier and more convenient to operate.
5.More secure: Effective
reduction of surgical time and ensure that doctors and patients are safer under the same conditions
reduction of surgical time and ensure that doctors and patients are safer under the same conditions
6.Double 7" touch LCD screen,
wear-resistant, scratch resistant, fastness, quick-witted.
wear-resistant, scratch resistant, fastness, quick-witted.
7. Solving electromagnetic interference of energy platform during operation ( such as ultrasonic knife, plasma knife,
electrosurgical unit, etc.)
electrosurgical unit, etc.)
8. Camera head waterproof: IP8X, to prevent water from entering the camera head during the surgery. (Low temperature plasma and soaking disinfection is available ).
9. Brightness, sharpness, freeze, d-zoom, language, rs485, reset, etc, all these can be operated accordingly.
