Medical Lab Use Bacteria and Virus DNA RNA Viral Nucleic Acid Extraction Reagent Kit
- Category: >>>
- Supplier: Bioteke Corporation (wuxi) Co. Ltd.Bioteke Ltd.
Share on (1601198412701):
Product Overview
Description
Products Description

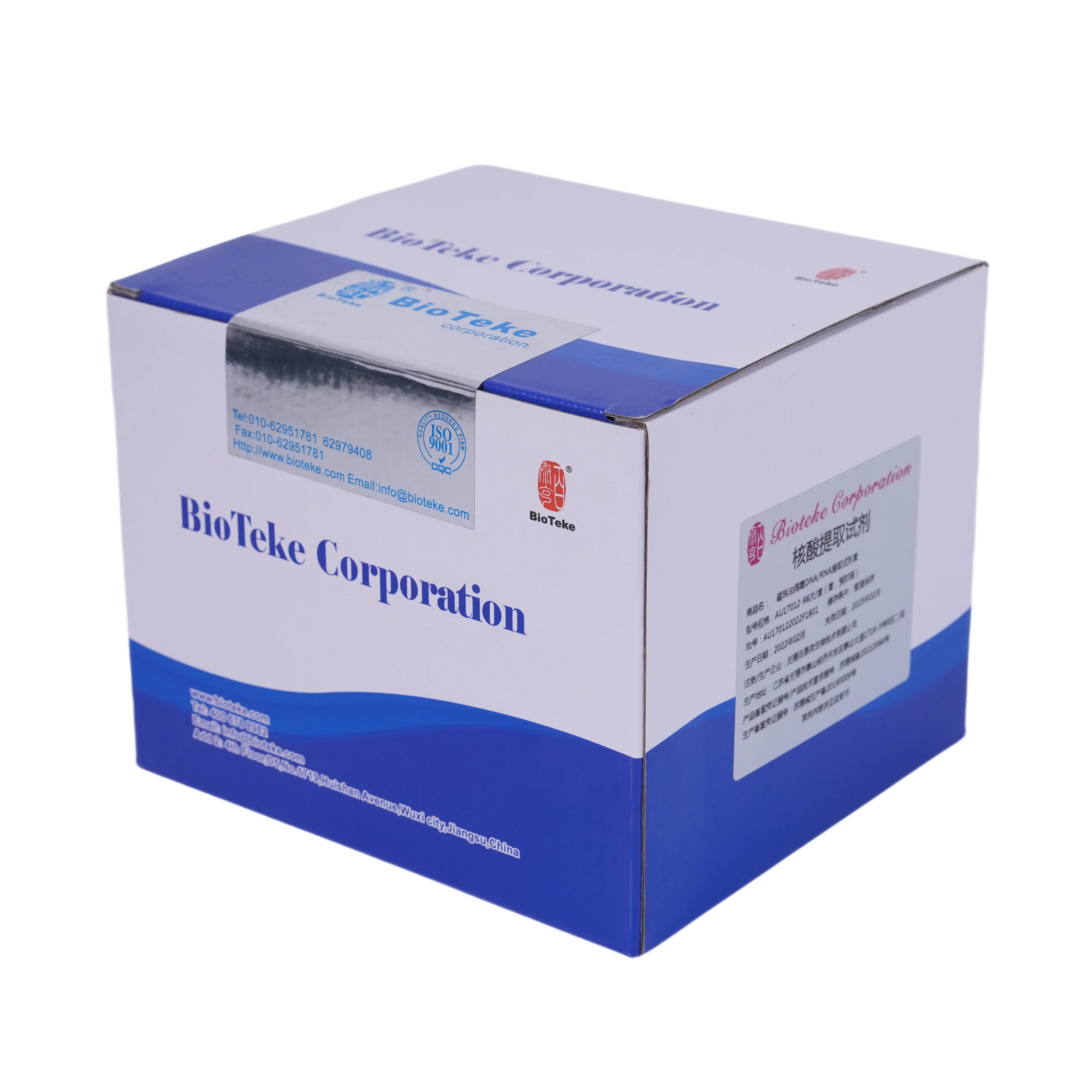

Nucleic Acid Extraction Kit / Viral DNA/RNA Extraction Kit
【Intended Use】For isolation and purification of high-quality viral DNA/RNA from various virus preservation solutions. Only available for lab on IVD application.
【Test Principles】During the nucleic acid extraction process, the magnetic bead adsorption principle is used to
adsorb, transfer, and purify nucleic acids through special magnetic beads to automatically complete the extraction of nucleic acid.
adsorb, transfer, and purify nucleic acids through special magnetic beads to automatically complete the extraction of nucleic acid.
Details Images

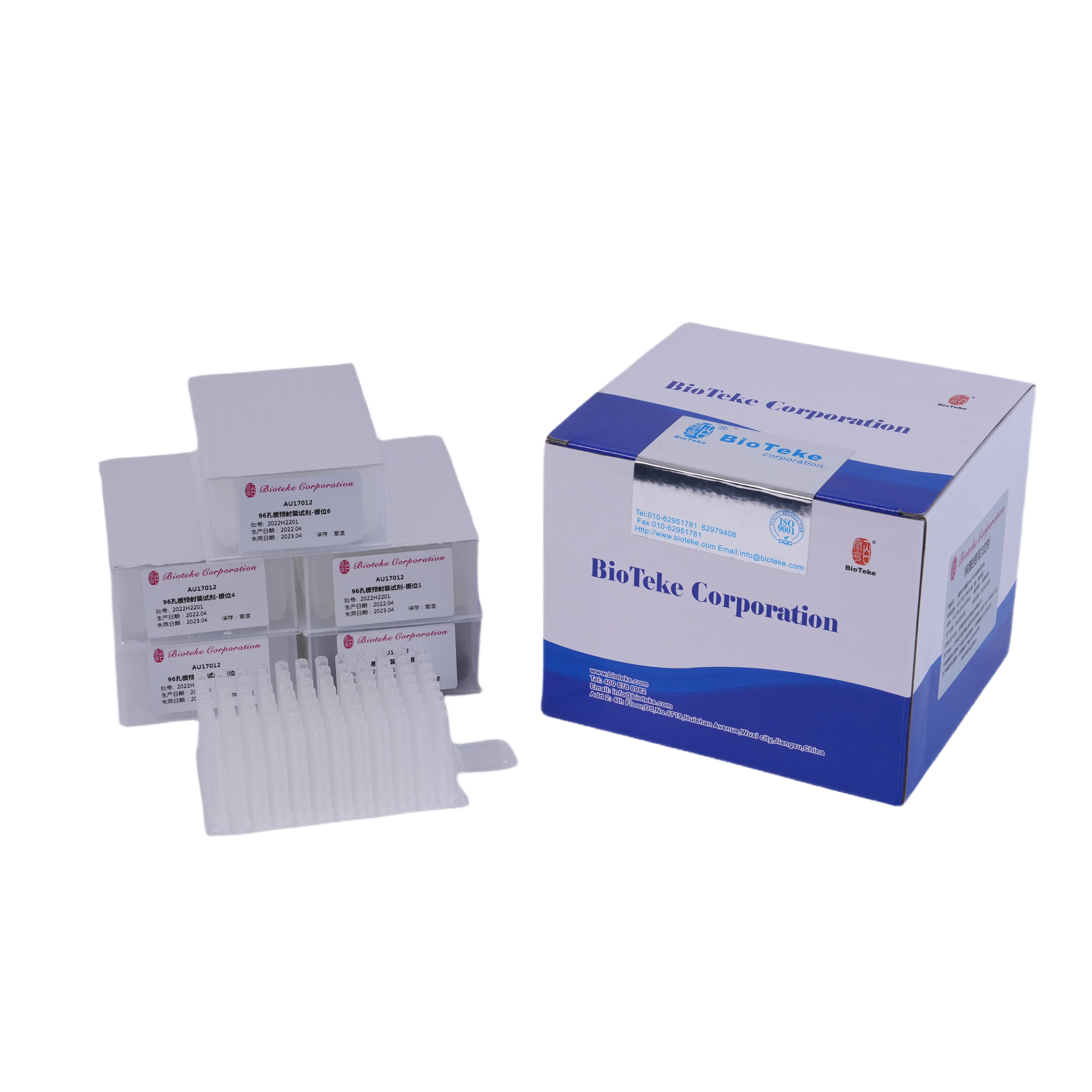

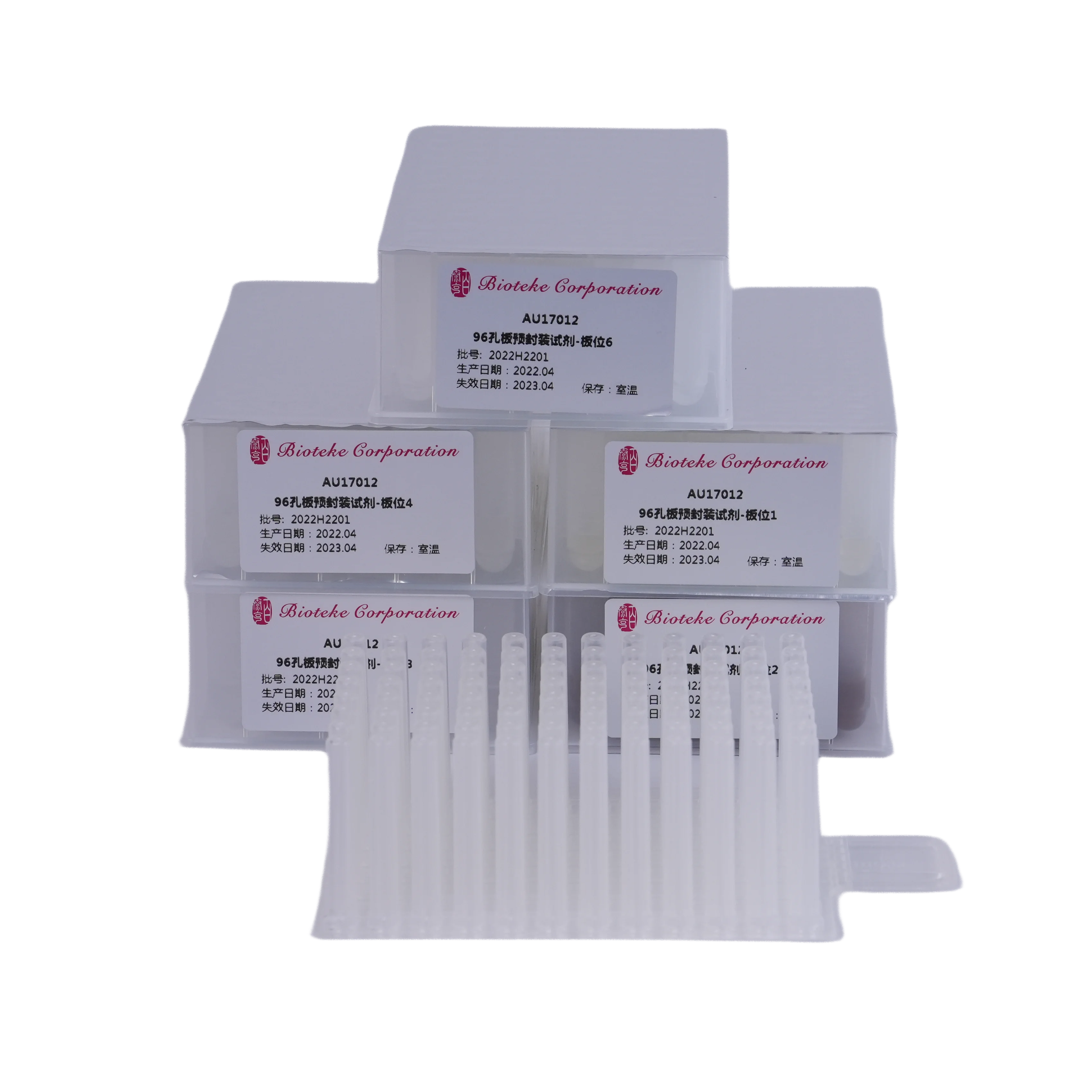

Kit Content
No. | Content | Specification | Qty | ||

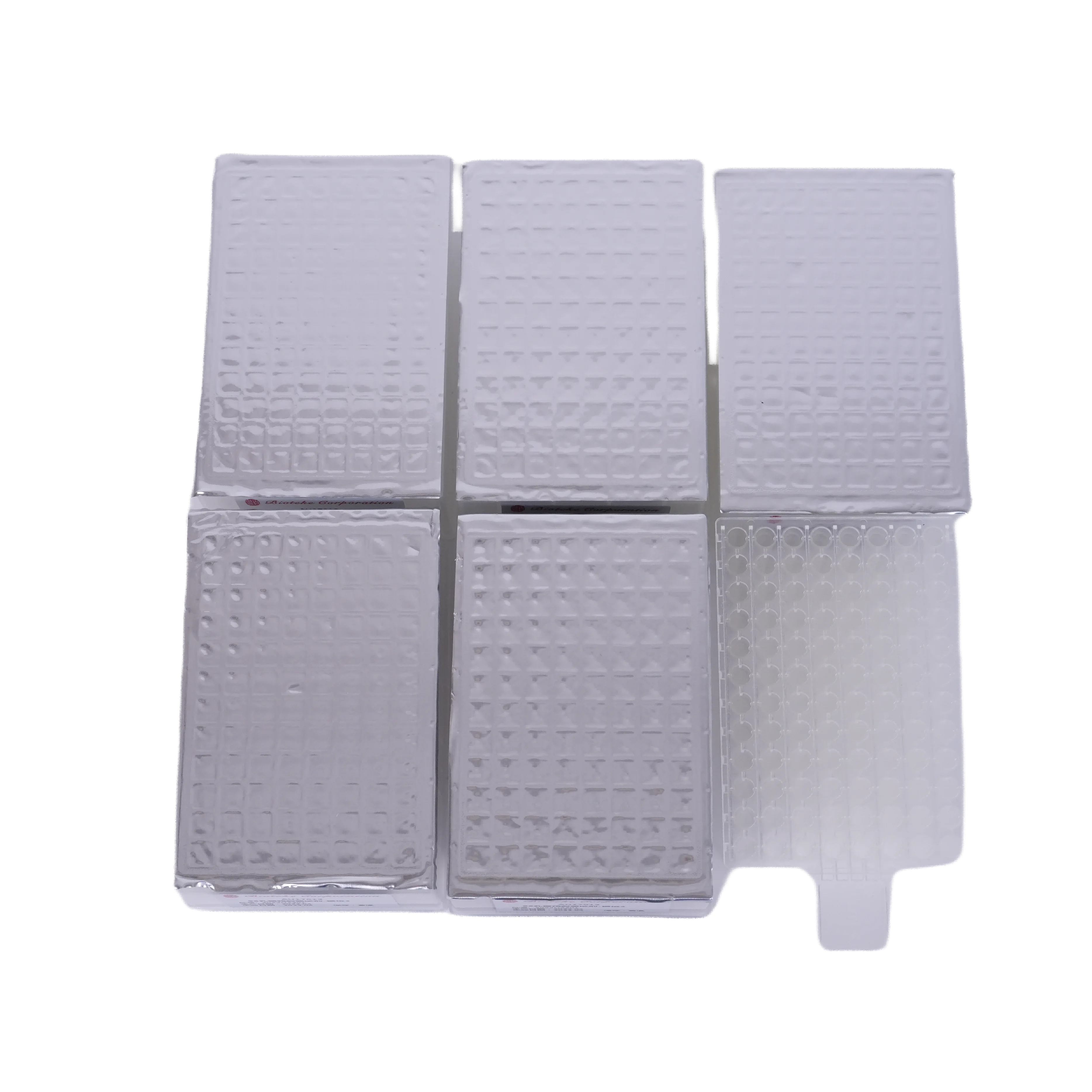

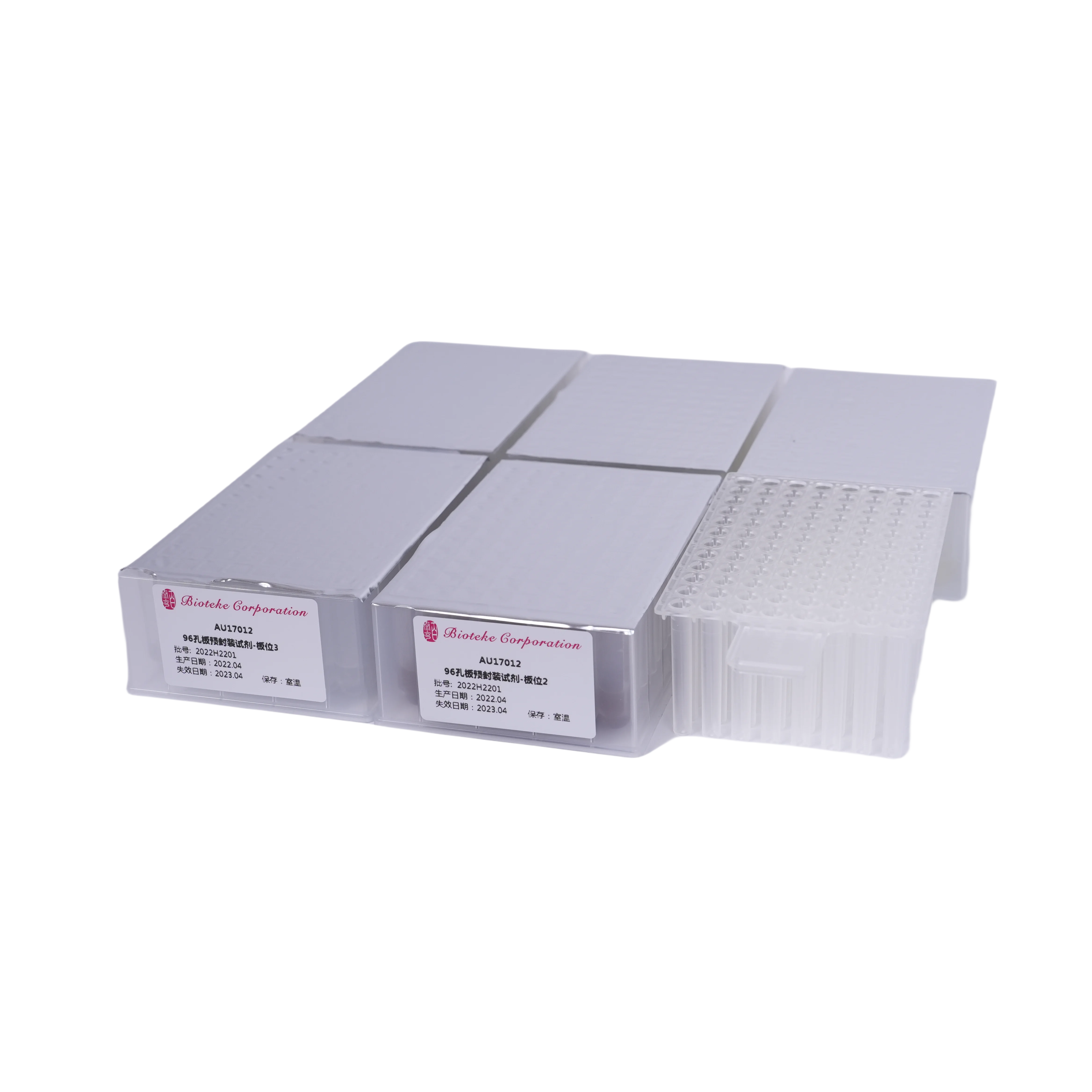

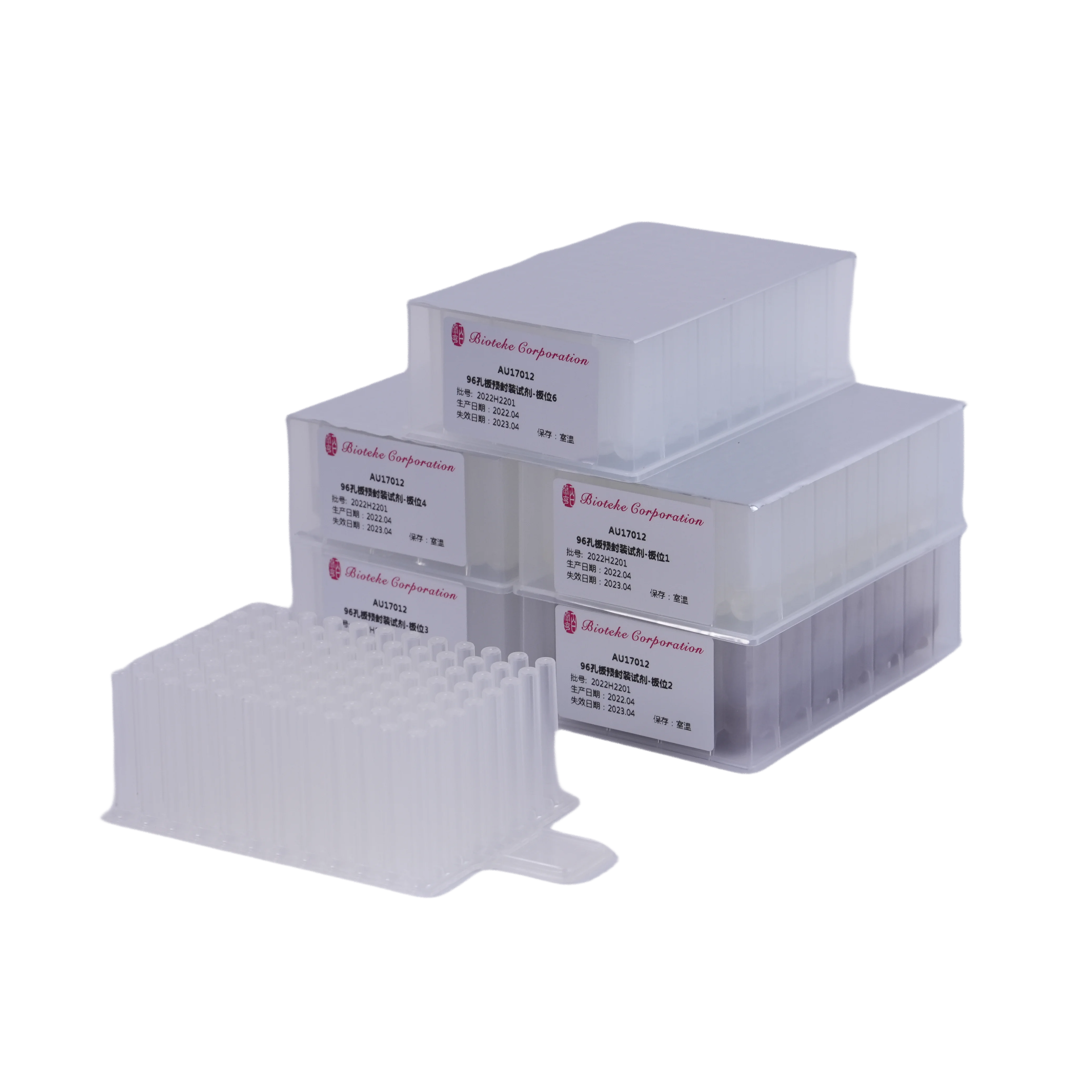

1 | Pre-packaged Extraction Plate | 96 Tests | 5 | ||
2 | PBS | 20 mL | 1 | ||
3 | 96-well Stirring Sleeve | 96-well | 1 | ||
Product Paramenters
Storage Conditions and Shelf Life
Pre-packaged reagents in 96-well plates are stored at room temperature. Shelf life is 12 months.
Applicable Instrument
Suitable for AU1001-96 and similar products.
Sample Requirements
Fresh samples. Test as soon as possible after sample collection. Store at 2–8°C for short-term storage and at -20°C or -80°C for long-term storage.
Operation Steps
1. Sample preparation
Swabs:
For wet swabs (swab in preservation liquid), please vortex the preservation liquid with swab thoroughly for 1 min. Then take 200μL of preservation liquid as an extraction sample.
For dry swabs, add 1 ml of 1×PBS Buffer to re-suspend. Vortex to mix well for 1 min and take 200μL as an extraction sample.
2. Pre-packaged deep-well plate preparation
2.1 Carefully remove the plastic film off the pre-packaged deep-well plate. Add 200μL of samples into each hole of Plate Station 1.
2.2 Carefully place all 5 plates into the extractor (for example, put plate 1 onto station 1, plate 2 onto station 2, etc.), and then insert the stirring sleeve into the card slot.
3. Extractor setup procedure
The procedure for setting up the nucleic acid extractor is as follows.
3.1 Parameter settings refer to the table.
3.2 After setting the parameters, click “Save” and “Download”. Then click "Run" to start.
Swabs:
For wet swabs (swab in preservation liquid), please vortex the preservation liquid with swab thoroughly for 1 min. Then take 200μL of preservation liquid as an extraction sample.
For dry swabs, add 1 ml of 1×PBS Buffer to re-suspend. Vortex to mix well for 1 min and take 200μL as an extraction sample.
2. Pre-packaged deep-well plate preparation
2.1 Carefully remove the plastic film off the pre-packaged deep-well plate. Add 200μL of samples into each hole of Plate Station 1.
2.2 Carefully place all 5 plates into the extractor (for example, put plate 1 onto station 1, plate 2 onto station 2, etc.), and then insert the stirring sleeve into the card slot.
3. Extractor setup procedure
The procedure for setting up the nucleic acid extractor is as follows.
3.1 Parameter settings refer to the table.
3.2 After setting the parameters, click “Save” and “Download”. Then click "Run" to start.
Parameters Settings: Universal extraction program Lysis temperature and elution temperature: room temperature | ||||||||||||||
Step | Stations | Waiting Time(min) | Mixing Time(min) | Mixing Speed | Magnetic Time(s) | Magnetic Speed | Volume (μL) | |||||||
1 | 2 | 0 | 1 | 4 | 30 | 1 | 600 | |||||||
2 | 1 | 0 | 3 | 4 | 60 | 1 | 600 | |||||||
3 | 3 | 0 | 1 | 4 | 60 | 1 | 450 | |||||||
4 | 4 | 0 | 1 | 4 | 60 | 1 | 700 | |||||||
5 | 6 | 1 | 1 | 4 | 60 | 1 | 200 | |||||||
6 | 2 | 0 | 1 | 4 | 0 | 1 | 600 | |||||||
Transfer the DNA/RNA solution
After the test is completed, transfer the DNA/RNA solution in the deep-well plate 6 to a clean nuclease-free centrifuge tube for direct downstream tests (or store at -20°C or below).
Product Advantages
1. It can be used for nucleic acid extraction and purification of viruses in multiple samples such as blood, tissue, cells, nasopharyngeal swab preservation fluid, sputum, etc.
2. The reagent composition is designed without proteinase K and carrier RNA, which can simplify the sample addition operation during sample processing.
3. Unique lysis buffer system, directly add samples without adding enzymes.
4. Minimum detection limit ≦100 copies/ml.The magnetic bead recovery rate ＞99%
5. Rapid extraction capability, 96 samples can be extracted in as short as 7.5 minutes.
More Products
About us
Bioteke Corporation--A good partner for experiments ！
Bioteke Biotechnology Co., Ltd., founded in 2005, has been committed to the extraction and analysis of nucleic acids. Its products cover many fields such as immunochromatography rapid diagnostic reagents, molecular diagnosis, aerosol removal, etc. It is a comprehensive high-tech biotechnology company.

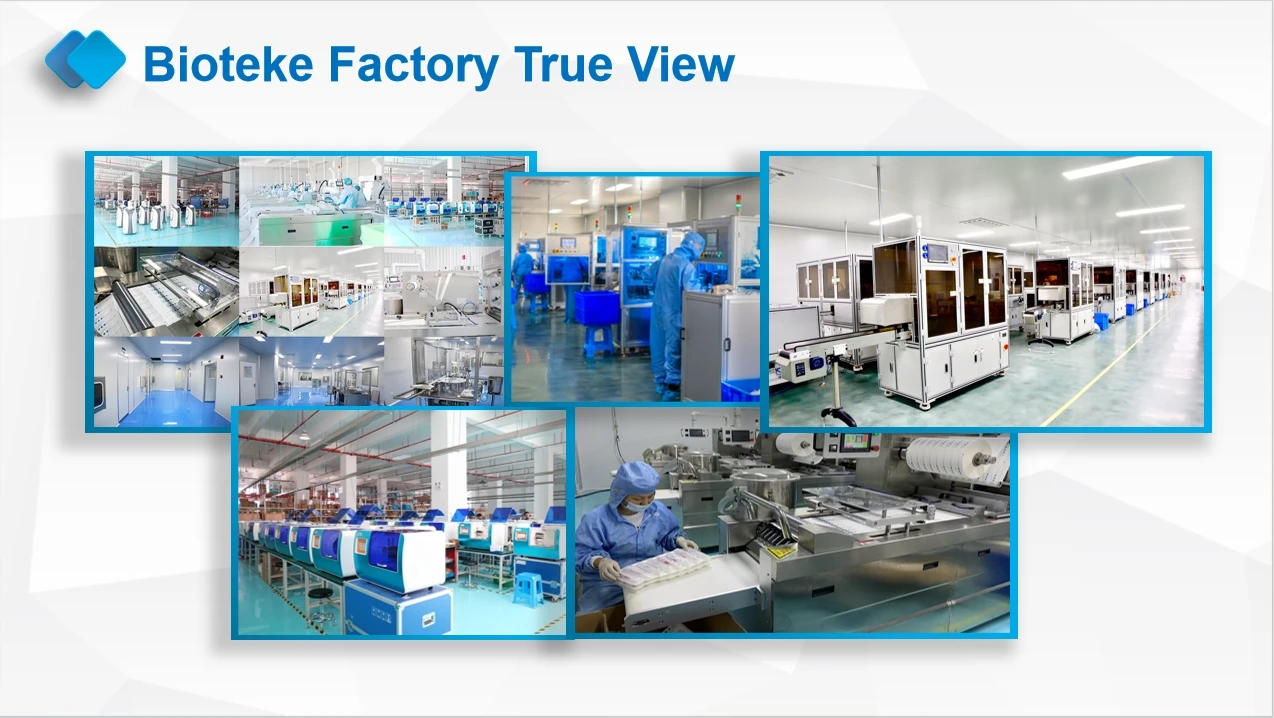

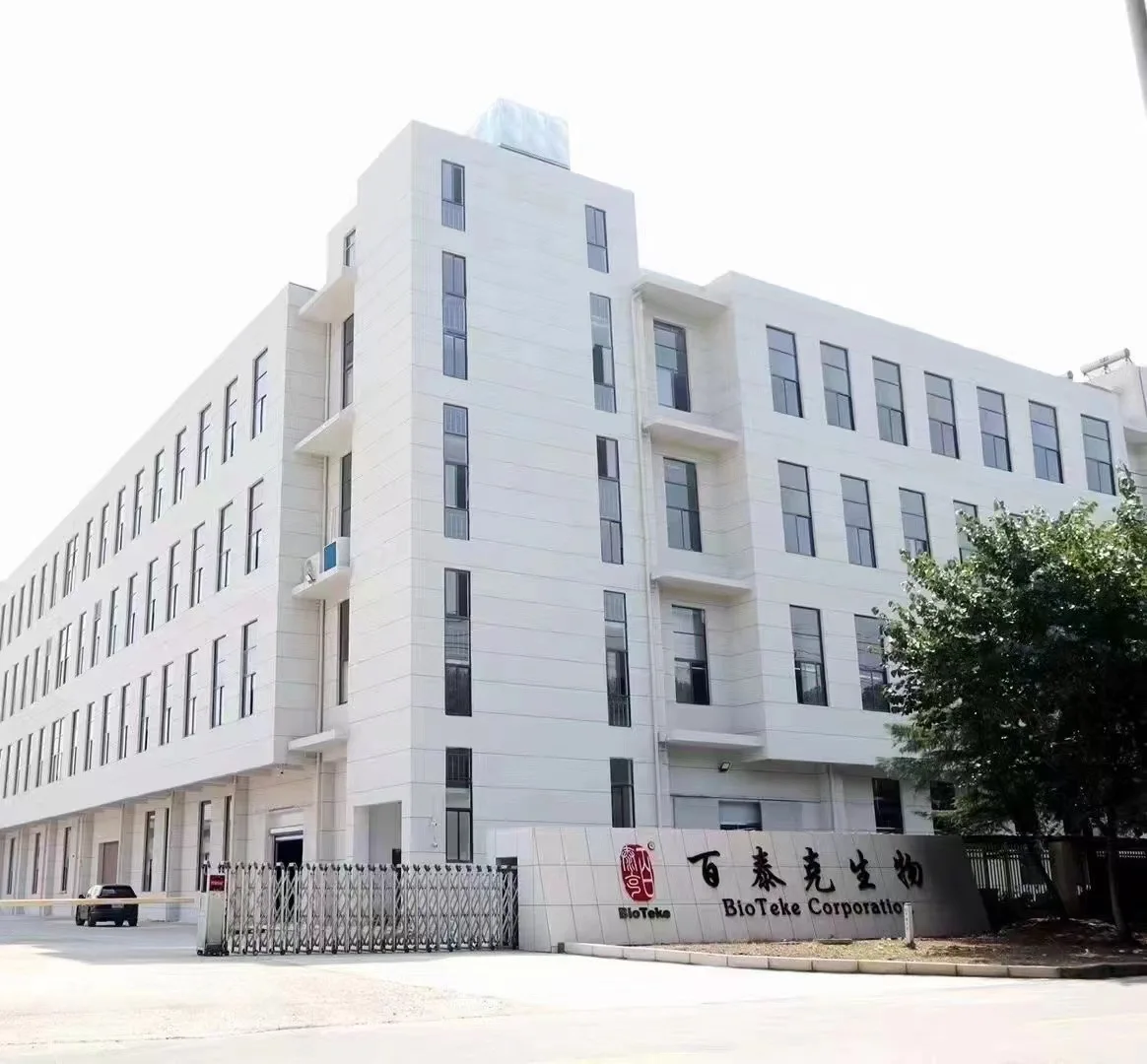

The company is headquartered in Wuxi, Jiangsu, China, with R&D centers in Shanghai, Beijing, and Wuxi, and factories in Jiangyin and Taizhou. It covers an area of more than 50,000 square meters and has more than 600 employees, including more than 80 R&D team members.
