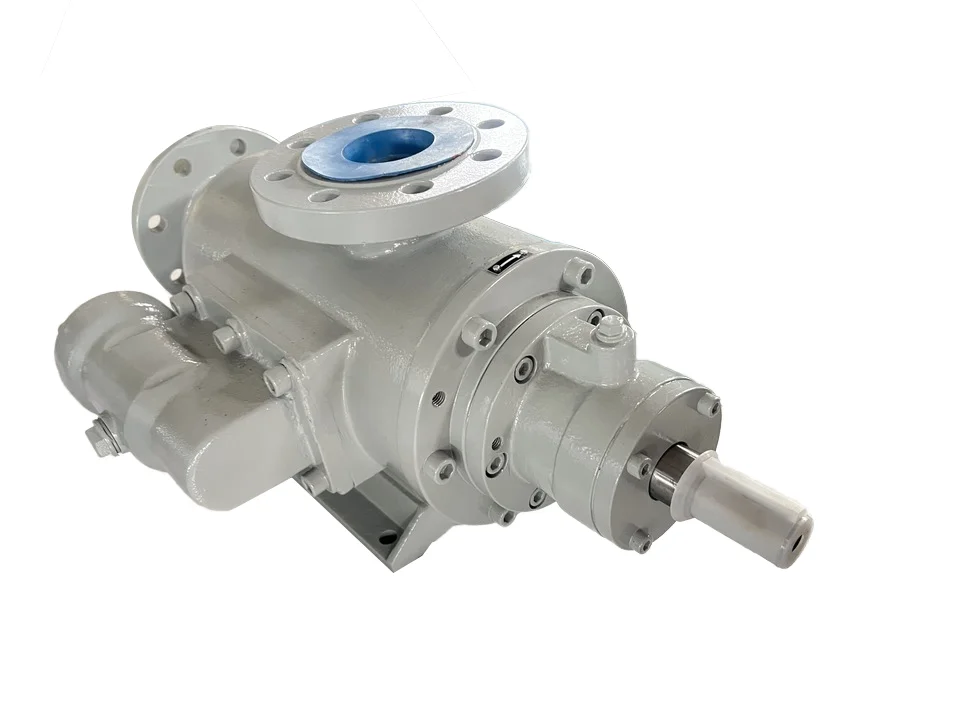

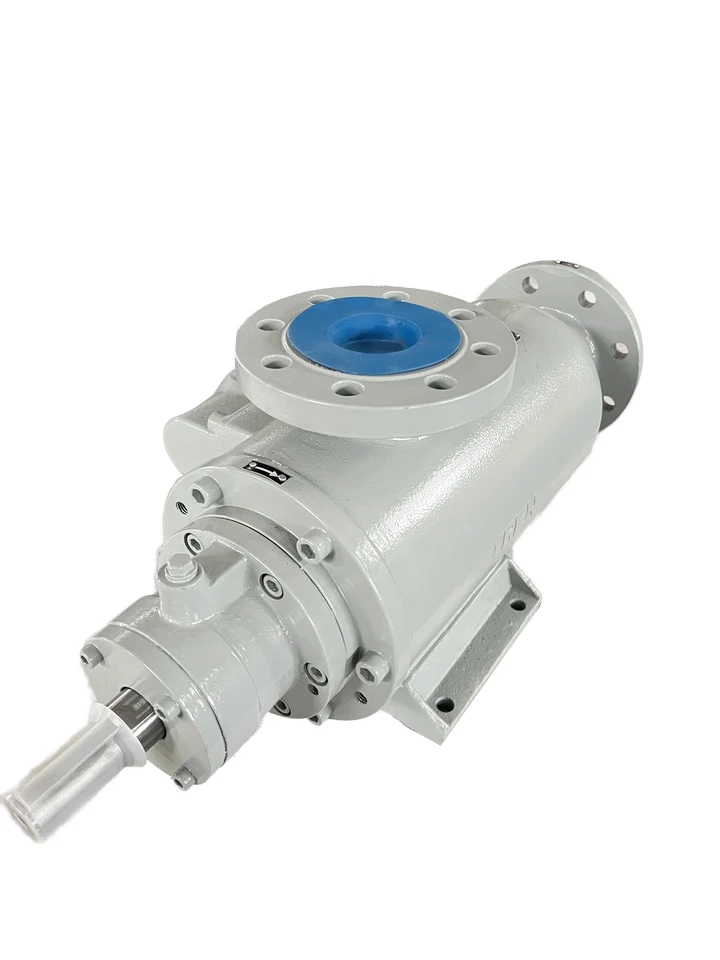

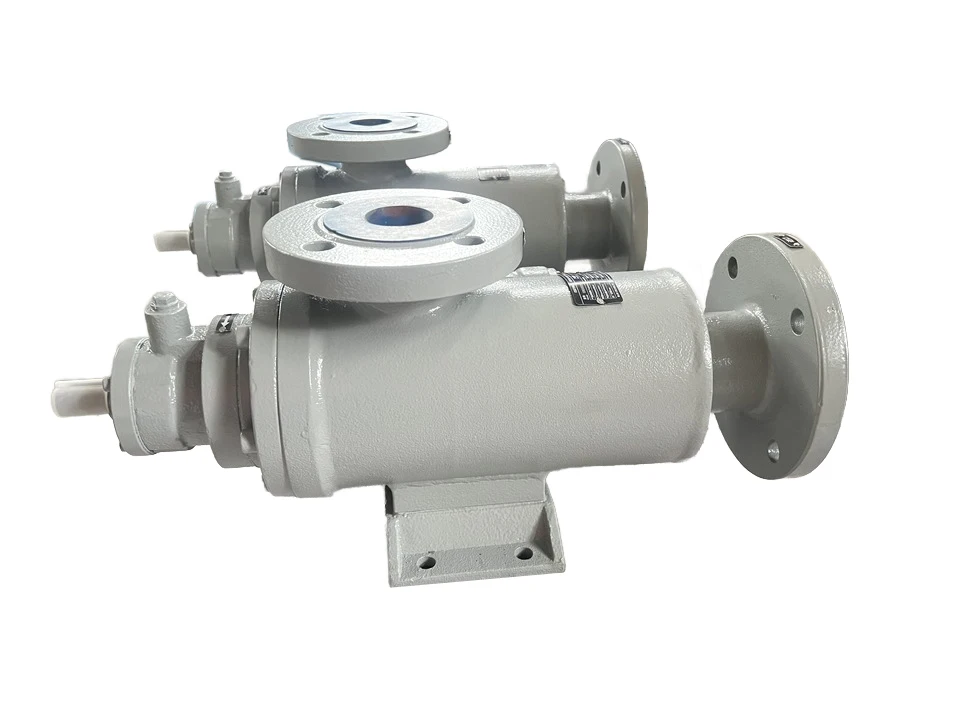

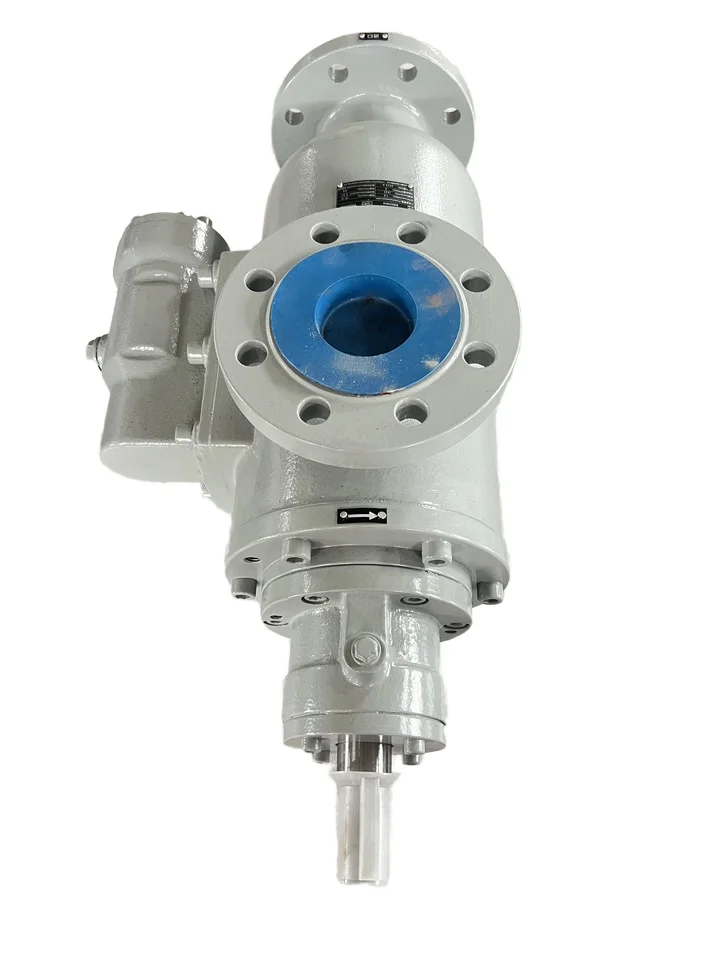

HTSND120 Series Electric Screw Pump Low Pressure High Flow Oil Transfer with Lubrication OEM/ODM/OBM Supported for Vacuum Usage
- Category: >>>
- Supplier: Huangshan Tieren Pumps Industry Co. Ltd.
Share on (1601198580279):
Product Overview
Description

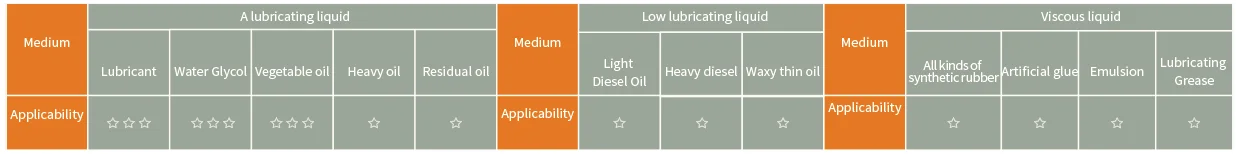

Type of conveying medium
Note: ⭐⭐⭐ It means recommended to be used, and ⭐ it means to be used under the guidance of technical personnel.
Performance requirements
❶ Medium requires lubricity or partial lubricity
❷ Medium requires no solid particles
❸ Flow range:10-3600L/min
❸ Flow range:10-3600L/min
❹ Working pressure:≤4.0Mpa
❺ Speed requirements:500-3000r/min
❻ Range of viscosity: 3-750mm2/s
❼ Use of temperature:-5-150℃
❺ Speed requirements:500-3000r/min
❻ Range of viscosity: 3-750mm2/s
❼ Use of temperature:-5-150℃
❽ Allowed suction height:≤8m
Multiple mounting methods
Bracket horizontal installation【Code Name SNF】:
The motor and pump are installed at both ends of the bracket, and the bracket is fixed by the mounting foot.
The motor and pump are installed at both ends of the bracket, and the bracket is fixed by the mounting foot.
Vertical installation【Code Name SNS】: Motor and pump installed at both ends of the bracket, the middle by coupling connection.
Immersion installation【Code Name SNK】: The motor and pump are installed at both ends of the bracket, the pump end is immersed in the medium, and the bracket circular plate is fixed on the fuel tank.

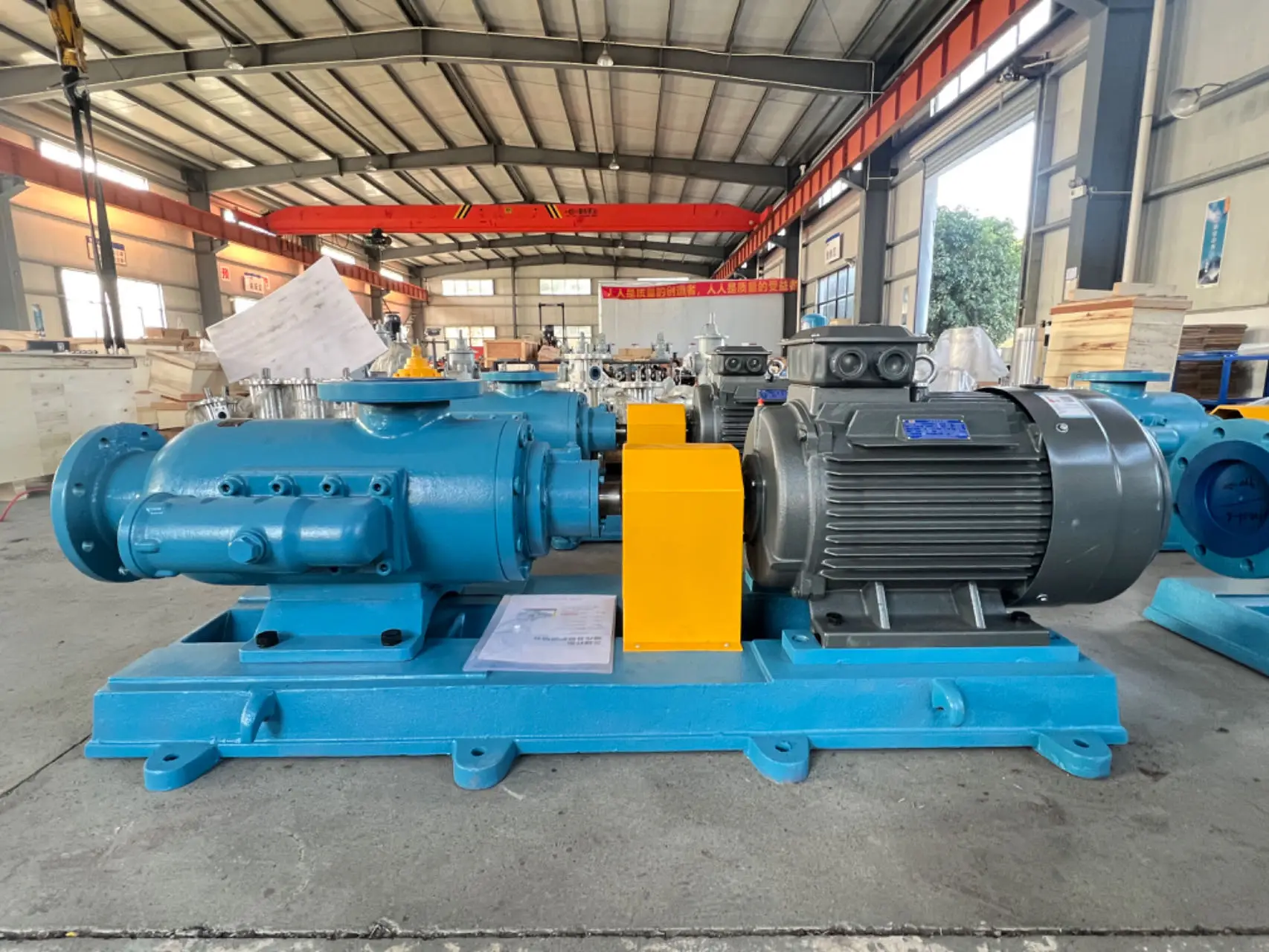

Horizontal installation【Code Name SNH】: Motor and pump installed in the base, connected by the coupling.
Rear horizontal installation【Code Name SND】: Motor and pump installed on the base.
Performance parameters
Size | Pressure（Mpa） | Flow（L/min） | Motor Type（KW） | Rotating Speed(r/min) |
TRSND120-42 | 1.0 | 61 | YE3-112M-6/2.2KW | 950 |
TRSND120-46 | 1.0 | 72.5 | YE3-112M-6/2.2KW | 950 |
TRSND120-50 | 1.0 | 82.5 | YE3--112M-6/2.2KW | 950 |
TRSND120-54 | 1.0 | 95.4 | YE3--132S-6/3KW | 950 |
TRSND120-42 | 1.0 | 95.5 | YE3--100L-4/3KW | 1450 |
TRSND120-46 | 1.0 | 114 | YE3-112M-4/4KW | 1450 |
TRSND120-50 | 1.0 | 127 | YE3-112M-4/4KW | 1450 |
TRSND120-54 | 1.0 | 149 | YE3-112M-4/4KW | 1450 |

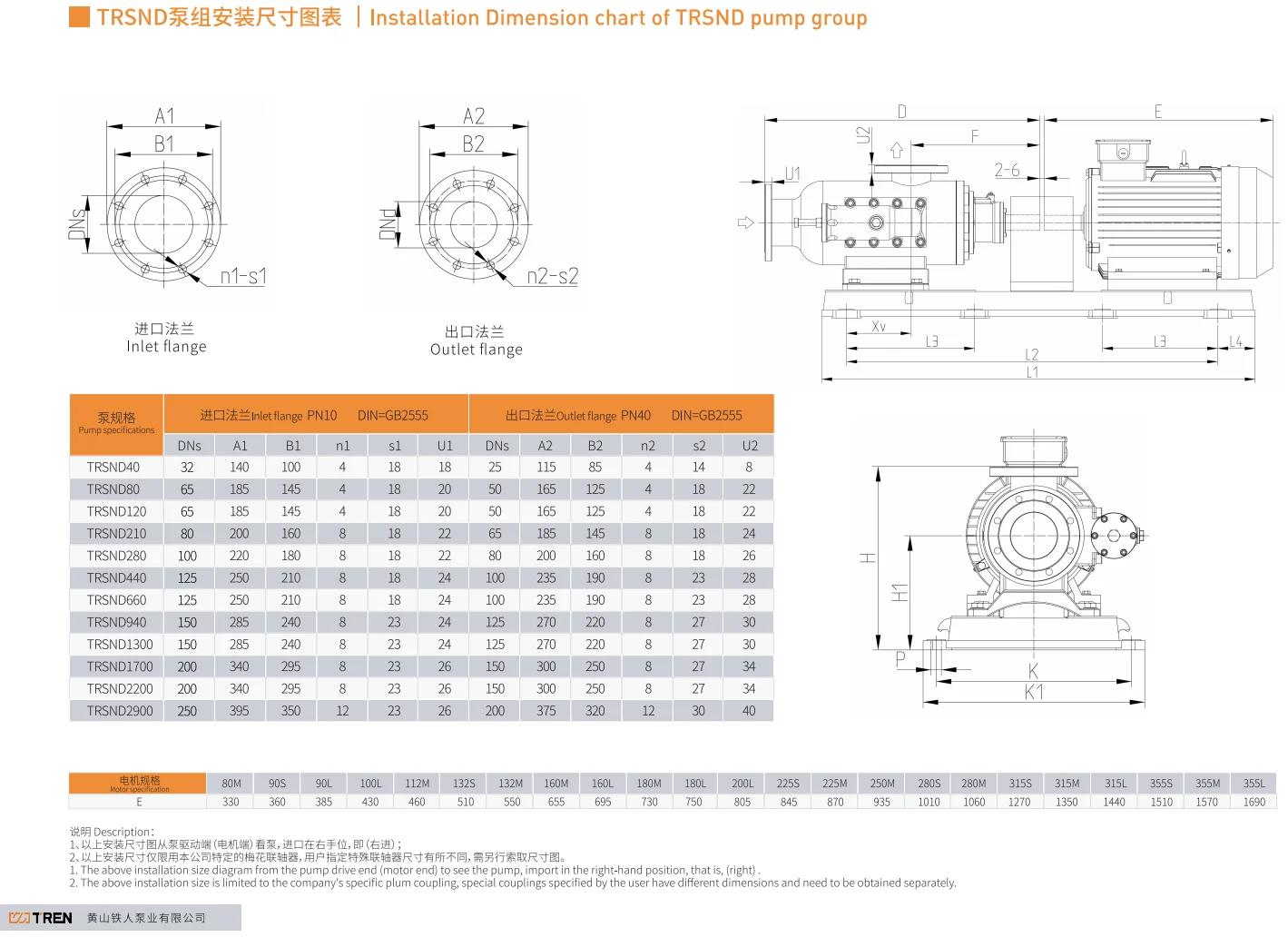

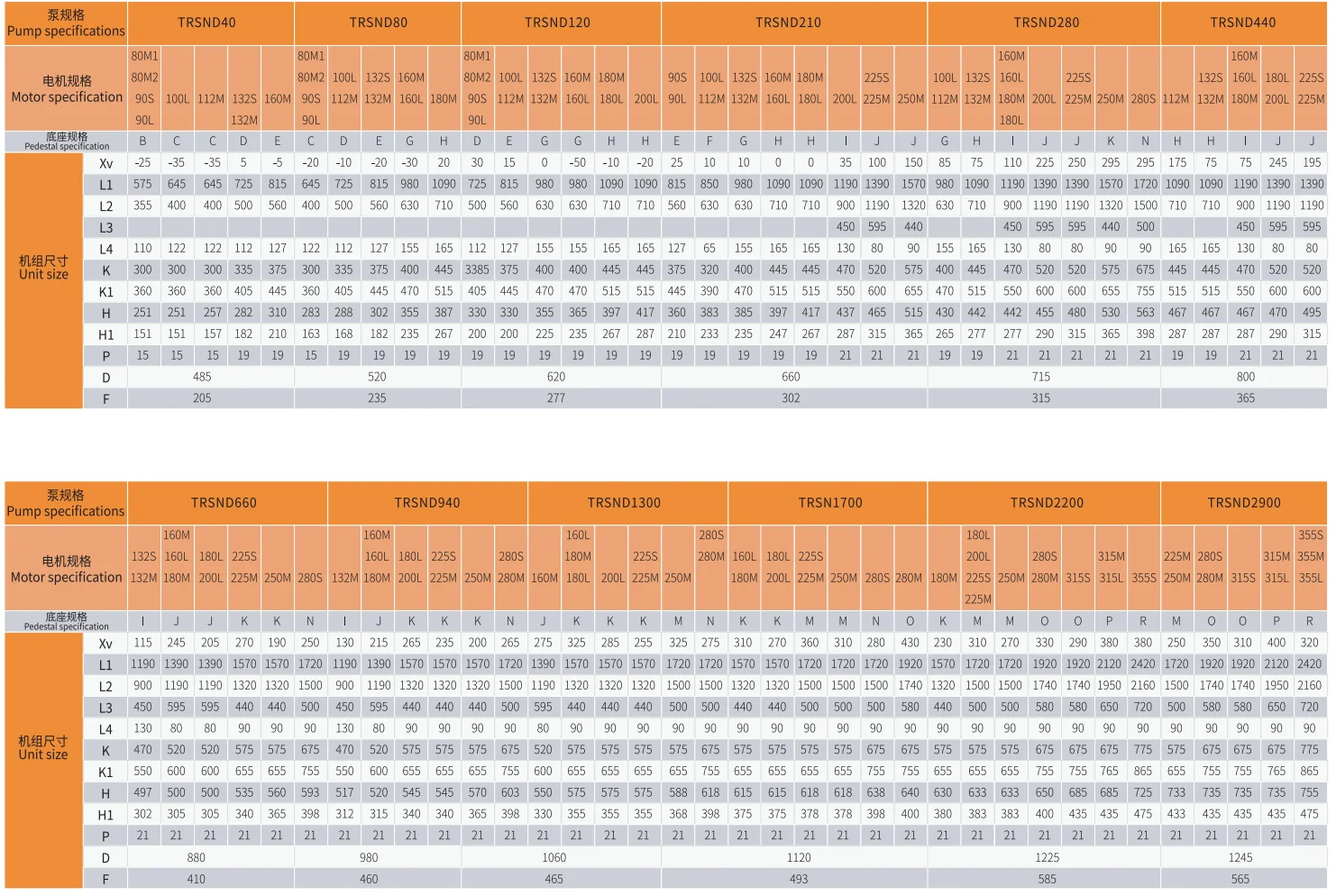

Installation method and size
Product configuration
We can provide you with the configuration of the product：Only pump heads are procured
We can provide you with the configuration of the product：Purchase pump and motor connectors
We can provide you with the configuration of the product：.Pump and motor combination
If you need to buy pump accessories, such as seals, bearings, inlet and outlet flange fittings, bushings, etc. or if you need repair service, please contact customer service.
Screw machining workshop
Shipping workshop
Dedicated profile grinding machine equipment
Horizontal machining center

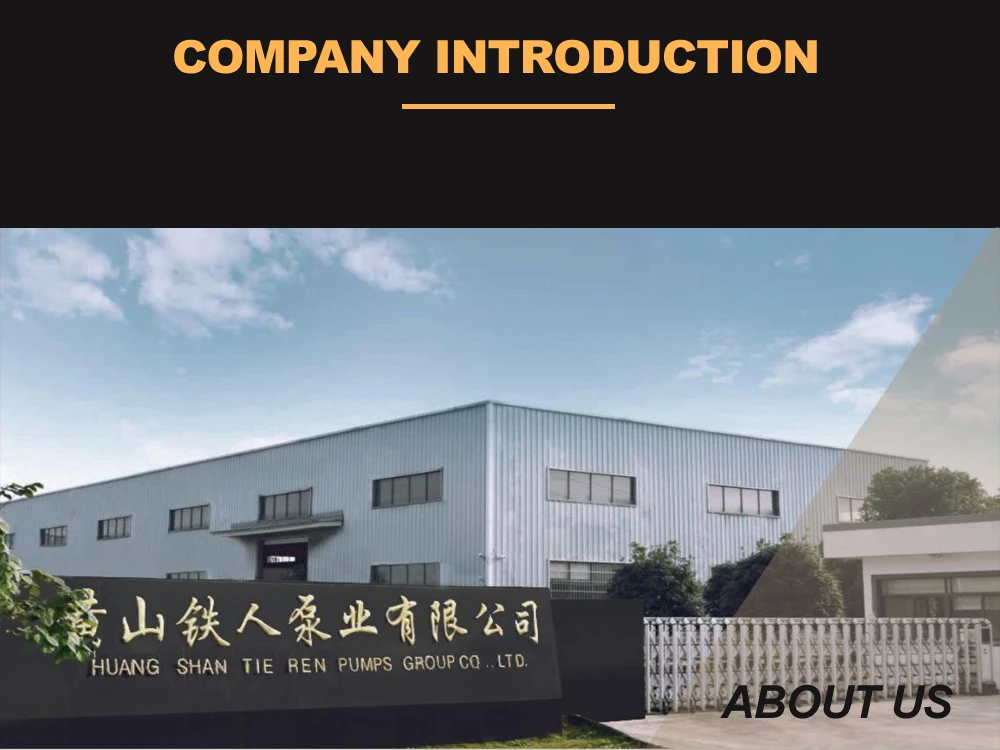

The image of the factory

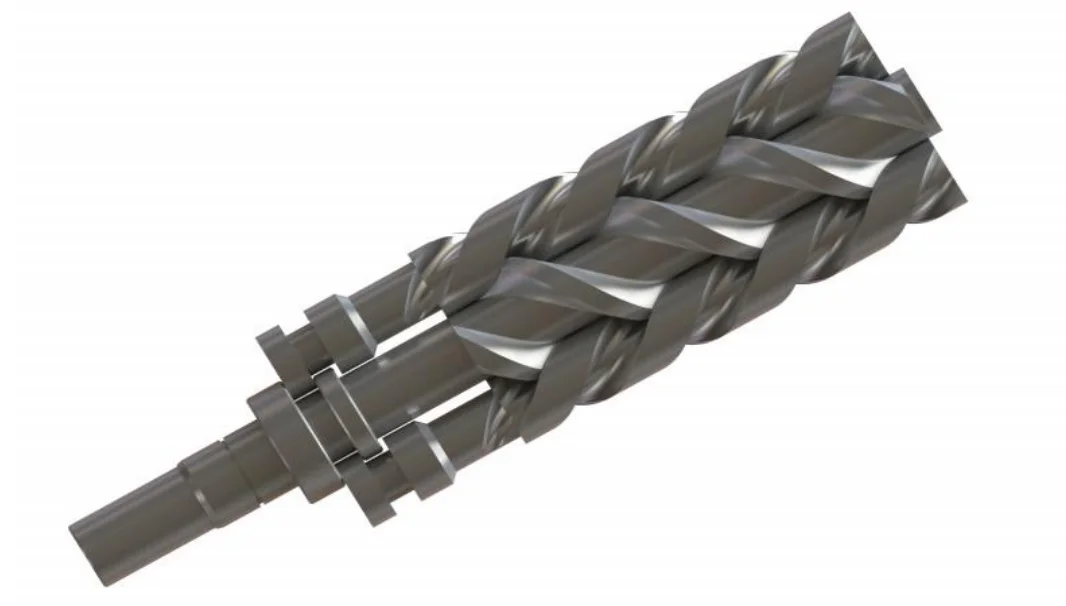

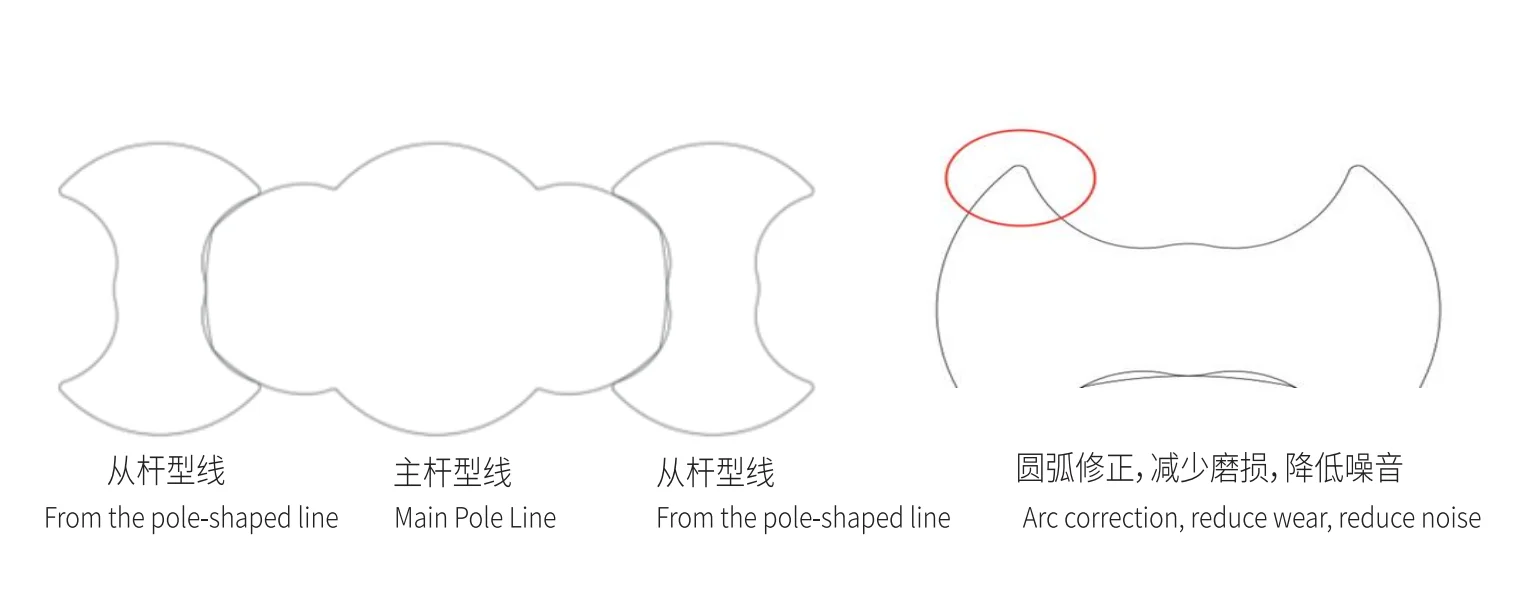

Self-developed profiles and 3D software modeling provide quality assurance for products in the design phase.
We also produce other series of progressive cavity pump products
T3S SERIES
HSJ SERIES
Progressing cavity pumps
Twin screw pumps
Diesel transfer pumps
FAQ
Q1: What is your business scope?
A1: We produce progressing cavity pumps, twin screw pumps, screw pumps, machine tool pumps, high pressure screw pumps, gear pumps, diesel pumps, viscose pumps, chemical pumps, etc
Q2: What type of company are you?
A2: We are an industrial pump manufacturer, the factory is located in Huangshan City, Anhui Province, China.
Q3: What's your payment terms?
A3: Alibaba Trade Assurance, Western Union, Paypal, T/T, L/C, etc
Q4: Can you provide OEM, ODM service?
A4: Yes, we can provide customized products.
Q5: Why should we buy from you?
A5: We promise to provide the best quality products with the shortest delivery time and competitive price. We believe this is what our customers want.
Q6: What's your warranty period?
A6: We offer one year unconditional warranty for manufacturing defects of our products.
Q7: What about the delivery time?
A7: Regular products may be in stock, 10-20 days lead time without stock, customized products usually need 30-40 days lead time.
A1: We produce progressing cavity pumps, twin screw pumps, screw pumps, machine tool pumps, high pressure screw pumps, gear pumps, diesel pumps, viscose pumps, chemical pumps, etc
Q2: What type of company are you?
A2: We are an industrial pump manufacturer, the factory is located in Huangshan City, Anhui Province, China.
Q3: What's your payment terms?
A3: Alibaba Trade Assurance, Western Union, Paypal, T/T, L/C, etc
Q4: Can you provide OEM, ODM service?
A4: Yes, we can provide customized products.
Q5: Why should we buy from you?
A5: We promise to provide the best quality products with the shortest delivery time and competitive price. We believe this is what our customers want.
Q6: What's your warranty period?
A6: We offer one year unconditional warranty for manufacturing defects of our products.
Q7: What about the delivery time?
A7: Regular products may be in stock, 10-20 days lead time without stock, customized products usually need 30-40 days lead time.
