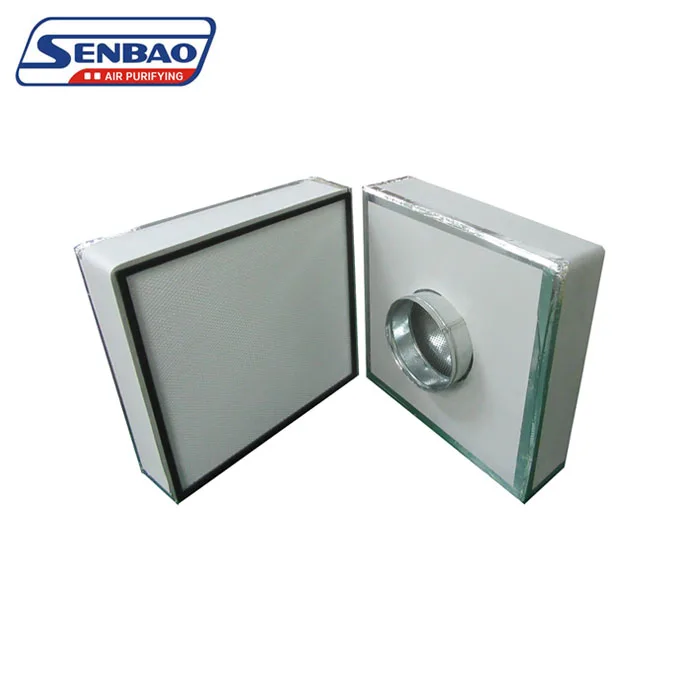

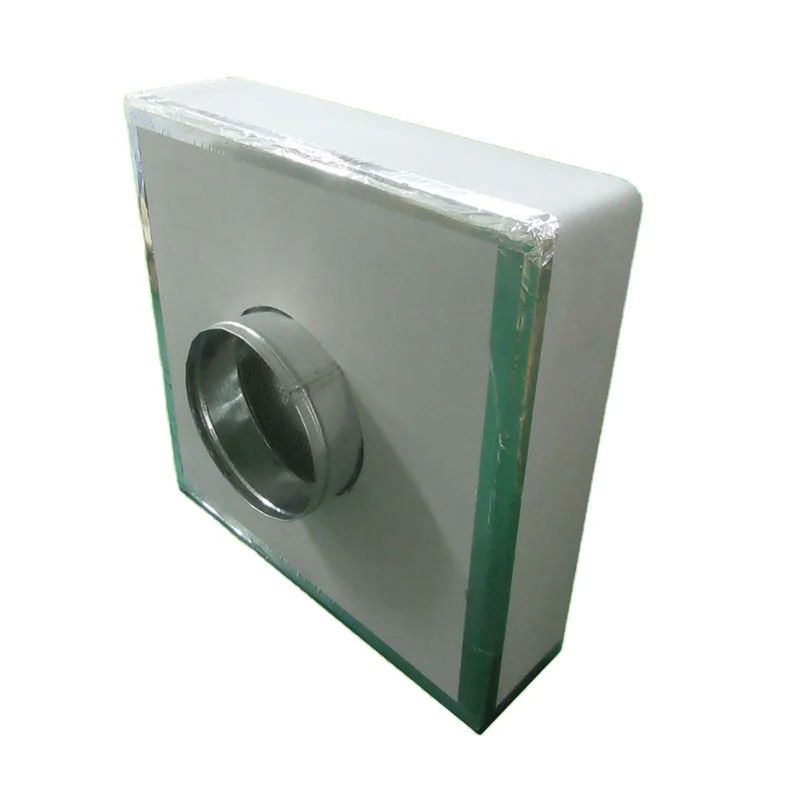

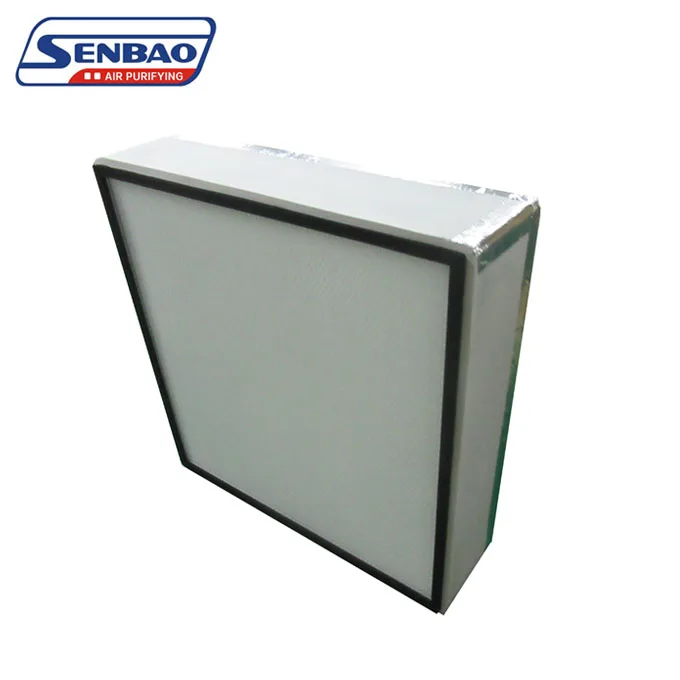

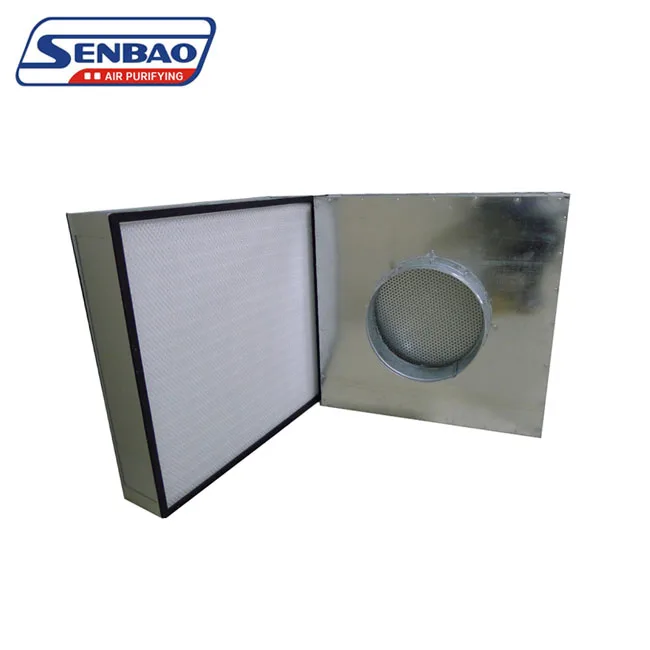

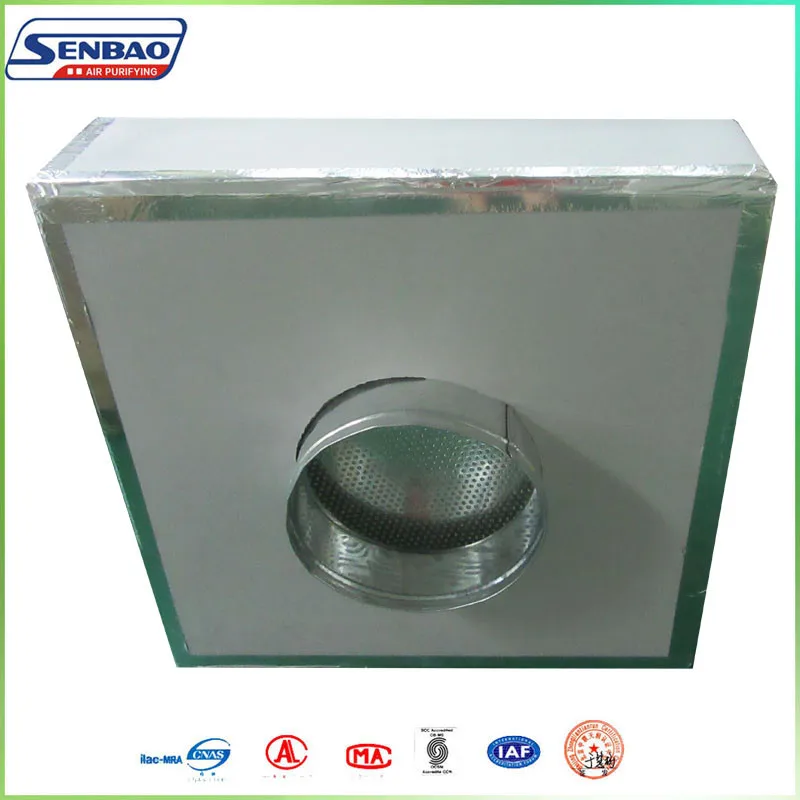

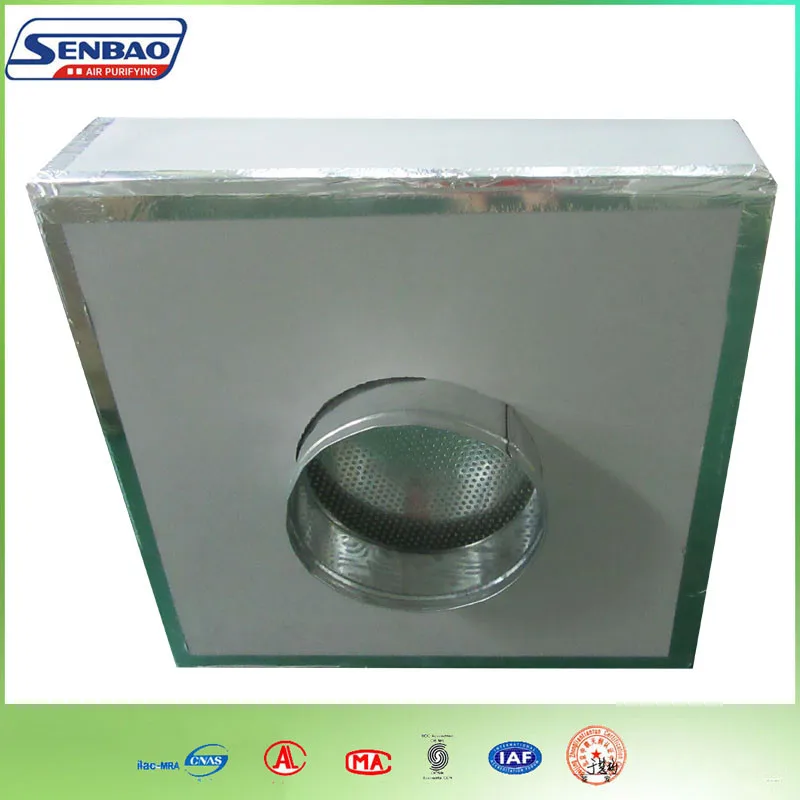

Air Filter Box Terminal Hepa Filter Module With Hood For Ventilation System
- Category: >>>
- Supplier: Dongguan Senbao Purifying Equipment Co. Ltd.
Share on (1601198732883):
Product Overview
Description
Air Filter Box Terminal Hepa Filter Module With Hood For Ventilation System
Product Description
Advantages
1.Aluminium frame and cover are antirust.
2.By standard diffuse mesh ,the airflow will be fluent.
3.Inlet tube could prevent loss of air.
4.Use special resin of without phosphorus to seal the media and frame absolutely.
5.Do not allow for break up and blocking of wind velocity.
Applications
Used for the relatively high level of class 100,1000 air purification system of the terminal filter air feeding device.
Material and performance
Frame | Aluminum |
Roof material | Cold-rolled steel plate electrostatic plastic spraying, aluminum |
Filter medium | Glass fiber |
Partition | Hot melt |
Diamond of wind suiface nets | Electrolysis board electrostatic plastic spraying |
Max. temperature | 80°C |
Max. humidity | 80%RH |
Specification and Technical parameters
Model | Size L*W*H(mm) | Duct Interface Size (mm) | Rate air flow(m³/h) | Intail resistance (pa) | Efficiency ( 0.3μm) |
SB-G | 484x484x150 | 250 | 600 | ≤220 | ≥99.99% |
SB-G | 610x610x150 | 250 | 1000 | ||
SB-G | 915x610x150 | 300 | 1500 | ||
SB-G | 1220x610x150 | 300 | 2000 | ||
special size can be according to customer special requirement | |||||
Product show
Company Information
Dongguan Senbao Purifying Equipment Co., Ltd. was established in 2003, factory covers an area of 10,500 square meters and located in "the world's factory" Dongguan City, Guangdong Province with convenient transportation and abundant resources.
We are mainly engaged in the design, production , sales and service of Air Filters, Fan Filter Units, Hepa Filters, Pocket Filters, V Bank Filters, Pre Filters , Bag Filter Media and other purification equipment.
Cooperation Partners
Senbao Purifying introduces advanced manufacturing equipments, imported high-quality filter materials. Together with strict manufacturing process control system and rich application experience of years, they make our products favored by both domestic and foreign customers.
Certifications
Thank you for browsing our site. If you are interested in our air filters and want to know more about the air filters, please feel free to contact me for the detail. Waiting for your inquiry !
