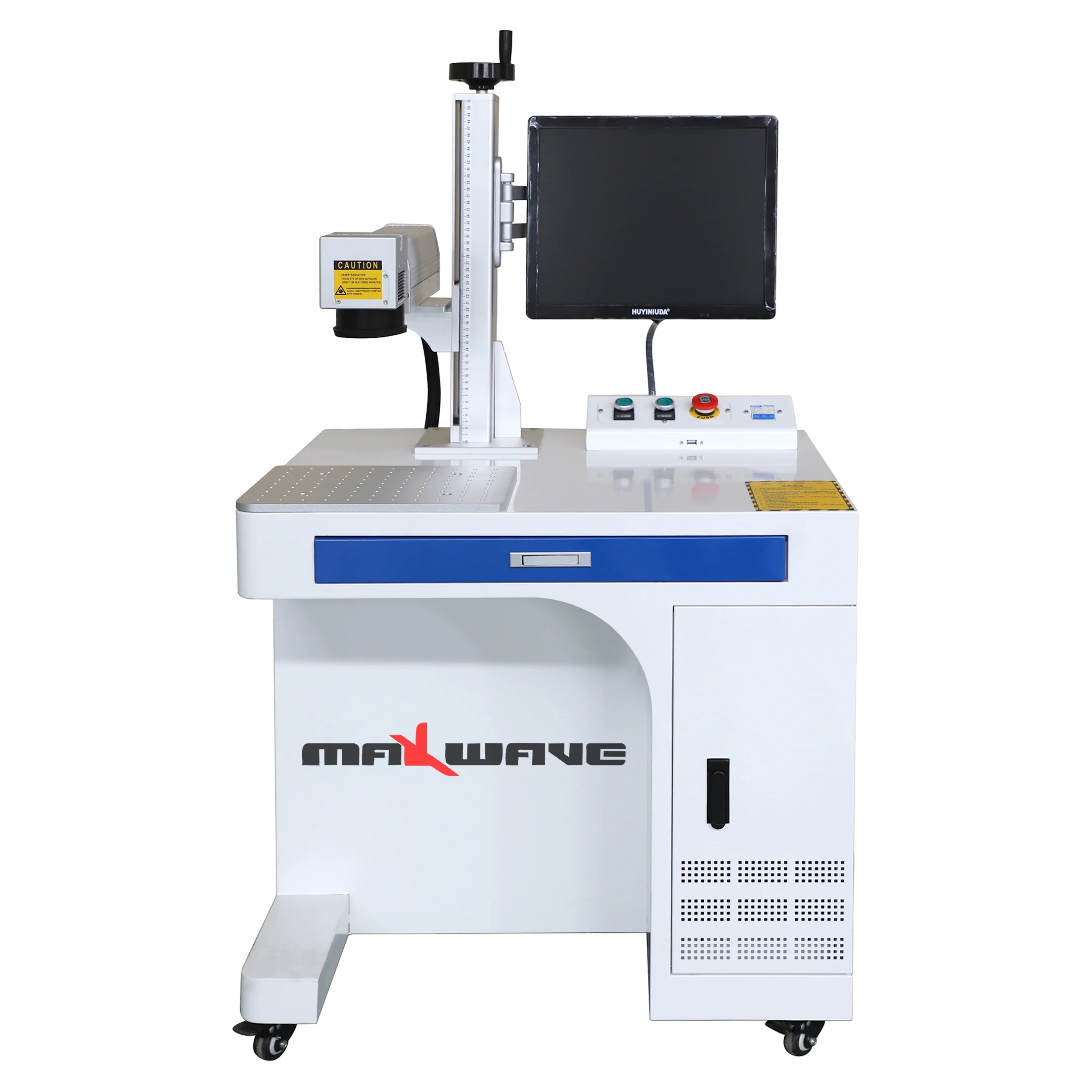

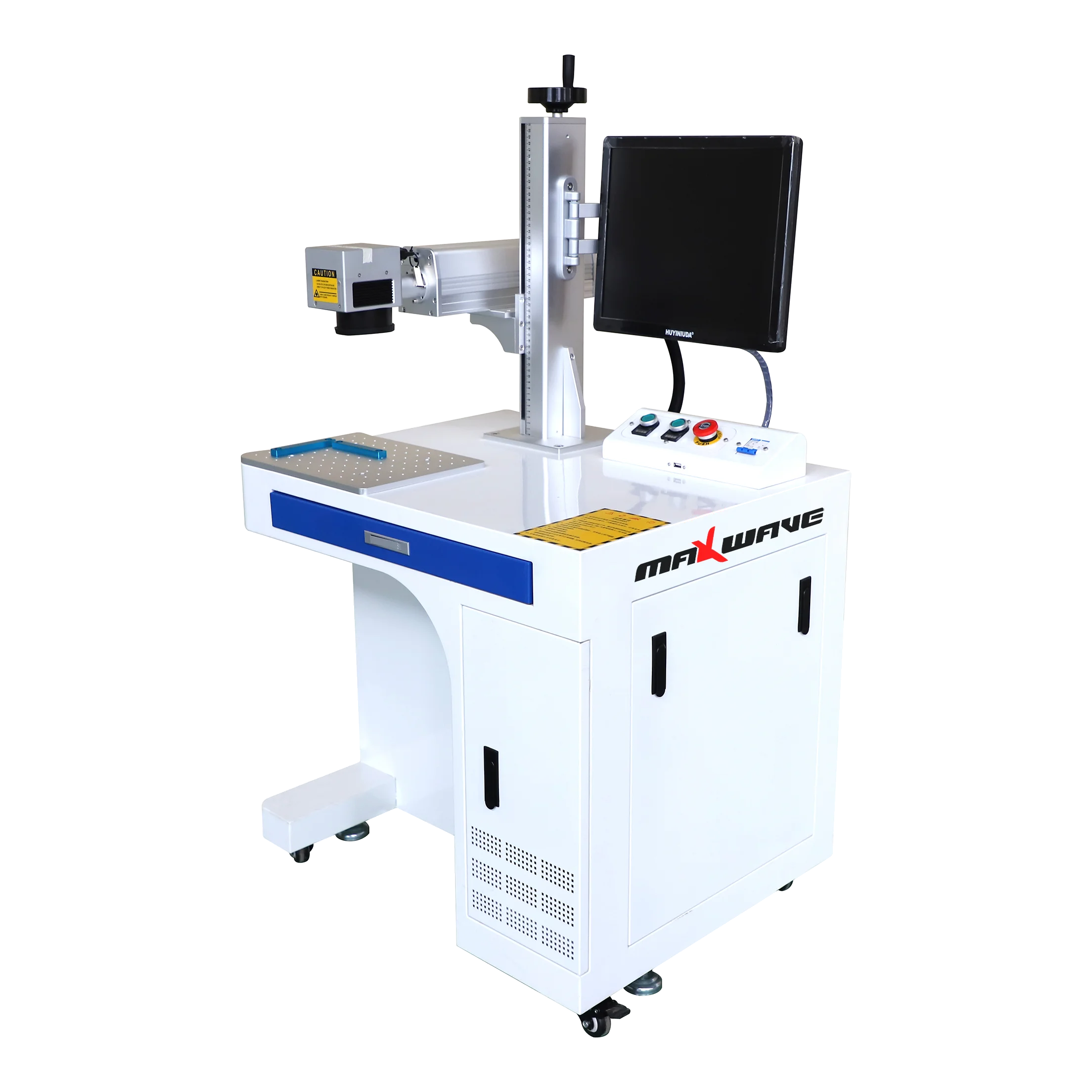

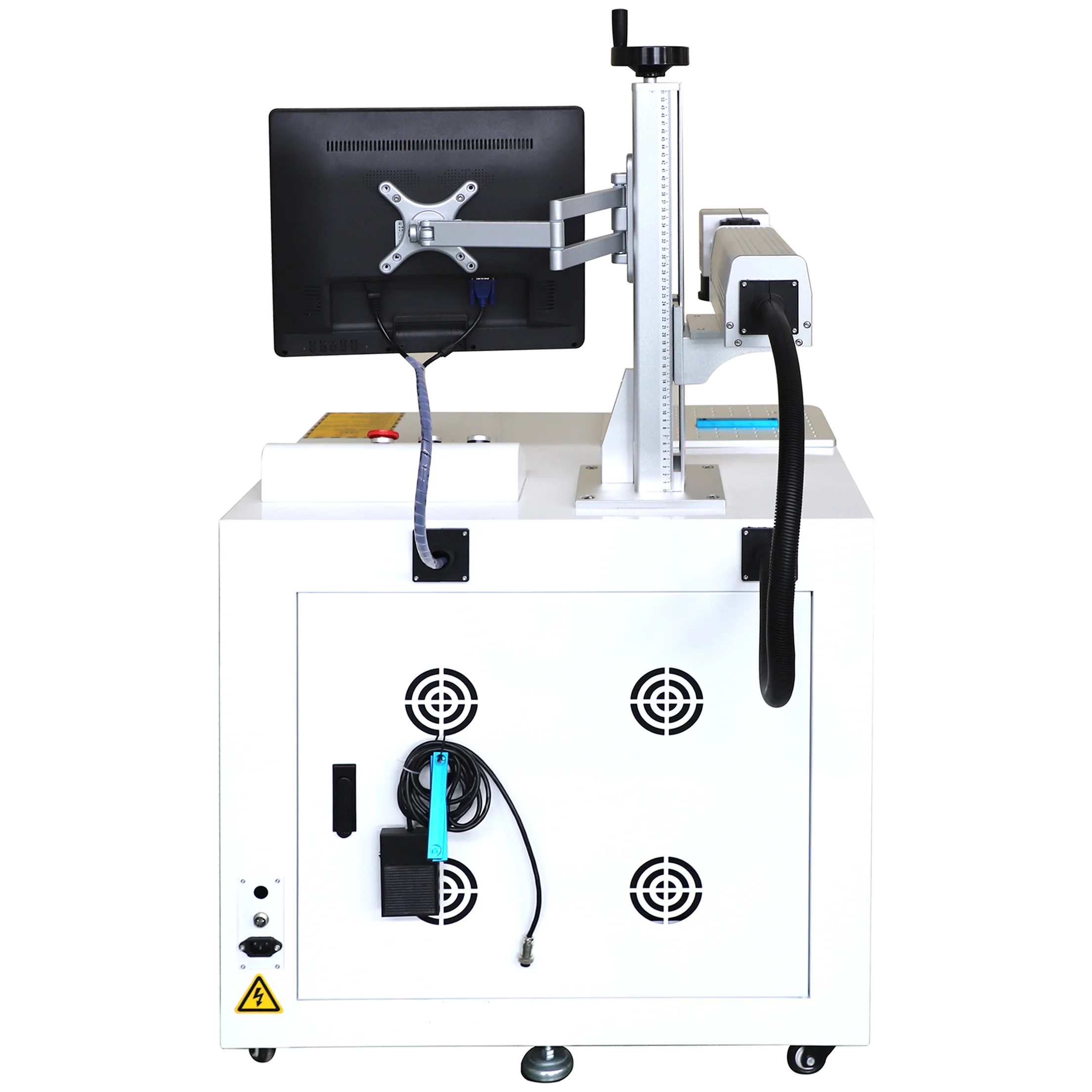

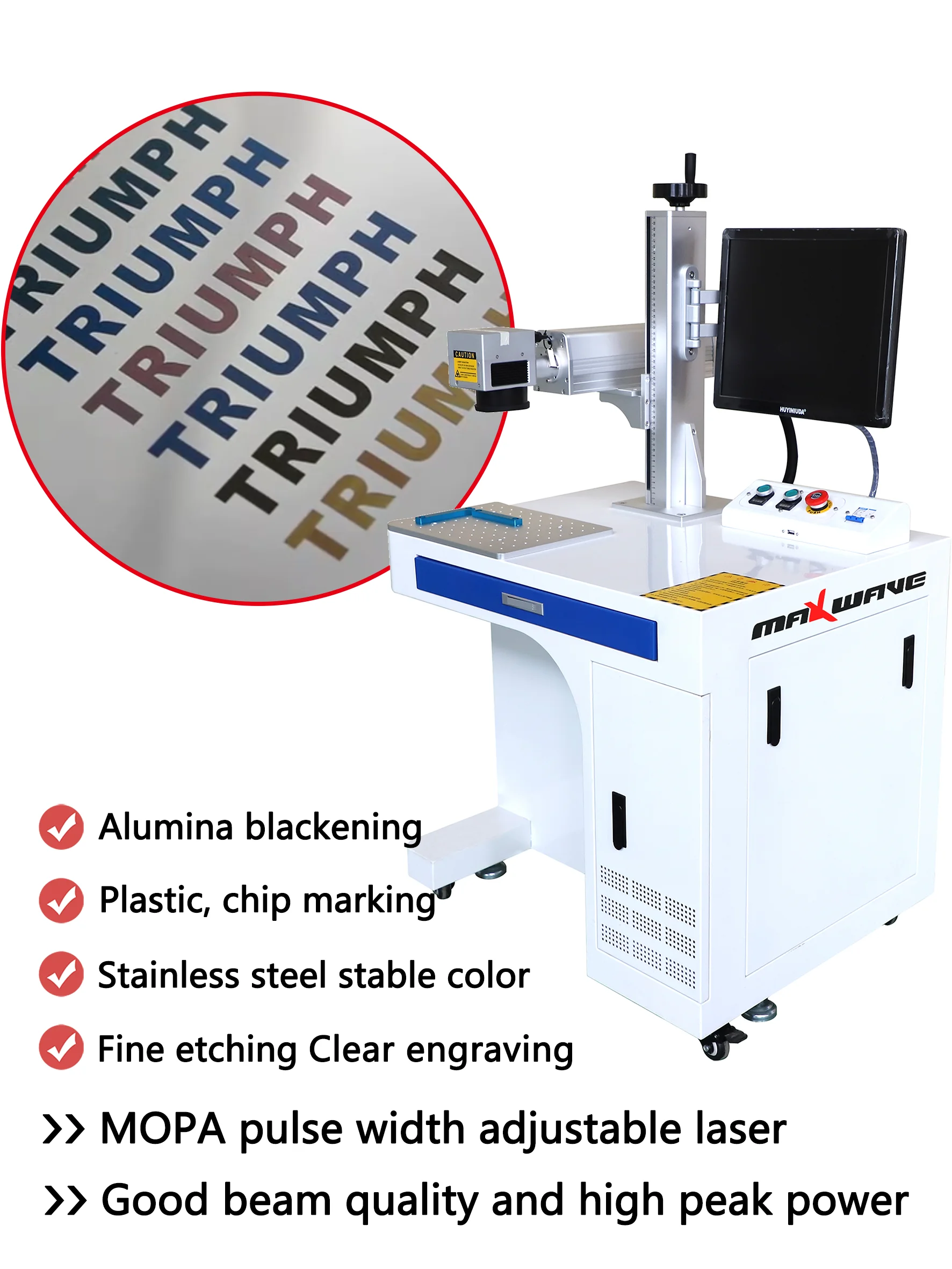

Desktop Portable Mopa Fiber Laser Marking Machines Metal Engraving Machines with Raycus Max JPT Laser Source Automatic
Desktop Portable Mopa Fiber Laser Marking Machines Metal Engraving Machines with Raycus Max JPT Laser Source Automatic
Desktop Portable Mopa Fiber Laser Marking Machines Metal Engraving Machines with Raycus Max JPT Laser Source Automatic
Desktop Portable Mopa Fiber Laser Marking Machines Metal Engraving Machines with Raycus Max JPT Laser Source Automatic
Desktop Portable Mopa Fiber Laser Marking Machines Metal Engraving Machines with Raycus Max JPT Laser Source Automatic
Desktop Portable Mopa Fiber Laser Marking Machines Metal Engraving Machines with Raycus Max JPT Laser Source Automatic
Desktop Portable Mopa Fiber Laser Marking Machines Metal Engraving Machines with Raycus Max JPT Laser Source Automatic

Desktop Portable Mopa Fiber Laser Marking Machines Metal Engraving Machines with Raycus Max JPT Laser Source Automatic

Share on (1601198826023):


Price:$2,499.00 - $2,699.00

Quantity:


Product Overview

Description









parameter
unit
MOPA
Series model
MW-FDMP20-M7-SR
MW-FDMP30-M7-SR
MW-FDMP60-M7-MR
MW-FDMP80-M7-MR
MW-FDMP100-
M7-MR
M2
< 1.4
< 1.5
< 1.6
average output power
W
> 20
> 30
> 60
>80
> 100
maximum pulse energy
mJ
0.8
1.5
Frequency adjustable range
kHz
1~4000
Pulse Width
ns
2~500
Output power instability
%
< 5
cooling method
air cooling
Supply voltage
V
24
48
Maximum power consumption
W
< 140
< 180
< 310
< 460
< 550
Ambient supply current
A
> 5
> 7
> 13
> 8
> 9
central wavelength
nm
1064
Spectrum width@3dB
nm
< 15
polarization direction
arbitrary
Is it anti-reflective?
yes
Beam diameter
mm
7±0.5
Power adjustment range
%
0~100
range of working temperature
℃
0~40
Storage temperature range
℃
-10~60
