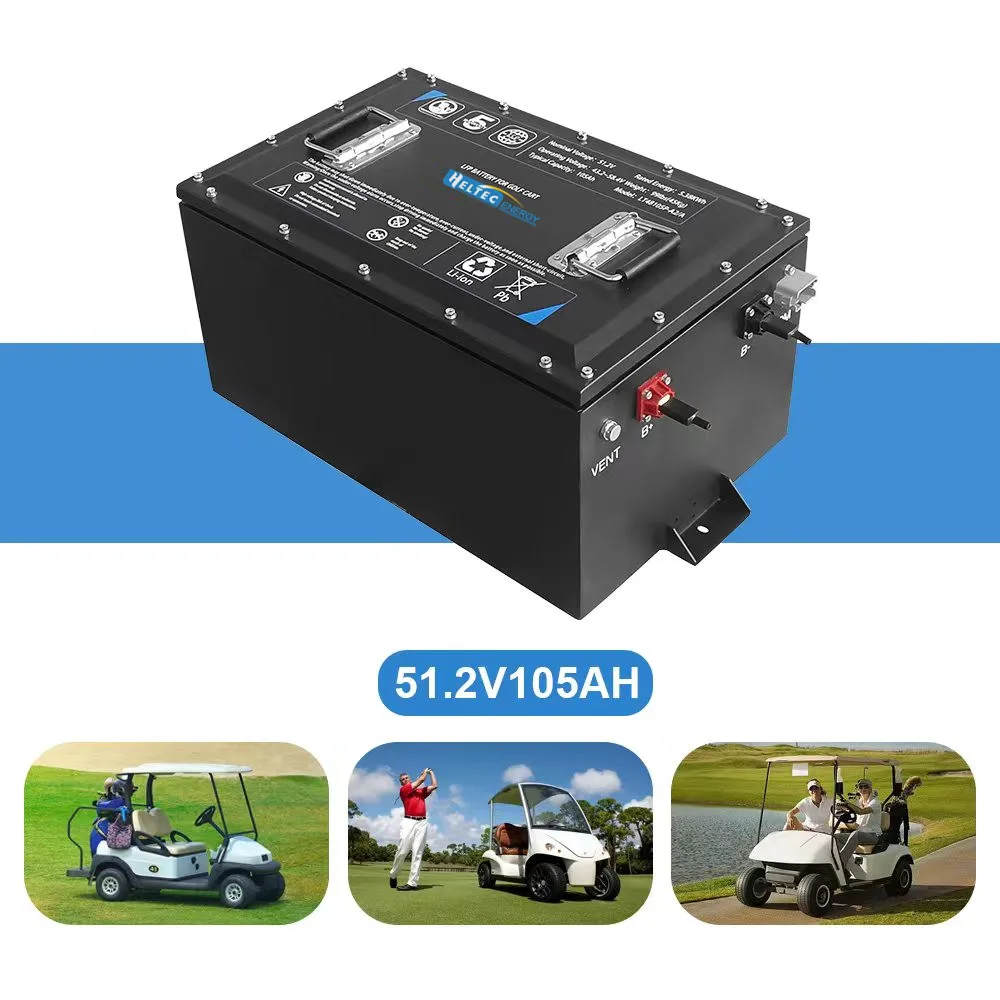

48v lithium Golf Cart battery 105AH 150AH IP65 Rating 51.2V lithium battery for Golf trolley Golf Cart battery lithium
- Category: >>>
- Supplier: Chengdu Heltec Energy Technology Co. Ltd.
Share on (1601199028147):
Product Overview
Description
Product Overview
Brand | Heltec Energy |
Product Name | Golf cart battery |
Application | Golf Carts, Club Car, Golf Buggy, Resort, Fire/Ambulance/Police Emergency, Villa Community, University, College, etc. |
Ingress Protection Level | IP65 |
Casing Material | Commercial grade steel |
FEATURES AT A GLANCE
Excellent design team
exquisite technology
scientific management
Cycle life 4000 times
Ingress Protection IP65
Support OEM/ODM
PRODUCT SPECIFICATIONS
Below are all standard specifications. We support customization and all OEM/ODM requirements can be negotiated. Kindly contact us before order!
Model | Norminal Voltage | Norminal Capacity | Dimension (L*W*H) | Weight | Charge Current | Continuous Discharge |
HT36100 | 38.4V | 105 Ah | 470*300*280 mm | 40 KG | 25A | 100A |
HT36210 | 210 Ah | 670*300*300 mm | 75 KG | 50A | 200A | |
HT48105 | 105 Ah | 550*320*280 mm | 50 KG | 25A | 50A | |
HT48150 | 150 Ah | 760*300*280 mm | 70 KG | 30A | 150A | |
HT48210 | 210 Ah | 895*300*255 mm | 95 KG | 50A | 210A | |
HT48230 | 230 Ah | 800*300*300 mm | 105 KG | 50A | 230A | |
HT48280 | 280 Ah | 960*320*300 mm | 130 KG | 55A | 280A | |
HT48315 | 315 Ah | 1000*300*300 mm | 145 KG | 60A | 300A | |
HT60105 | 105 Ah | 520*340*270 mm | 60 KG | 25A | 100A | |
HT60150 | 150 Ah | 707*430*245 mm | 85 KG | 30A | 150A | |
HT60230 | 230 Ah | 840*345*270 mm | 130 KG | 50A | 230A | |
HT72105 | 105 Ah | 600*300*300 mm | 70 KG | 50A | 230A | |
HT72150 | 150 Ah | 1000*300*300 mm | 100 KG | 30A | 150A | |
HT72173 | 173 Ah | 800*420*300 mm | 120 KG | 35A | 170A | |
210 Ah | 145 KG | 40A | 210A | |||
73.6V | 135 KG | |||||
76.8V | A: 710*360*275 mm B: 1160*320*300 mm | 210 KG | ||||
73.6V | A: 710*360*275 mm B: 1160*320*300 mm | 205 KG | ||||
HT72346 | 346 Ah | 800*740*300 mm | 135 KG | 70A | ||
HT72460 | 460 Ah | 750*740*500 mm | 310 KG | 90A | ||
HT72520 | 520 Ah | 650*740*500 mm | 350 KG | 100A | ||
HT96210 | 210 Ah | A: 710*360*275 mm B: 1160*320*300 mm | 180 KG | 40A | 200A | |
HT96315 | 315 Ah | A: 710*360*275 mm B: 1160*320*300 mm | 265 KG | 60A | 300A | |
HT96420 | 420 Ah | A: 710*360*275 mm B: 1160*320*300 mm | 355 KG | 80A | ||
HT144280 | 280 Ah | 1050*800*300 mm | 355 KG | 55A | 280A | |
HT144420 | 420 Ah | A: 1000*650*300 mm B: 1000*800*300 mm | 530 KG | 85A | 300A | |
HT144520 | 520 Ah | A: 1500*360*300 mm B: 1500*640*300 mm | 660 KG | 100A |
Note:
1. Only authorized personnel are allowed to operate or make adjustments to the batteries.
2. All data are bases on standard test procedures. Actual performance may vary according to local conditions.
Successful Project
FAQ
1. Can you accept customization?
A: Yes, our company has a design department. We provide hardware design, ARM and Mbed system software design, etc. If you want to know more about our service, please click here: why choose us.
2. How long will it take for sample making and mass production?
A: It takes about 3-5 days to make the sample, and 7-30 days for mass production.
3.How about the productivity of your company?
A: We have enough storage for most of our products, if you need customize we have SMT factory to fulfill your needs after you pay for the products.
4.What about the mode of transportation ?
A: According to the quantity and volume, we will choose the most suitable and cost-effective way of transportation for you. Of course, you are also free to choose the most convenient one.
5.How do you guarantee the quality of your products?

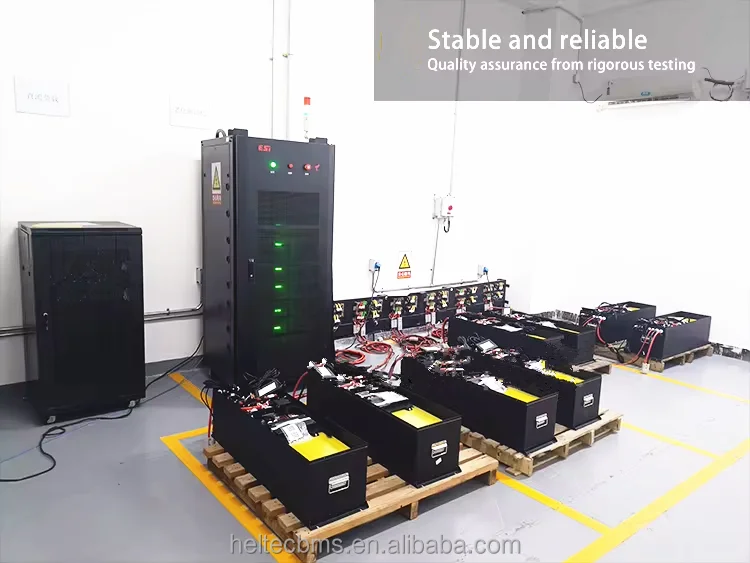

A: We have professional instruments and equipment for development and test, and we use manual inspection. Each product will be tested before packaging.
