MS D500 Dental Operation Microscope

Product Overview

Description

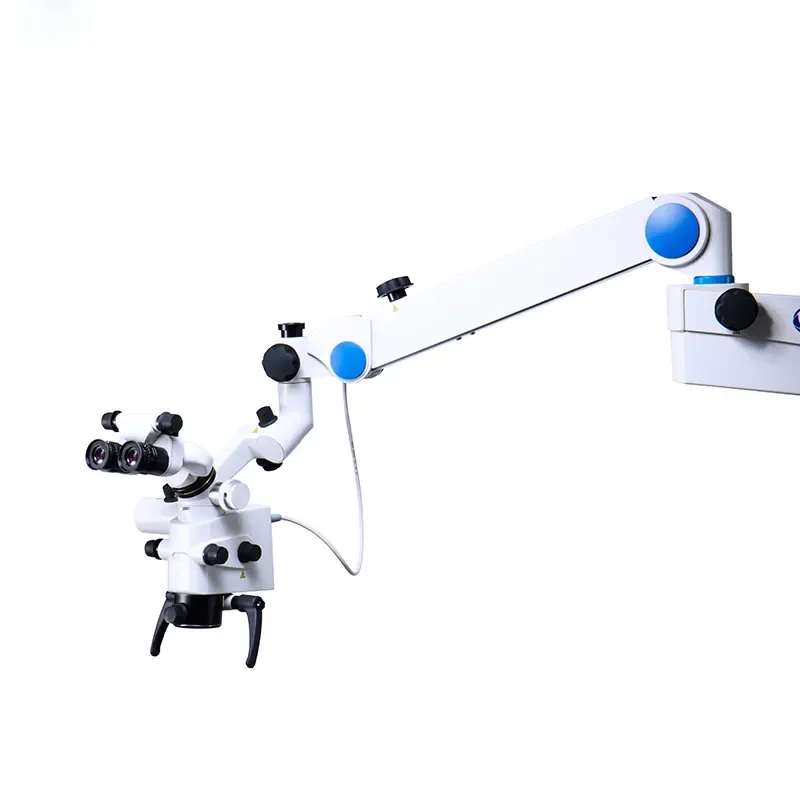

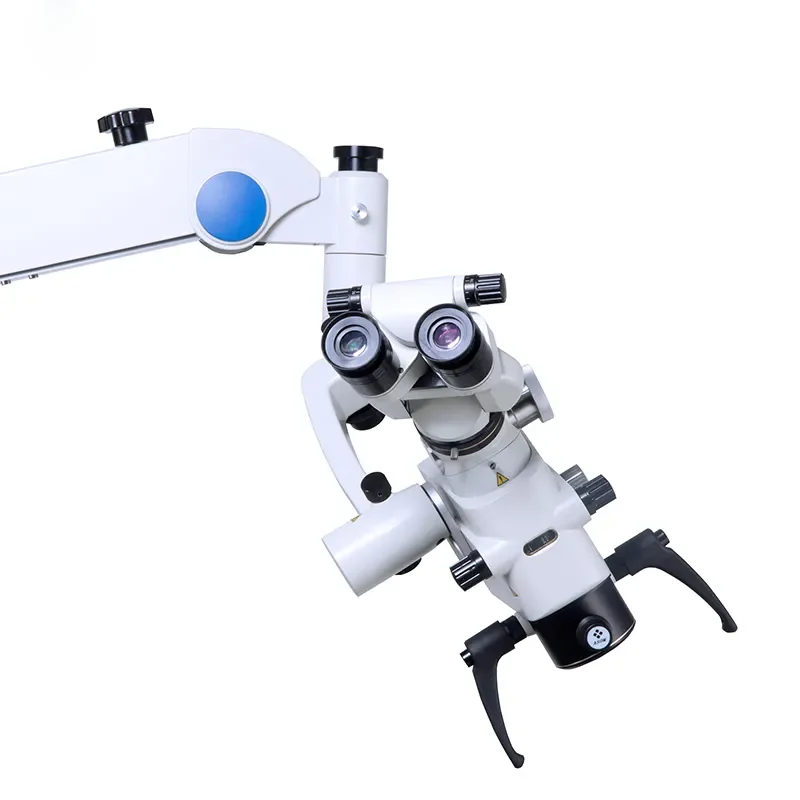

MS-D500 Dental Operation Microscope



Eyepieces

magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D.

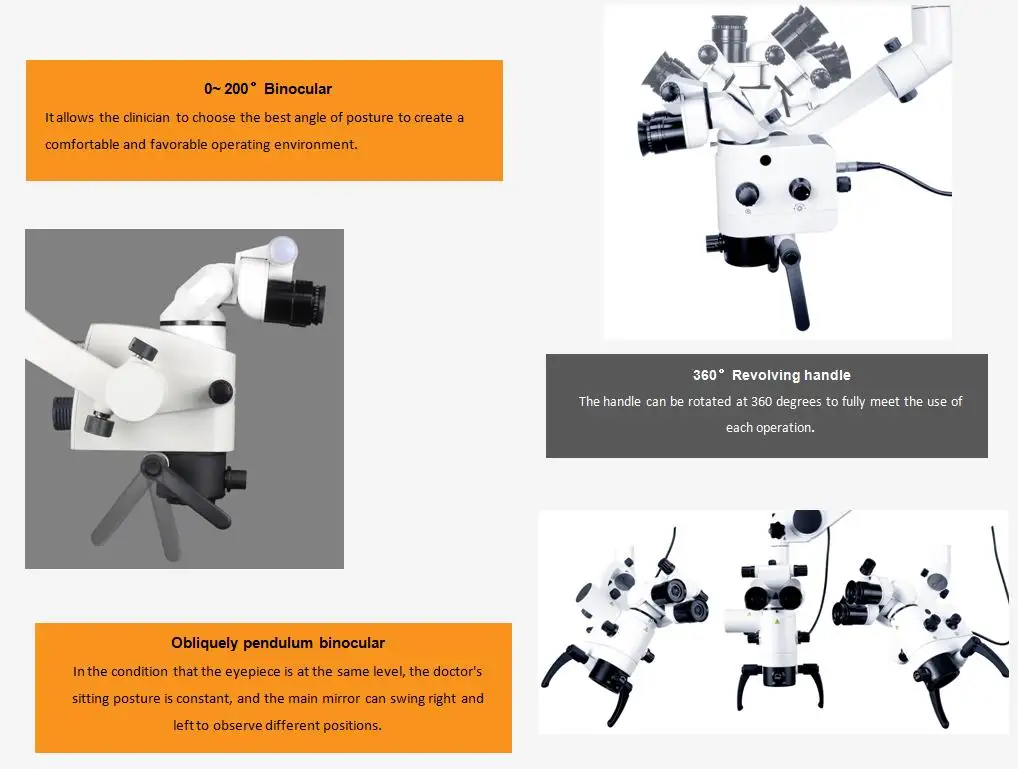

Binocular tube

high brightness 0~200°binocular tube

Magnification

1:6 manual continuous zoom, magnification 2.5x~21x; field of view Φ78.6~Φ9mm

X-Y movement device

X direction swing 45°, Y direction swing 45°

Coaxial illumination

LED cold light ,illumination diameter of light spot Φ80mm, illumination intensity 60000lux

build-in small-spot, both blue and yellow light filter.

Objectives

300mm(±15mm adjustment)

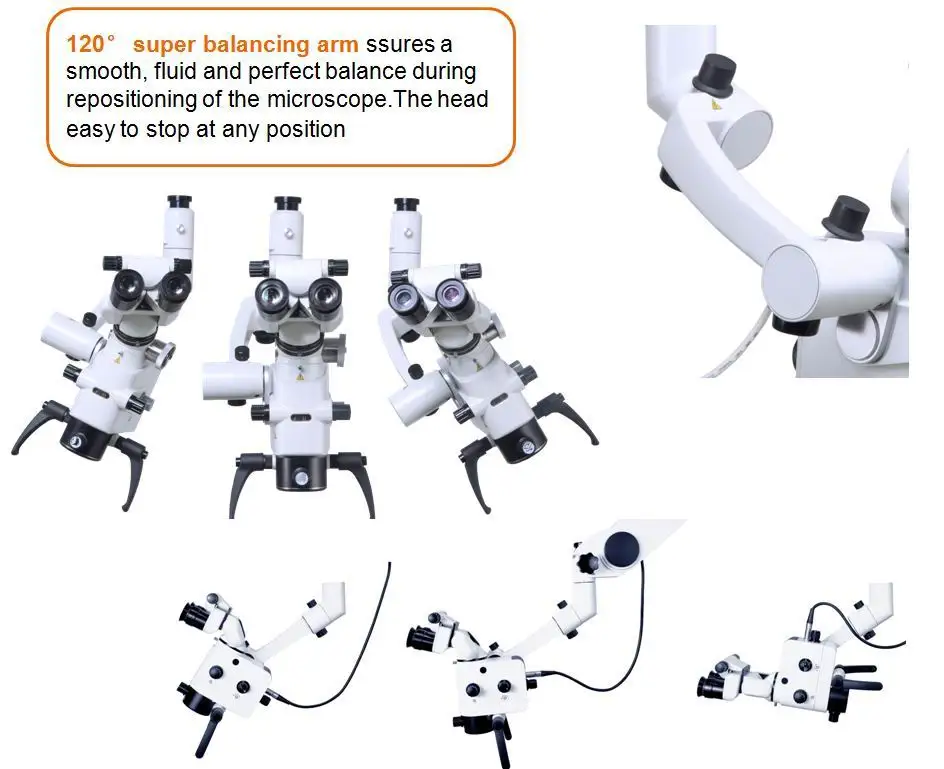

Maximum length of arm

1100mm

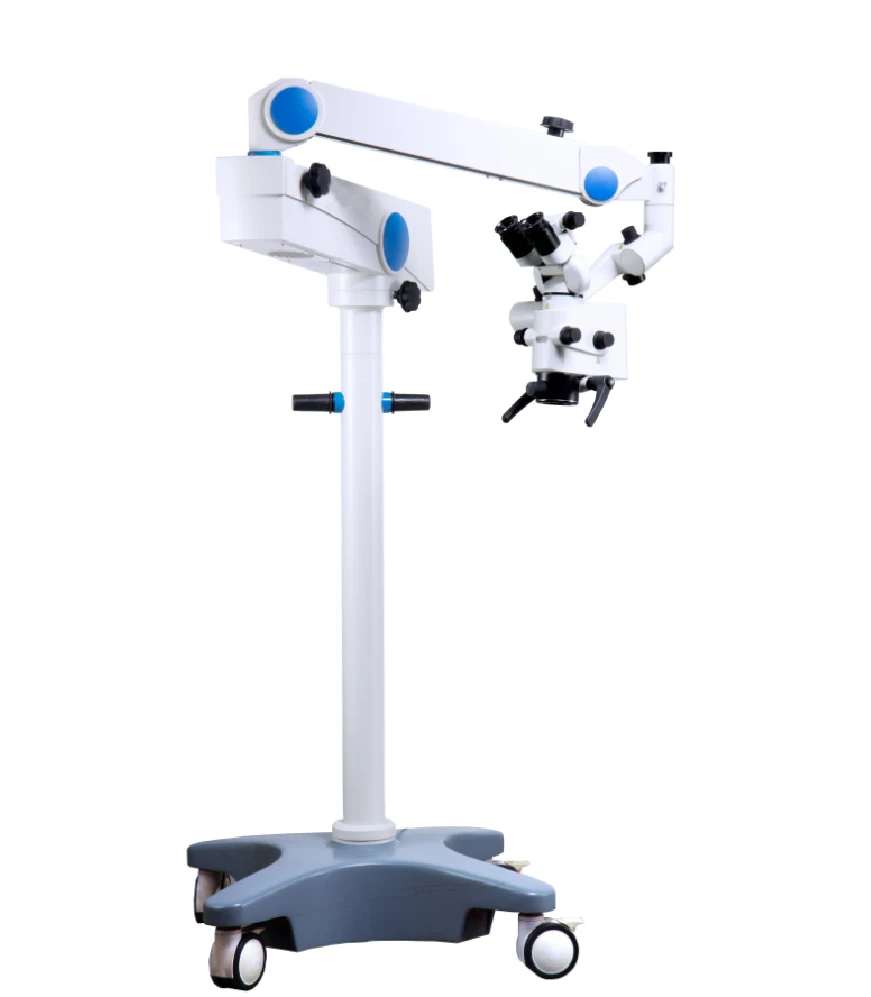

New stand

swing angle of the carrier arm 0 ~300°,height from objective to floor 730mm<H<1250mm

Weight

107kg
