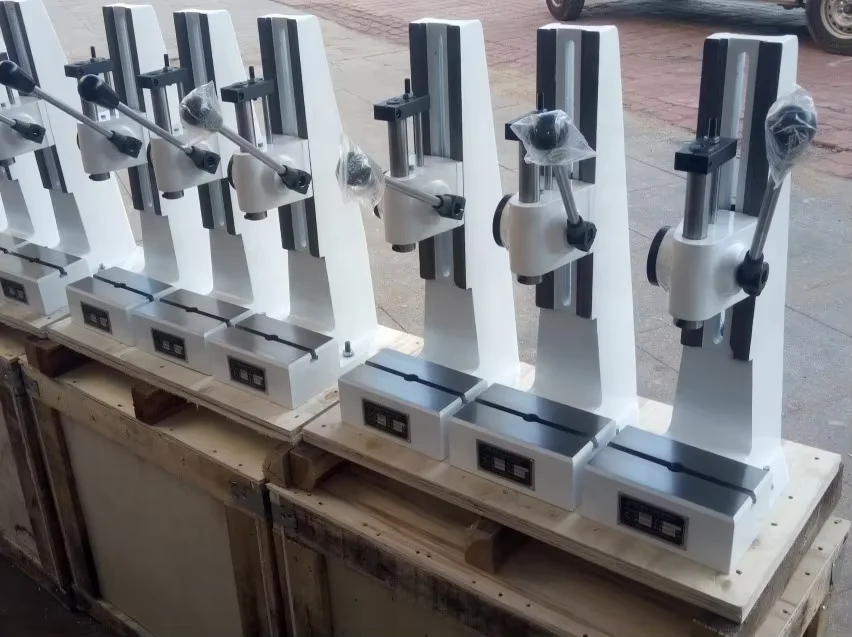

AHP (R) High Precision Hand Arbor Small Press Machine Table type portable punching press machines

Product Overview

Description

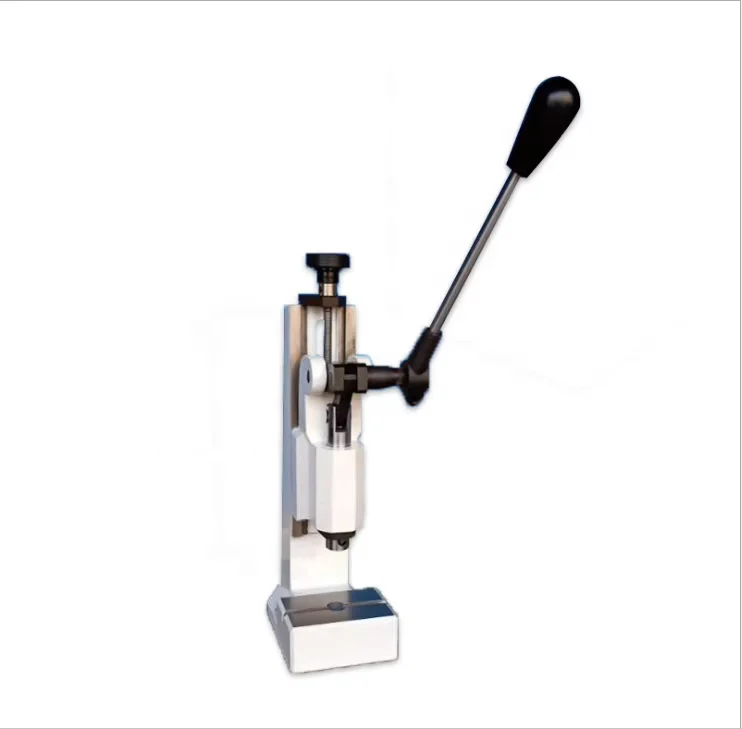

AHP-(R) High Precision Hand Arbor Small Press Machine Table type portable punching press machines

Product use:

This press machine is applicable to many industries such as hardware, electronics, electric appliance, automobile, machinery, clock, instrument,in the process of equipment, blanking, cutting, molding, flanging, pressing,riveting, punching, sewing, proofreading and stamping.

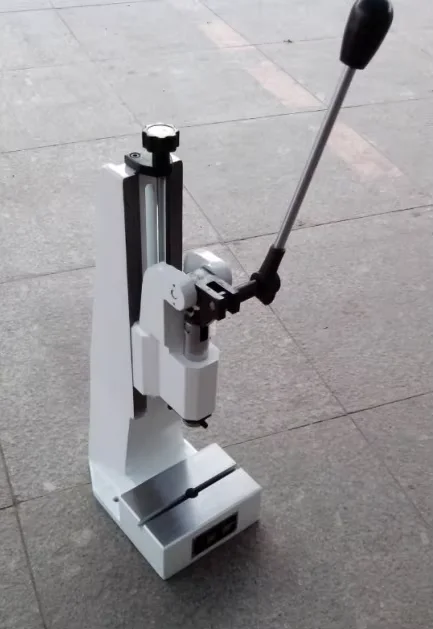

AHP-(R) High Precision Hand Arbor Small Press Machine Table type portable punching press machines

Product features:

When the operating force of the operator is certain, the downforce increases gradually with the increase of the stroke.It is especially suitable for riveting products with smaller force travel and higher output requirements.small operation force, high pressure and wide range of travel Stroke,height and handle position are fully adjustable and easy to operate. equipped with stroke block and optional travel self locking mechanism to ensure product quality.

structure size:



Order type		A	B×T	C	D	E	F	L	H	G	R	N
	pressure	journey	Mesa dimension	The spindle span	adjust the height	Install the aperture	Mesa aperture	The length of the frame	Stand high	T Type groove width	Install the aperture	pitch-row	weight
	KN	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	KG
AHP-1	12	0-60	185*115	86	120-360	10H7	20H7	265	610	10	11	146	31
AHP-1R	12	20-60	185*115	86	120-360	10H7	20H7	265	610	10	11	146	32
AHP-2	12	0-60	150*110	86	80-265	10H7	20H7	260	500	10	11	116	23
AHP-2R	12	20-60	150*110	86	80-265	10H7	20H7	260	500	10	11	116	24
AHP-3	5	0-40	110*80	65	65-180	10H7	20H7	195	410	8	11	96	12
AHP-3R	5	20-40	110*80	65	65-180	10H7	20H7	195	410	8	11	96	13
Note: the ordered model has suffix (R), indicating that the product has a self-locking mechanism for return journey.
