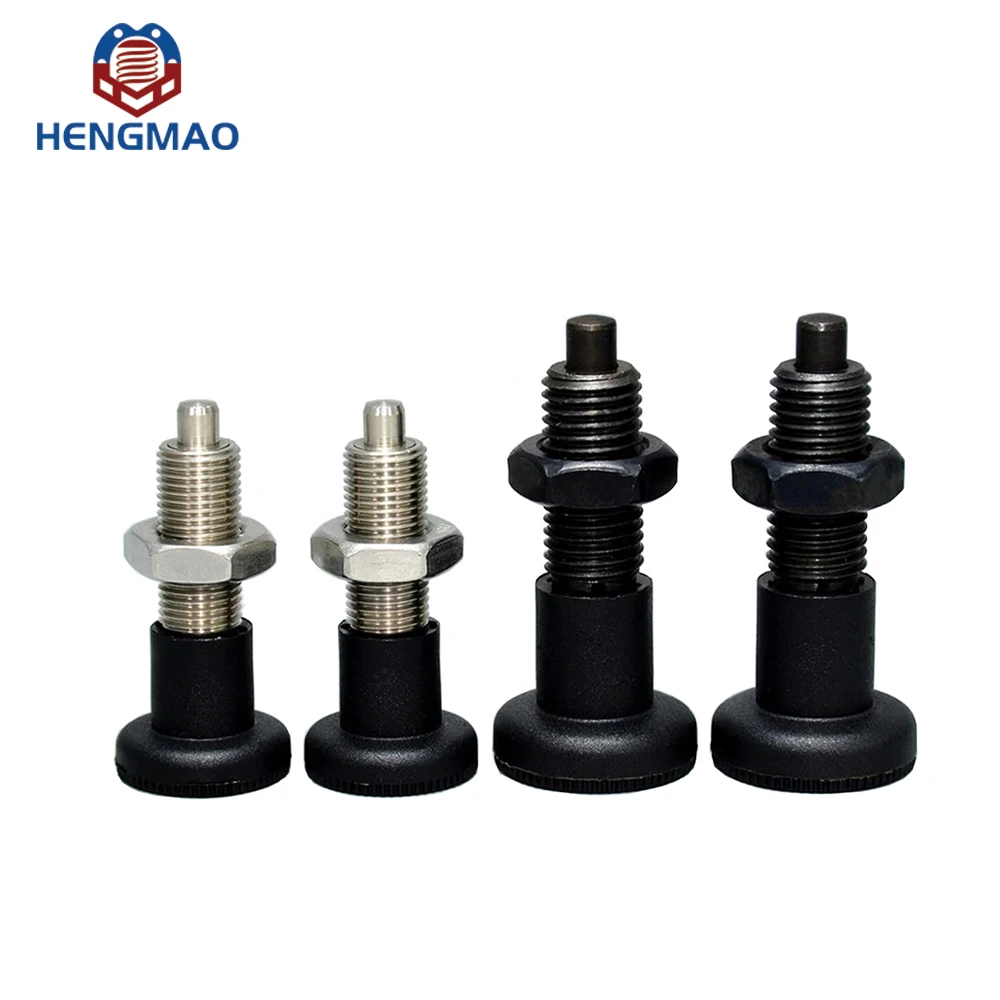

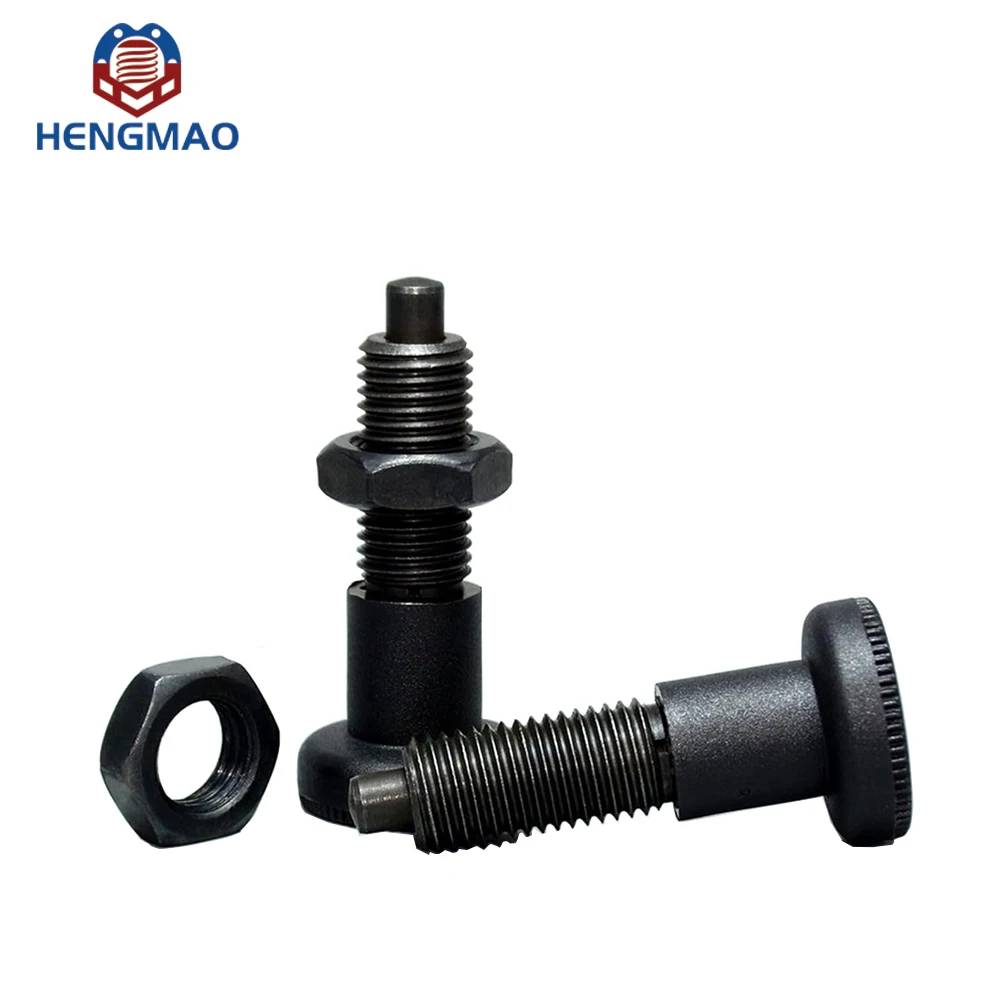

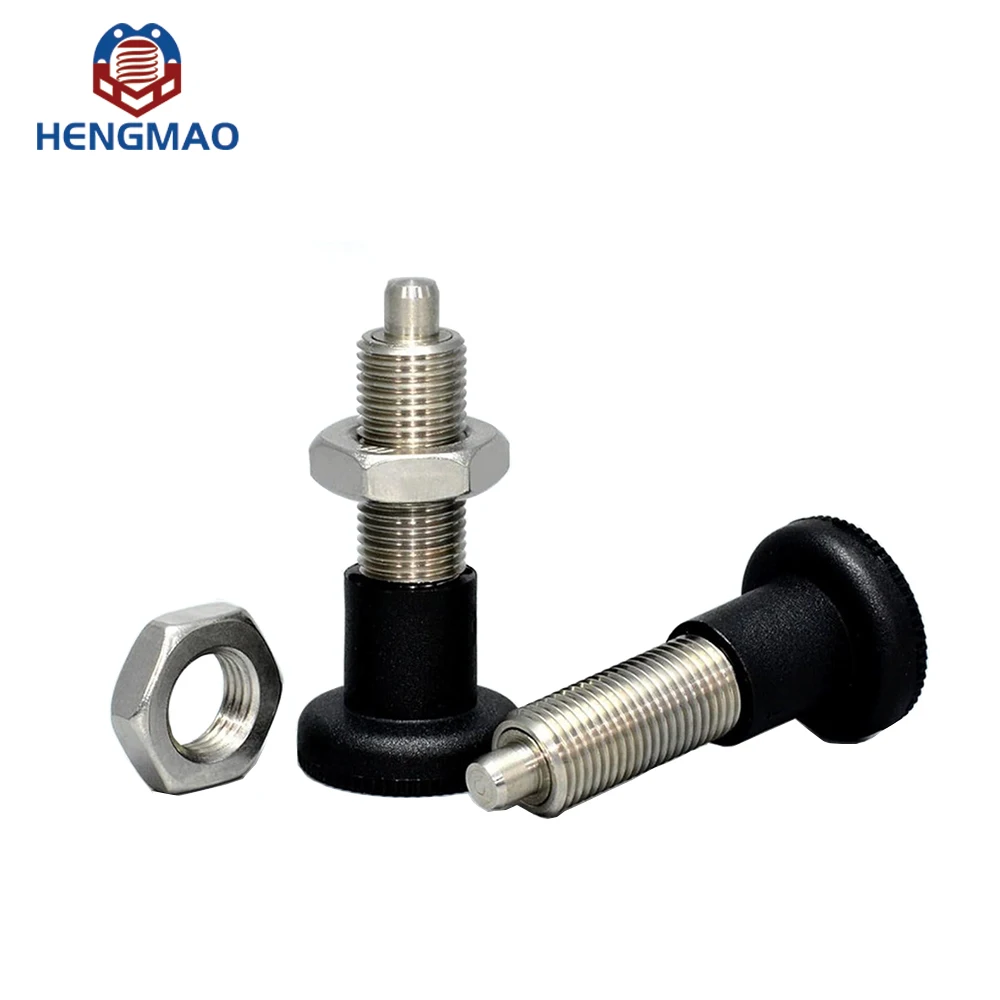

Factory Price M10 M12 M16 M20 Retractable Thread Indexing Plunger Pin
- Category: >>>
- Supplier: Wuxi Hengmao Metal Products Co. Ltd.
Share on (1601199057900):
Product Overview
Description

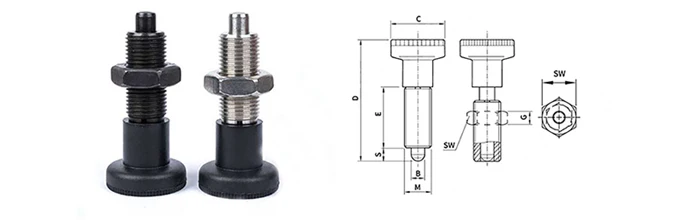

Product Specification
M | Fine Thread | B-0.02 -0.04 | S | C | D | E | G | SW |
M10 | 1 | 5 | 5 | 21 | 45 | 22 | 5 | 16 |
M12 | 1.5 | 6 | 6 | 25 | 54.5 | 26 | 6 | 19 |
M16 | 1.5 | 8 | 8 | 31 | 69 | 34 | 8 | 24 |
M20 | 1.5 | 10 | 10 | 31 | 80 | 41 | 10 | 29 |
Type | Thread | Handle | Main Body | Pin | Spring | Nut | ||||||
Reset | Material | Material | Finish | Material | Finish | Material | Material | Finish | ||||
Steel | Coarse | Aluminium | Steel | Black | Steel | Black | Stainless Steel | Steel | Black | |||
Stainless Steel | Stainless Steel | Plain | Stainless Steel | Plain | Stainless Steel | Plain | ||||||

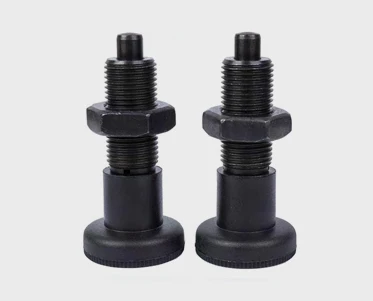

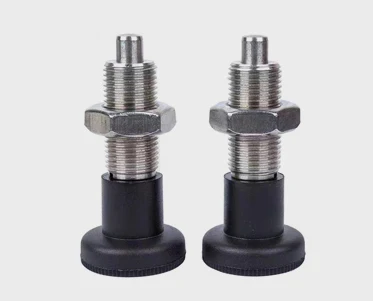

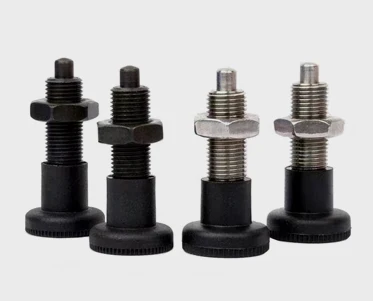

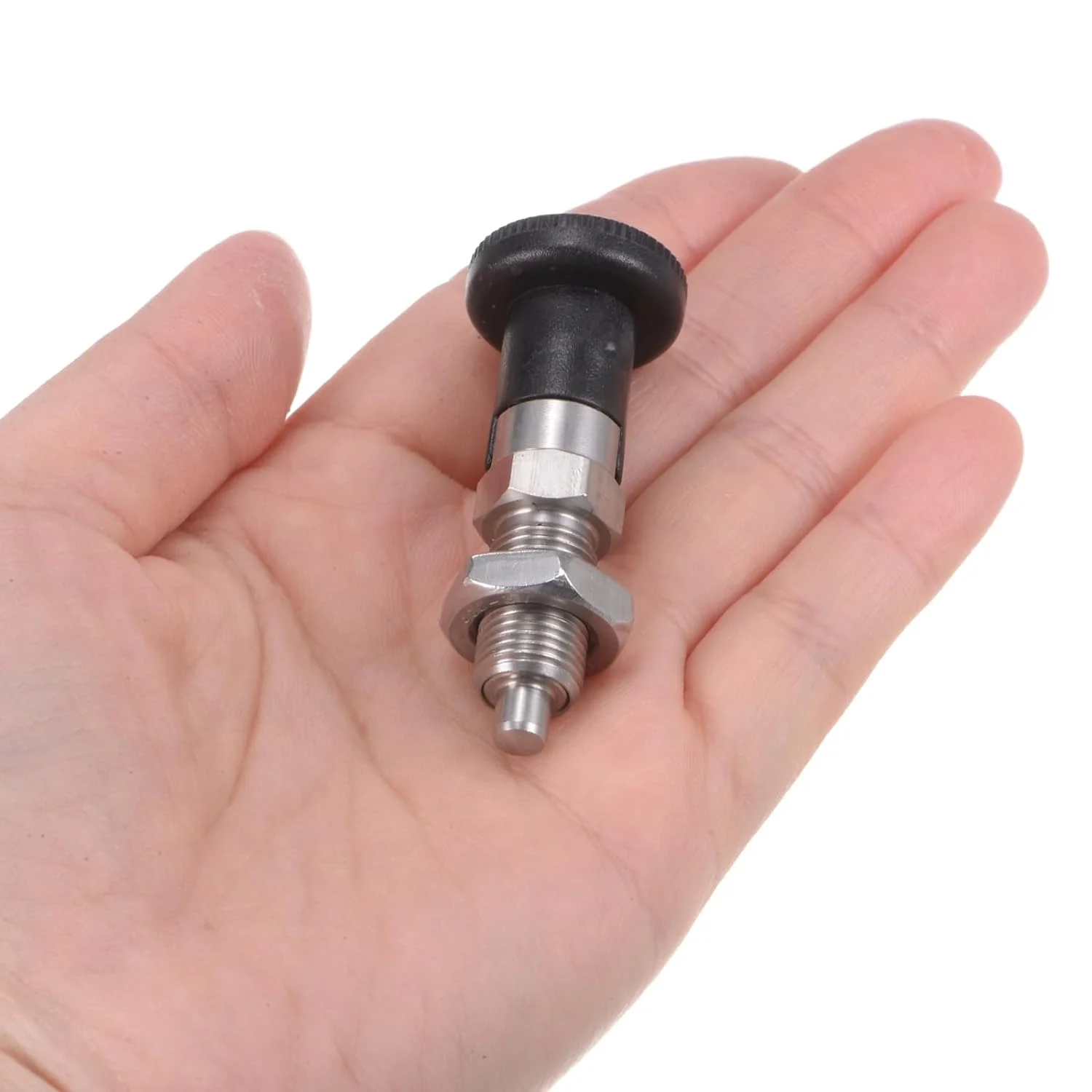

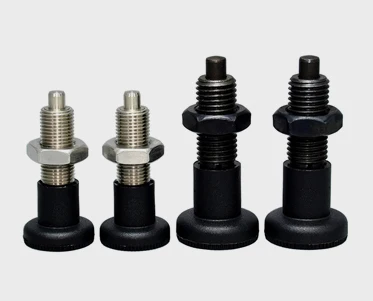

Product Display

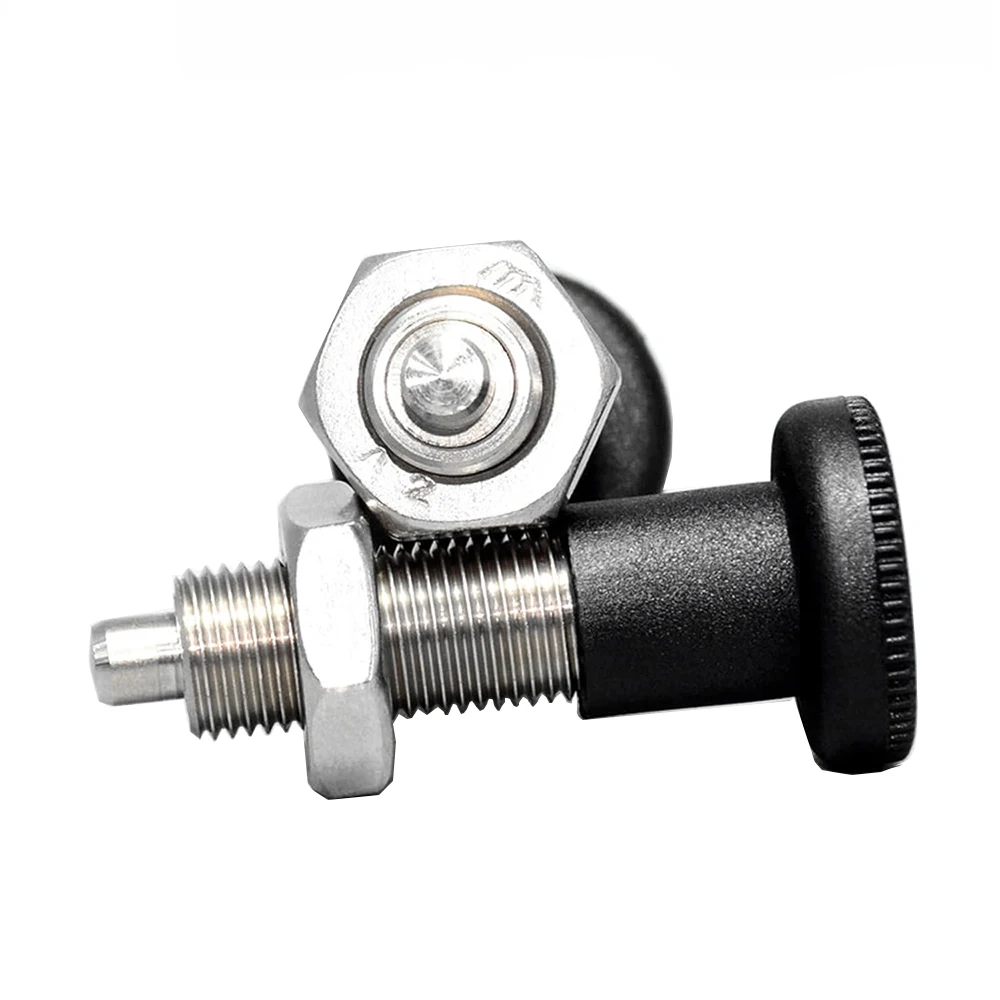

The plunger made of stainless steel gives it excellent durability and can withstand prolonged use without loss of function. It has the characteristics of wear resistance and corrosion resistance

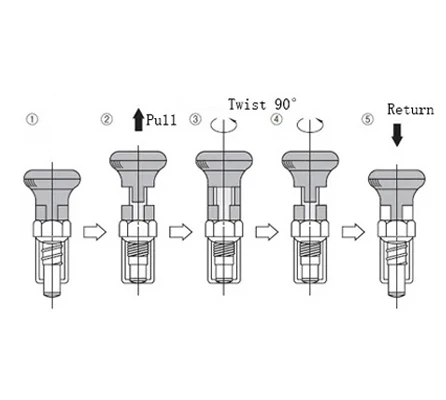

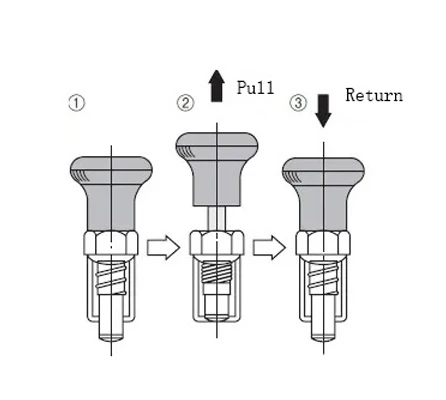

How to Use
1.These spring plungers have a long nose.
2.Retract the nose by pulling the knob.
3.If the knob is released,the long nose will return back the protrusion through the action of the built-in spring force.
3.If the knob is released,the long nose will return back the protrusion through the action of the built-in spring force.
1.These spring plungers have a long nose.
2.Retract the nose by pulling the knob.
3.If you rotate 90° while remaining pulled out,it will lock the retracted state of long nose.
4.To release the lock state, only rotate 90° while holding the pull out state.
5.If the knob is released,the long nose will return back.
3.If you rotate 90° while remaining pulled out,it will lock the retracted state of long nose.
4.To release the lock state, only rotate 90° while holding the pull out state.
5.If the knob is released,the long nose will return back.
