Quartered Spendle Collet Chuck RT CH04 3612 engraving machine chuck assembly lock hole btl chuck

Product Overview

Description

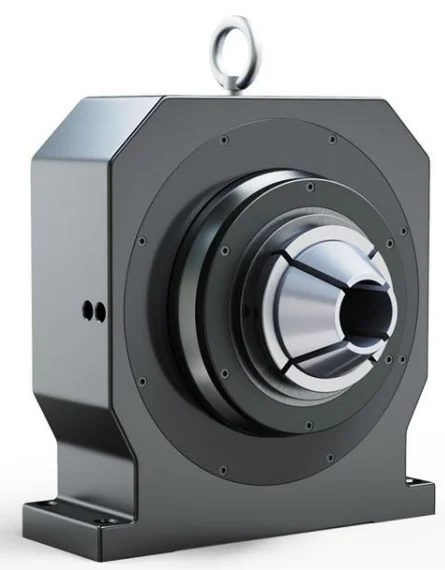

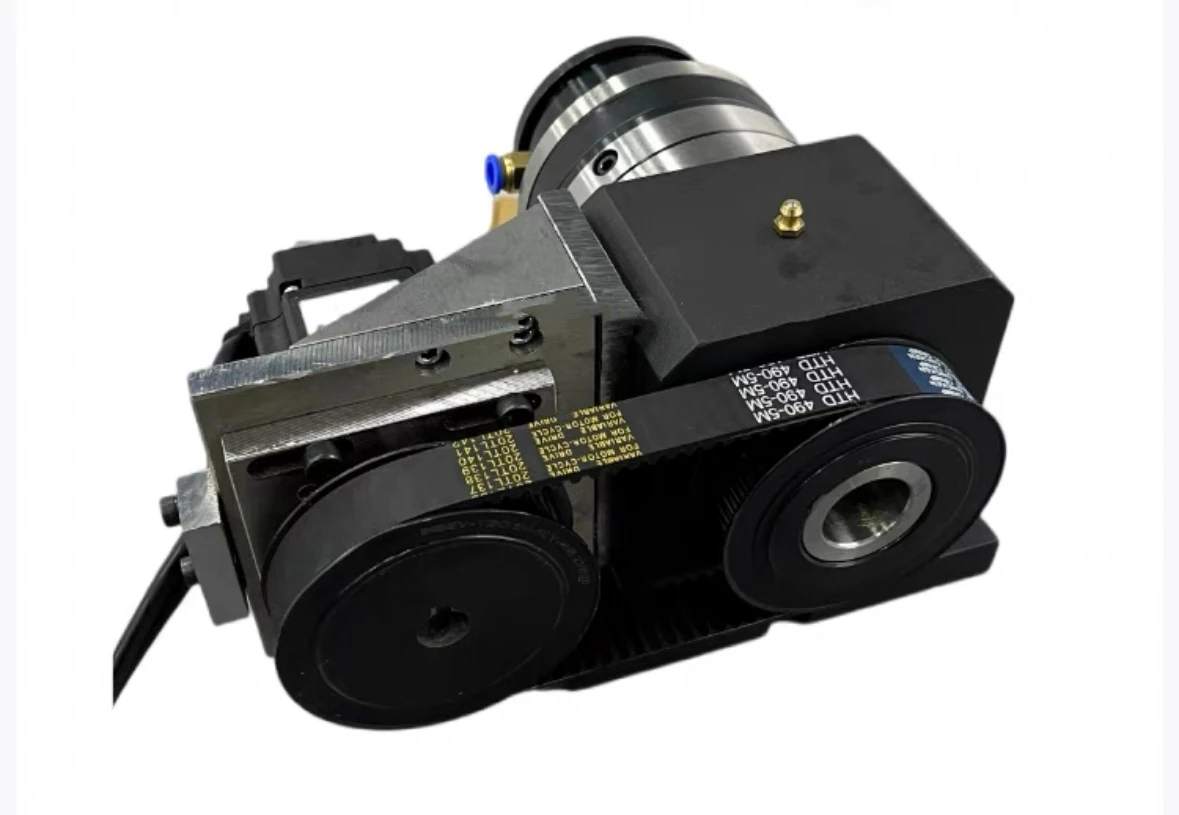

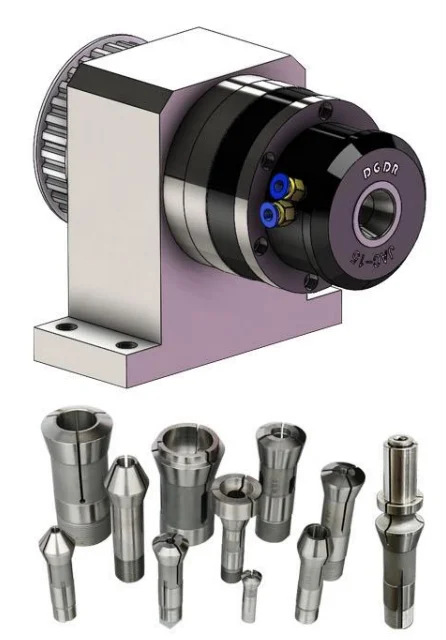

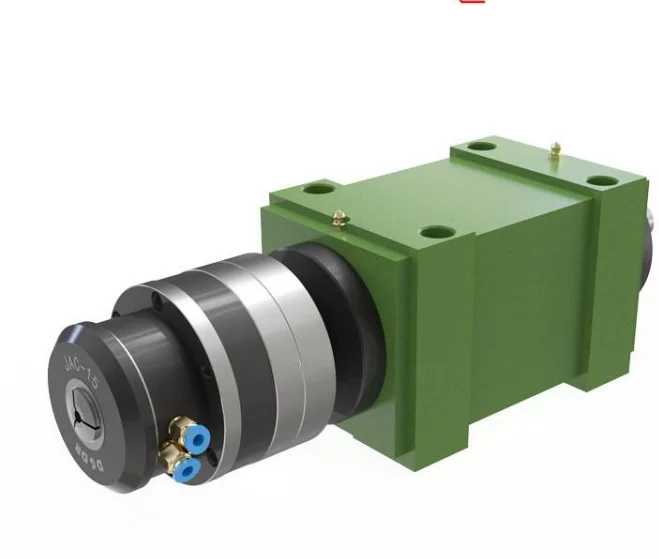

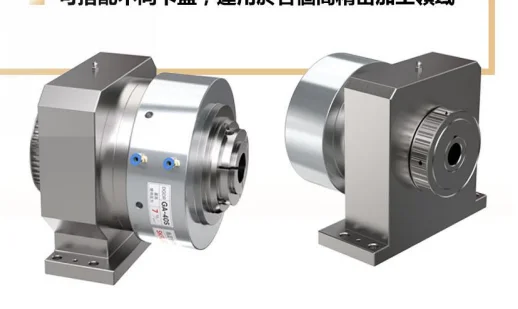

Hollow collet pneumatic chuck spindle assembly
Including components:

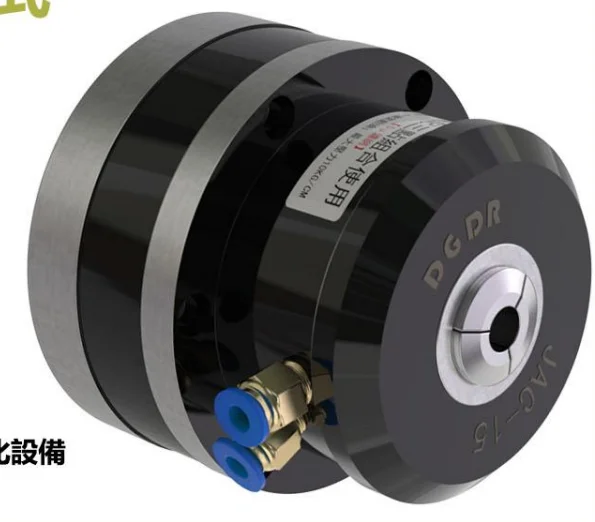

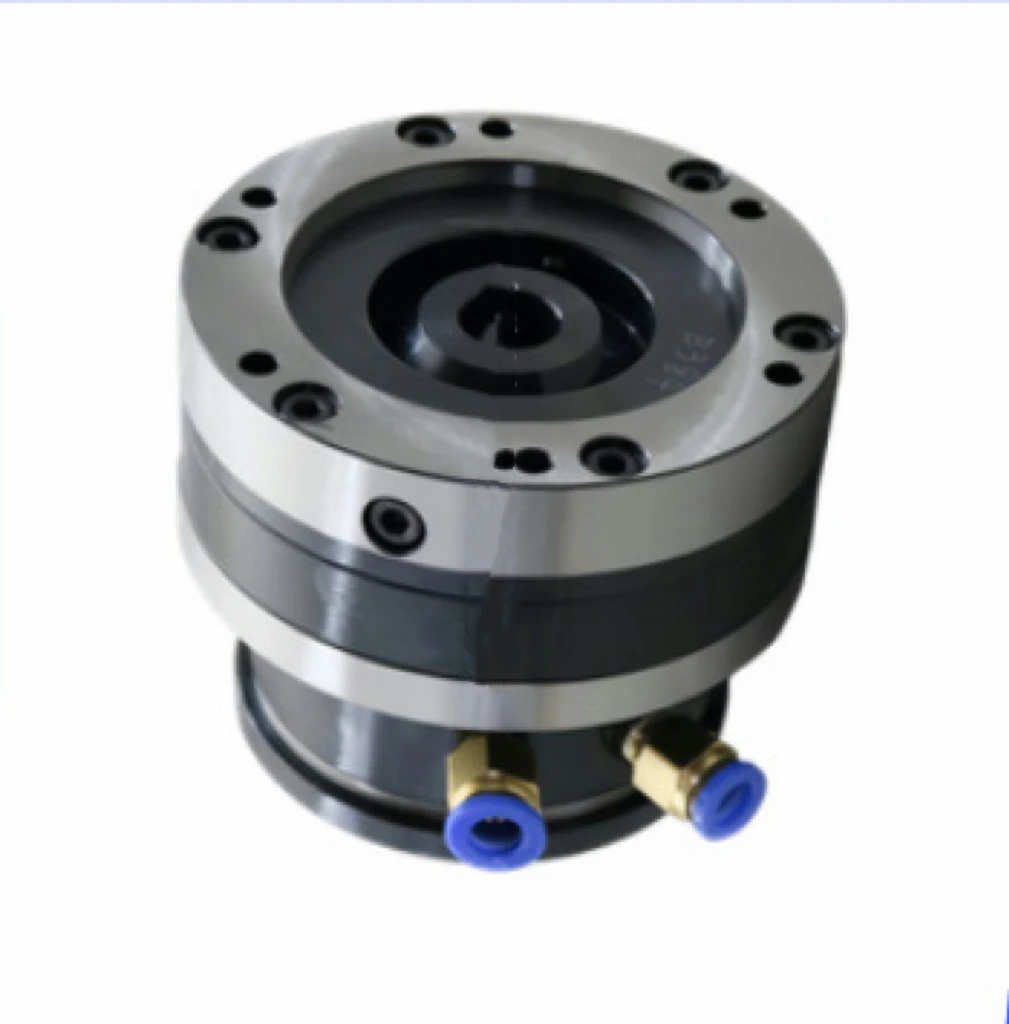

1. JAC-15 steel pneumatic chuck (clamping range 0-15mm)
2. YB-15 model collet (make the correct collet according to the size of your workpiece)

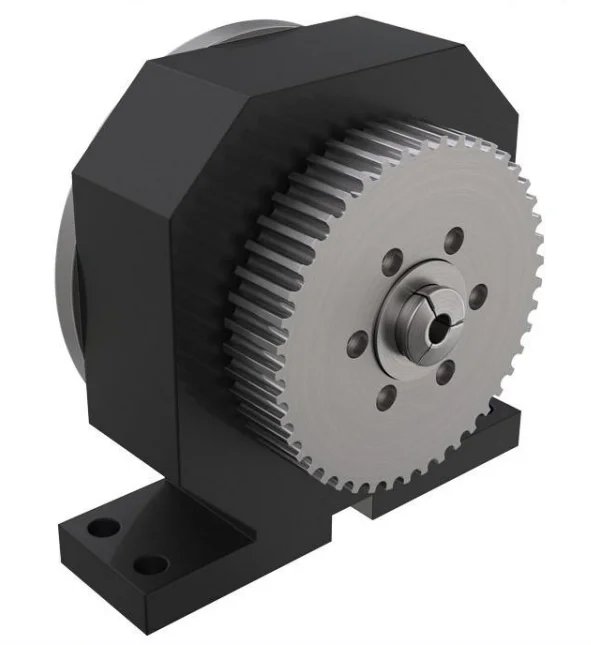

3. DR-25 spindle box
4. DR-25 adapter (connected to JAC-15)
5. Synchronous wheel -5M-50Y -=N40
6. 400W motor bracket sliding plate
7. Servo motor 60JASM504230K-17BCQ (400w)
8. Belt -5M (475mm)
9. Motor bracket (installing 400W motor)

The online quotation includes all the above components. If the order quantity is large, there will be a discount on the price

If the website drawings or images are unclear, you can contact us to request high-definition images.

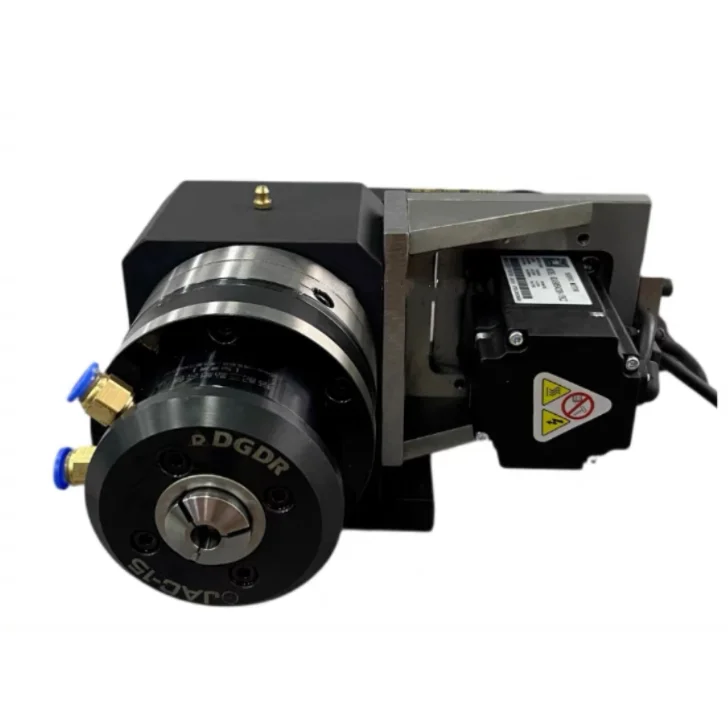

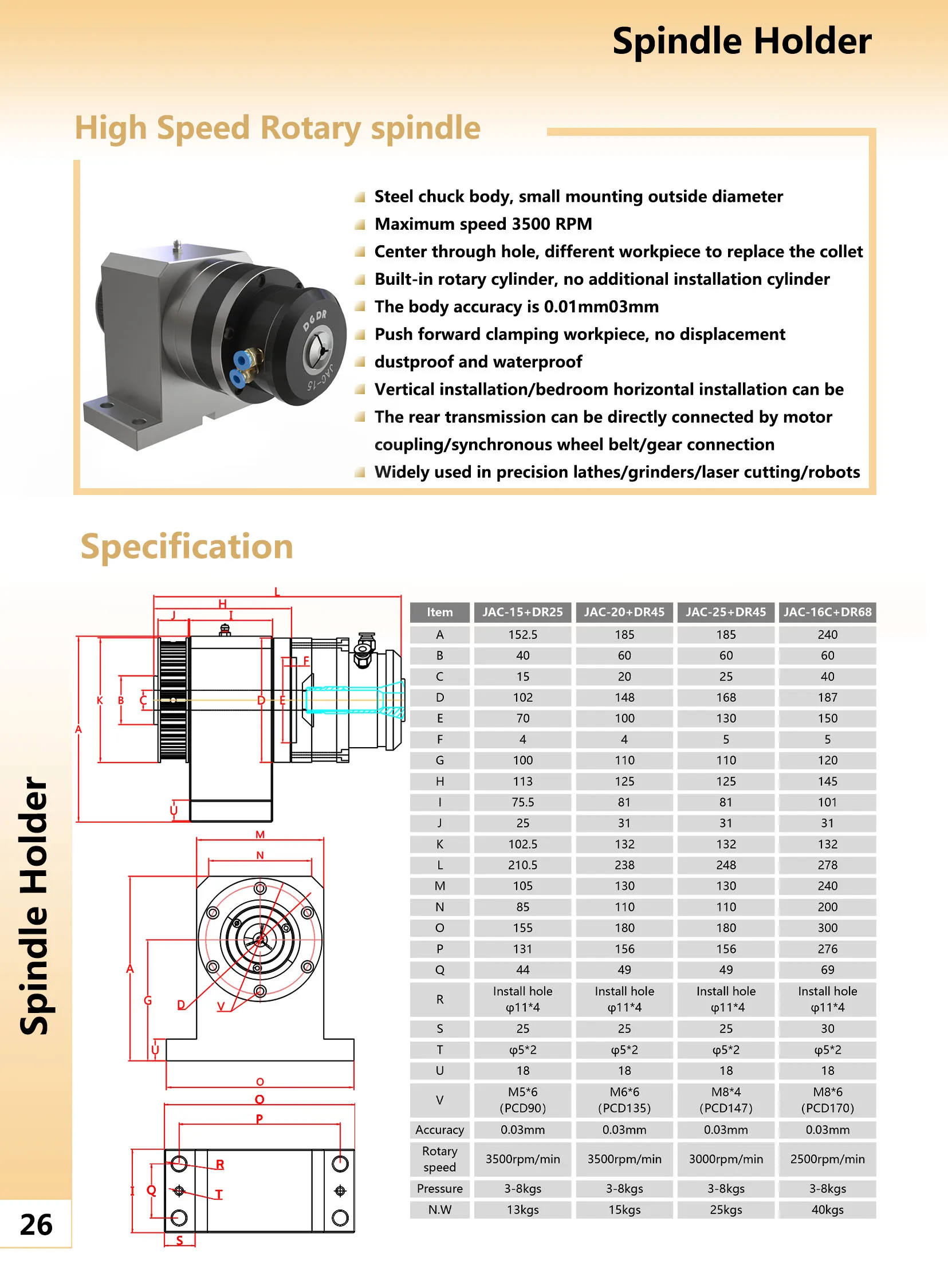

Drawing parameters including motor bracket and motor



Excluding the drawing parameters and functional introduction of the motor bracket

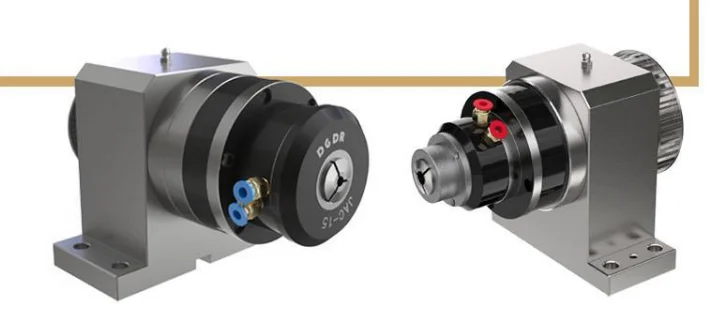

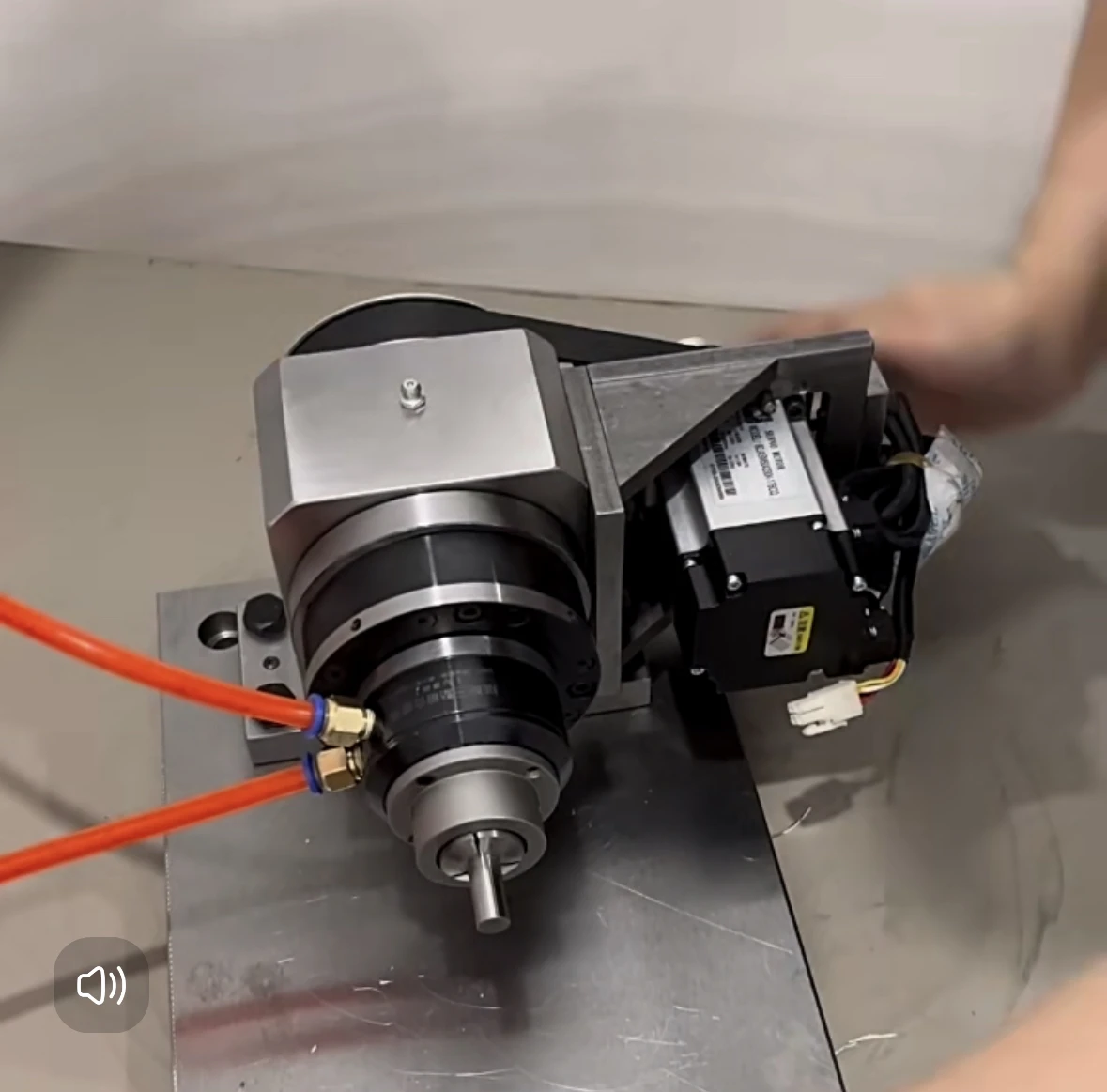

Image display

Application scenarios

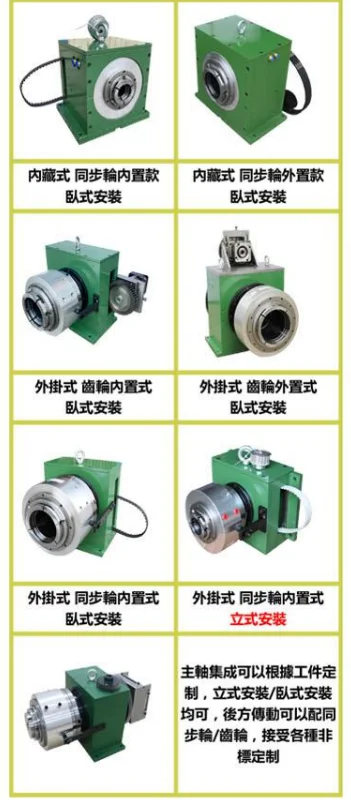

Multiple pneumatic chuck spindle assembly modes can be applied to machine tools such as laser cutting machines, CNC lathes, milling machines, machining centers, and grinders.

For example, if a workpiece with a length of 1000mm and a diameter of 10mm needs to be processed.
If applied on a milling machine, the usage method is:

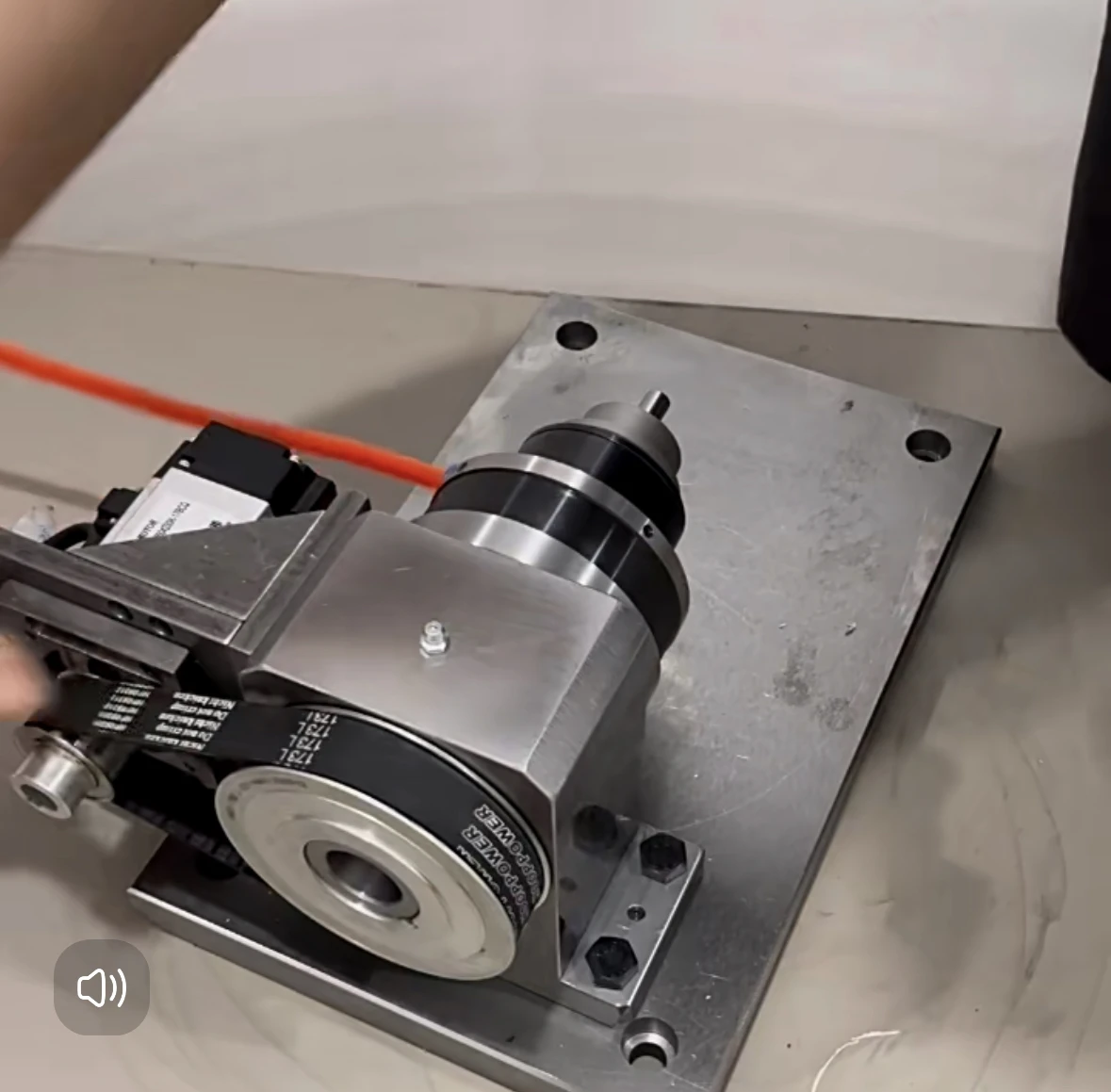

Install and fix the spindle box on the worktable of the milling machine, insert the workpiece from the front end of the JAC-15 chuck, and then run through the chuck and spindle box, extending from the tail end of the spindle box. Then, the pneumatic switch controls the clamping of the JAC-15 chuck, and the motor drives the pulley to drive it to the drive wheel on the spindle box, and then drives the JAC-15 chuck to rotate. Then start processing.

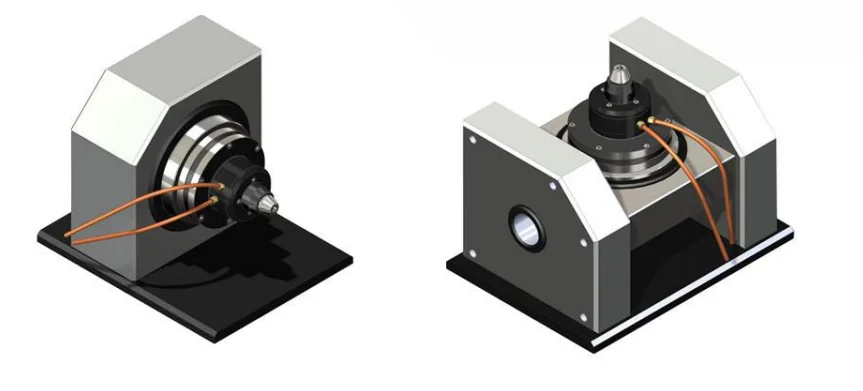

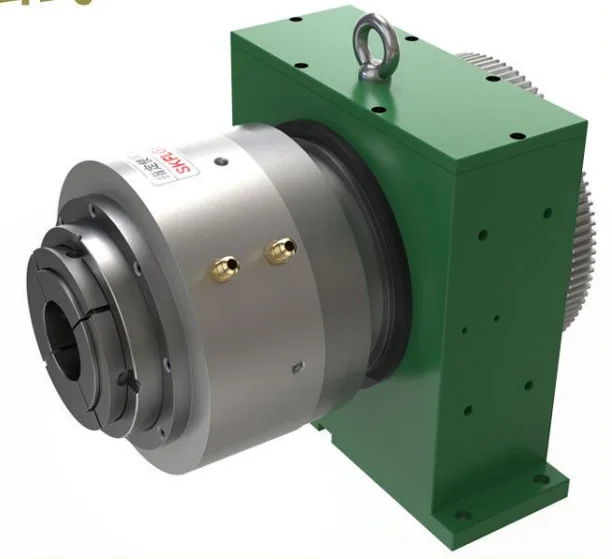

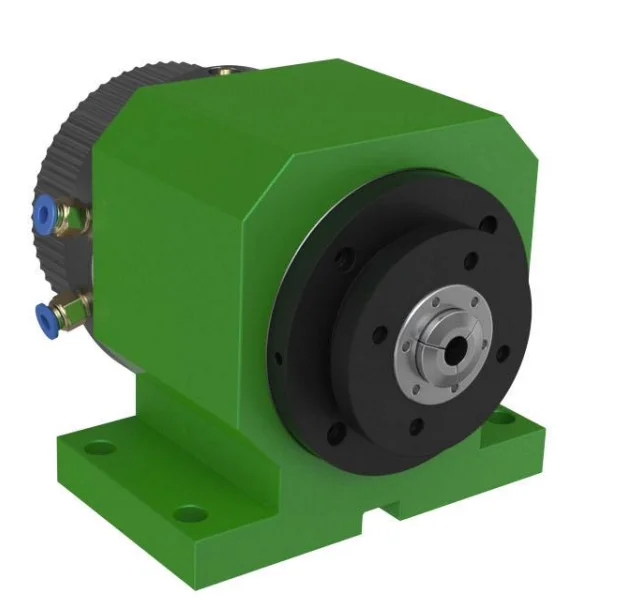

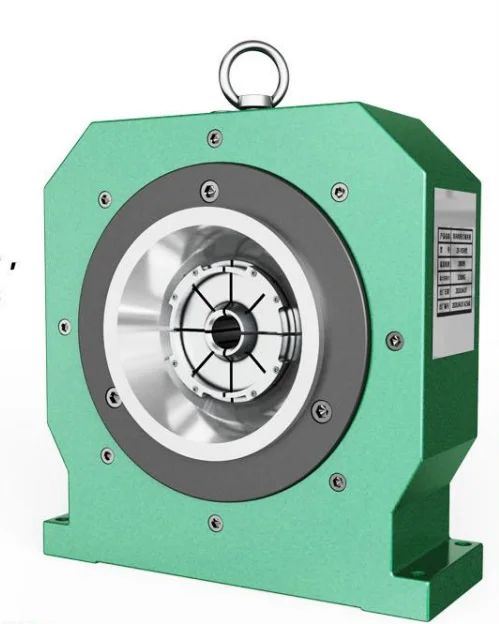

Other similar pneumatic collet chuck spindle assemblies
